        AWC15EFW

        Waveguide to Coax Adapter

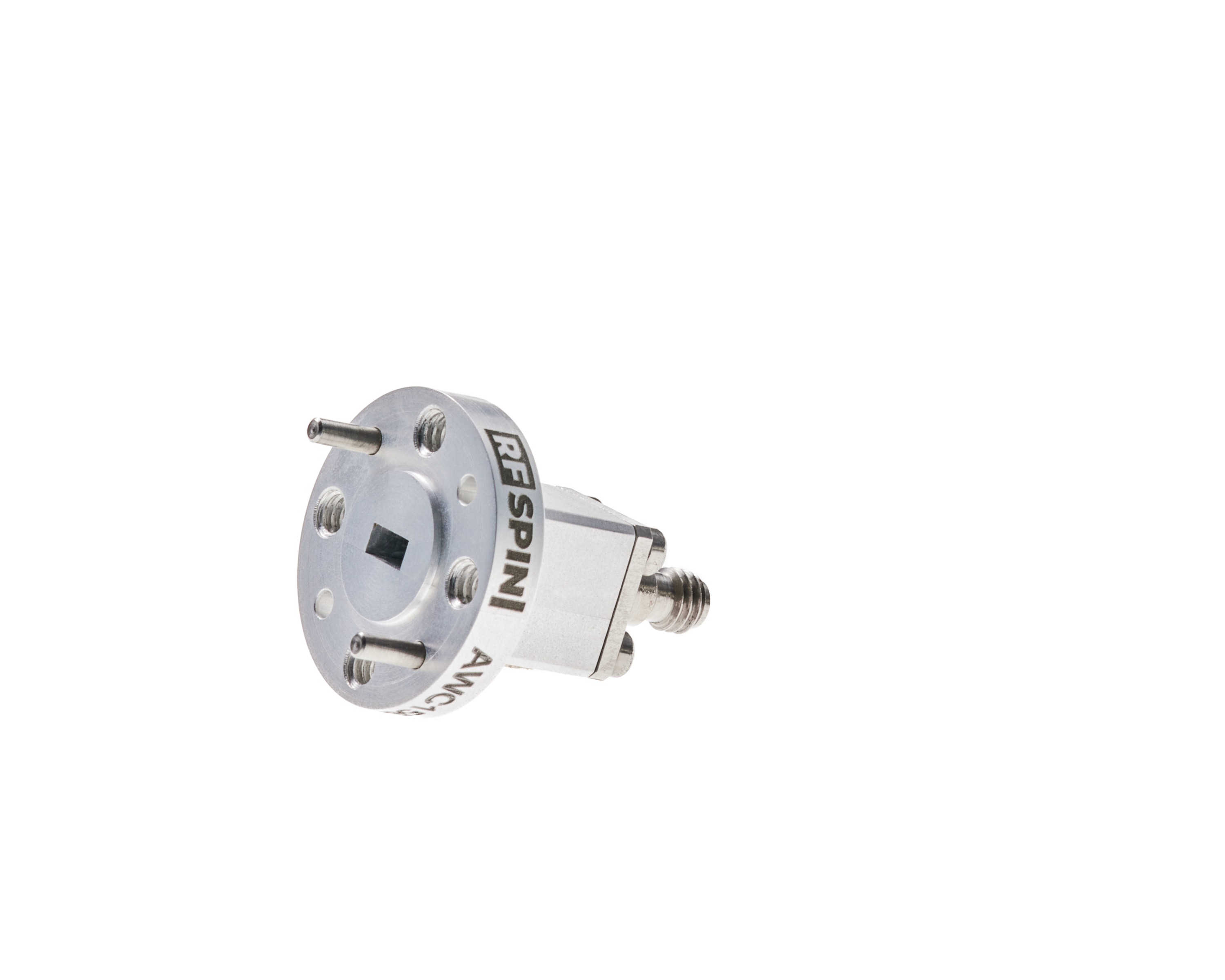

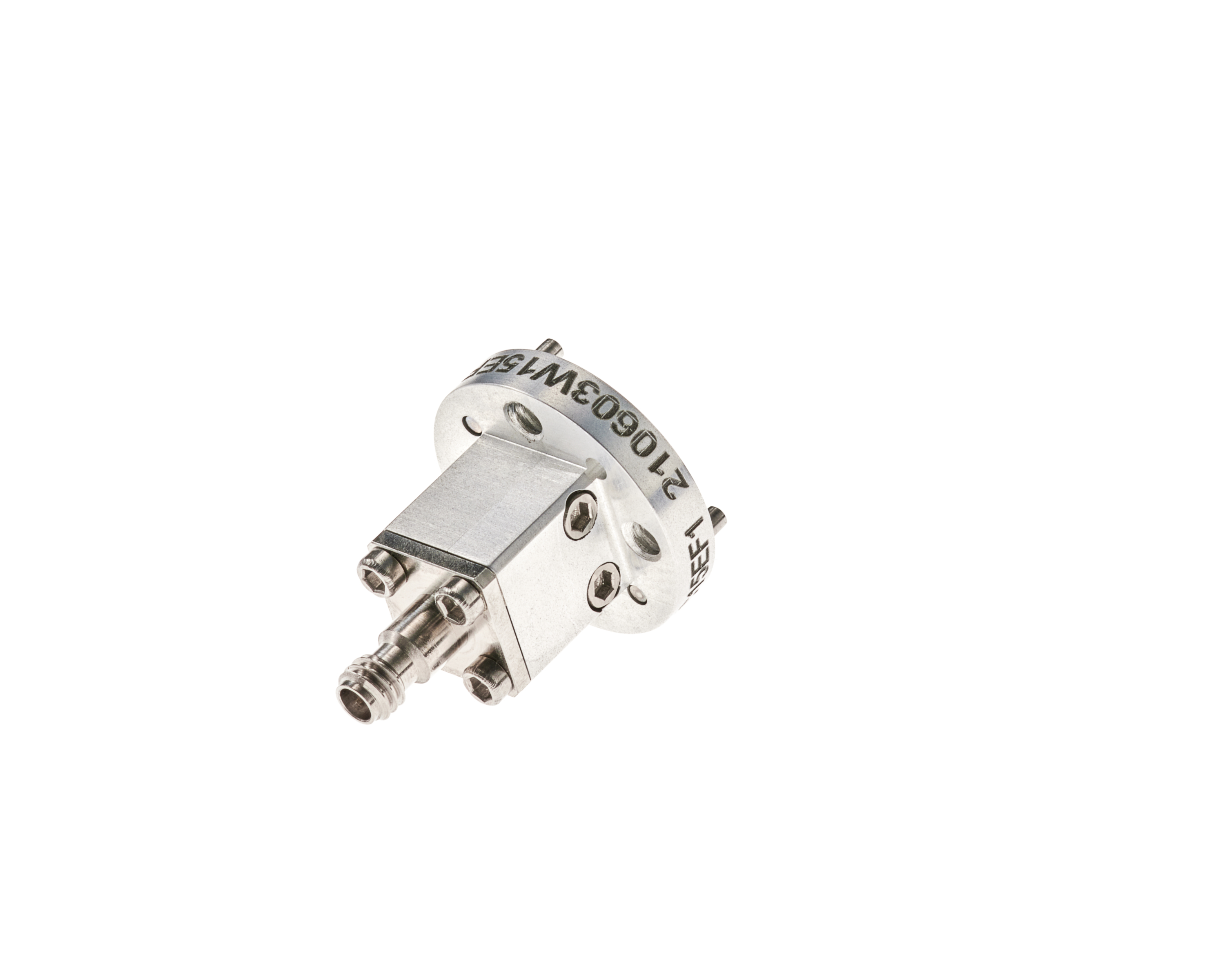

        This Waveguide to Coax Adapter AWC15EFW is manufactured with an end-launch design. RF SPIN is using only high-grade aluminum and design with the fewest components to ensure top quality and superb performance. This AWC15EFW has waveguide size WR-15 and flange. Using a great quality 1.00mm female connector that is 50 Ohm is a matter of course.

        Waveguide to Coax Adapter covers a frequency band from 50 GHz up to 75 GHz ensuring the extra performance of VSWR lower than 1.35 and low insertion loss.

        Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Corrosion-resistant coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality 1.0mm type coaxial connector

        Product Packaging Includes

        • Waveguide to Coax Adapter

        Product Parameters

        Product identification

        • Product Name AWC15EFW
        • Product Category Waveguide to Coax Adapter

        Electrical specifications

        • Frequency Range 50 GHz – 75 GHz
        • VSWR (max.) 1.35
        • VSWR (avg.) 1.25
        • Impedance 50 Ohm
        • Insertion Loss (max.) 0.6 dB
        • Connector 1.0mm (female)
        • Waveguide Size WR15
        • Waveguide Flange UG-385/U
        • Power (CW / Peak) 4 W / 8 W

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Parameters and Performance

        Typical parameters

        VSWR

        AWC15EFW - VSWR

        Packaging and Accessories

        What's in a box

        • AWC15EFW Device
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report
