        RF SPIN

        Broadband Antenna Solutions

        AWC10EFW

        Waveguide to Coax Adapter

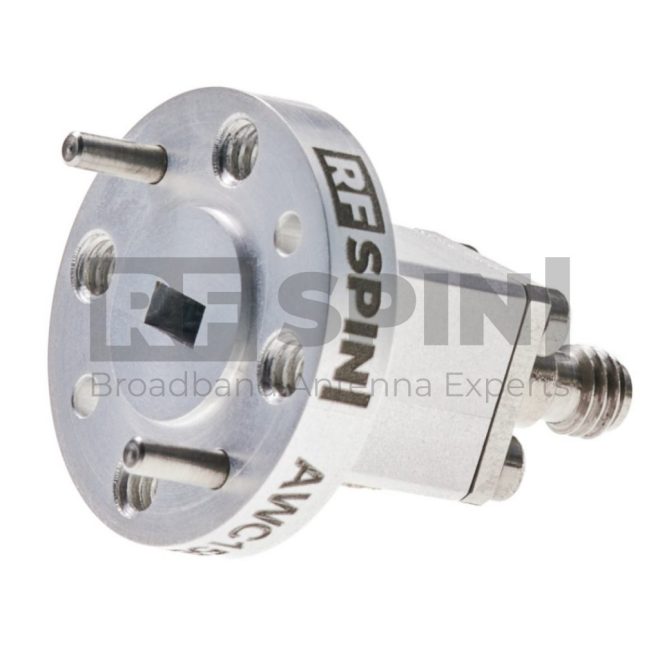

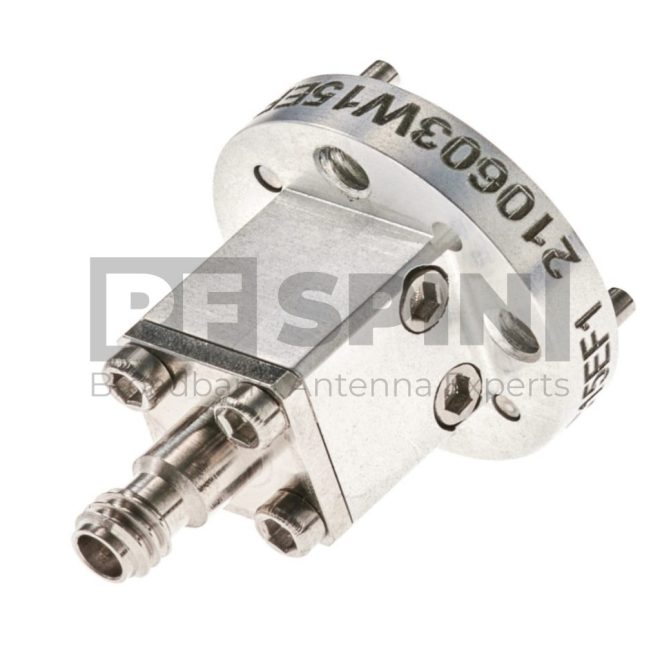

        This Waveguide to Coax Adapter AWC10EFW is manufactured with an end-launch design. RF SPIN is using only high-grade aluminum and design with the fewest components to ensure top quality and superb performance. This AWC10EFW has waveguide size WR-10 and flange. Using a great quality 1.00mm female connector that is 50 Ohm is a matter of course.

        Waveguide to Coax Adapter covers a frequency band from 75 GHz up to 110 GHz ensuring the extra performance of VSWR lower than 1.35 and low insertion loss.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Corrosion-resistant coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High qulity 1.0mm type coaxial connector

        Product Packaging Includes

        • Waveguide to Coax Adapter

        Product Parameters

        Product identification

        • Product Name AWC10EFW
        • Product Category Waveguide to Coax Adapter

        Electrical specifications

        • Frequency Range 75 GHz – 110 GHz

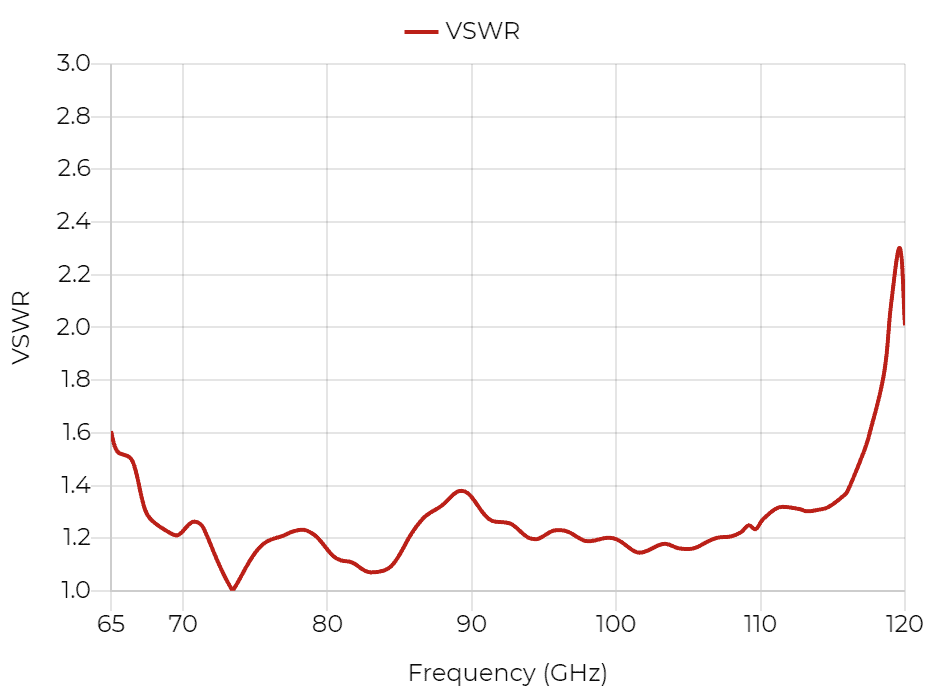

        • VSWR (max.) 1.35
        • VSWR (avg.) 1.25
        • Impedance 50 Ohm
        • Insertion Loss (max.) 0.6 dB
        • Connector 1.0mm
        • Waveguide Size WR10
        • Waveguide Flange UG-387/U flange
        • Power (CW / Peak) 4 W / 8 W
        • Polarization Linear

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Packaging and Accessories

        What's in a box

        • AWC10EFW Device
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report
