        RF SPIN

        Broadband Antenna Solutions

        H-A110-W25

        Pyramidal Horn Antenna

        Standard gain horn antenna with the possibility of two different surface finishes, Alodine 2040 or gold plated. H-A110-W standard gain horn antenna is made with precision and care with the latest technology to deliver accurate and reliable antenna measurements.  The operating frequency is from 75 GHz up to 110 GHz with a flat Gain of 25 dBi. The H-A110-W can be supplemented with a corresponding Waveguide to Coax Adapter here. Compliant with NRL-4433 standard.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Low return loss

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Gold plated coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable

        Product Packaging Includes

        • Standard gain horn antenna

        Product Parameters

        Product identification

        • Product Name H-A110-W25
        • Product Category Pyramidal Horn Antenna

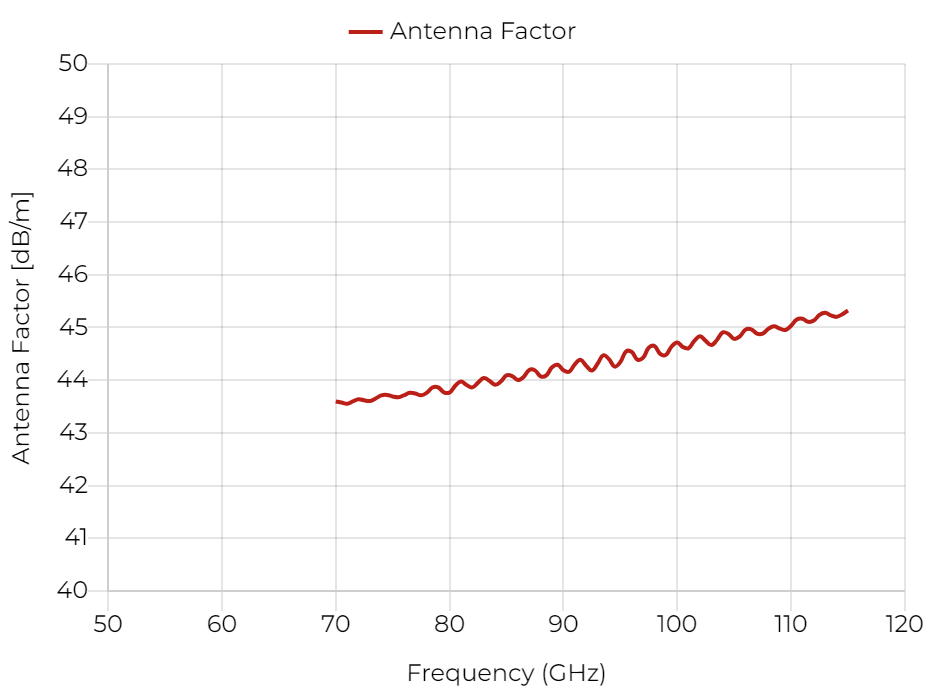

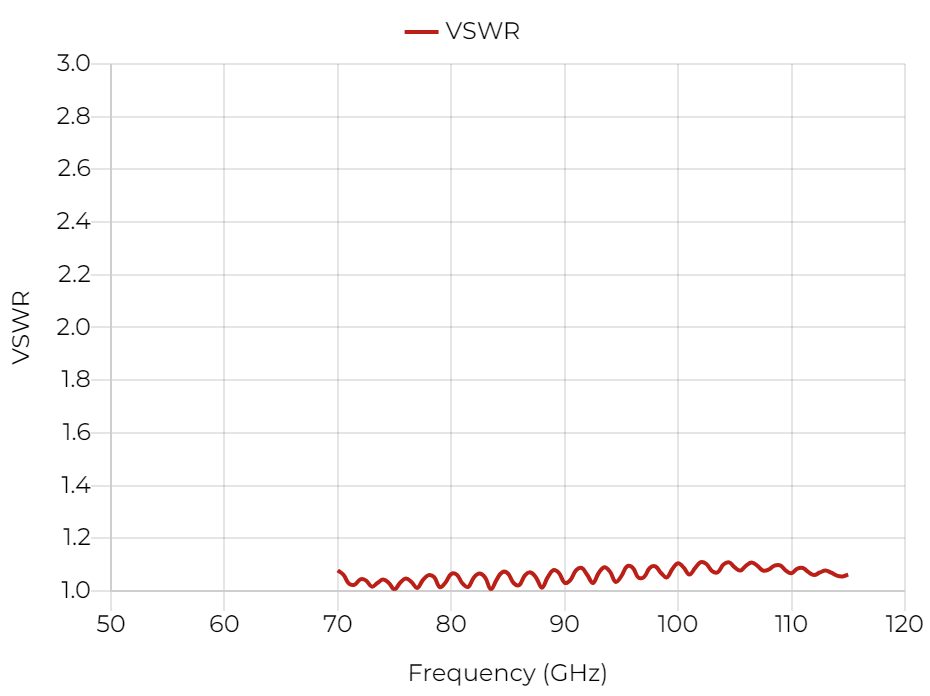

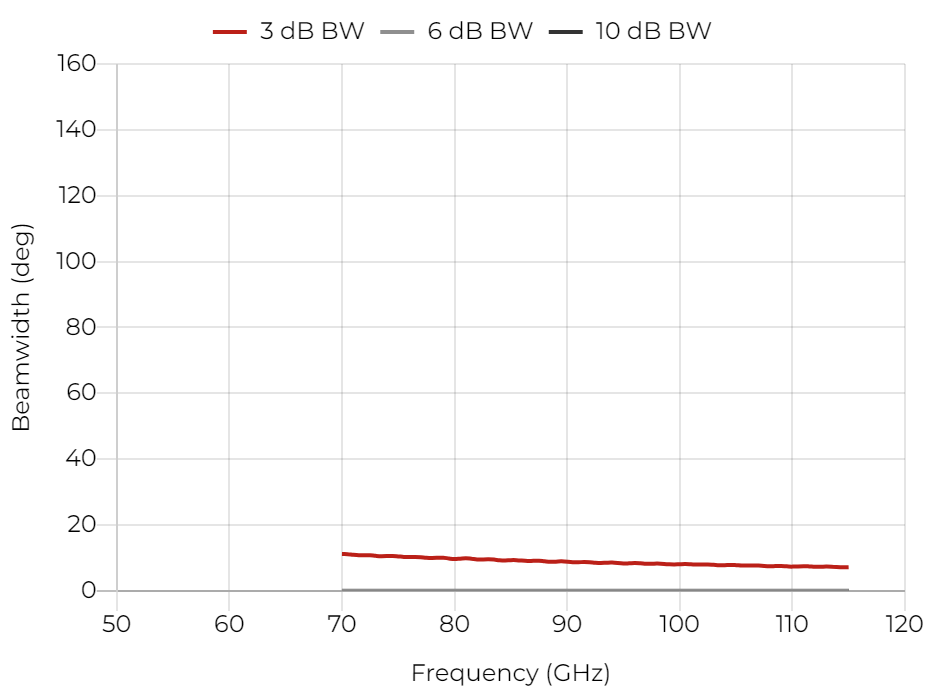

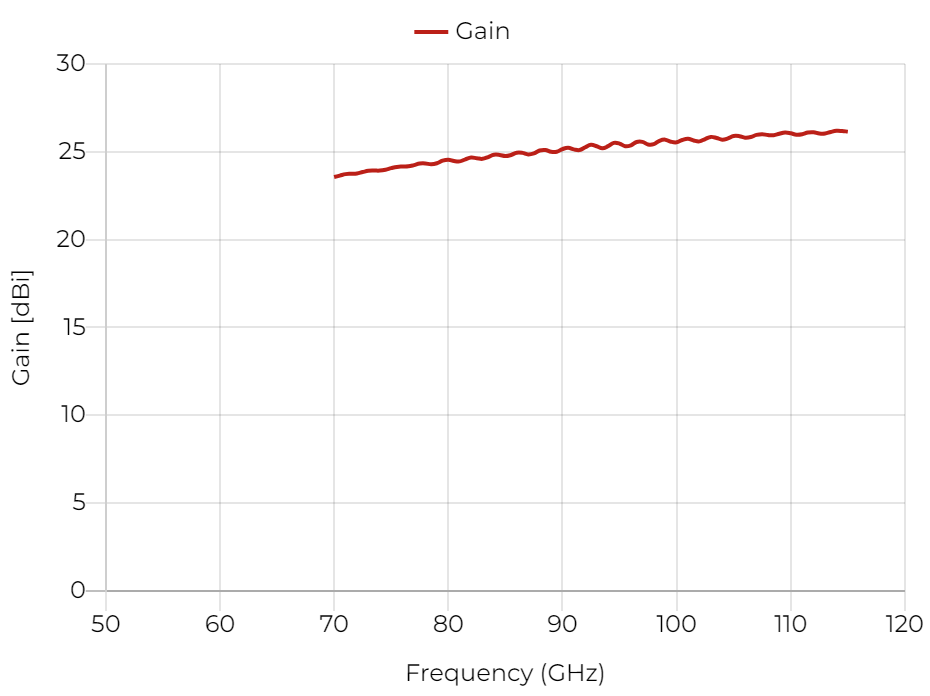

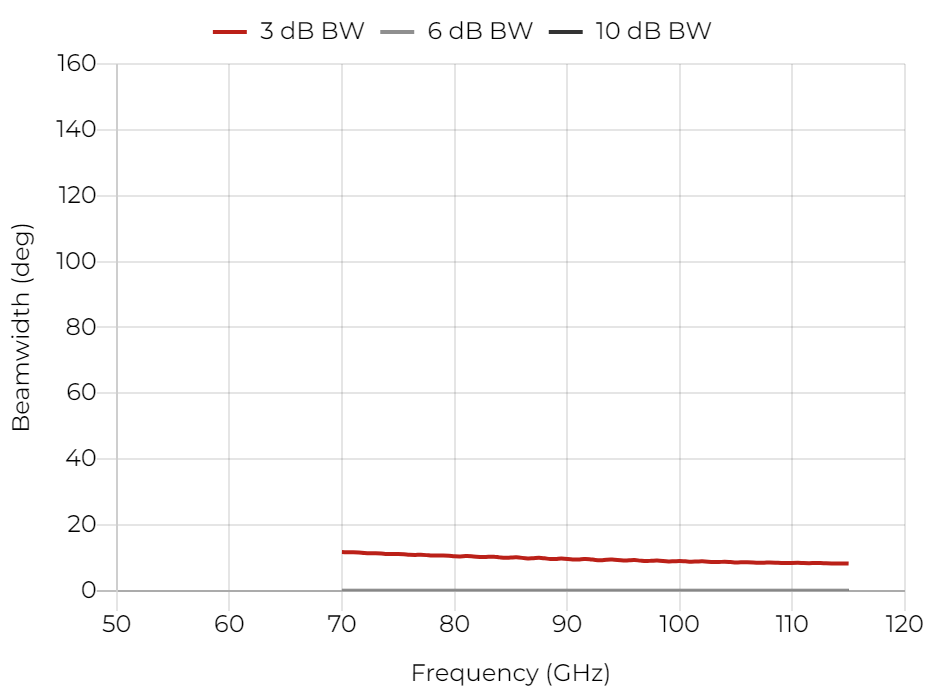

        Electrical specifications

        • Frequency Range 75 GHz – 110 GHz
        • VSWR (max.) 1.15
        • VSWR (avg.) 1.1
        • Waveguide Size WR10
        • Waveguide Flange UG-387/U flange
        • Polarization Linear

        Physical specifications

        • Width 27.8 mm (1.094 in)
        • Height 21.4 mm (0.843 in)
        • Depth 68.8 mm (2.709 in)
        • Weight 0.056 kg (0.123 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Packaging and Accessories

        What's in a box

        • H-A110-W25 Antenna

        Accessories

        • Standard mounting flange

        Custom services

        • Custom mounting solutions
        • Custom calibration data
