        RF SPIN

        Broadband Antenna Solutions

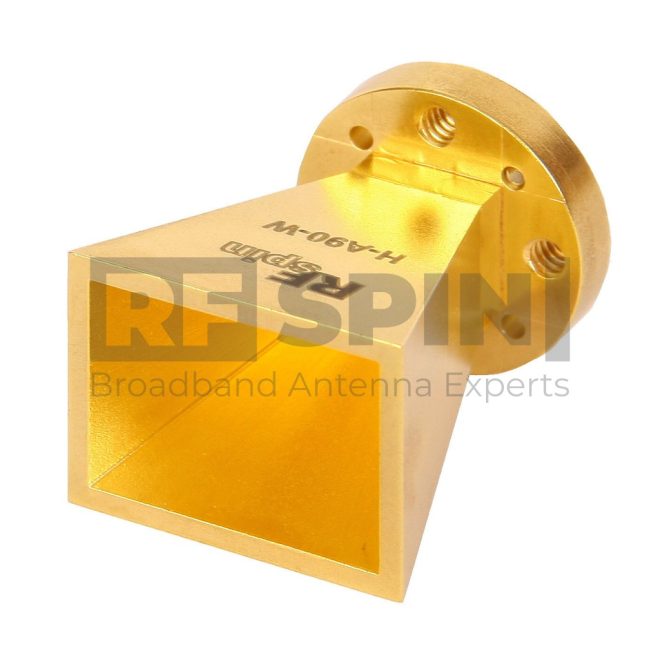

        H-A90-W20

        Pyramidal Horn Antenna

        Standard gain horn antenna with the possibility of two different surface finishes, Alodine 2040 or gold plated. H-A90-W20 standard gain horn antenna is made with precision and care with the latest technology to deliver accurate and reliable antenna measurements.  The operating frequency is from 60 GHz up to 90 GHz with a flat Gain of 20 dBi. The H-A90-W20 can be supplemented with a corresponding Waveguide to Coax Adapter here. Compliant with NRL-4433 standard.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Gold plated coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable

        Product Packaging Includes

        • Standard gain horn antenna

        Product Parameters

        Product identification

        • Product Name H-A90-W20
        • Product Category Pyramidal Horn Antenna

        Electrical specifications

        • Frequency Range 60 GHz – 90 GHz
        • VSWR (max.) 1.15
        • VSWR (avg.) 1.1
        • Waveguide Size WR12
        • Waveguide Flange UG-387/U flange
        • Polarization Linear

        Physical specifications

        • Width 21.6 mm (0.850 in)
        • Height 16.6 mm (0.654 in)
        • Depth 27.7 mm (1.091 in)
        • Weight 0.026 kg (0.057 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Packaging and Accessories

        What's in a box

        • H-A90-W20 Antenna

        Accessories

        • Standard mounting flange

        Custom services

        • Custom mounting solutions
        • Custom calibration data
