        H-A110-W

        Pyramidal Horn Antenna

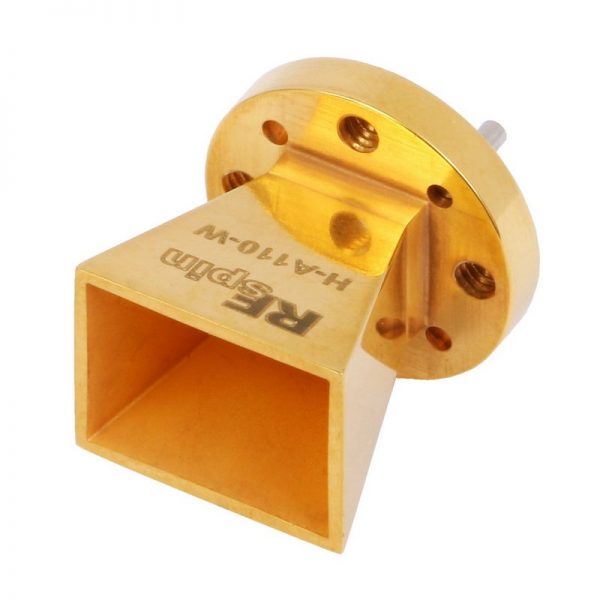

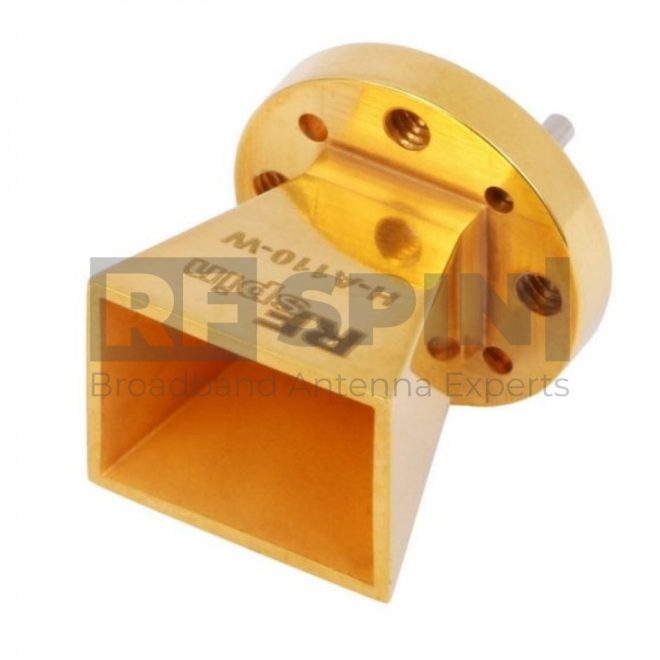

        Standard gain horn antenna with the possibility of two different surface finishes, Alodine 2040 or gold plated. H-A110-W standard gain horn antenna is made with precision and care with the latest technology to deliver accurate and reliable antenna measurements.  The operating frequency is from 75 GHz up to 110 GHz with a flat Gain of 20 dBi. The H-A110-W can be supplemented with a corresponding Waveguide to Coax Adapter here. Compliant with NRL-4433 standard.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Gold plated coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable

        Product Packaging Includes

        • Standard gain horn antenna

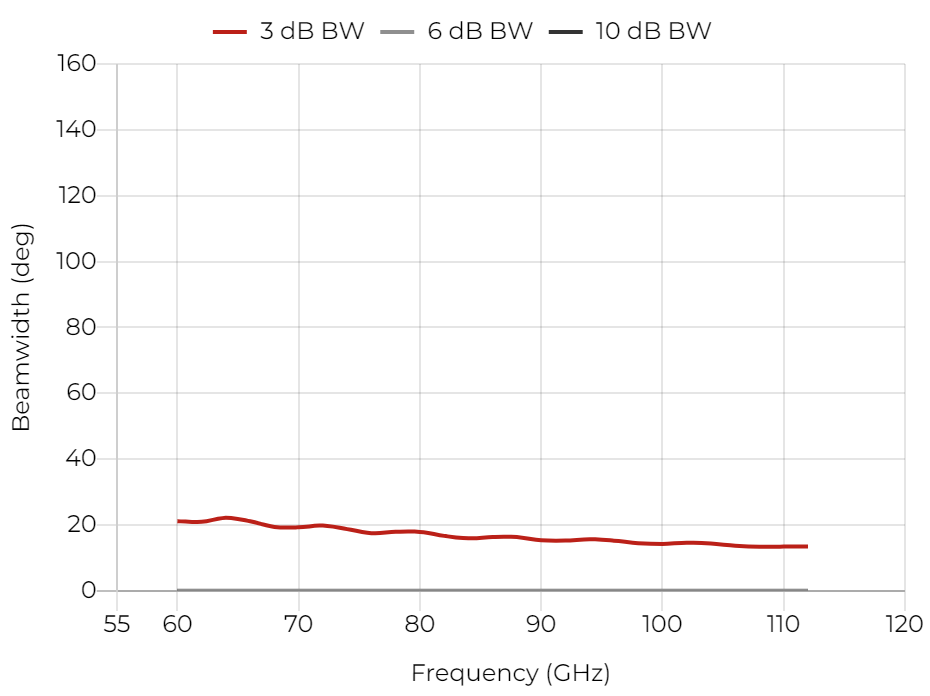

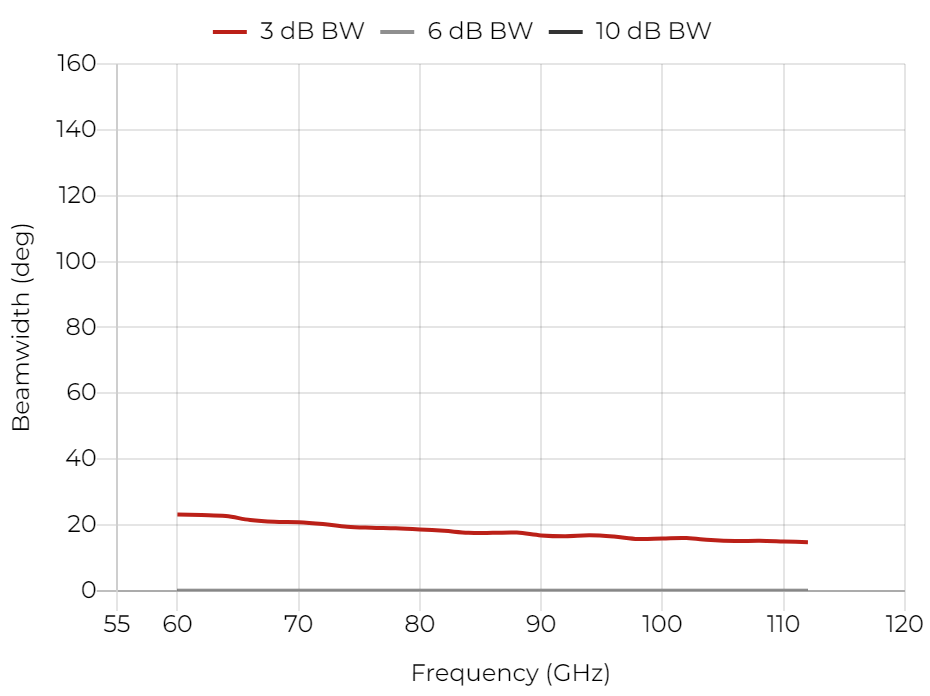

        Product Parameters

        Product identification

        • Product Name H-A110-W
        • Product Category Pyramidal Horn Antenna

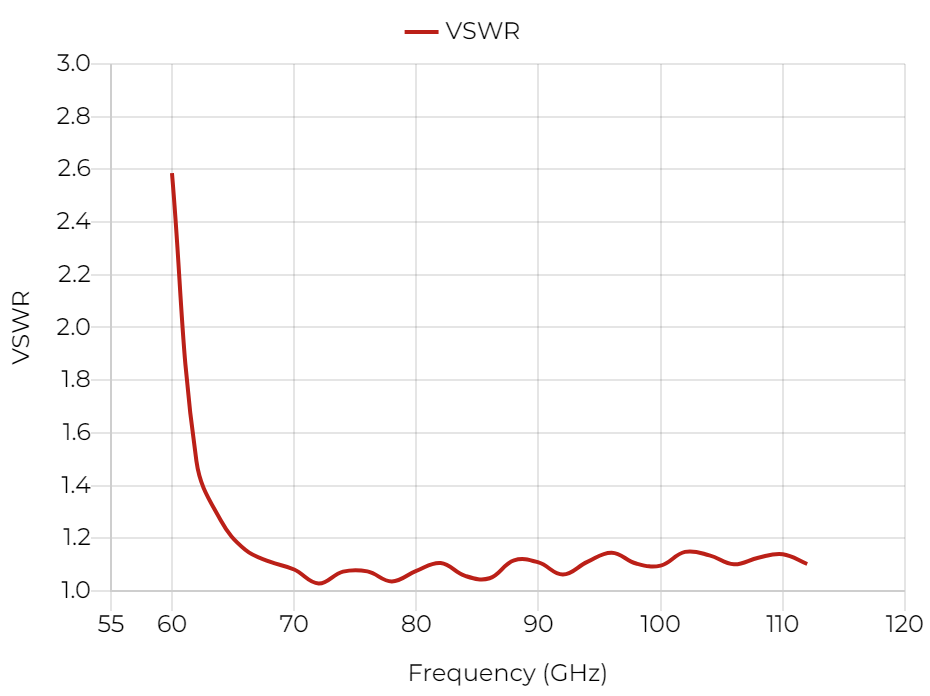

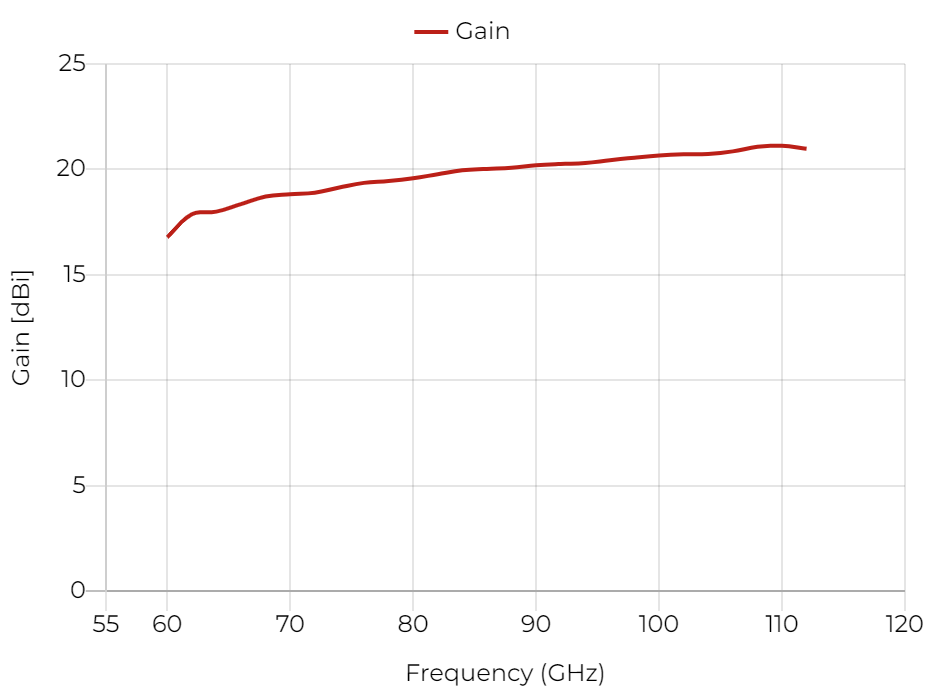

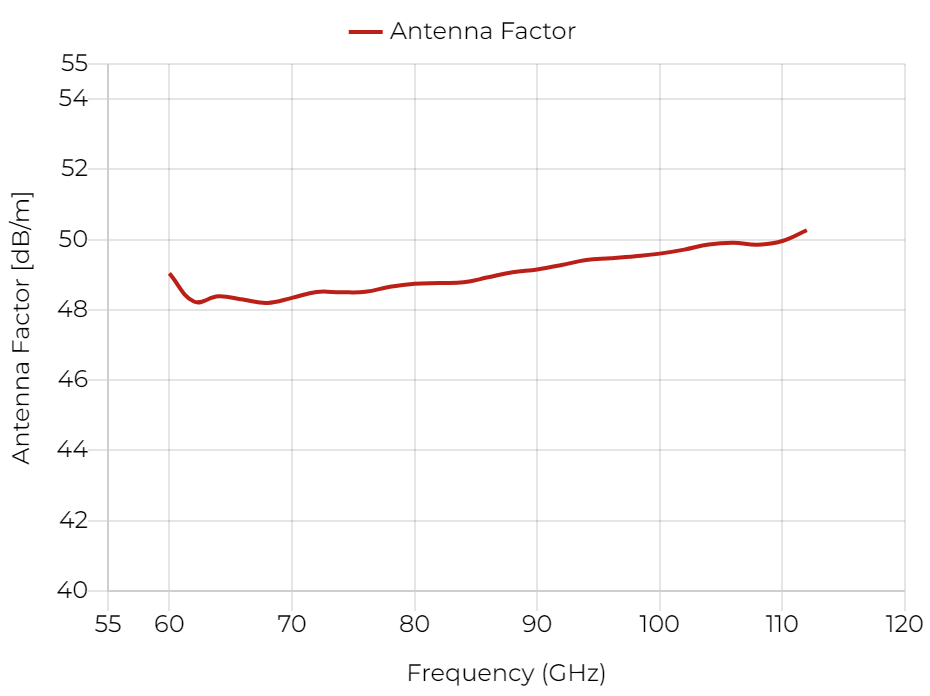

        Electrical specifications

        • Frequency Range 75 GHz – 110 GHz
        • VSWR (max.) 1.18
        • VSWR (avg.) 1.1
        • Waveguide Size WR10
        • Waveguide Flange UG-387/U flange
        • Polarization Linear

        Physical specifications

        • Width 17.9 mm (0.705 in)
        • Height 14.3 mm (0.563 in)
        • Depth 22.9 mm (0.902 in)
        • Weight 0.018 kg (0.040 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Packaging and Accessories

        What's in a box

        • H-A110-W Antenna

        Accessories

        • Standard mounting flange

        Custom services

        • Custom mounting solutions
        • Custom calibration data

        Other Similar Products

        H-A110-W25
        H-A110-W25
        Pyramidal Horn Antenna
        Frequency Range

        75 GHz – 110 GHz

        VSWR (avg.)

        1.1

        Polarization

        Linear

        H-A90-W
        H-A90-W
        Pyramidal Horn Antenna
        Frequency Range

        60 GHz – 90 GHz

        VSWR (avg.)

        1.1

        Polarization

        Linear

        DRH110
        Highest frequency model
        5G
        DRH110
        Double Ridged Horn Antenna
        Frequency Range

        14 GHz – 110 GHz

        VSWR (avg.)

        1.4

        Impedance

        50 Ohm

        Connector

        1.0mm

        Power (CW / Peak)

        4 W / 8 W

        Polarization

        Linear
