        H-A90-W25

        Pyramidal Horn Antenna

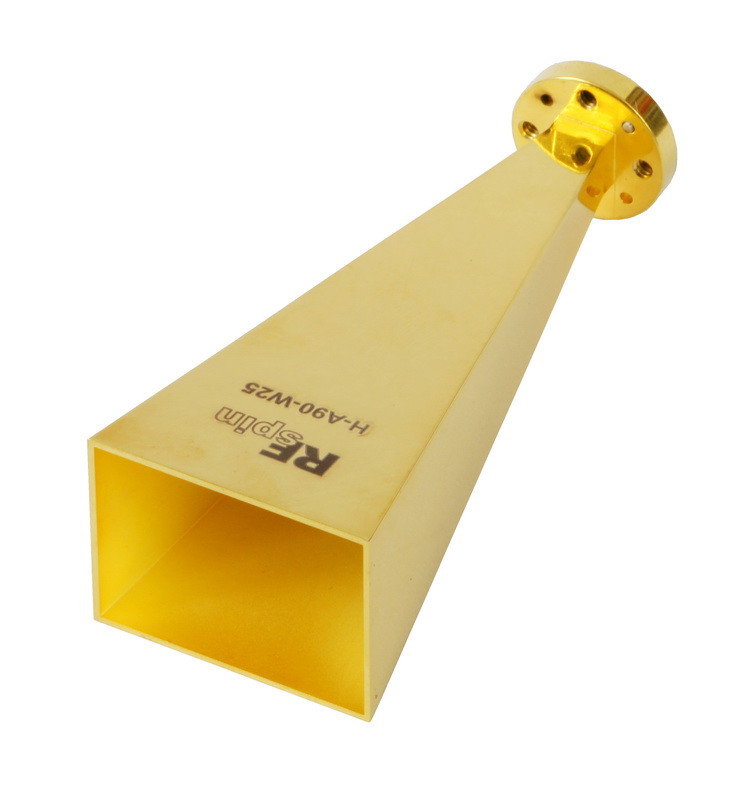

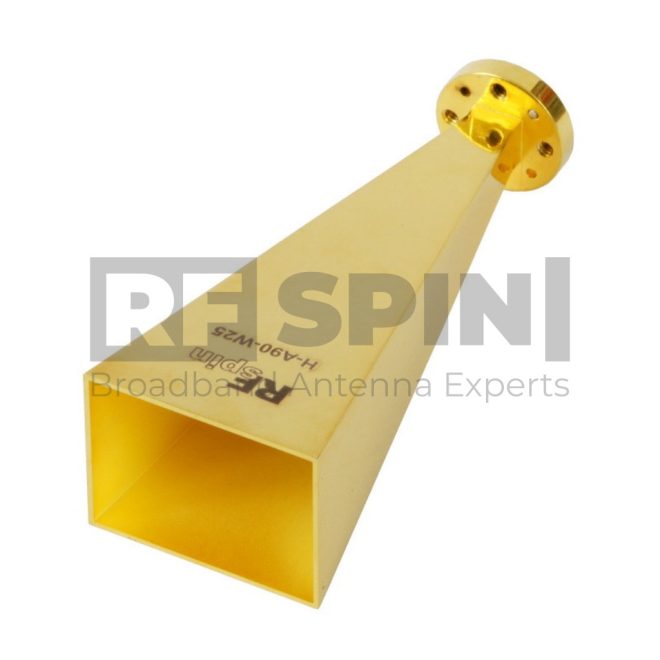

        Standard gain horn antenna with the possibility of two different surface finishes, Alodine 2040 or gold plated. H-A90-W standard gain horn antenna is made with precision and care with the latest technology to deliver accurate and reliable antenna measurements.  The operating frequency is from 60 GHz up to 90 GHz with a flat Gain of 25 dBi. The H-A90-W can be supplemented with a corresponding Waveguide to Coax Adapter here. Compliant with NRL-4433 standard.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss

        Design and Surface Treatment

        • Corrosion-resistant coating

        Manufacturing Technology

        • Extremely durable

        Product Packaging Includes

        • Antenna

        Product Parameters

        Product identification

        • Product Name H-A90-W25
        • Product Category Pyramidal Horn Antenna

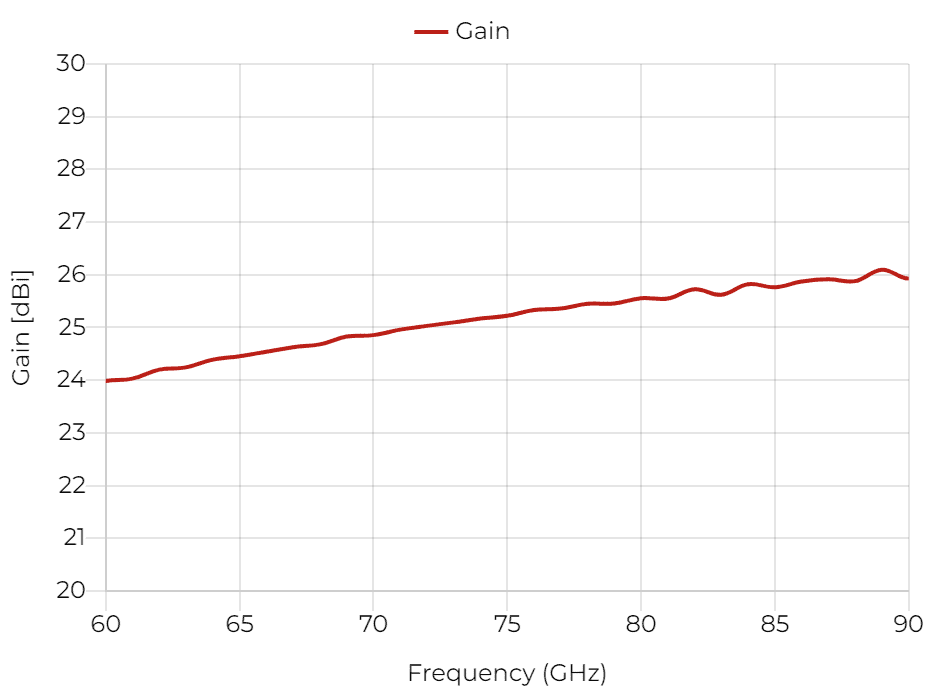

        Electrical specifications

        • Frequency Range 60 GHz – 90 GHz
        • VSWR (max.) 1.15
        • VSWR (avg.) 1.1
        • Polarization Linear

        Physical specifications

        • Width 21.6 mm (0.850 in)
        • Height 16.6 mm (0.654 in)
        • Depth 27.7 mm (1.091 in)
        • Weight 0.026 kg (0.057 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Packaging and Accessories

        What's in a box

        • H-A90-W25 Antenna

        Accessories

        • Standard mounting flange

        Custom services

        • Custom mounting solutions
        • Custom calibration data
