        RF SPIN

        Broadband Antenna Solutions

        AHS2022-35

        Antenna Fixture

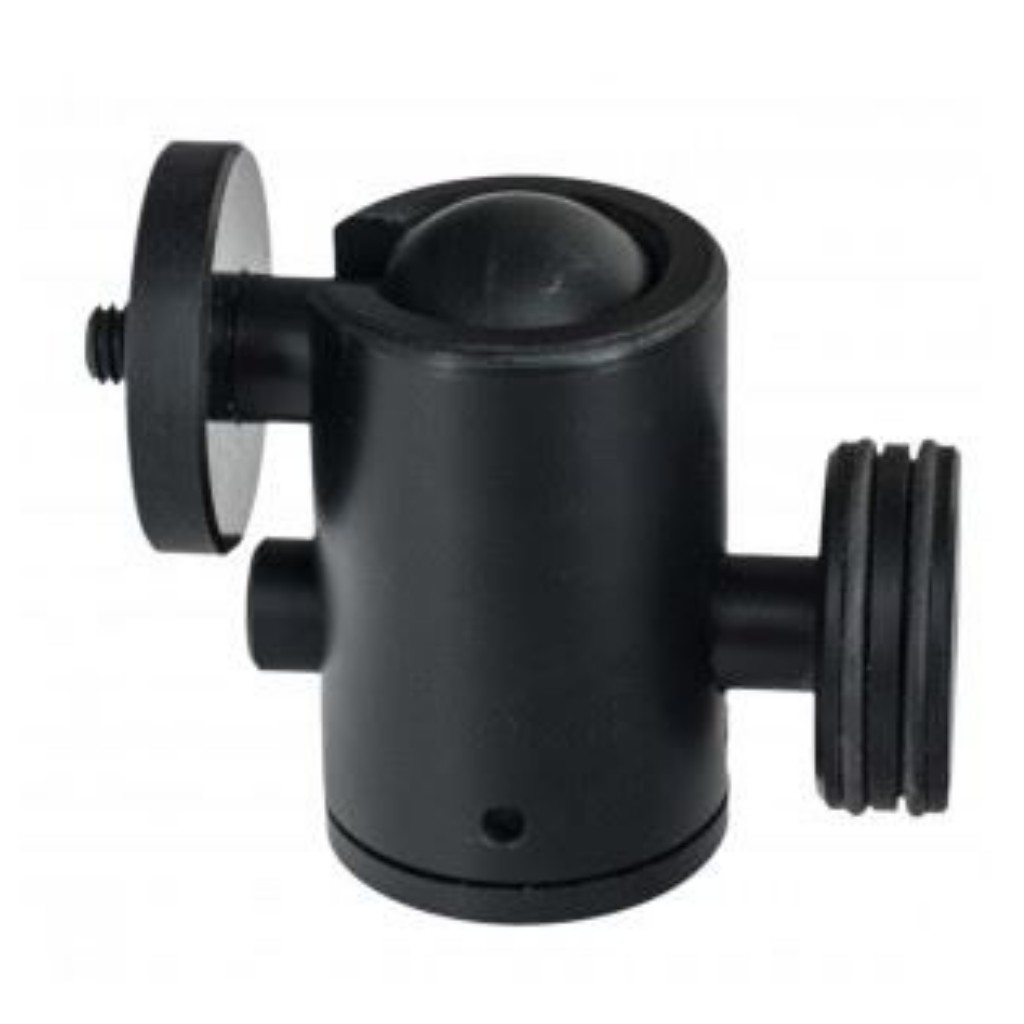

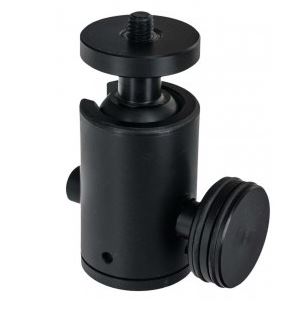

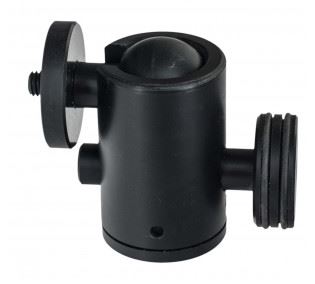

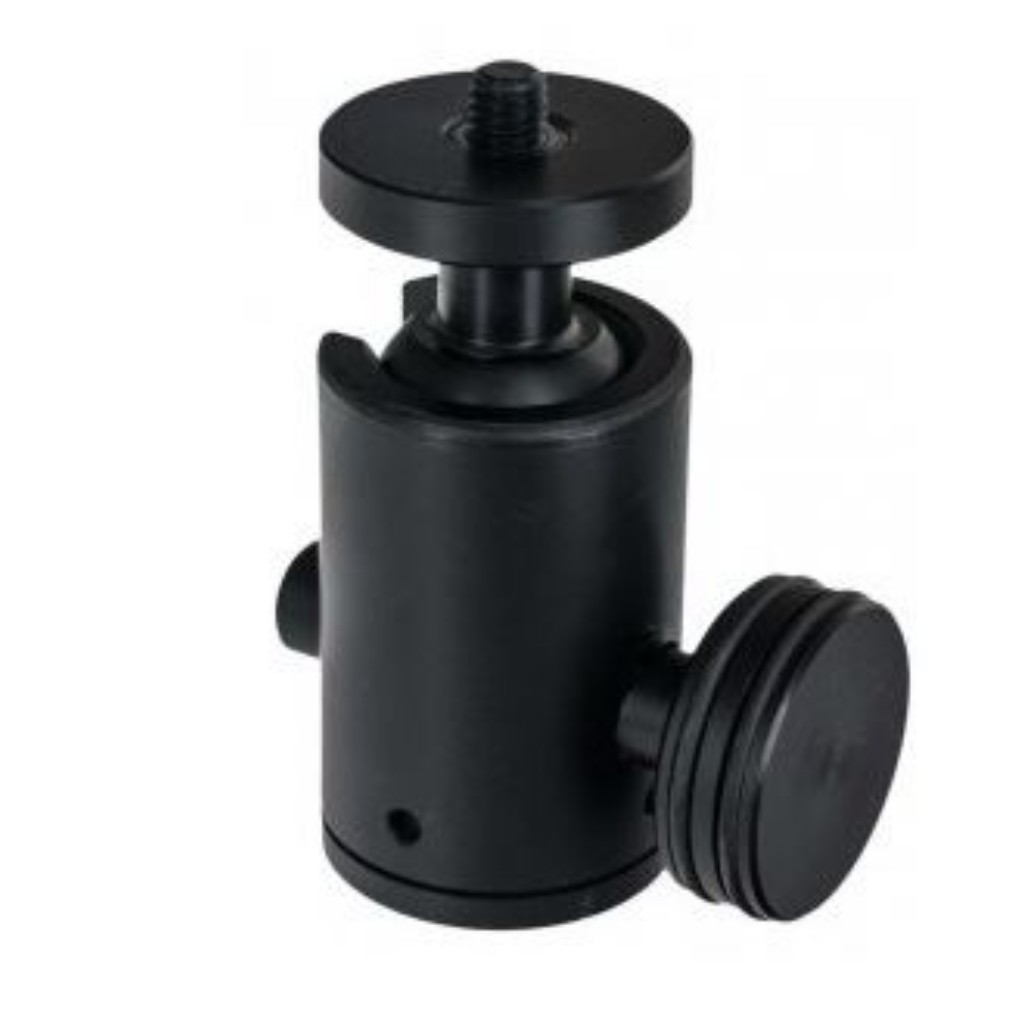

        RF SPIN antenna holder AHS2022-35 is equipped with a metal-free ball head made from plastic.  The load capacity is 5 kg with a clamping force of 4 Nm. The screw bolt for an antenna is W3/8″ and the screw hole in the bottom W3/8″. The ball head is optional for the PAS2022.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Product Parameters

        Product identification

        • Product Name AHS2022-35
        • Product Category Antenna Fixture

        Packaging and Accessories

        Accessories

        • Standard mounting flange
