        AHS22-HI

        Antenna Fixture

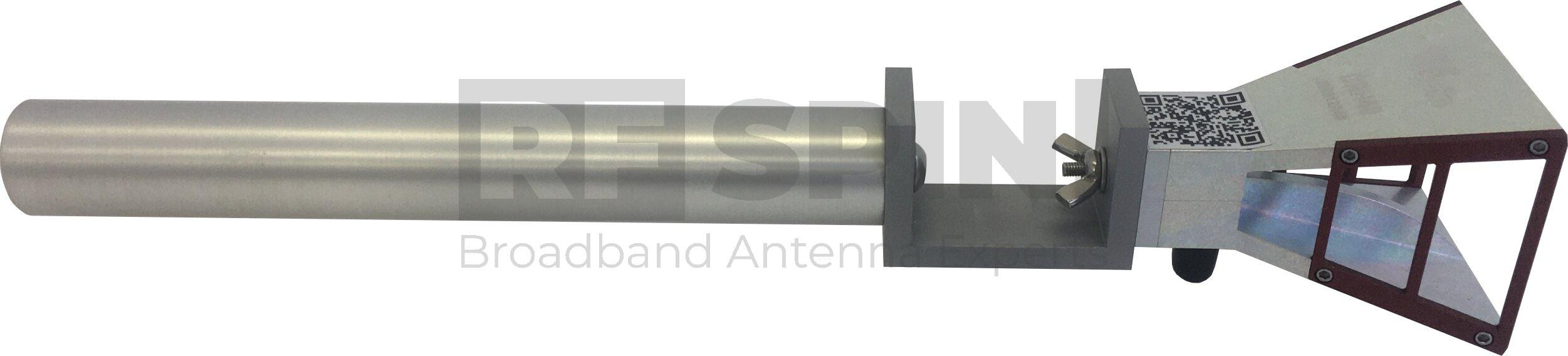

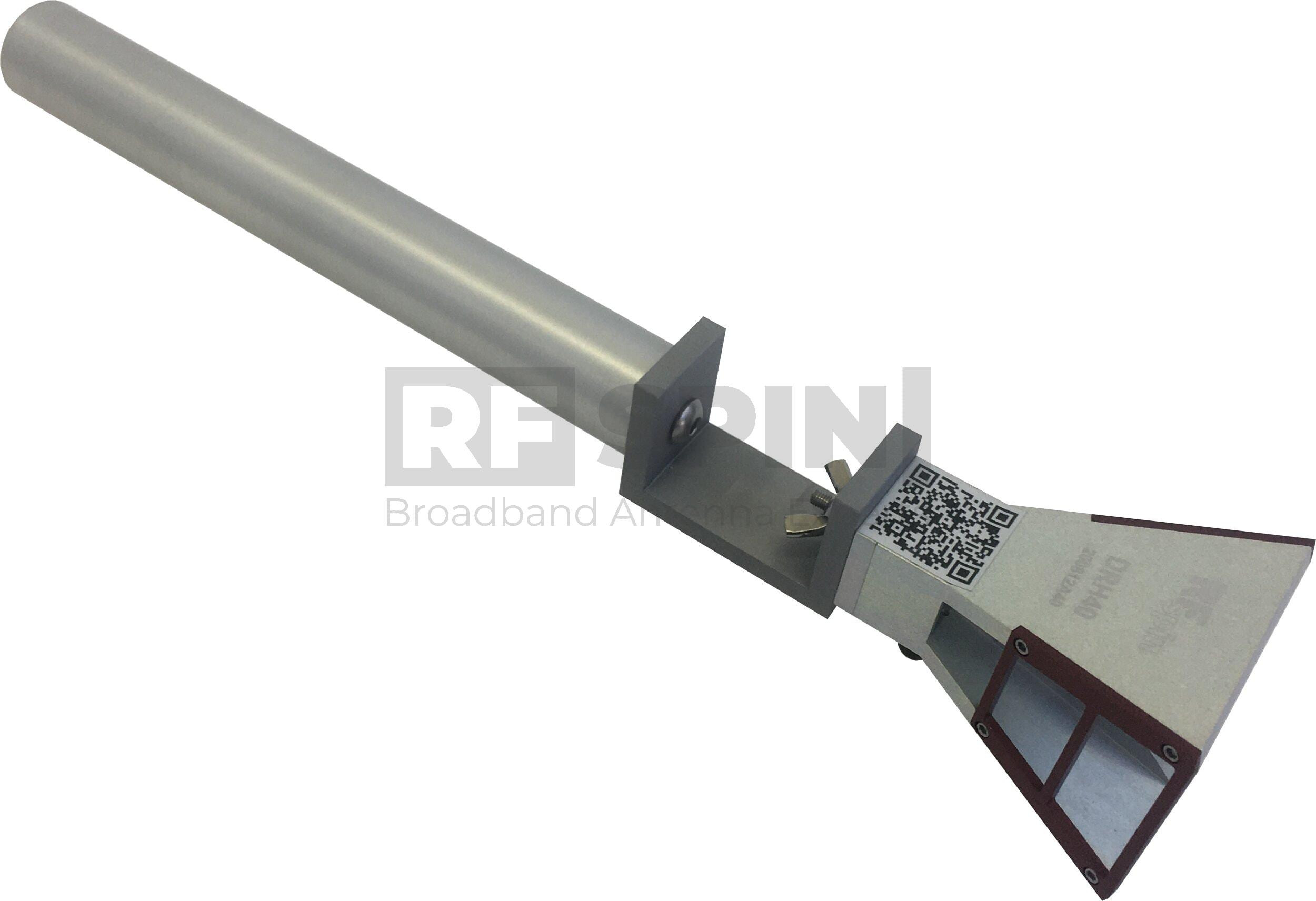

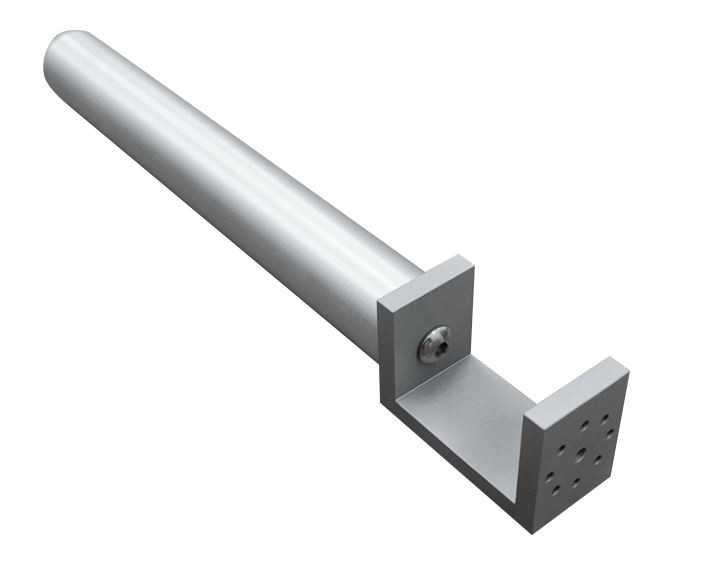

        RF SPIN antenna holder AHS22-HI is equipped with a diameter 22 mm tube. With this holder, you can easily mount the antenna to almost everywhere and rotate it as you wish. The antenna holder can be customized based on your requirements and can be fixed to single-polarized DRH from DRH30 to DRH110 and dual-polarized QRH antennas from QRH40 to QRH67E.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        Design and Surface Treatment

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable

        Product Packaging Includes

        • Universal antenna mount

        Product Parameters

        Product identification

        • Product Name AHS22-HI
        • Product Category Antenna Fixture

        Packaging and Accessories

        What's in a box

        • AHS22-HI Device

        Accessories

        • Standard mounting flange

        Optional Accessories

        Custom services

        • Custom mounting solutions
