        RF SPIN

        Broadband Antenna Solutions

        Enhanced model 2020
        5G

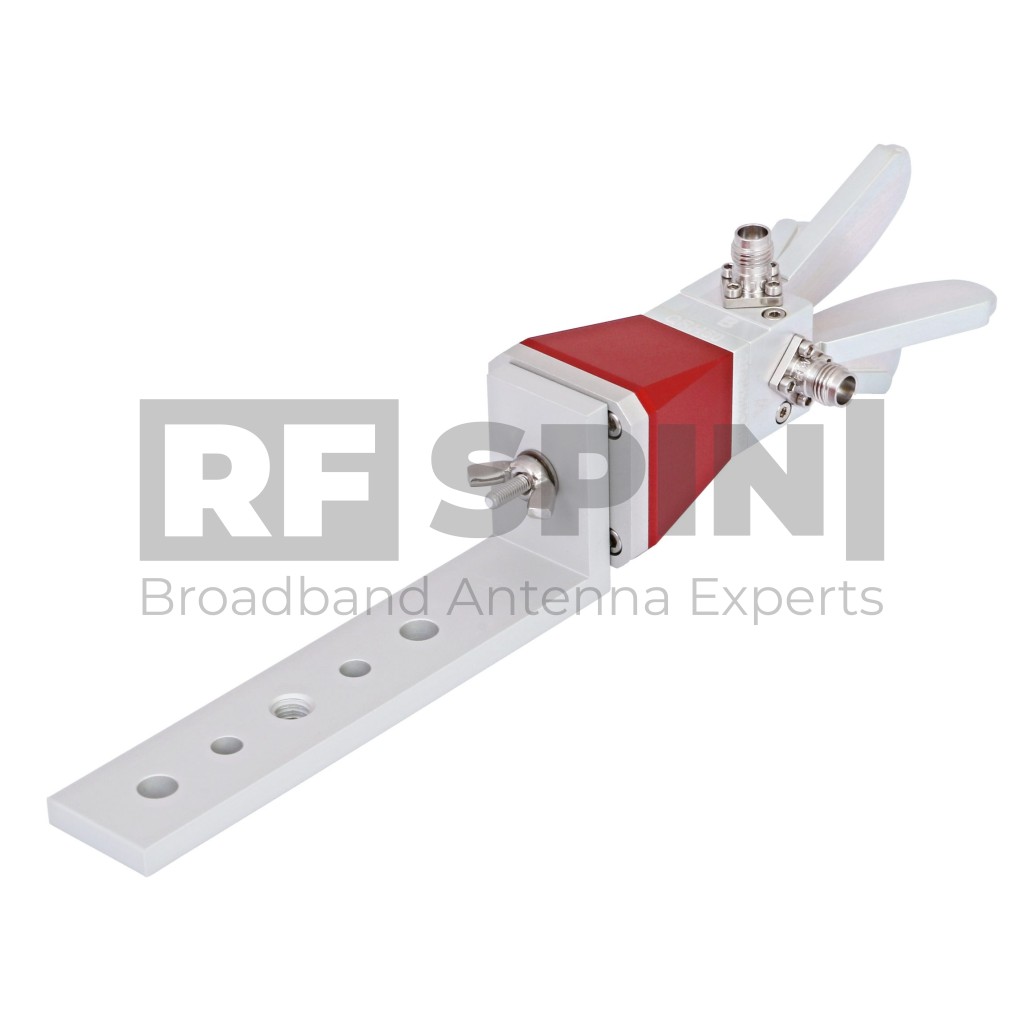

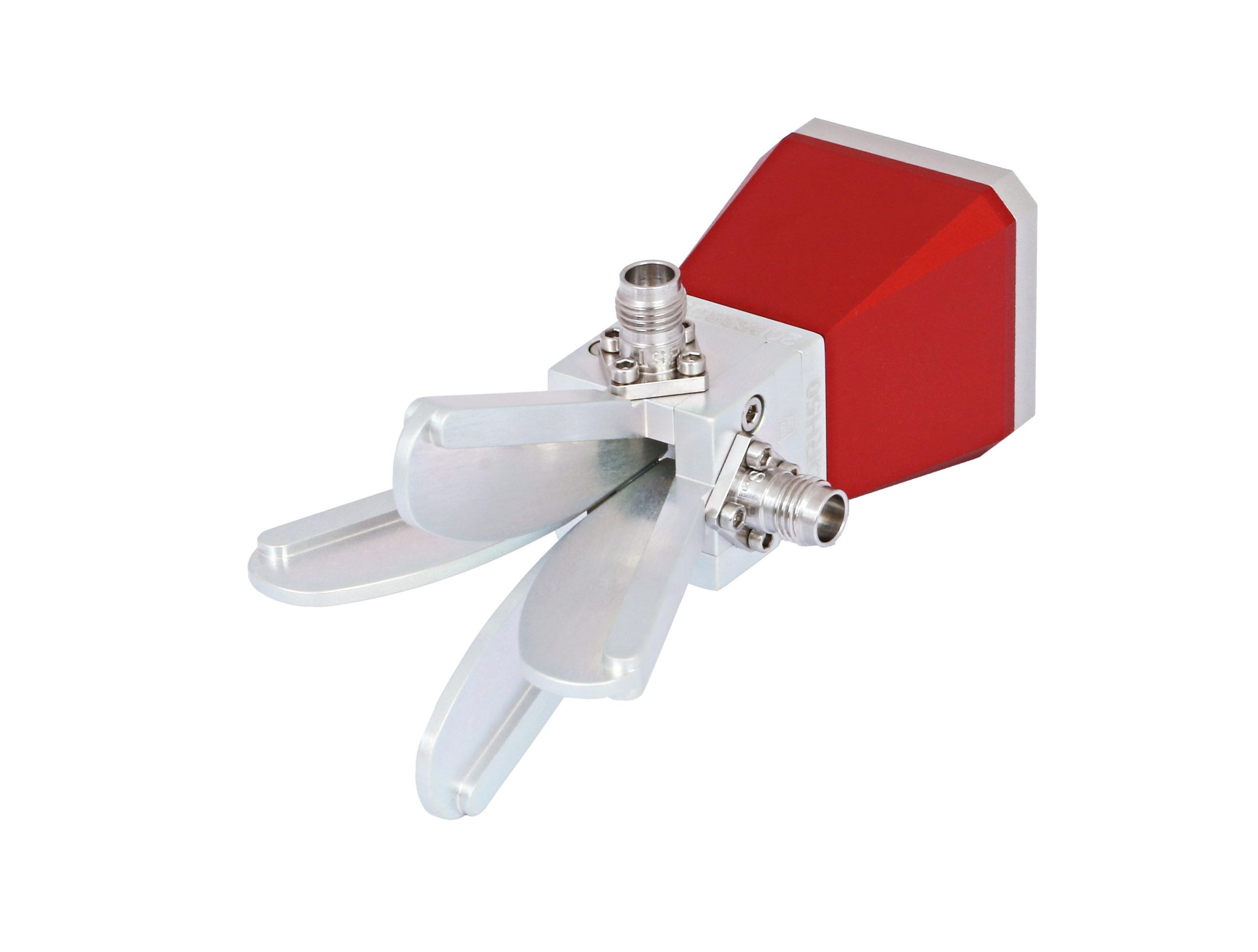

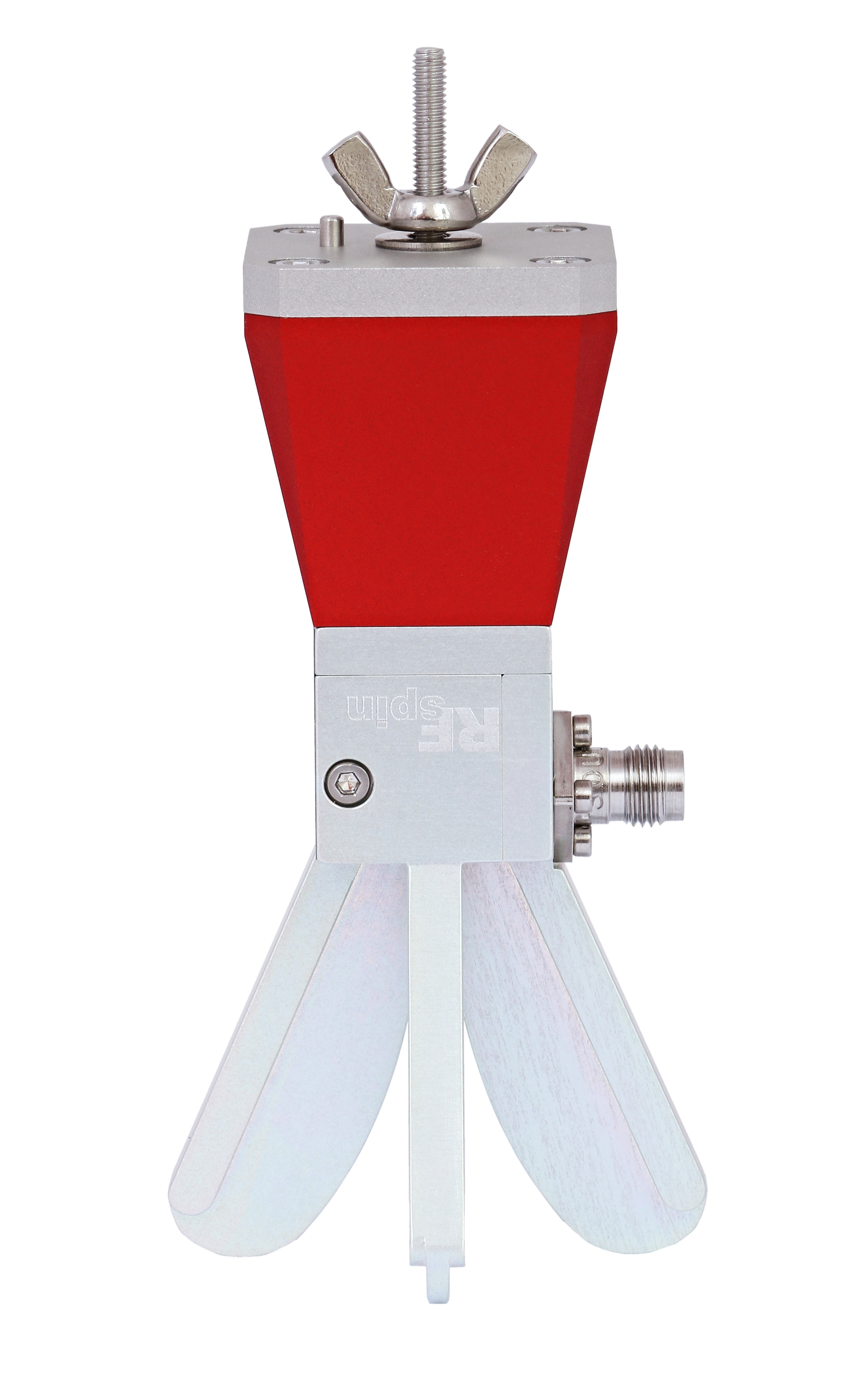

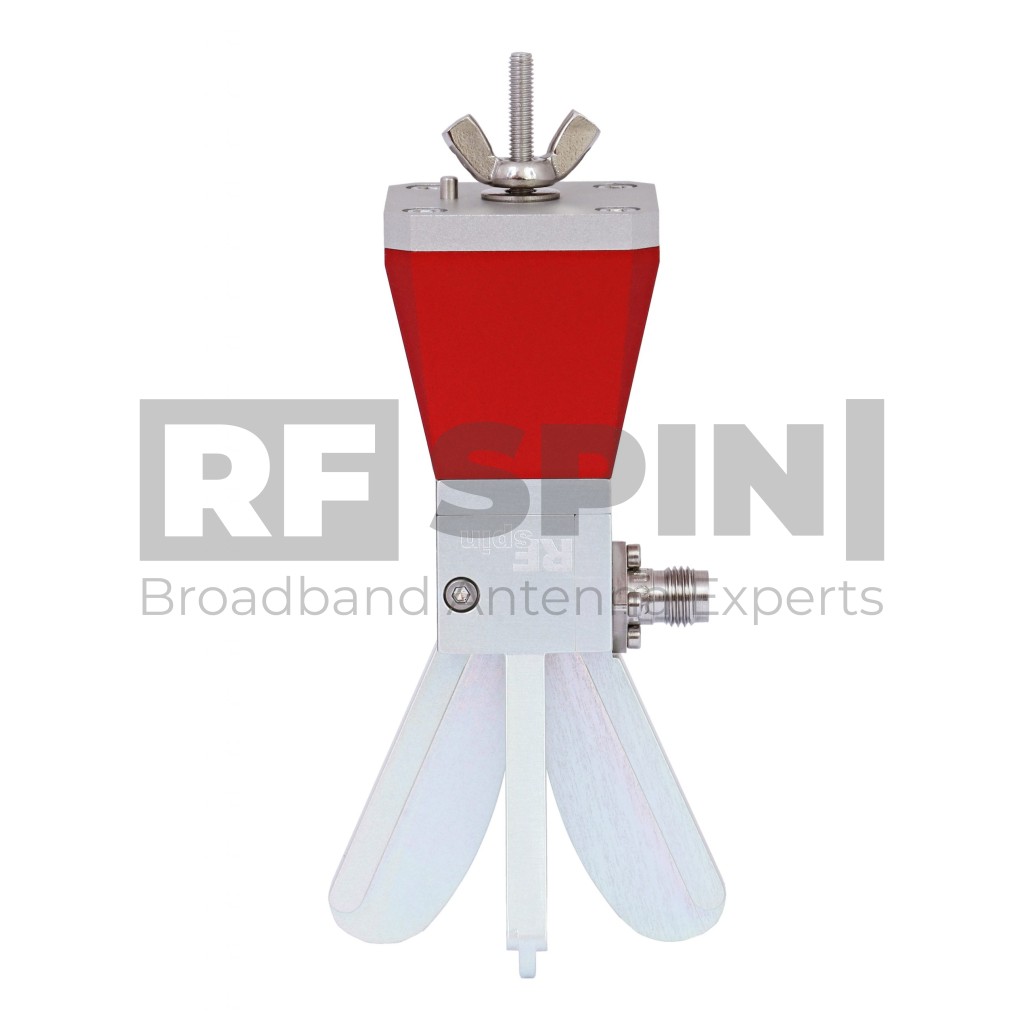

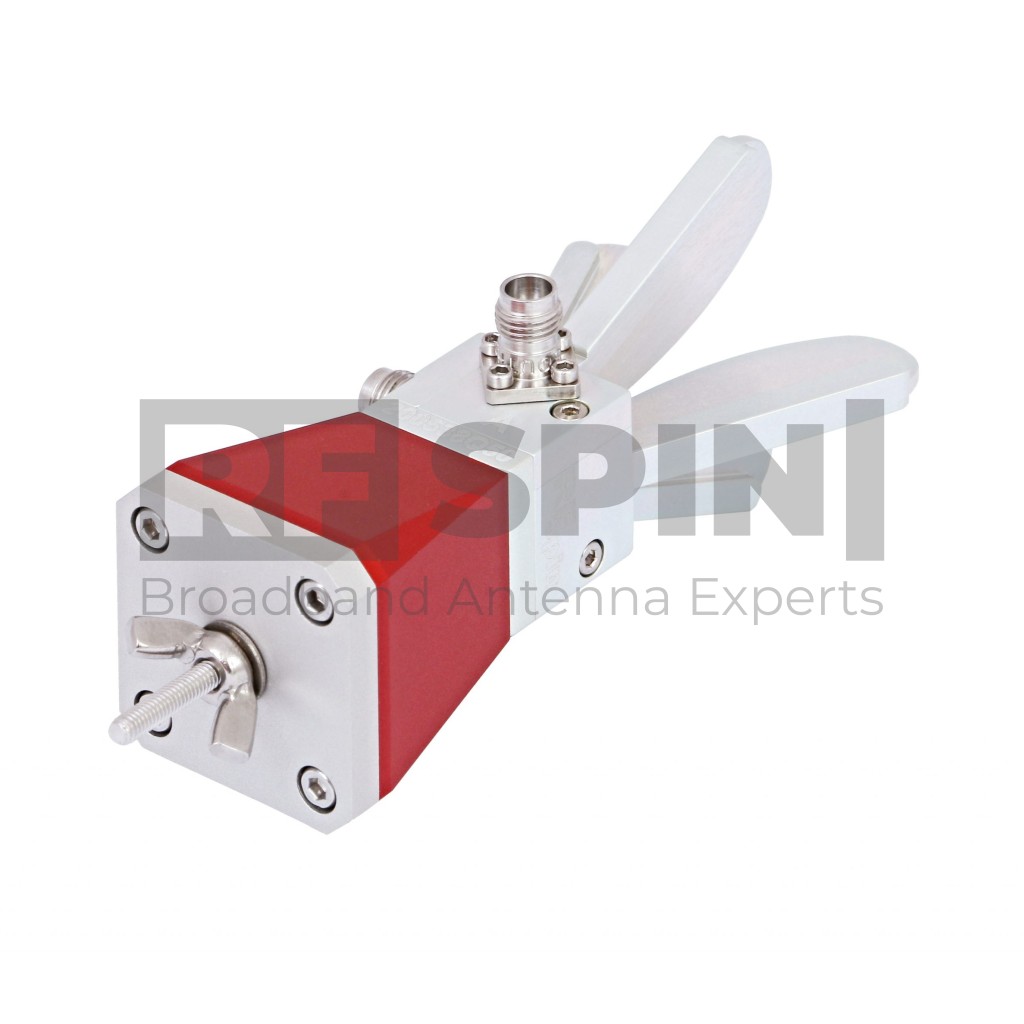

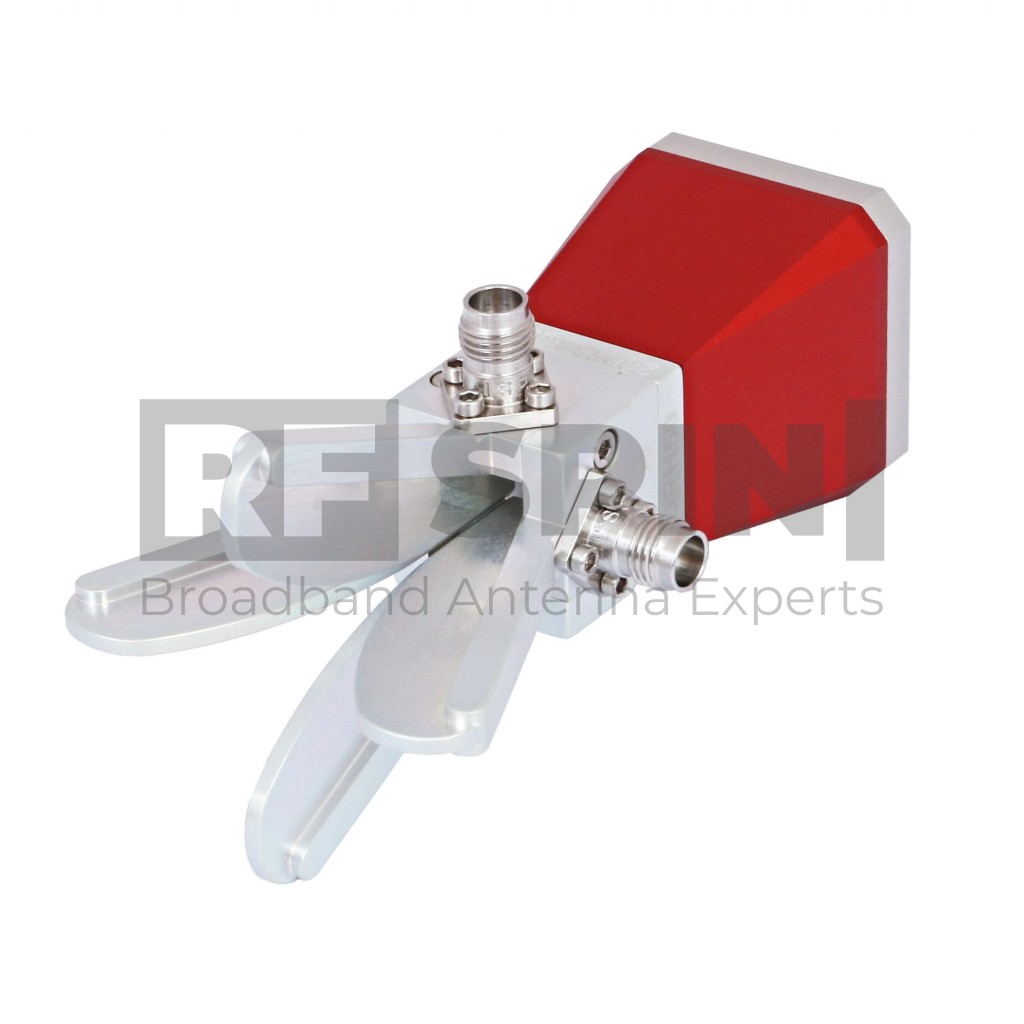

        QRH50E

        Quad Ridged Horn Antenna

        The QRH50E antenna is an enhanced version of the broadband bestseller that helps hundreds of the world’s leading players develop, test, and deploy 5G networks. Advanced antenna with exceptional technical parameters and excellent design in aluminum alloy.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount
        • Storage in protective tailor-made wooden box

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality 2.40mm type coaxial connector

        Product Packaging Includes

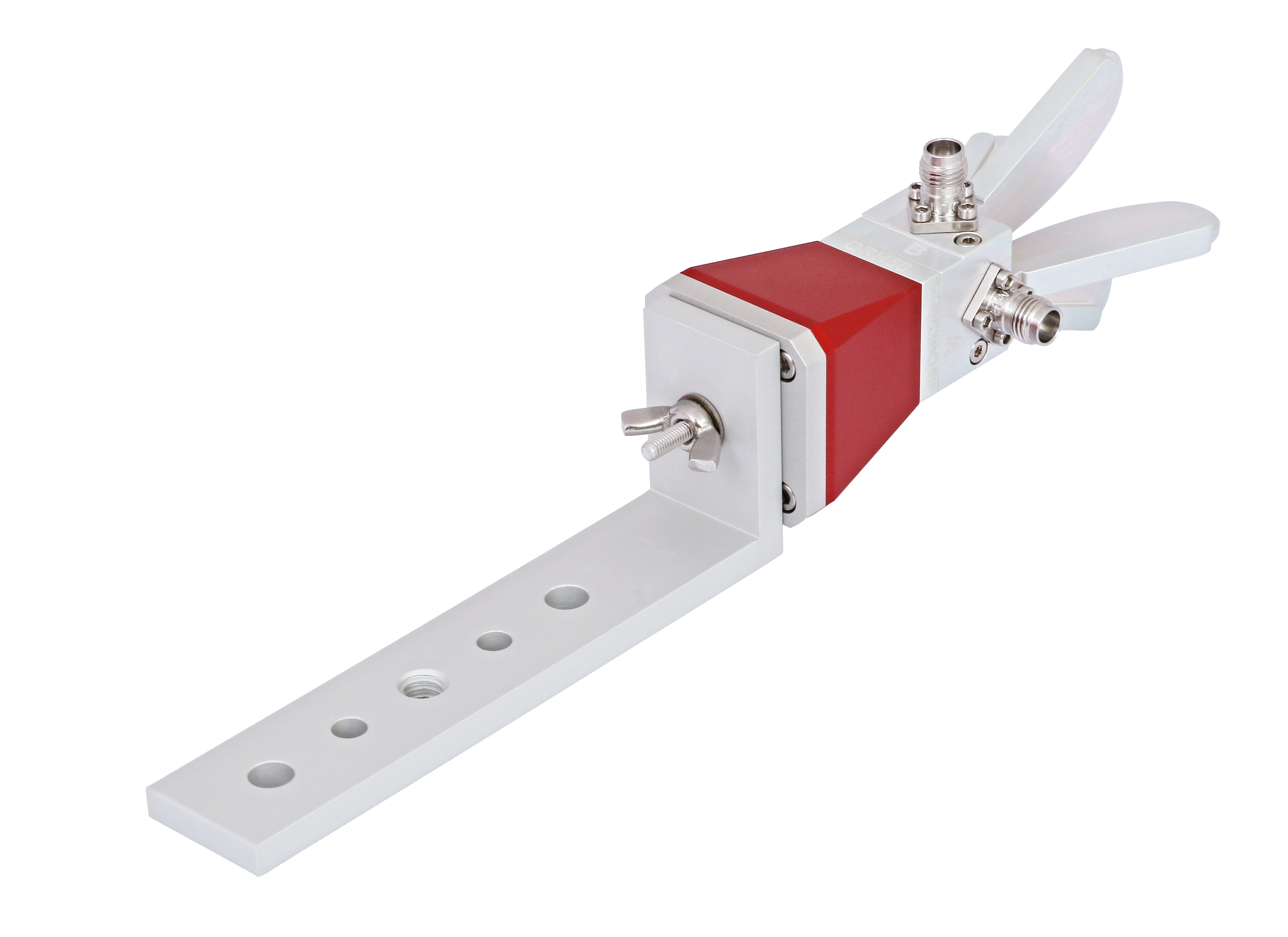

        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized double ridged broadband horn antenna

        Product Parameters

        Product identification

        • Product Name QRH50E
        • Product Category Quad Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 5 GHz – 50 GHz
        • VSWR (max.) 2.5
        • VSWR (avg.) 1.45
        • Impedance 50 Ohm
        • Connector 2.40mm
        • Power (CW / Peak) 5 W / 10 W
        • Antenna Factor 40 – 52 dB/m
        • Port Isolation -28 dB
        • Polarization Dual Linear, Circular (with hybrid)

        Physical specifications

        • Width 45 mm (1.772 in)
        • Height 85 mm (3.346 in)
        • Depth 45 mm (1.772 in)
        • Weight 0.078 kg (0.172 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        QRH50E - VSWR

        Gain

        QRH50E - Gain

        Antenna Factor

        QRH50E - Antenna Factor

        Port Isolation

        QRH50E - Port Isolation

        Cross Polarization

        QRH50E - Cross Polarization

        Beamwidth

        Port A, E plane

        QRH50E - Port A, E plane

        Port A, H plane

        QRH50E - Port A, H plane

        Port B, E plane

        QRH50E - Port B, E plane

        Port B, H plane

        QRH50E - Port B, H plane

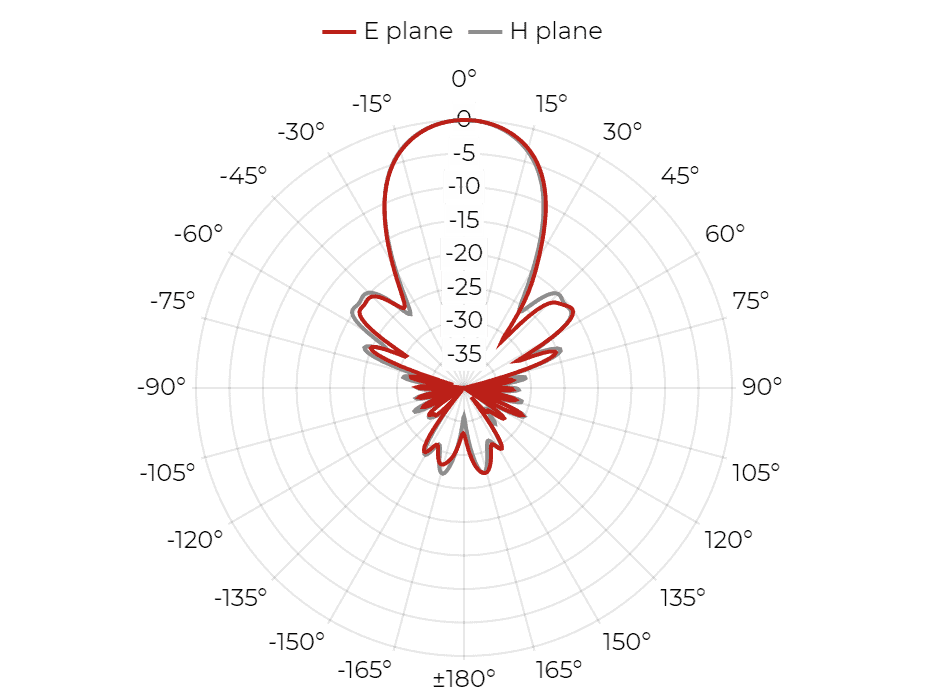

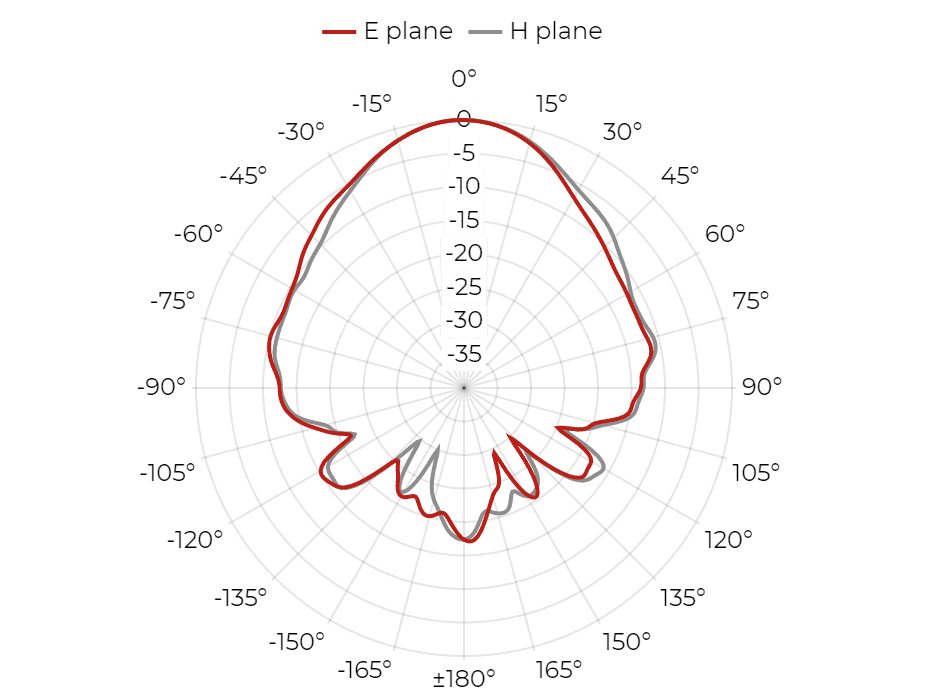

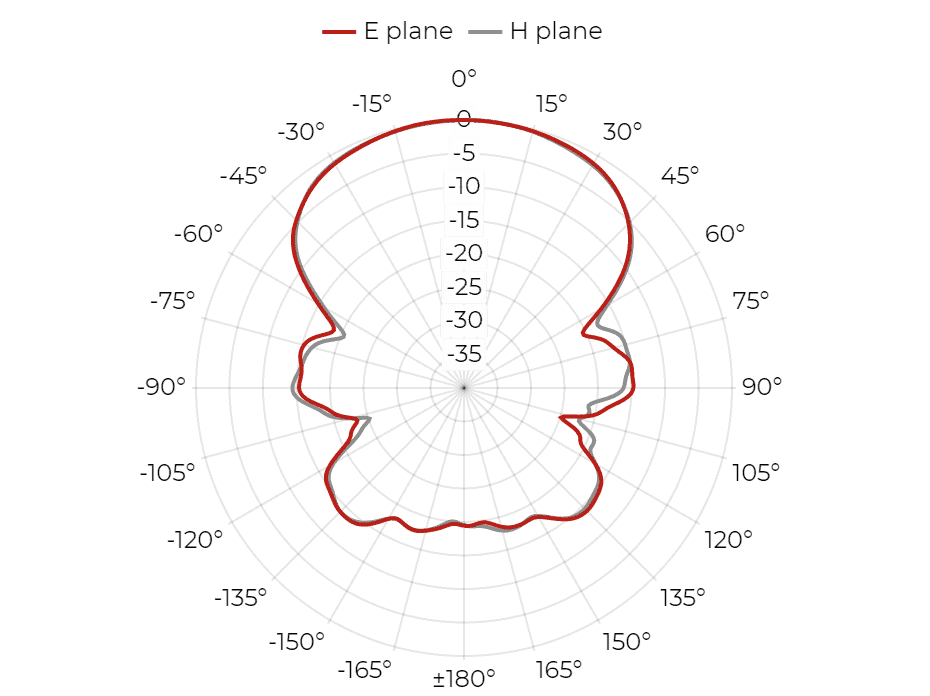

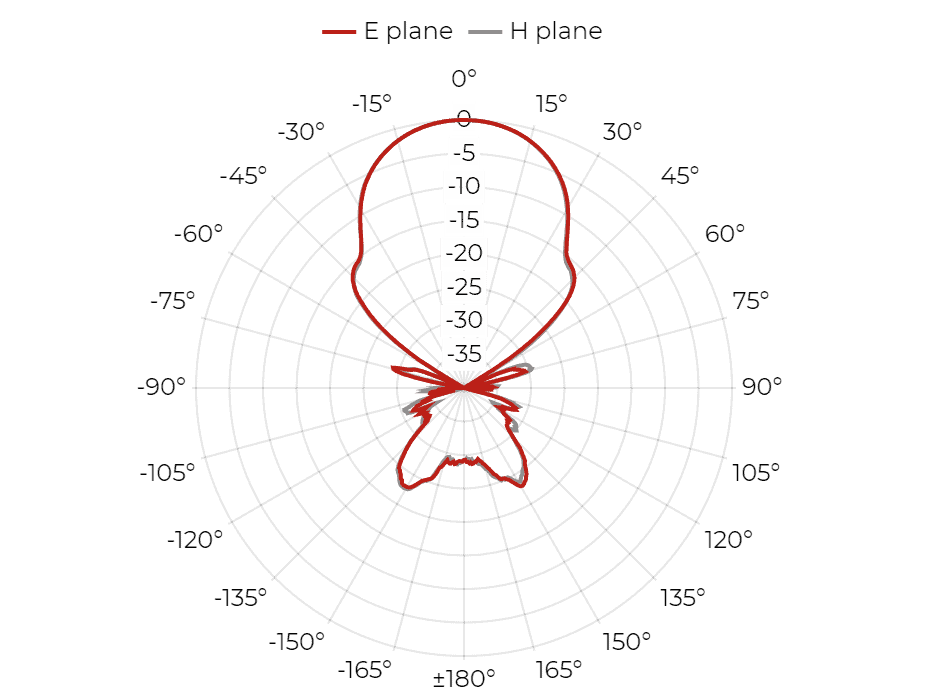

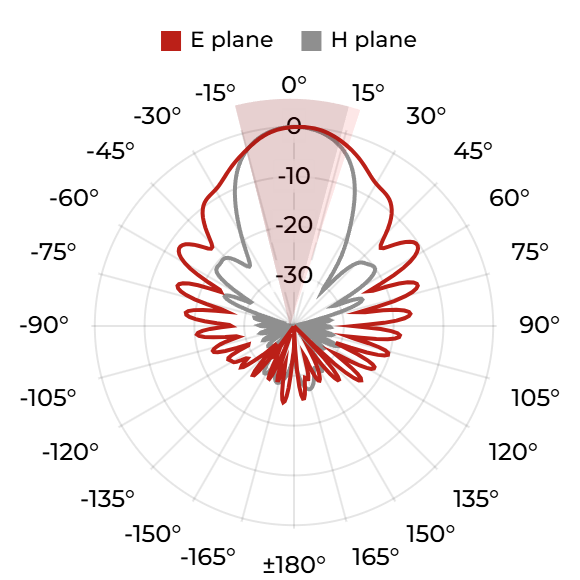

        Radiation Patterns

        Port A, 5 GHz

        QRH50E - Port A, 5 GHz

        Port B, 5 GHz

        QRH50E - Port B, 5 GHz

        Port A, 8 GHz

        QRH50E - Port A, 8 GHz

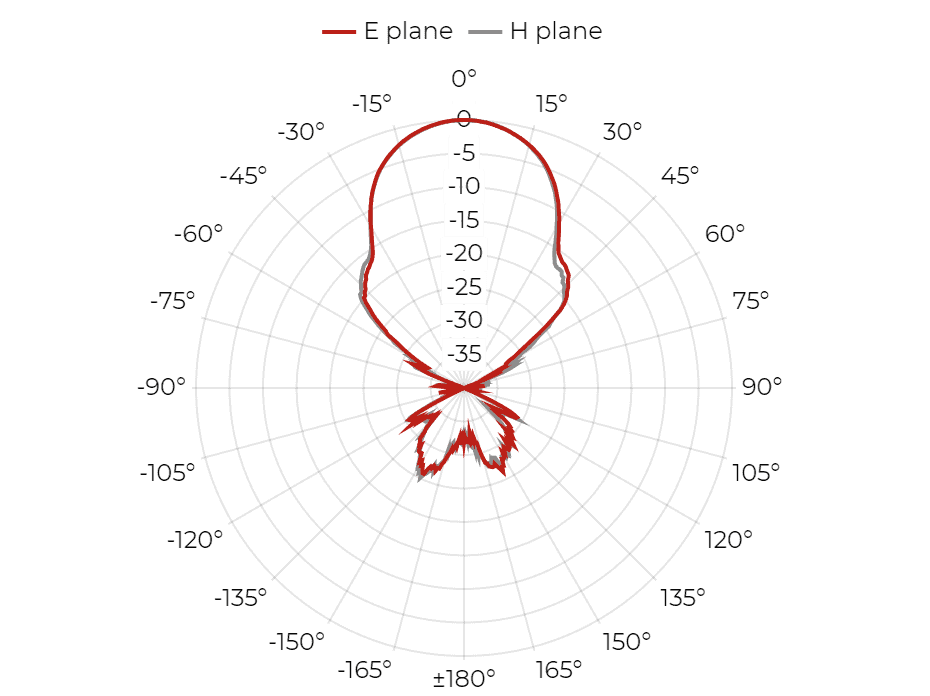

        Port B, 8 GHz

        QRH50E - Port B, 8 GHz

        Packaging and Accessories

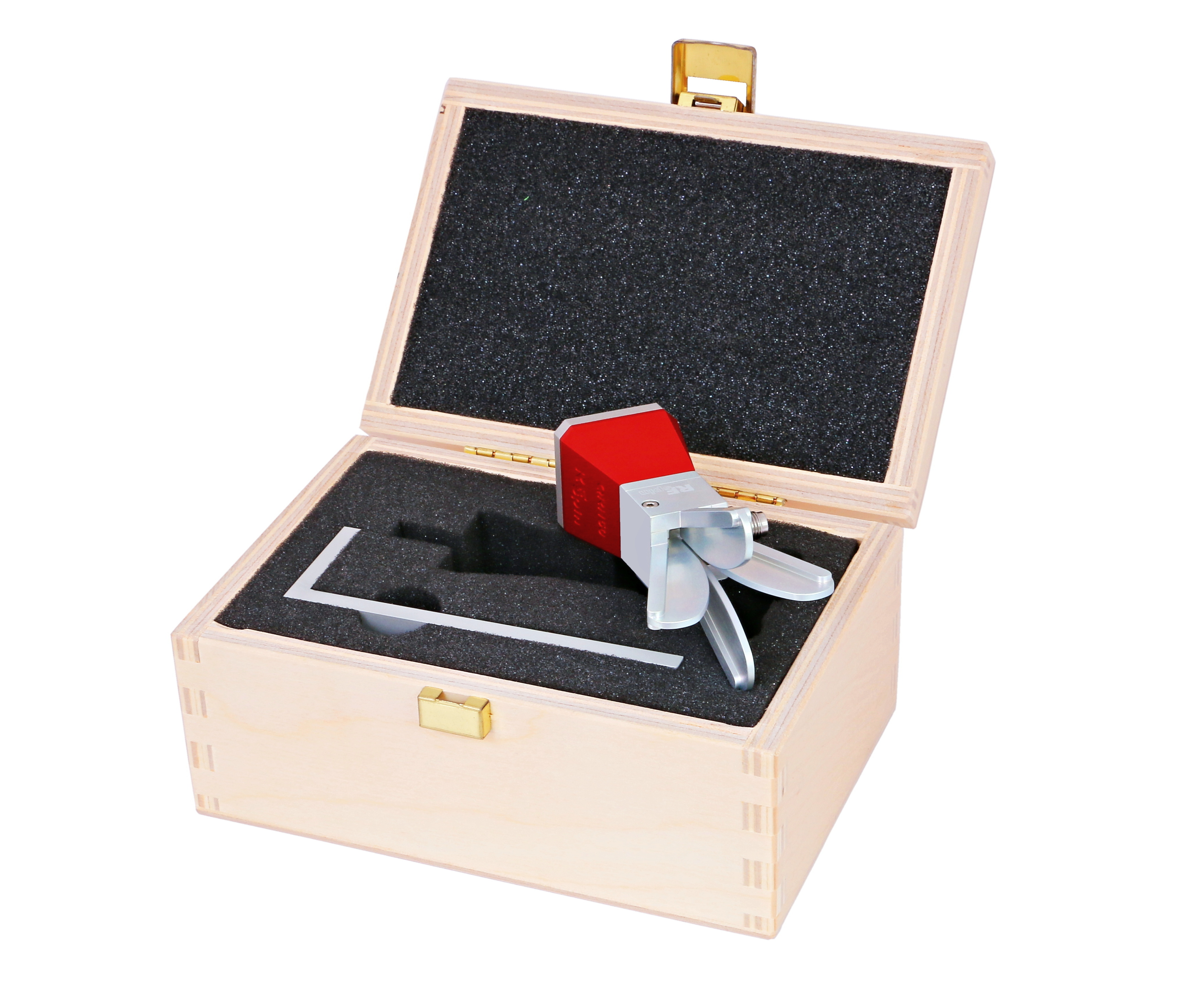

        What's in a box

        • QRH50E Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Protective wooden case
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Protective wooden case
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
