        PAS2022

        Antenna Stand

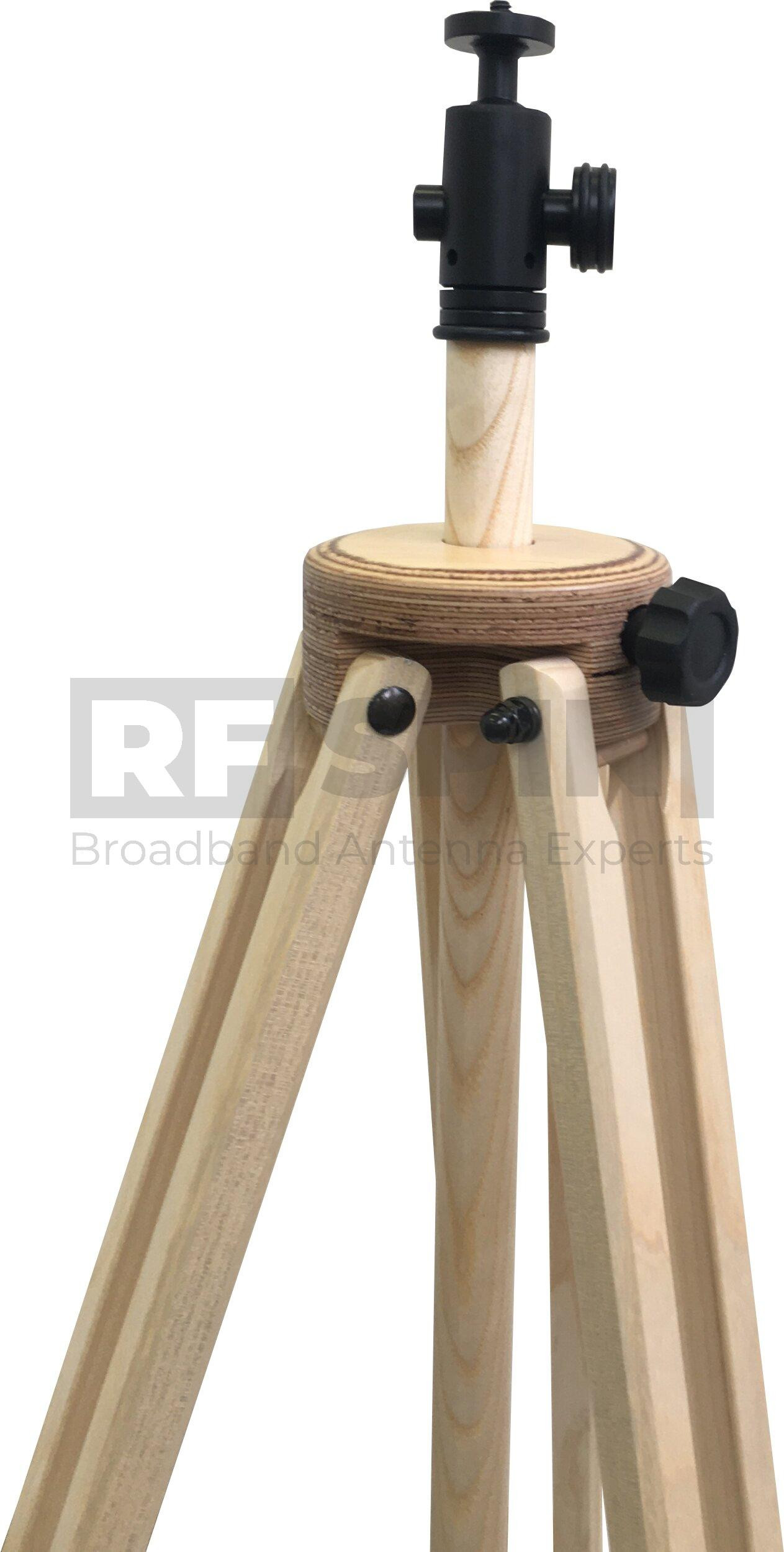

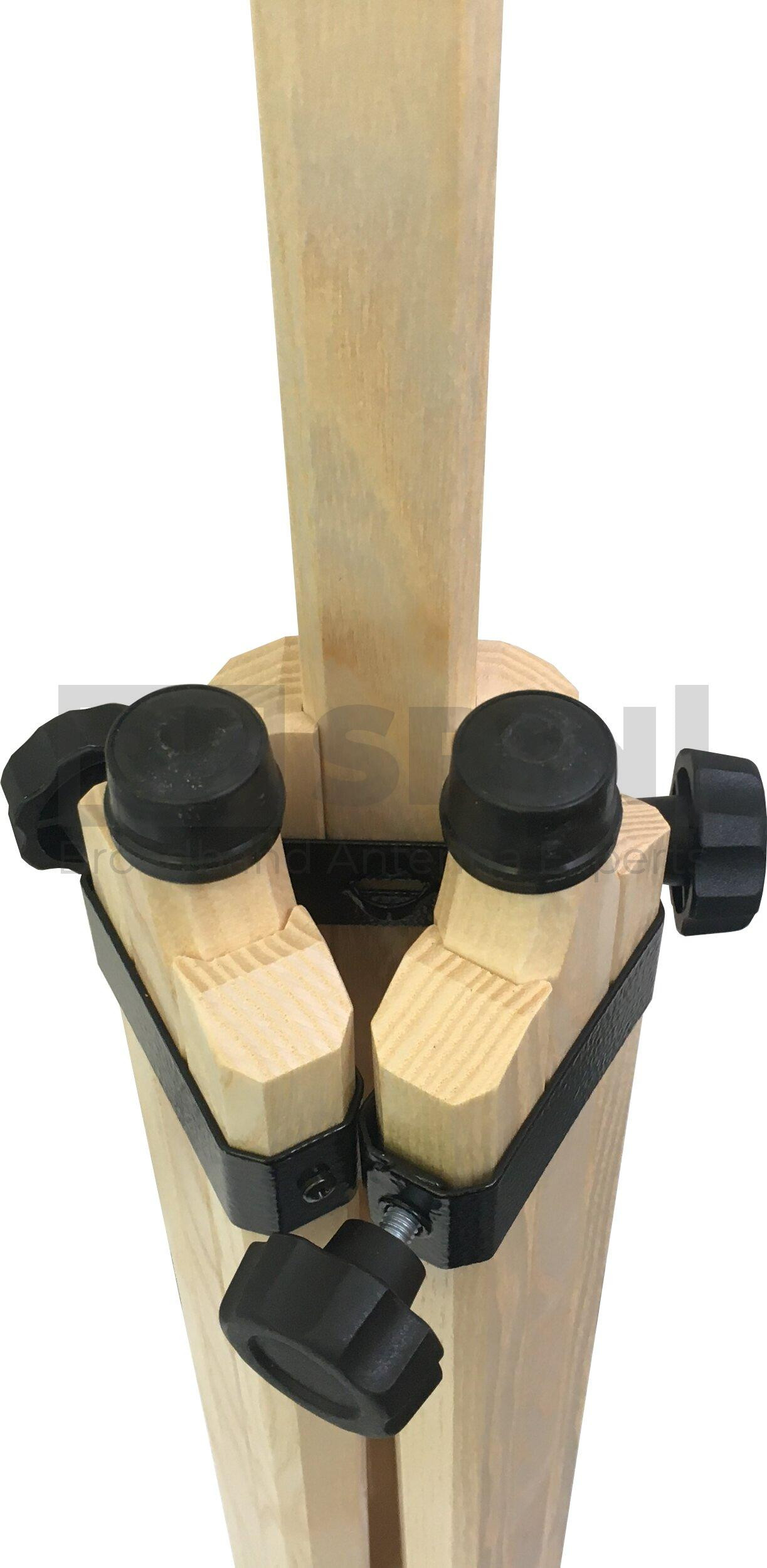

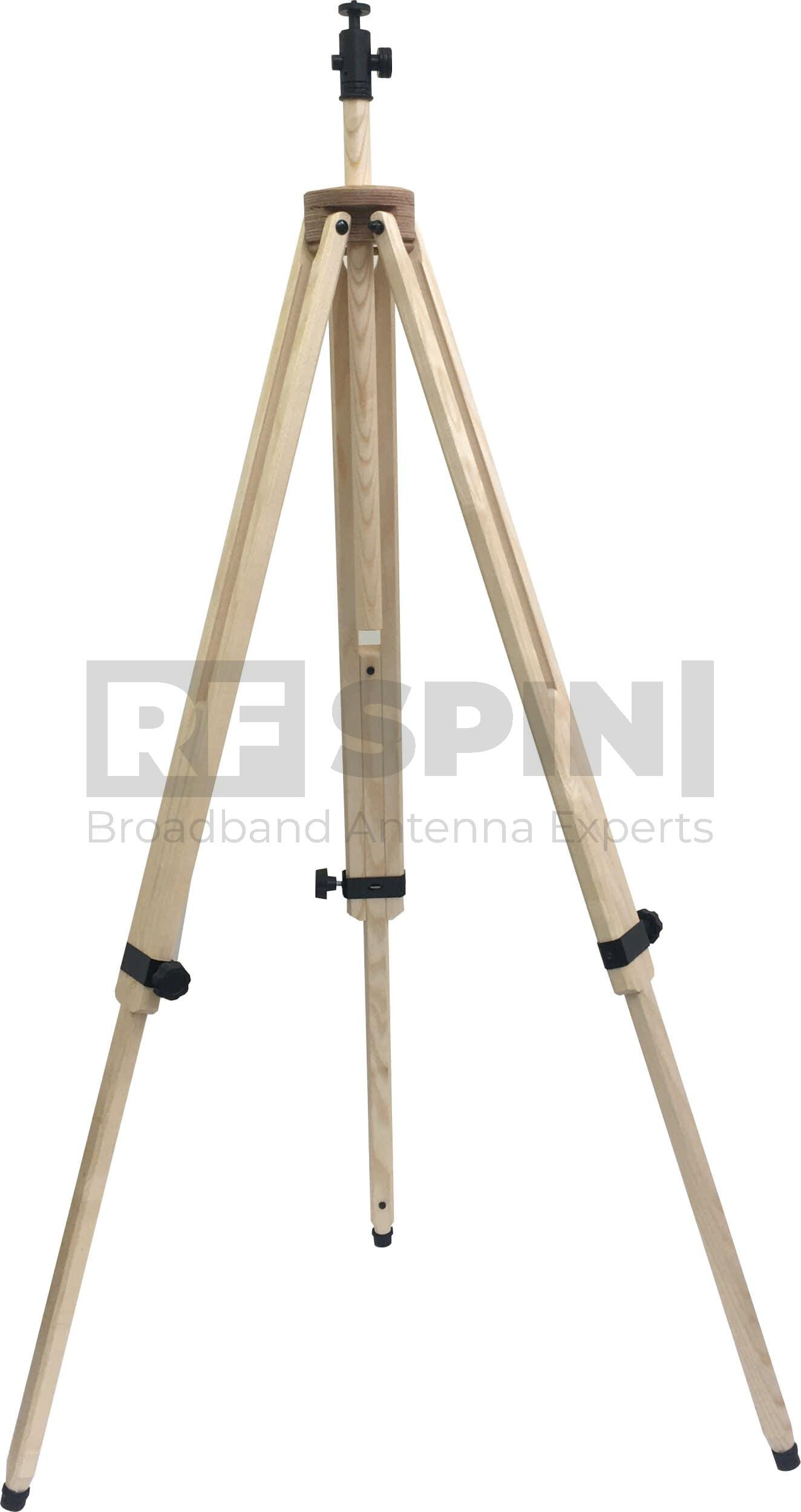

        EMC antenna tripod for antennas DRHxx and QRHxx broadband antennas. Simple transportation and disassembly, up to 177 cm measurement height, and easy mount. Mounting head made of wood, minimum of metal components, center column eligible standard length 50 cm with 3/8” or 1/4”. Feet made of a synthetic material cap.

        Load tolerance 10 kg. Optional metal-free ball head.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Product Parameters

        Product identification

        • Product Name PAS2022
        • Product Category Antenna Stand

        Physical specifications

        • Width 1000 mm (39.370 in)
        • Height 1770 mm (69.685 in)
        • Depth 1000 mm (39.370 in)
        • Weight 3 kg (6.614 lb)

        Packaging and Accessories

        Accessories

        • Standard mounting flange
