        RF SPIN

        Broadband Antenna Solutions

        Enhanced model 2020
        5G

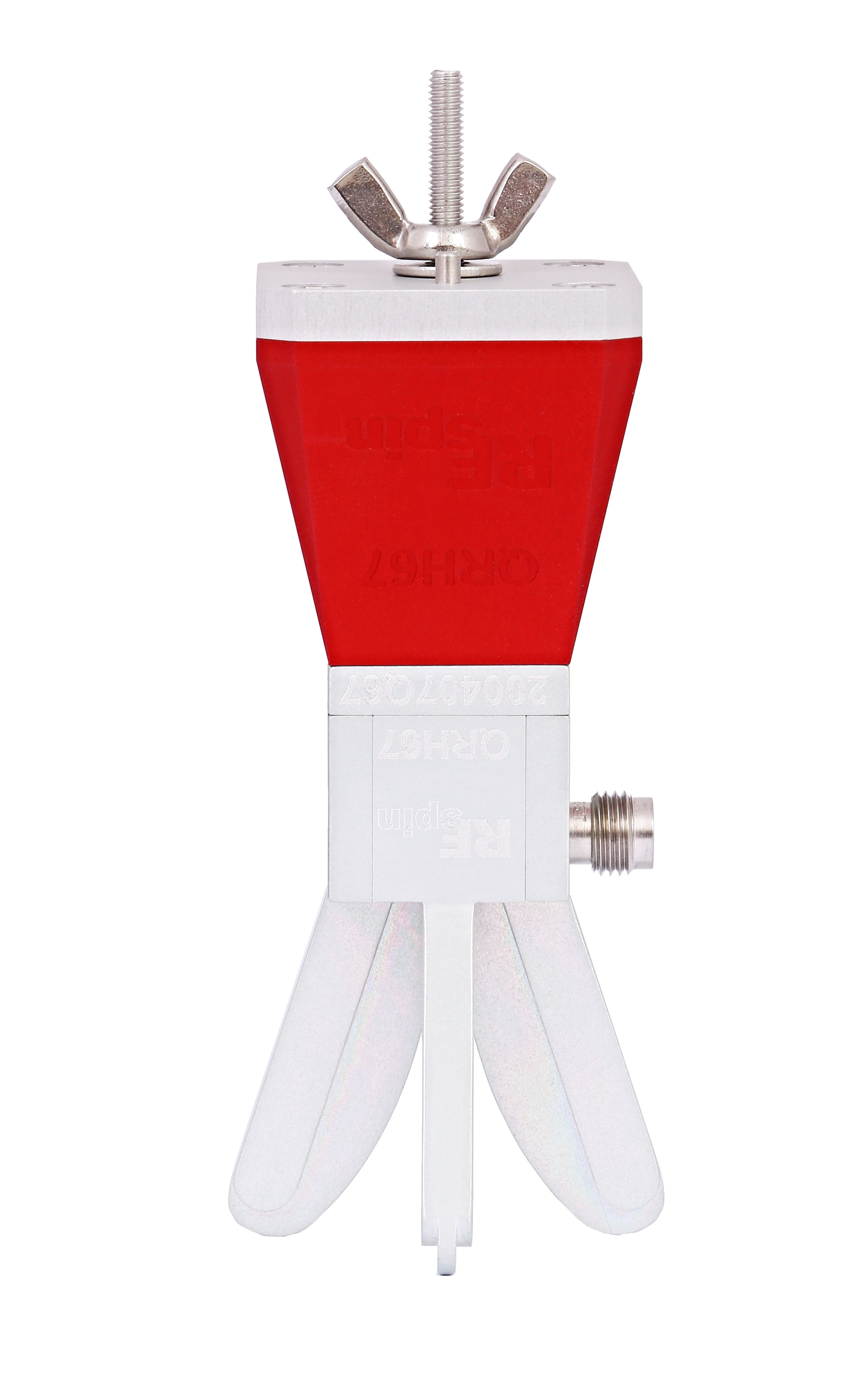

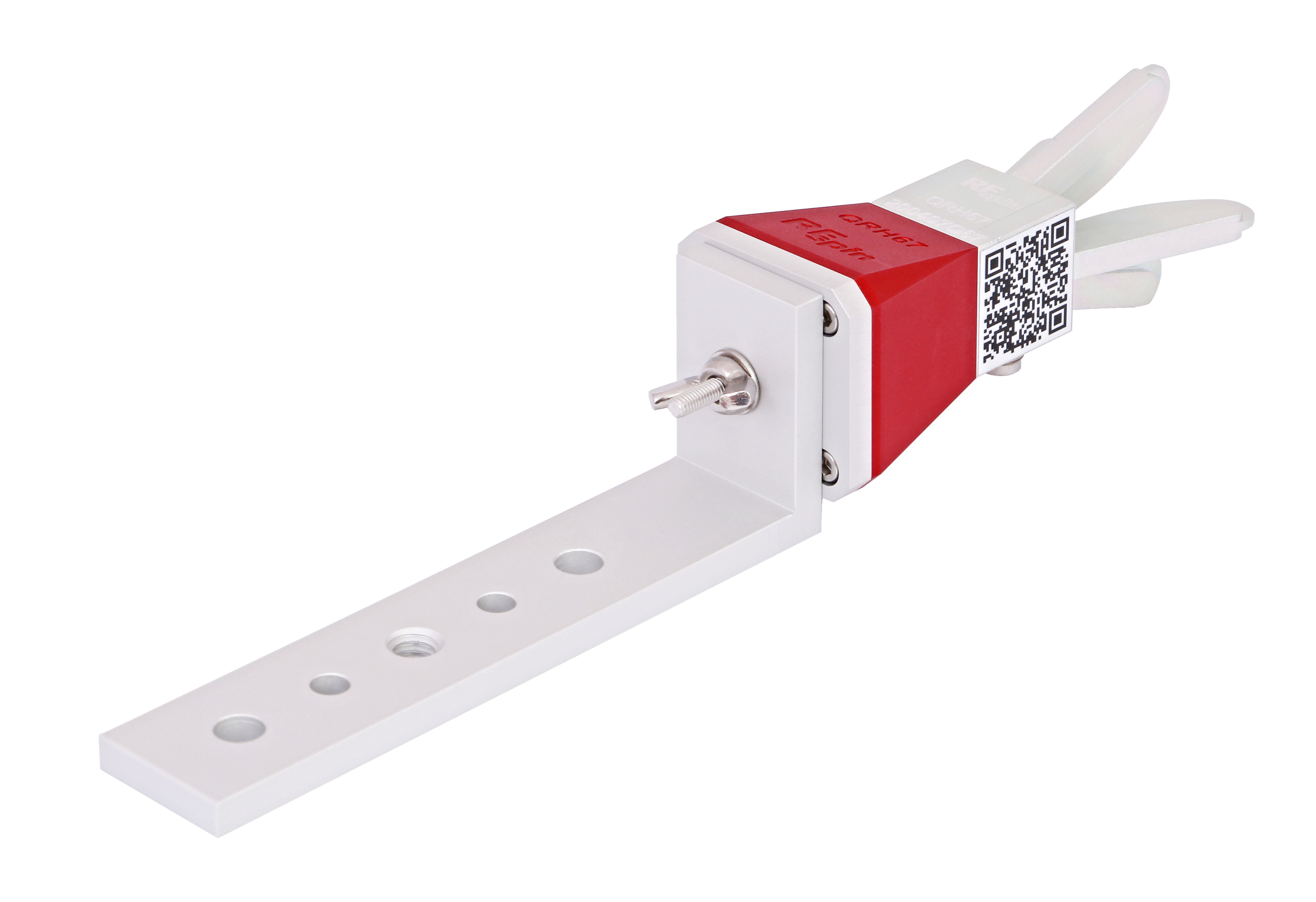

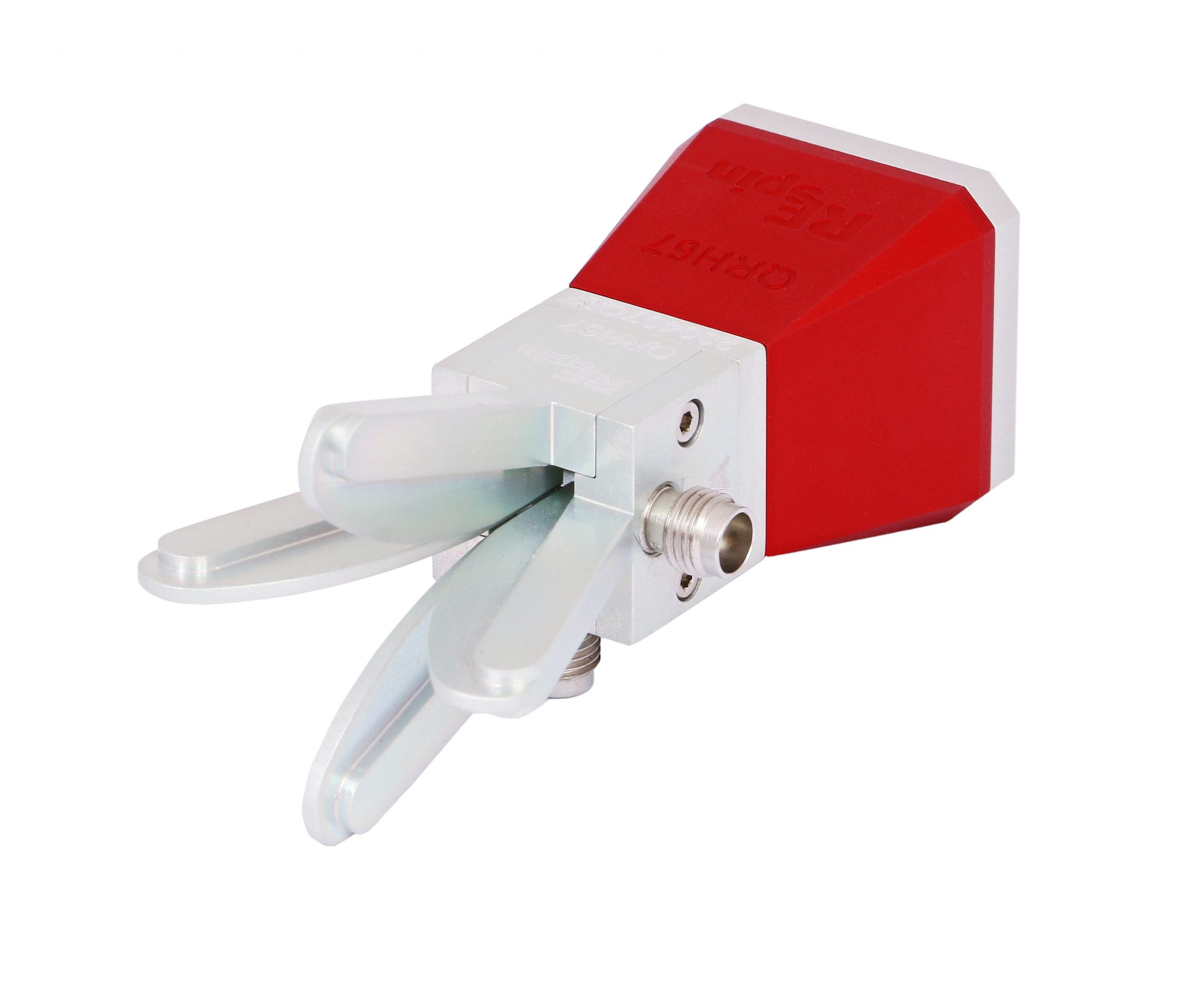

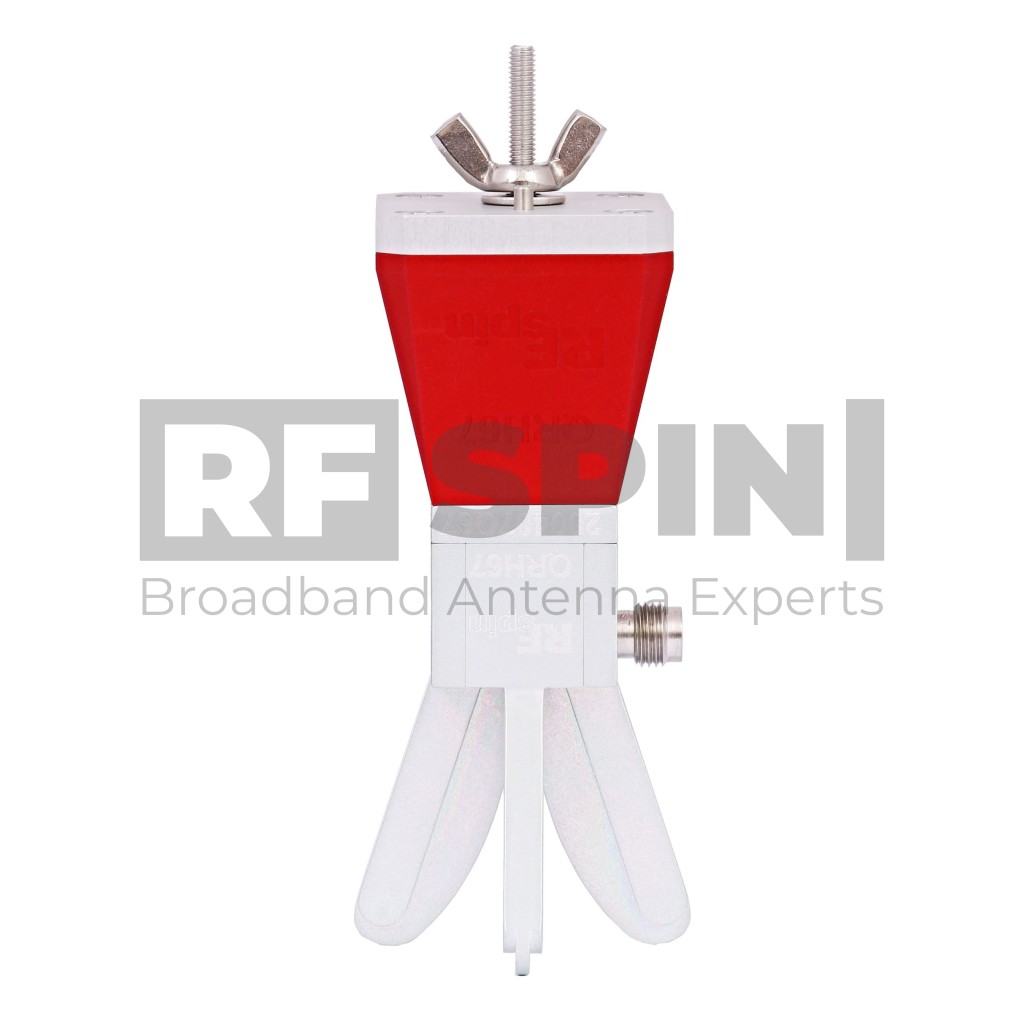

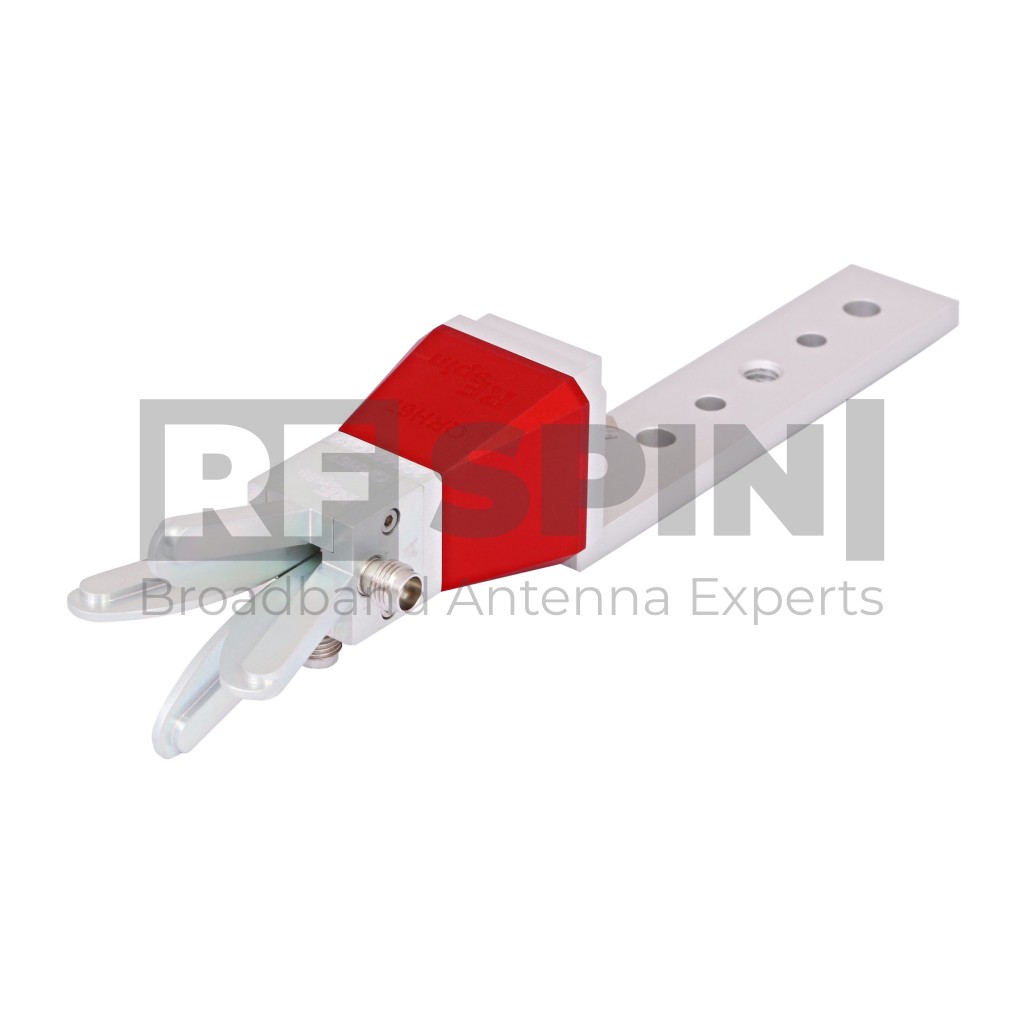

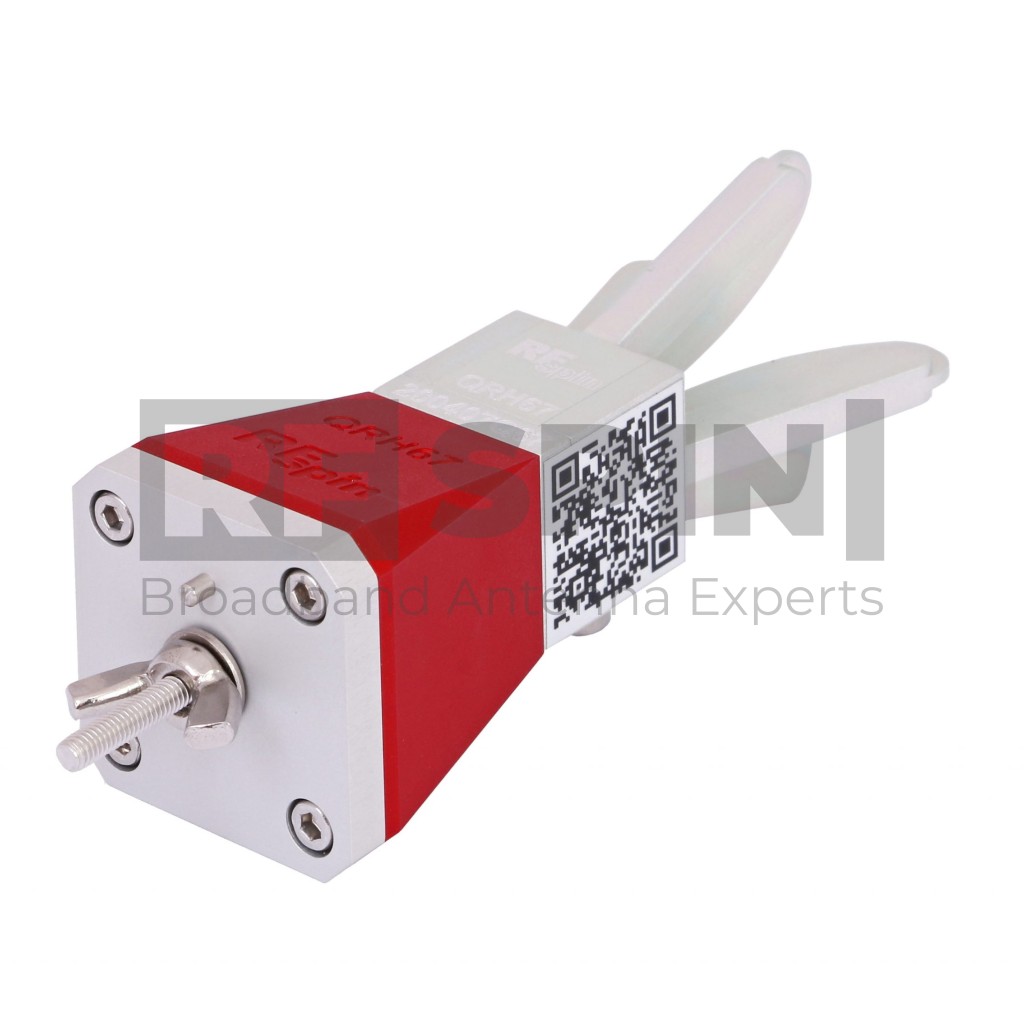

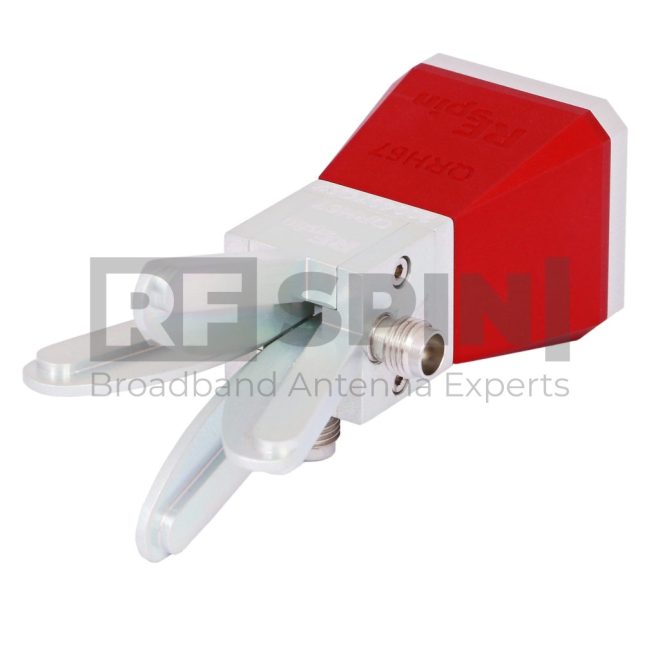

        QRH67E

        Quad Ridged Horn Antenna

        One of a kind, the QRH67E combines maximum frequency and low VSWR for RF laboratories, as well as R&D of new wireless technologies and 5G networks. Advanced antenna with exceptional technical parameters and excellent design in aluminum alloy.

        Cloned antenna series are available through AU Technology, which guarantees constant parameters.

        Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        5G
        Circular polarization
        QR code

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount
        • Storage in protective tailor-made wooden box

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality 1.85mm type coaxial connector

        Product Packaging Includes

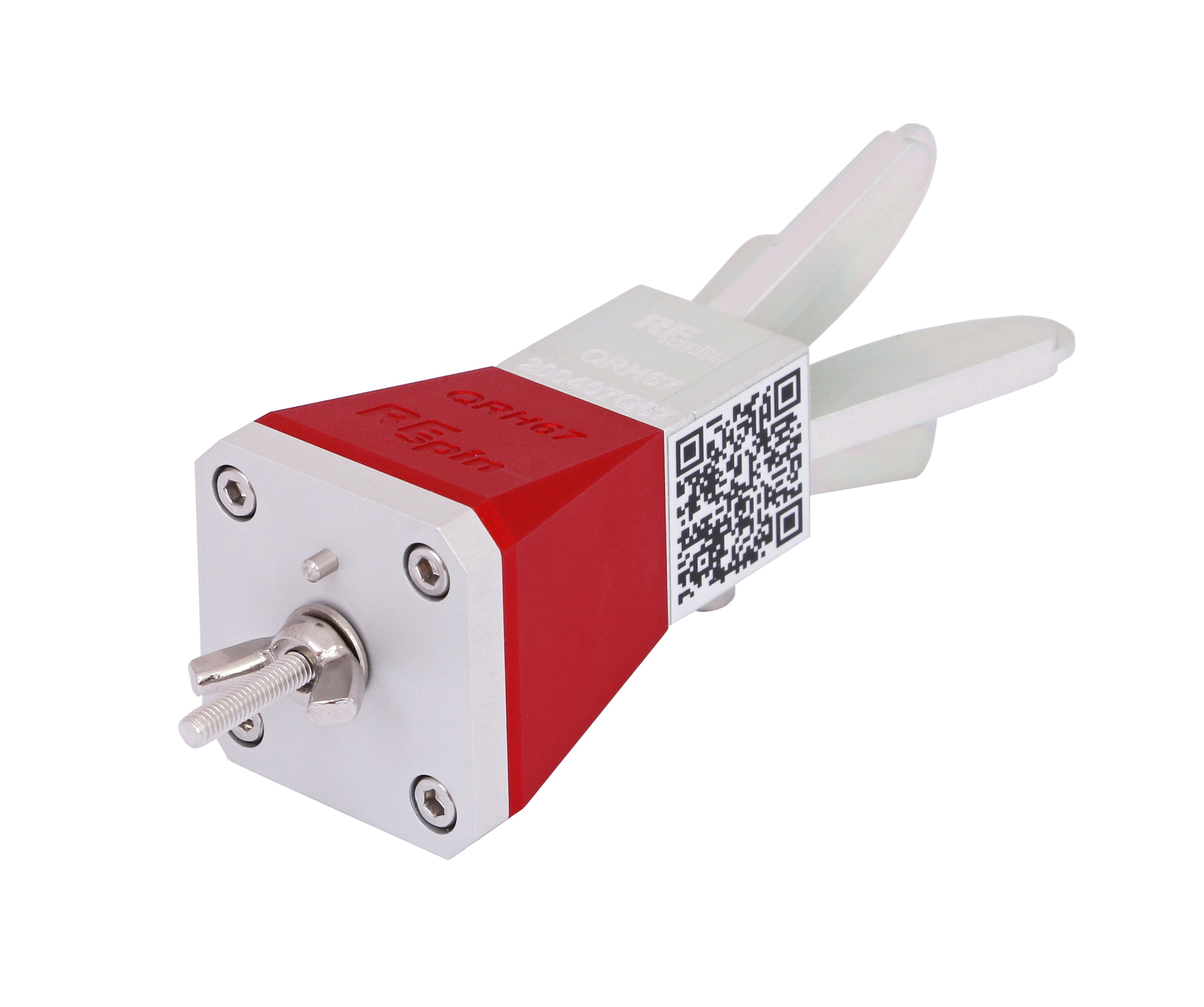

        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized double ridged broadband horn antenna

        Product Parameters

        Product identification

        • Product Name QRH67E
        • Product Category Quad Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 6 GHz – 67 GHz
        • VSWR (max.) 2.4
        • VSWR (avg.) 1.4
        • Impedance 50 Ohm
        • Connector 1.85mm (female)
        • Power (CW / Peak) 5 W / 10 W
        • Antenna Factor 40 – 54 dB/m
        • Port Isolation -28 dB
        • Polarization Dual Linear, Circular (with hybrid)

        Physical specifications

        • Width 35.1 mm (1.382 in)
        • Height 77.5 mm (3.051 in)
        • Depth 35.1 mm (1.382 in)
        • Weight 0.07 kg (0.154 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

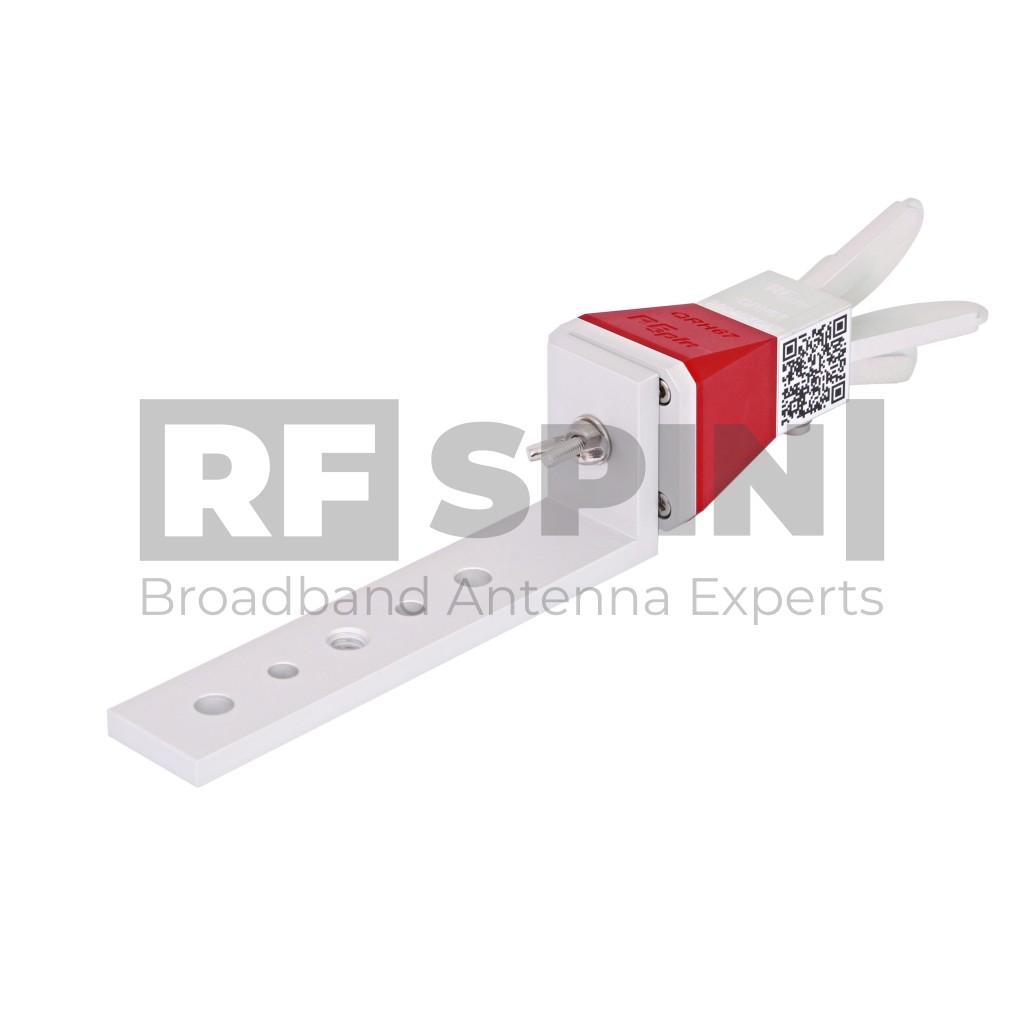

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

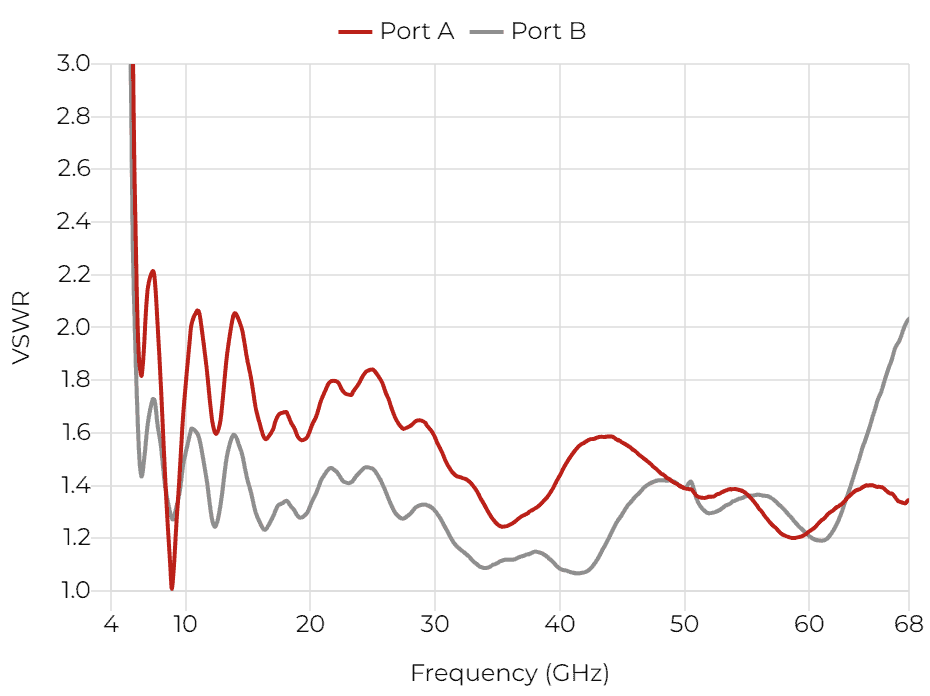

        VSWR

        QRH67E - VSWR

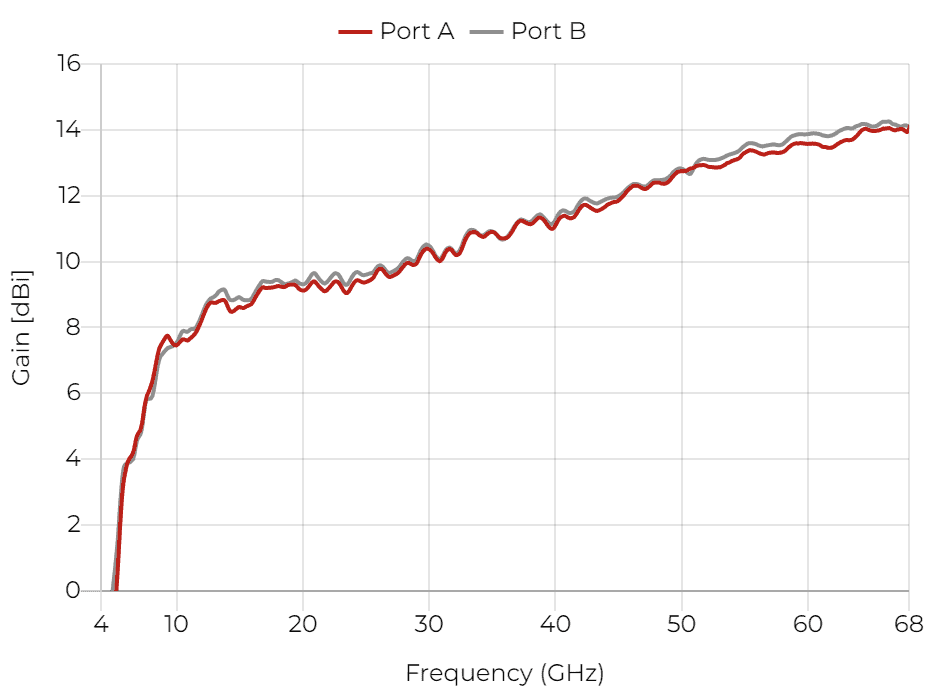

        Gain

        QRH67E - Gain

        Antenna Factor

        QRH67E - Antenna Factor

        Port Isolation

        QRH67E - Port Isolation

        Cross Polarization

        QRH67E - Cross Polarization

        Beamwidth

        Port A, E plane

        QRH67E - Port A, E plane

        Port A, H plane

        QRH67E - Port A, H plane

        Port B, E plane

        QRH67E - Port B, E plane

        Port B, H plane

        QRH67E - Port B, H plane

        Radiation Patterns

        Port A, 6 GHz

        QRH67E - Port A, 6 GHz

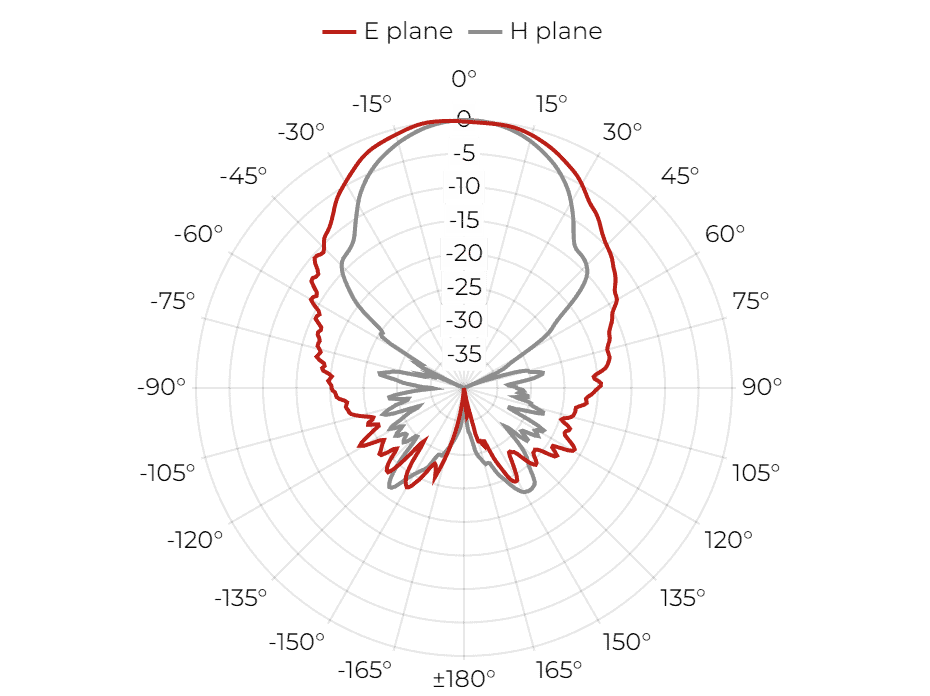

        Port B, 6 GHz

        QRH67E - Port B, 6 GHz

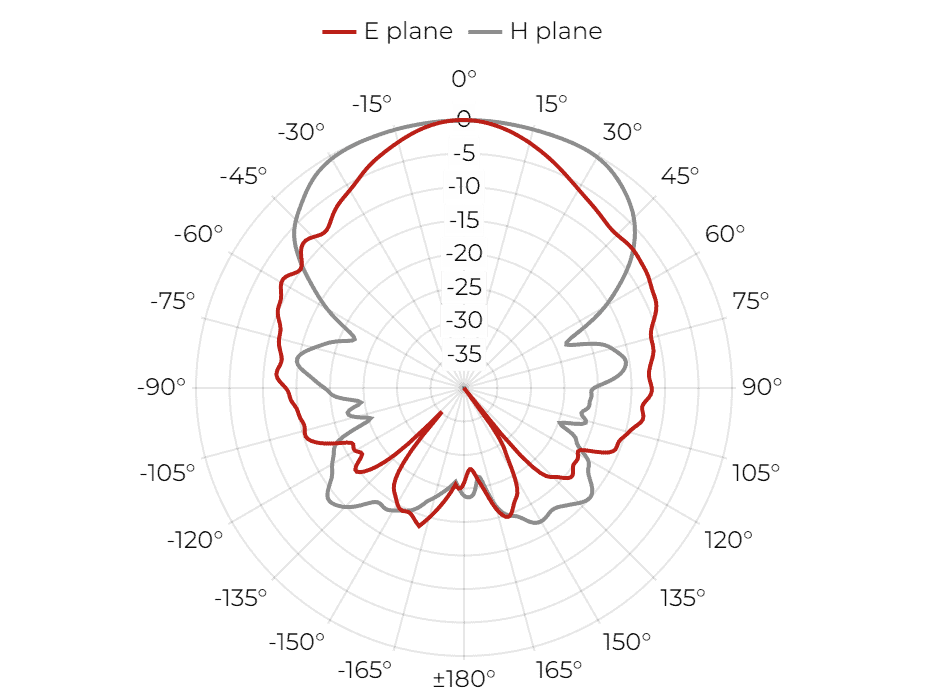

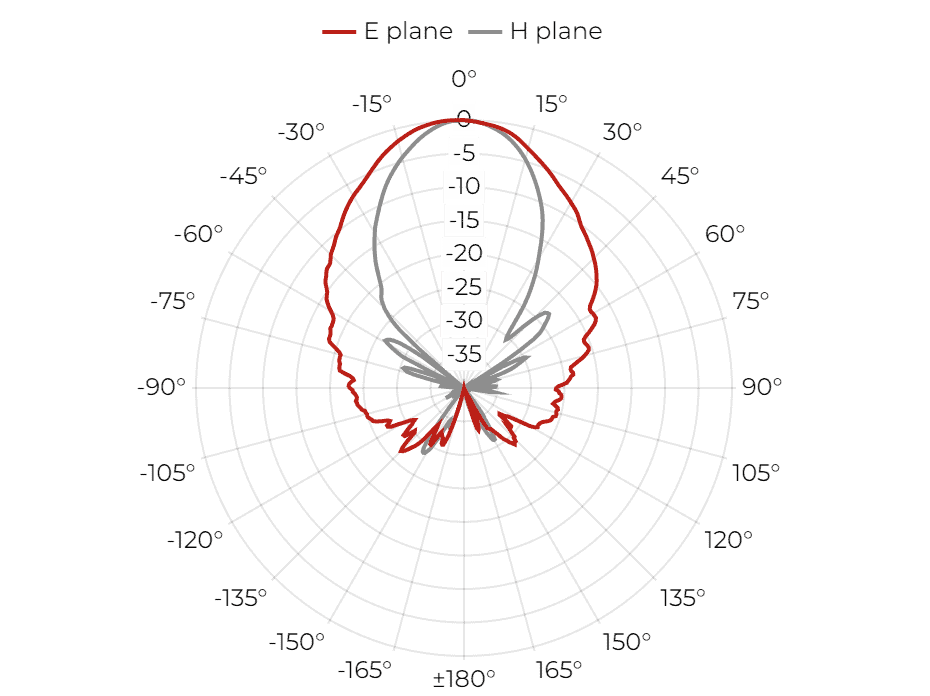

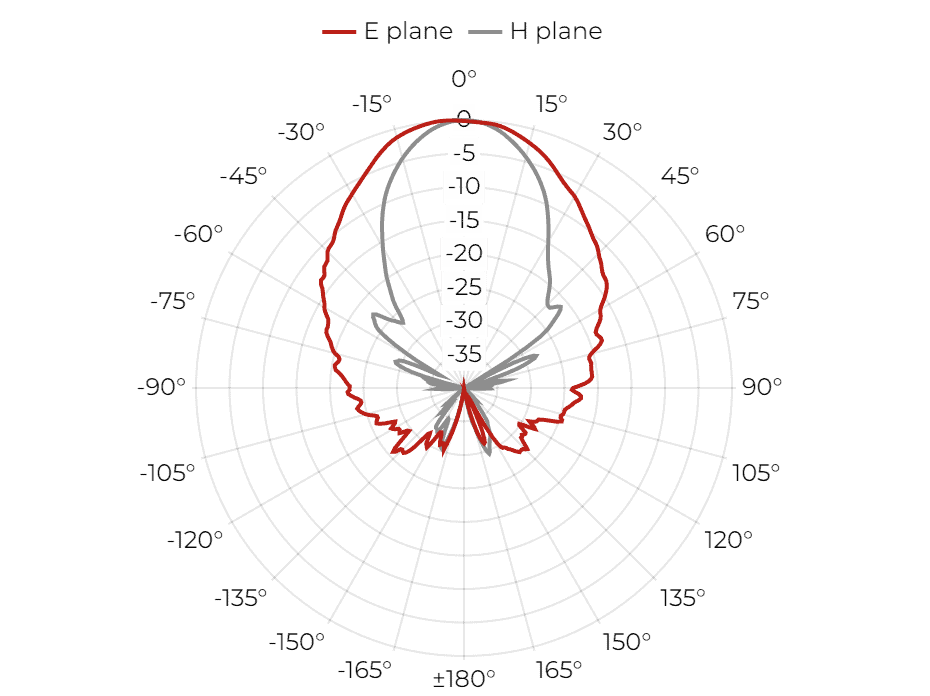

        Port A, 10 GHz

        QRH67E - Port A, 10 GHz

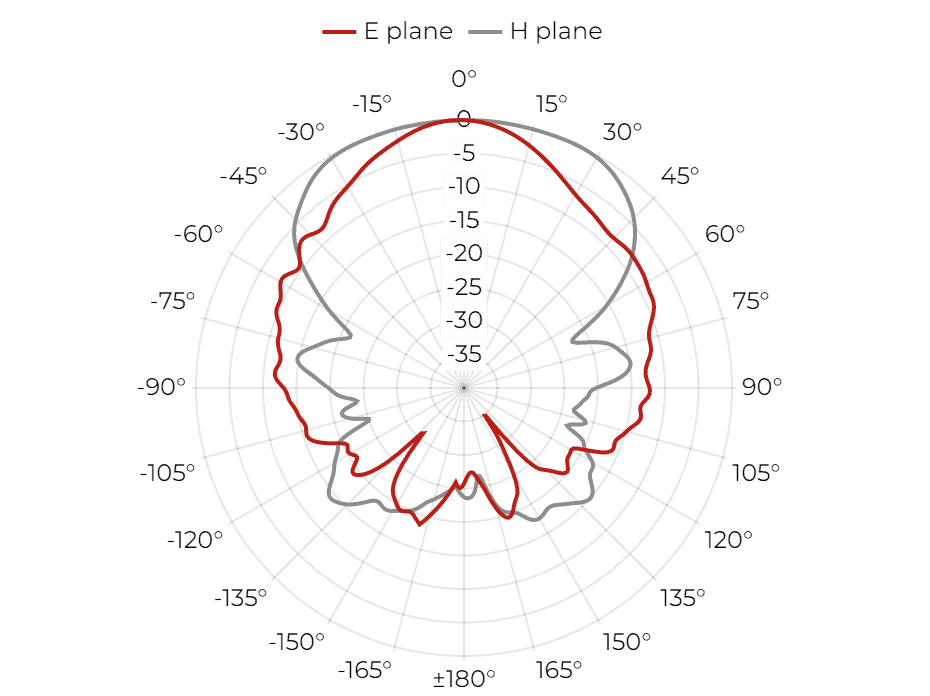

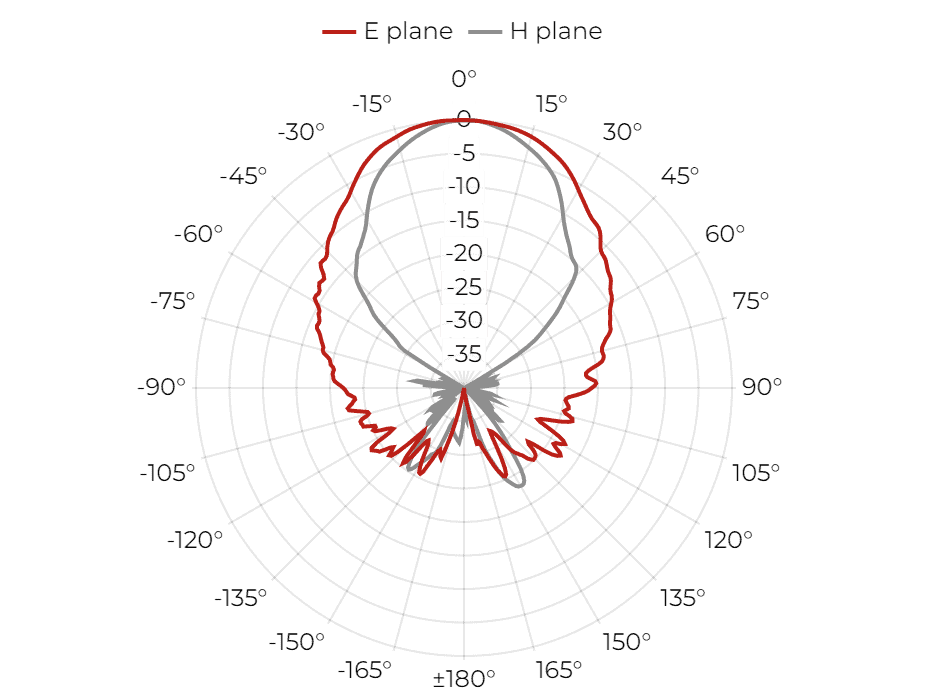

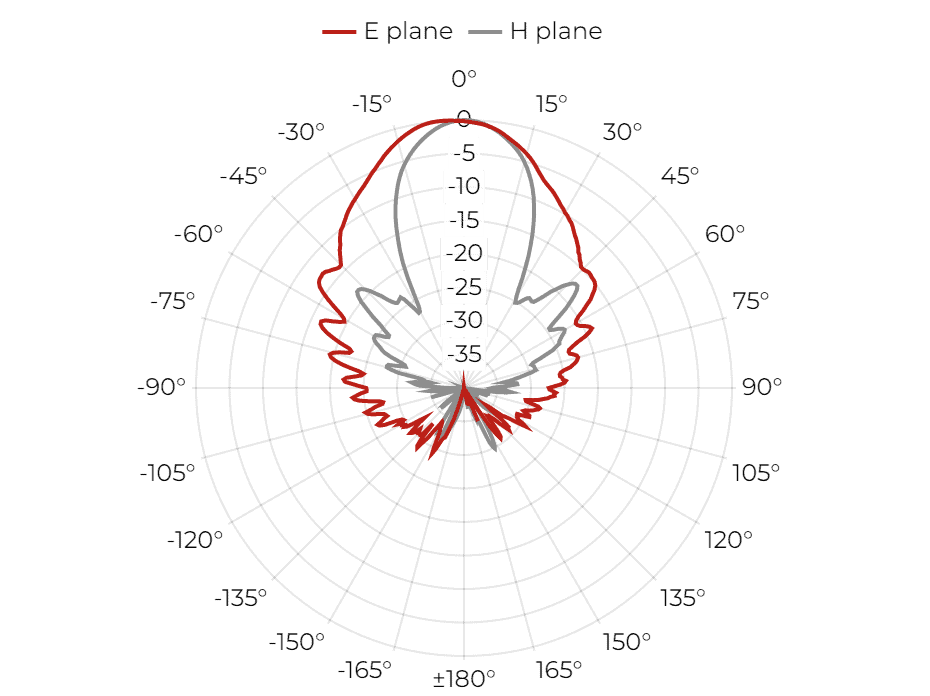

        Port B, 10 GHz

        QRH67E - Port B, 10 GHz

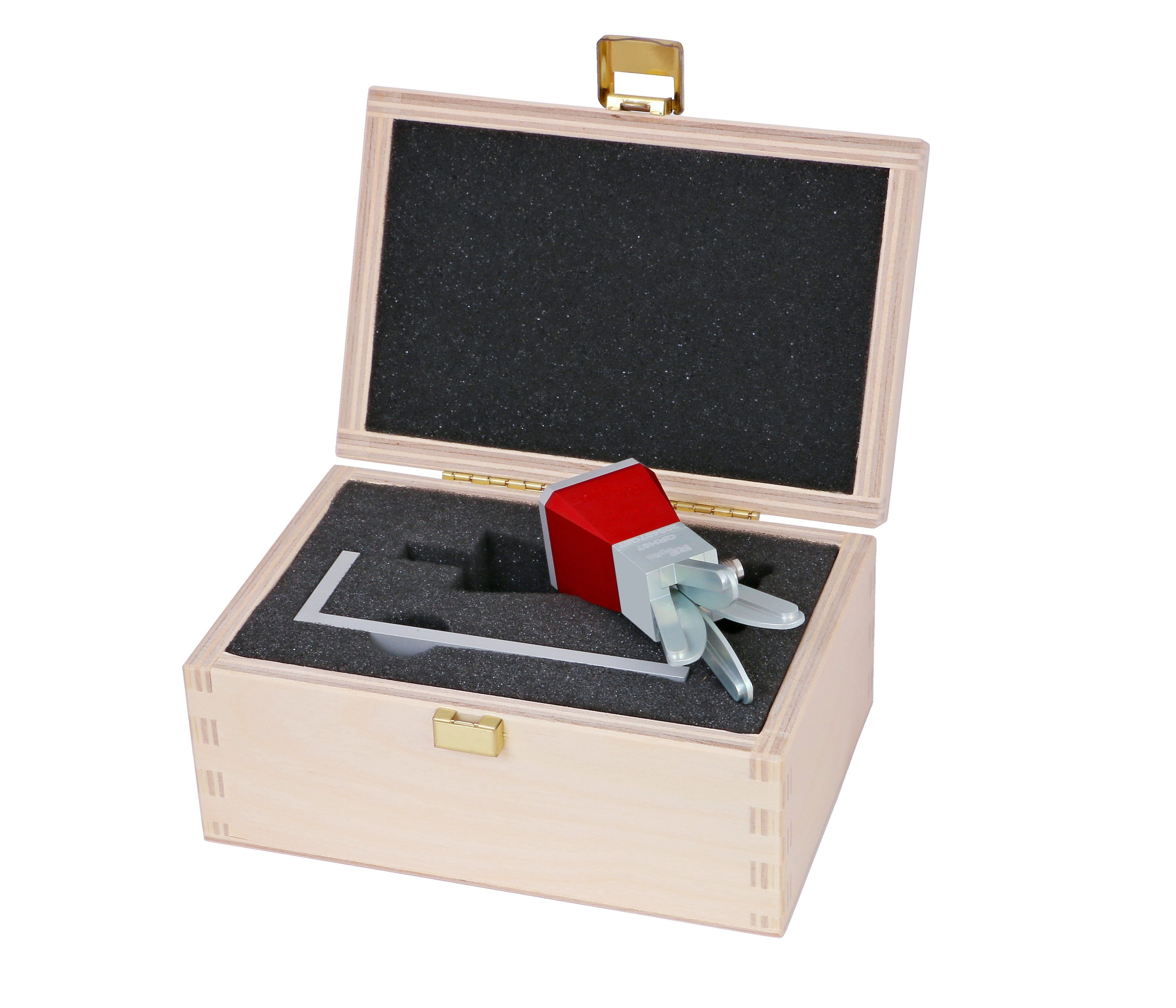

        Packaging and Accessories

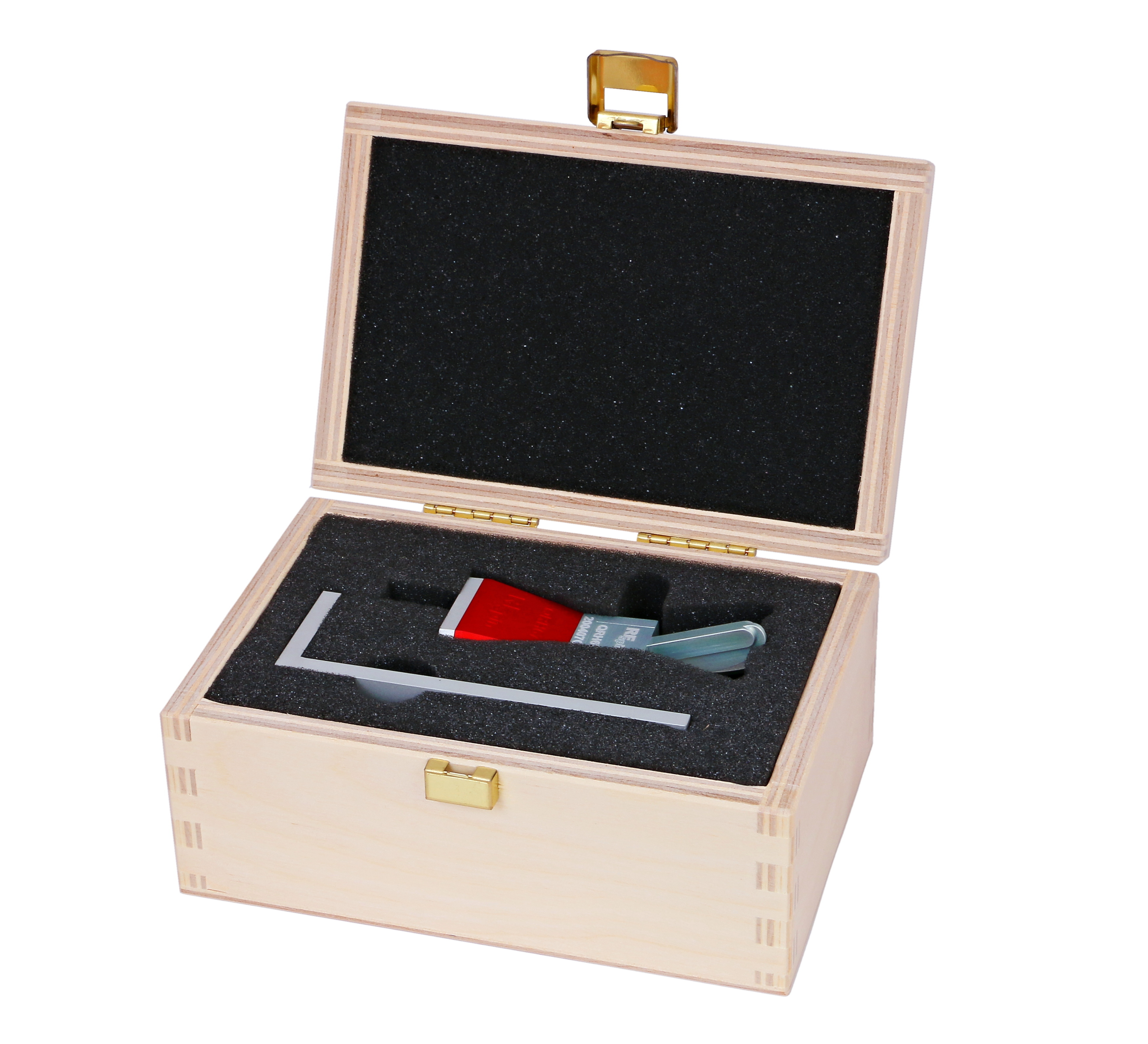

        What's in a box

        • QRH67E Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Protective wooden case
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

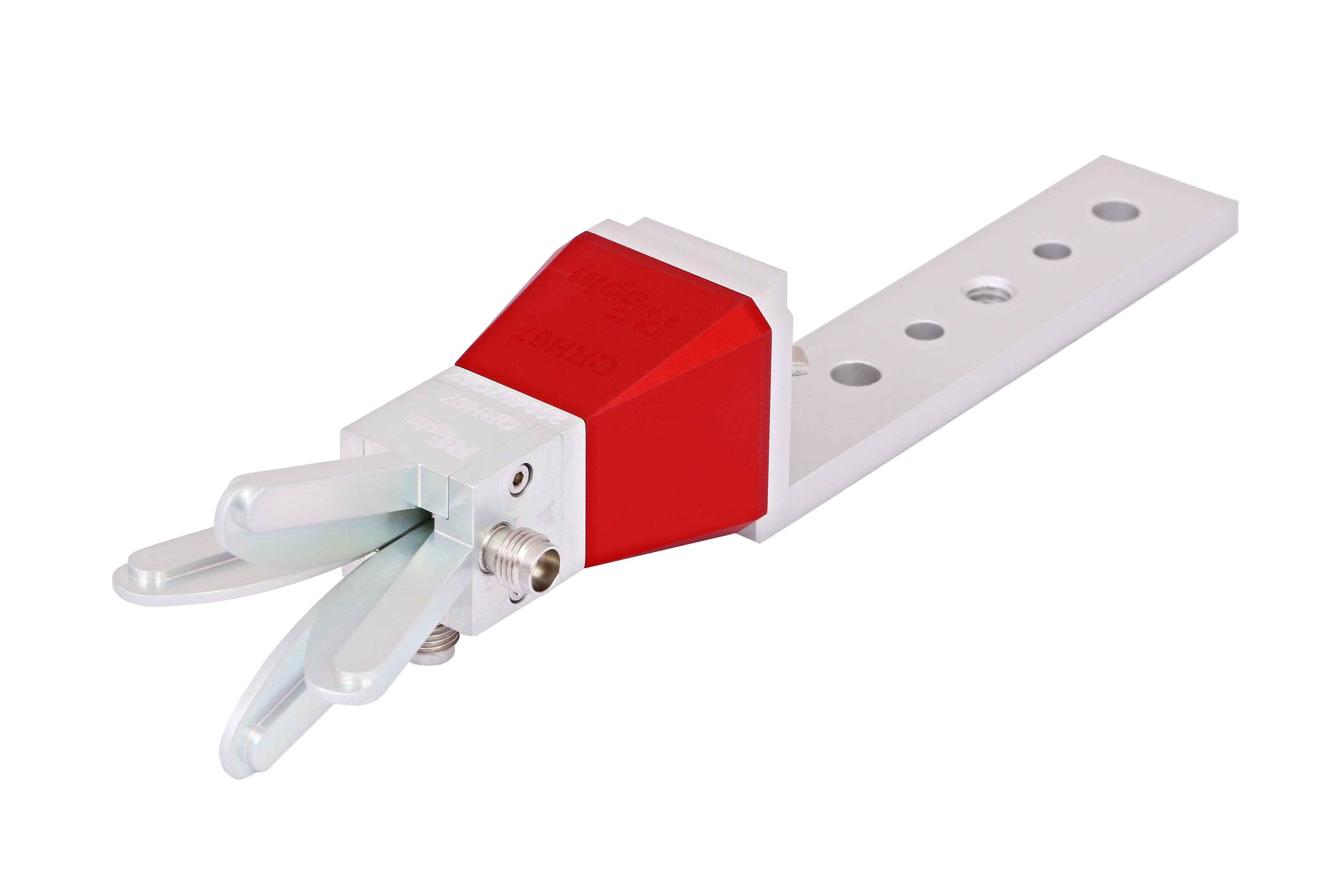

        • Standard mounting flange
        • Protective wooden case
        • Factory calibration report

        Custom services

        • Custom mounting solutions
        • Custom calibration data
