        RF SPIN

        Broadband Antenna Solutions

        Highest frequency model
        5G

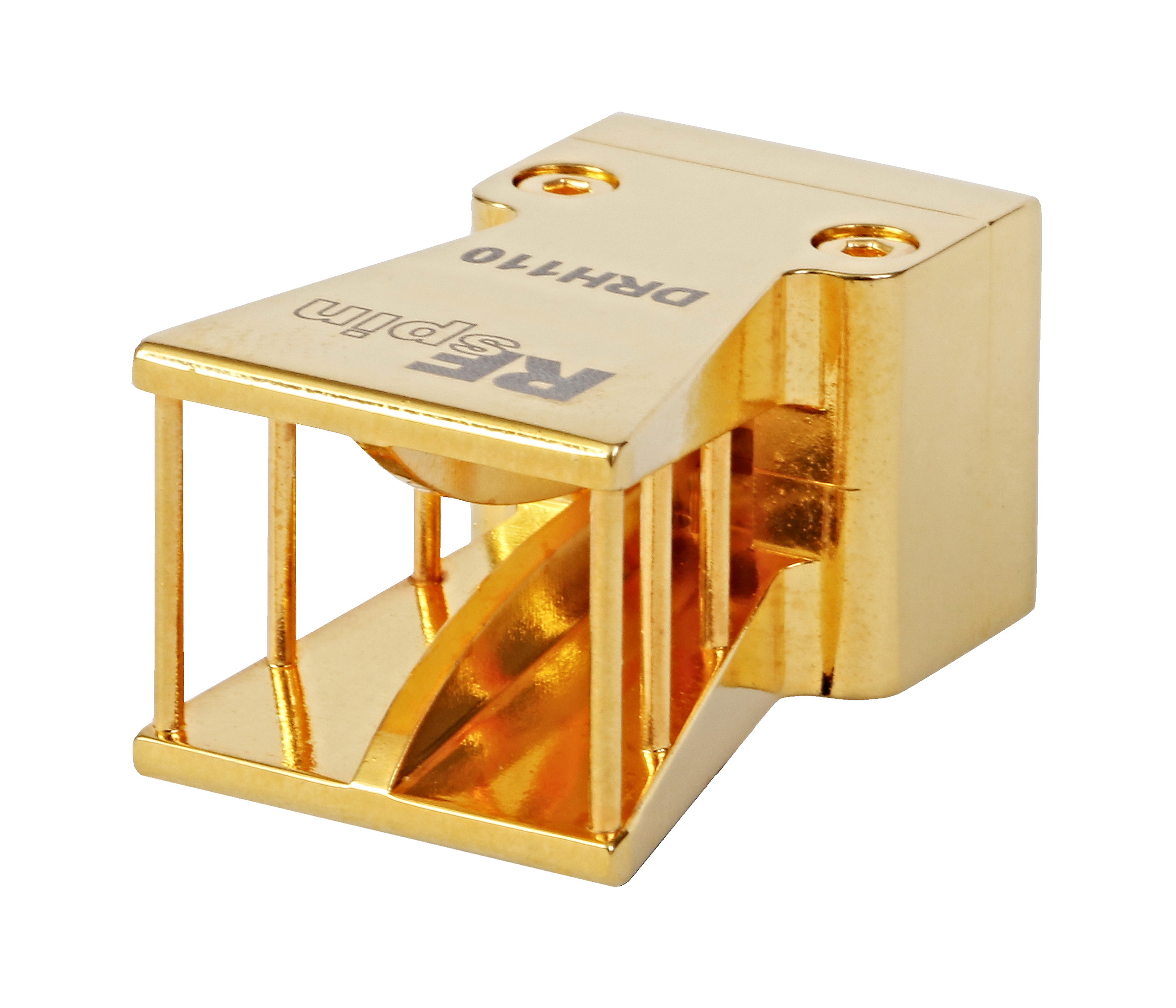

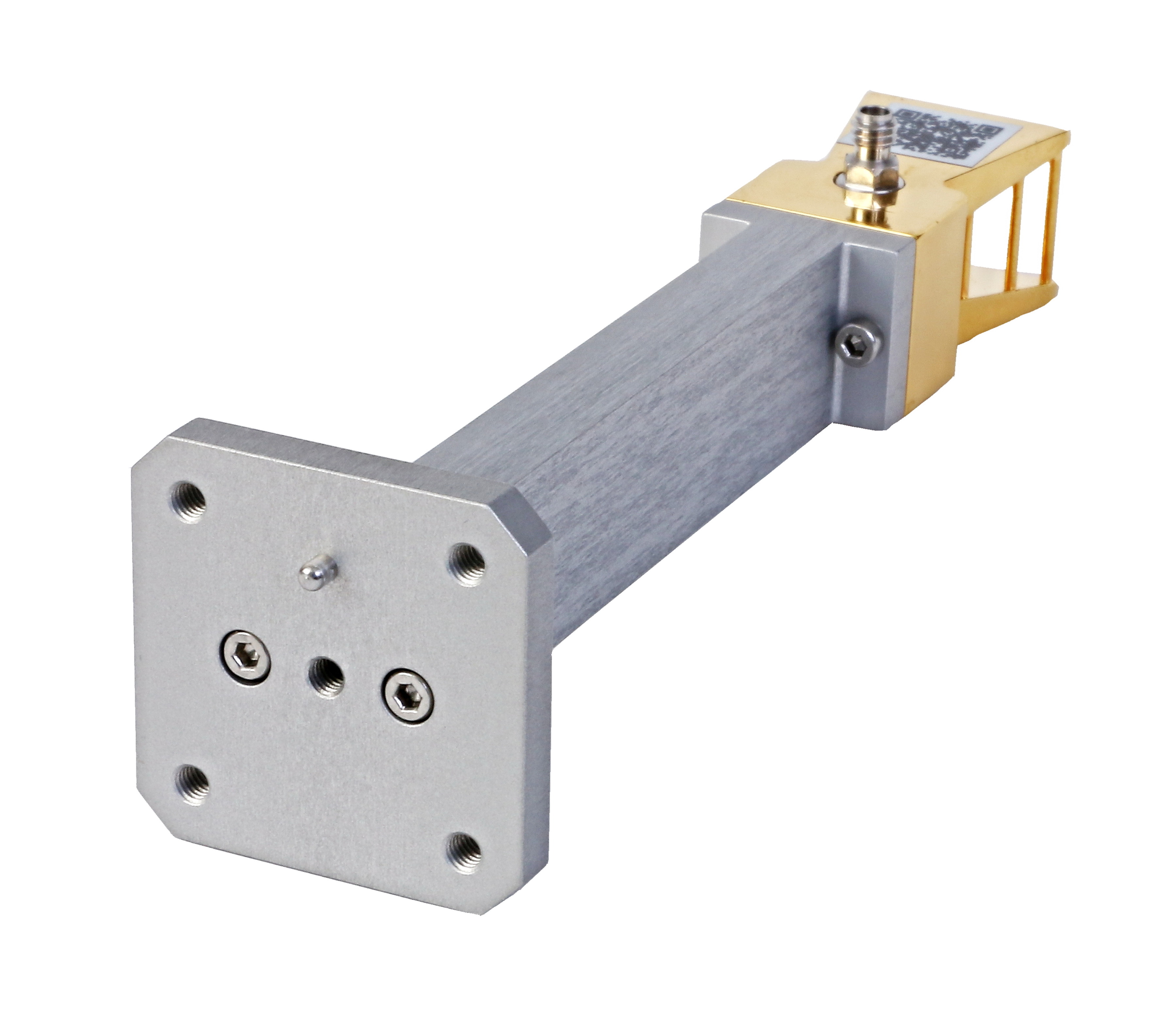

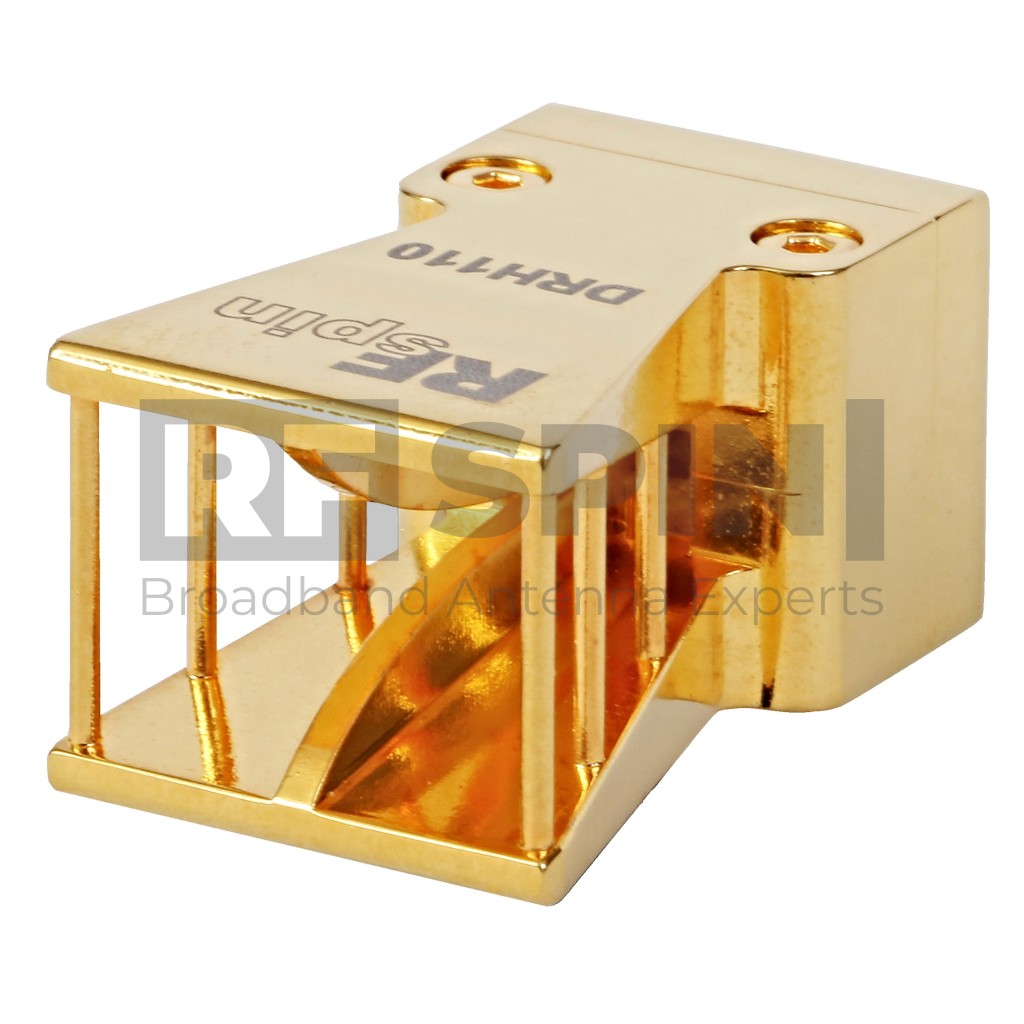

        DRH110

        Double Ridged Horn Antenna

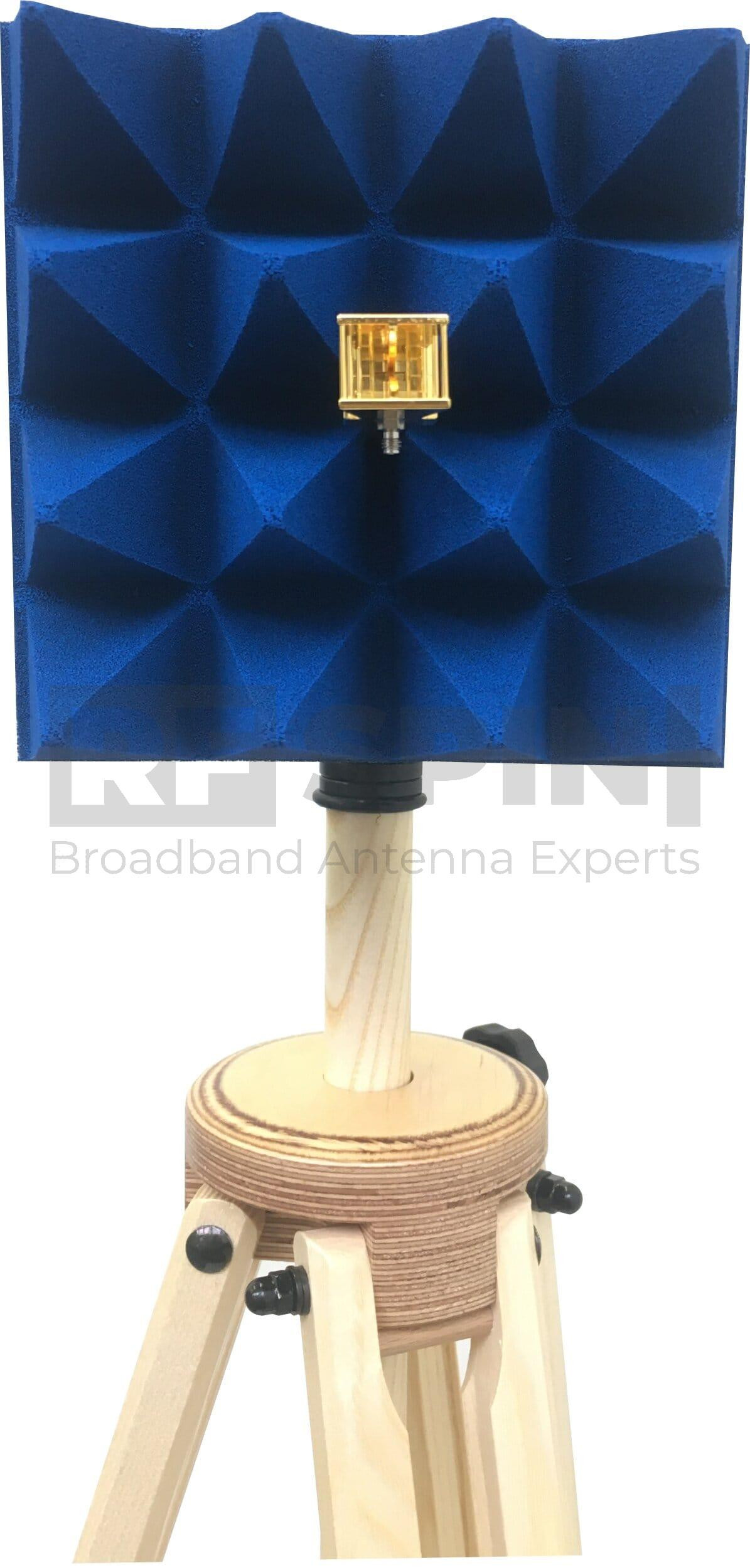

        The DRH110 antenna is a gem that is small in size but excels in electric ones. With a frequency exceeding 110 GHz, the DRH110 deserves a special gold finish.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band

        Design and Surface Treatment

        • Gold plated coating
        • Includes standard mount
        • Storage in protective tailor-made wooden box

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High qulity 1.0mm type coaxial connector

        Product Packaging Includes

        • Adapter with ¼ inch inner thread, supplied with antenna

        Product Parameters

        Product identification

        • Product Name DRH110
        • Product Category Double Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 14 GHz – 110 GHz
        • VSWR (max.) 2.1
        • VSWR (avg.) 1.4
        • Impedance 50 Ohm
        • Connector 1.0mm
        • Power (CW / Peak) 4 W / 8 W
        • Antenna Factor 44.3 – 53.7 dB/m
        • Polarization Linear

        Physical specifications

        • Width 18.6 mm (0.732 in)
        • Height 31.9 mm (1.256 in)
        • Depth 15.7 mm (0.618 in)
        • Weight 0.022 kg (0.049 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

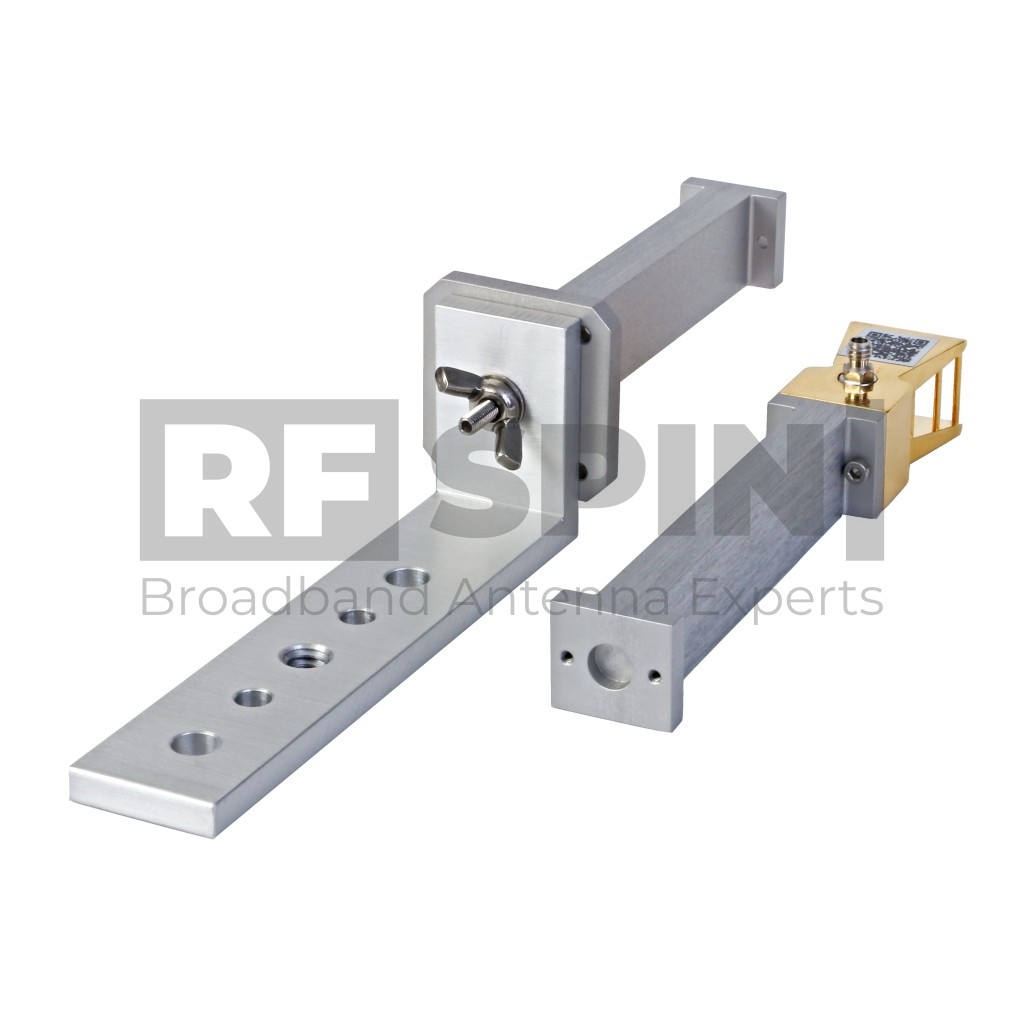

        Mounting flange

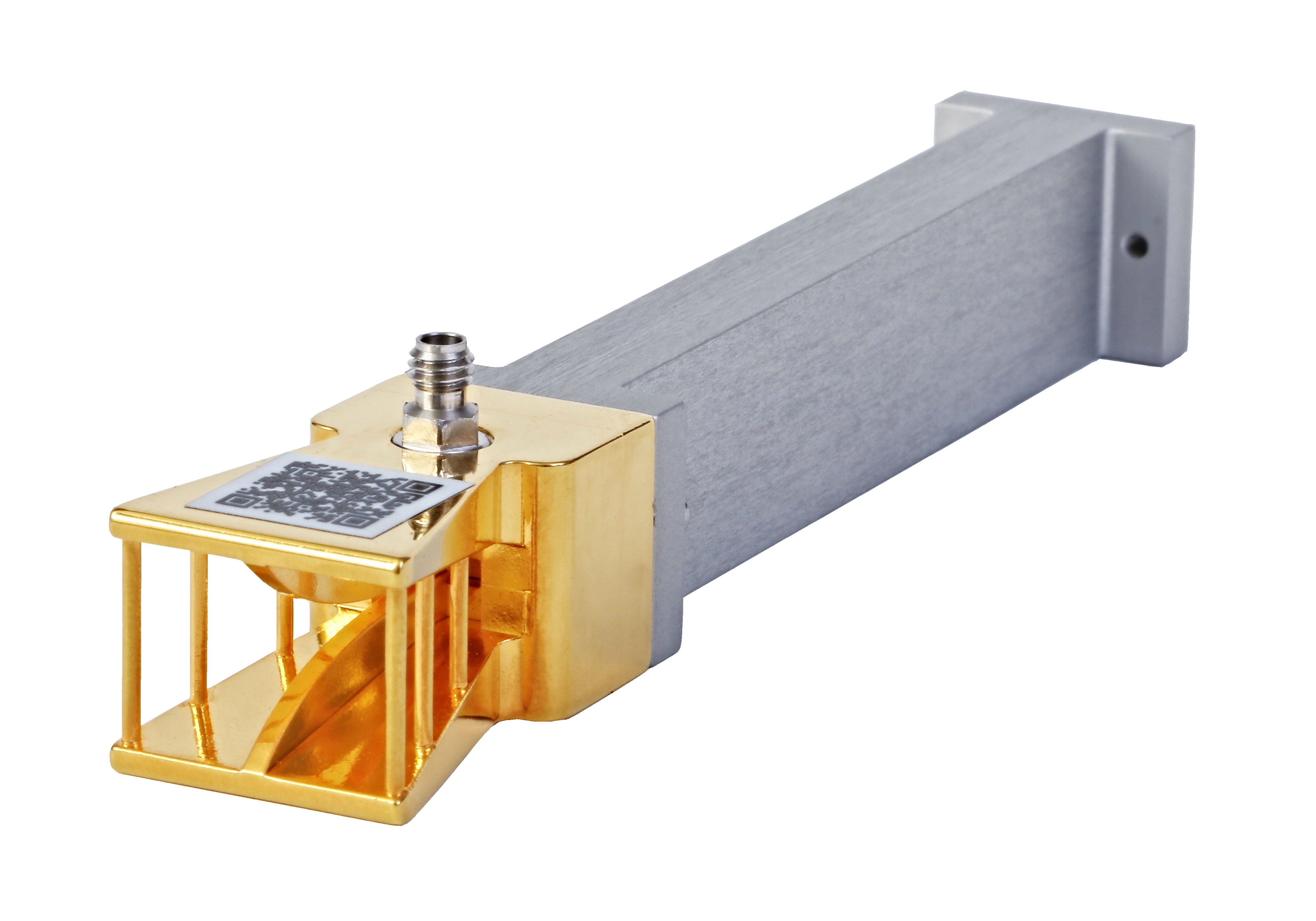

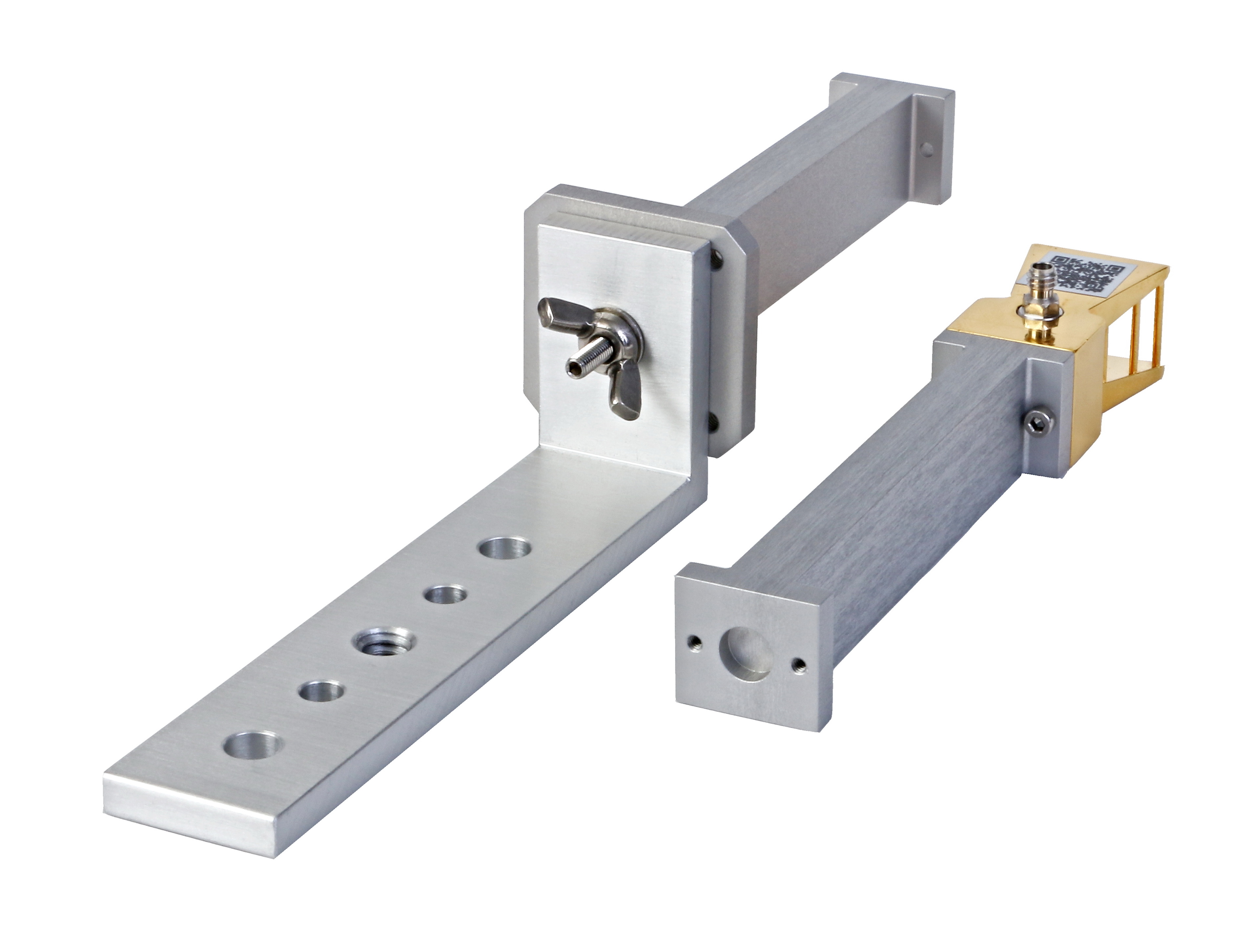

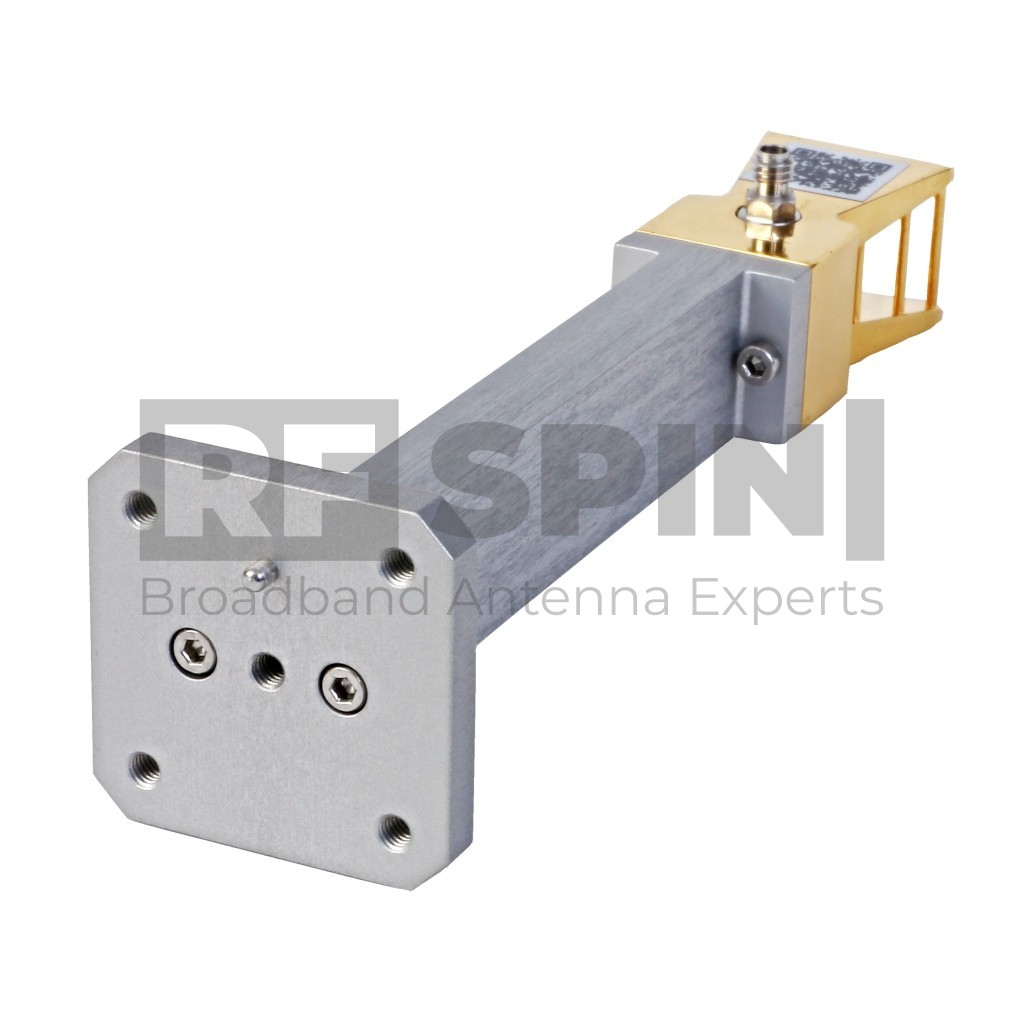

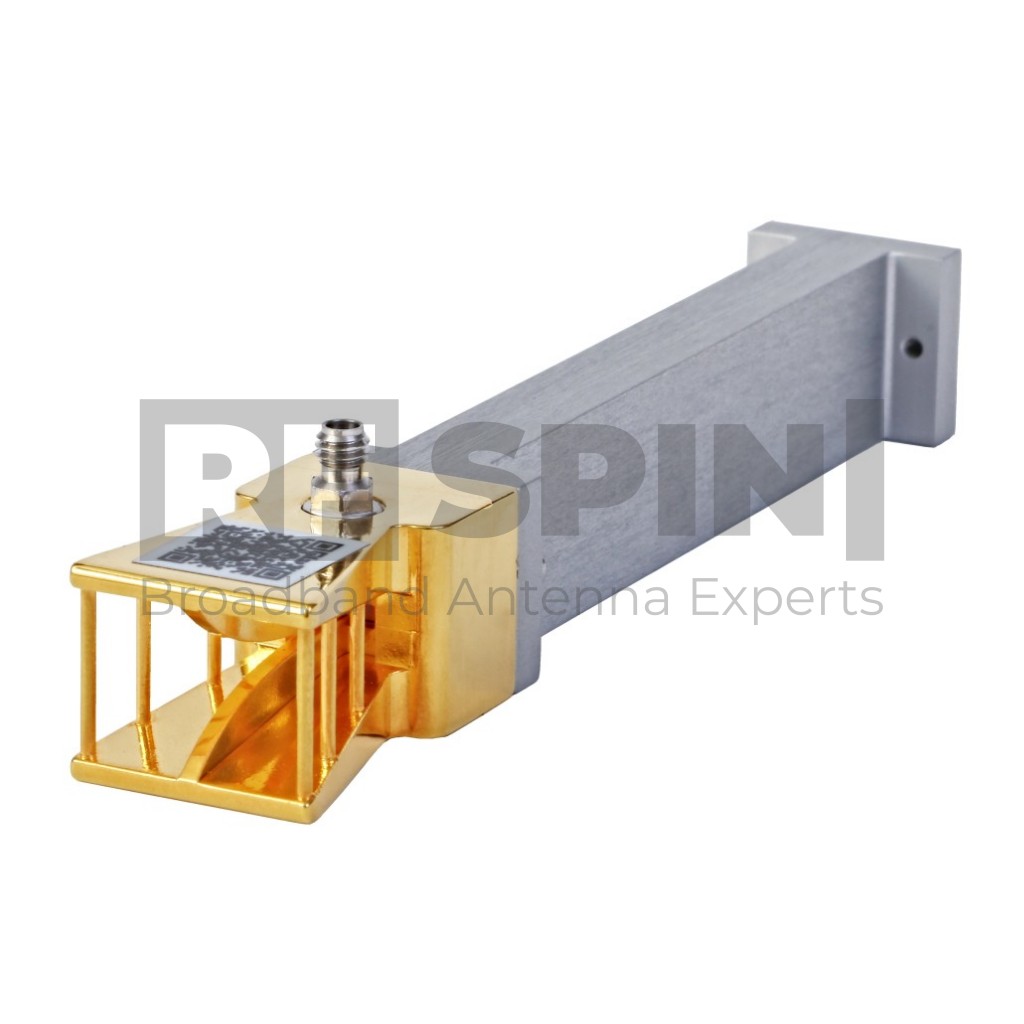

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        DRH110 - VSWR

        Gain

        DRH110 - Gain

        Antenna Factor

        DRH110 - Antenna Factor

        Cross Polarization

        DRH110 - Cross Polarization

        Beamwidth

        Port A, E plane

        DRH110 - Port A, E plane

        Port A, H plane

        DRH110 - Port A, H plane

        Radiation Patterns

        14 GHz

        DRH110 - 14 GHz

        20 GHz

        DRH110 - 20 GHz

        25 GHz

        DRH110 - 25 GHz

        30 GHz

        DRH110 - 30 GHz

        Packaging and Accessories

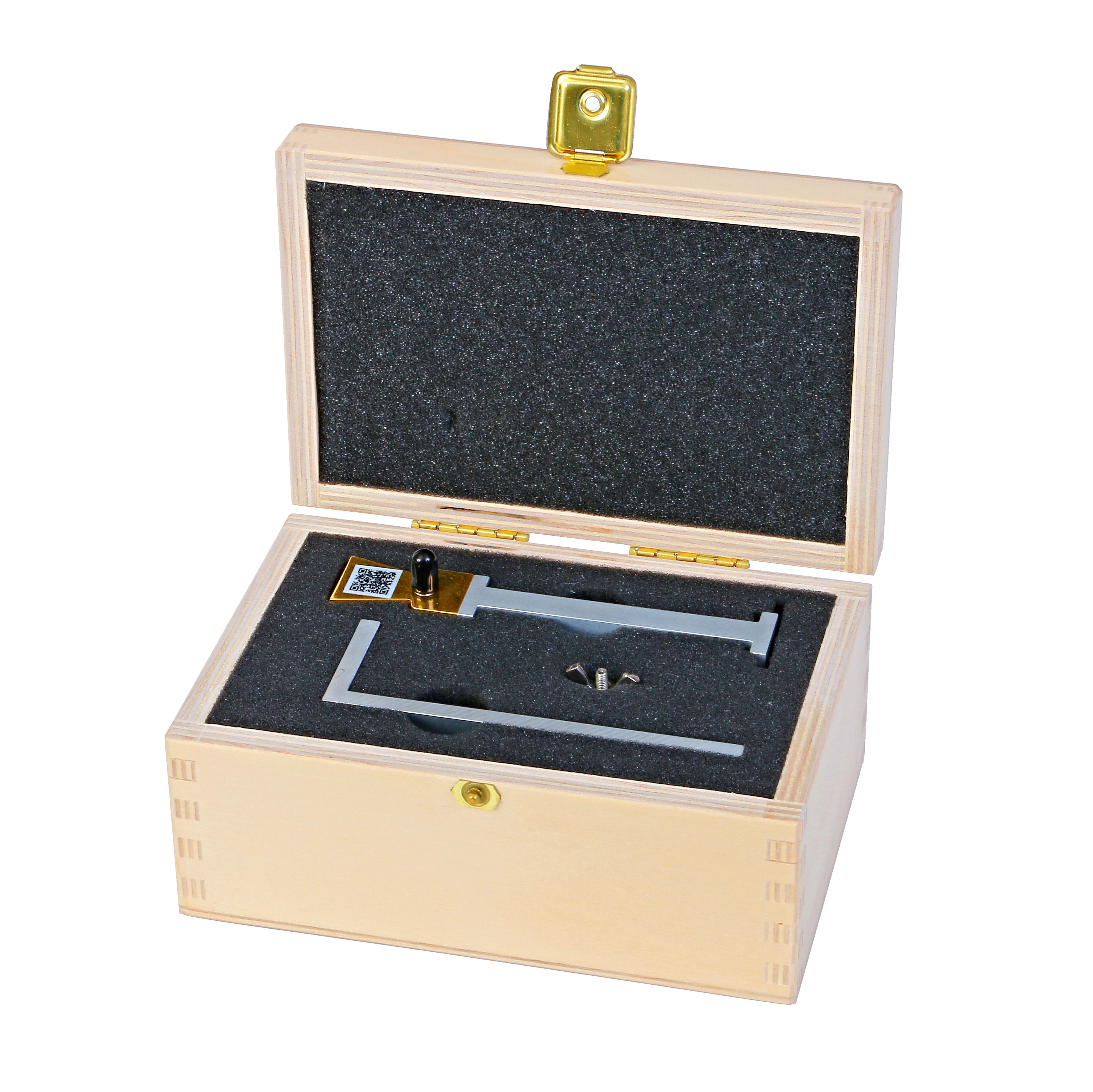

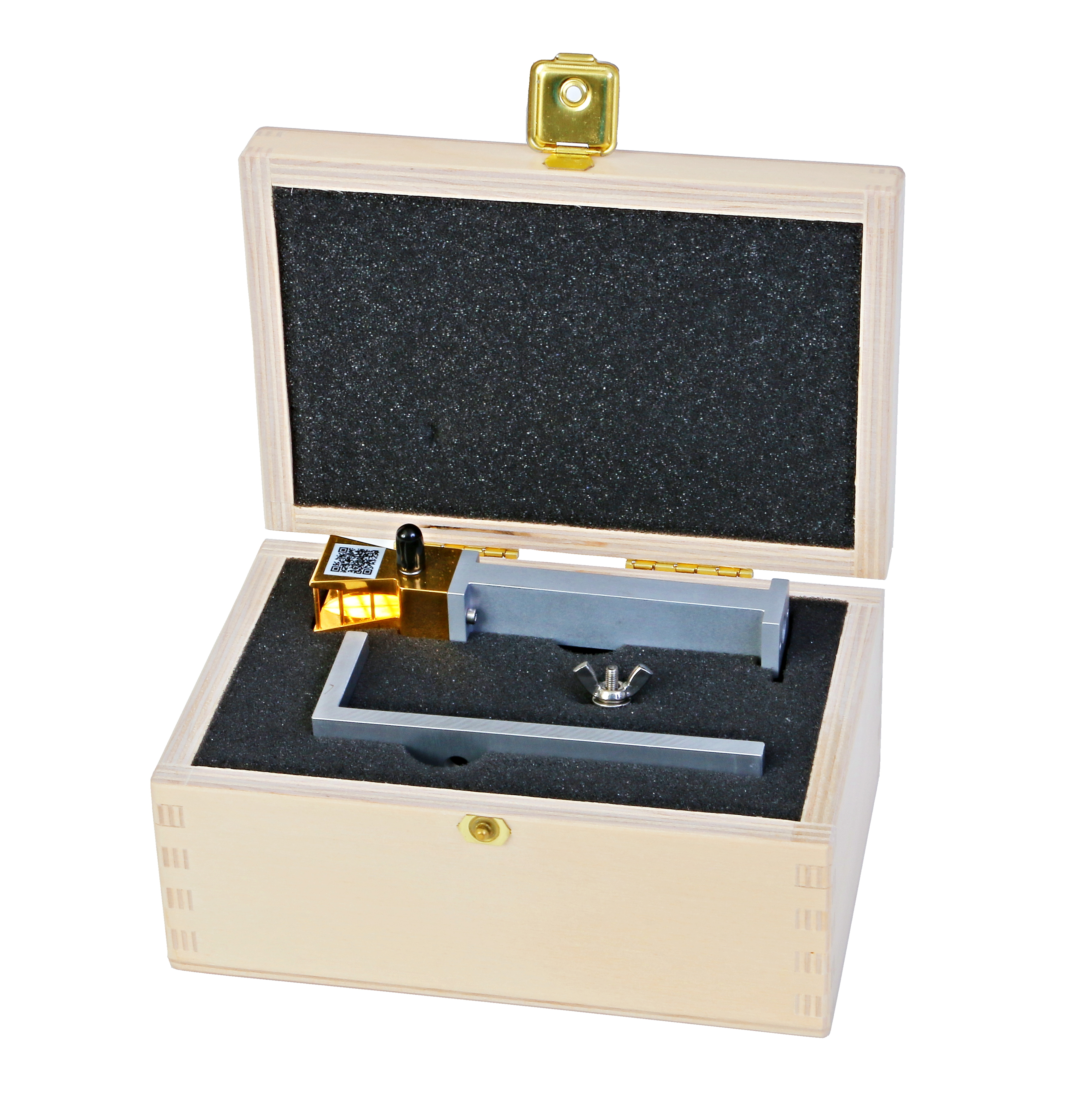

        What's in a box

        • DRH110 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Protective wooden case
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

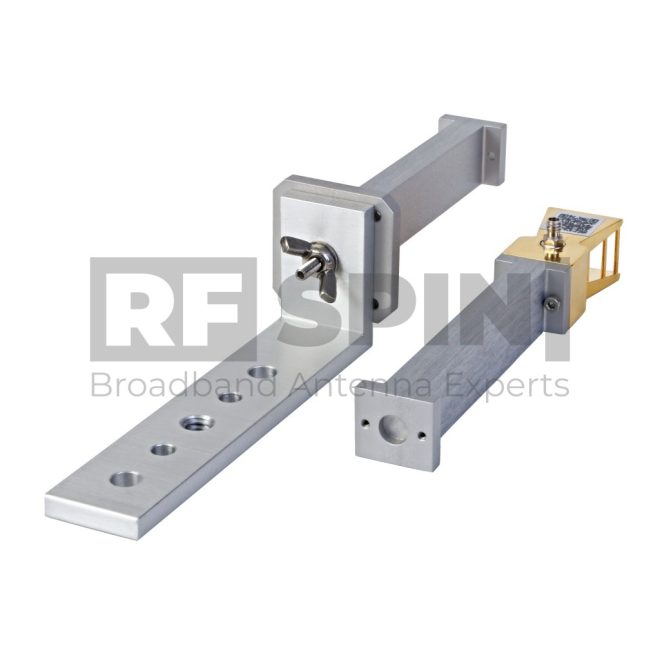

        • Standard mounting flange
        • Protective wooden case
        • Factory calibration report

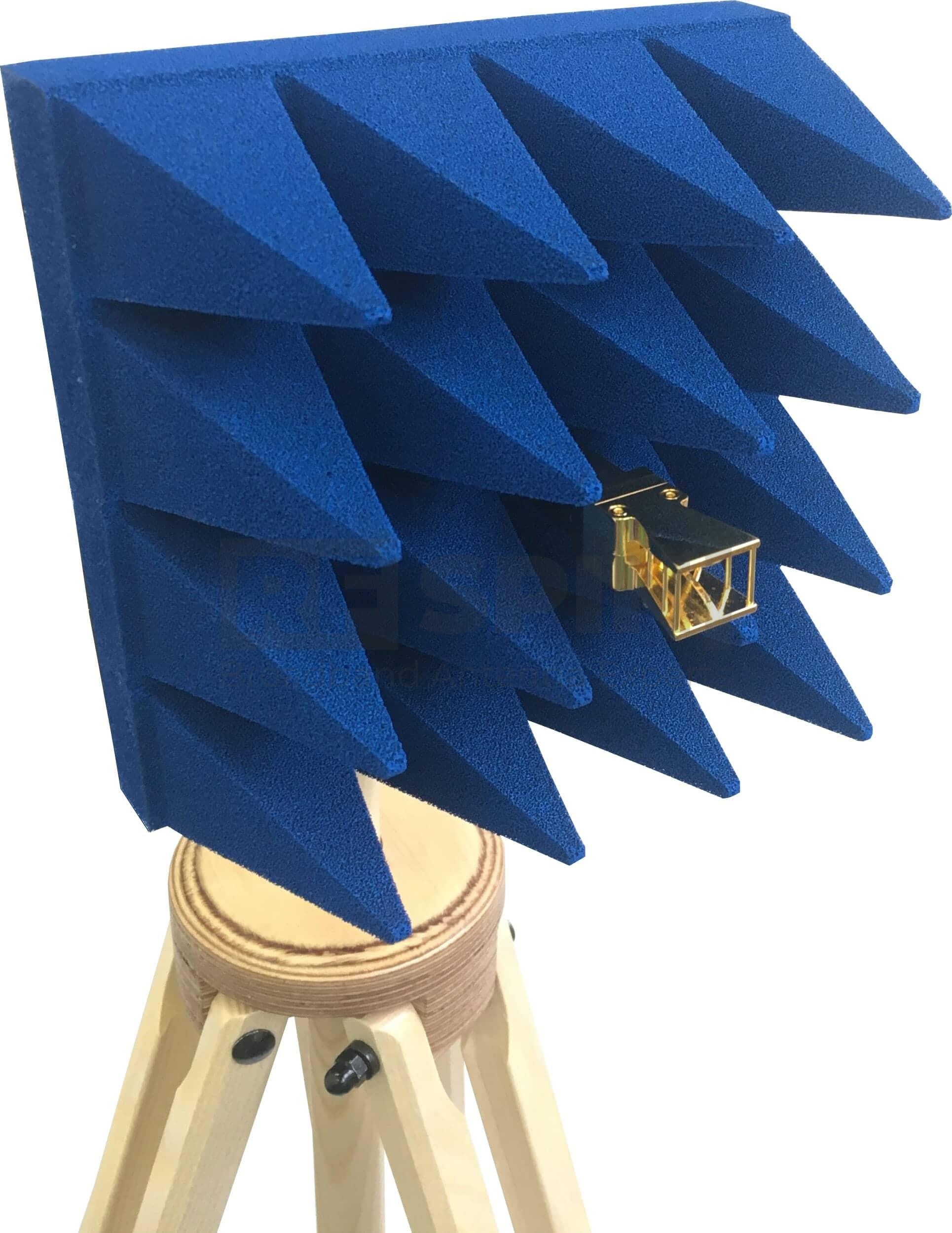

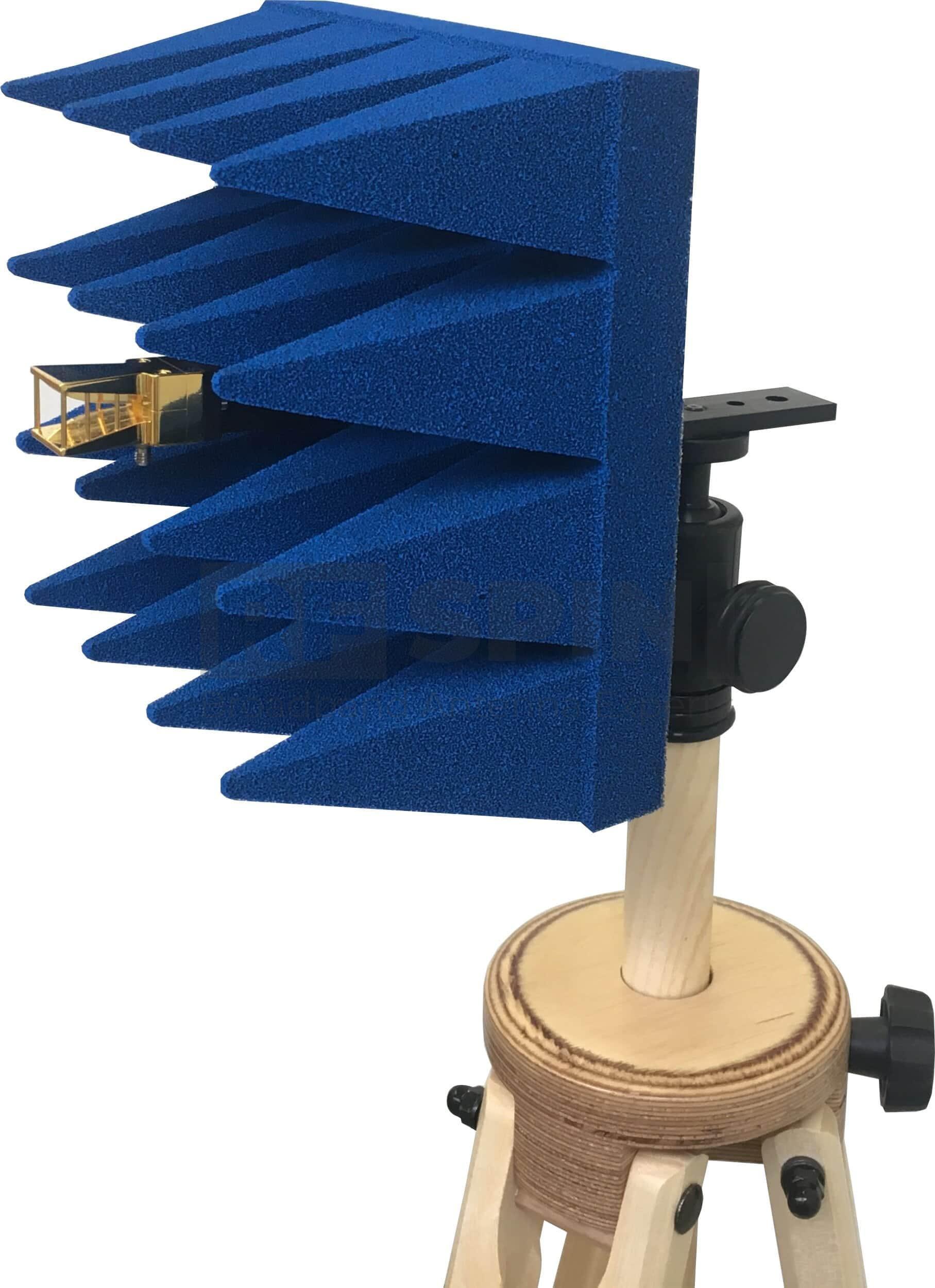

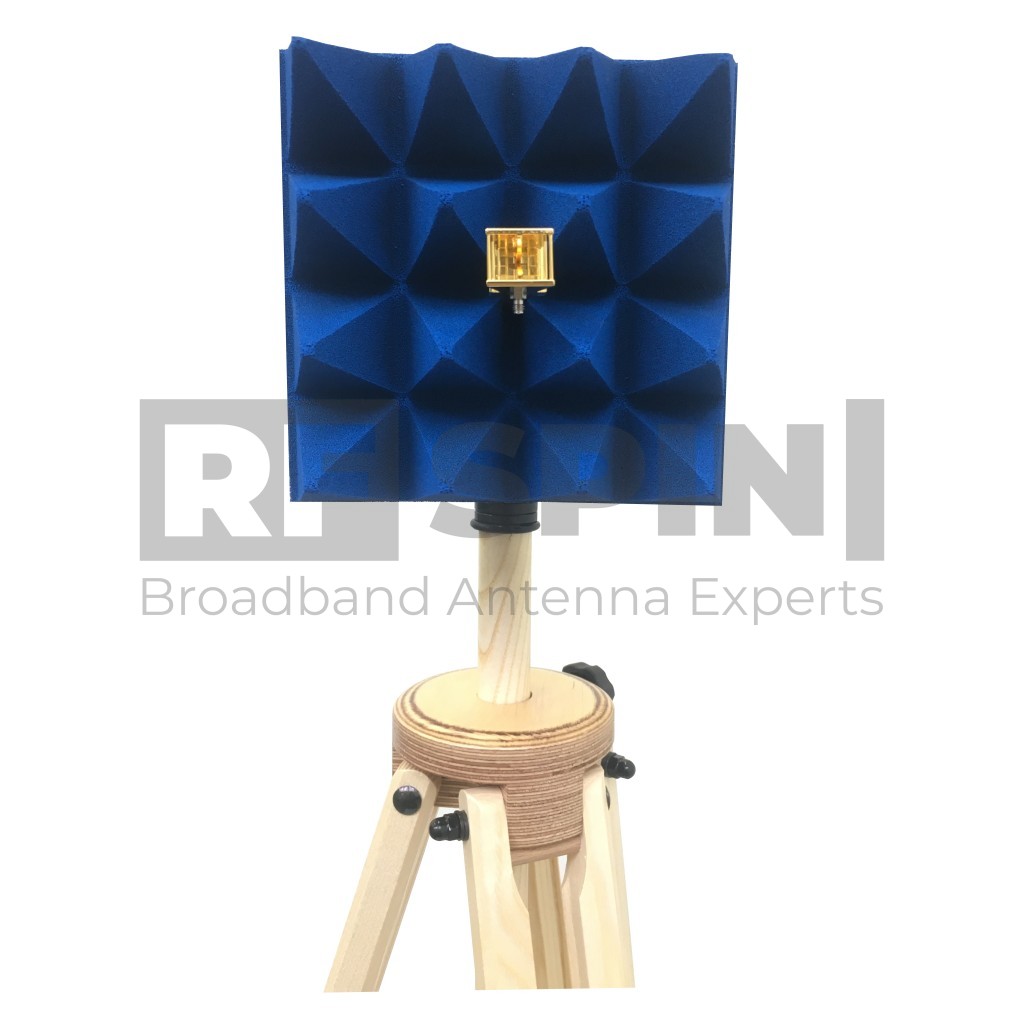

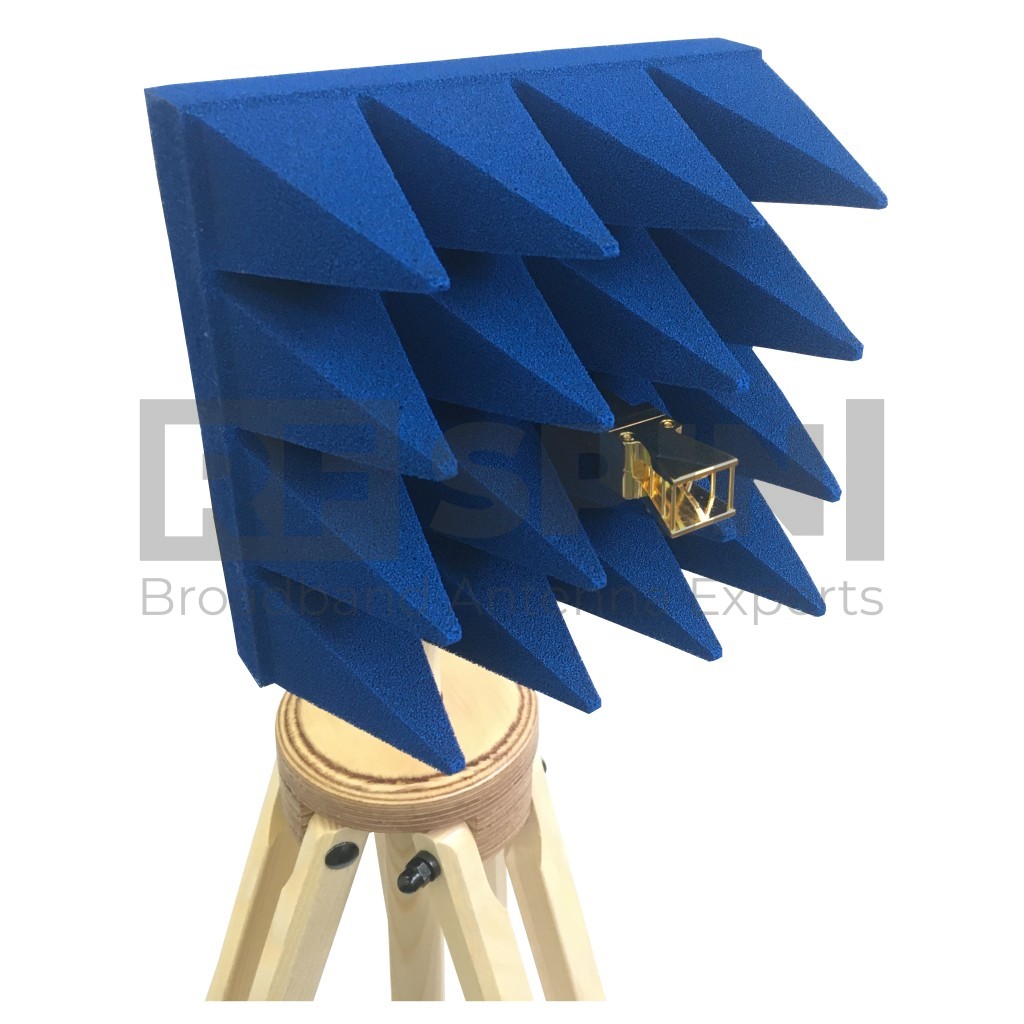

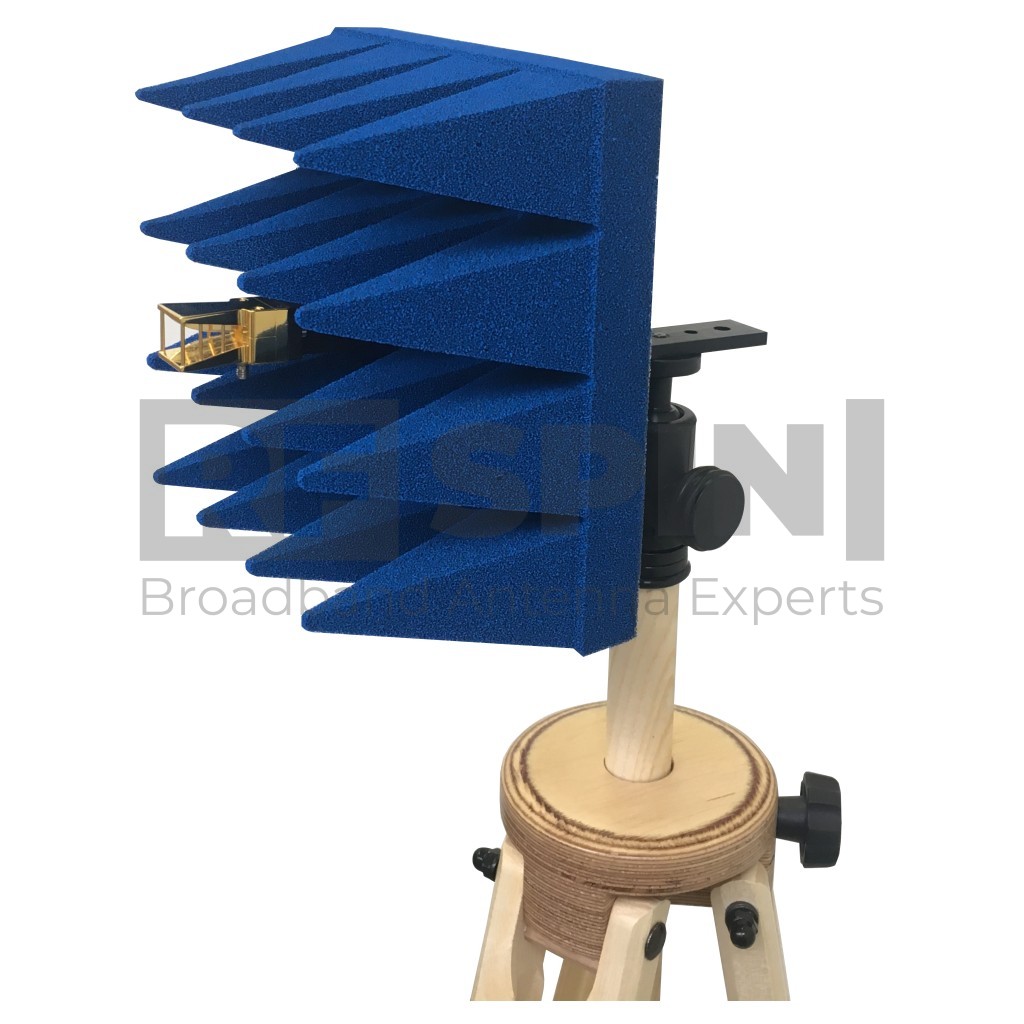

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
