        RF SPIN

        Broadband Antenna Solutions

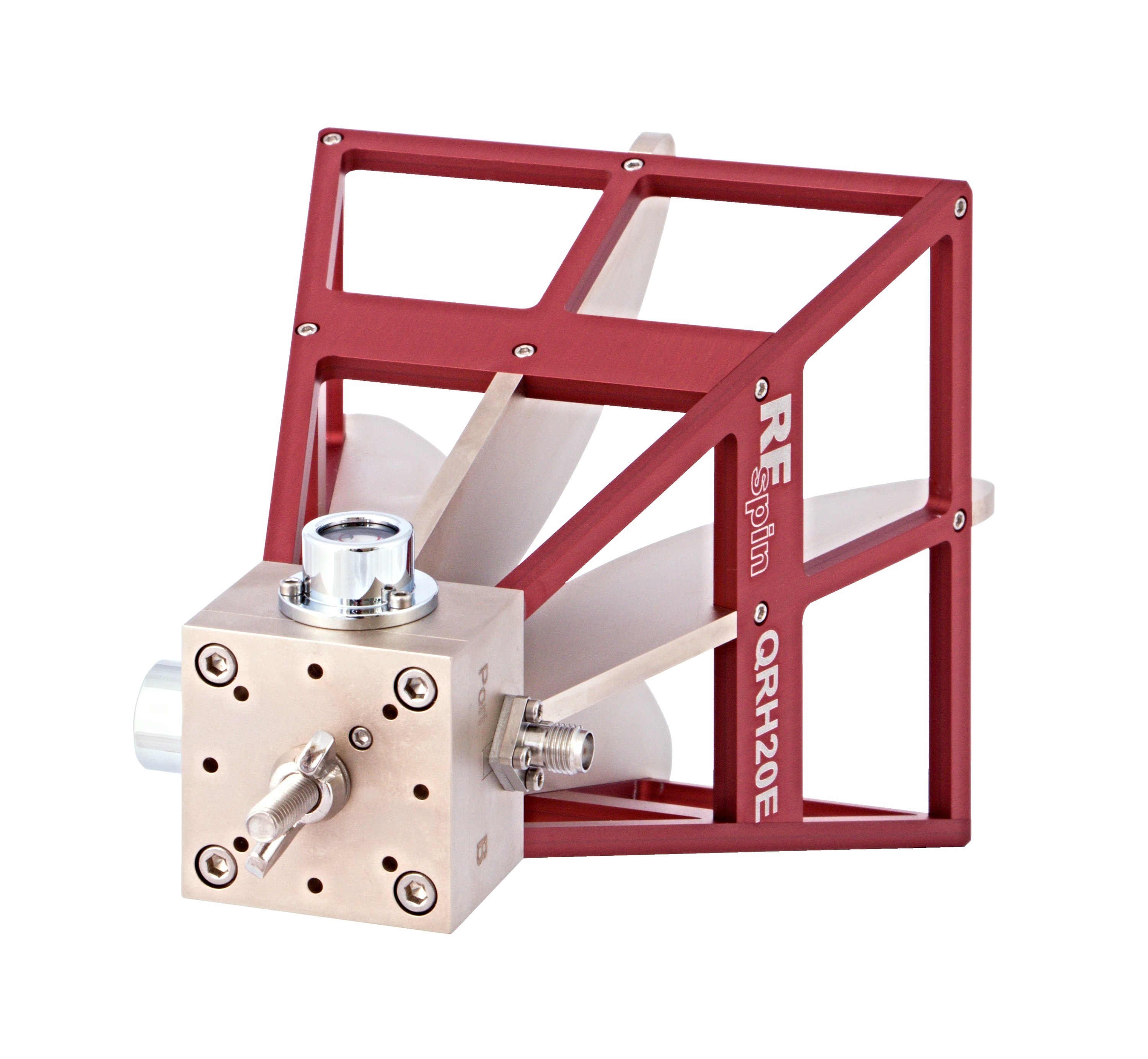

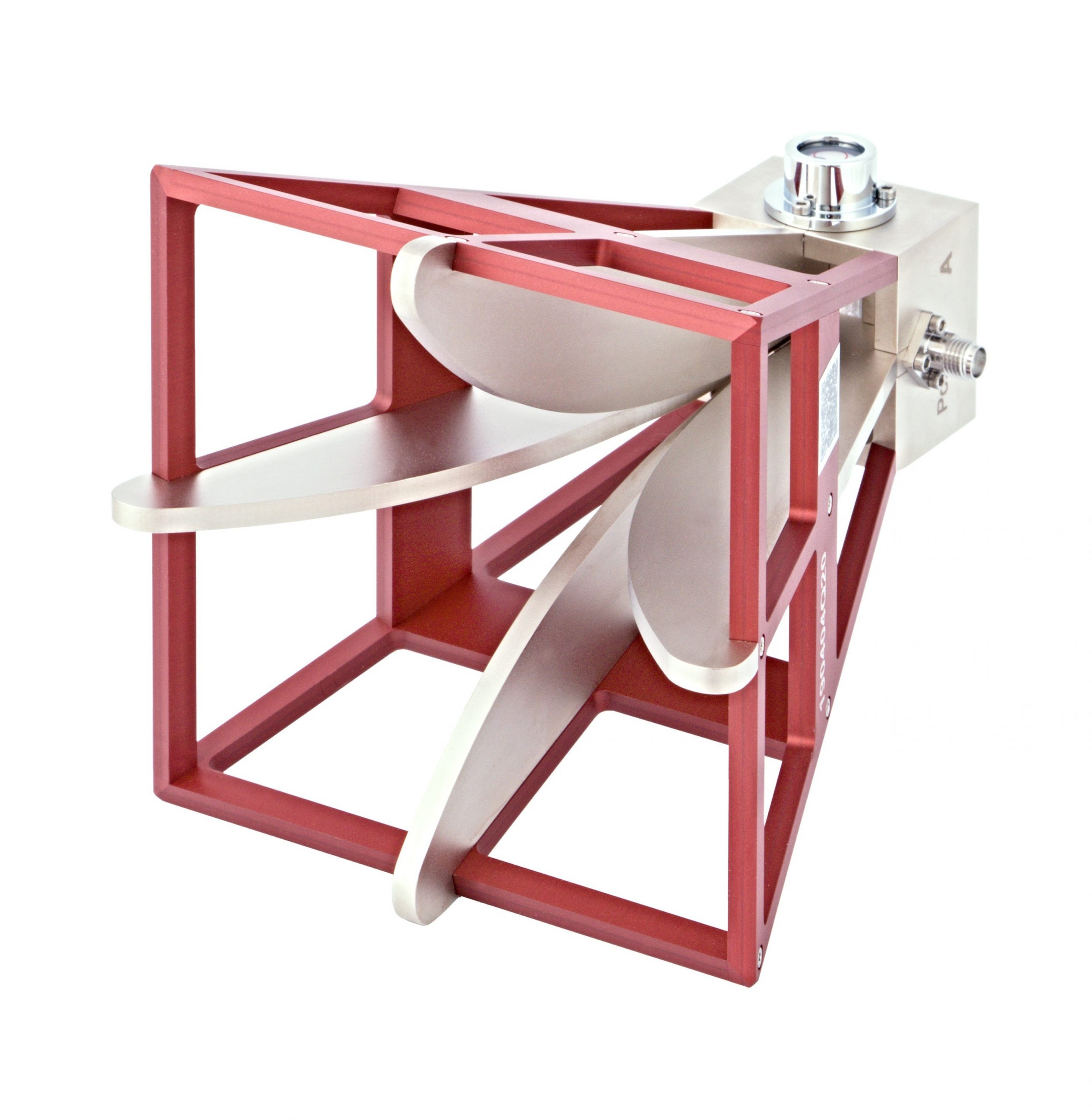

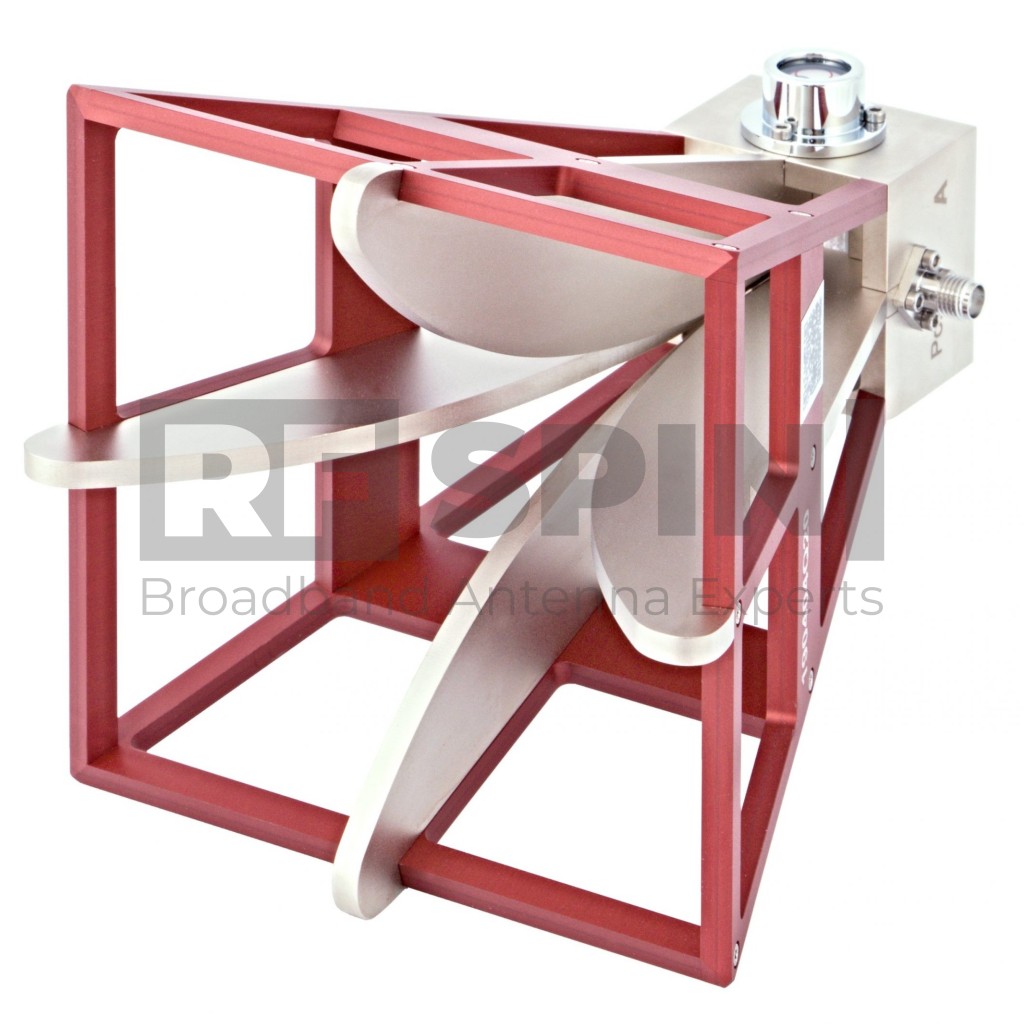

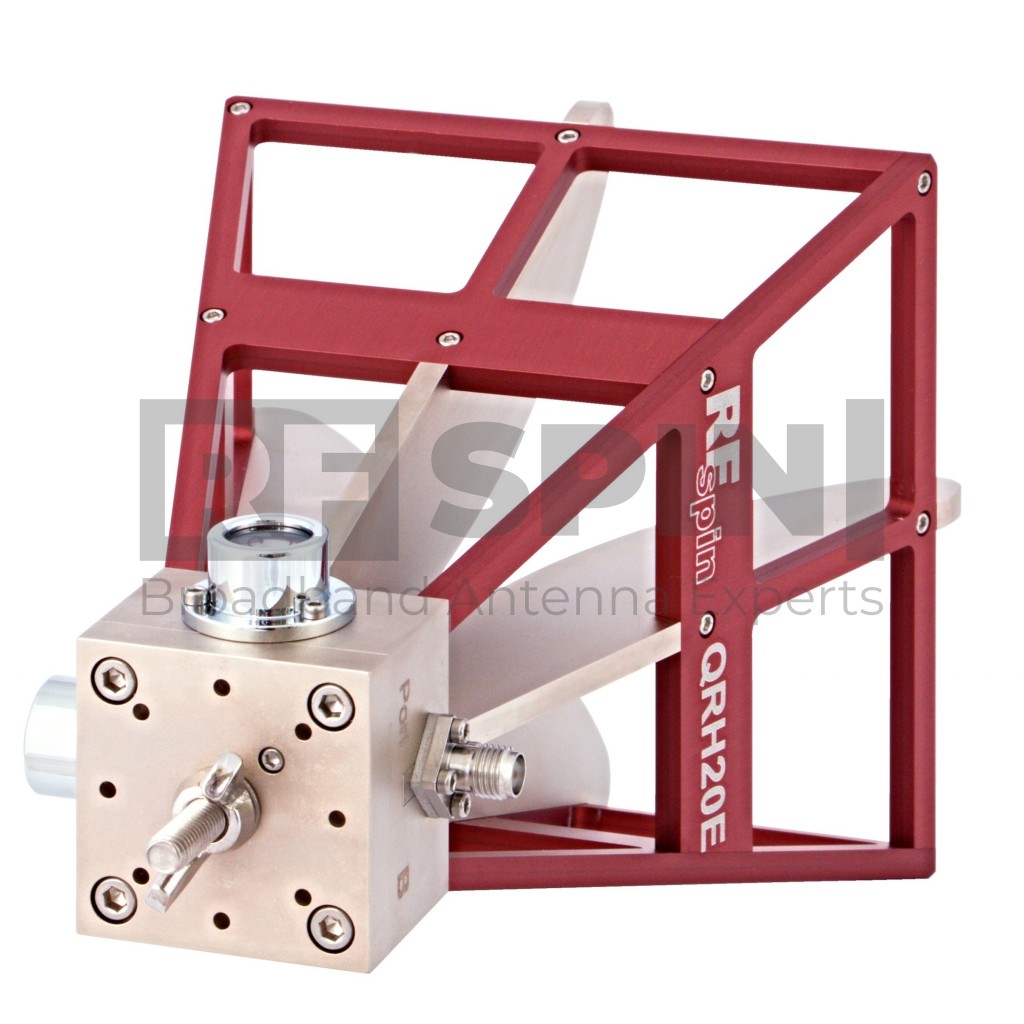

        QRH20E

        Quad Ridged Horn Antenna

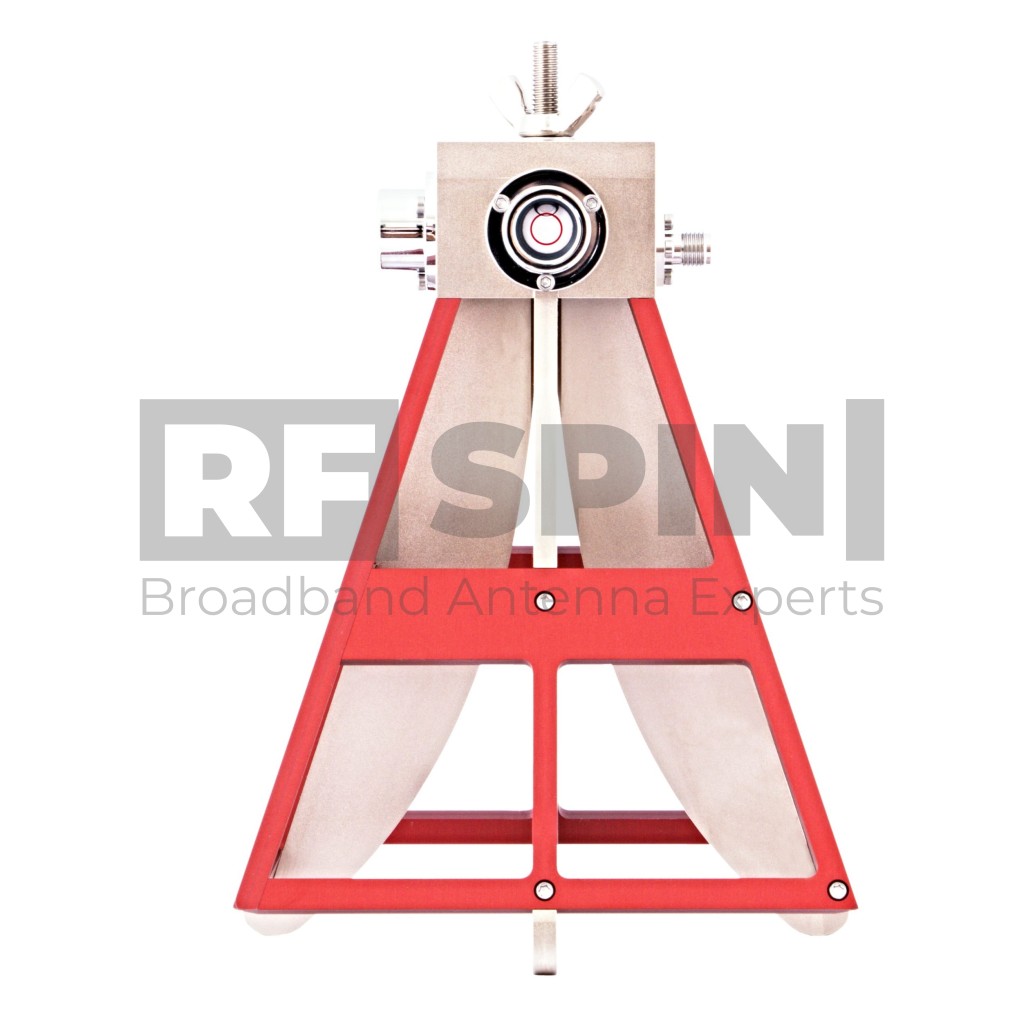

        The addition of two-spirit levels is a matter of course, thanks to which your measurement in both planes will be very accurate and fun.

        Cloned antenna series are available through AU Technology, which guarantees constant parameters.

        Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        5G
        Circular polarization
        QR code

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount

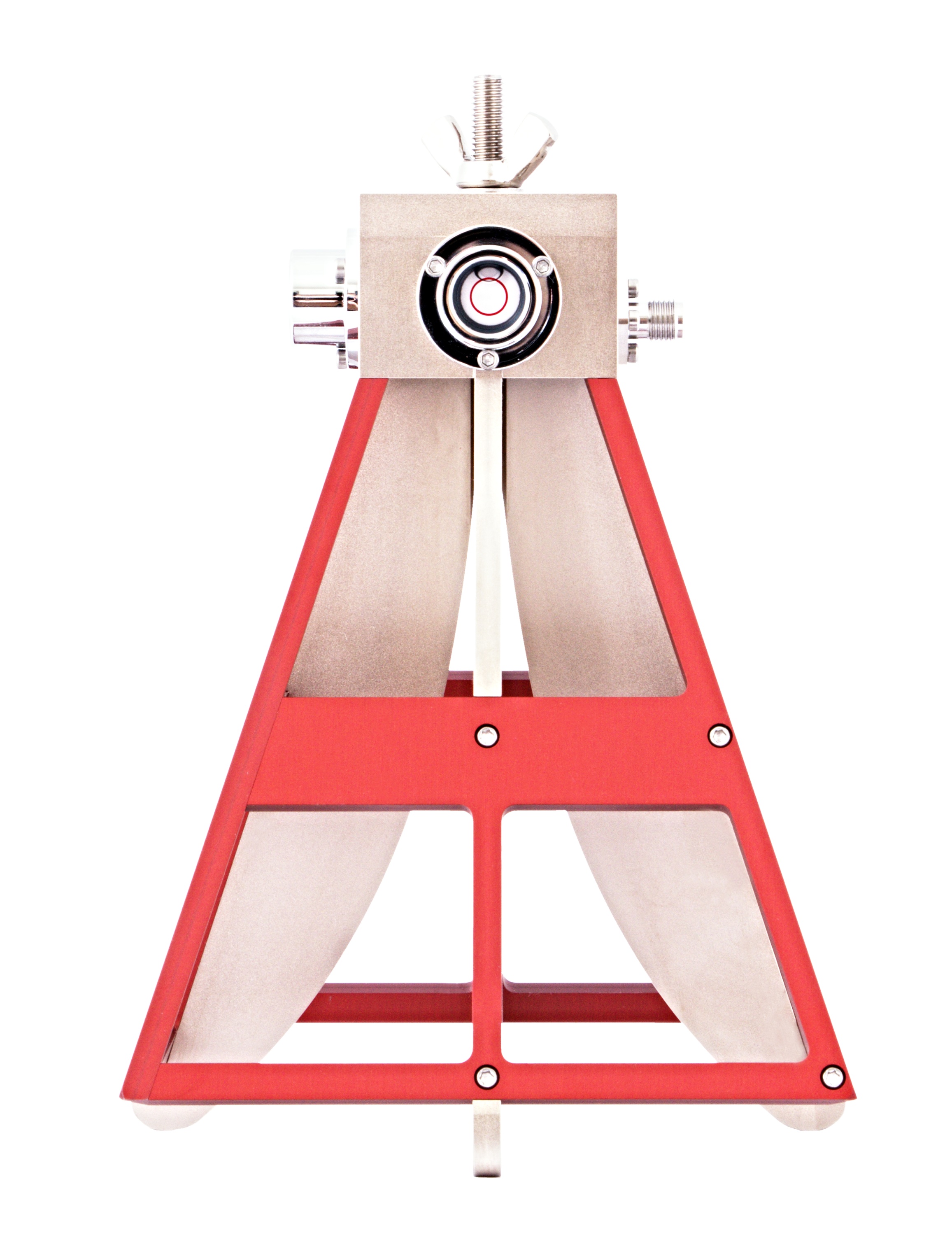

        • Very precise spirit level for both polarizations

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality SMA type coaxial connector

        Product Packaging Includes

        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized double ridged broadband horn antenna

        Product Parameters

        Product identification

        • Product Name QRH20E
        • Product Category Quad Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 1.7 GHz – 20 GHz
        • VSWR (max.) 2.4
        • VSWR (avg.) 1.45
        • Impedance 50 Ohm
        • Connector SMA (female)
        • Power (CW / Peak) 20 W / 40 W
        • Antenna Factor 28 – 42.5 dB/m
        • Port Isolation -33 dB
        • Polarization Dual Linear, Circular (with hybrid)

        Physical specifications

        • Width 101 mm (3.976 in)
        • Height 132 mm (5.197 in)
        • Depth 101 mm (3.976 in)
        • Weight 0.258 kg (0.569 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

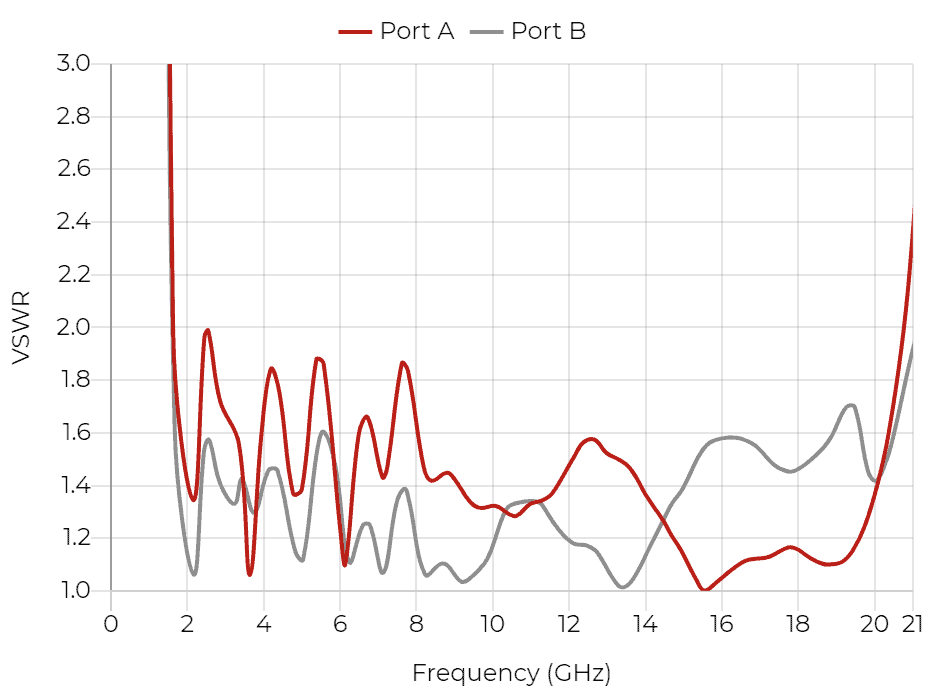

        VSWR

        QRH20E - VSWR

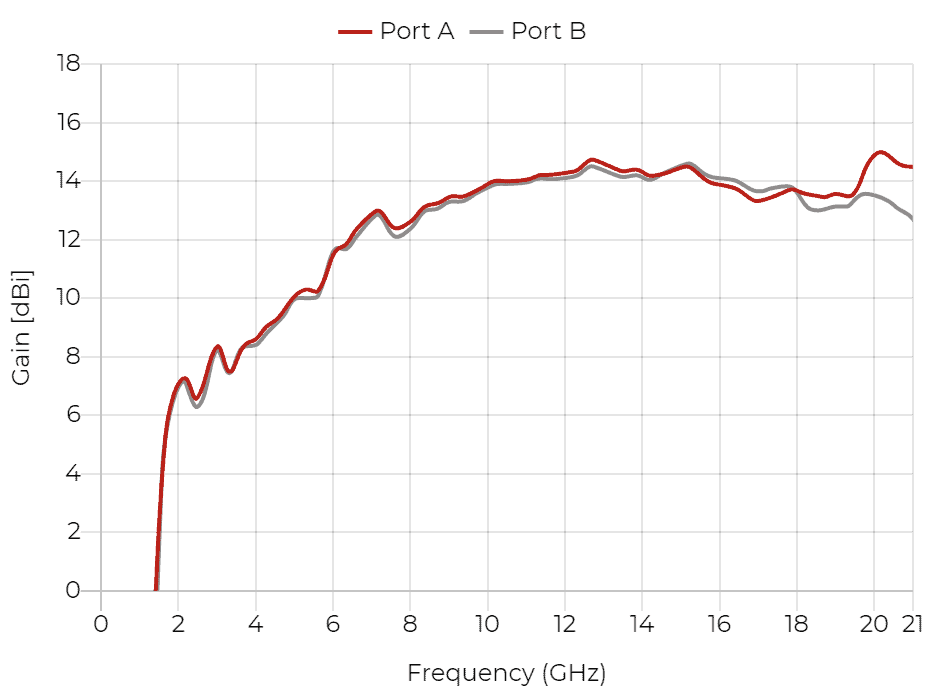

        Gain

        QRH20E - Gain

        Antenna Factor

        QRH20E - Antenna Factor

        Port Isolation

        QRH20E - Port Isolation

        Cross Polarization

        QRH20E - Cross Polarization

        Beamwidth

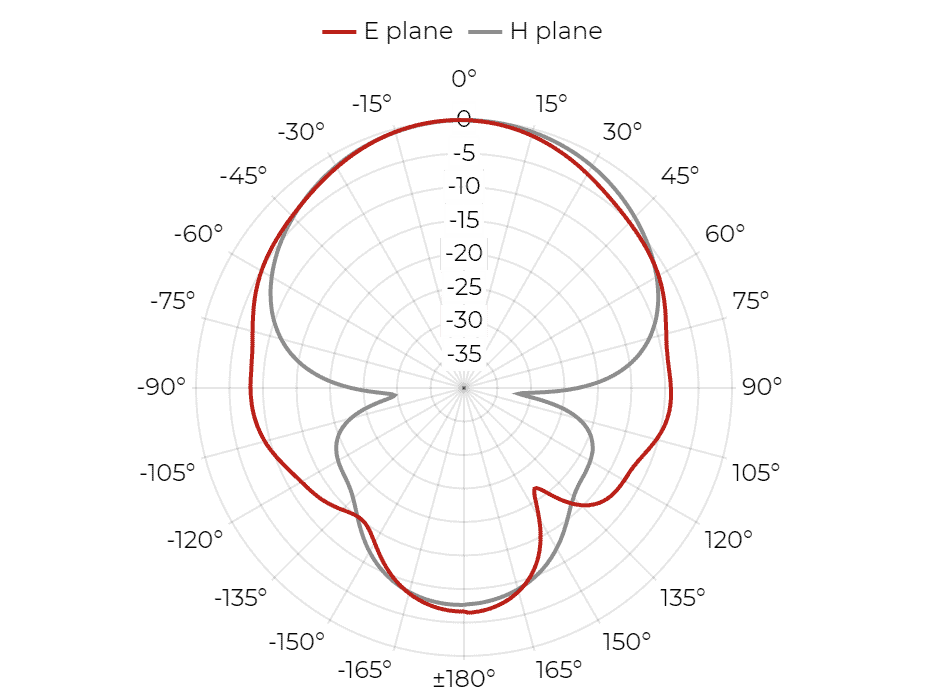

        Port A, E plane

        QRH20E - Port A, E plane

        Port A, H plane

        QRH20E - Port A, H plane

        Port B, E plane

        QRH20E - Port B, E plane

        Port B, H plane

        QRH20E - Port B, H plane

        Radiation Patterns

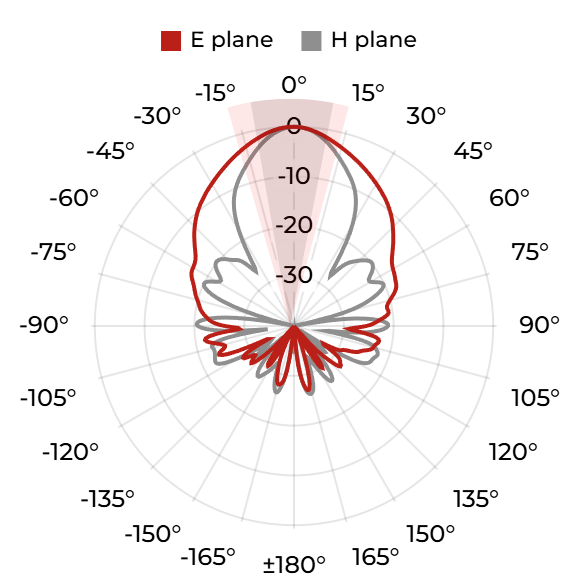

        Port A, 2 GHz

        QRH20E - Port A, 2 GHz

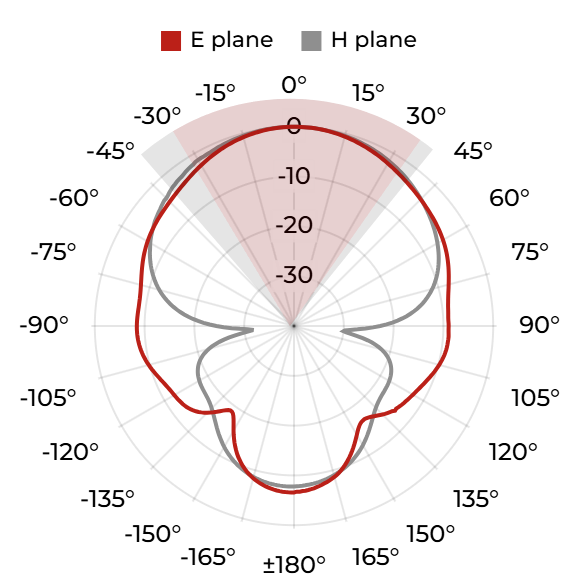

        Port B, 2 GHz

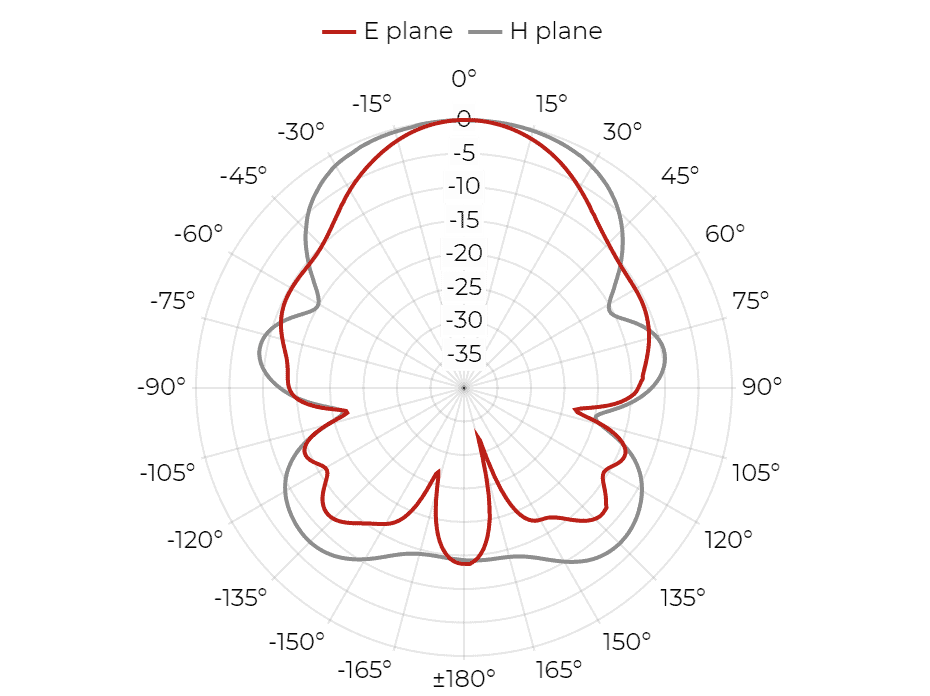

        QRH20E - Port B, 2 GHz

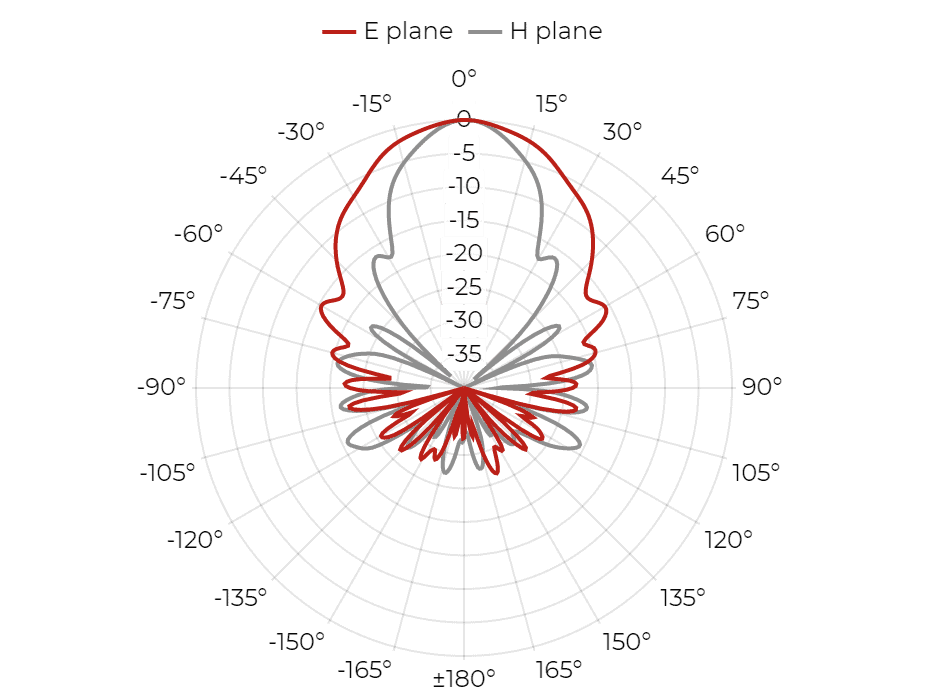

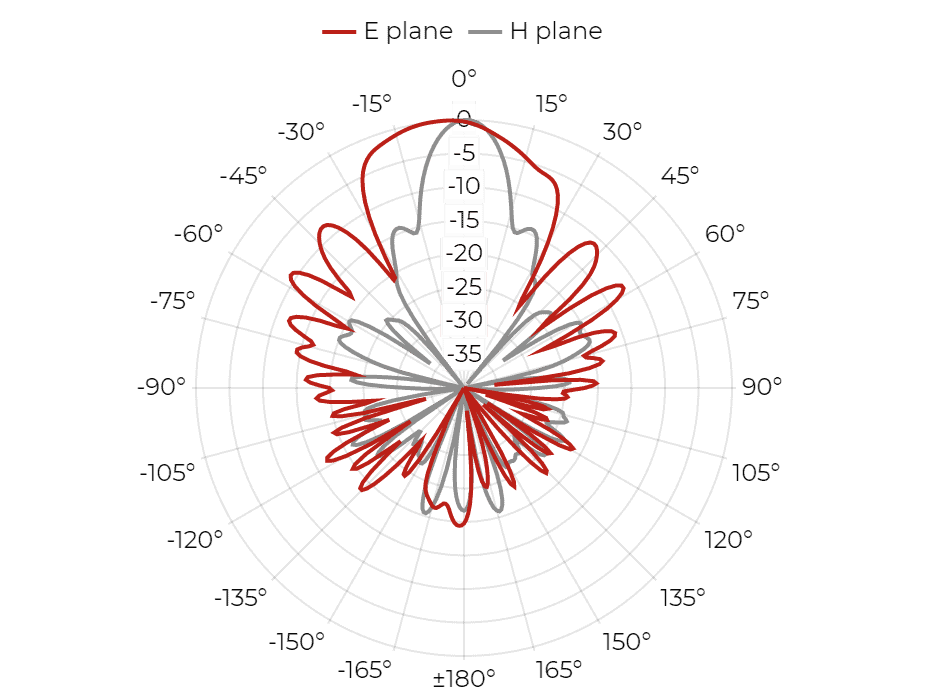

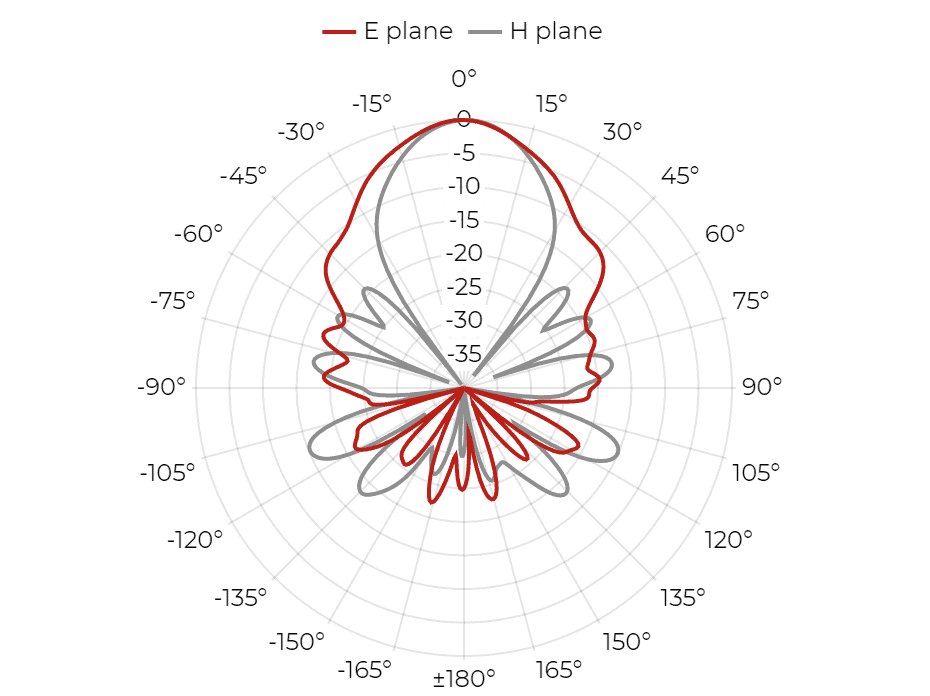

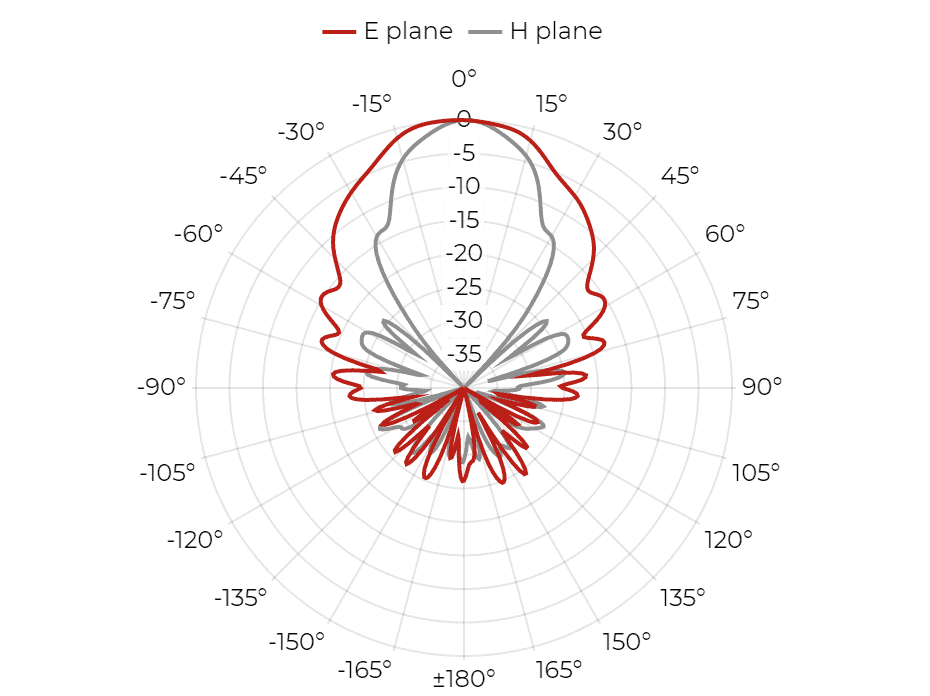

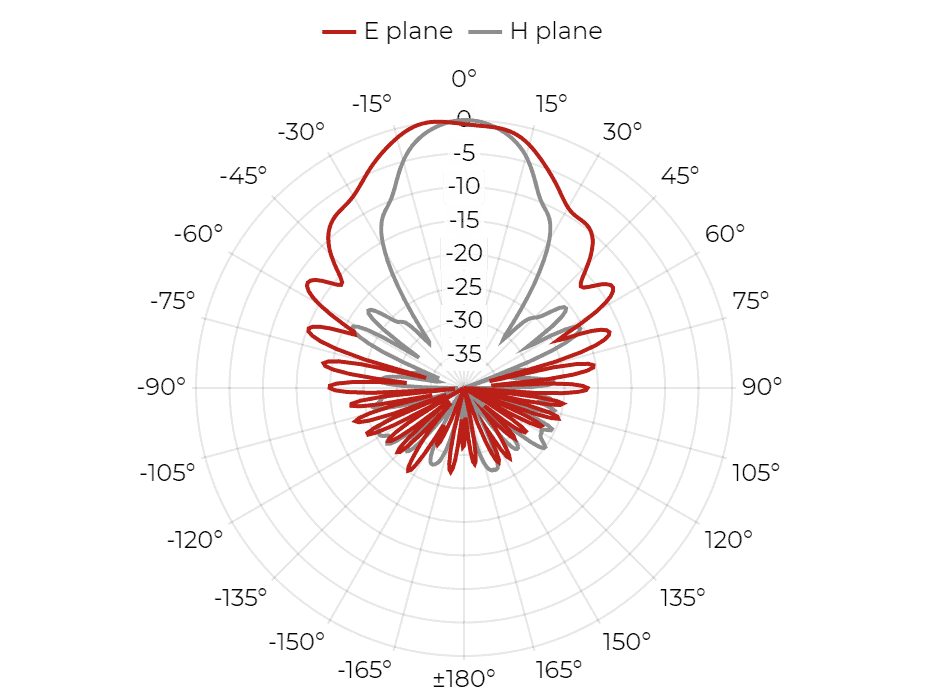

        Port A, 3 GHz

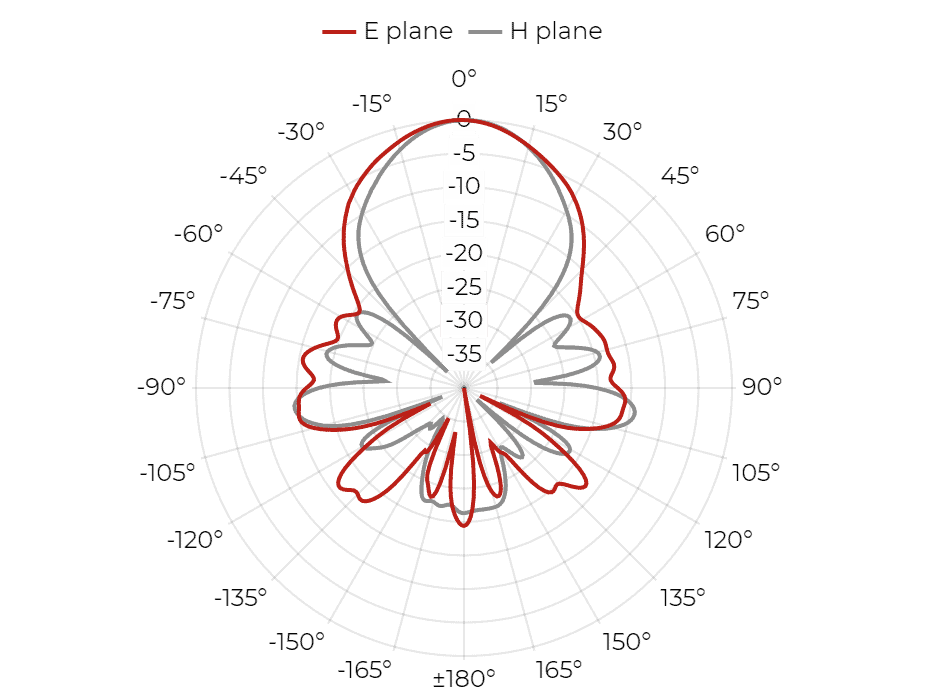

        QRH20E - Port A, 3 GHz

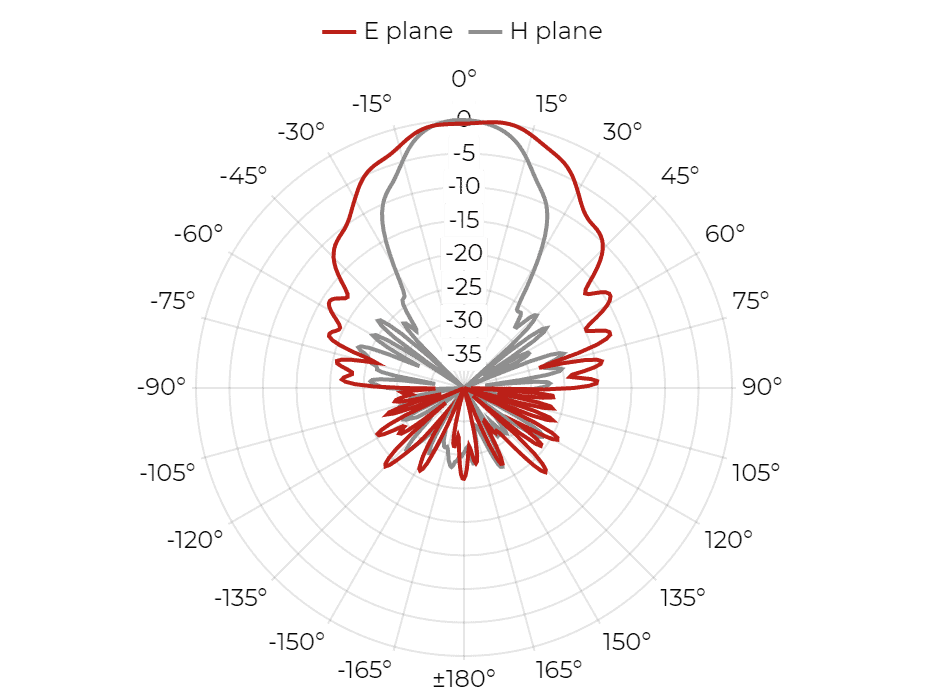

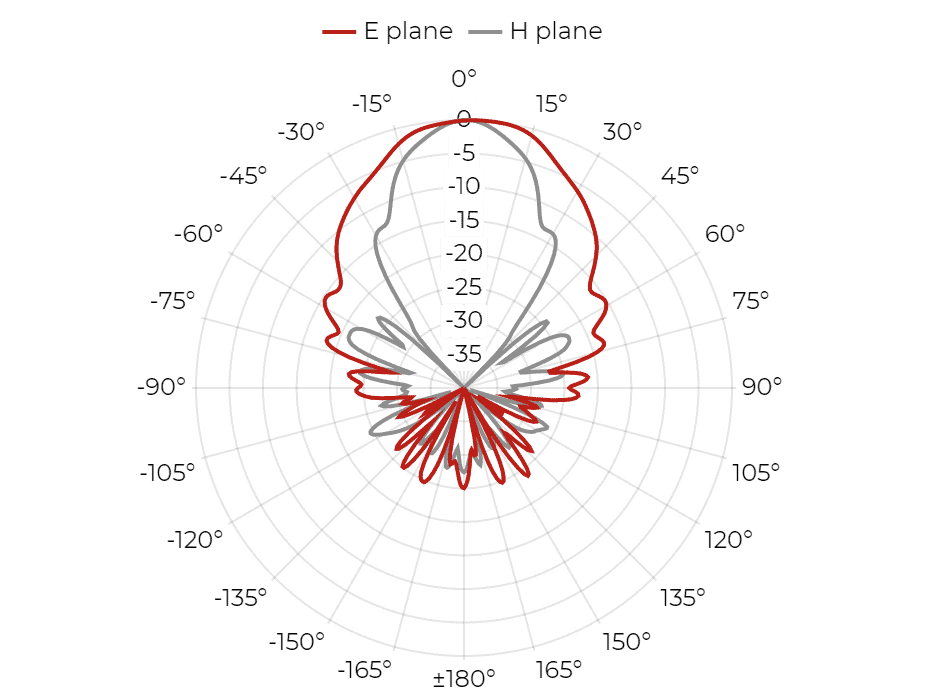

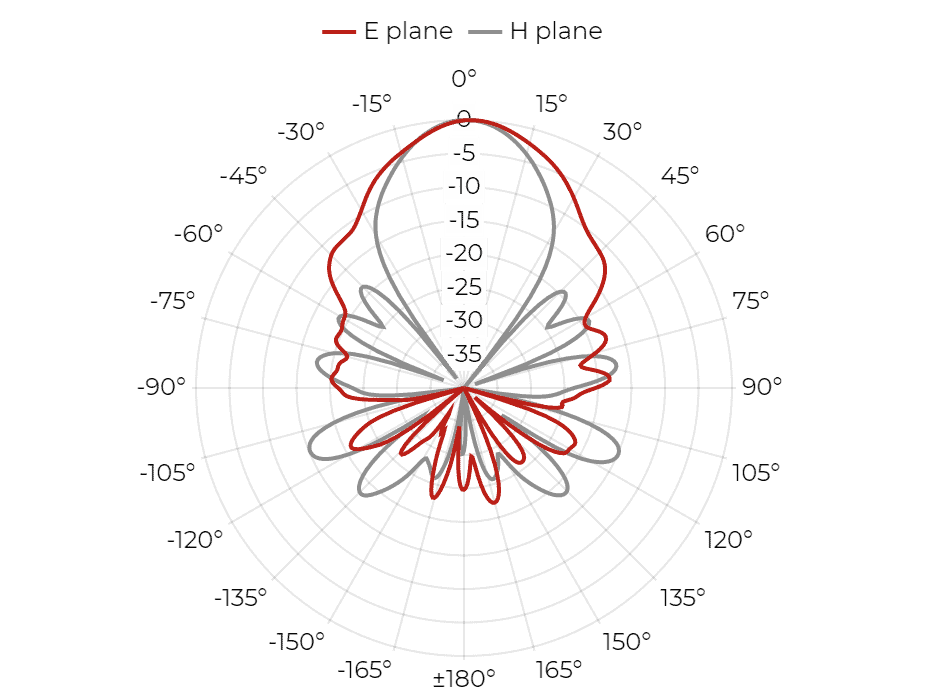

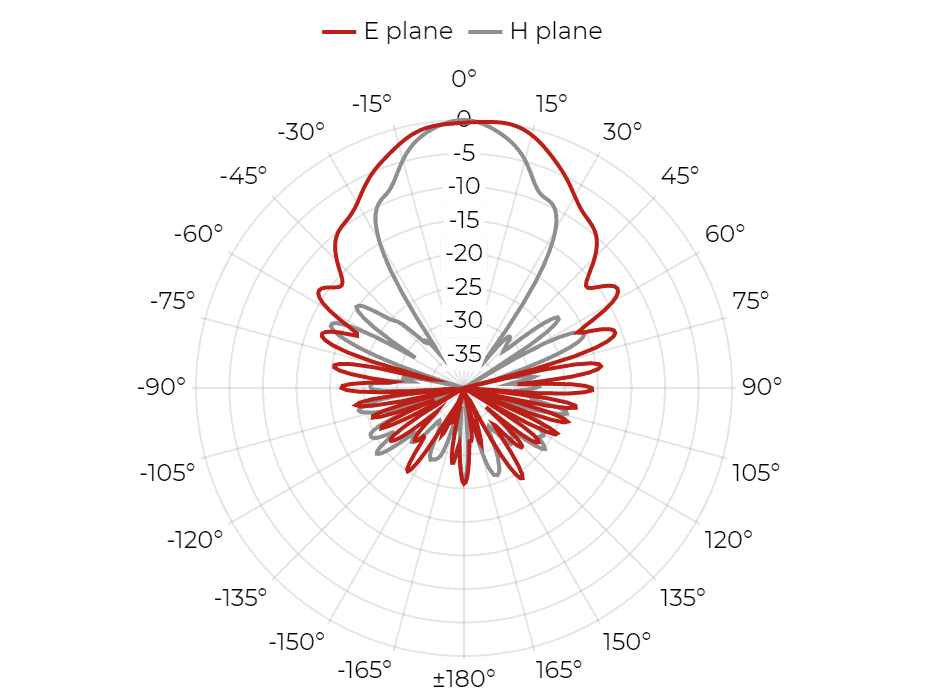

        Port B, 3 GHz

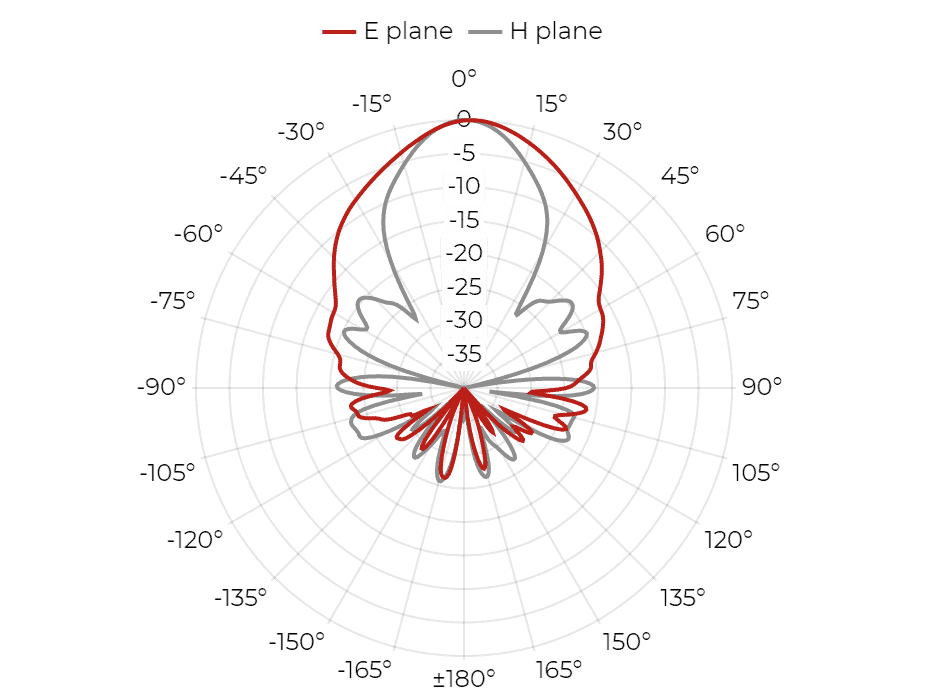

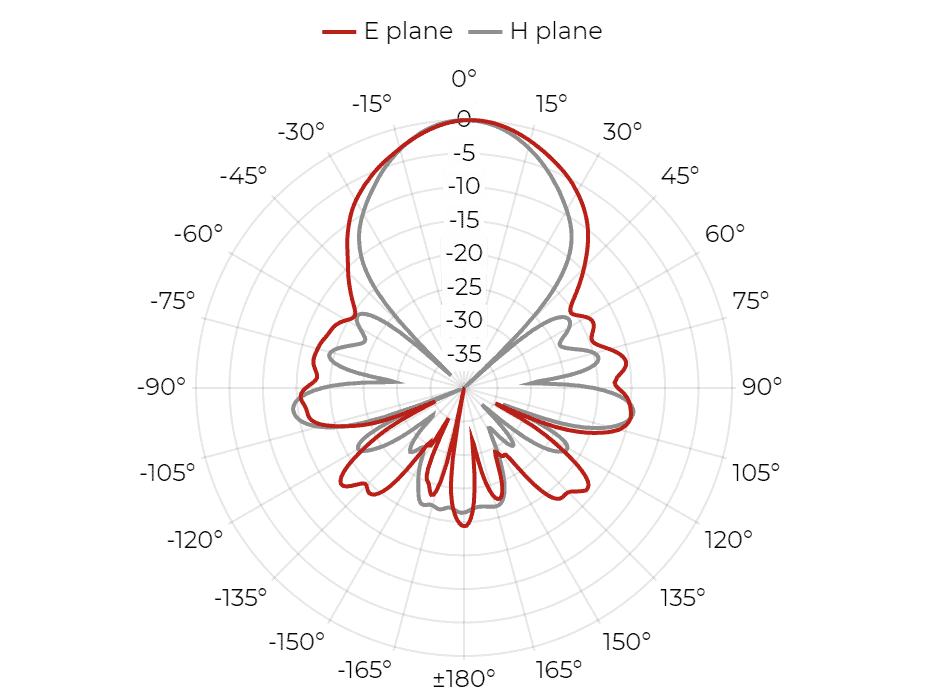

        QRH20E - Port B, 3 GHz

        Packaging and Accessories

        What's in a box

        • QRH20E Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Custom services

        • Custom mounting solutions
        • Custom calibration data
