        RF SPIN

        Broadband Antenna Solutions

        5G

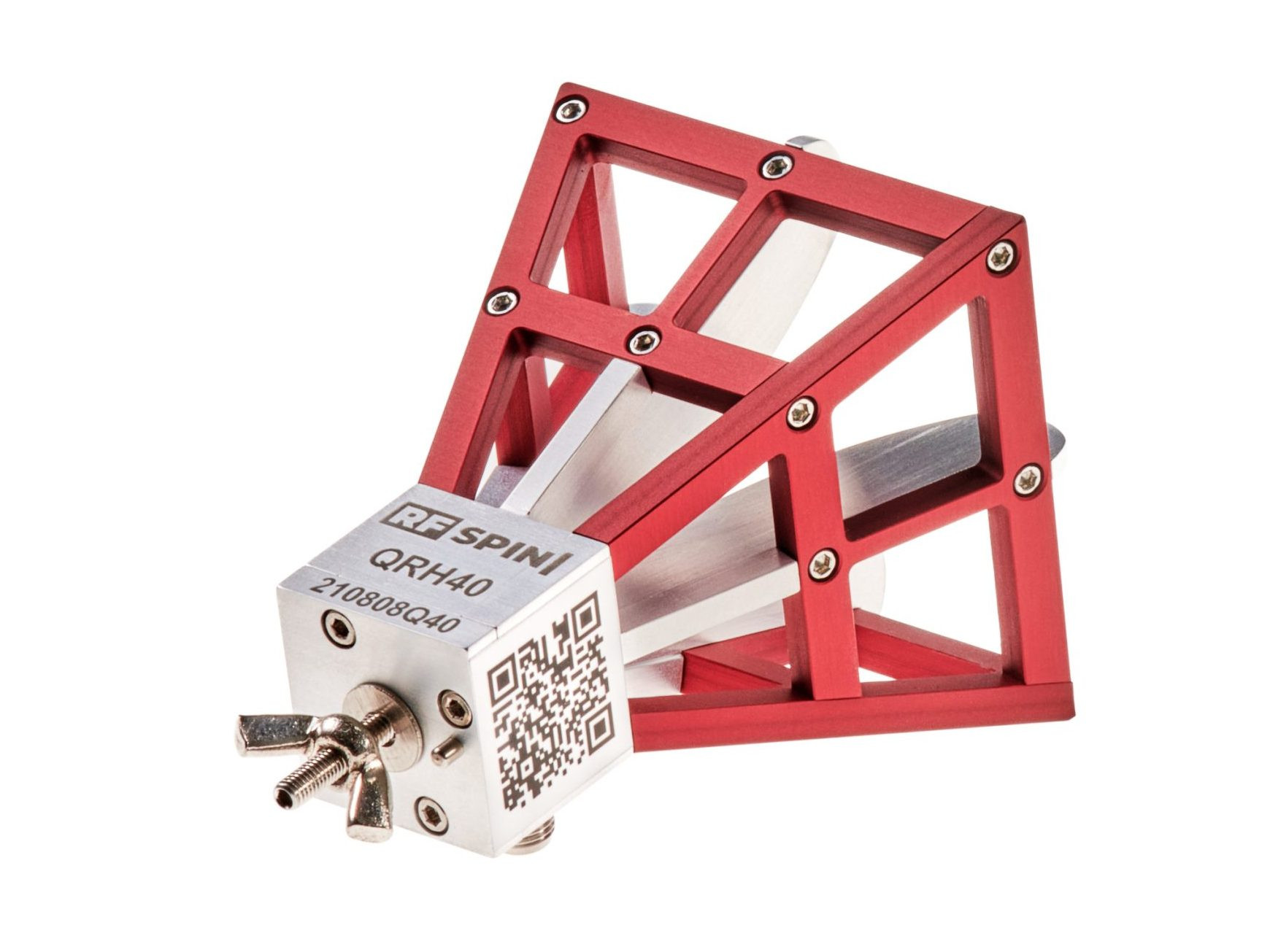

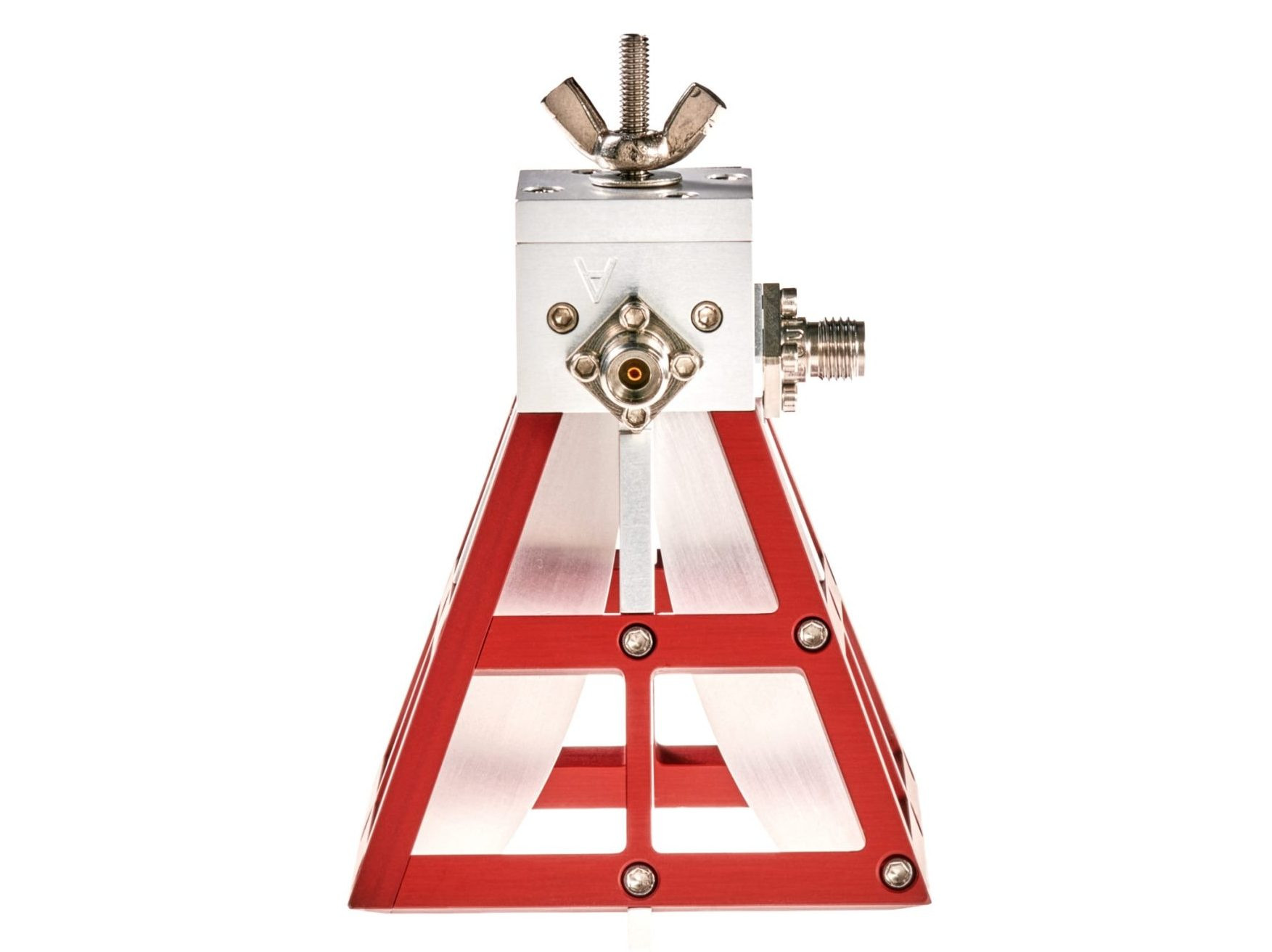

        QRH40

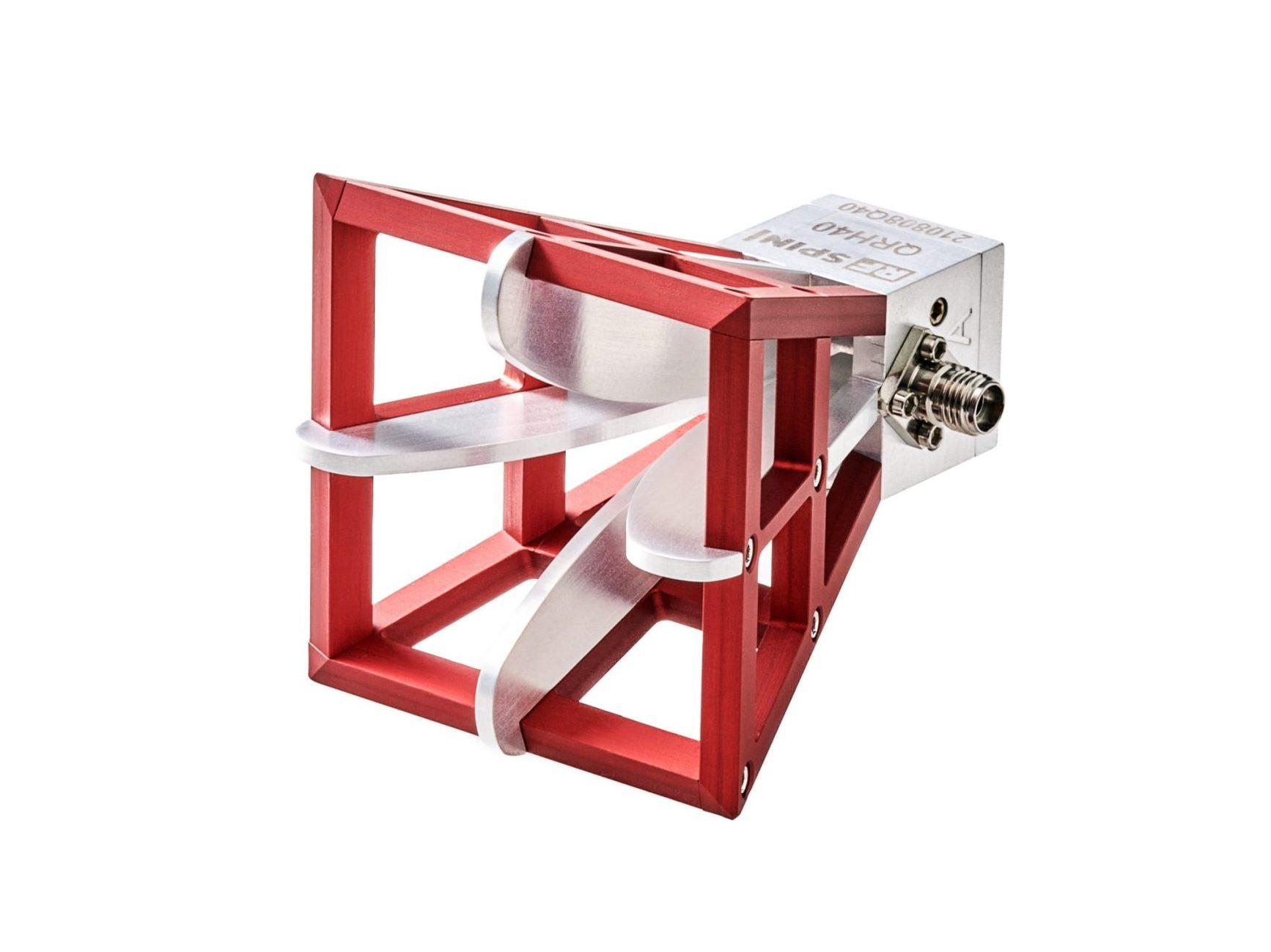

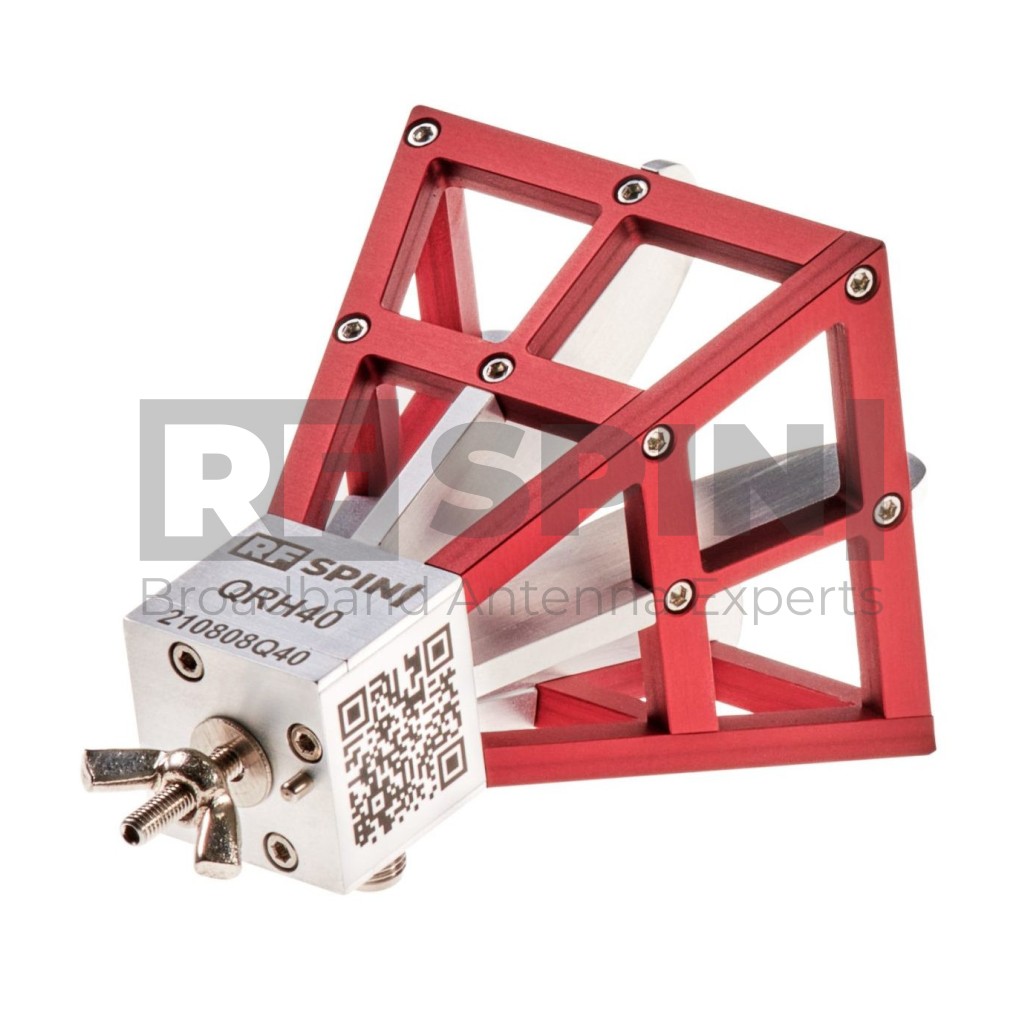

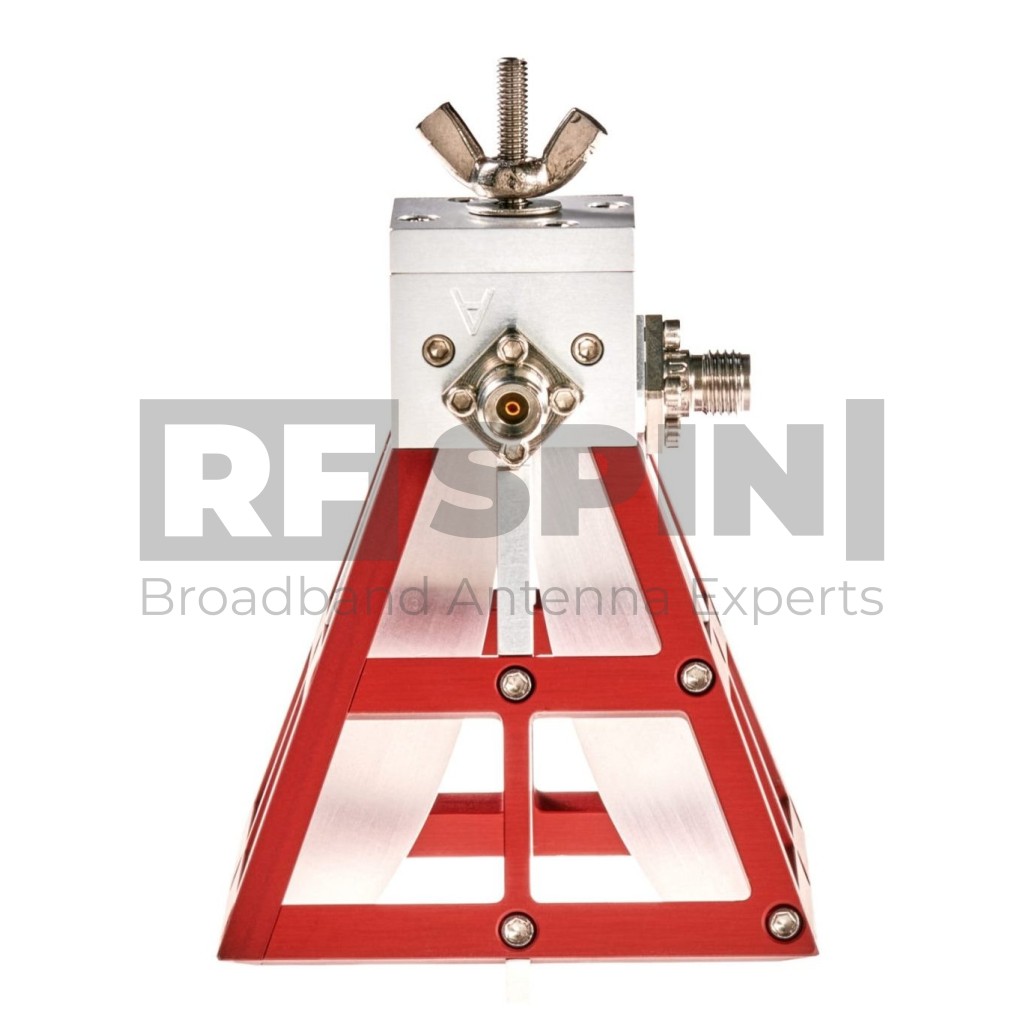

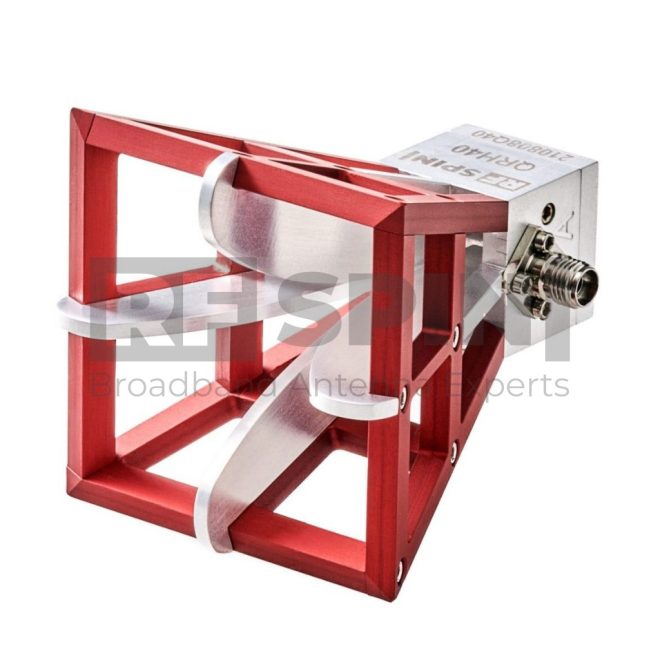

        Quad Ridged Horn Antenna

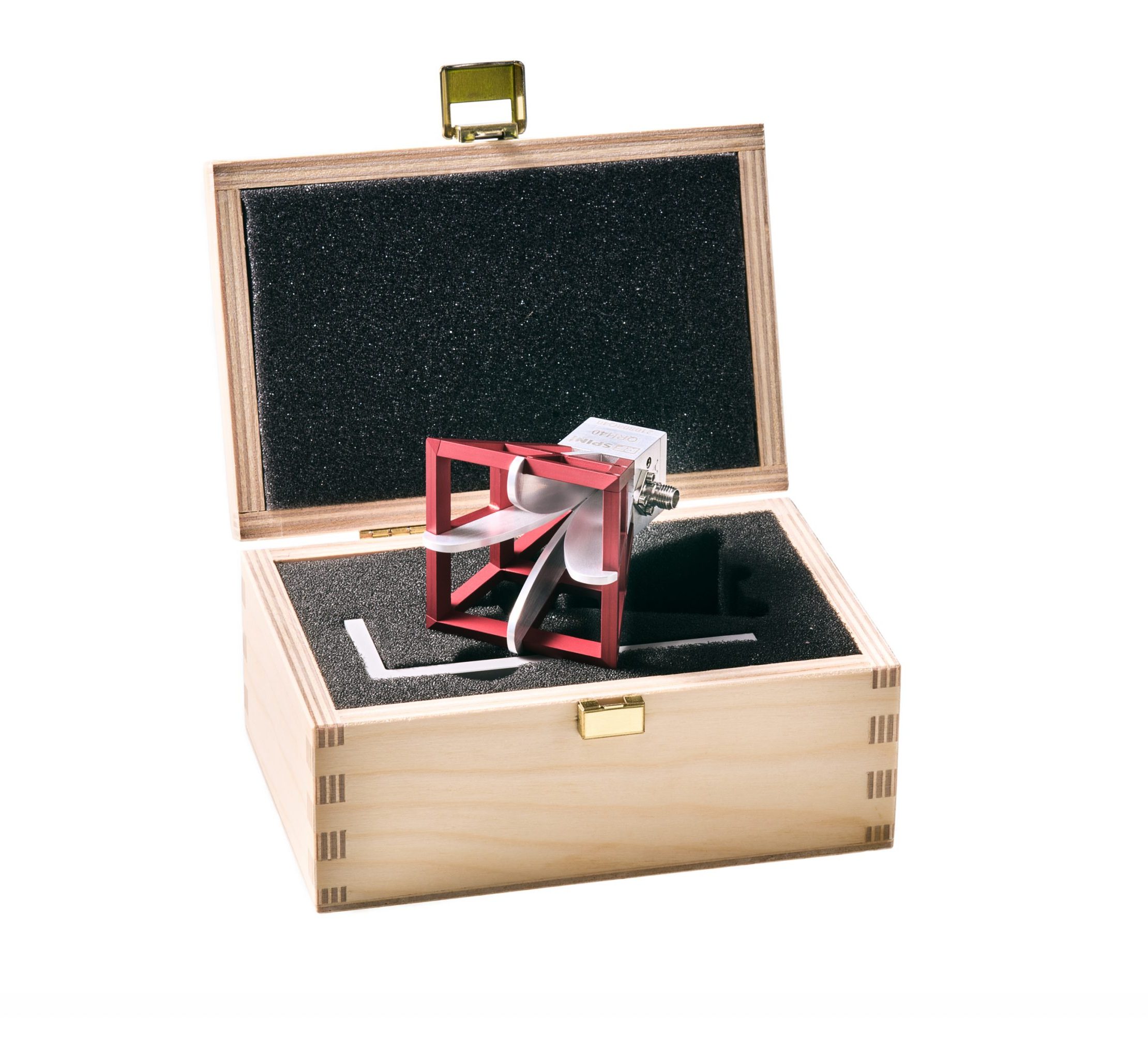

        The QRH40 antenna combines small dimensions with high accuracy and perfect electrical parameters. For safe storage, it is placed in a tailor-made wooden box, which guarantees that your antenna will always be in the best condition.

        Cloned antenna series are available through AU Technology, which guarantees constant parameters.

        Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        5G
        Circular polarization
        QR code

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount
        • Storage in protective tailor-made wooden box

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality K type coaxial connector

        Product Packaging Includes

        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized double ridged broadband horn antenna

        Product Parameters

        Product identification

        • Product Name QRH40
        • Product Category Quad Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 4 GHz – 40 GHz
        • VSWR (max.) 2.4
        • VSWR (avg.) 1.4
        • Impedance 50 Ohm
        • Connector K (female)
        • Power (CW / Peak) 10 W / 20 W
        • Antenna Factor 35 – 49 dB/m
        • Port Isolation -28 dB
        • Polarization Dual Linear, Circular (with hybrid)

        Physical specifications

        • Width 53 mm (2.087 in)
        • Height 68 mm (2.677 in)
        • Depth 53 mm (2.087 in)
        • Weight 0.068 kg (0.150 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        QRH40 - VSWR

        Gain

        QRH40 - Gain

        Antenna Factor

        QRH40 - Antenna Factor

        Port Isolation

        QRH40 - Port Isolation

        Cross Polarization

        QRH40 - Cross Polarization

        Beamwidth

        Port A, E plane

        QRH40 - Port A, E plane

        Port A, H plane

        QRH40 - Port A, H plane

        Port B, E plane

        QRH40 - Port B, E plane

        Port B, H plane

        QRH40 - Port B, H plane

        Radiation Patterns

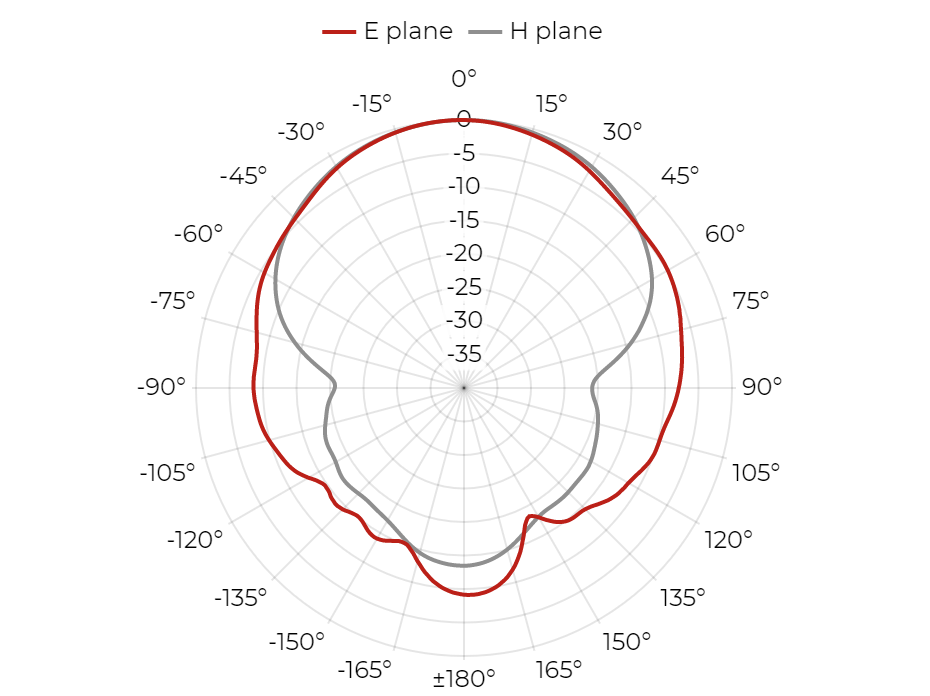

        Port A, 4 GHz

        QRH40 - Port A, 4 GHz

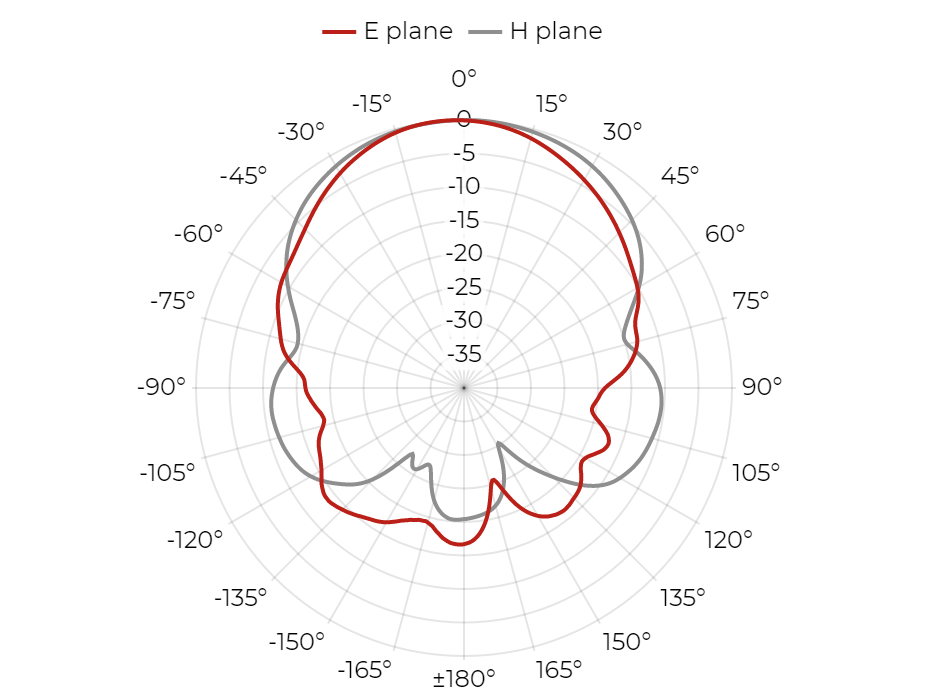

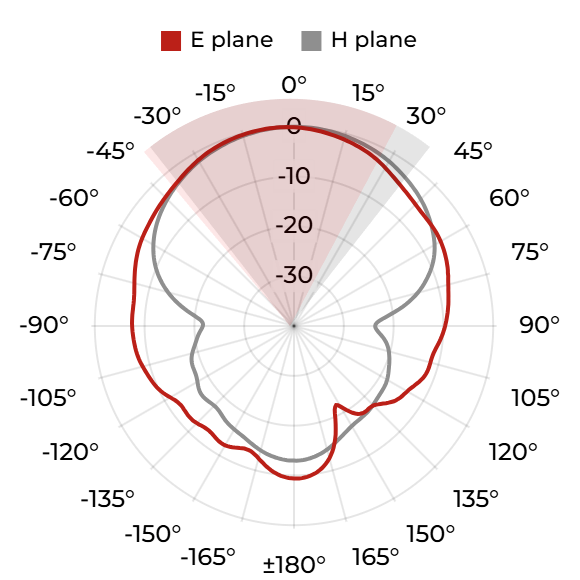

        Port B, 4 GHz

        QRH40 - Port B, 4 GHz

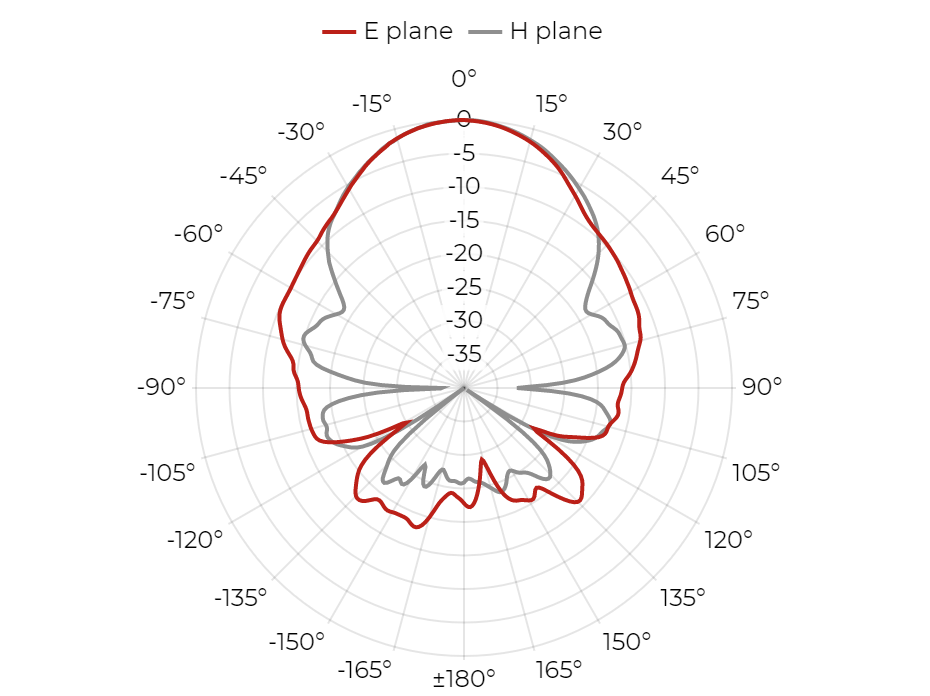

        Port A, 6 GHz

        QRH40 - Port A, 6 GHz

        Port B, 6 GHz

        QRH40 - Port B, 6 GHz

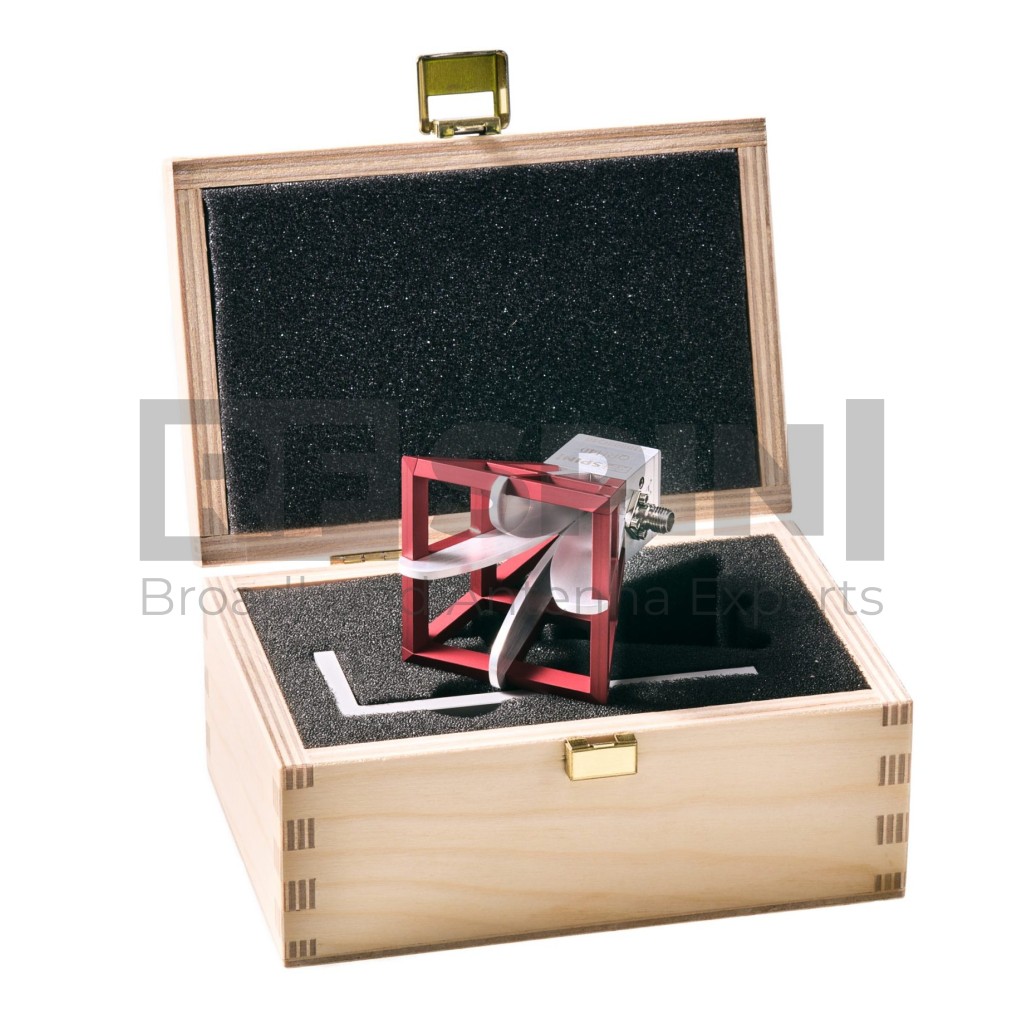

        Packaging and Accessories

        What's in a box

        • QRH40 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Protective wooden case
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Protective wooden case
        • Factory calibration report

        Custom services

        • Custom mounting solutions
        • Custom calibration data
