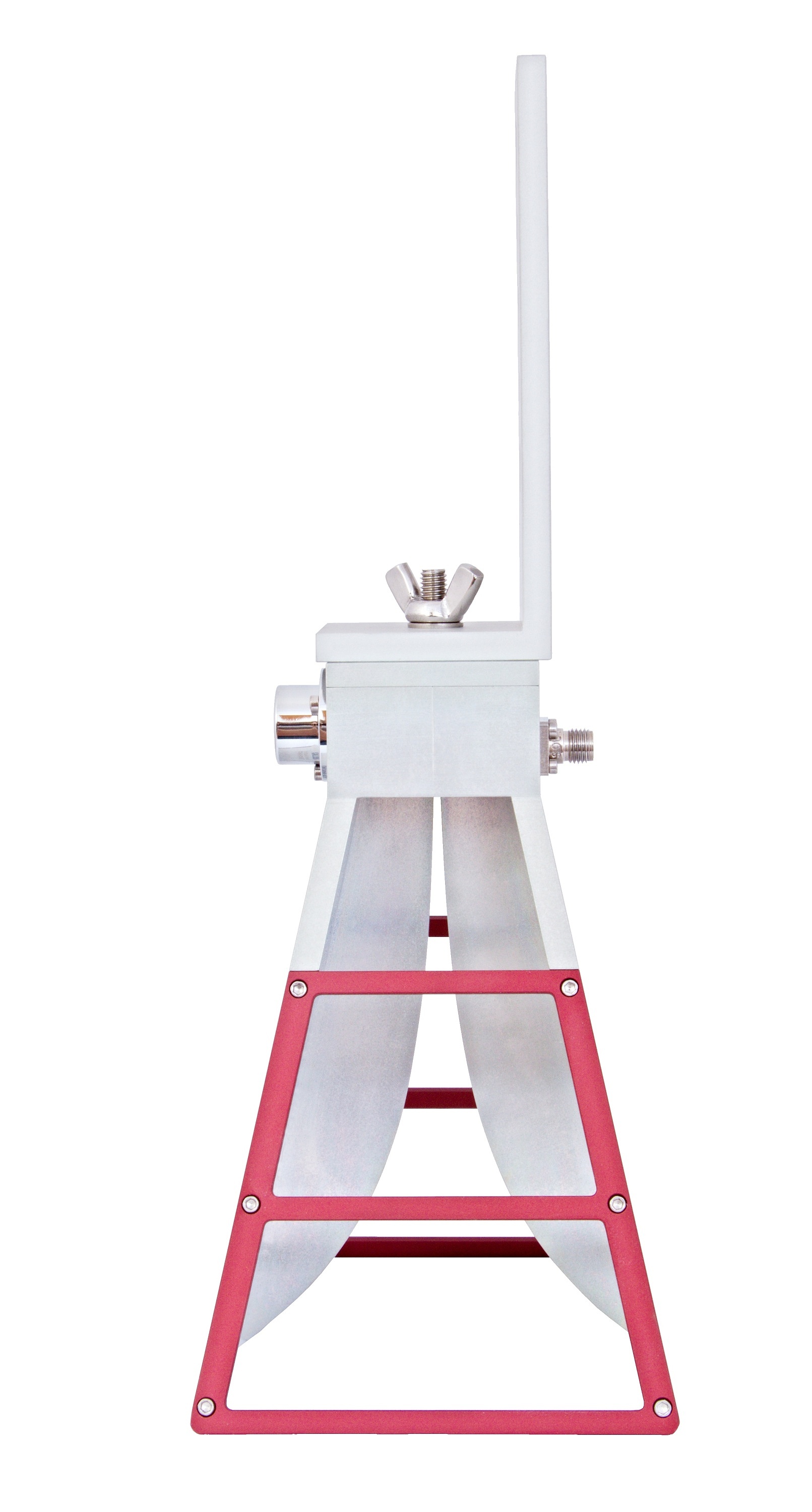

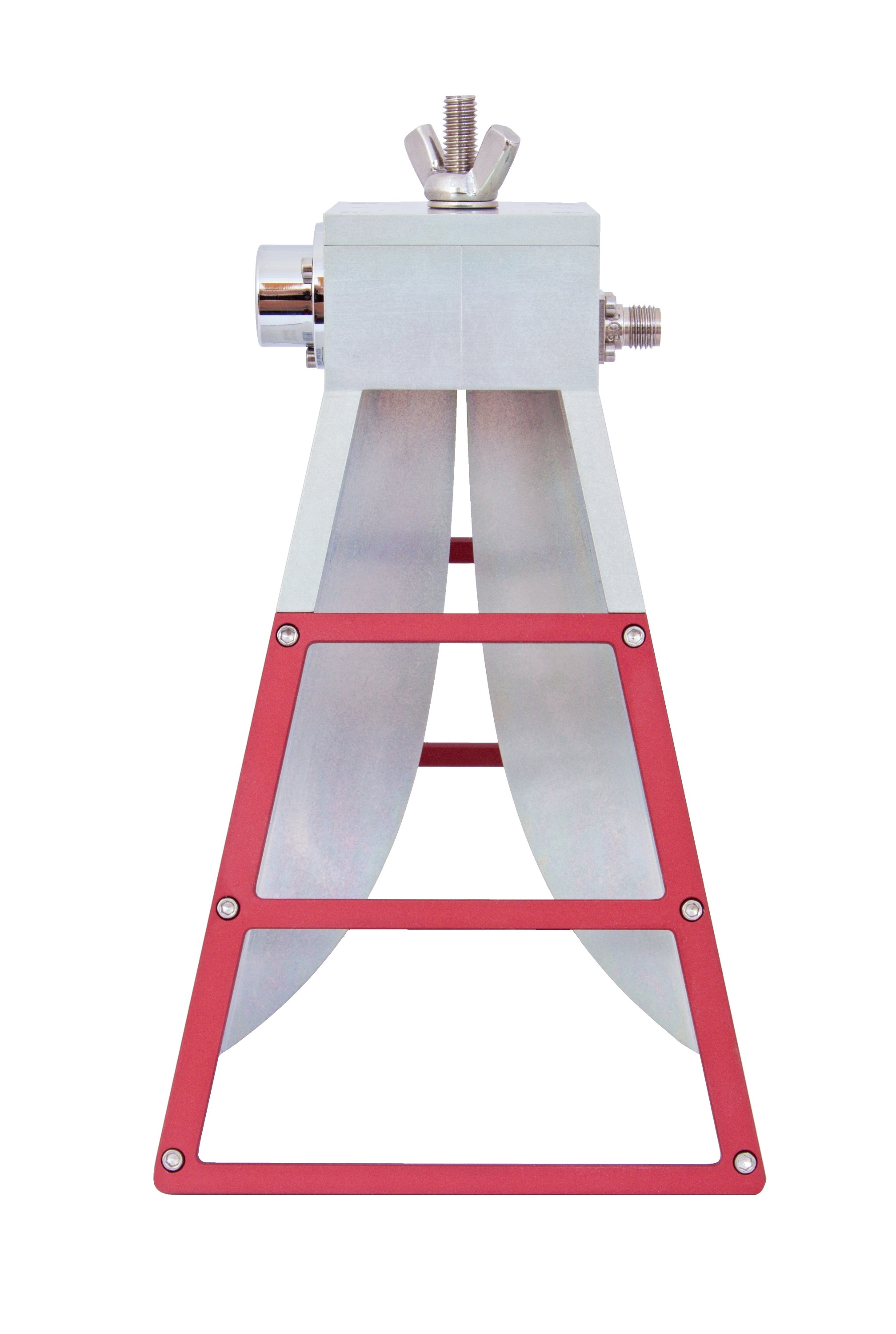

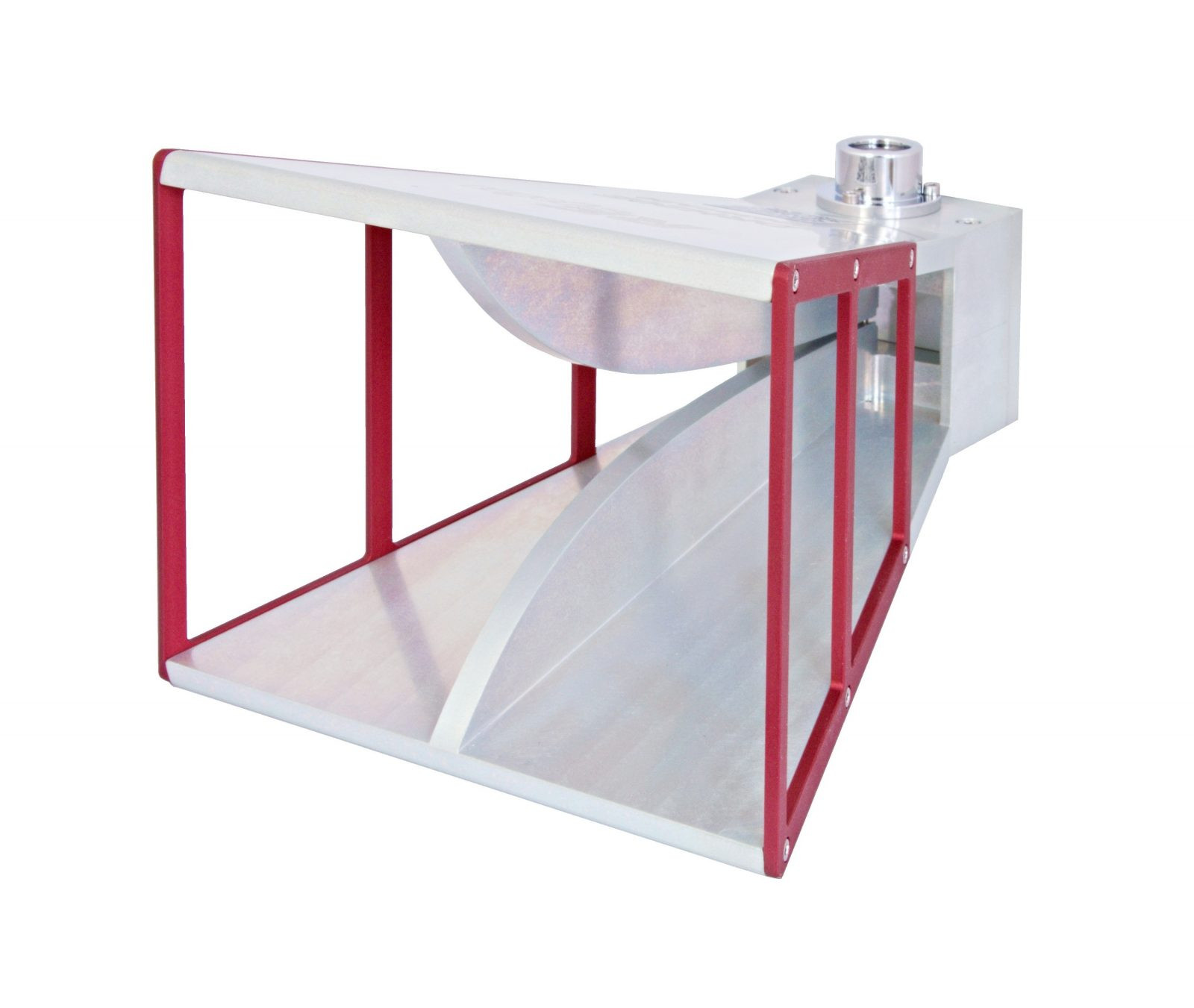

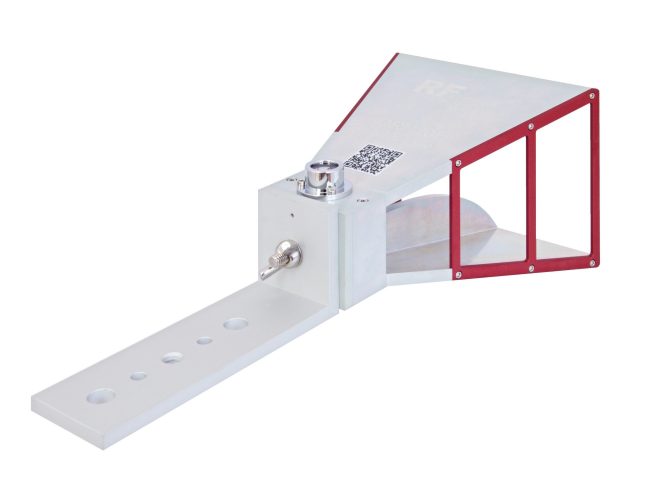

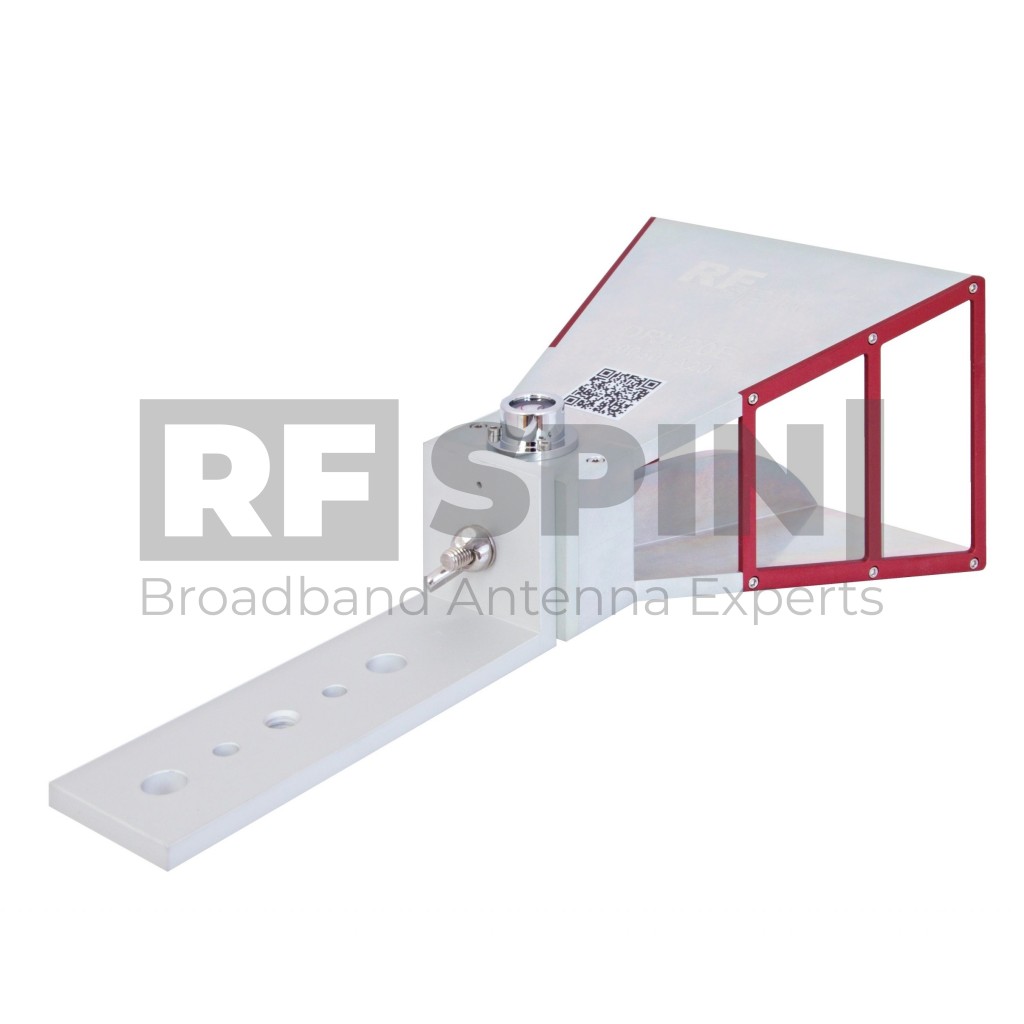

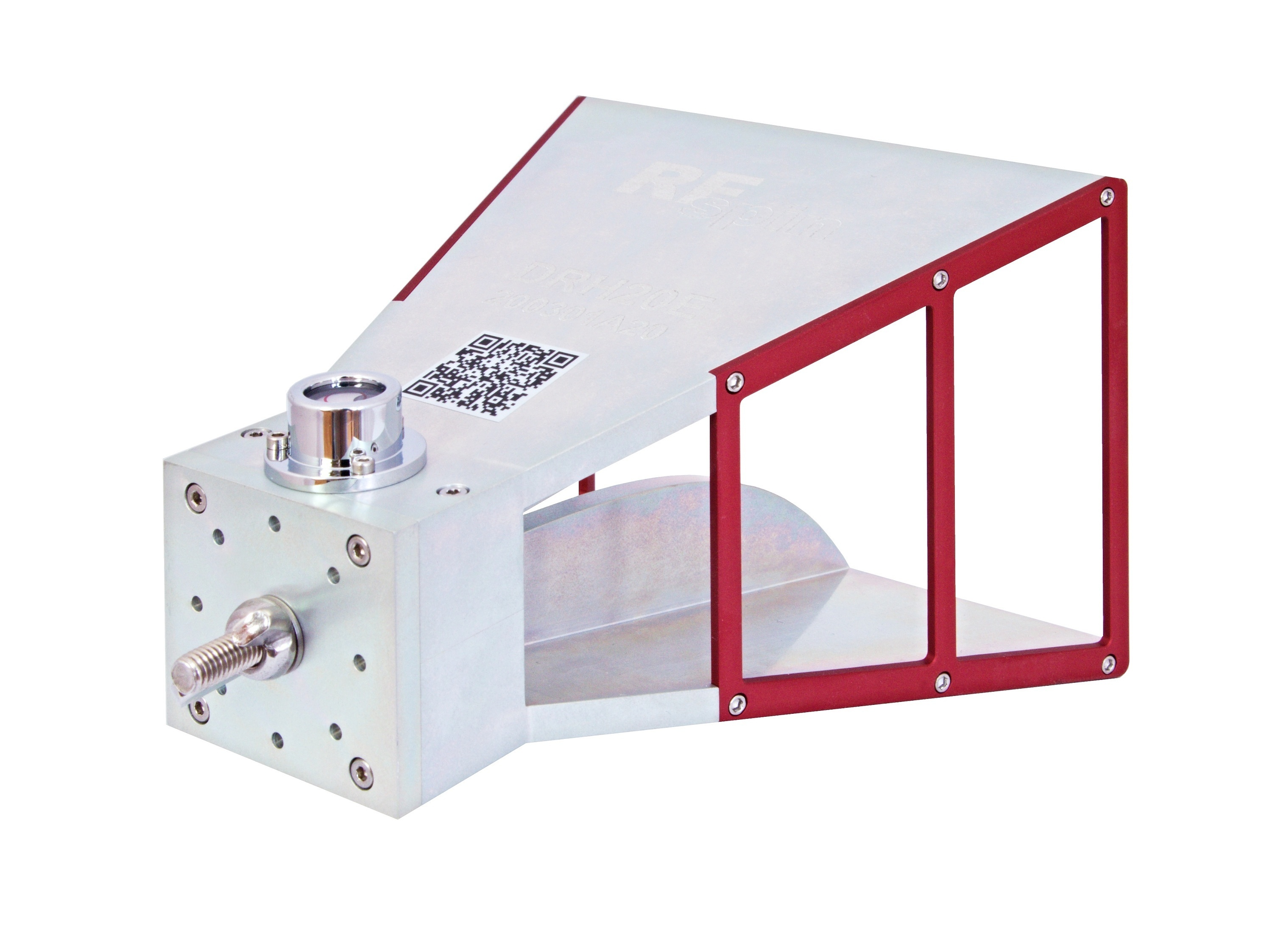

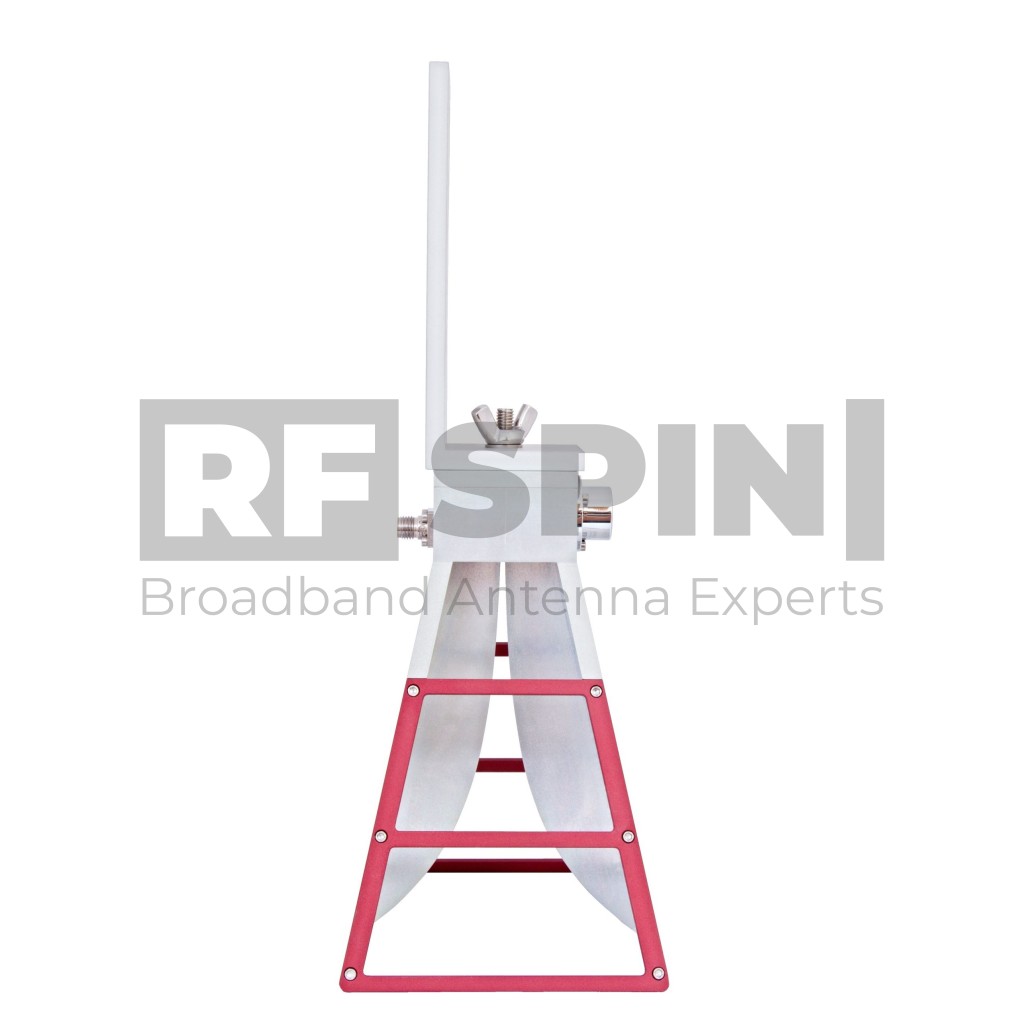

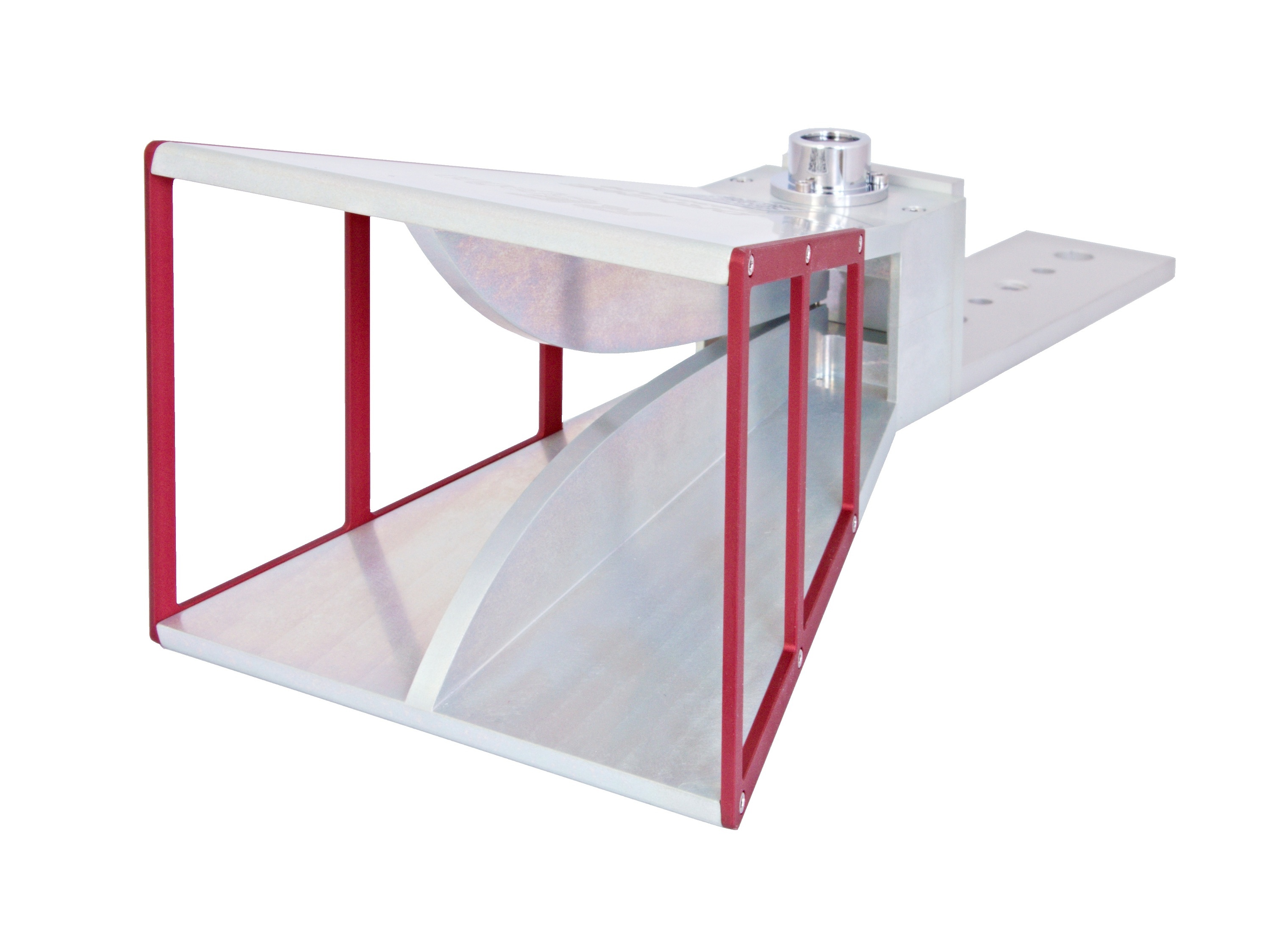

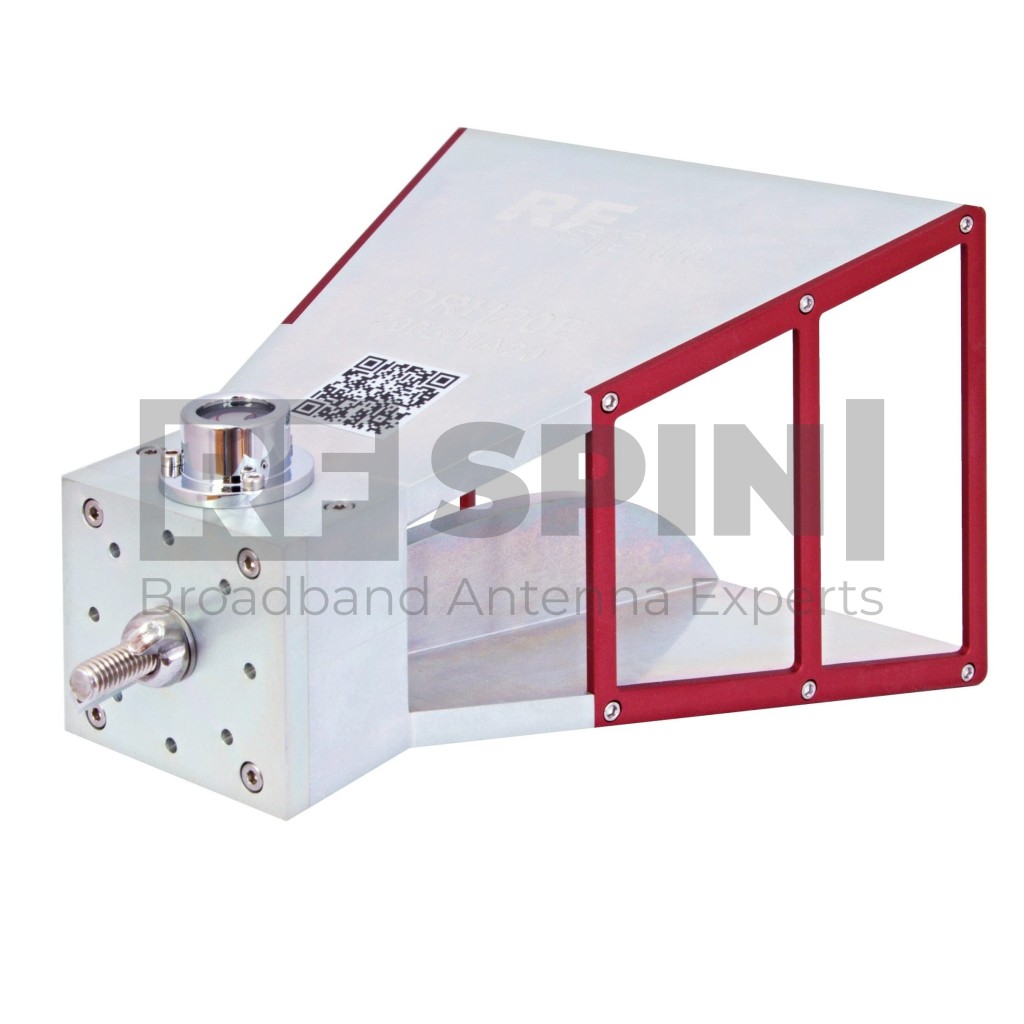

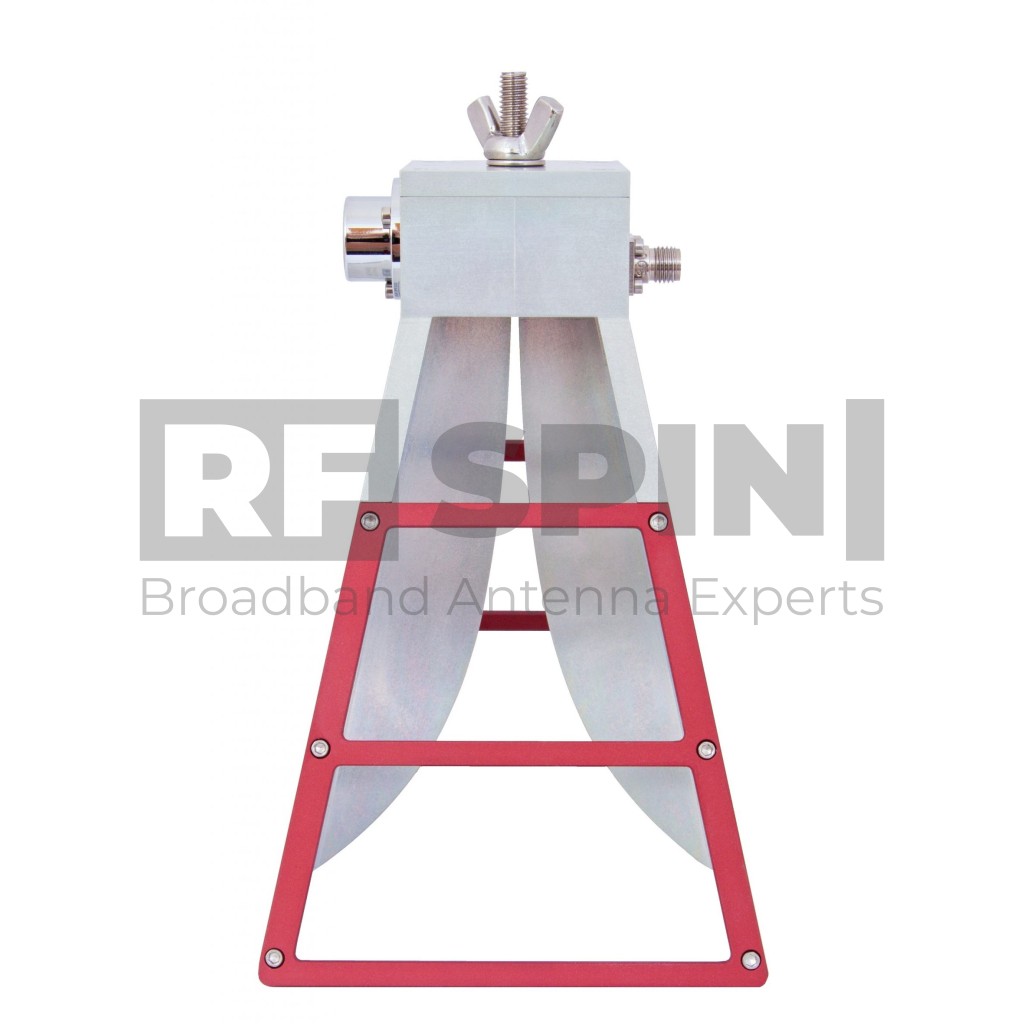

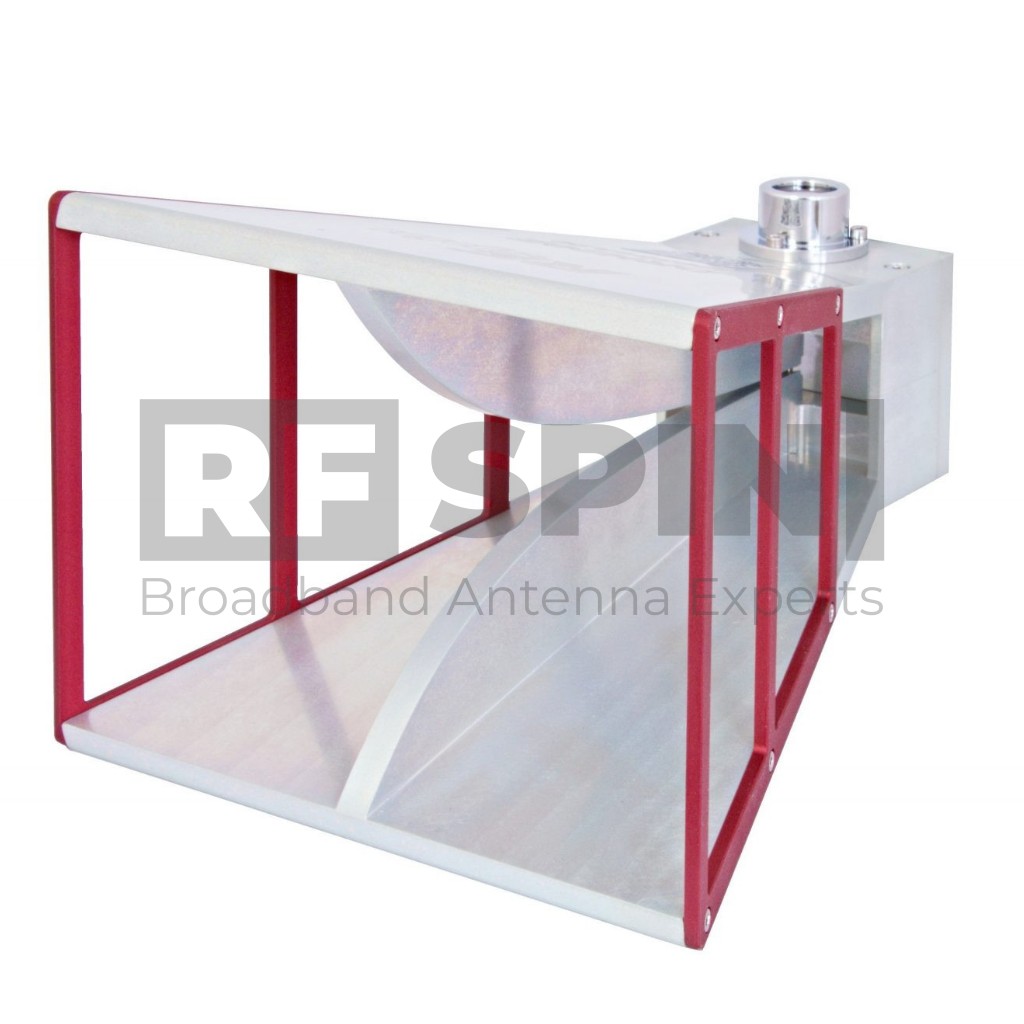

        DRH20E

        Double Ridged Horn Antenna

        The addition of a spirit level is a matter of course, thanks to which your measurement in both planes will be very accurate and fun.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount
        • Very precise spirit level

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality SMA type coaxial connector

        Product Packaging Includes

        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized double ridged broadband horn antenna

        Product Parameters

        Product identification

        • Product Name DRH20E
        • Product Category Double Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 1.6 GHz – 20 GHz
        • VSWR (max.) 1.5
        • VSWR (avg.) 1.2
        • Impedance 50 Ohm
        • Connector SMA
        • Power (CW / Peak) 50 W / 100 W
        • Antenna Factor 29 – 40.5 dB/m
        • Polarization Linear

        Physical specifications

        • Width 103.8 mm (4.087 in)
        • Height 122.7 mm (4.831 in)
        • Depth 78.7 mm (3.098 in)
        • Weight 0.32 kg (0.705 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        DRH20E - VSWR

        Gain

        DRH20E - Gain

        Antenna Factor

        DRH20E - Antenna Factor

        Cross Polarization

        DRH20E - Cross Polarization

        Beamwidth

        Port A, E plane

        DRH20E - Port A, E plane

        Port A, H plane

        DRH20E - Port A, H plane

        Radiation Patterns

        1.6 GHz

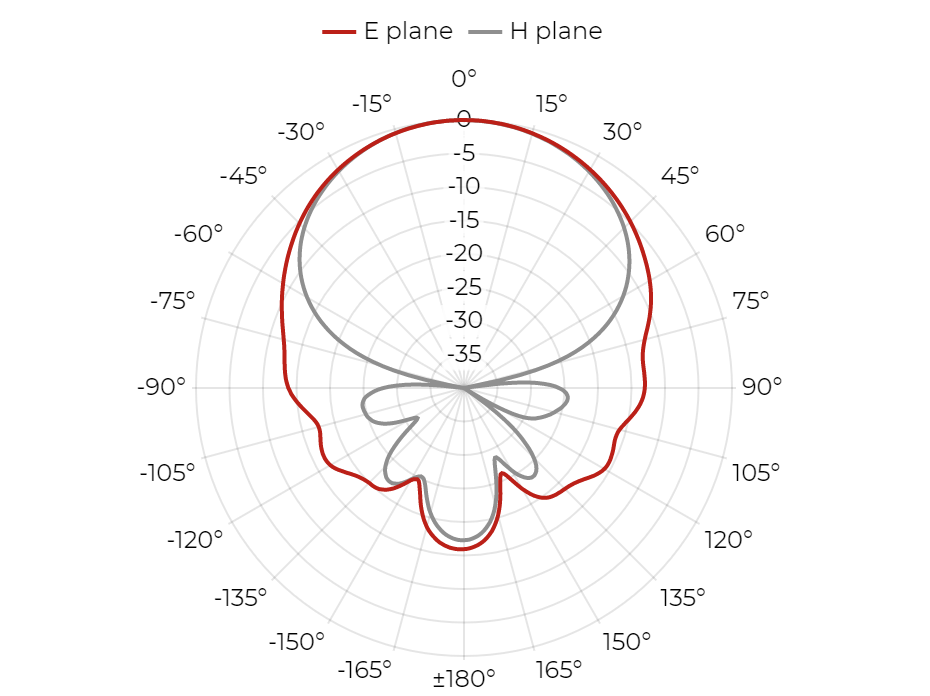

        DRH20E - 1.6 GHz

        2 GHz

        DRH20E - 2 GHz

        3 GHz

        DRH20E - 3 GHz

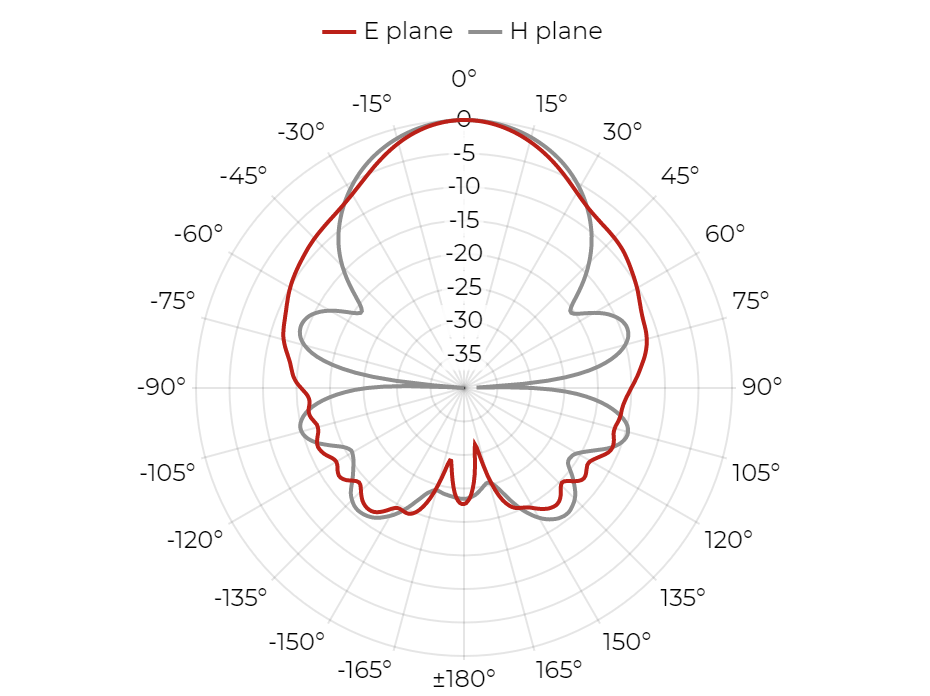

        4 GHz

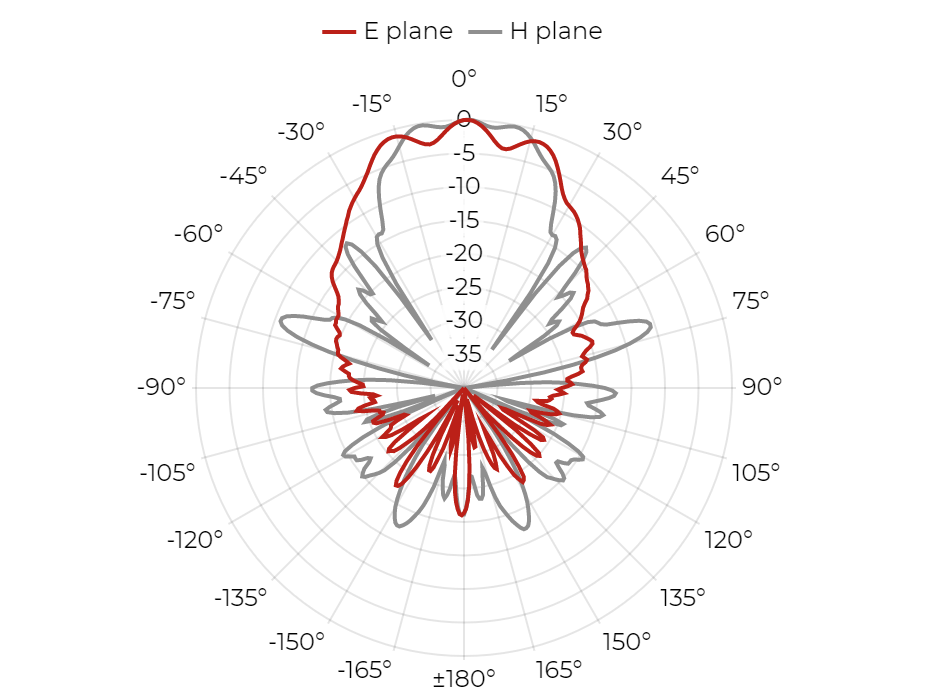

        DRH20E - 4 GHz

        Packaging and Accessories

        What's in a box

        • DRH20E Antenna
        • Antenna specific mount adapter with ¼ inch inner thread

        Accessories

        • Standard mounting flange

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
