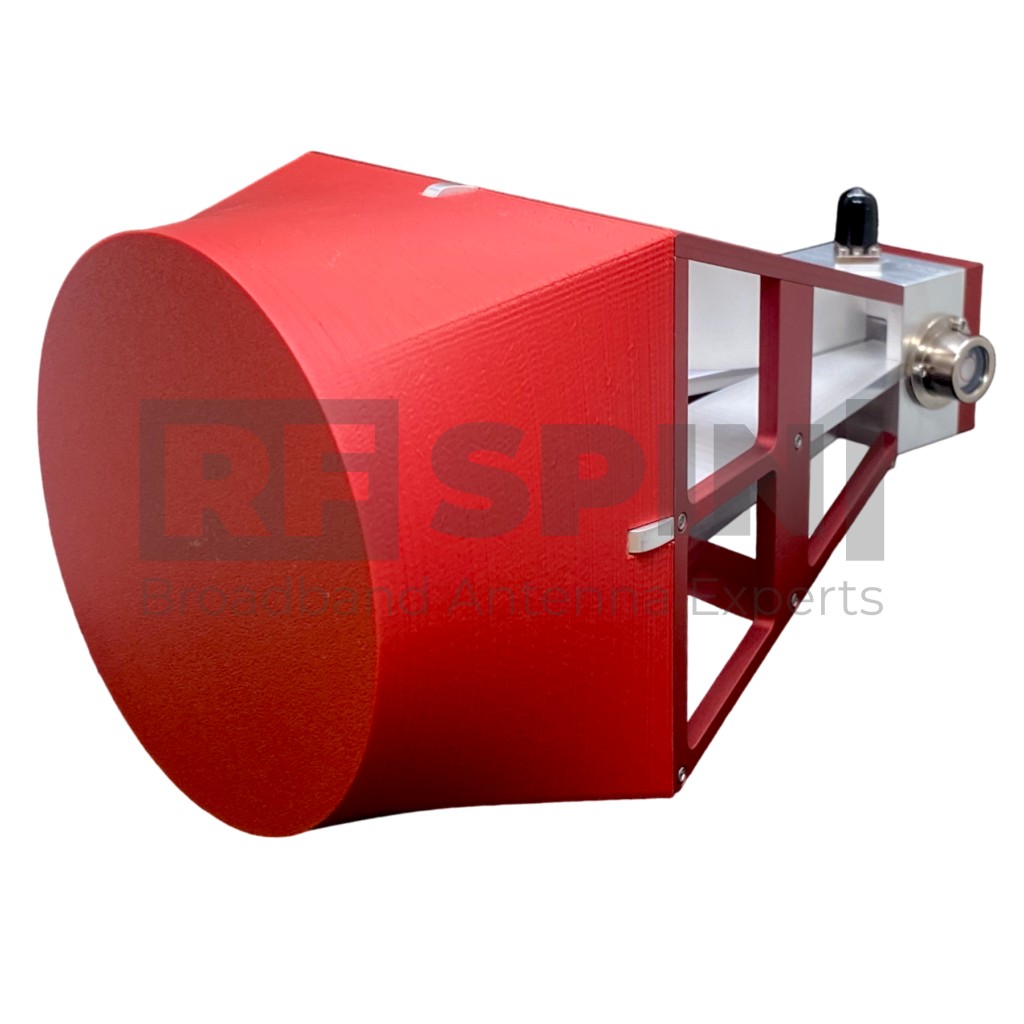

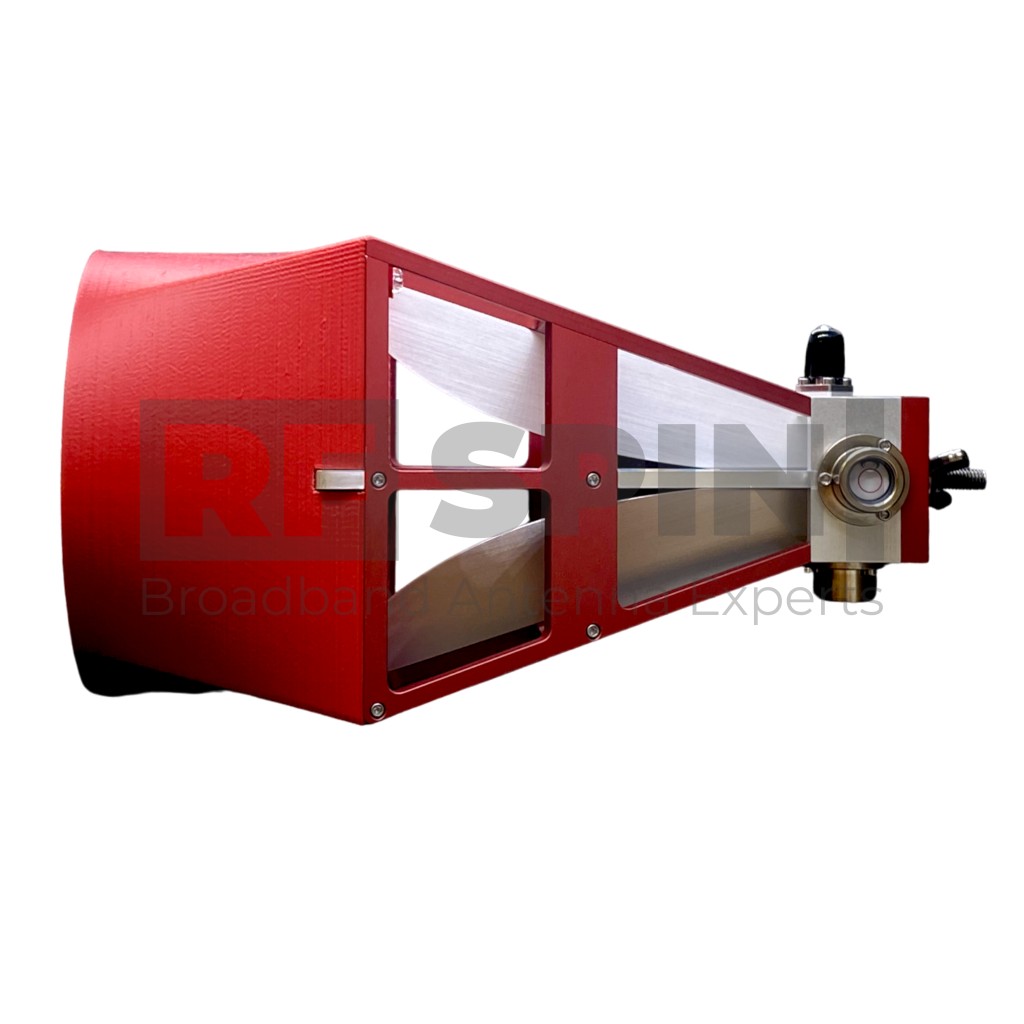

        QRH20EC

        Quad Ridged Horn Antenna

        Dual-polarized broadband antenna QRH20EC with 3D printed patented lens technology. Increase the Gain and enhance the overall performance by using a smart lens while keeping low weight and small size.

        Cloned antenna series are available through AU Technology, which guarantees constant parameters.

        Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Circular polarization
        QR code
        5G

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band
        • Suitable for EMC/EMI applications

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Very precise spirit level for both polarizations

        Manufacturing Technology

        • High quality SMA type coaxial connector

        Product Packaging Includes

        • Antenna with lens
        • Adapter with ¼ inch inner thread, supplied with antenna

        Product Parameters

        Product identification

        • Product Name QRH20EC
        • Product Category Quad Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 1.7 GHz – 20 GHz
        • VSWR (max.) 2.4
        • VSWR (avg.) 1.45
        • Impedance 50 Ohm
        • Connector SMA (female)
        • Power (CW / Peak) 20 W / 40 W
        • Antenna Factor 28 – 42.5 dB/m
        • Port Isolation -33 dB
        • Polarization Dual Linear, Circular (with hybrid)

        Physical specifications

        • Width 101 mm (3.976 in)
        • Height 178 mm (7.008 in)
        • Depth 101 mm (3.976 in)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        QRH20EC - VSWR

        Gain

        QRH20EC - Gain

        Antenna Factor

        QRH20EC - Antenna Factor

        Port Isolation

        QRH20EC - Port Isolation

        Cross Polarization

        QRH20EC - Cross Polarization

        Beamwidth

        Port A, E plane

        QRH20EC - Port A, E plane

        Port A, H plane

        QRH20EC - Port A, H plane

        Port B, E plane

        QRH20EC - Port B, E plane

        Port B, H plane

        QRH20EC - Port B, H plane

        Radiation Patterns

        Port A, 2 GHz

        QRH20EC - Port A, 2 GHz

        Port B, 2 GHz

        QRH20EC - Port B, 2 GHz

        Port A, 3 GHz

        QRH20EC - Port A, 3 GHz

        Port B, 3 GHz

        QRH20EC - Port B, 3 GHz

        Packaging and Accessories

        What's in a box

        • QRH20EC Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
