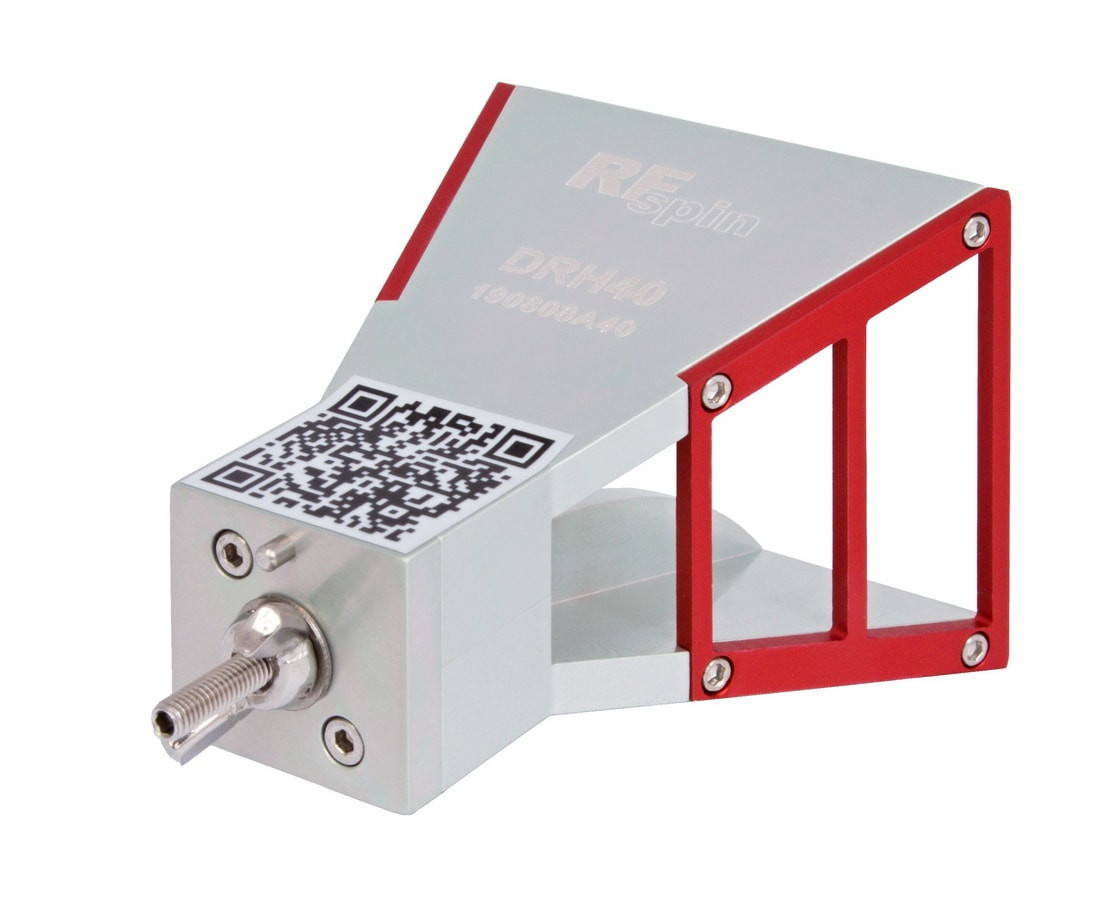

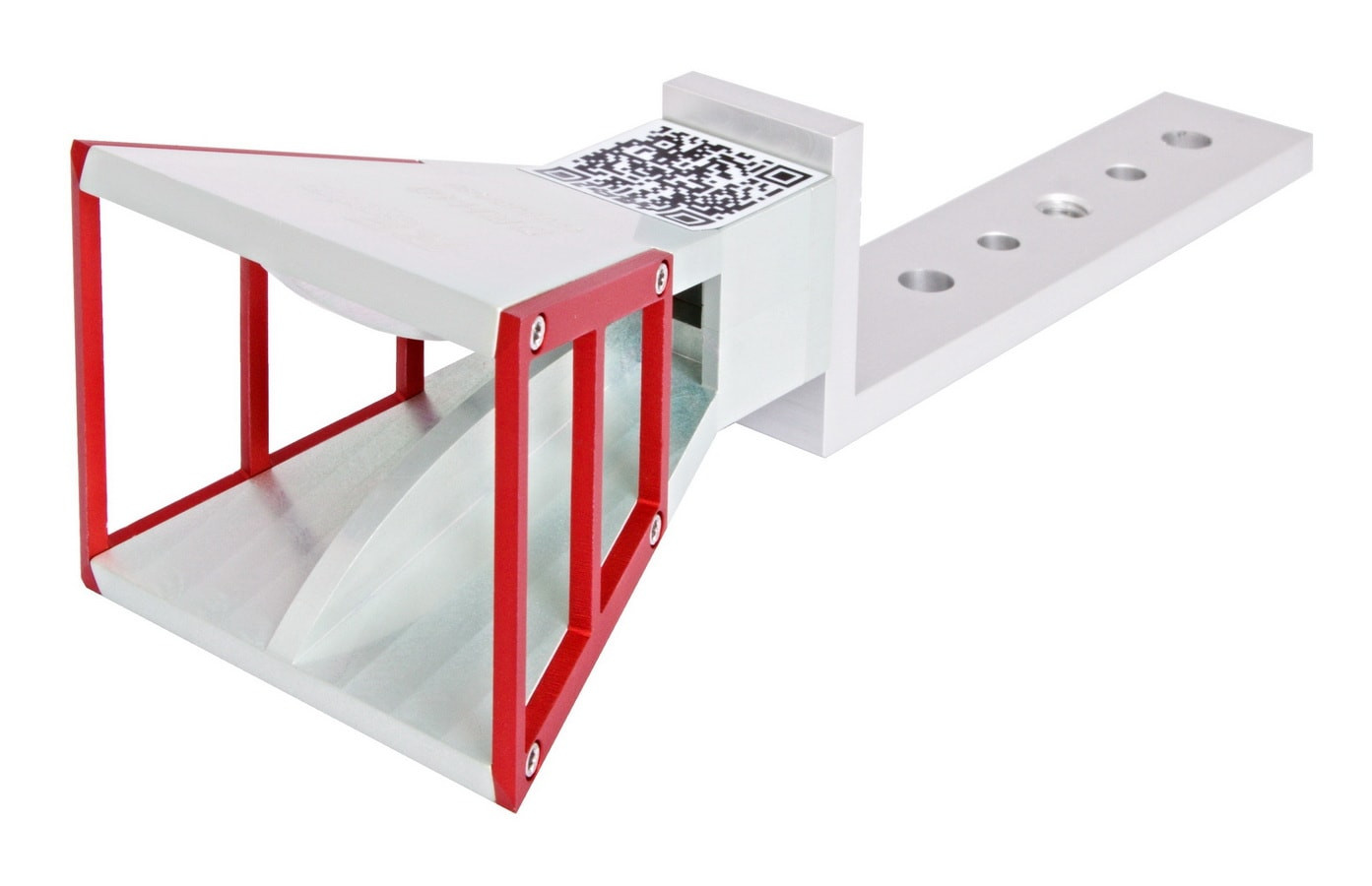

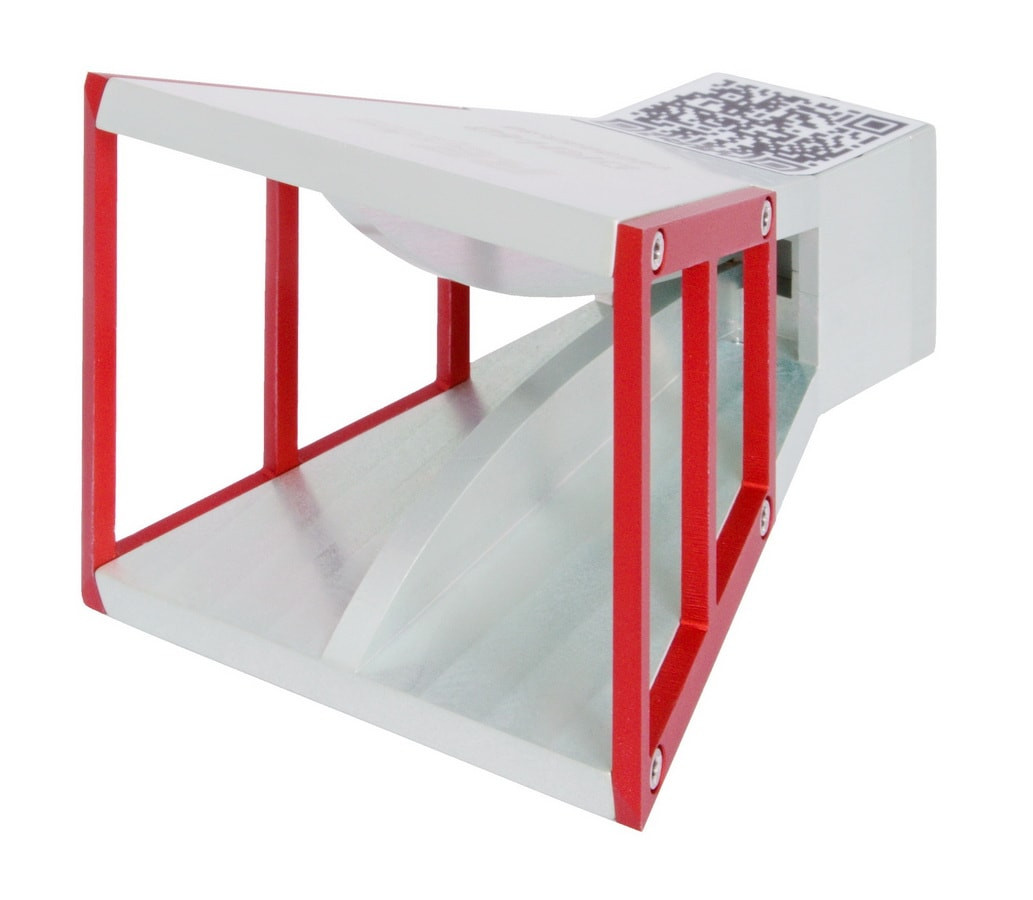

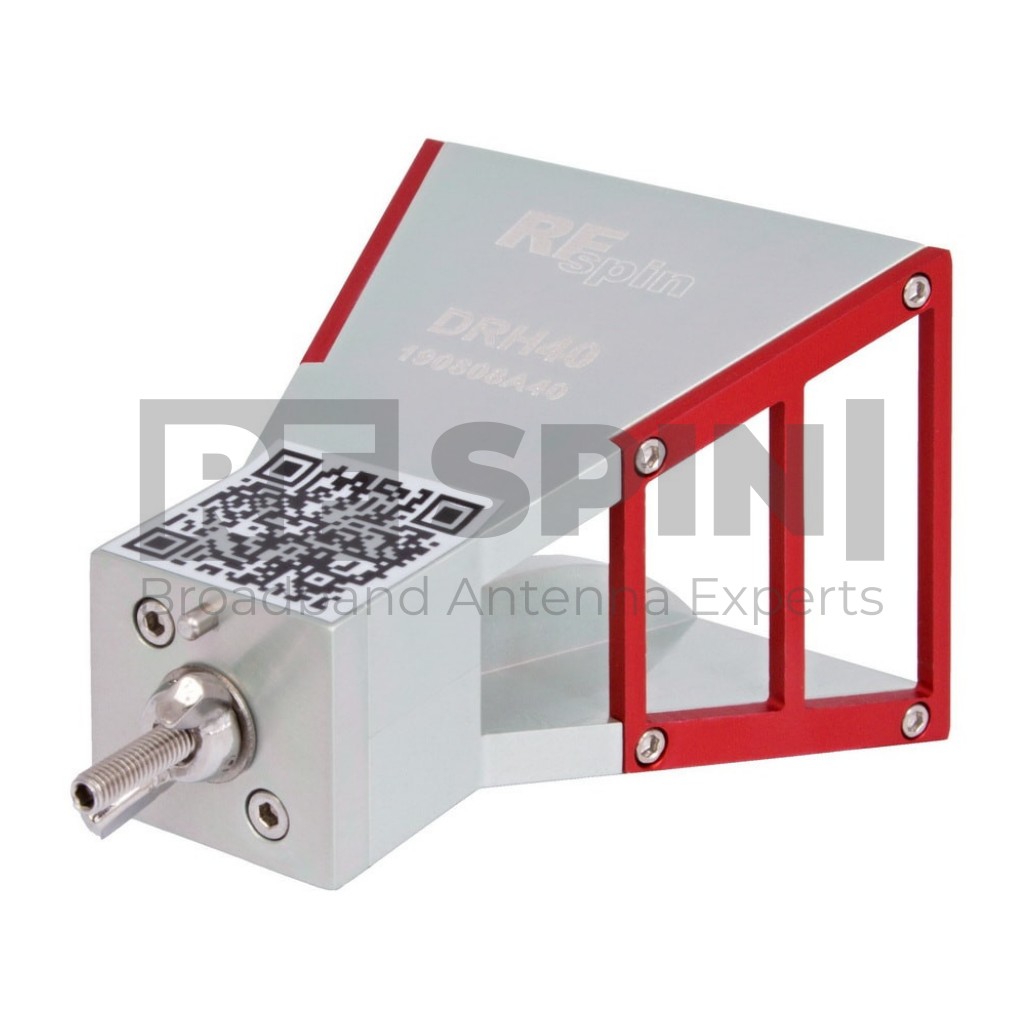

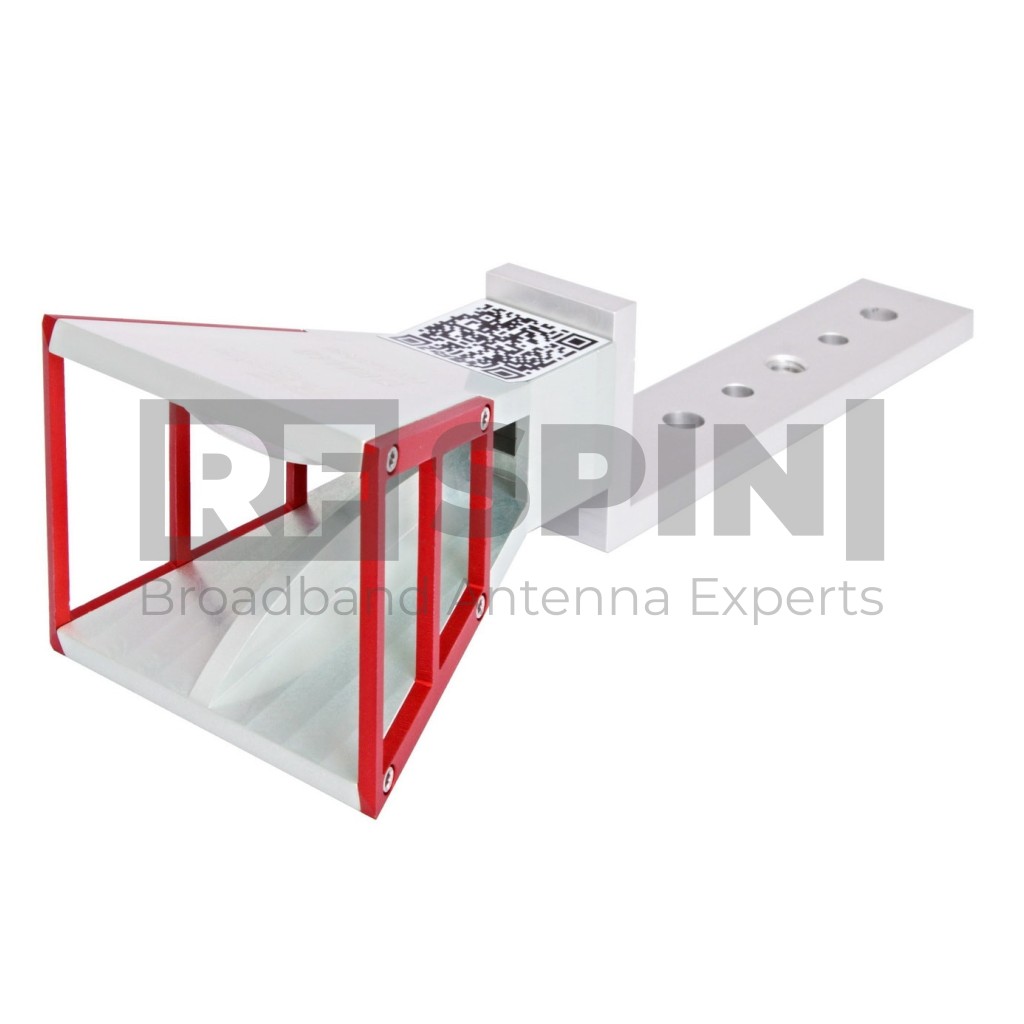

        DRH40

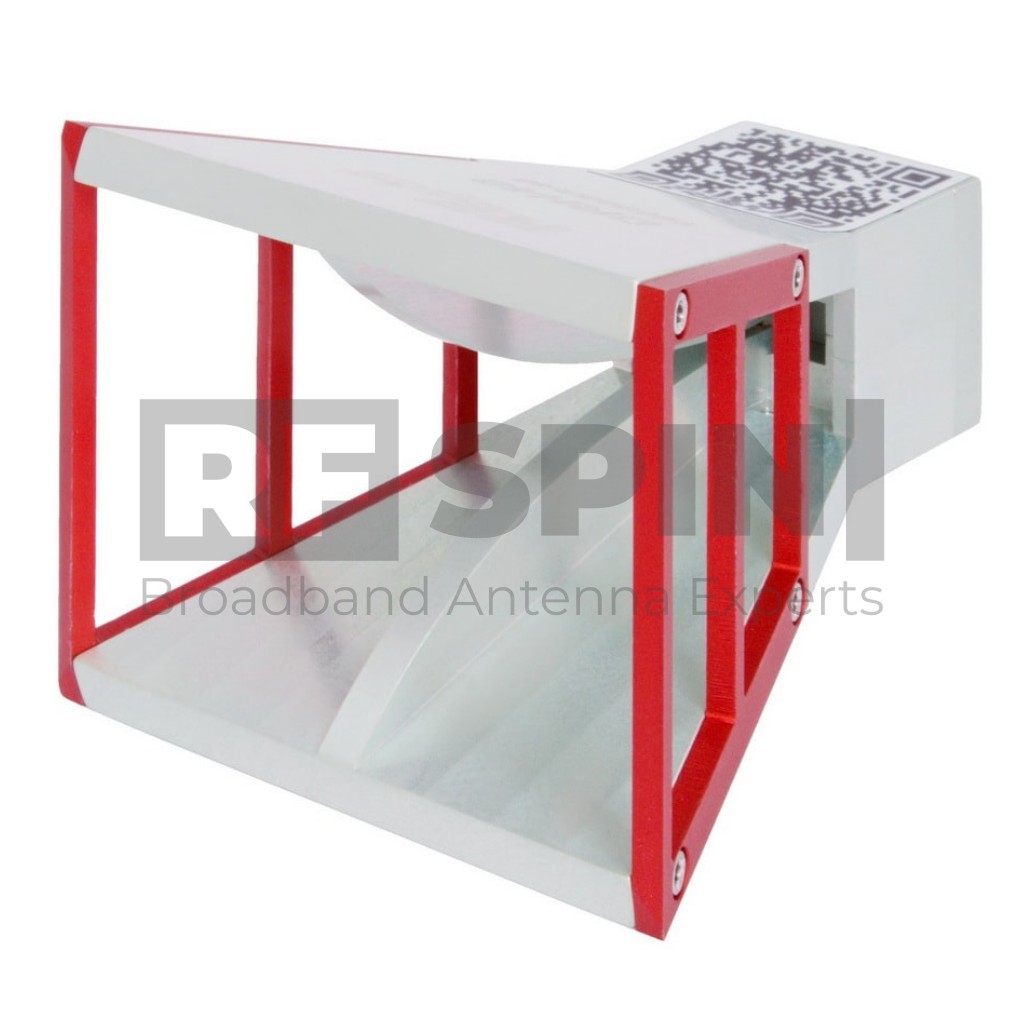

        Double Ridged Horn Antenna

        The DRH40 antenna combines small dimensions with high accuracy and perfect electrical parameters. For safe storage, it is placed in a tailor-made wooden box, which guarantees that your antenna will always be in the best condition.

        Cloned antenna series are available through AU Technology, which guarantees constant parameters.

        Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        5G
        Custom design
        QR code

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band

        Design and Surface Treatment

        • Corrosion-resistant coating

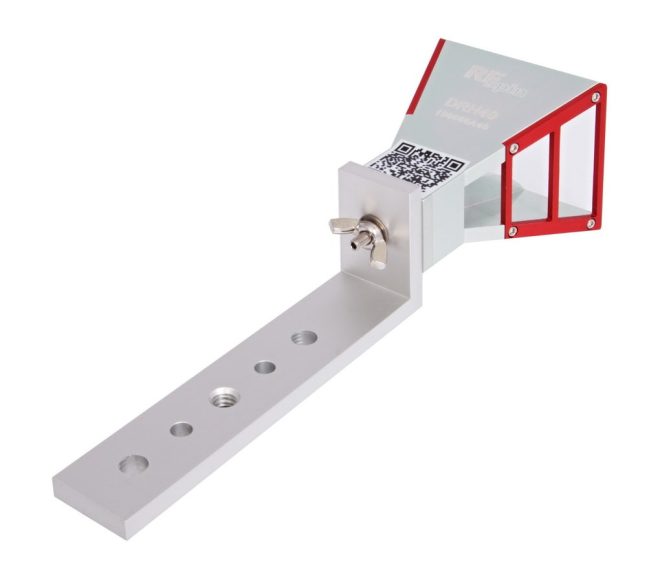

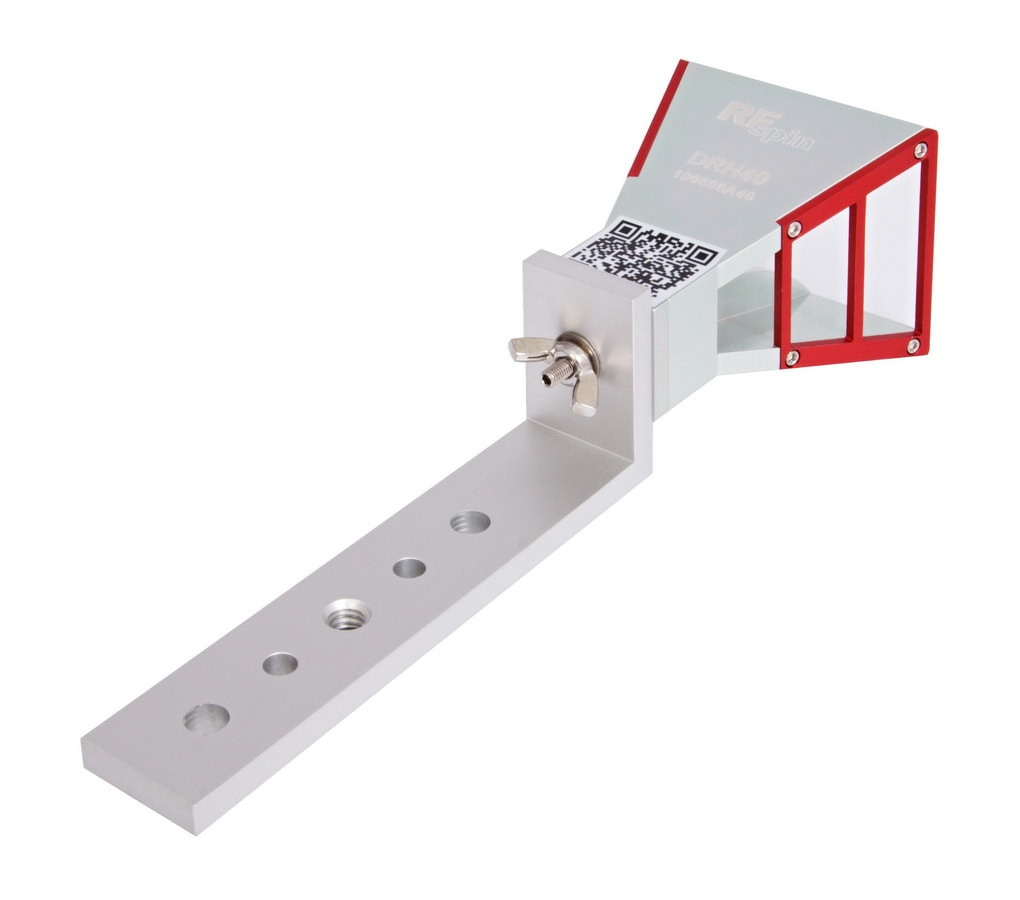

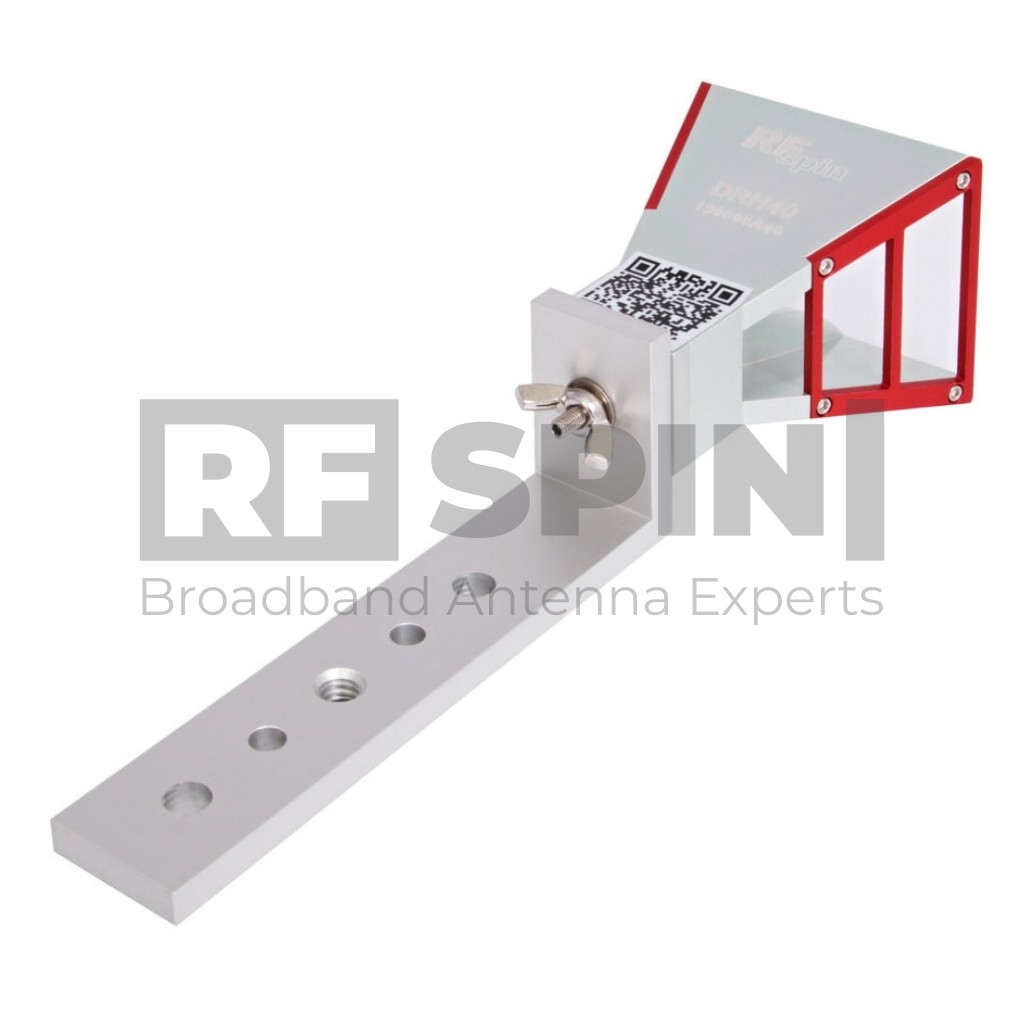

        • Includes standard mount

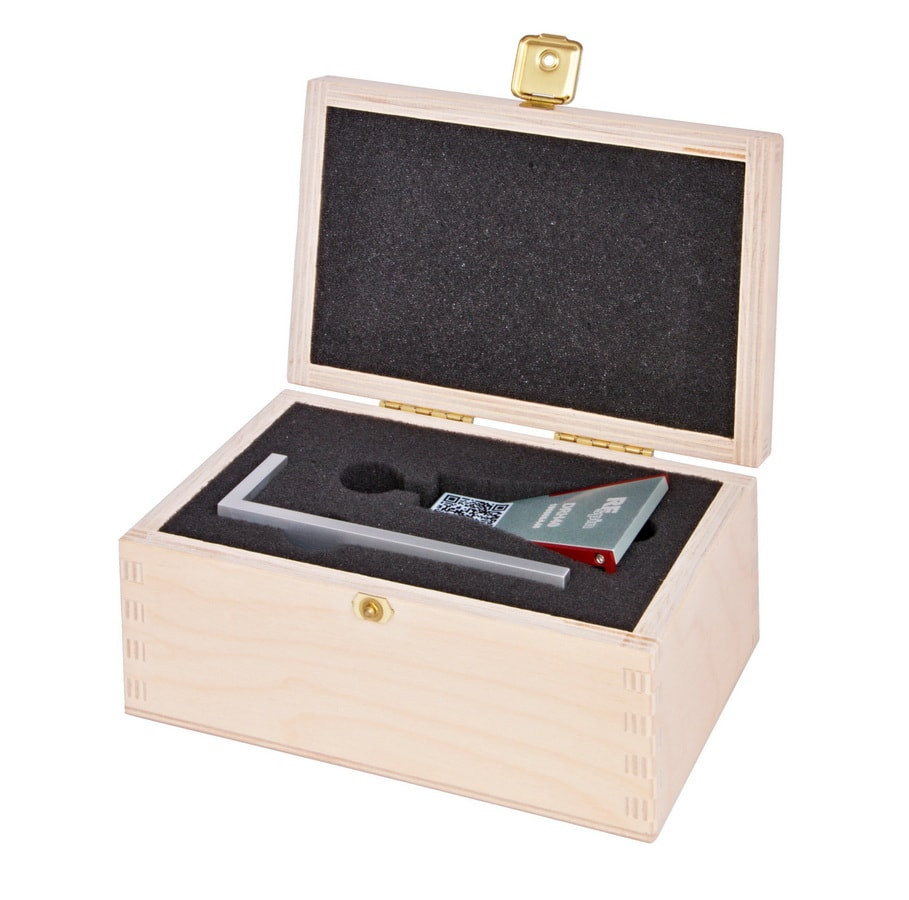

        • Storage in protective tailor-made wooden box

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality K type coaxial connector

        Product Packaging Includes

        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized double ridged broadband horn antenna

        Product Parameters

        Product identification

        • Product Name DRH40
        • Product Category Double Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 4 GHz – 40 GHz
        • VSWR (max.) 1.6
        • VSWR (avg.) 1.25
        • Impedance 50 Ohm
        • Connector K (female)
        • Power (CW / Peak) 15 W / 30 W
        • Antenna Factor 35 – 47 dB/m
        • Polarization Linear

        Physical specifications

        • Width 52 mm (2.047 in)
        • Height 62.3 mm (2.453 in)
        • Depth 44 mm (1.732 in)
        • Weight 0.075 kg (0.165 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

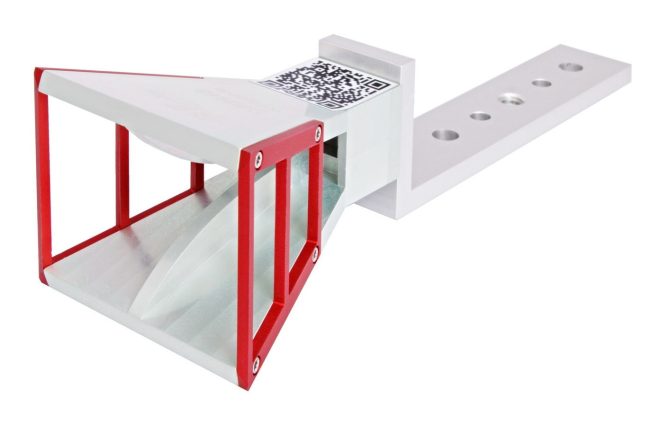

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        DRH40 - VSWR

        Gain

        DRH40 - Gain

        Antenna Factor

        DRH40 - Antenna Factor

        Cross Polarization

        DRH40 - Cross Polarization

        Beamwidth

        Port A, E plane

        DRH40 - Port A, E plane

        Port A, H plane

        DRH40 - Port A, H plane

        Radiation Patterns

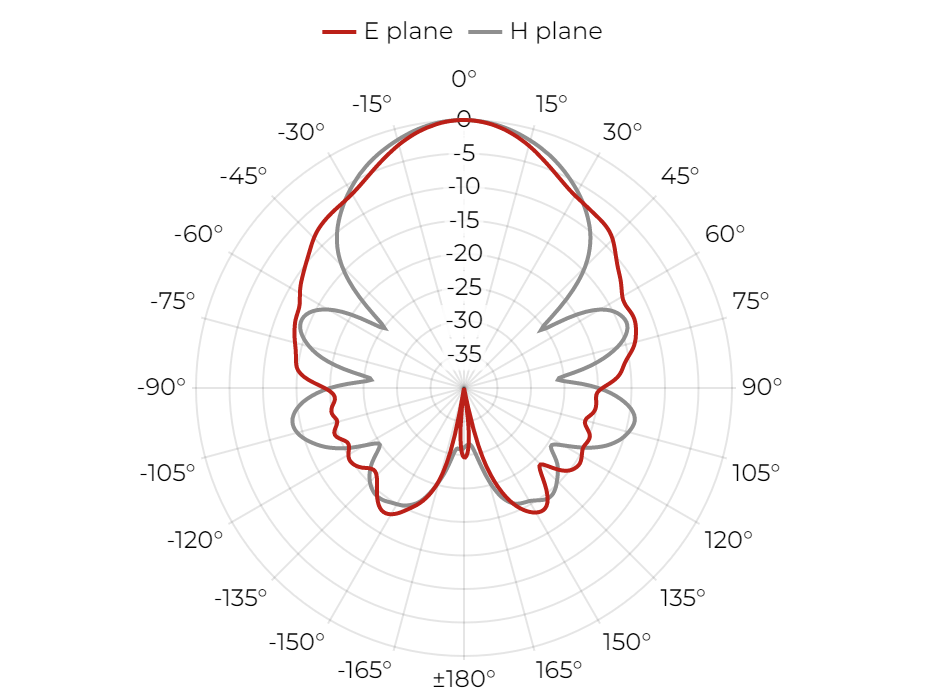

        4 GHz

        DRH40 - 4 GHz

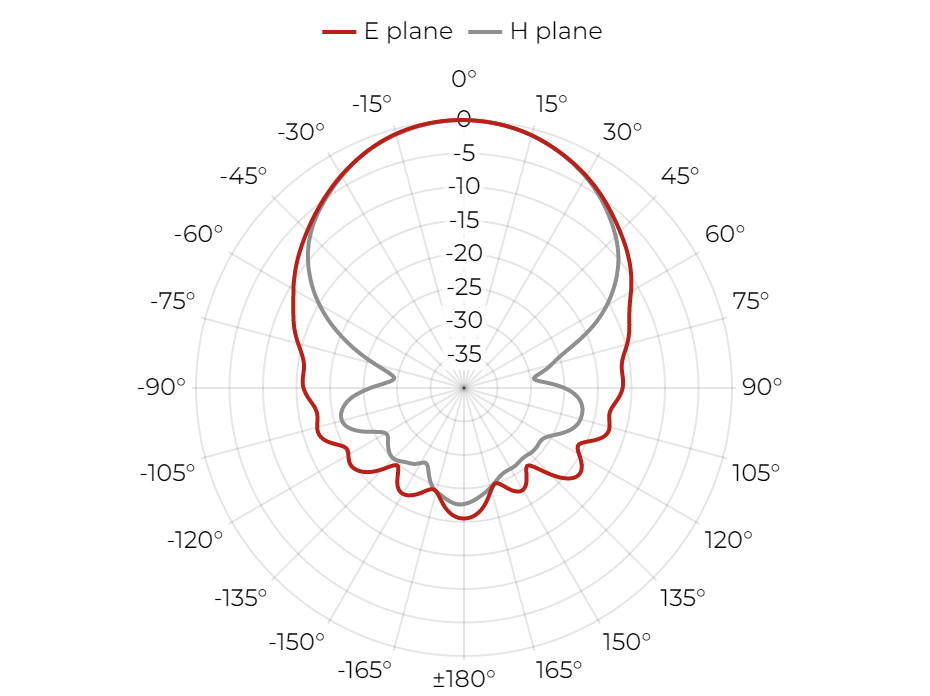

        6 GHz

        DRH40 - 6 GHz

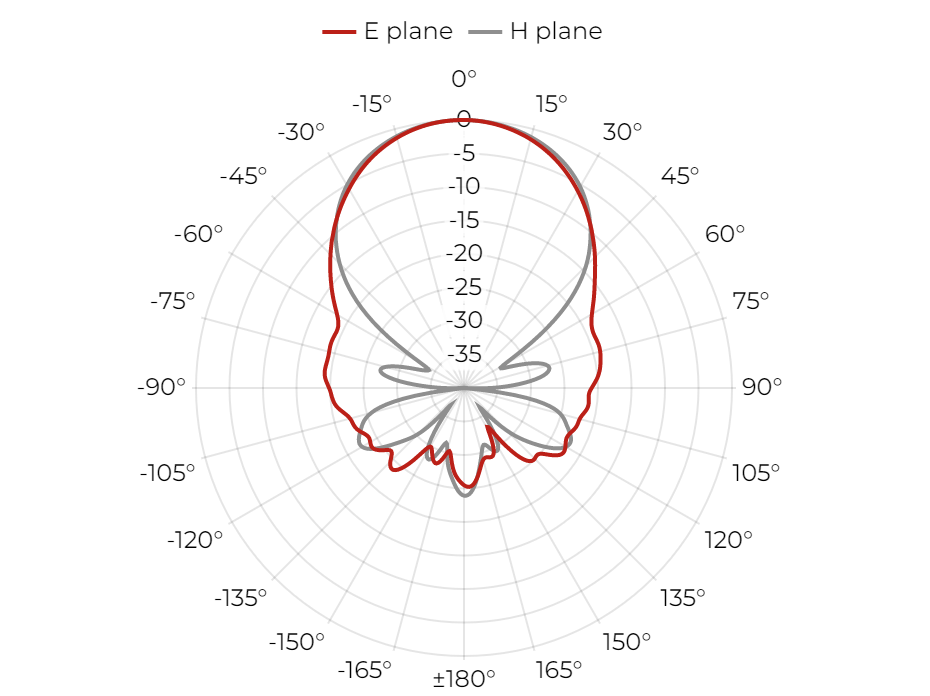

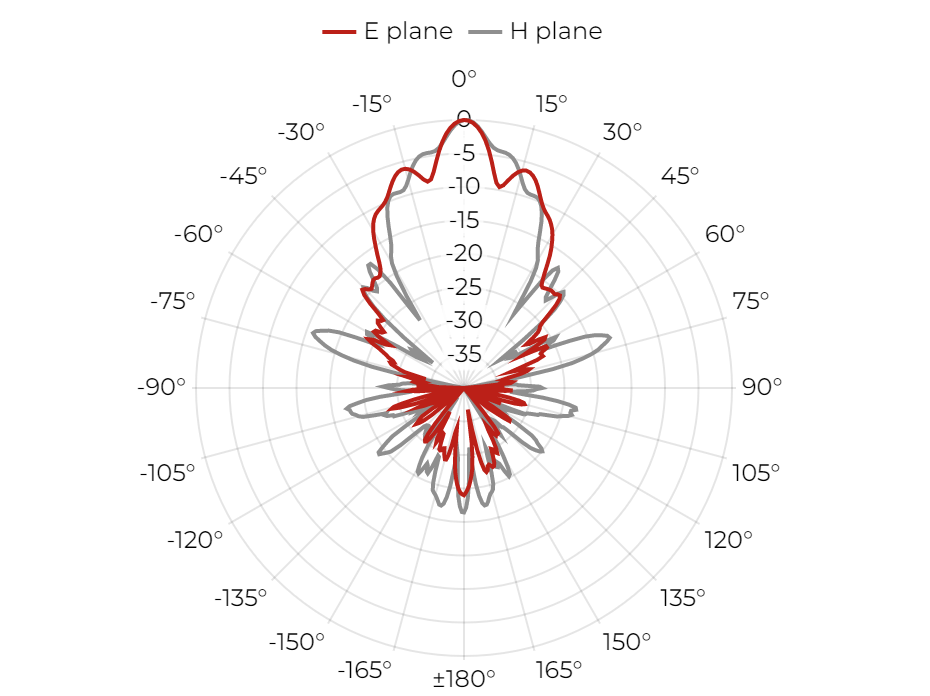

        8 GHz

        DRH40 - 8 GHz

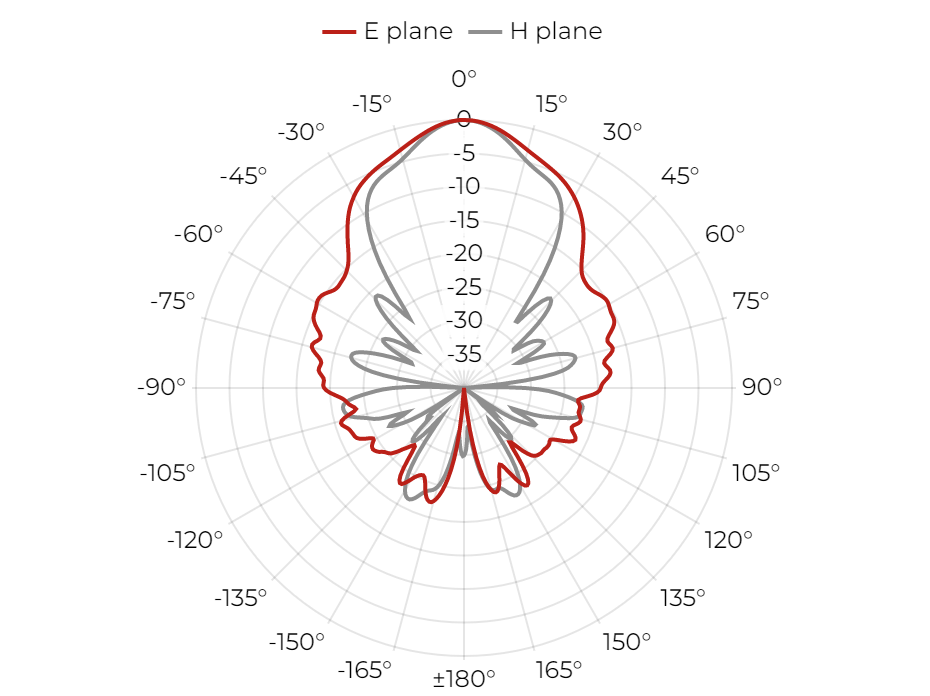

        10 GHz

        DRH40 - 10 GHz

        Packaging and Accessories

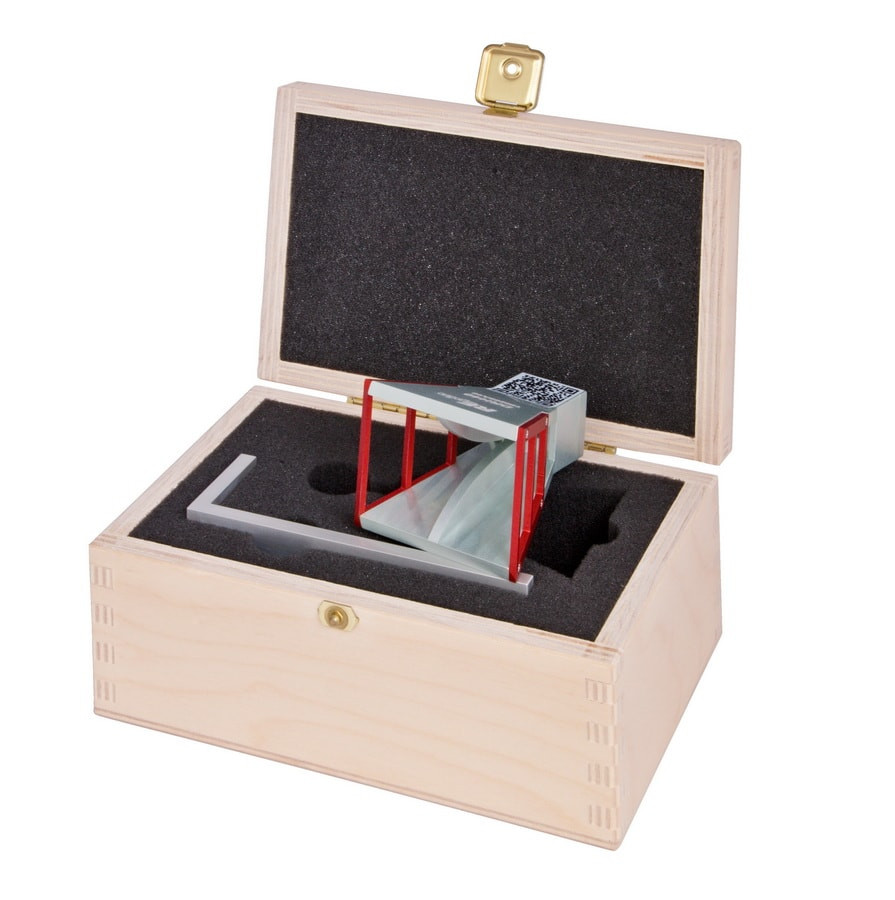

        What's in a box

        • DRH40 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Protective wooden case
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Protective wooden case
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
