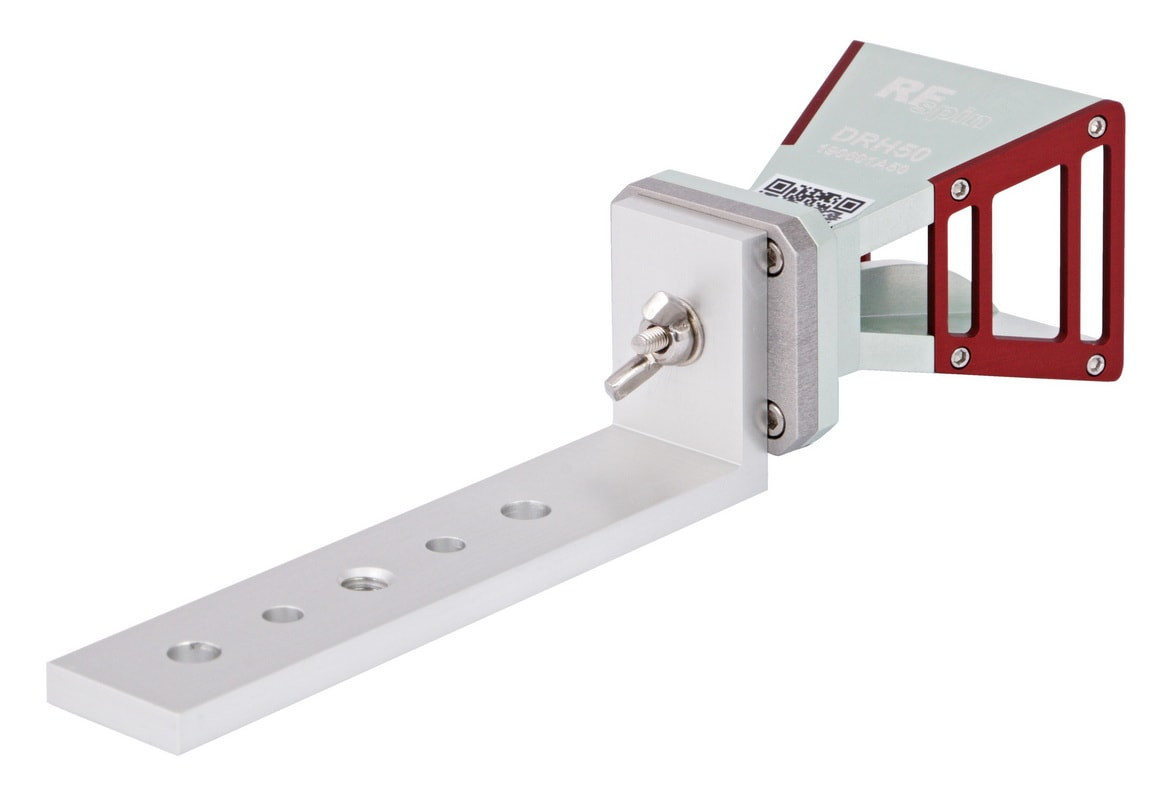

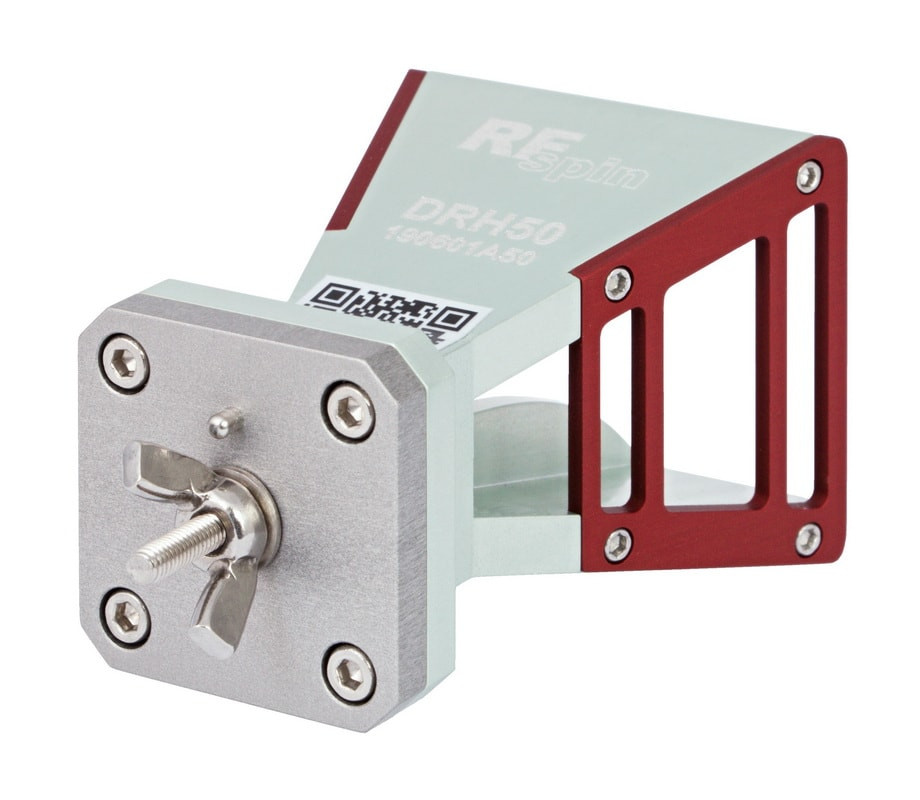

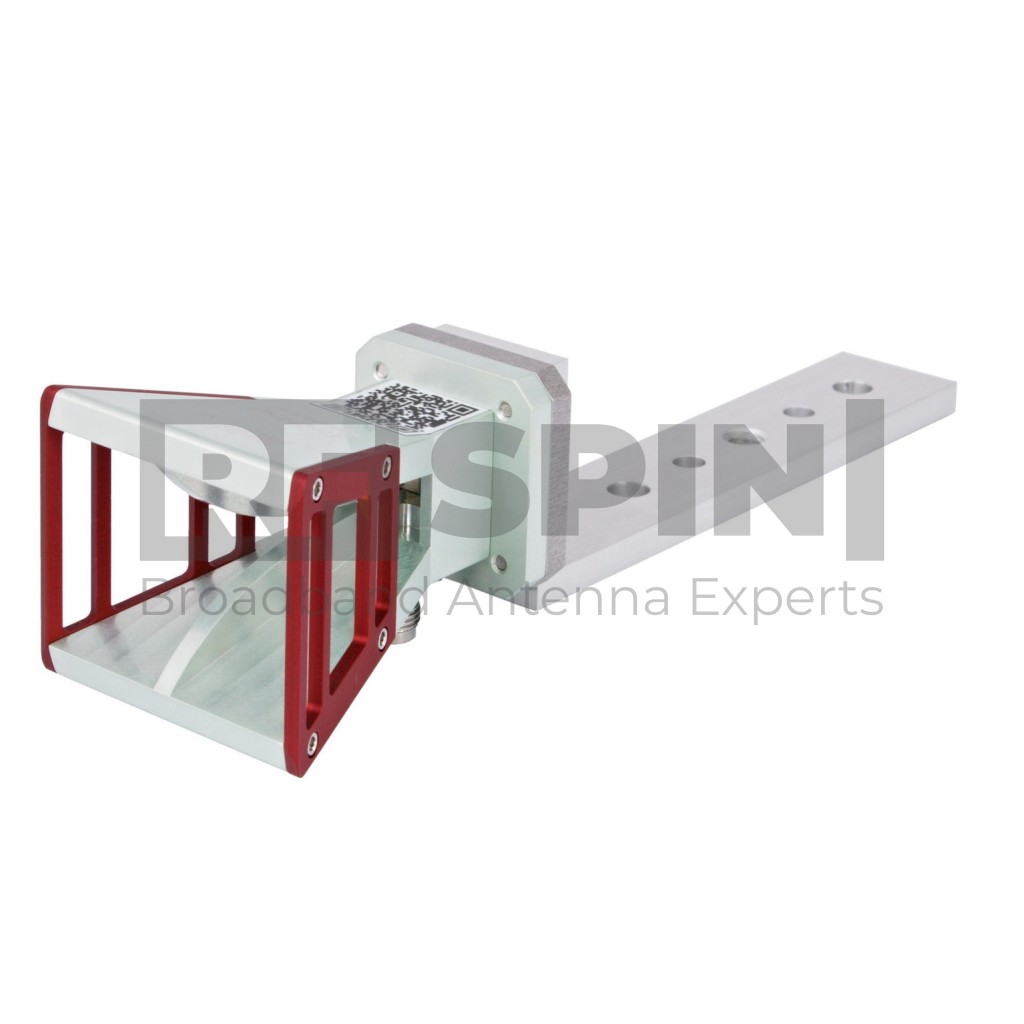

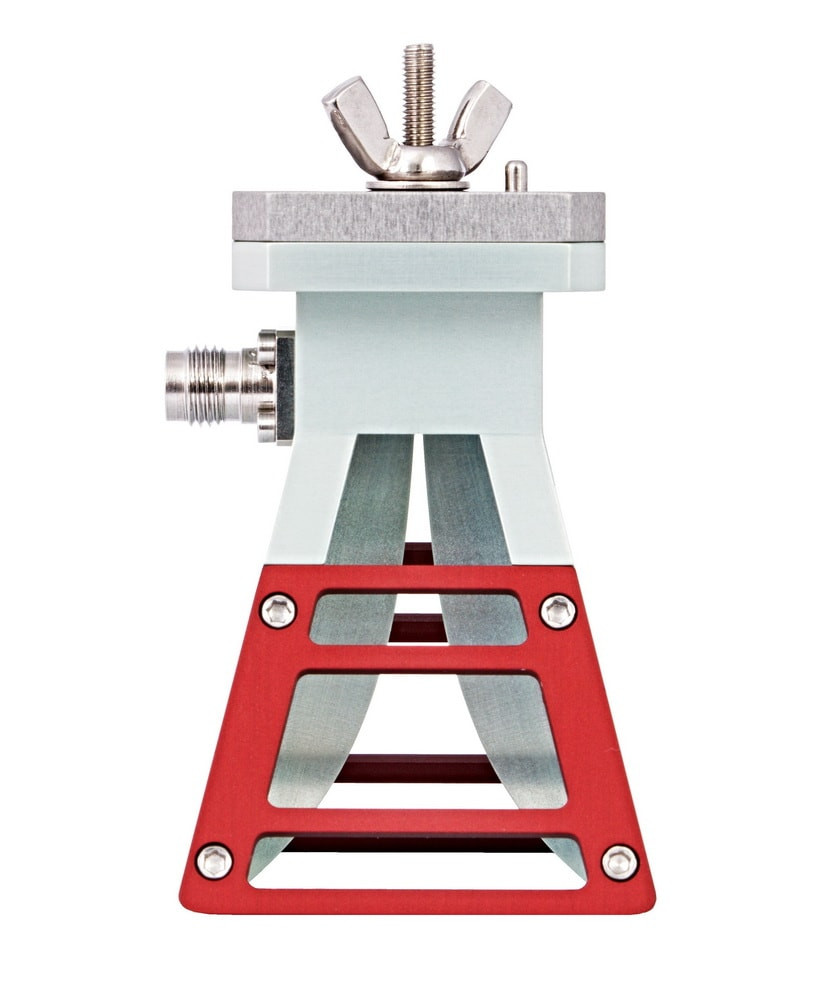

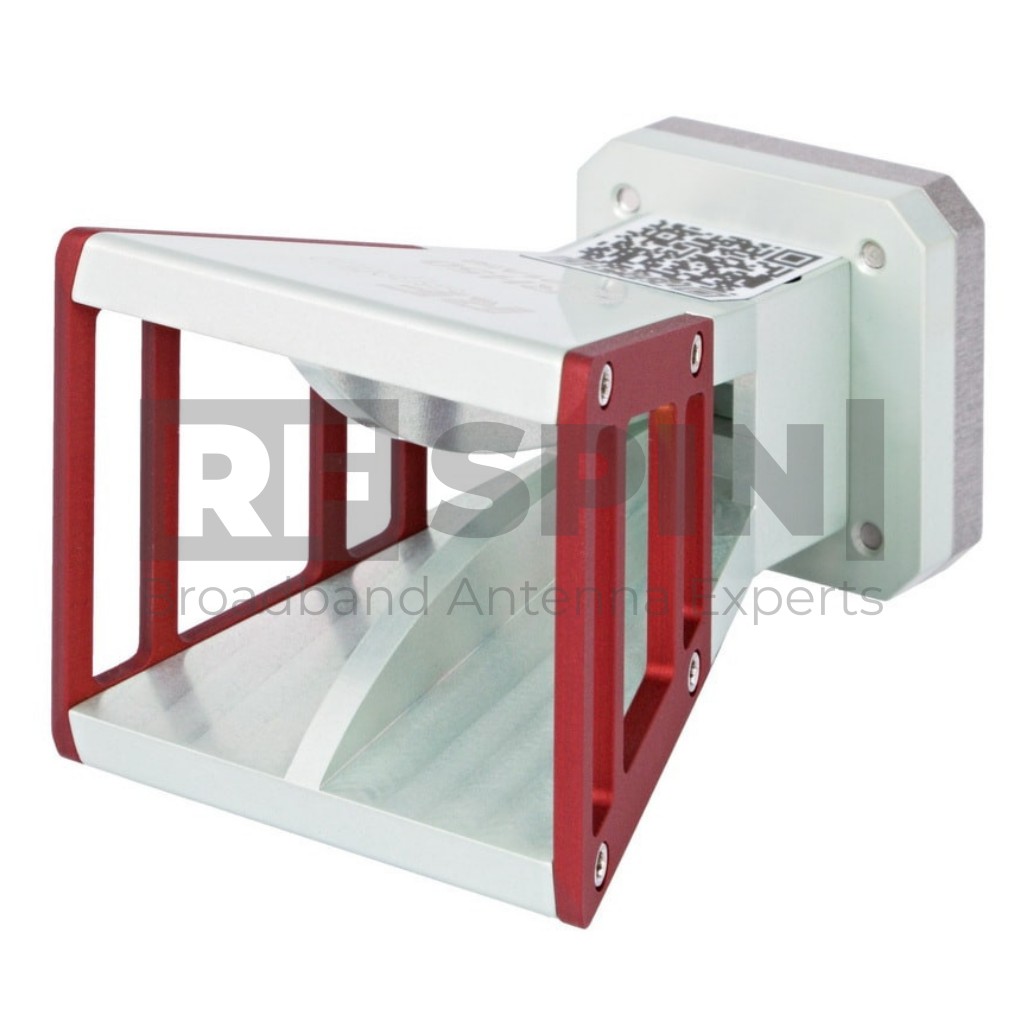

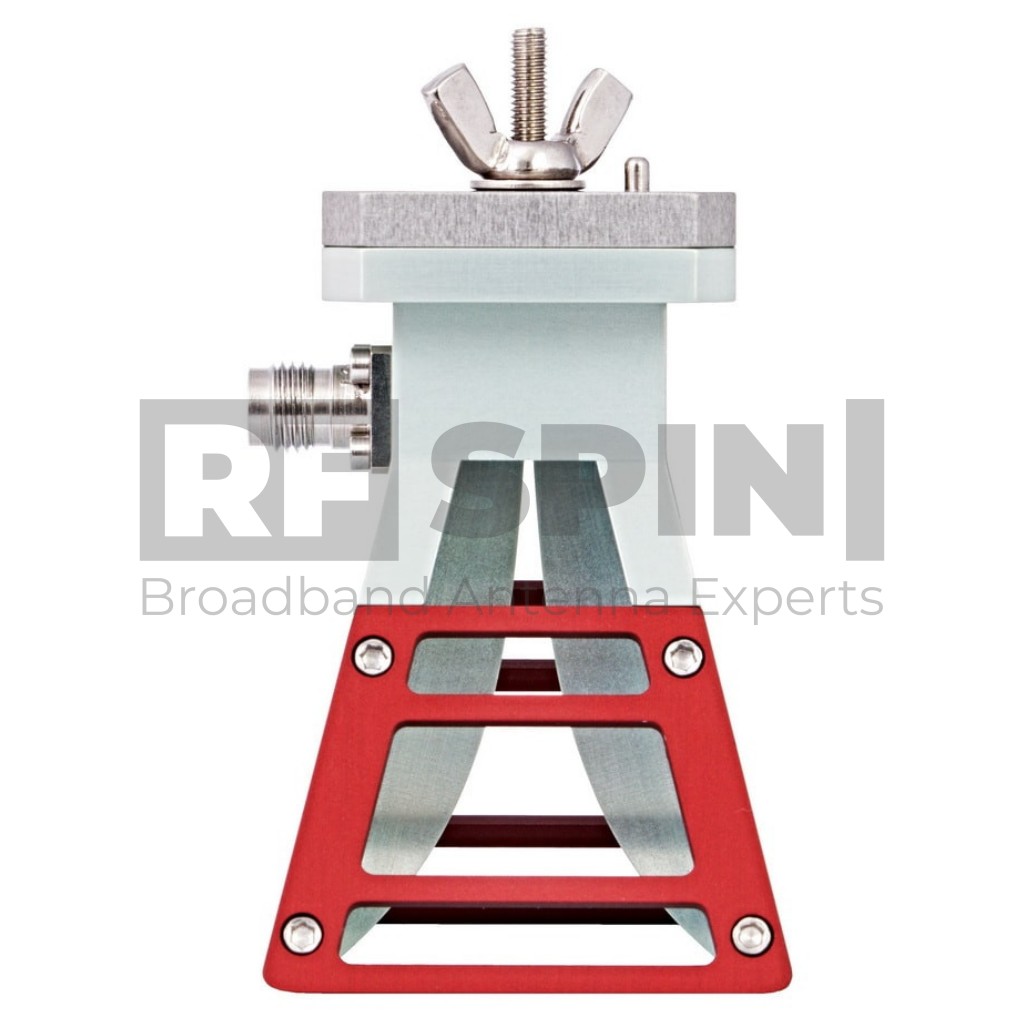

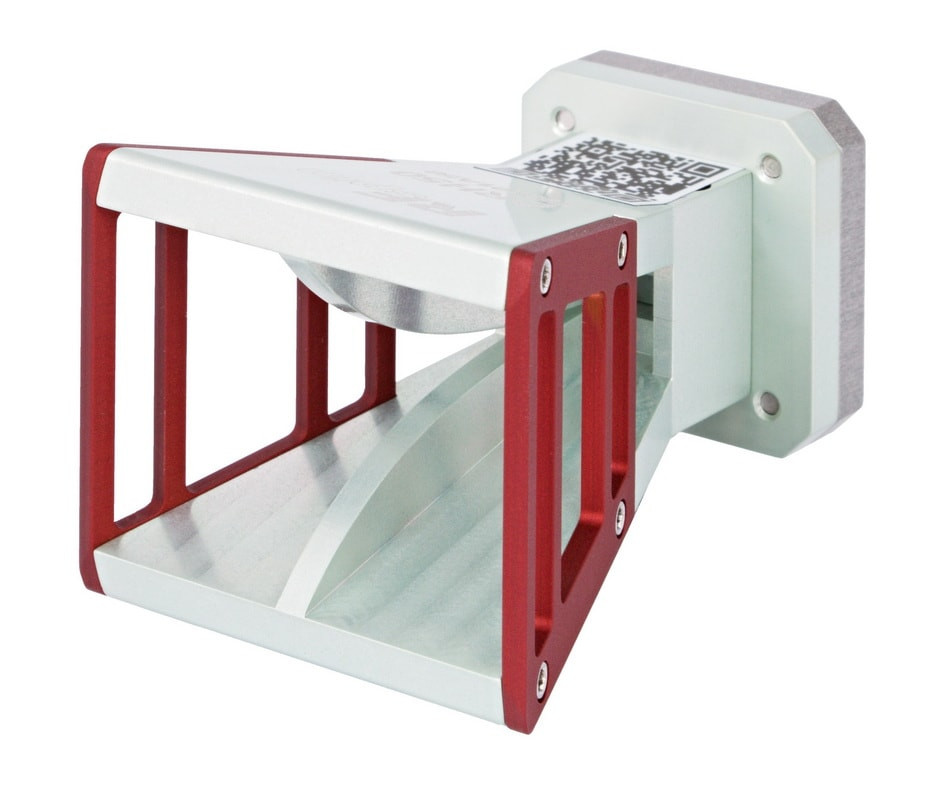

DRH50
Double Ridged Horn Antenna
The DRH50 antenna combines small dimensions with high accuracy and perfect electrical parameters. For safe storage, it is placed in a tailor-made wooden box, which guarantees that your antenna will always be in the best condition.
Cloned antenna series are available through AU Technology, which guarantees constant parameters.
Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.
Availability: Most products are on stock. Please contact us for more information or large quantity orders.
Features and Specifications
Technical Performance
- Wide bandwidth
- Low return loss
- Individual calibration
- Covers 5G frequency band
Design and Surface Treatment
- Corrosion-resistant coating
- Includes standard mount
- Storage in protective tailor-made wooden box
Manufacturing Technology
- Manufactured using a high grade aluminum alloy
- Extremely durable
- High quality 2.40mm type coaxial connector
Product Packaging Includes
- Adapter with ¼ inch inner thread, supplied with antenna
- Linear polarized double ridged broadband horn antenna
Product Parameters
Product identification
- Product Name DRH50
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 4.5 GHz – 50 GHz
- VSWR (max.) 1.55
- VSWR (avg.) 1.25
- Impedance 50 Ohm
- Connector 2.40mm (female)
- Power (CW / Peak) 10 W / 20 W
- Antenna Factor 36 – 49 dB/m
- Polarization Linear
Physical specifications
- Width 43.6 mm (1.717 in)
- Height 60 mm (2.362 in)
- Depth 37.7 mm (1.484 in)
- Weight 0.07 kg (0.154 lb)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C

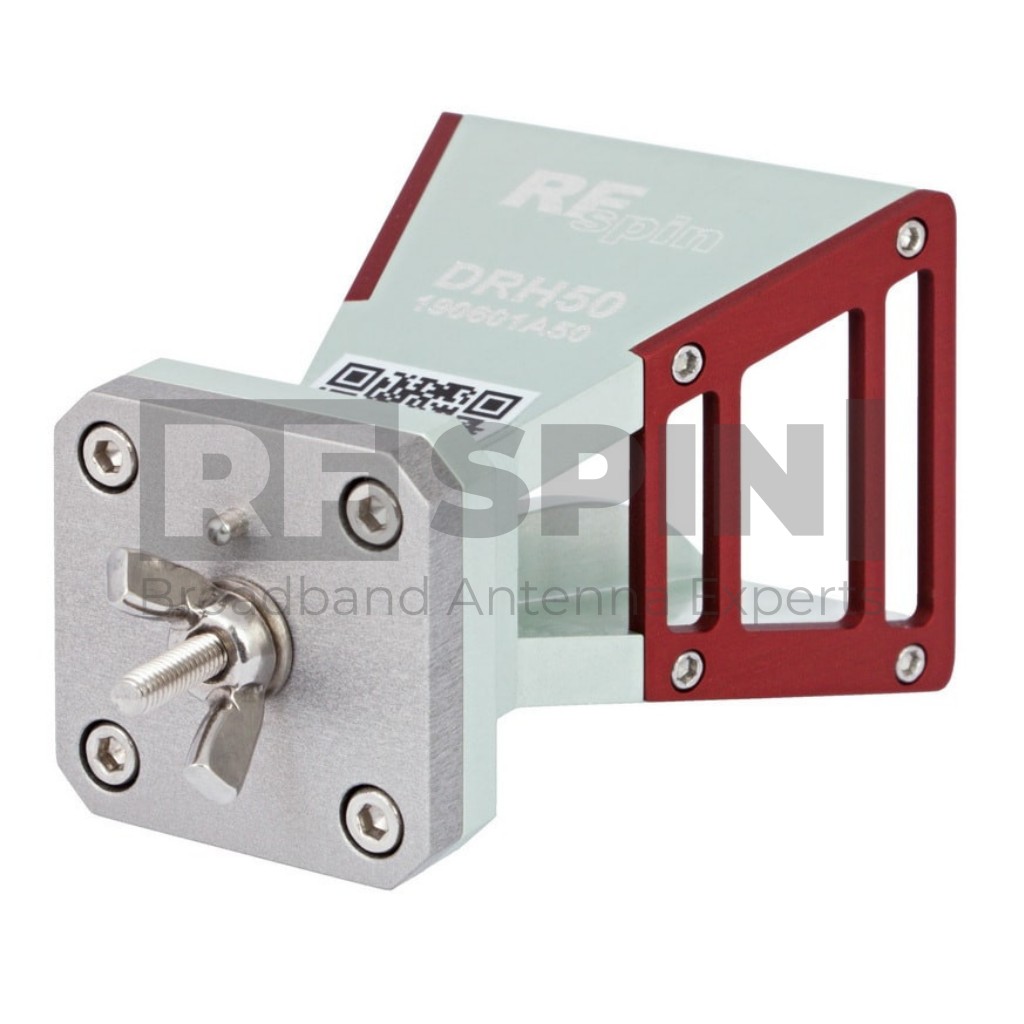

Mounting flange
- Mounting Adapter with ¼ inch inner thread, supplied with antenna
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Cross Polarization
Beamwidth
Port A, E plane
Port A, H plane
Radiation Patterns
4.5 GHz
6 GHz
8 GHz
10 GHz
15 GHz
20 GHz
25 GHz
30 GHz
35 GHz
40 GHz
45 GHz
50 GHz
Packaging and Accessories
What's in a box
- DRH50 Antenna
- Antenna specific mount adapter with ¼ inch inner thread

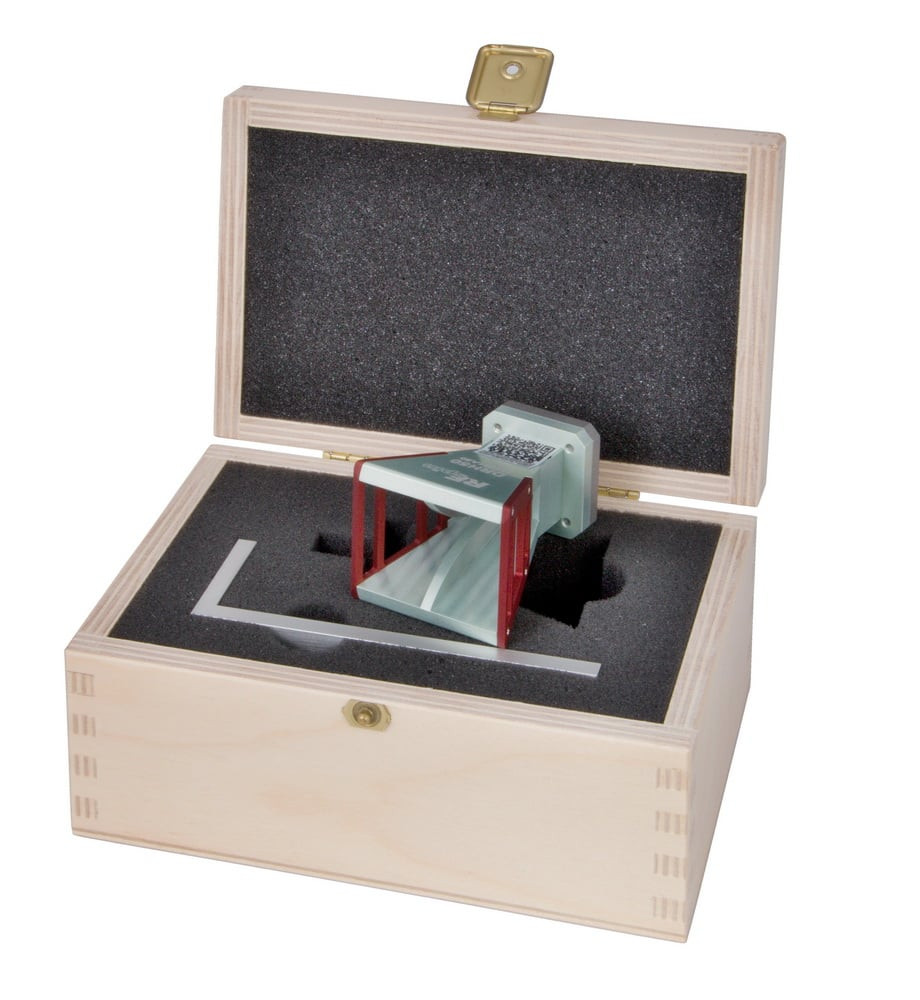

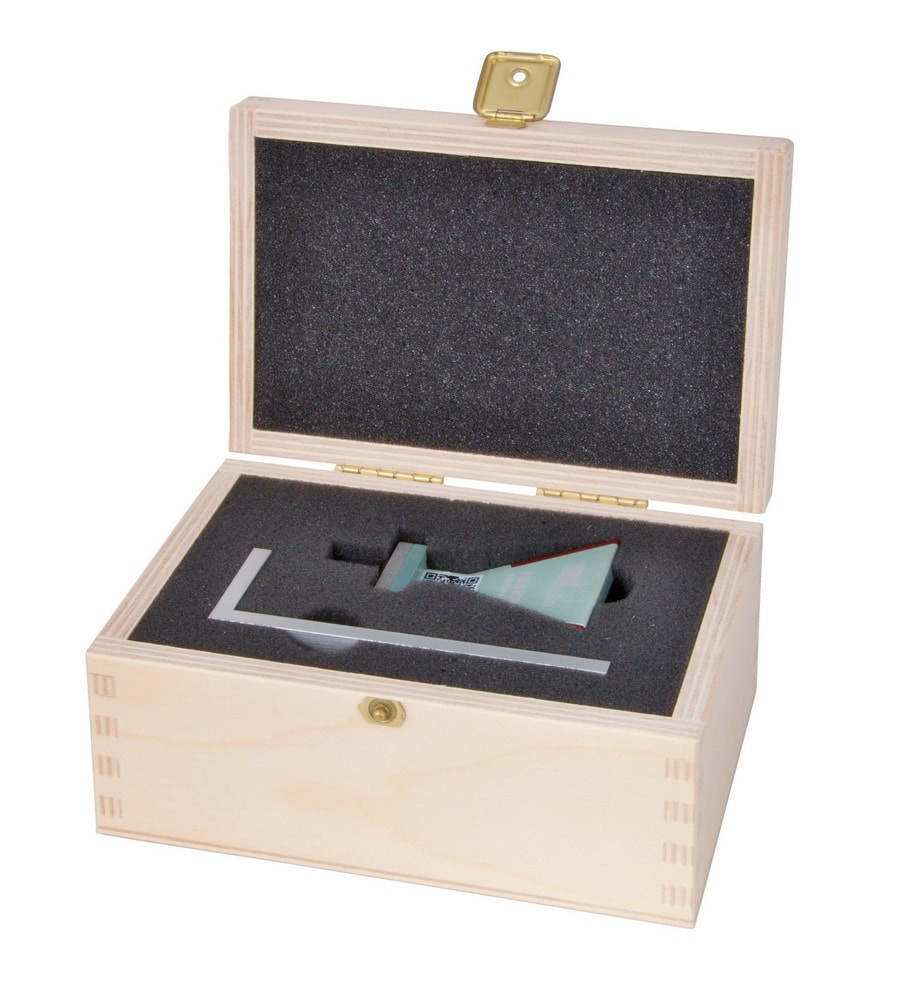

- Protective wooden case
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
Accessories

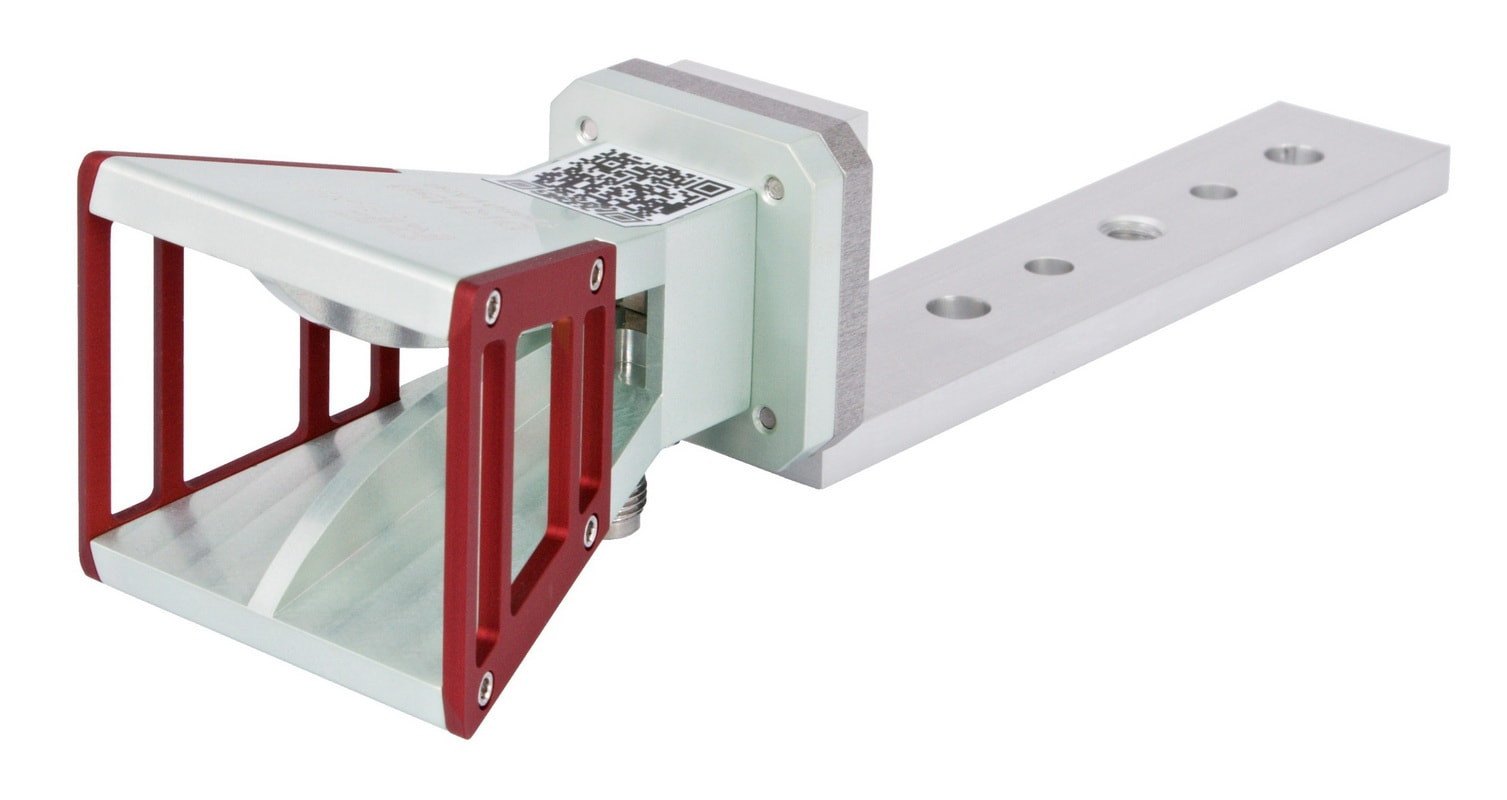

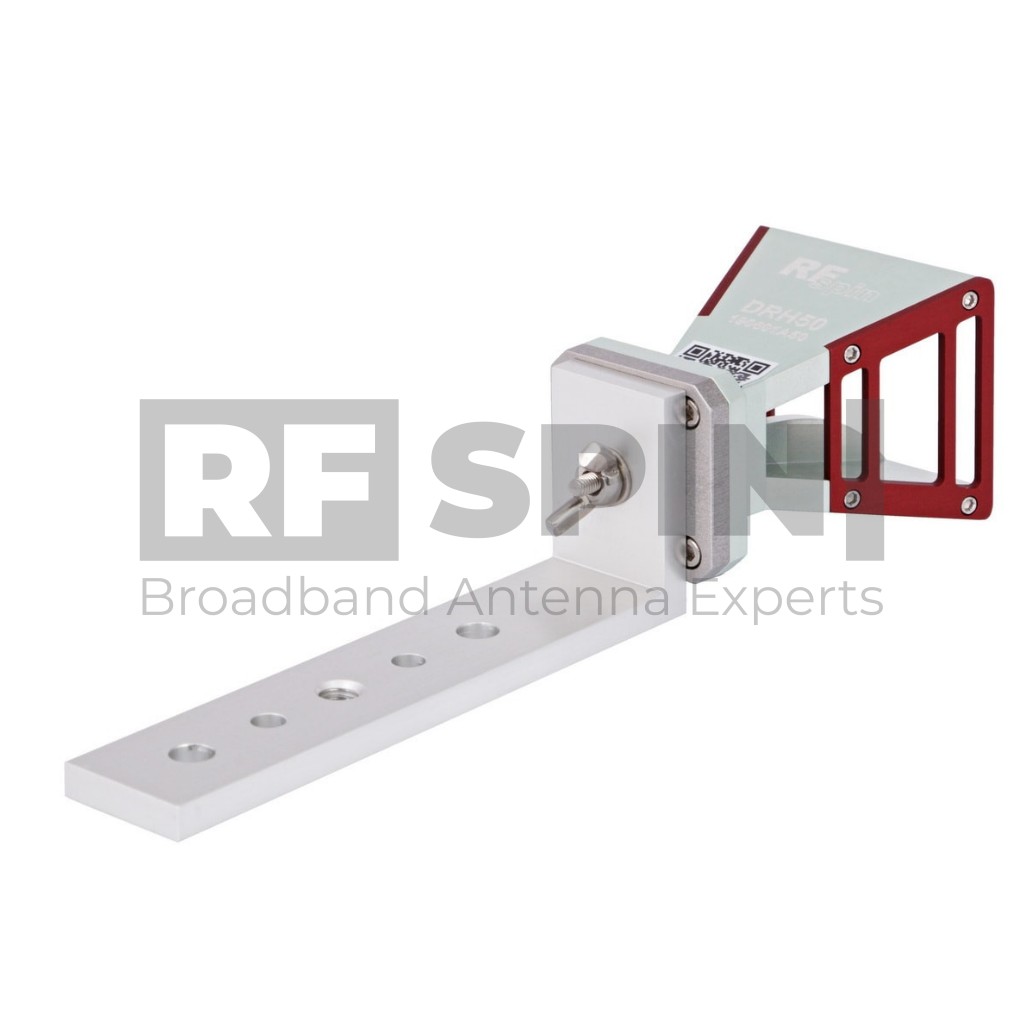

- Standard mounting flange
-
Protective wooden case
-
Factory calibration report
Optional Accessories
Custom services
- Custom mounting solutions
- Custom calibration data
