        RF SPIN

        Broadband Antenna Solutions

        New model 2024

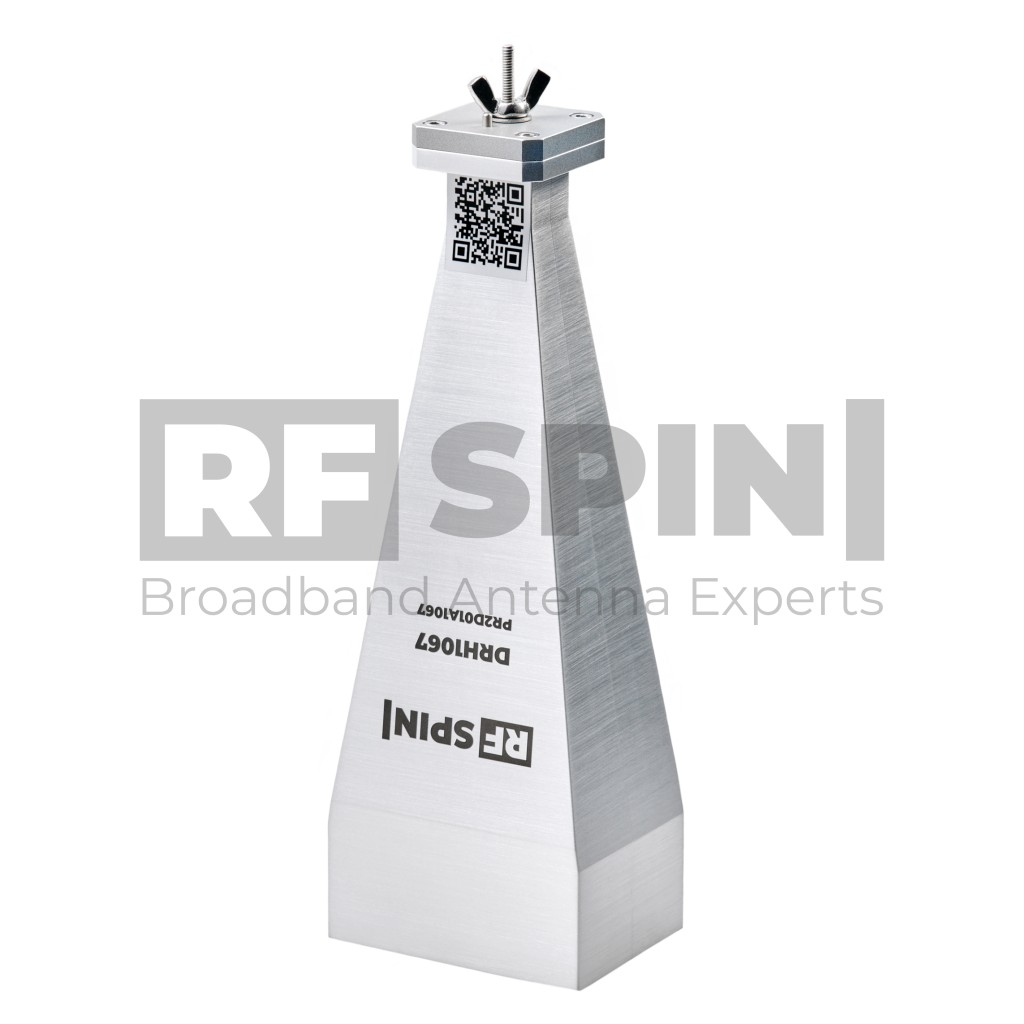

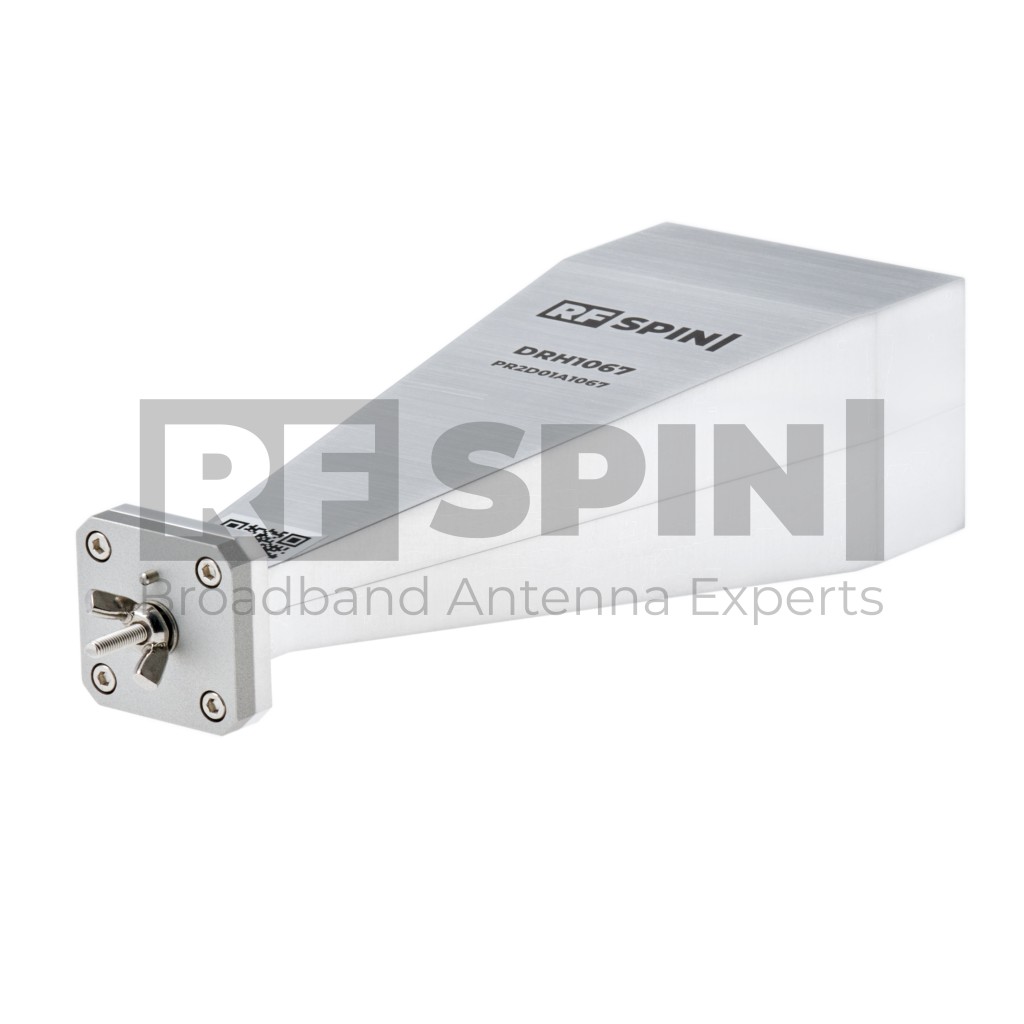

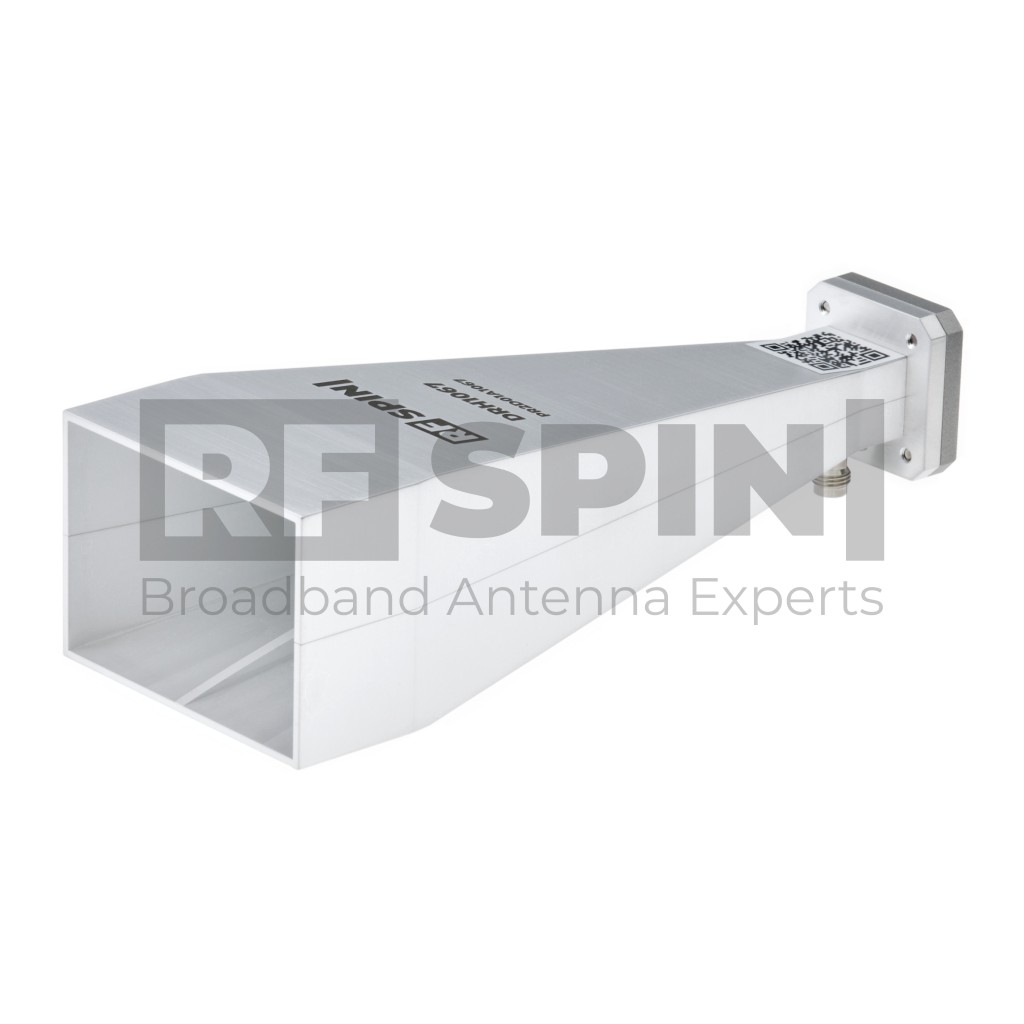

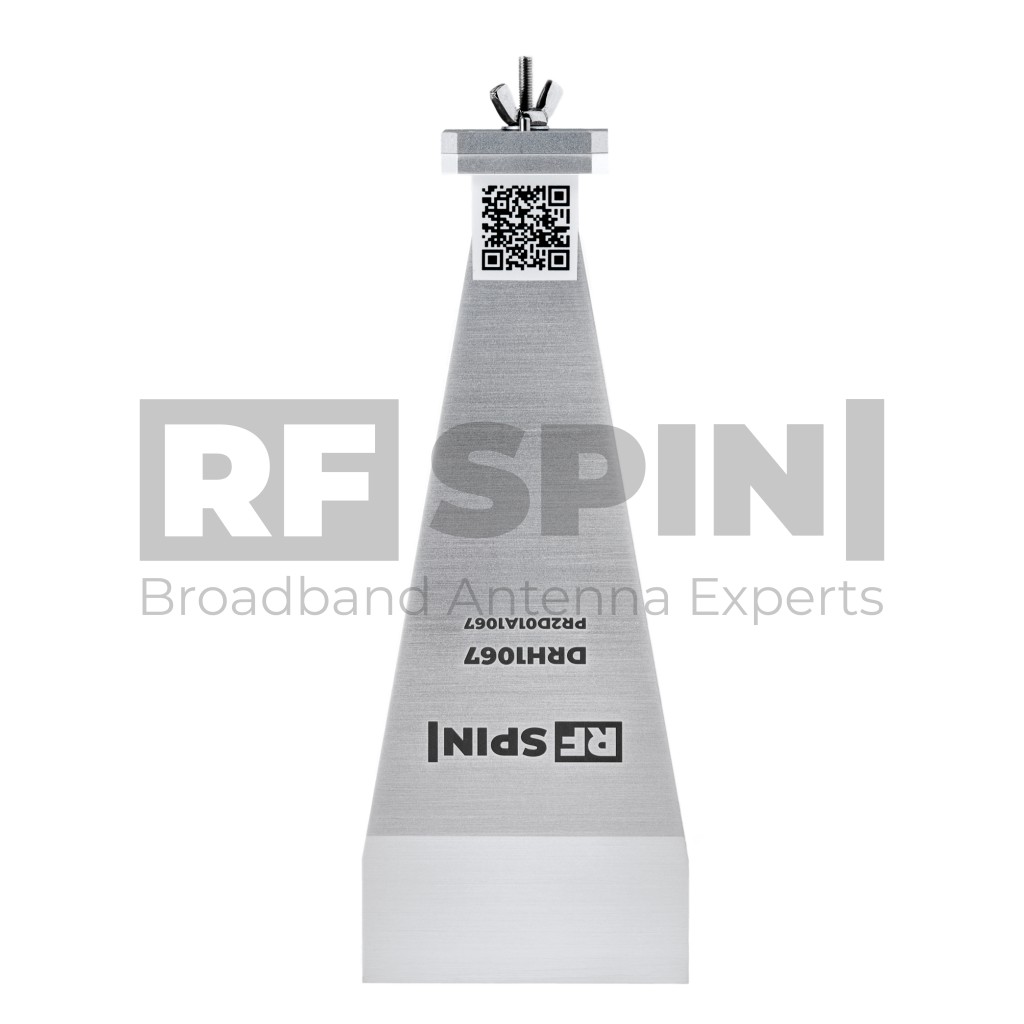

        DRH1067

        Double Ridged Horn Antenna

        This high-performance antenna boasts exceptional broadband characteristics, covering an impressive frequency band from 10 GHz to 67 GHz with a high Gain of more than 23dB. With its cutting-edge features and a reliable 1.85 mm connector, this antenna is your gateway to seamless connectivity across a wide range of applications.

        Cloned antenna series are available through AU Technology, which guarantees constant parameters.

        Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        5G
        QR code
        Custom design

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount

        Manufacturing Technology

        • High quality 1.85mm type coaxial connector

        Product Packaging Includes

        • Linear polarized double ridged broadband horn antenna

        Product Parameters

        Product identification

        • Product Name DRH1067
        • Product Category Double Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 10 GHz – 67 GHz
        • VSWR (max.) 1.8
        • VSWR (avg.) 1.3
        • Impedance 50 Ohm
        • Connector 1.85mm (female)
        • Power (CW / Peak) 5 W / 10 W
        • Antenna Factor 36 – 43 dB/m
        • Polarization Linear

        Physical specifications

        • Width 59 mm (2.323 in)
        • Height 158 mm (6.220 in)
        • Depth 43 mm (1.693 in)
        • Weight 0.267 kg (0.589 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        DRH1067 - VSWR

        Gain

        DRH1067 - Gain

        Antenna Factor

        DRH1067 - Antenna Factor

        Cross Polarization

        DRH1067 - Cross Polarization

        Beamwidth

        Radiation Patterns

        10 GHz

        DRH1067 - 10 GHz

        15 GHz

        DRH1067 - 15 GHz

        20 GHz

        DRH1067 - 20 GHz

        25 GHz

        DRH1067 - 25 GHz

        Packaging and Accessories

        What's in a box

        • DRH1067 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
        • Radome waterproof enclosure
