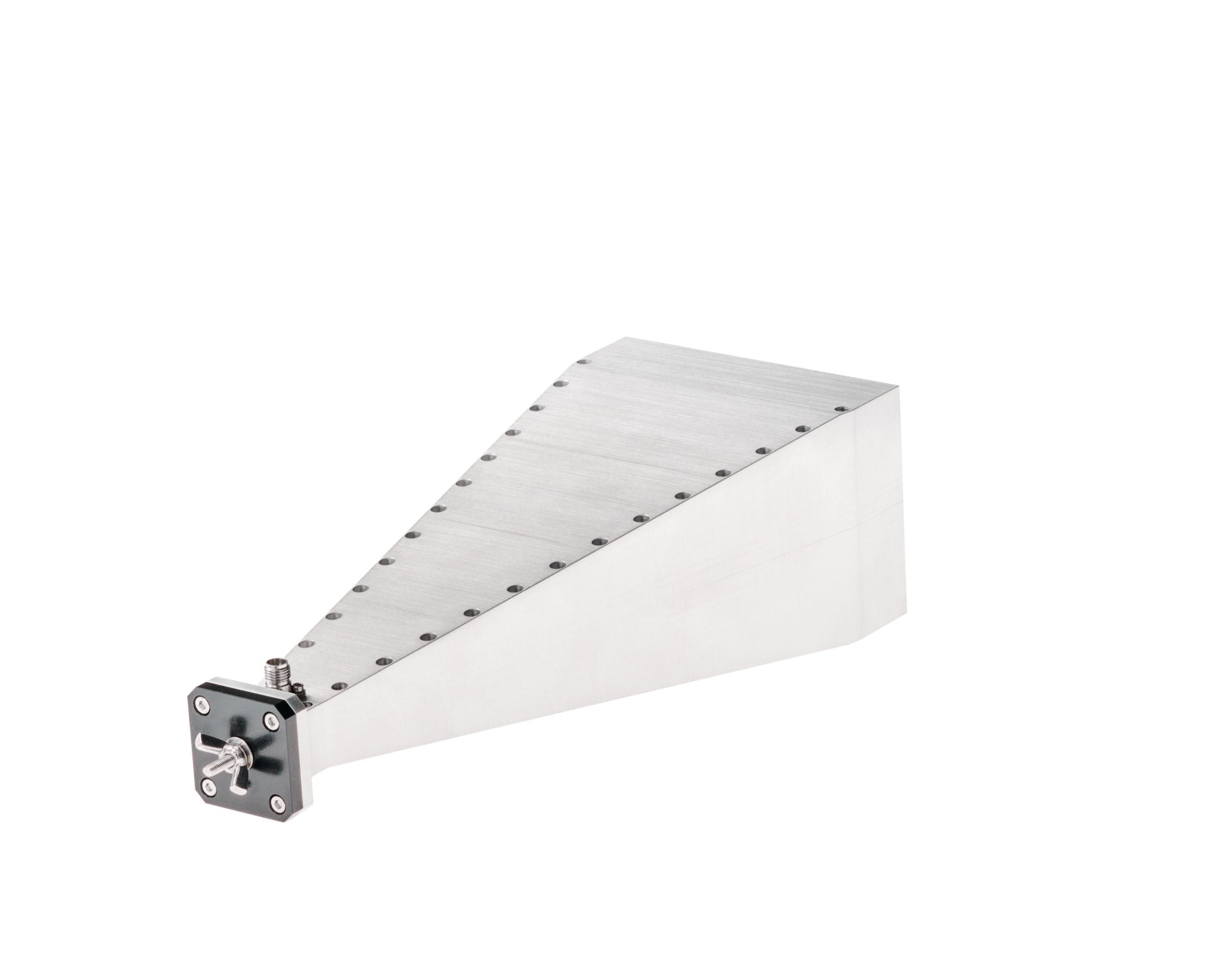

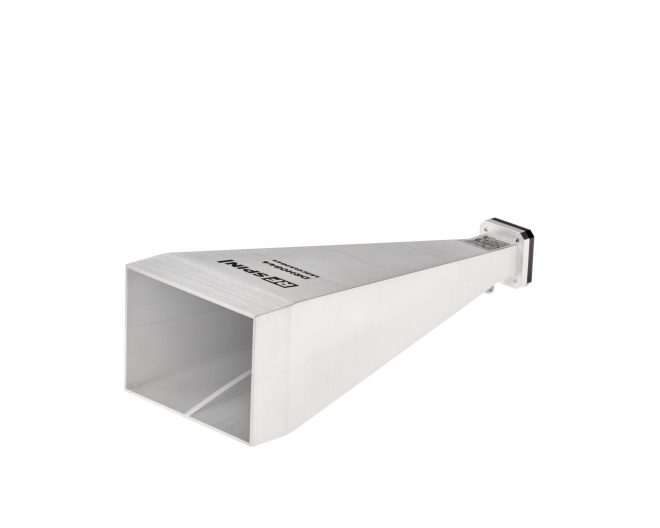

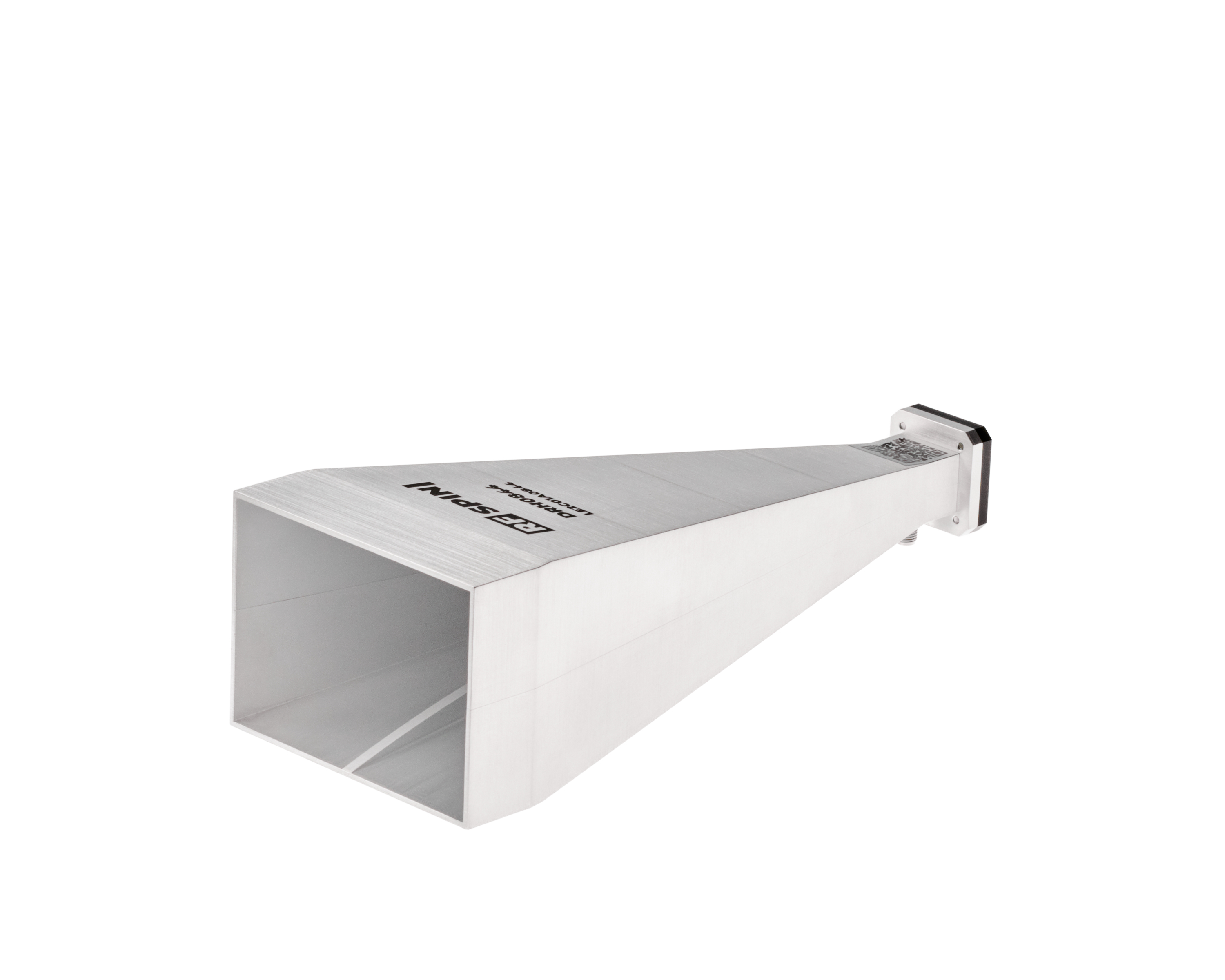

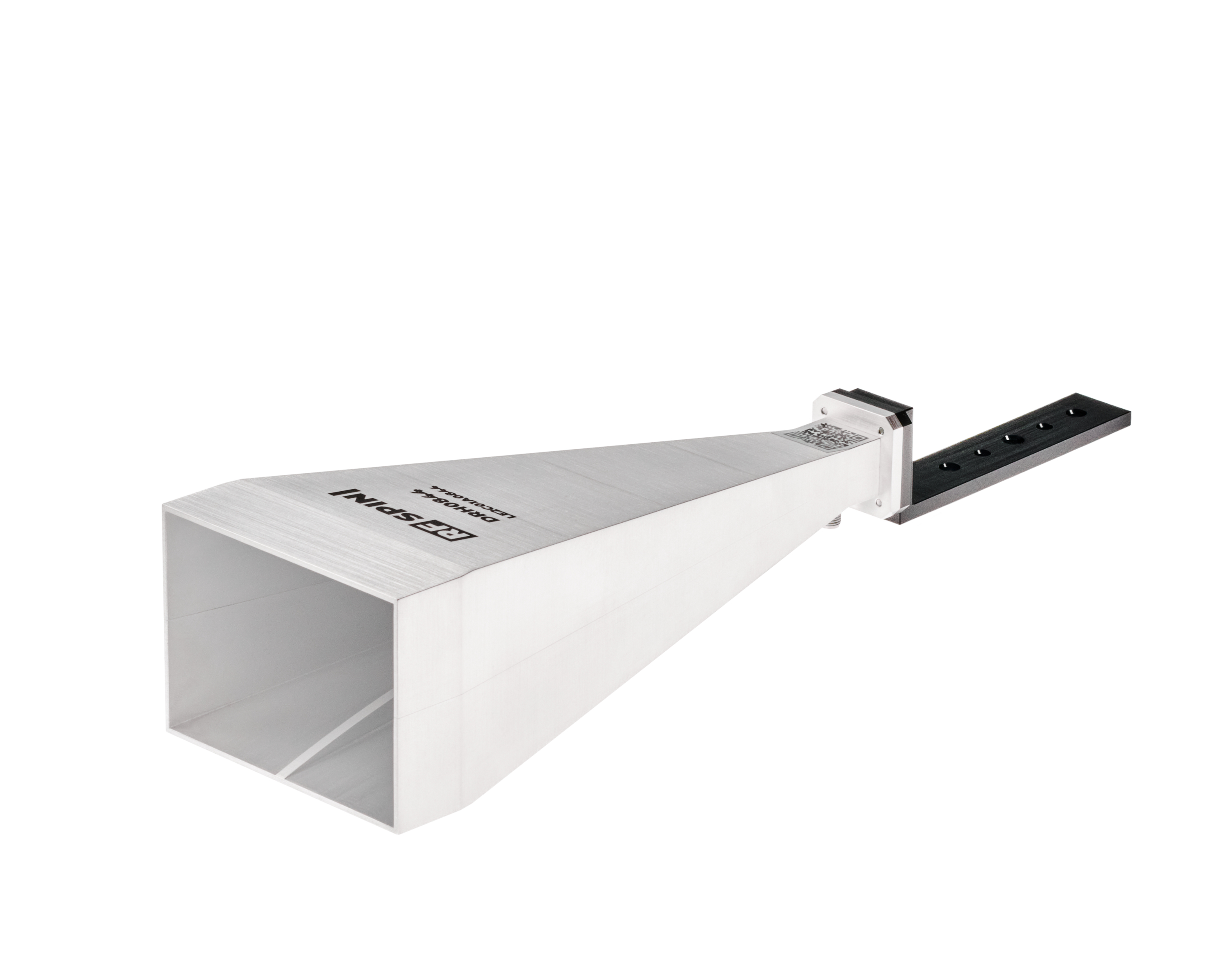

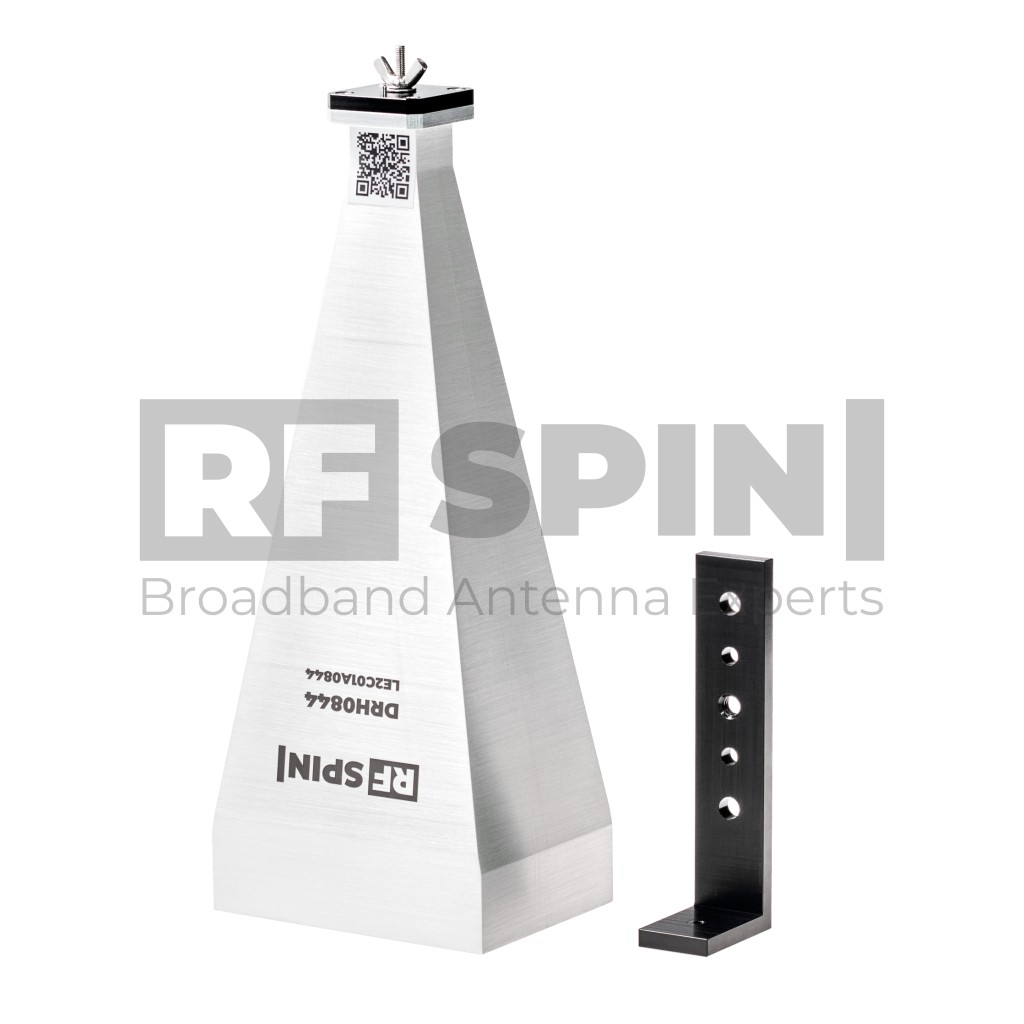

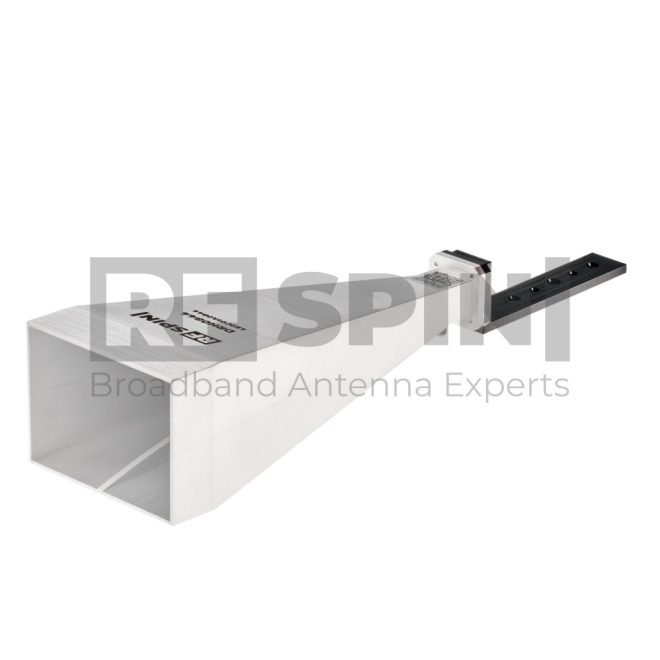

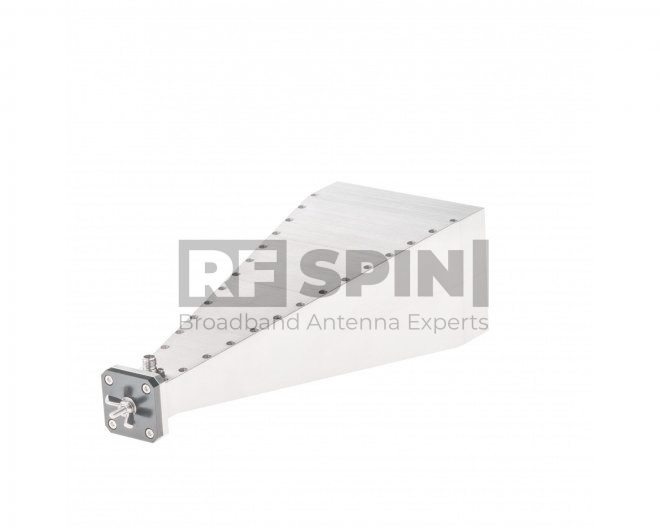

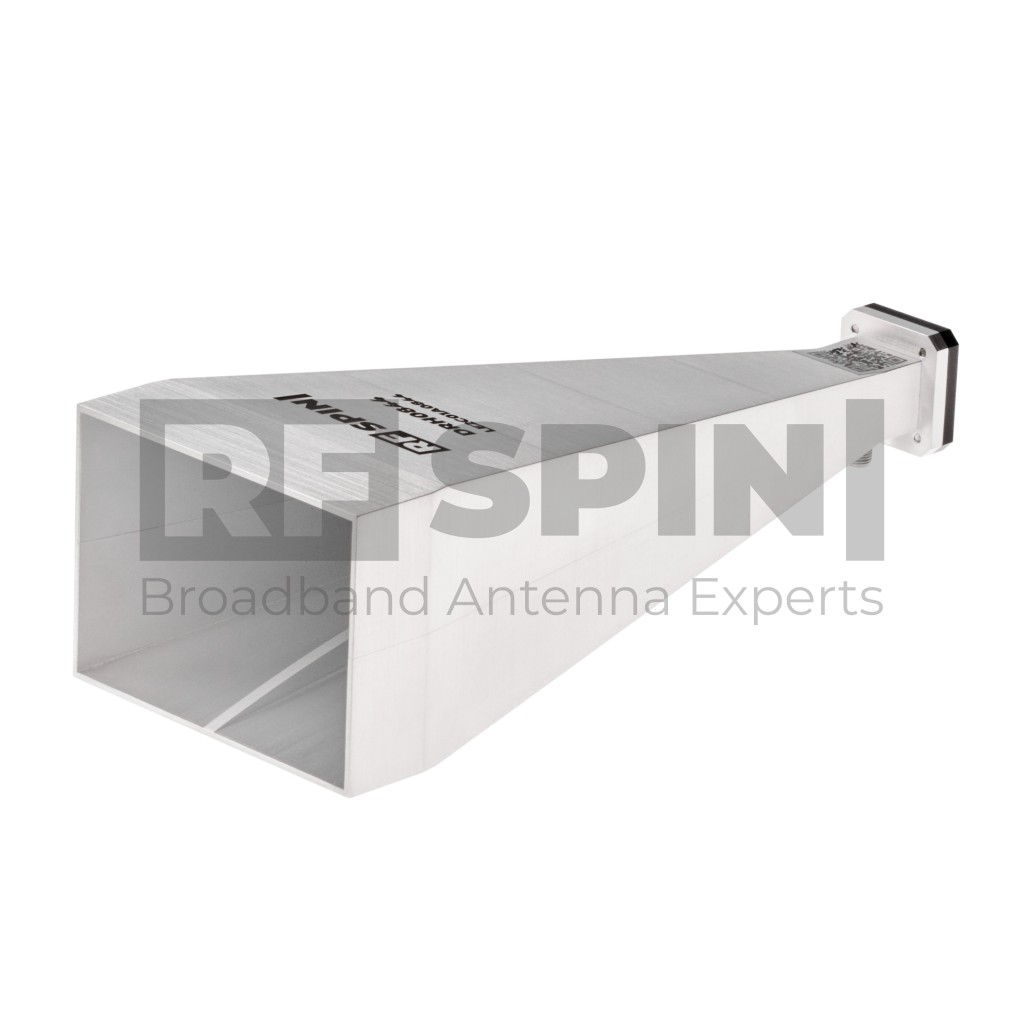

        DRH0844

        Double Ridged Horn Antenna

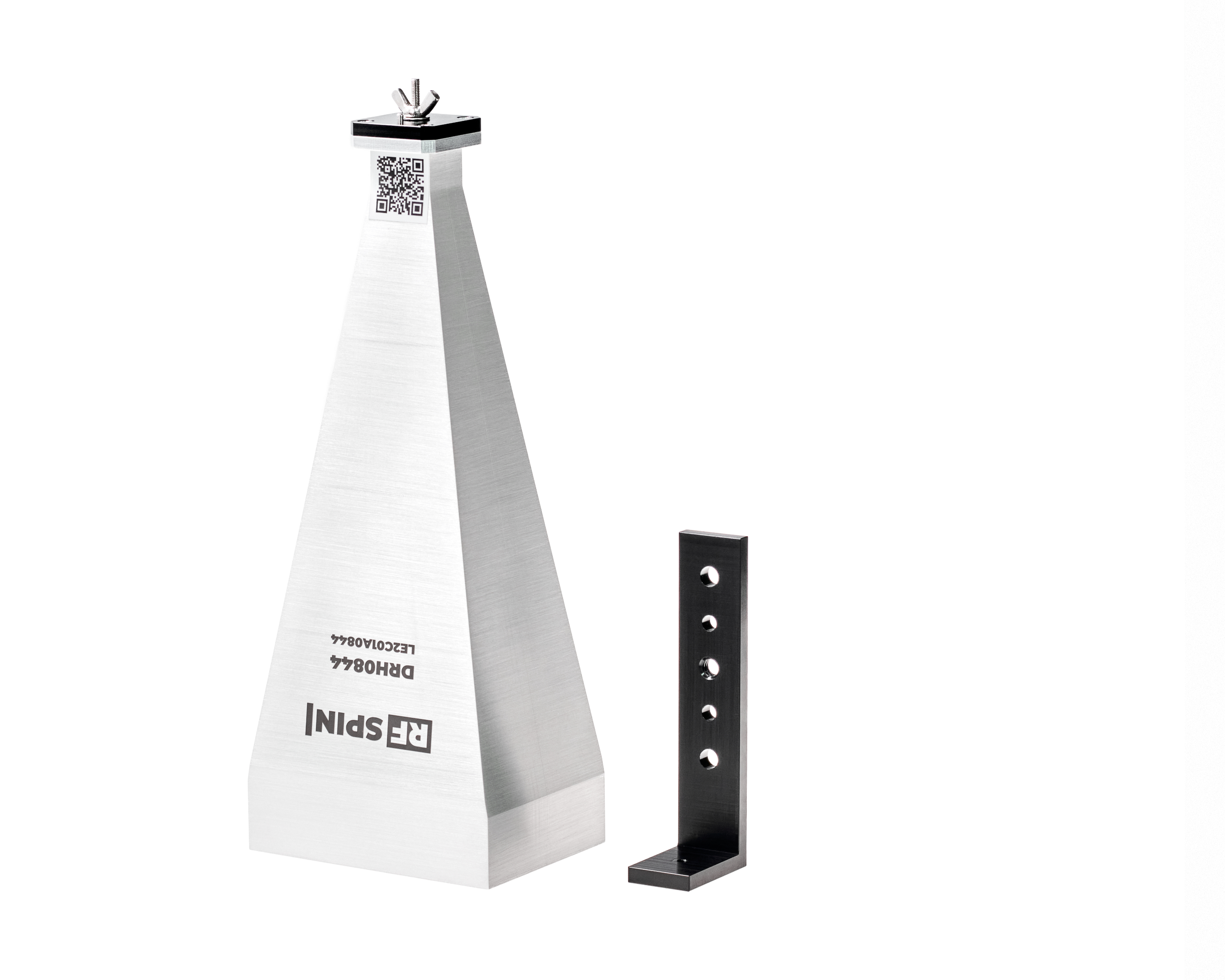

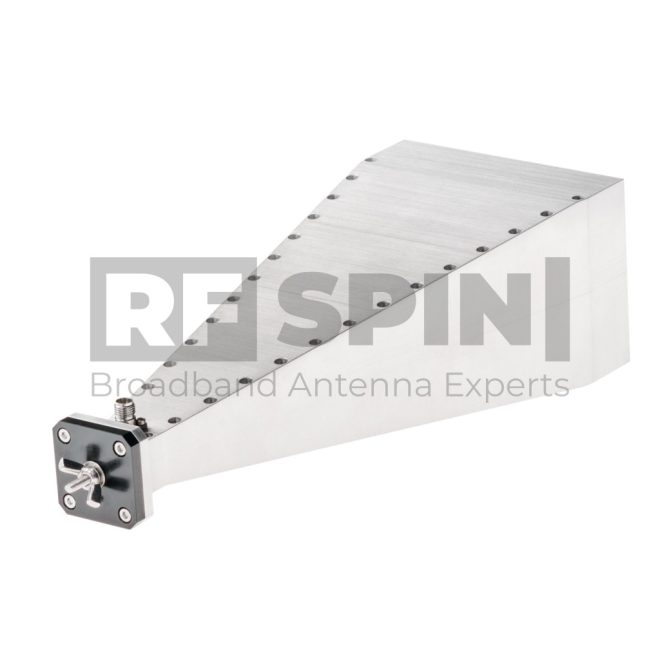

        DRH0844 is a broadband horn antenna with K connector covering frequency band 8 GHz – 44 GHz. This antenna goes up to the limit, with a high Gain of 20dB.

        Cloned antenna series are available through AU Technology, which guarantees constant parameters.

        Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        5G
        Custom design
        QR code

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount

        Manufacturing Technology

        • High quality 2.92mm type coaxial connector
        • Extremely durable

        Product Packaging Includes

        • Antenna
        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized double ridged broadband horn antenna

        Product Parameters

        Product identification

        • Product Name DRH0844
        • Product Category Double Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 8 GHz – 44 GHz
        • VSWR (max.) 2
        • VSWR (avg.) 1.3
        • Impedance 50 Ohm
        • Connector K (female)
        • Power (CW / Peak) 15 W / 30 W
        • Antenna Factor 32 – 40 dB/m
        • Polarization Linear

        Physical specifications

        • Width 87 mm (3.425 in)
        • Height 63 mm (2.480 in)
        • Depth 220 mm (8.661 in)
        • Weight 0.512 kg (1.129 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

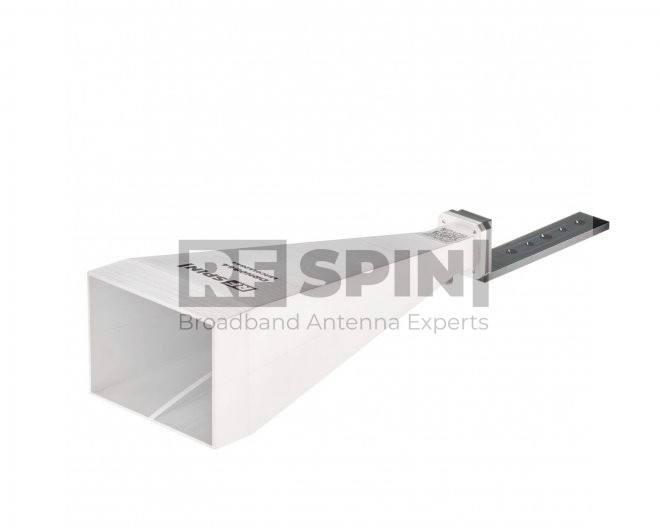

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

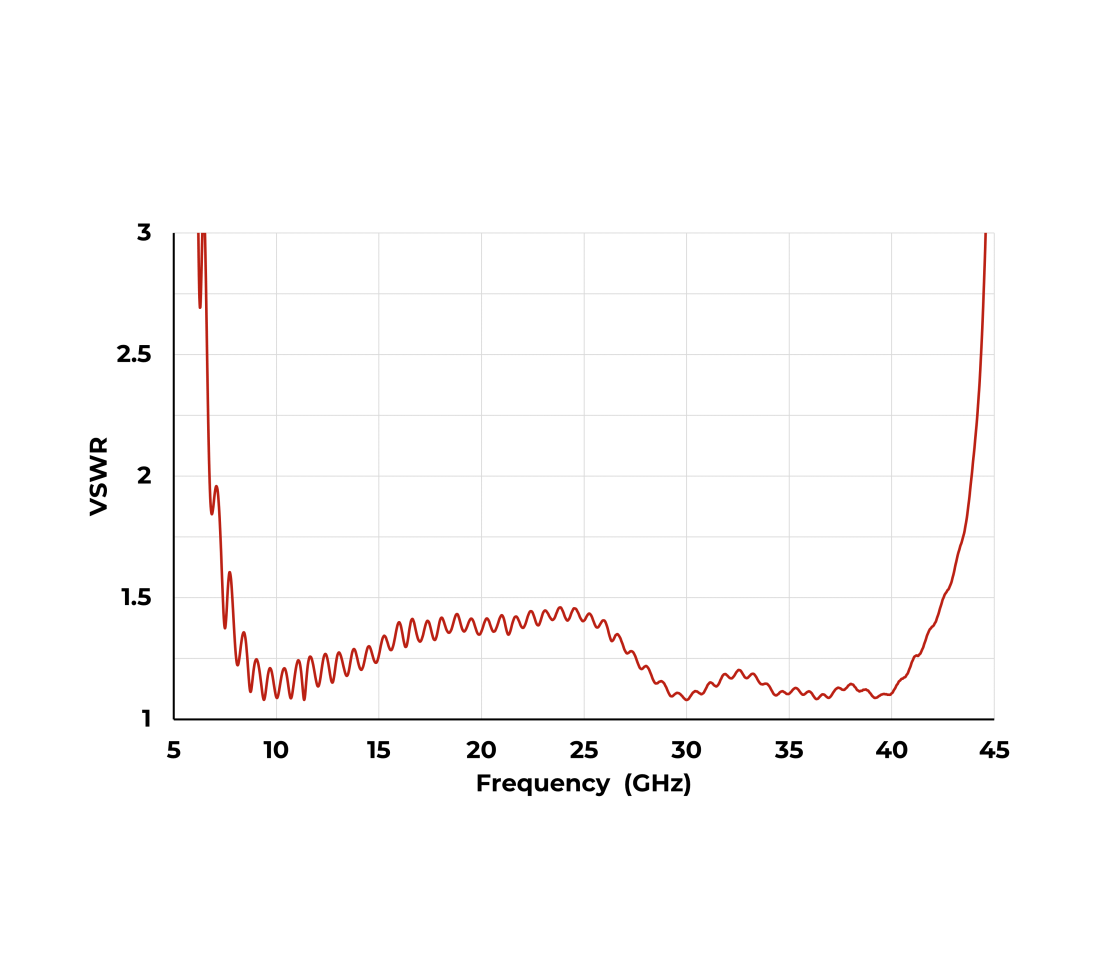

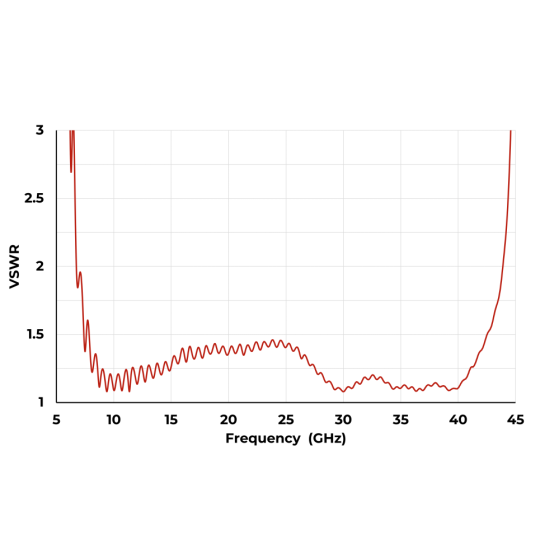

        VSWR

        DRH0844 - VSWR

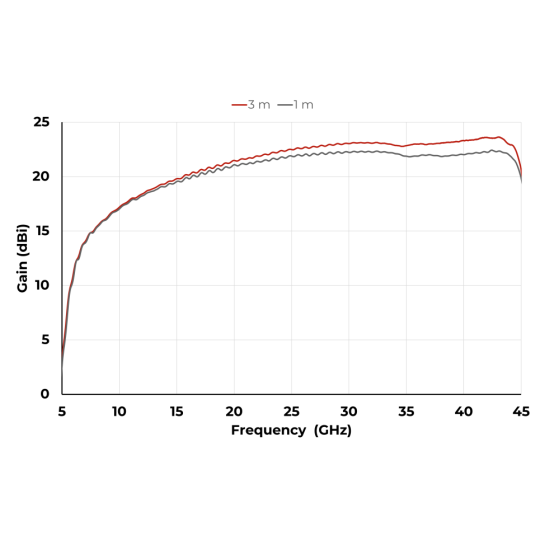

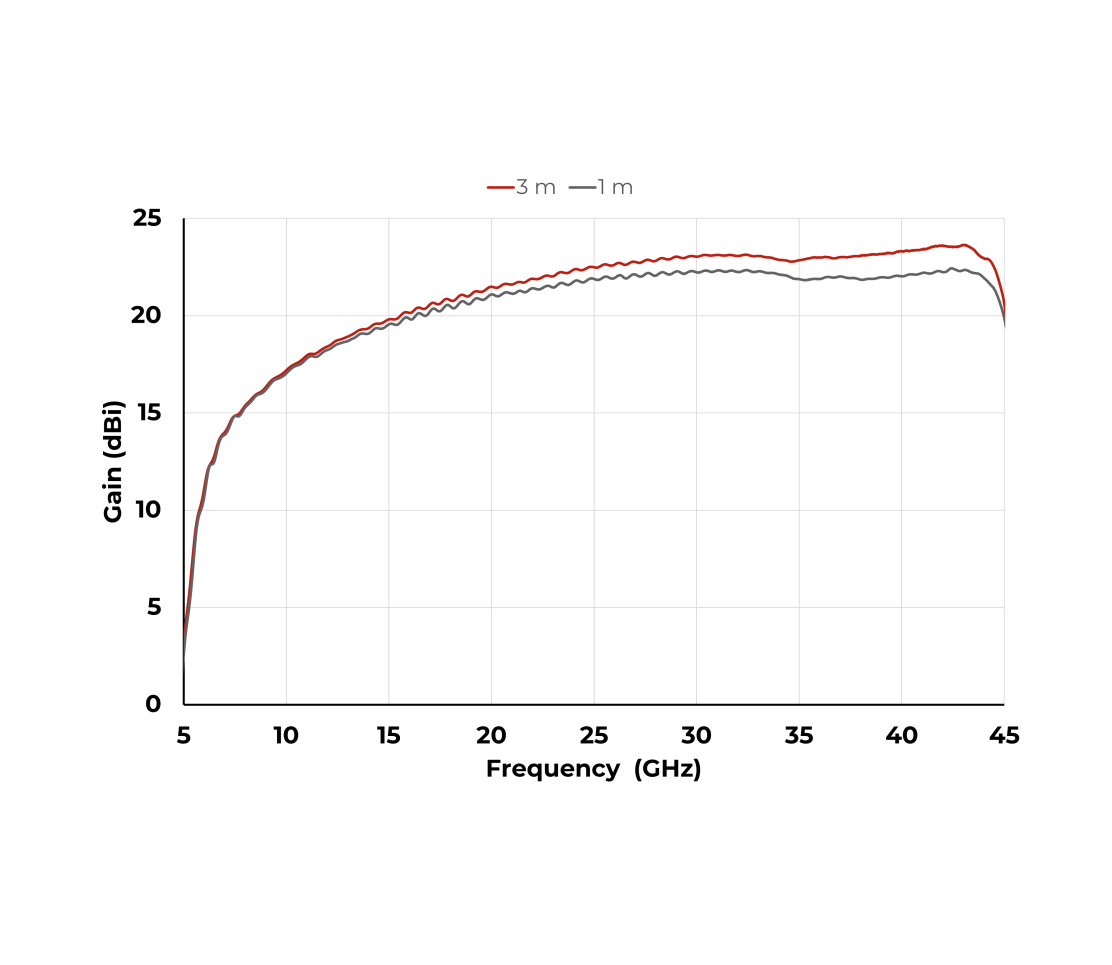

        Gain

        DRH0844 - Gain

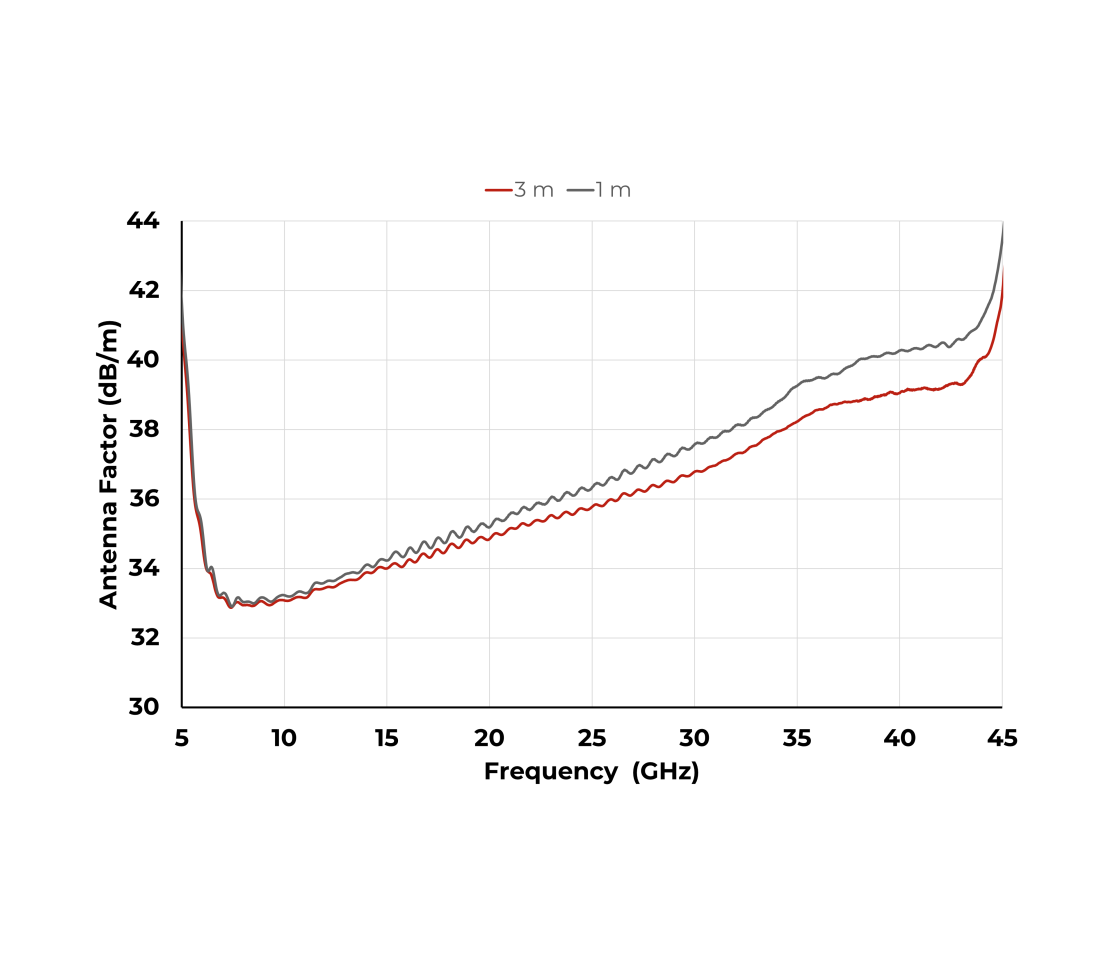

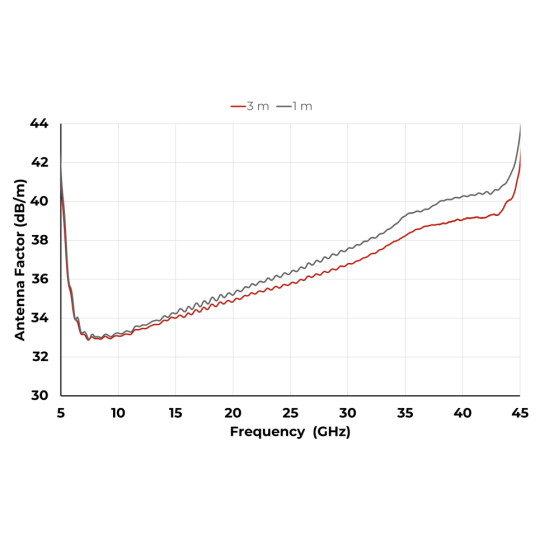

        Antenna Factor

        DRH0844 - Antenna Factor

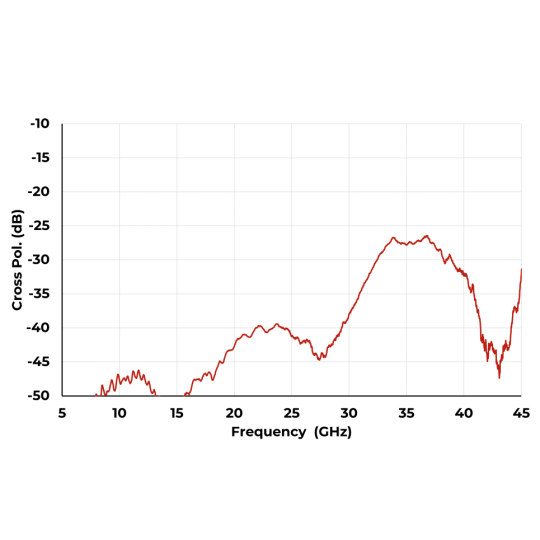

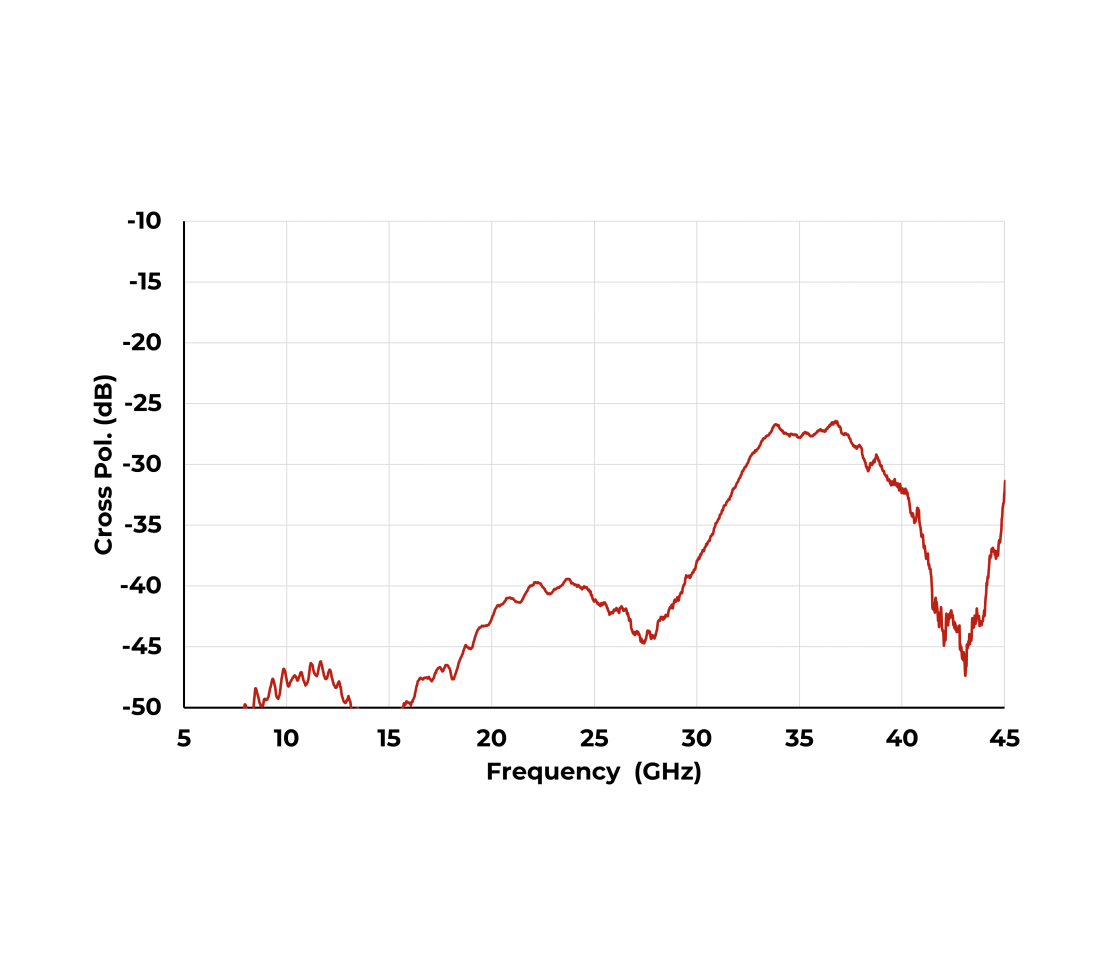

        Cross Polarization

        DRH0844 - Cross Polarization

        Beamwidth

        Radiation Patterns

        8 GHz

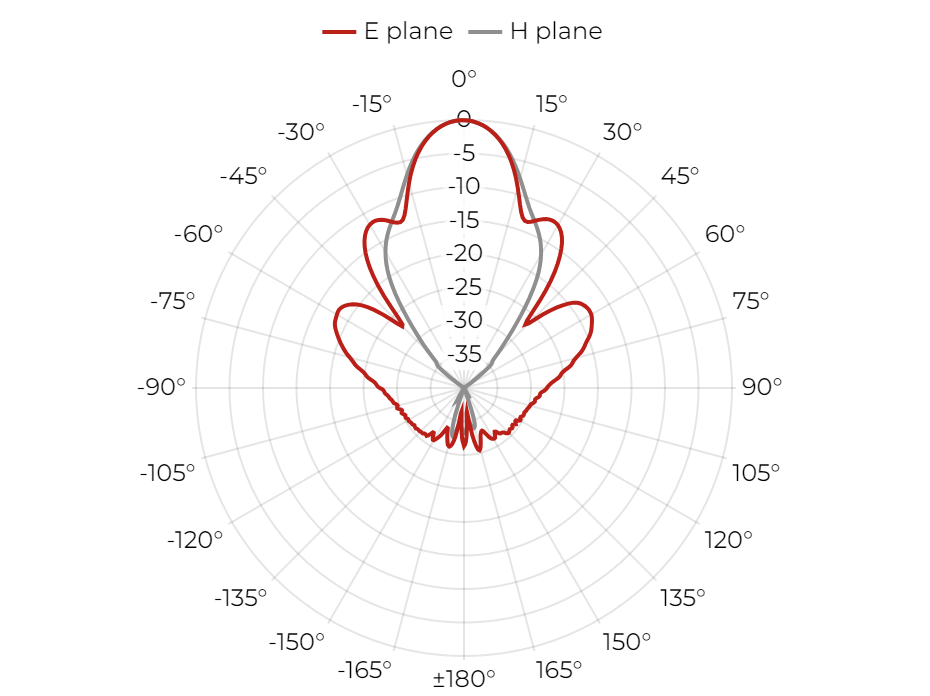

        DRH0844 - 8 GHz

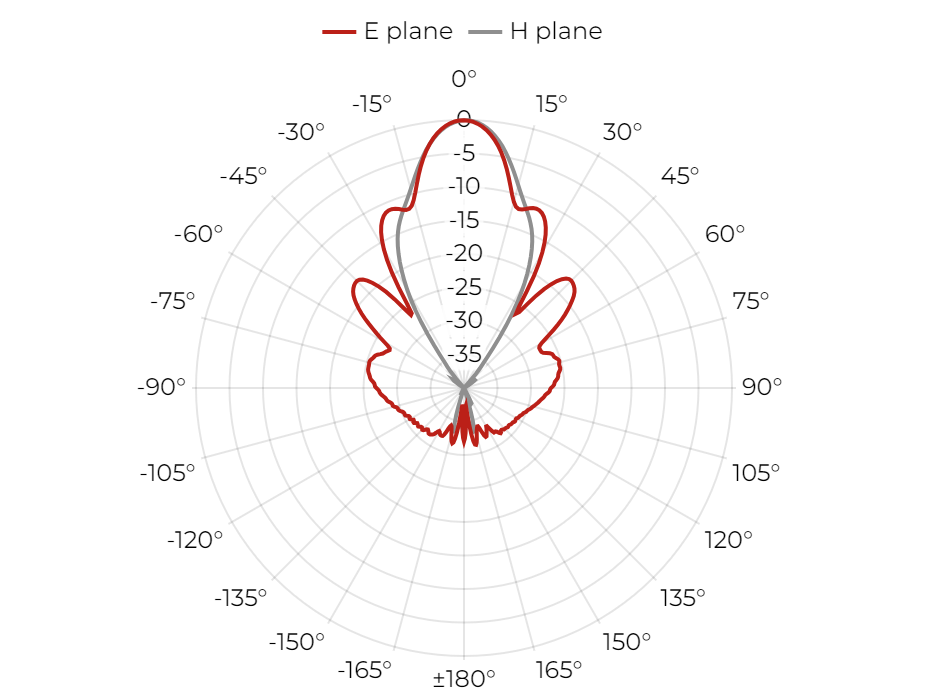

        10 GHz

        DRH0844 - 10 GHz

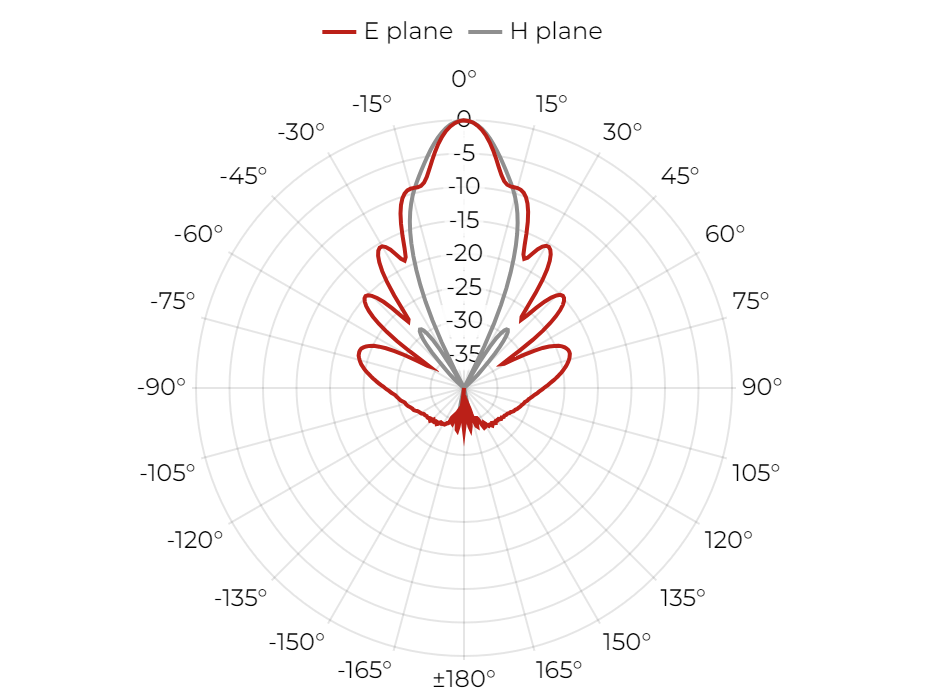

        14 GHz

        DRH0844 - 14 GHz

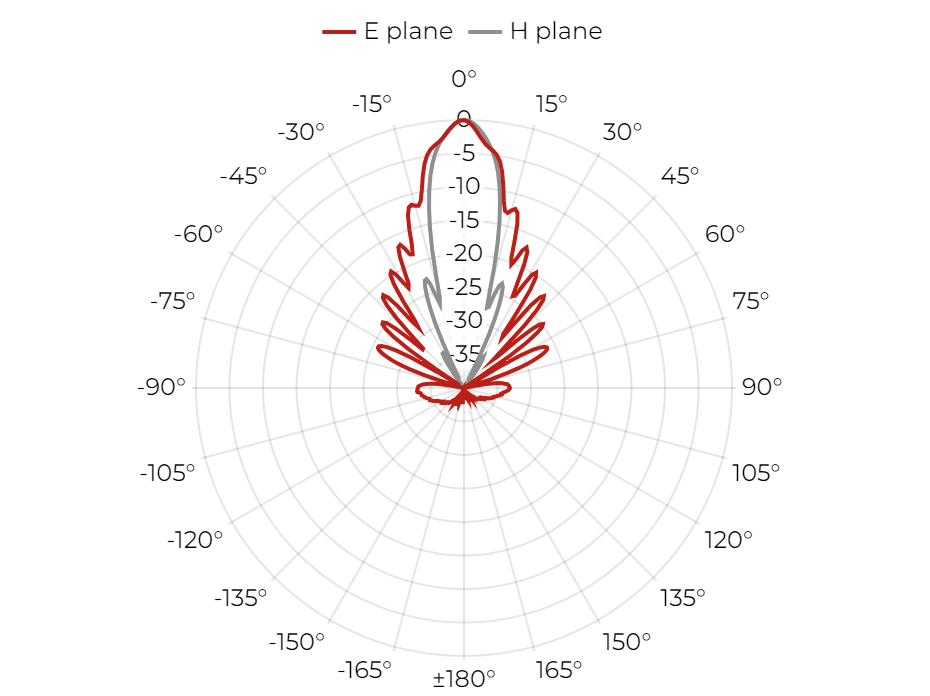

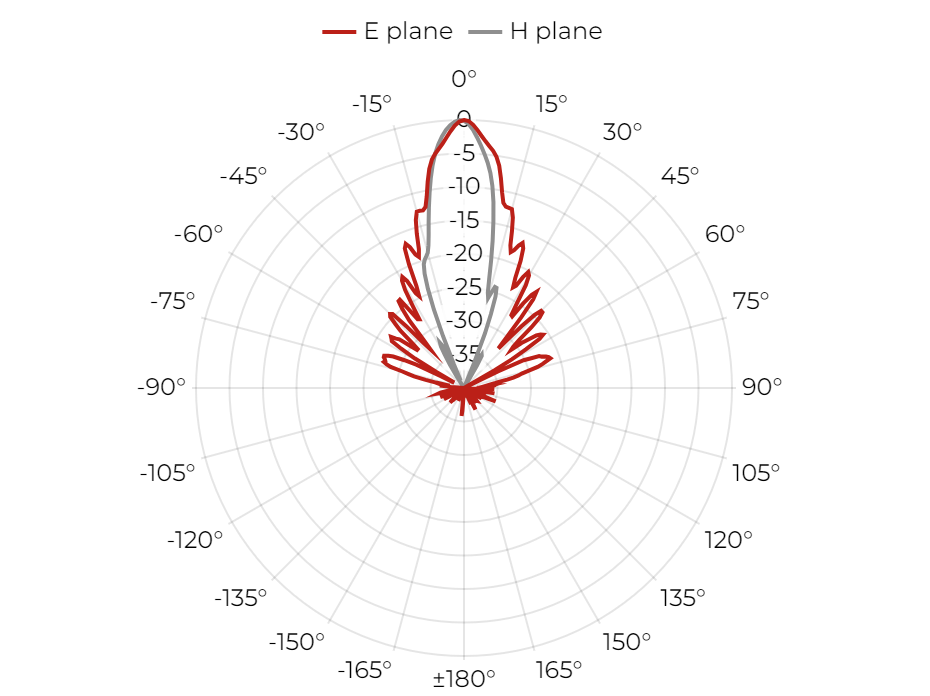

        17 GHz

        DRH0844 - 17 GHz

        Packaging and Accessories

        What's in a box

        • DRH0844 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
