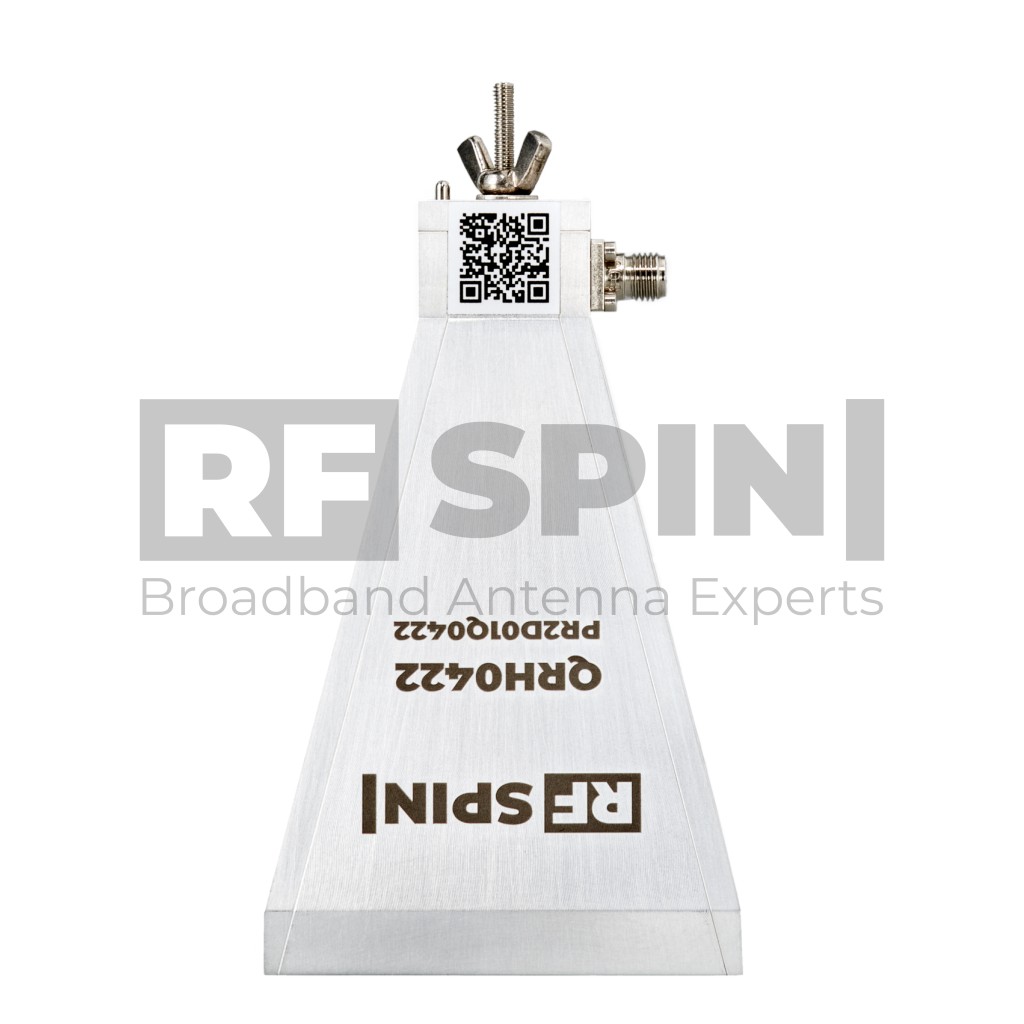

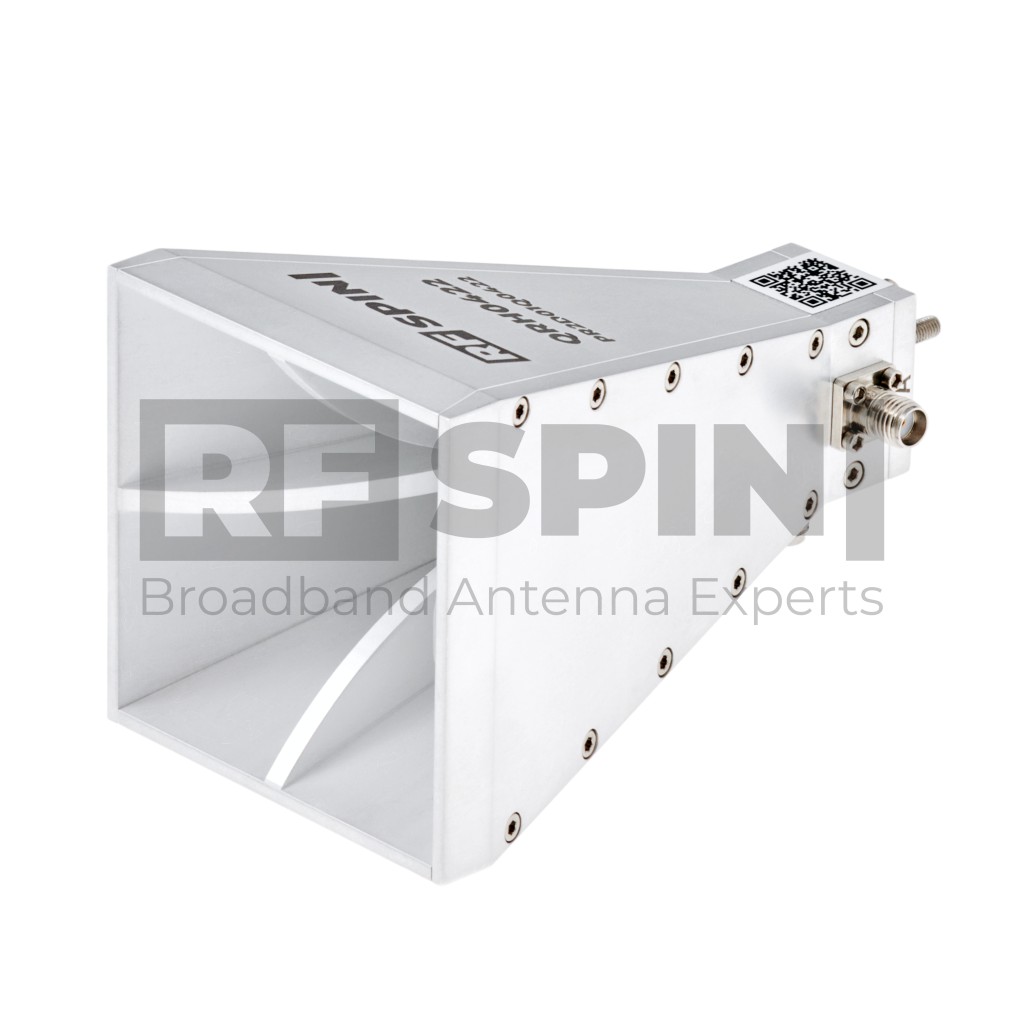

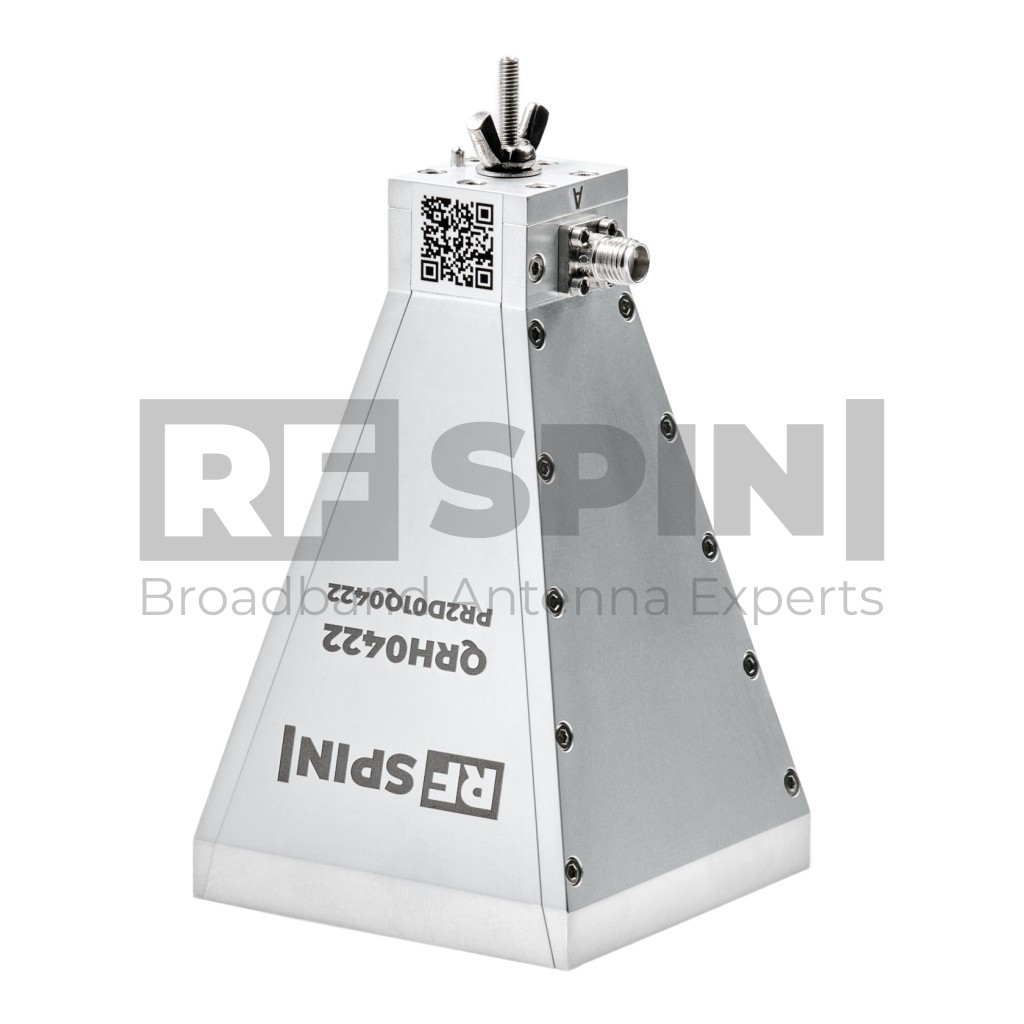

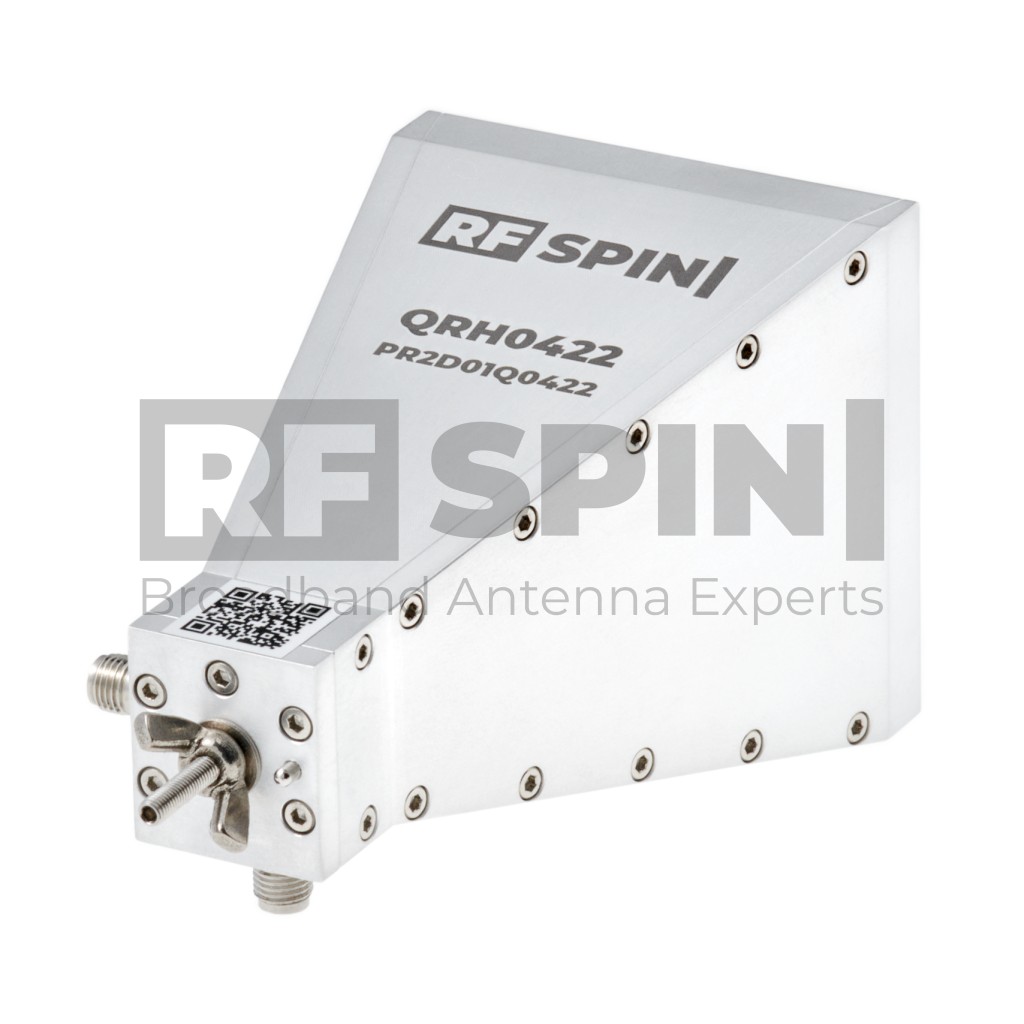

QRH0422

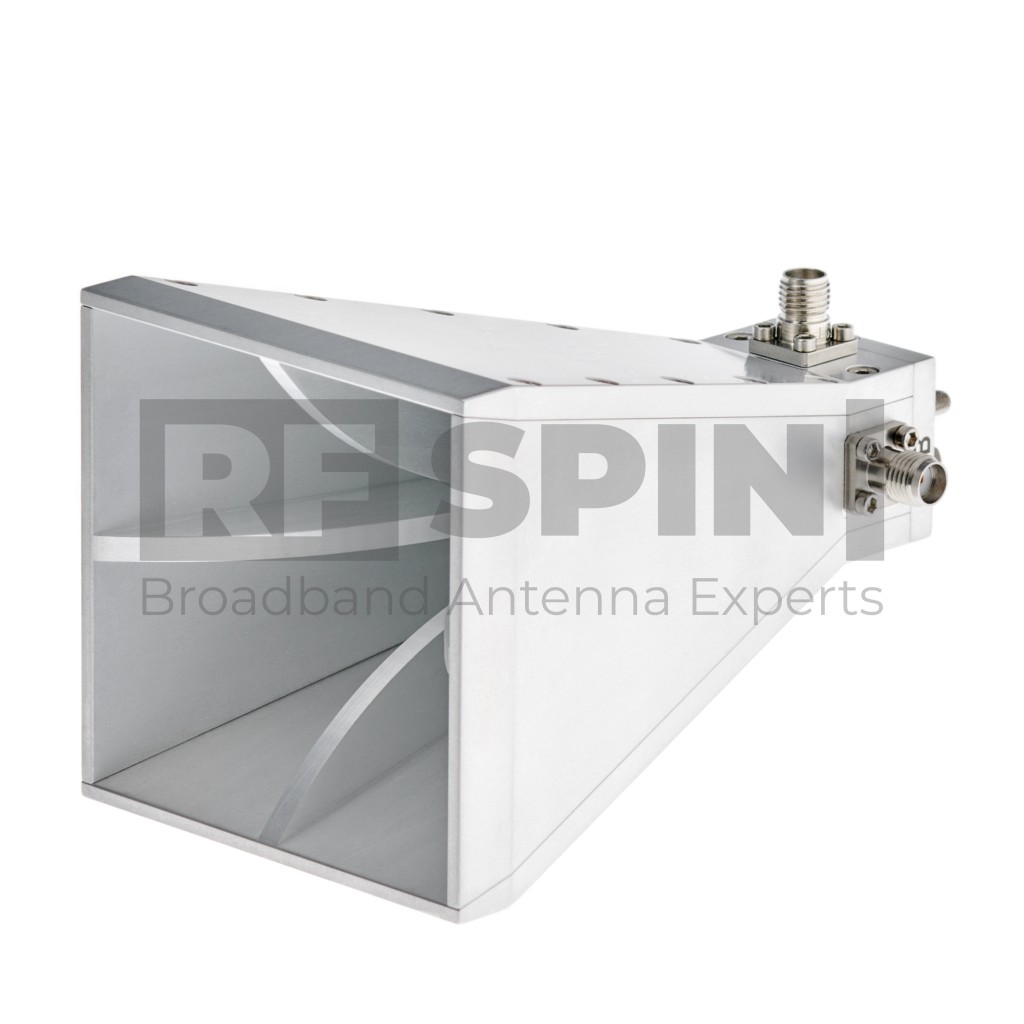

Quad Ridged Horn Antenna
Discover the QRH0422, a dual-polarized broadband horn antenna from the forefront of RF technology. Operating seamlessly across a wide frequency range from 4 GHz to 22 GHz, this antenna is a testament to superior engineering and design. The QRH0422 is not just about broad frequency coverage; it’s about precision and quality. With its robust design and the reliability of an SMA connector, this antenna guarantees stable and consistent performance in various environments.
Cloned antenna series are available through AU Technology, which guarantees constant parameters.
Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.
Availability: Most products are on stock. Please contact us for more information or large quantity orders.
Features and Specifications
Technical Performance
- Wide bandwidth
- Low return loss
- Individual calibration
- Covers 5G frequency band
Design and Surface Treatment
- Corrosion-resistant coating
- Includes standard mount
Manufacturing Technology
- High quality SMA type coaxial connector
Product Packaging Includes
- Linear polarized double ridged broadband horn antenna
Product Parameters
Product identification
- Product Name QRH0422
- Product Category Quad Ridged Horn Antenna
Electrical specifications
- Frequency Range 3.6 GHz – 22 GHz
- VSWR (max.) 2.4
- VSWR (avg.) 1.4
- Impedance 50 Ohm
- Connector SMA (female)
- Power (CW / Peak) 120 W / 250 W
- Antenna Factor 33 – 43 dB/m
- Port Isolation -32 dB
- Polarization Dual Linear, Circular (with hybrid)
Physical specifications
- Width 60 mm (2.362 in)
- Height 97 mm (3.819 in)
- Depth 60 mm (2.362 in)
- Weight 0.193 kg (0.425 lb)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +60°C
Mounting flange
- Mounting Adapter with ¼ inch inner thread, supplied with antenna
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Port Isolation
Cross Polarization
Beamwidth
Port A, E plane
Port A, H plane
Port B, E plane
Port B, H plane
Radiation Patterns - Port A
Port A, 4 GHz
Port A, 5 GHz
Port A, 6 GHz
Port A, 8 GHz
Port A, 10 GHz
Port A, 12 GHz
Port A, 14 GHz
Port A, 16 GHz
Port A, 18 GHz
Port A, 20 GHz
Port A, 21 GHz
Port A, 22 GHz

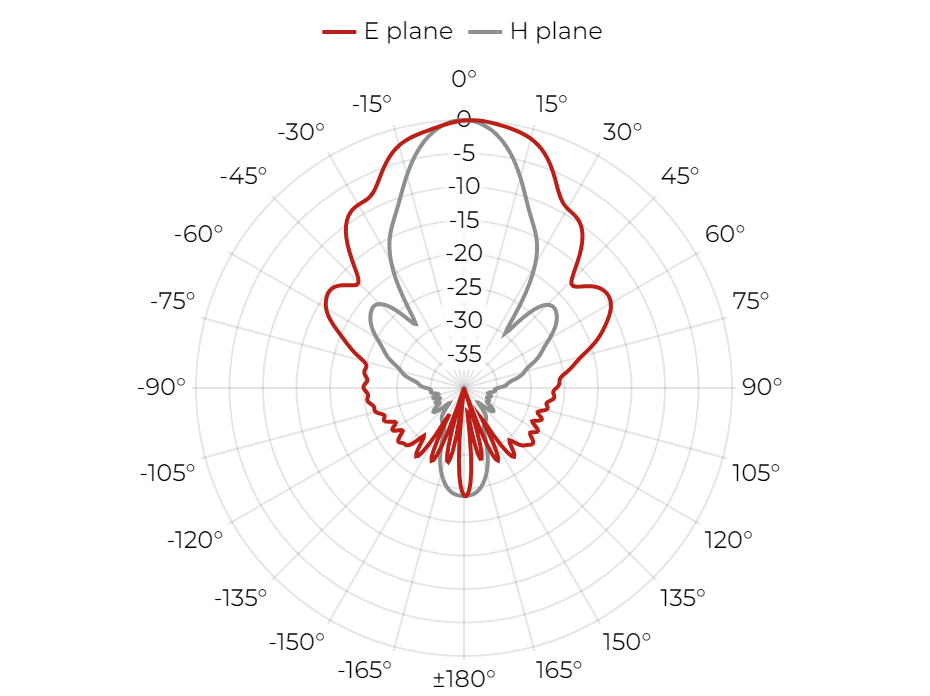

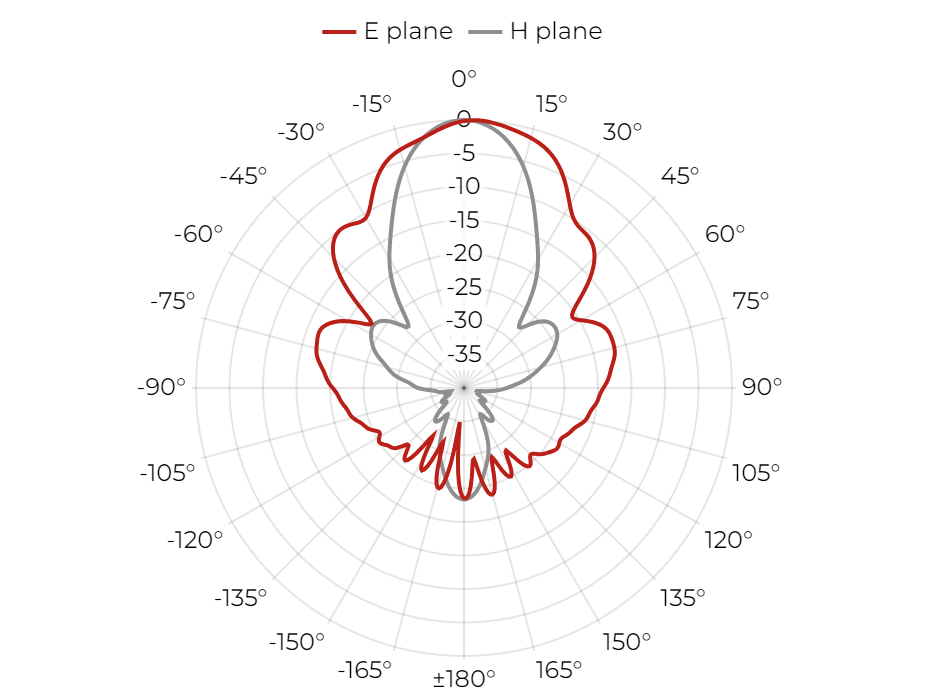

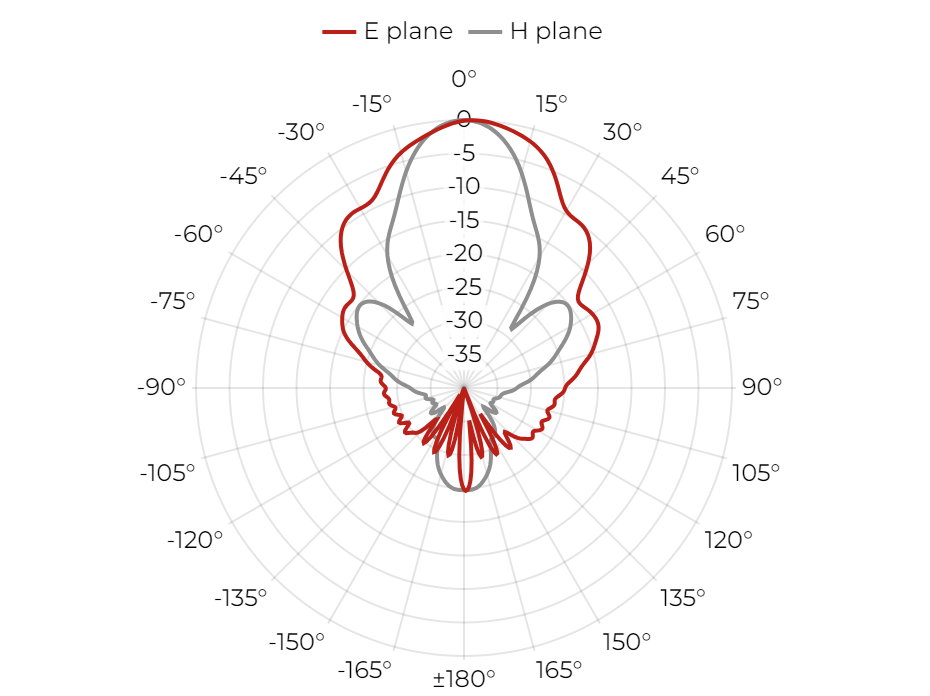

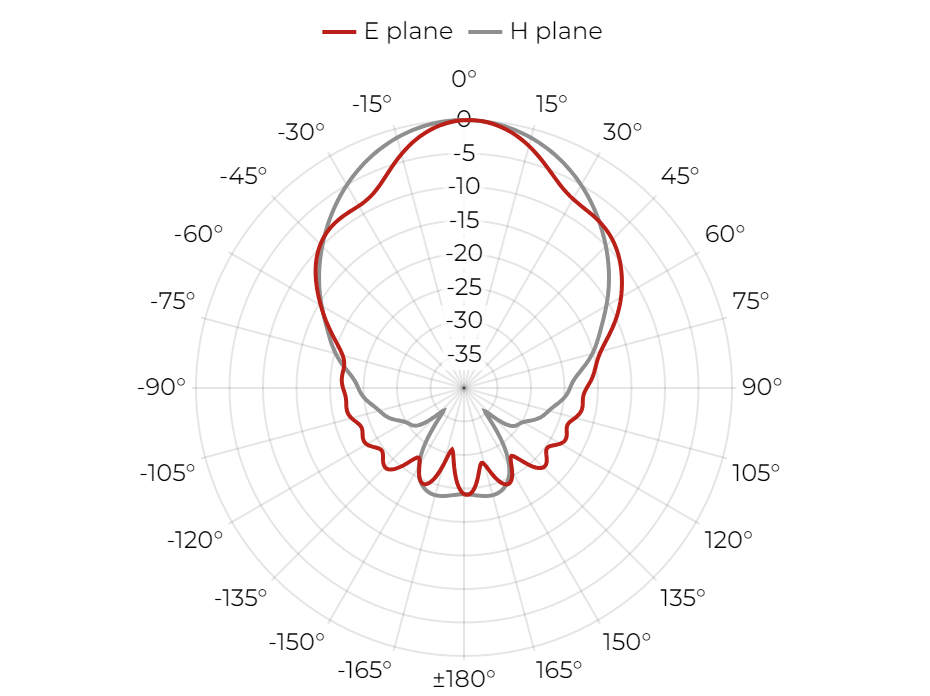

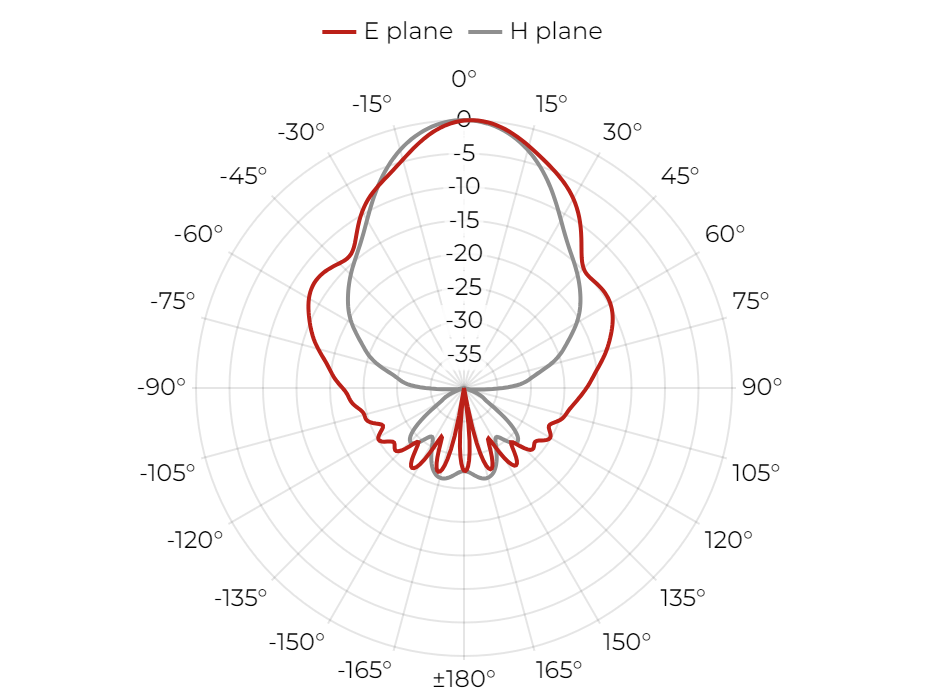

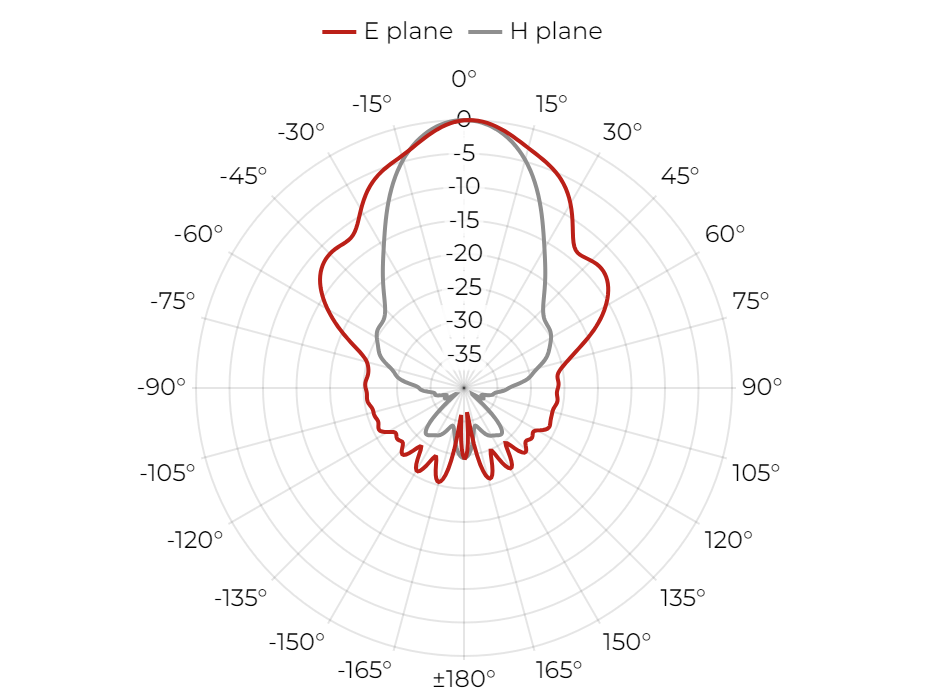

Radiation Patterns - Port B

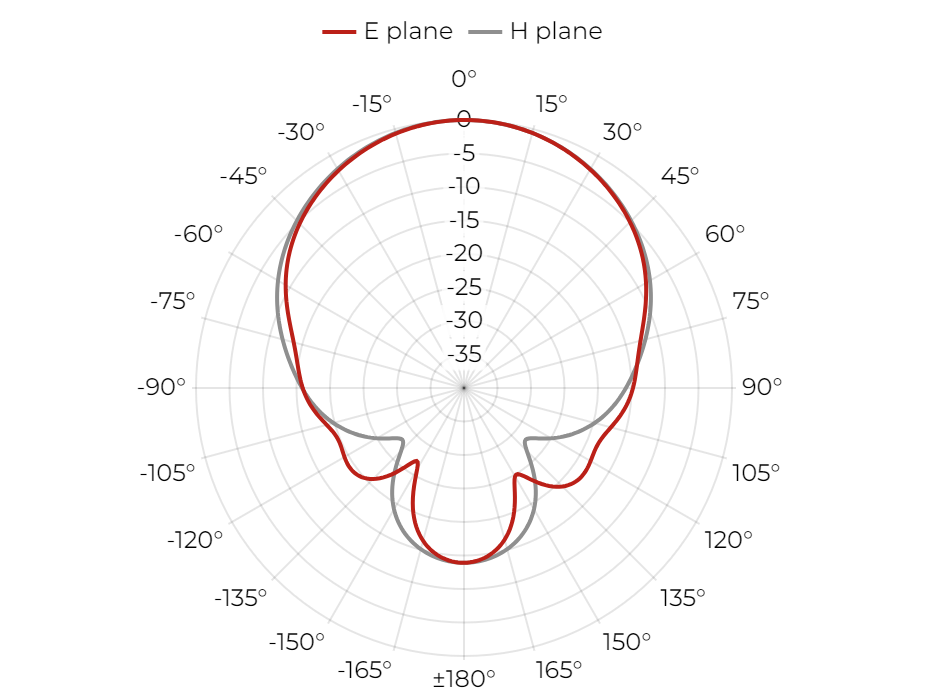

Port B, 4 GHz
Port B, 5 GHz
Port B, 6 GHz
Port B, 8 GHz
Port B, 10 GHz
Port B, 12 GHz
Port B, 14 GHz
Port B, 16 GHz
Port B, 18 GHz
Port B, 20 GHz
Port B, 21 GHz
Port B, 22 GHz
Packaging and Accessories
What's in a box
- QRH0422 Antenna
- Antenna specific mount adapter with ¼ inch inner thread
- Factory calibration certificate
- Full calibration report of each antenna
- QR code accessing online portal
- Calibration test dataset (available online)
- Universal antenna mount
Accessories
- Standard mounting flange
-
Factory calibration report
Optional Accessories
Custom services
- Custom mounting solutions
- Custom calibration data
- Radome waterproof enclosure
Manufacturer Information
RFspin s.r.o.
Na Beránce 57/2
160 00 Prague 6
Czech Republic
info@rfspin.com
+420 245 008 847
