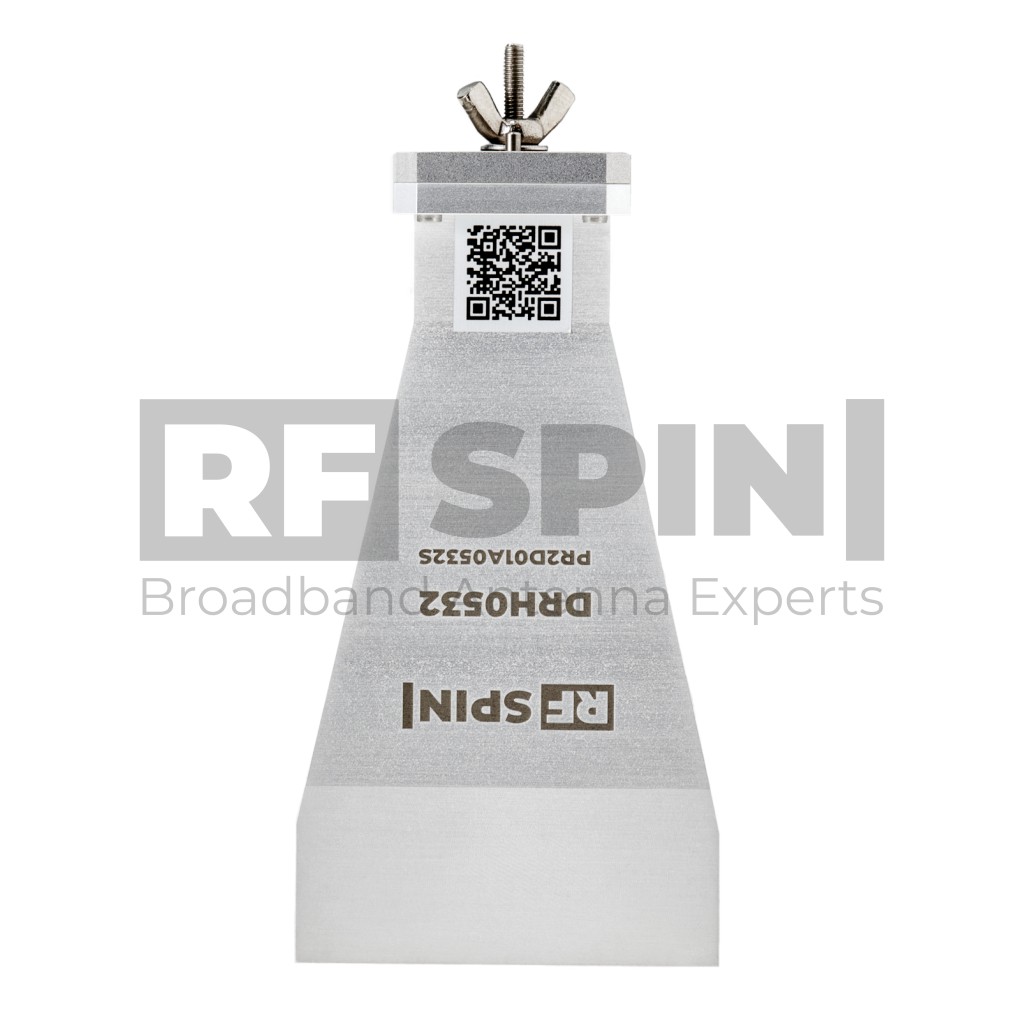

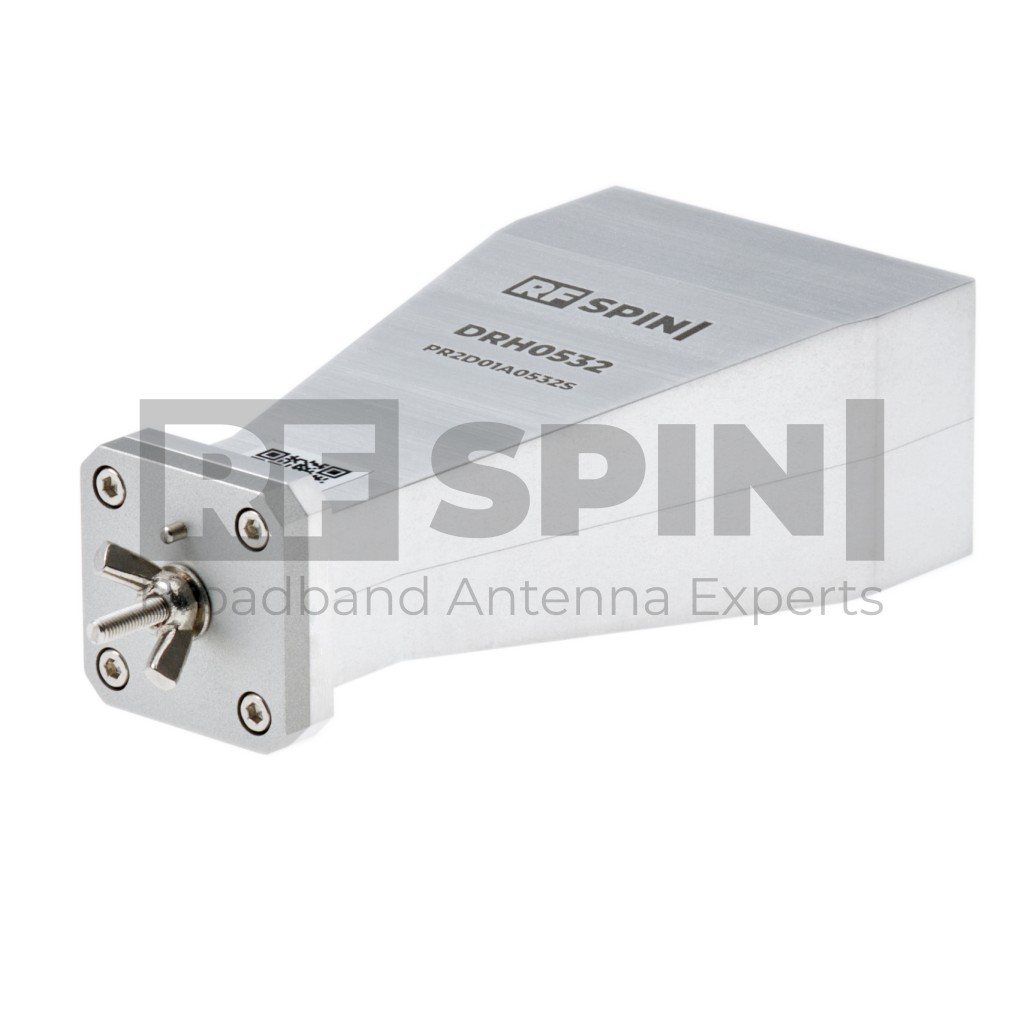

        DRH0532

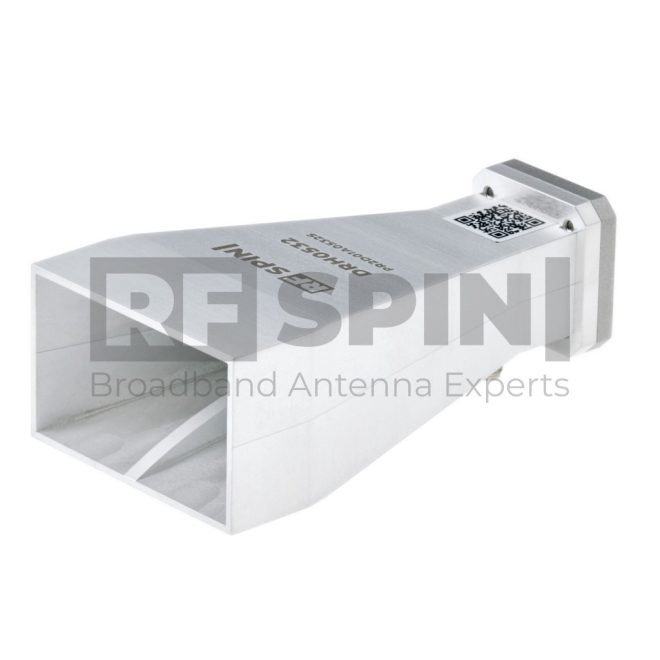

        Double Ridged Horn Antenna

        Introducing the DRH0532, RFspin’s latest innovation in high-performance antenna technology. This remarkable antenna showcases extraordinary broadband capabilities, efficiently covering a broad frequency band from 5 GHz to 32 GHz. Engineered with precision, this antenna features advanced design elements and is equipped with a robust K connector, ensuring reliable and consistent performance across various applications.

        Cloned antenna series are available through AU Technology, which guarantees constant parameters.

        Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        5G
        QR code
        Custom design

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount

        Manufacturing Technology

        • High quality K type coaxial connector
        • High quality SMA type coaxial connector

        Product Packaging Includes

        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized pyramidal horn antenna

        Product Parameters

        Product identification

        • Product Name DRH0532
        • Product Category Double Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 5 GHz – 32 GHz
        • VSWR (max.) 1.5
        • VSWR (avg.) 1.2
        • Impedance 50 Ohm
        • Connector K (female), SMA (female)
        • Power (CW / Peak) 100 W / 170 W
        • Antenna Factor 36 – 41 dB/m
        • Polarization Linear

        Physical specifications

        • Width 54 mm (2.126 in)
        • Height 33.4 mm (1.315 in)
        • Depth 102 mm (4.016 in)
        • Weight 0.167 kg (0.368 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +60°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        DRH0532 - VSWR

        Gain

        DRH0532 - Gain

        Antenna Factor

        DRH0532 - Antenna Factor

        Cross Polarization

        DRH0532 - Cross Polarization

        Beamwidth

        Radiation Patterns

        5 GHz

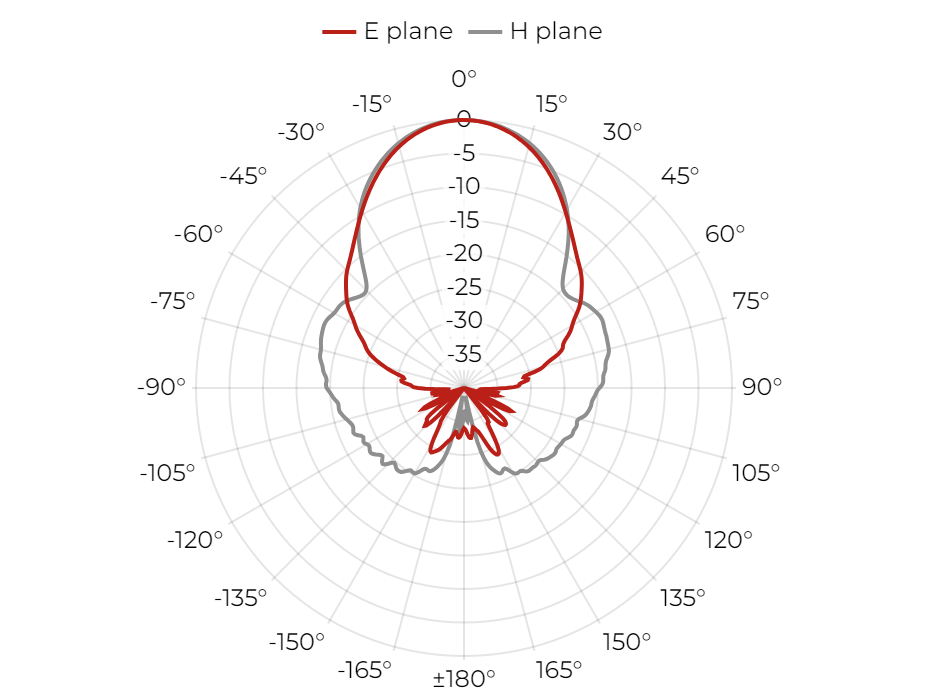

        DRH0532 - 5 GHz

        7 GHz

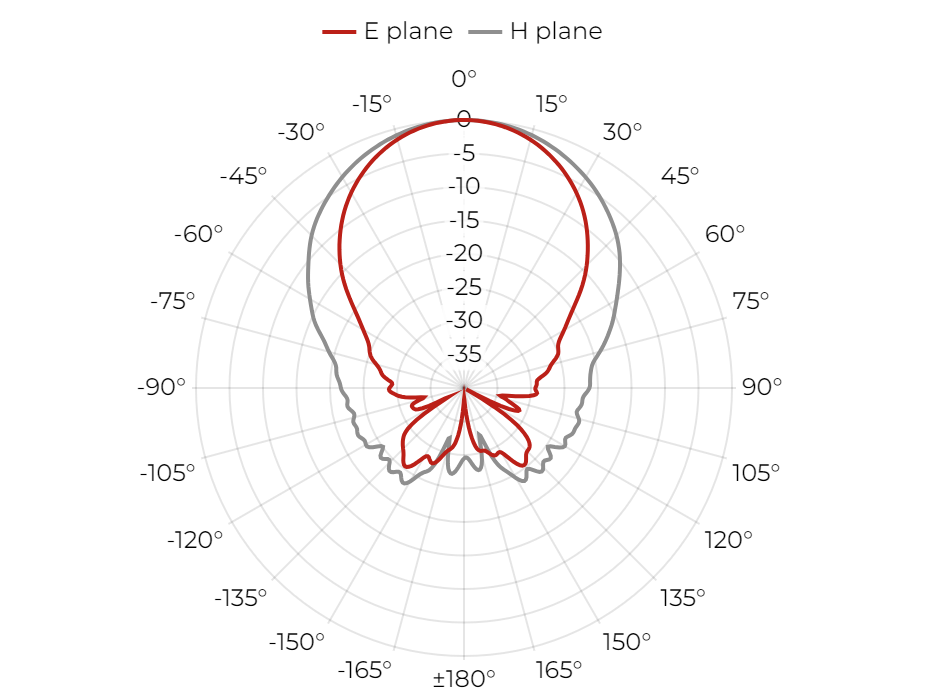

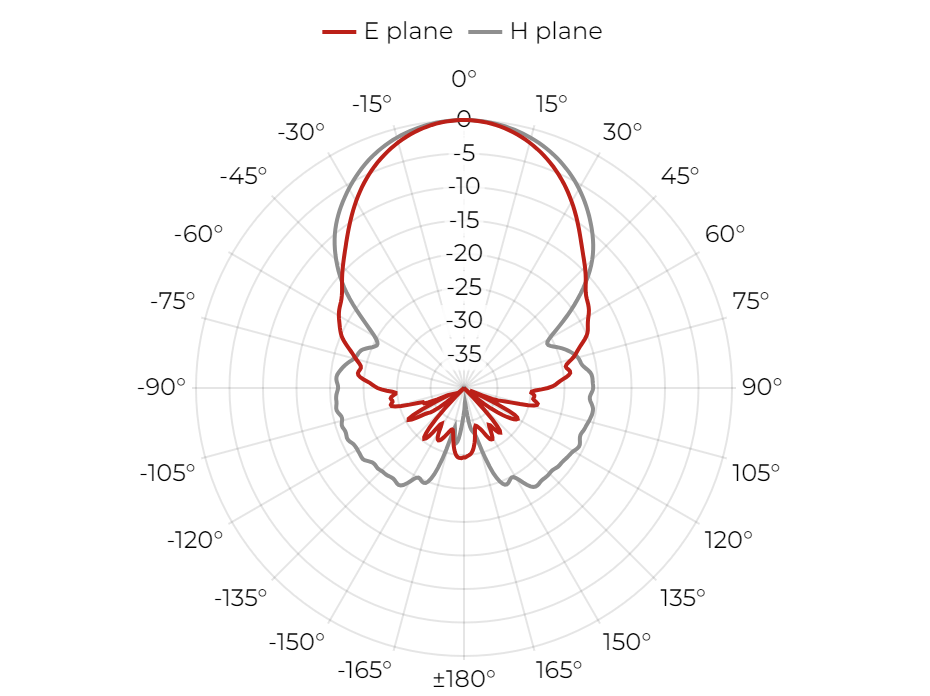

        DRH0532 - 7 GHz

        9 GHz

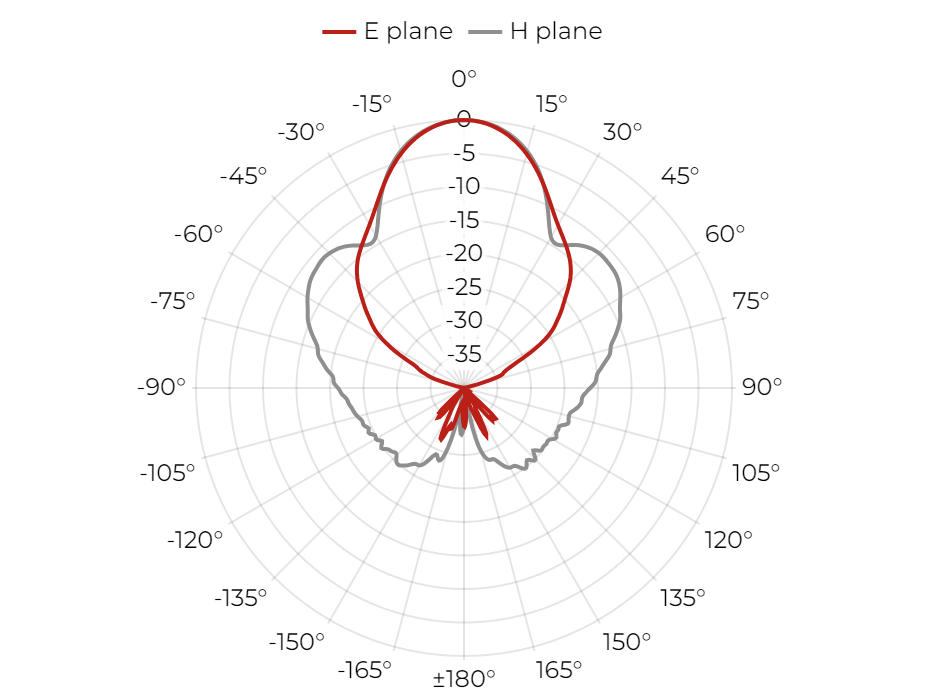

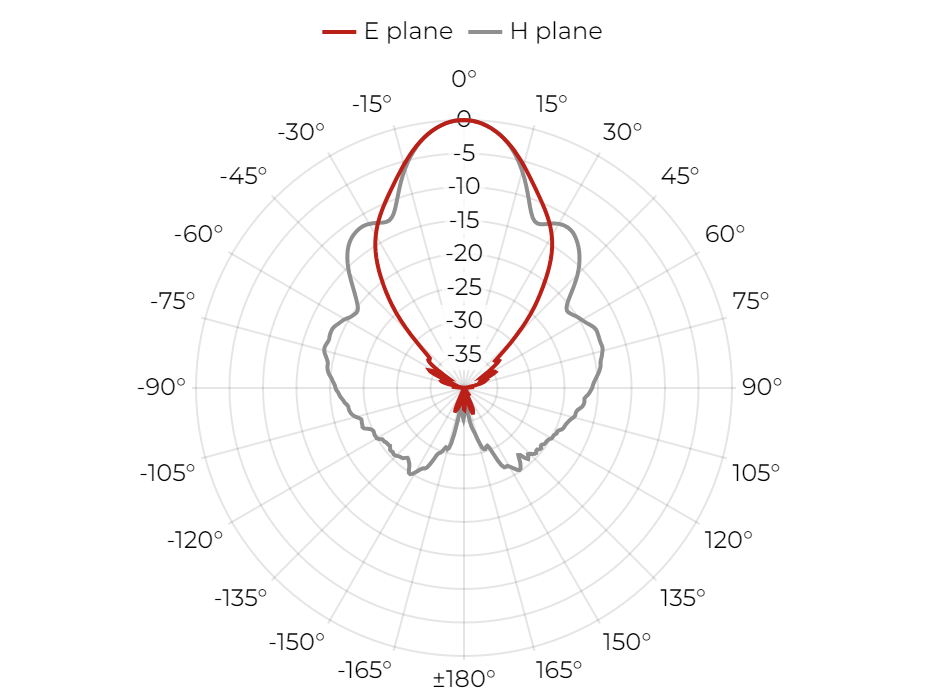

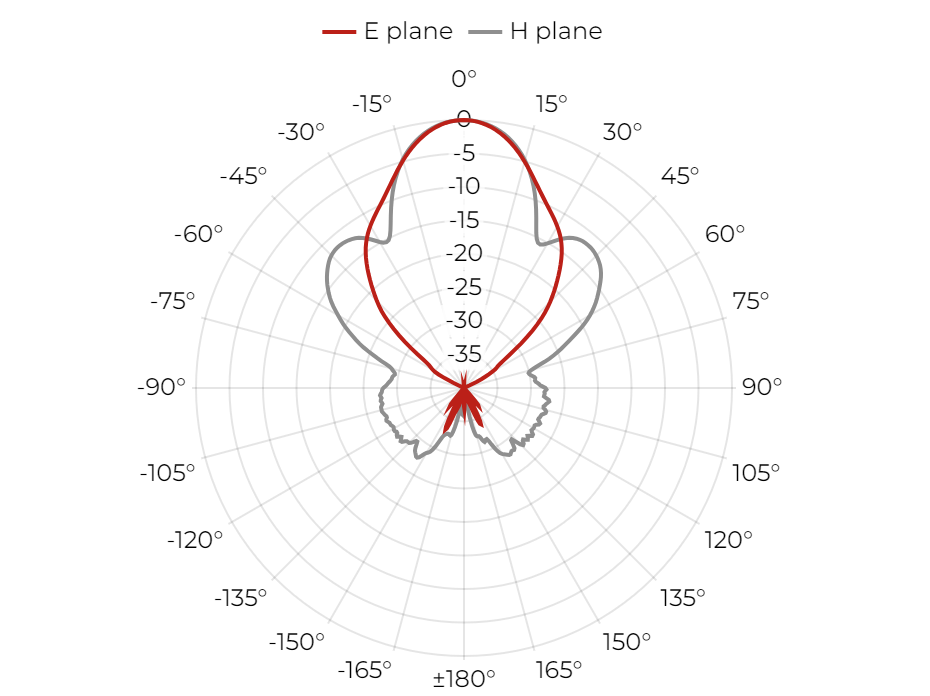

        DRH0532 - 9 GHz

        11 GHz

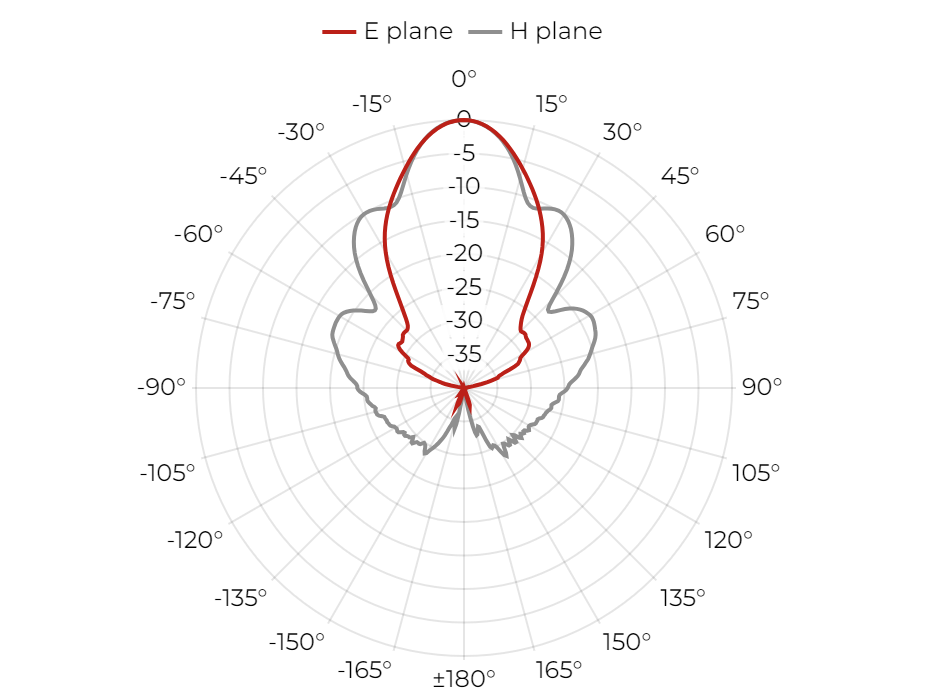

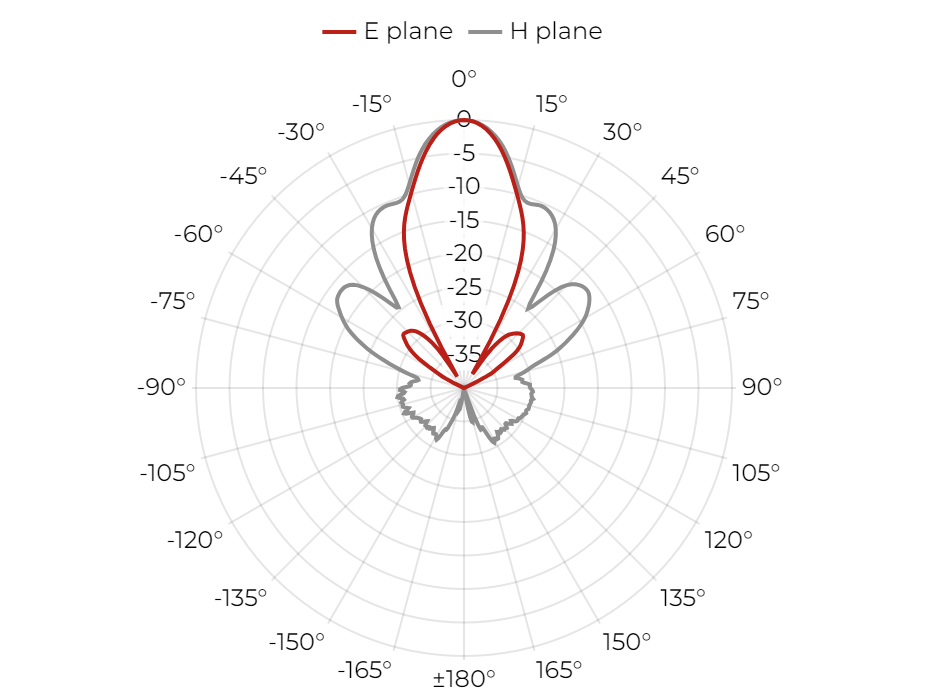

        DRH0532 - 11 GHz

        Packaging and Accessories

        What's in a box

        • DRH0532 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
        • Radome waterproof enclosure
