        HC90-1720

        Power Divider

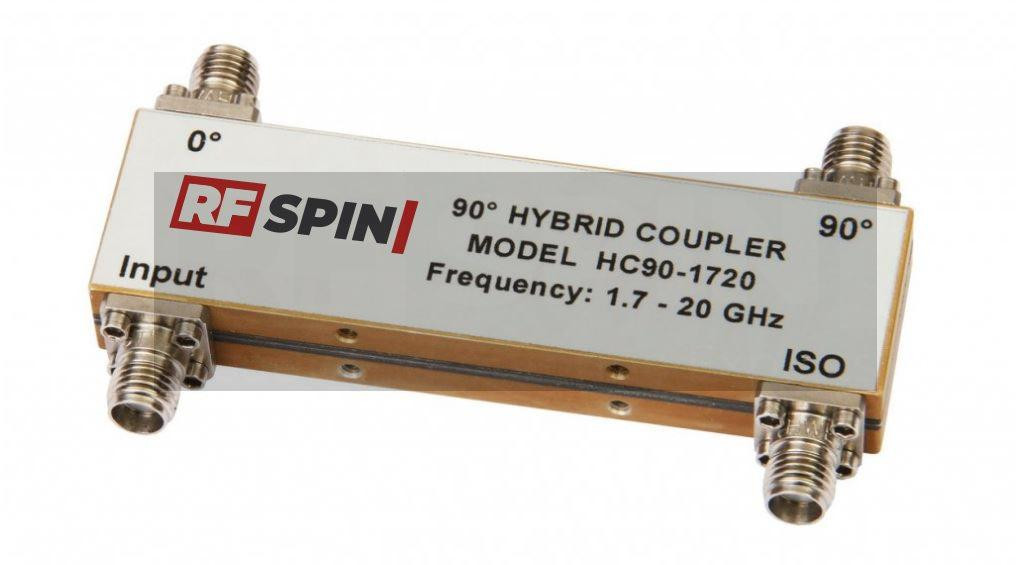

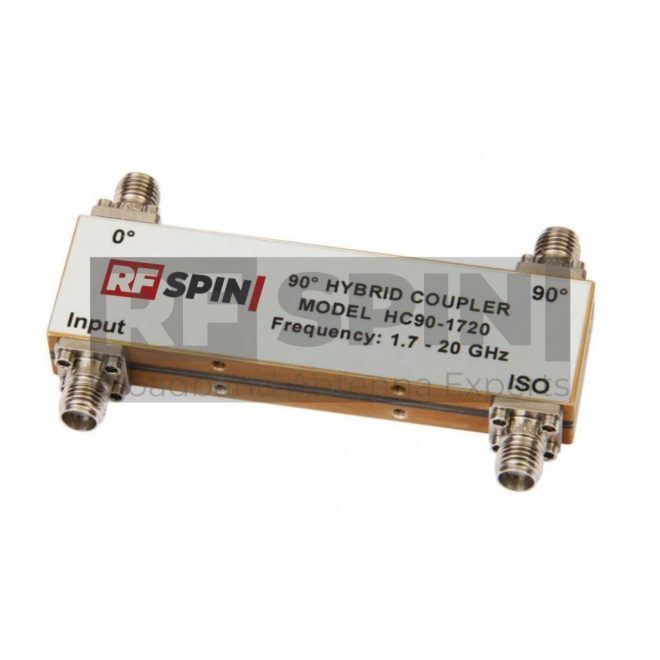

        The hybrid coupler is a four-port device that equally splits input signals with a 90-degree phase shift between output ports. RF SPIN hybrid couplers are specially developed to suit our antenna portfolio. HC90-1720 has wide bandwidth from 1.7 GHz up to 20 GHz, low VSWR, low insertion loss, and tight amplitude and phase balance. This power divider is optimal with dual-polarized antenna QRH20E.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        Manufacturing Technology

        • Extremely durable
        • High quality SMA type coaxial connector

        Product Packaging Includes

        • 90° hybrid coupler

        Product Parameters

        Product identification

        • Product Name HC90-1720
        • Product Category Power Divider

        Electrical specifications

        • Frequency Range 1.7 GHz – 20 GHz
        • VSWR (max.) 1.4
        • VSWR (avg.) 1.2
        • Impedance 50 Ohm
        • Insertion Loss (max.) 1.3 dB
        • Connector SMA
        • Power (CW / Peak) 50 W / 100 W
        • Amplitute Balance (max.) 1 dB
        • Phase Balance (max.) ±5 deg.

        Physical specifications

        • Width 76 mm (2.992 in)
        • Height 9 mm (0.354 in)
        • Depth 39 mm (1.535 in)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Packaging and Accessories

        What's in a box

        • HC90-1720 Device

        Accessories

        • Standard mounting flange

        Other Similar Products

        HC90-4040
        HC90-4040
        Power Divider
        Frequency Range

        4 GHz – 40 GHz

        VSWR (avg.)

        1.2

        Impedance

        50 Ohm

        Connector

        K

        Power (CW / Peak)

        25 W / 50 W

        CHS-SF141-01-P
        Frequency Range

        DC – 20 GHz

        VSWR (avg.)

        1.18

        Impedance

        50 Ohm

        Connector

        SMA

        Power (CW / Peak)

        50 W / 100 W

        QRH20E
        QRH20E
        Quad Ridged Horn Antenna
        Frequency Range

        1.7 GHz – 20 GHz

        VSWR (avg.)

        1.45

        Impedance

        50 Ohm

        Connector

        SMA

        Power (CW / Peak)

        20 W / 40 W

        Polarization

        Dual Linear, Circular (with hybrid)
