        RF SPIN

        Broadband Antenna Solutions

        CHS-SF141-01-P

        Cable

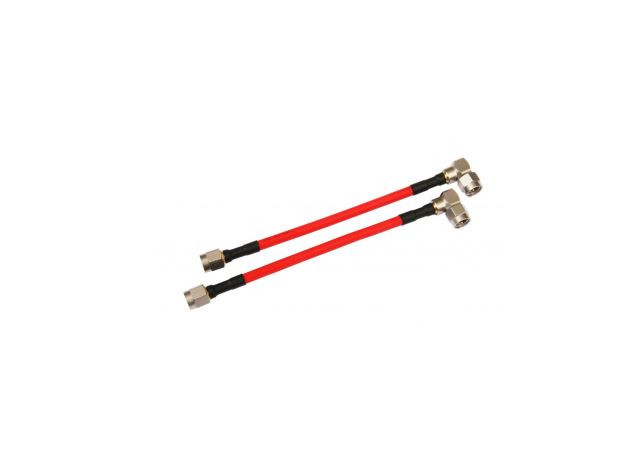

        A pair of coaxial cables for connection between 90° Hybrid Coupler and QRHxx antenna. The cables are carefully measured and paired together to ensure low phase imbalance. The cables are optimal for frequencies from DC to 20 GHz, optimal with dual-polarized antennas QRH11, QRH18, and QRH20E.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        Manufacturing Technology

        • Extremely durable
        • High quality SMA type coaxial connector

        Product Packaging Includes

        • Pair of cables

        Product Parameters

        Product identification

        • Product Name CHS-SF141-01-P
        • Product Category Cable

        Electrical specifications

        • VSWR (max.) 1.3
        • VSWR (avg.) 1.18
        • Impedance 50 Ohm
        • Insertion Loss (max.) 0.65 dB
        • Connector SMA
        • Connector SMA
        • Power (CW / Peak) 50 W / 100 W
        • Phase Imbalance 5 deg.

        Physical specifications

        • Length 100 mm (3.937 in)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Packaging and Accessories

        What's in a box

        • CHS-SF141-01-P Device

        Accessories

        • Standard mounting flange
