        RF SPIN

        Broadband Antenna Solutions

        HC90-4040

        Power Divider

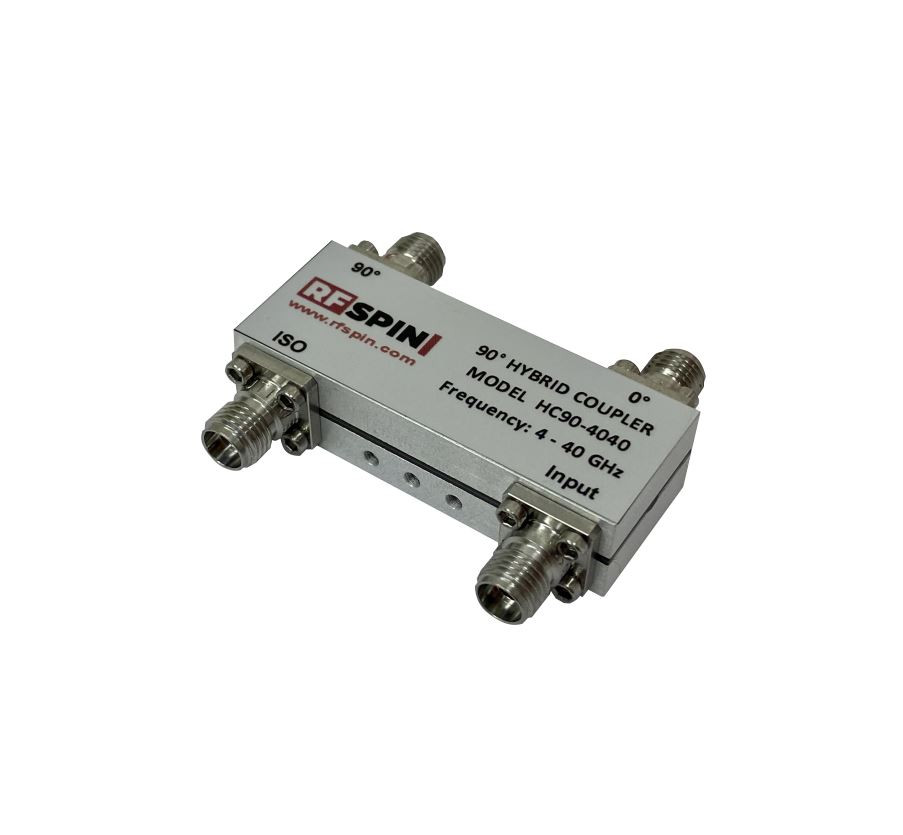

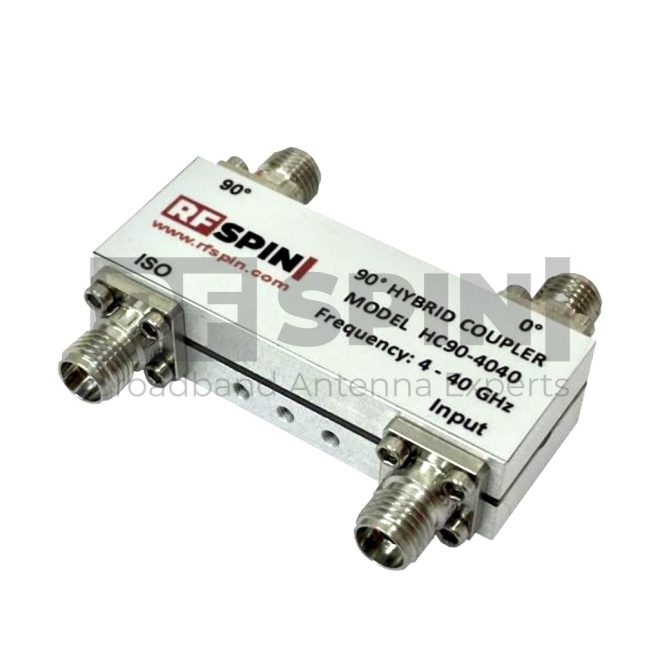

        The hybrid coupler is a four-port device that equally splits input signals with a 90-degree phase shift between output ports. RF SPIN hybrid couplers are specially developed to suit our antenna portfolio. HC90-4040 has wide bandwidth from 4 GHz up to 40 GHz, low VSWR, low insertion loss, and tight amplitude and phase balance. This power divider is optimal with dual-polarized antenna QRH40.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        Manufacturing Technology

        • Extremely durable
        • High quality K type coaxial connector

        Product Packaging Includes

        • 90° hybrid coupler

        Product Parameters

        Product identification

        • Product Name HC90-4040
        • Product Category Power Divider

        Electrical specifications

        • Frequency Range 4 GHz – 40 GHz

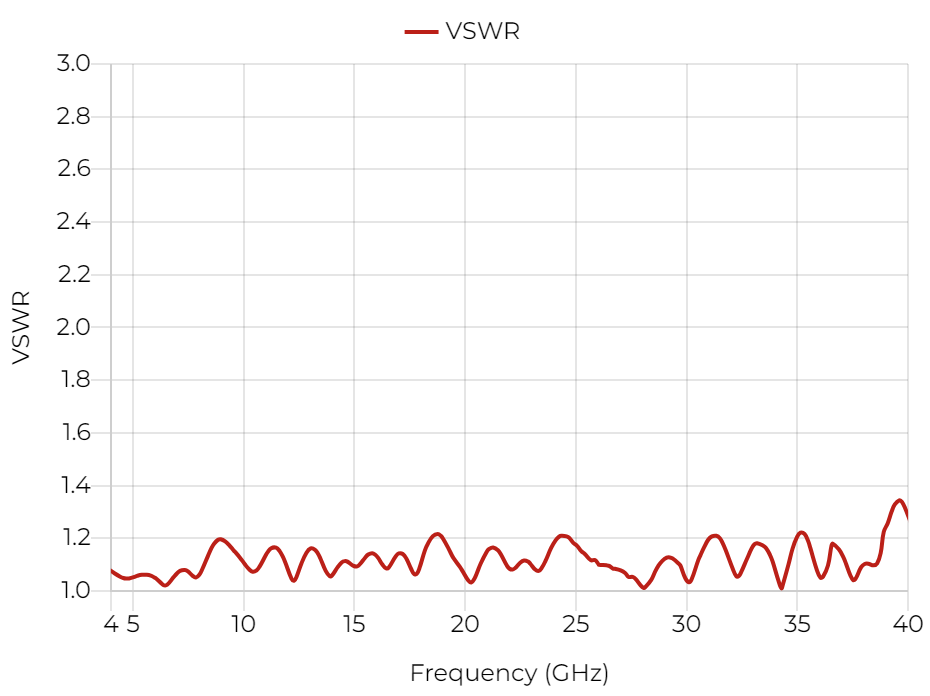

        • VSWR (max.) 1.6
        • VSWR (avg.) 1.2
        • Impedance 50 Ohm
        • Insertion Loss (max.) 2.4 dB
        • Connector K
        • Power (CW / Peak) 25 W / 50 W
        • Amplitute Balance (max.) 1.4 dB
        • Phase Balance (max.) ±10 deg.
        • Isolation 15 dB.

        Physical specifications

        • Width 44 mm (1.732 in)
        • Height 11 mm (0.433 in)
        • Depth 36 mm (1.417 in)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Packaging and Accessories

        What's in a box

        • HC90-4040 Device

        Accessories

        • Standard mounting flange

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
