        RF SPIN

        Broadband Antenna Solutions

        H-A40

        Pyramidal Horn Antenna

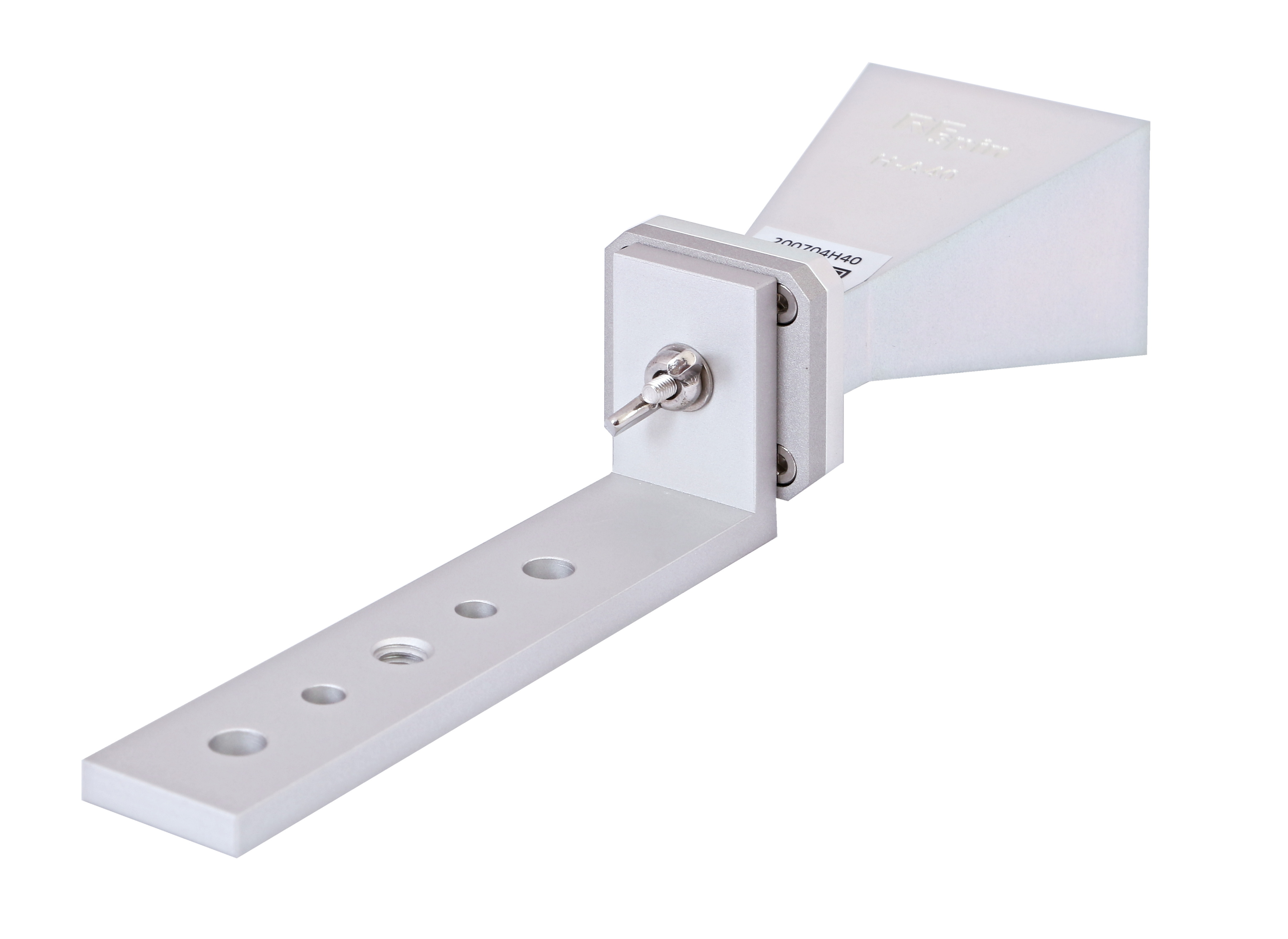

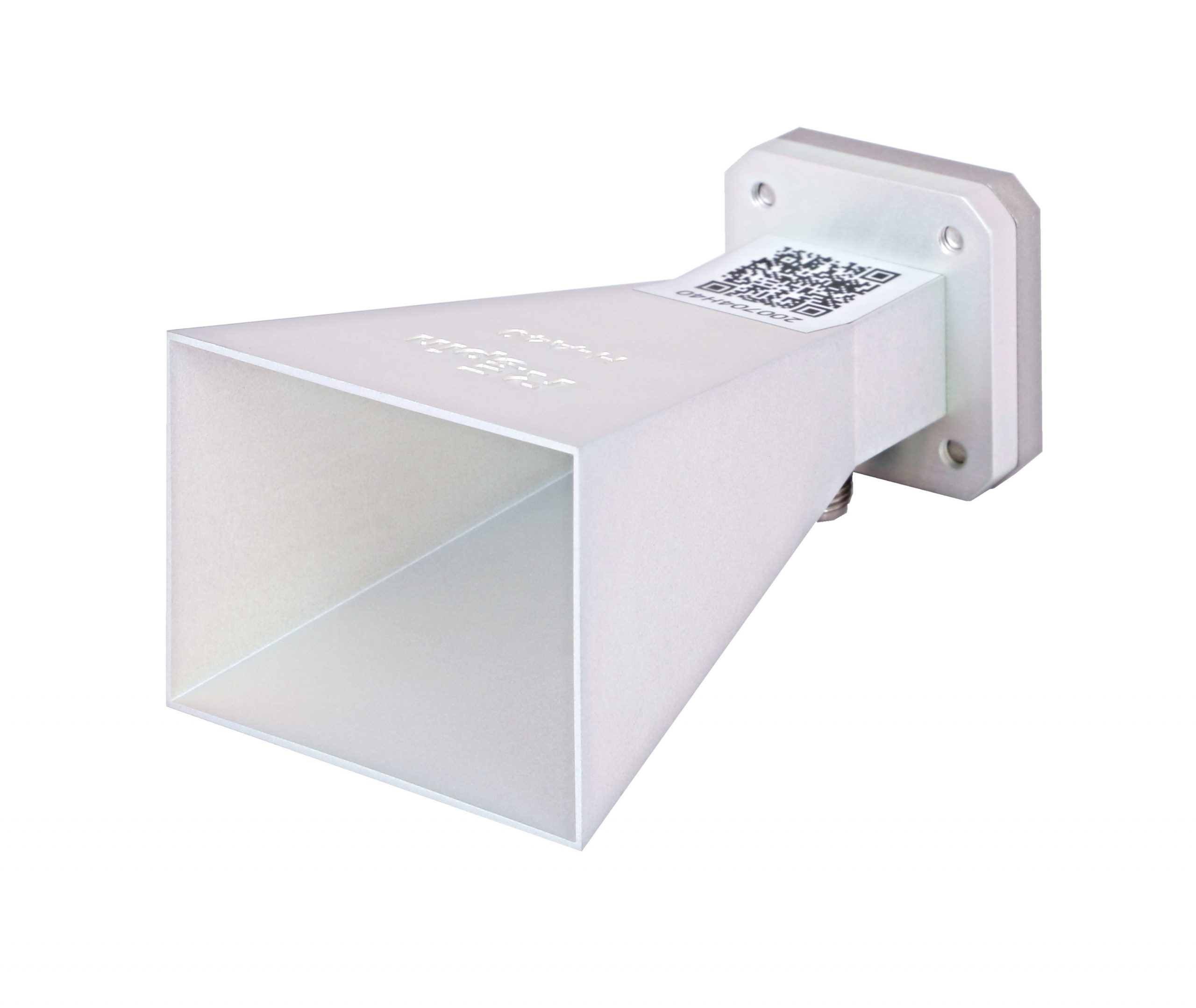

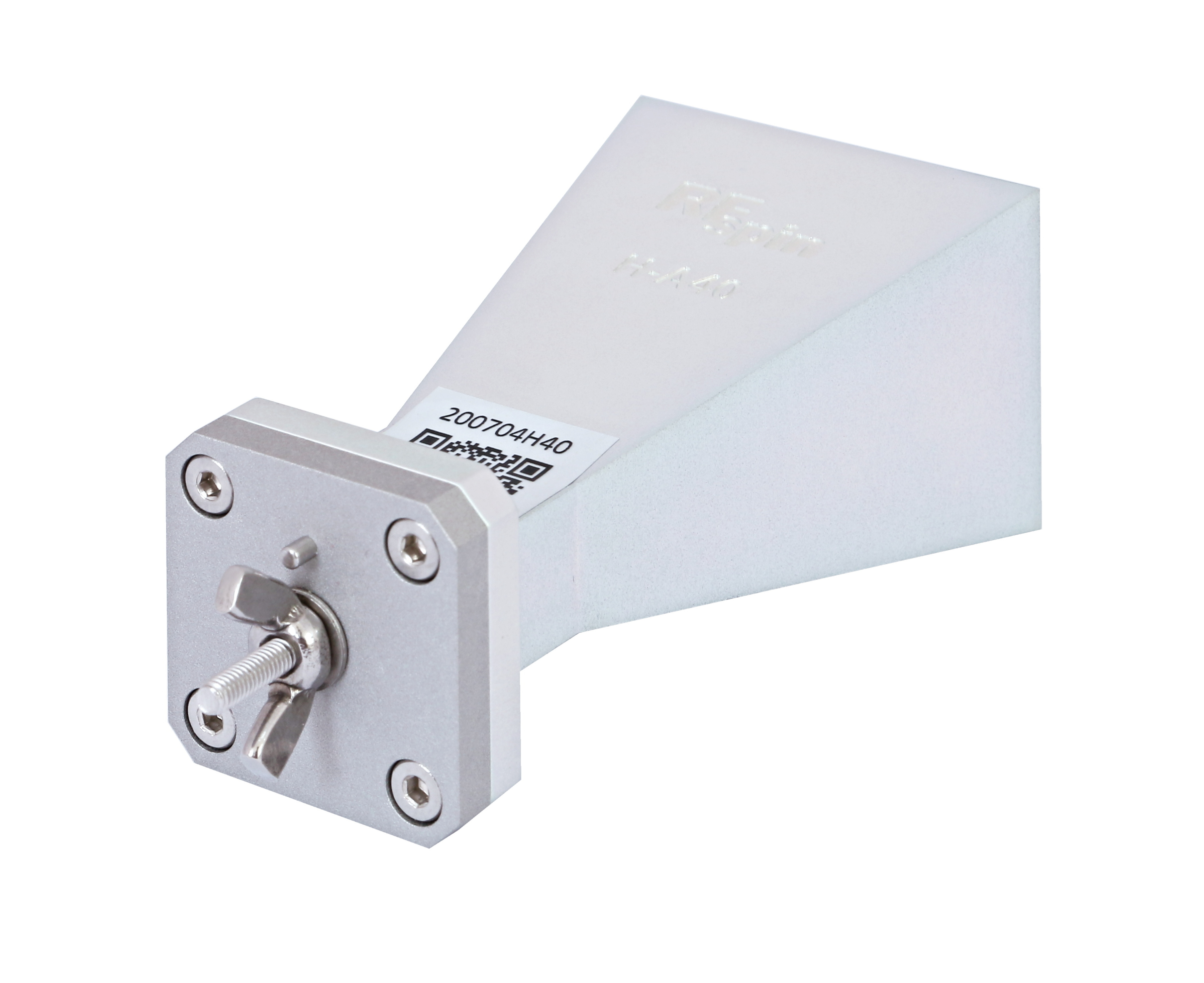

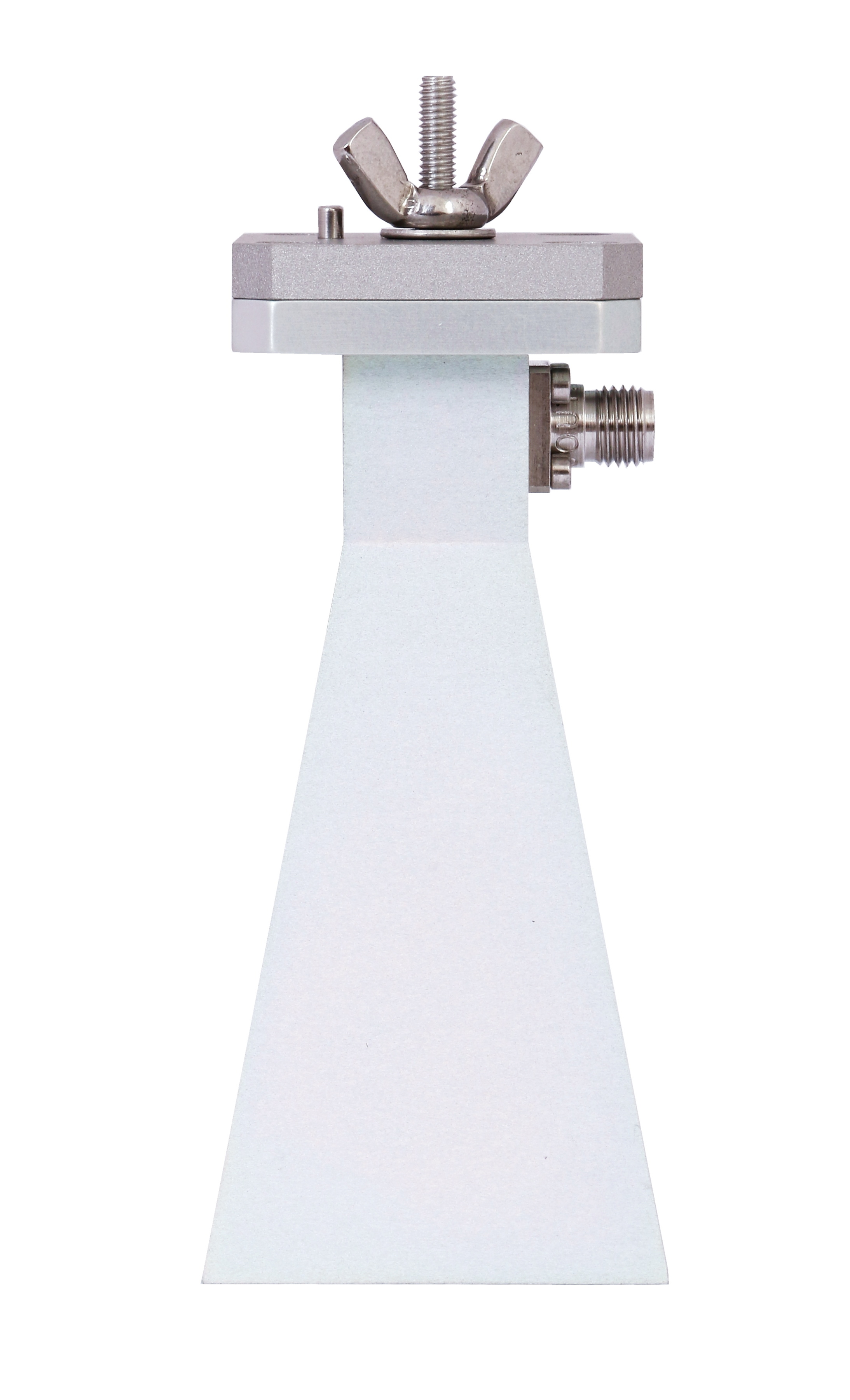

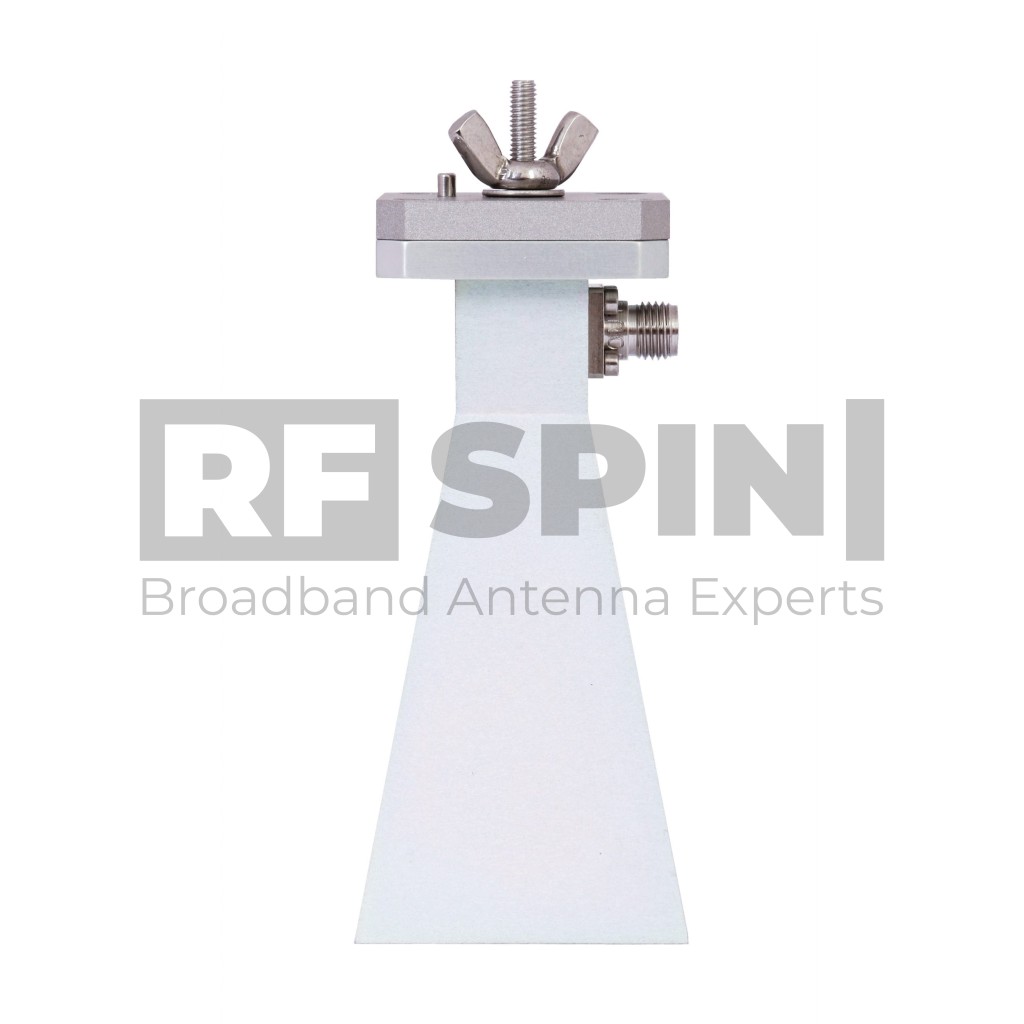

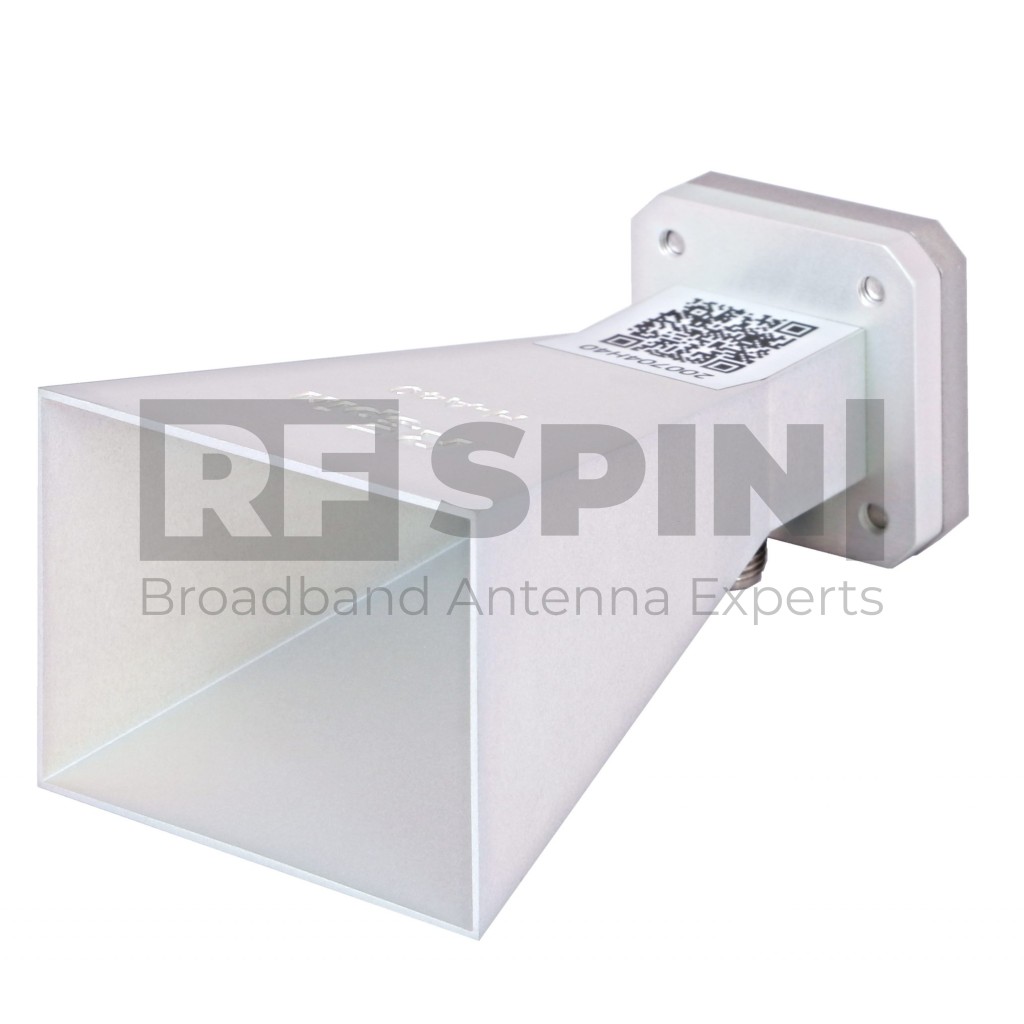

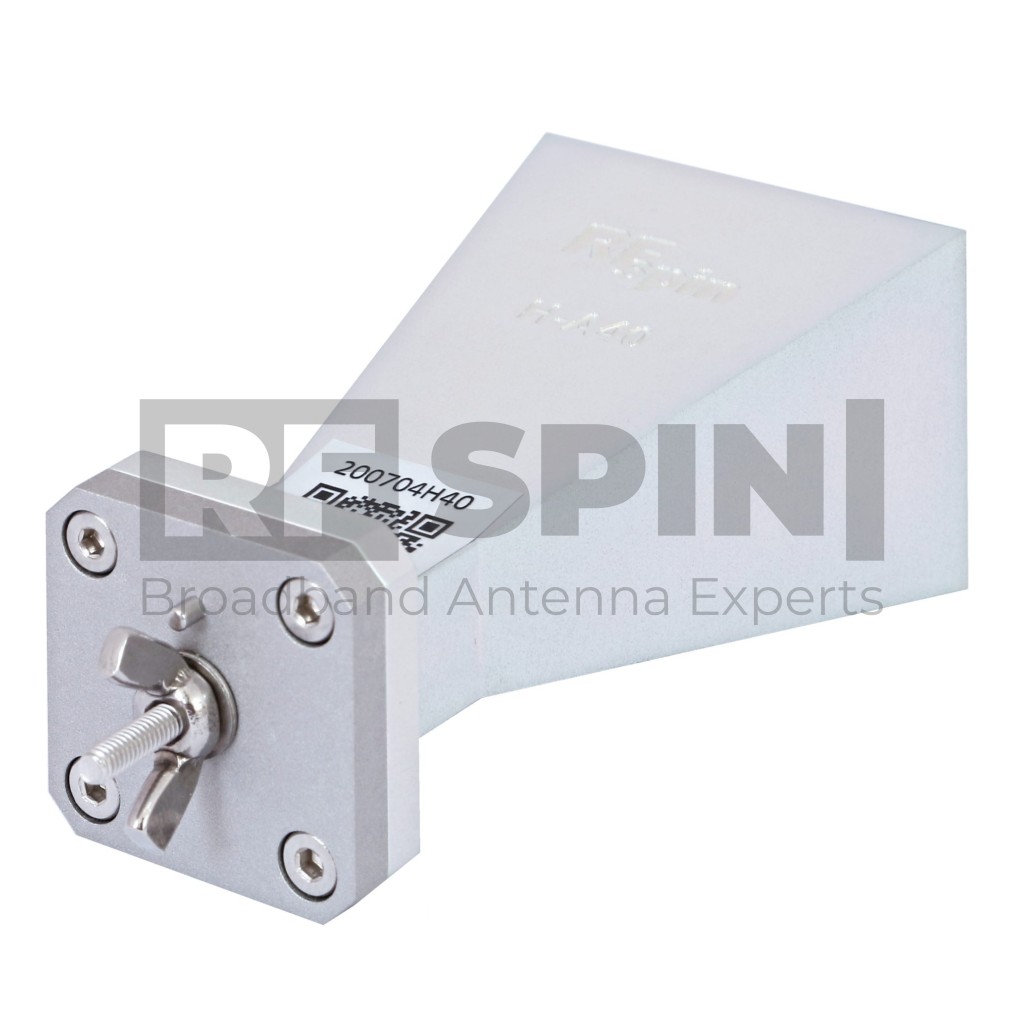

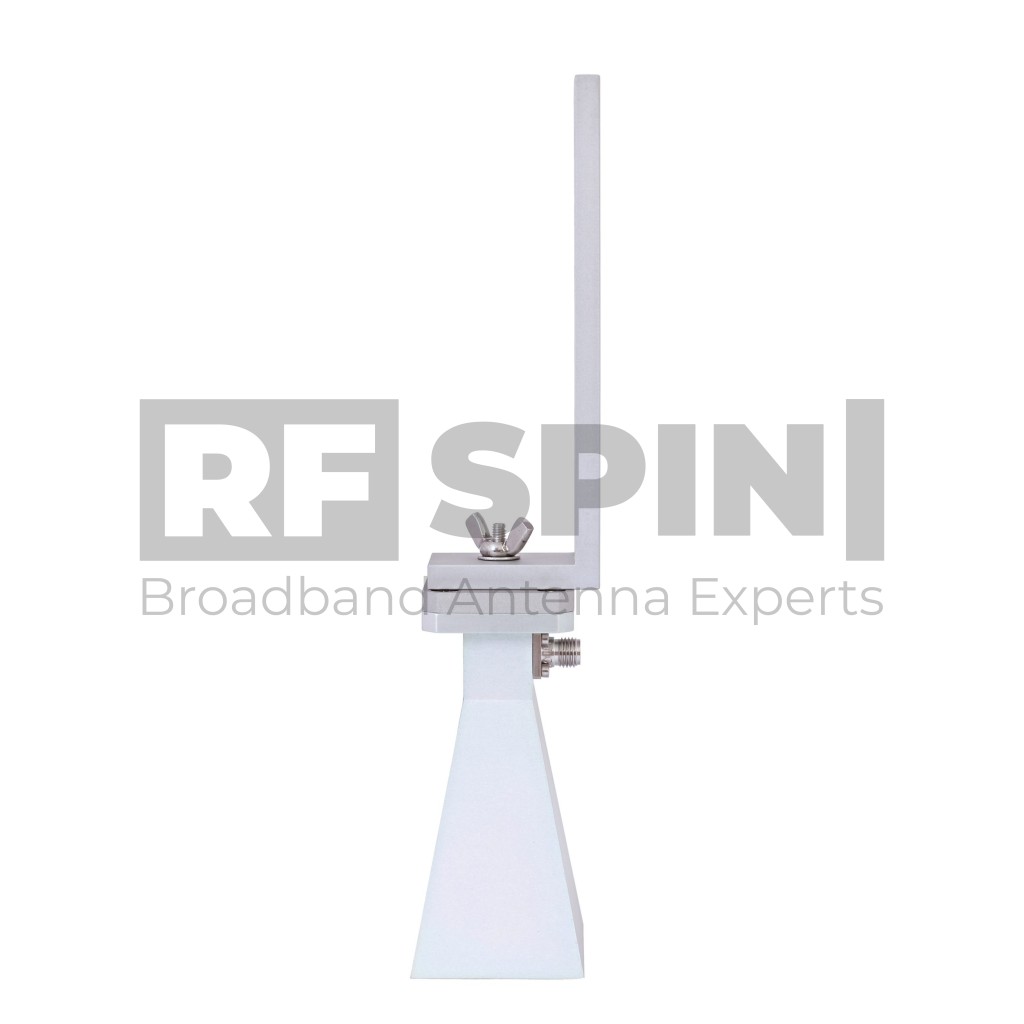

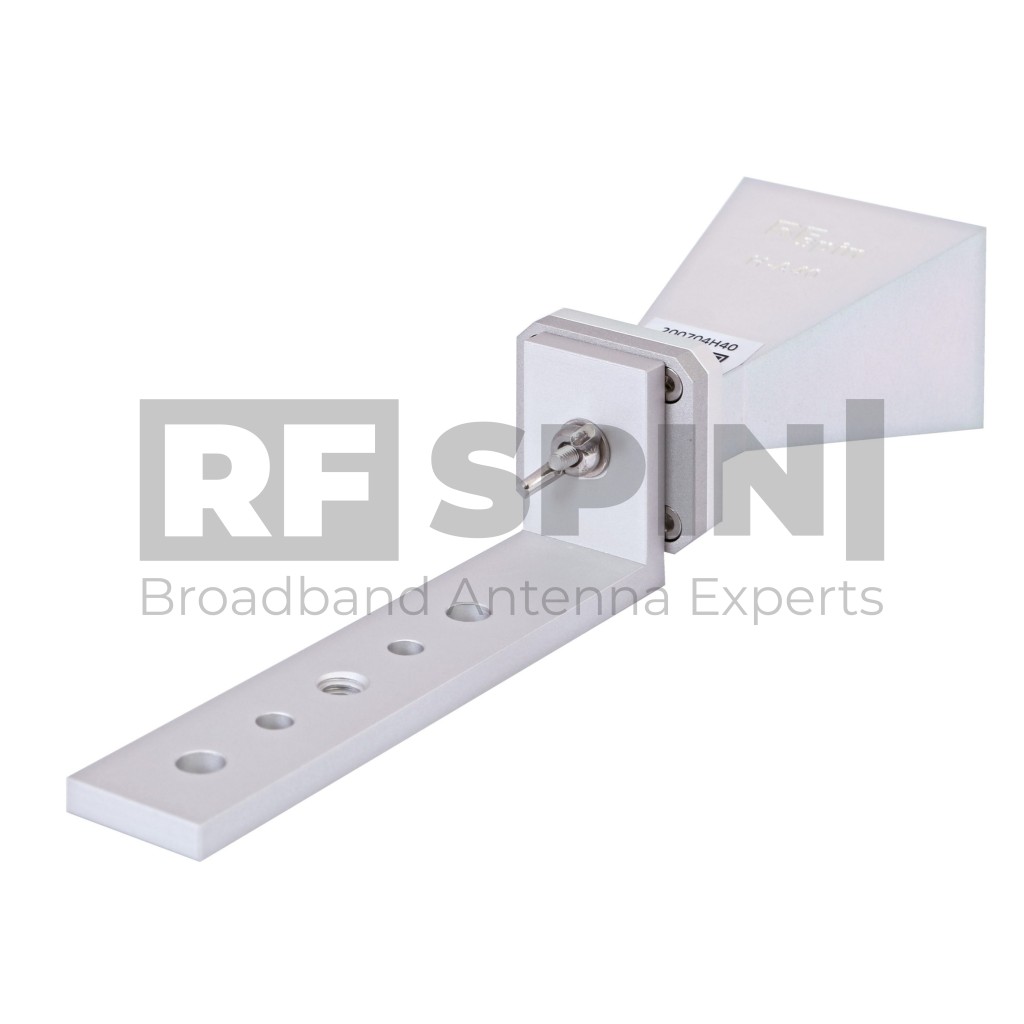

        H-A40 is a pyramidal horn antenna covering frequencies from 26.5 GHz to 40 GHz. Design and manufacturing of the antenna were done with detail on quality and low price. This pyramidal horn antenna is lightweight and small in size, optimal as a feed horn for larger antenna structures such as parabolic antennas, as standard calibration antennas to measure the gain of other antennas.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality K type coaxial connector

        Product Packaging Includes

        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized pyramidal horn antenna

        Product Parameters

        Product identification

        • Product Name H-A40
        • Product Category Pyramidal Horn Antenna

        Electrical specifications

        • Frequency Range 26.5 GHz – 40 GHz
        • VSWR (max.) 1.3
        • VSWR (avg.) 1.15
        • Impedance 50 Ohm
        • Connector K (female)
        • Power (CW / Peak) 15 W / 30 W
        • Antenna Factor 40 – 42 dB/m
        • Polarization Linear

        Physical specifications

        • Width 39.7 mm (1.563 in)
        • Height 29 mm (1.142 in)
        • Depth 67.5 mm (2.657 in)
        • Weight 0.145 kg (0.320 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Parameters and Performance

        Typical parameters

        VSWR

        H-A40 - VSWR

        Gain

        H-A40 - Gain

        Antenna Factor

        H-A40 - Antenna Factor

        Cross Polarization

        H-A40 - Cross Polarization

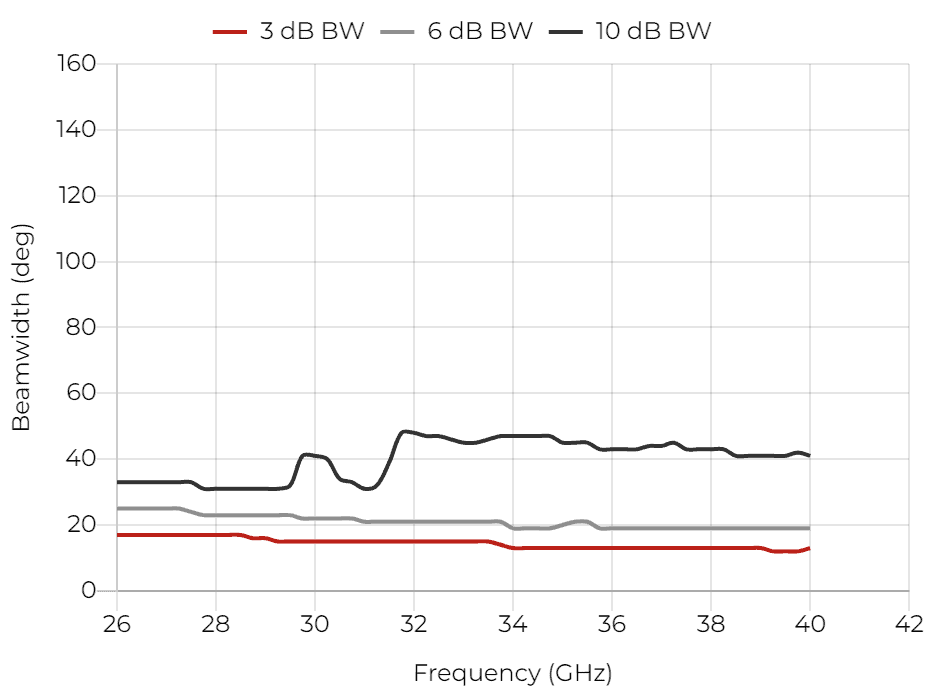

        Beamwidth

        Radiation Patterns

        26 GHz

        H-A40 - 26 GHz

        27 GHz

        H-A40 - 27 GHz

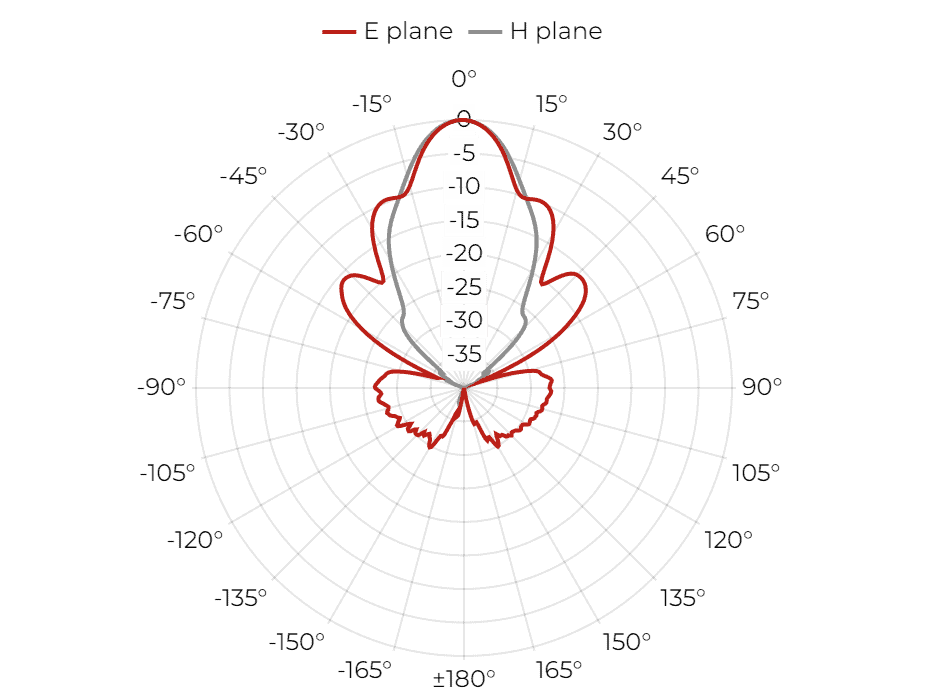

        28 GHz

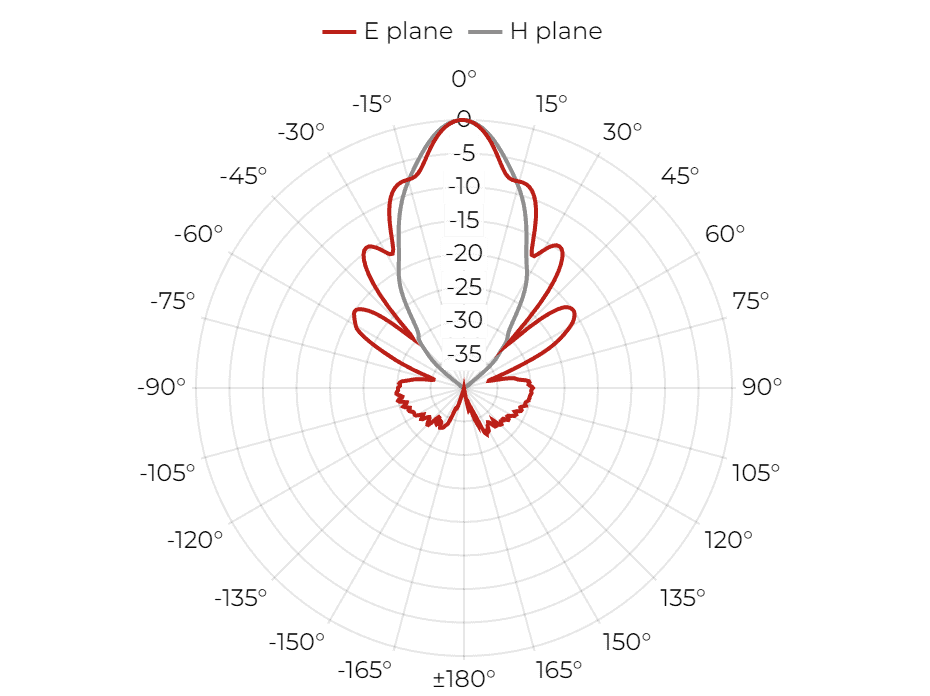

        H-A40 - 28 GHz

        30 GHz

        H-A40 - 30 GHz

        Packaging and Accessories

        What's in a box

        • H-A40 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread

        Accessories

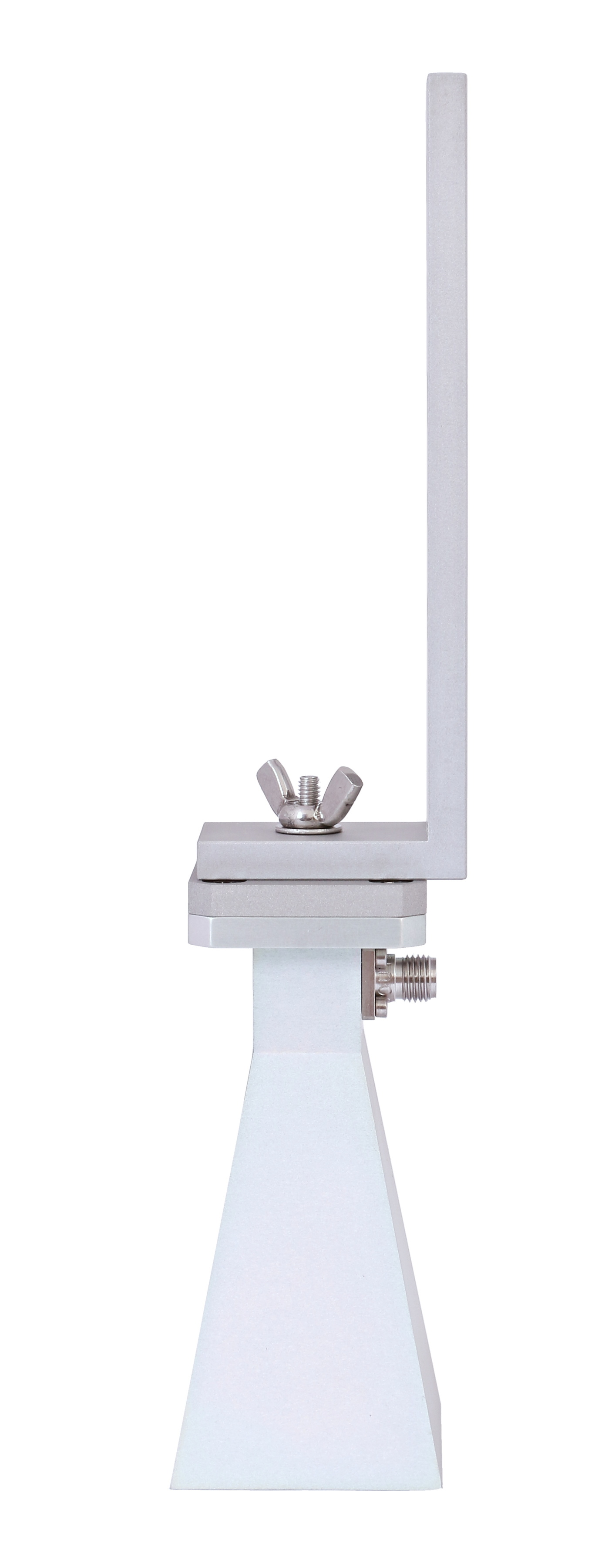

        • Standard mounting flange

        Custom services

        • Custom mounting solutions
        • Custom calibration data

        Other Similar Products

        H-A50
        Pyramidal Horn Antenna
        Frequency Range

        33 GHz – 50 GHz

        VSWR (avg.)

        1.15

        Impedance

        50 Ohm

        Power (CW / Peak)

        10 W / 20 W

        Polarization

        Linear

        DRH40
        5G
        Custom design
        QR code
        EMC
        DRH40
        Double Ridged Horn Antenna
        Frequency Range

        4 GHz – 40 GHz

        VSWR (avg.)

        1.25

        Impedance

        50 Ohm

        Connector

        K (female)

        Power (CW / Peak)

        15 W / 30 W

        Polarization

        Linear

        QRH40
        5G
        Circular polarization
        QR code
        QRH40
        Quad Ridged Horn Antenna
        Frequency Range

        4 GHz – 40 GHz

        VSWR (avg.)

        1.4

        Impedance

        50 Ohm

        Connector

        K (female)

        Power (CW / Peak)

        10 W / 20 W

        Polarization

        Dual Linear, Circular (with hybrid)
