        H-A50

        Pyramidal Horn Antenna

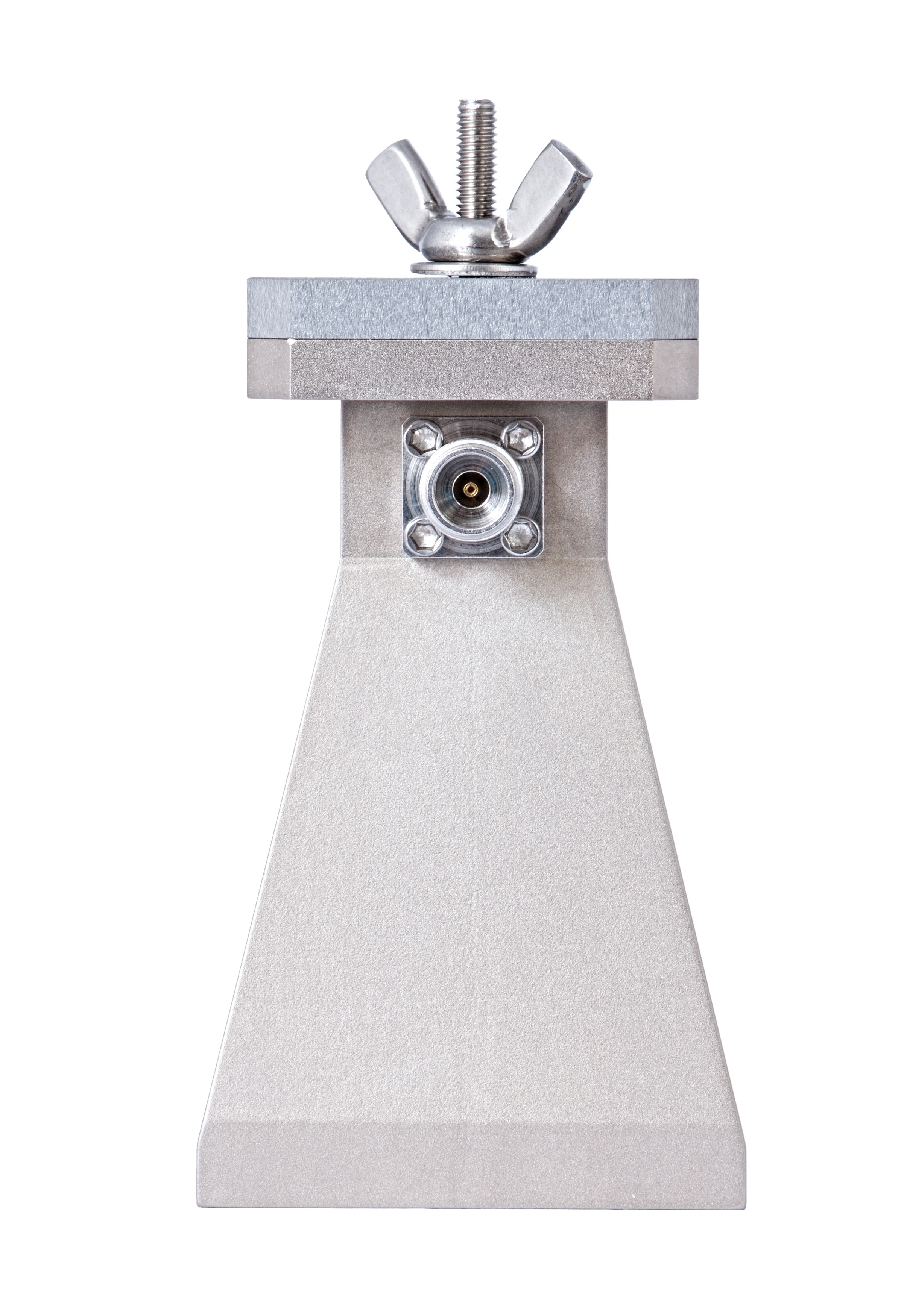

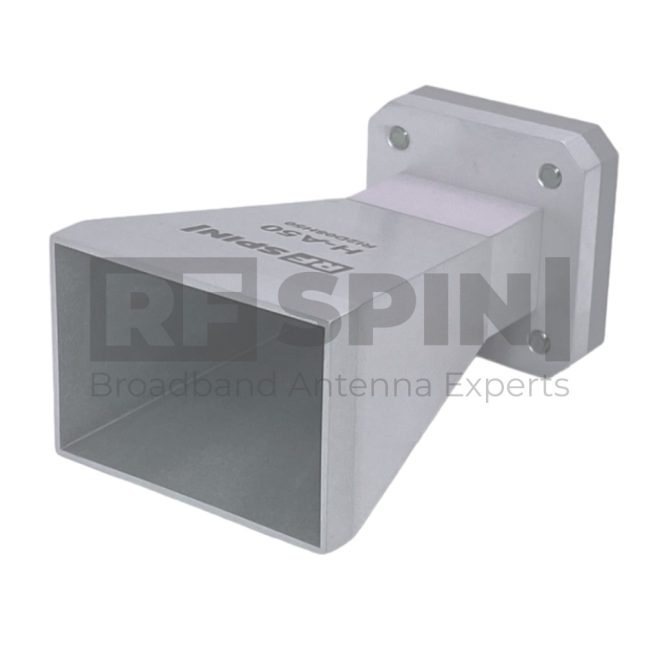

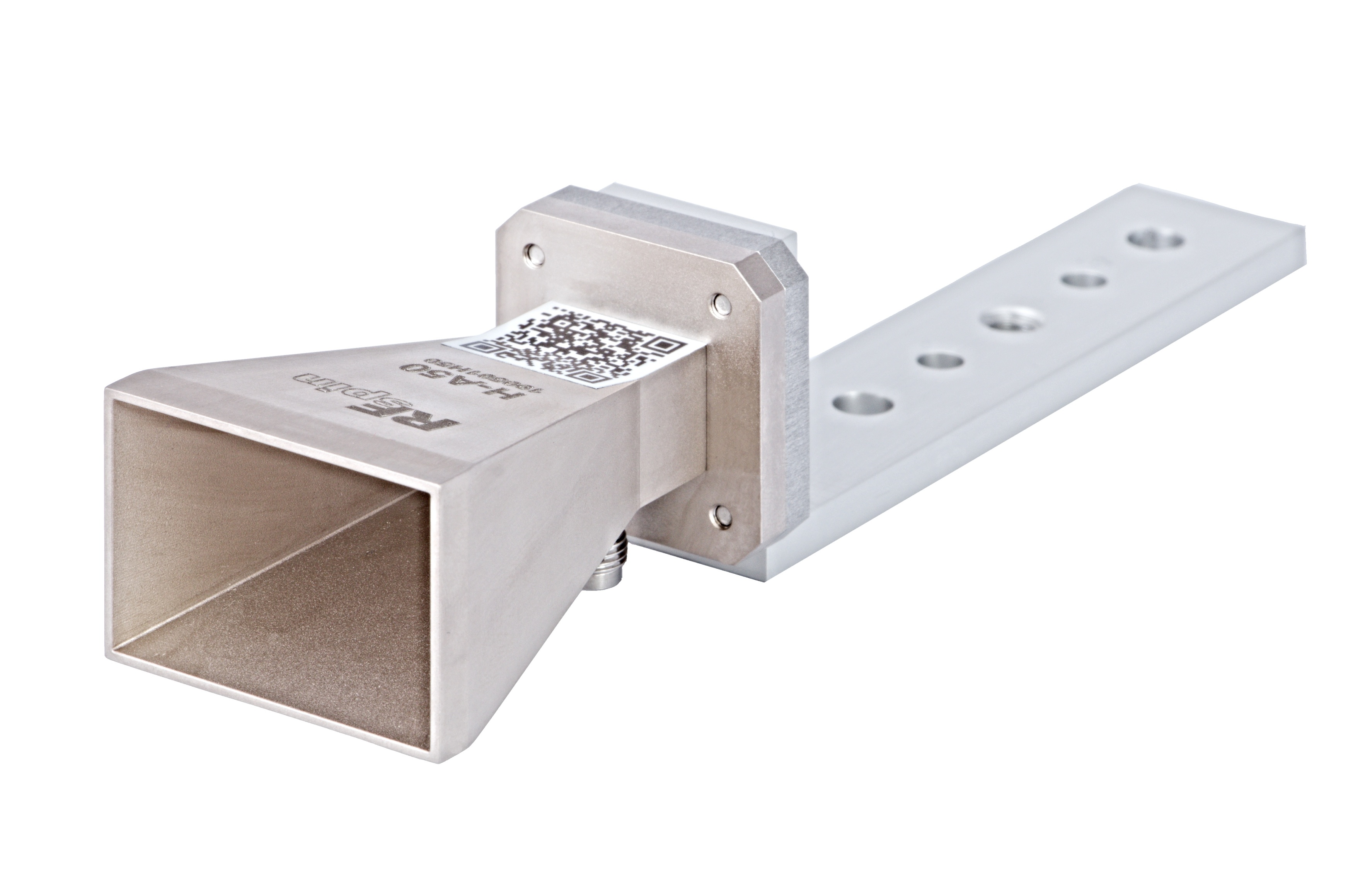

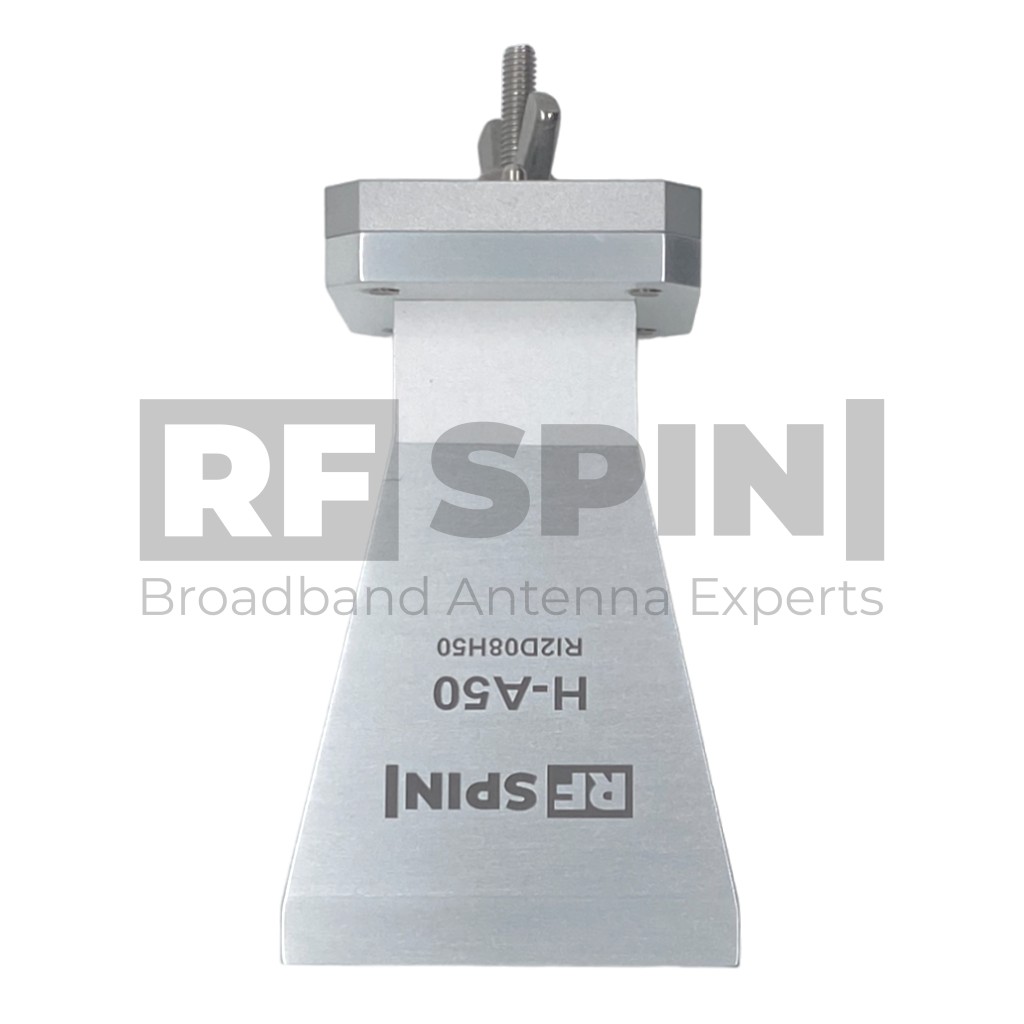

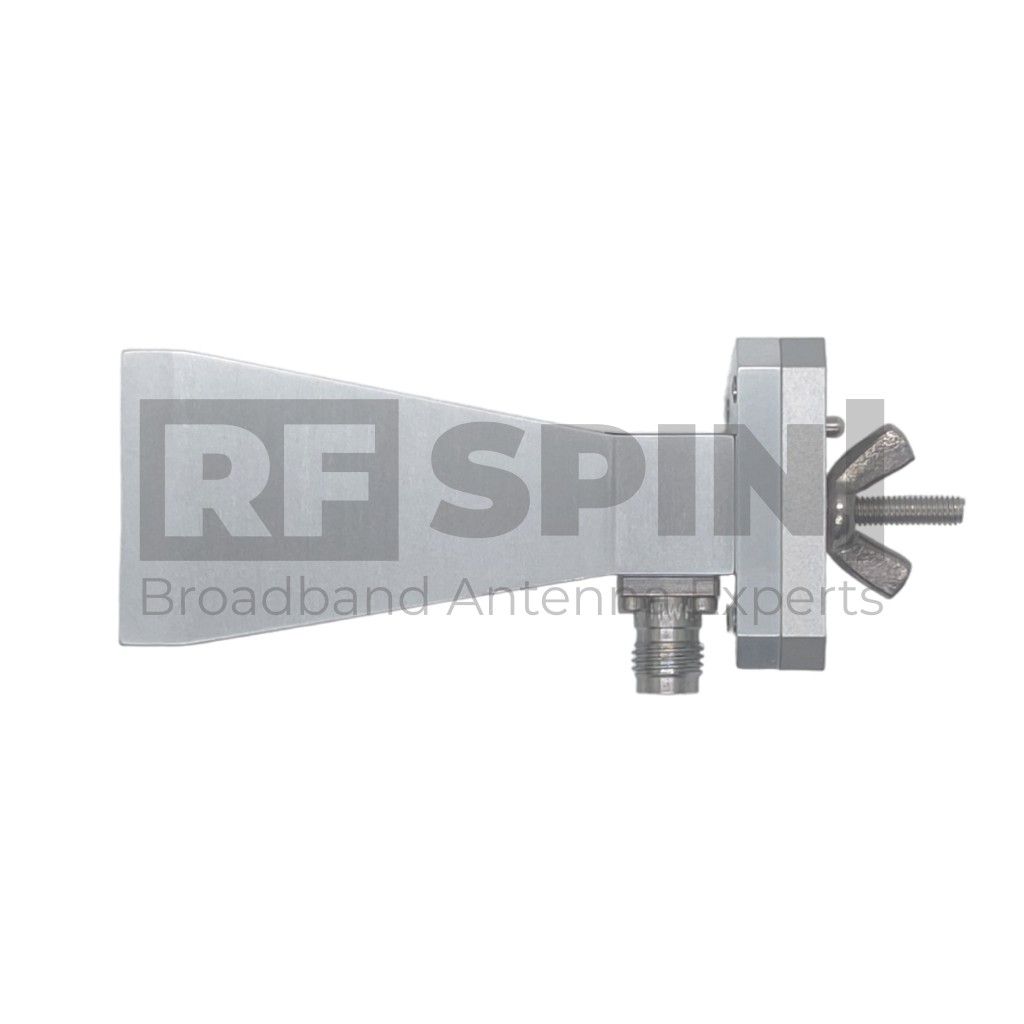

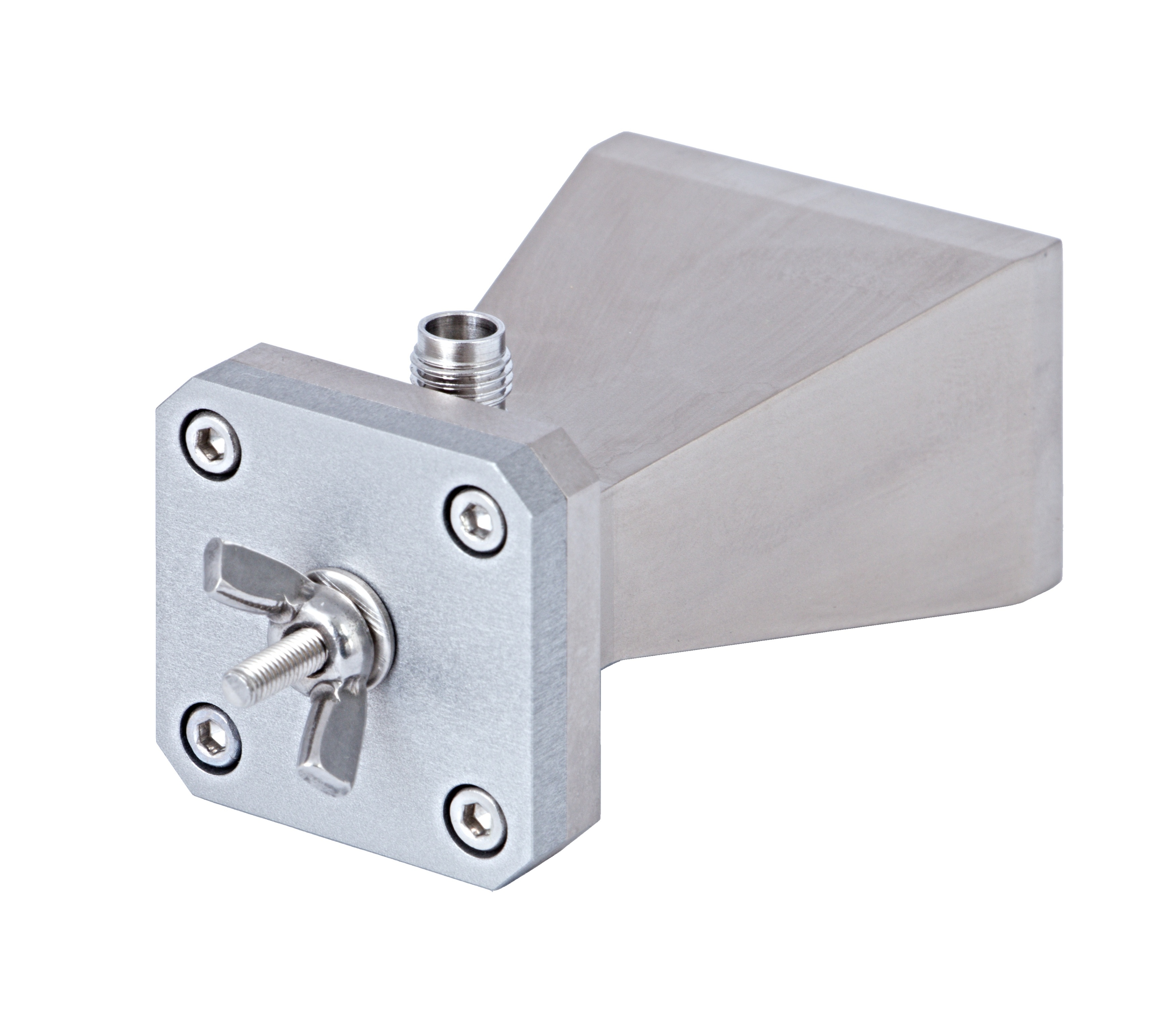

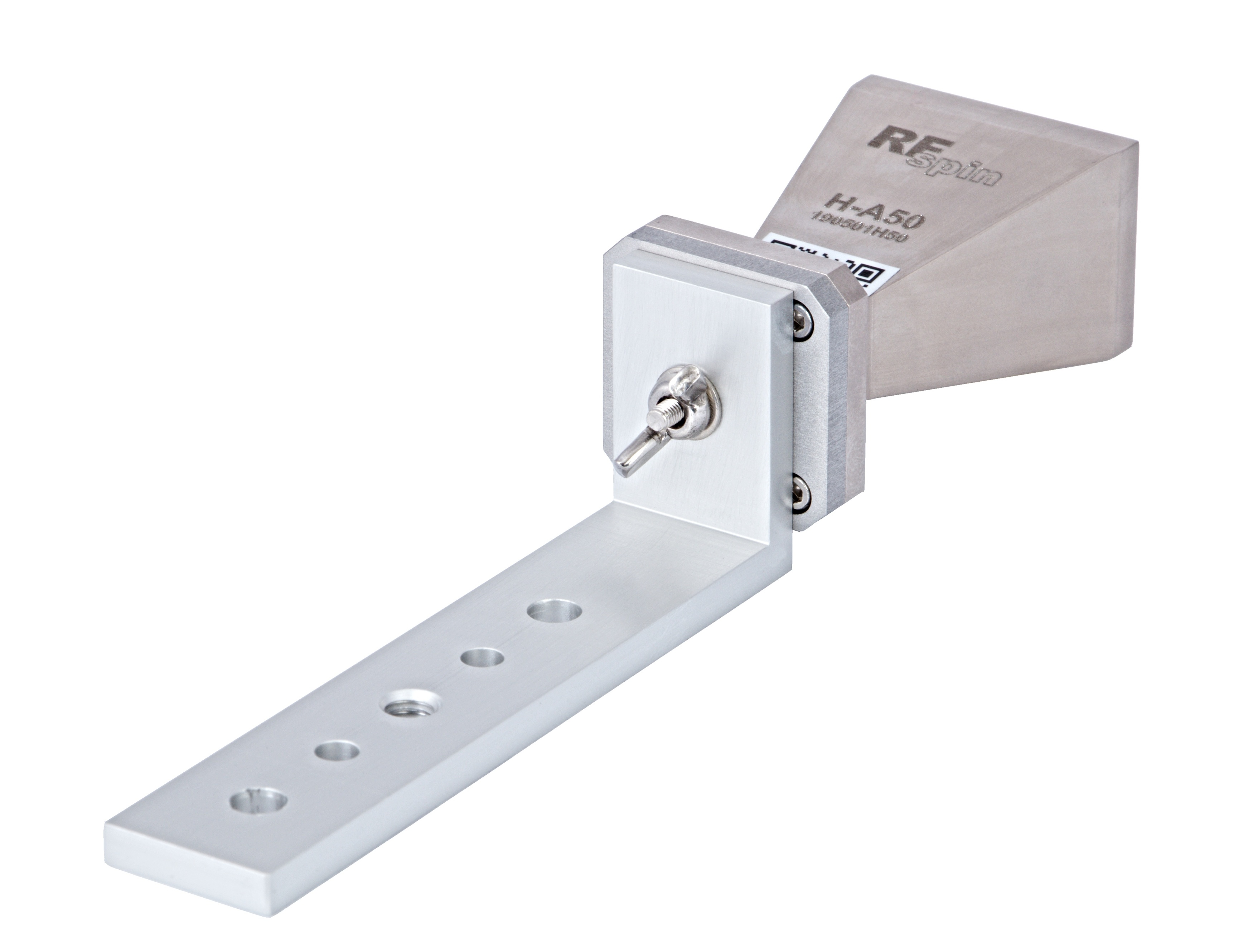

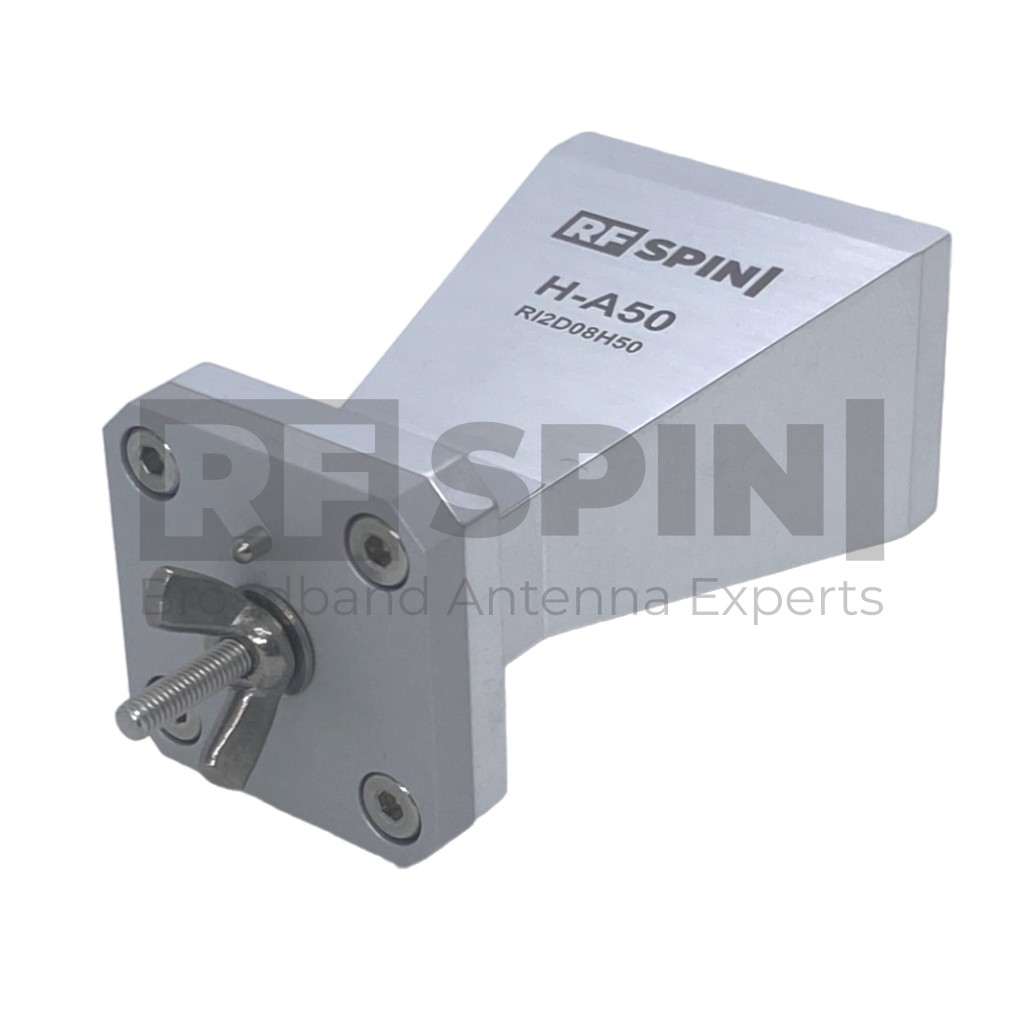

        H-A50 is a pyramidal horn antenna covering frequencies from 33 GHz to 50 GHz. Design and manufacturing of the antenna were done with detail on quality and low price. This pyramidal horn antenna is lightweight and small in size, optimal as a feed horn for larger antenna structures such as parabolic antennas, as standard calibration antennas to measure the gain of other antennas.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality 2.40mm type coaxial connector

        Product Packaging Includes

        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized pyramidal horn antenna

        Product Parameters

        Product identification

        • Product Name H-A50
        • Product Category Pyramidal Horn Antenna

        Electrical specifications

        • Frequency Range 33 GHz – 50 GHz
        • VSWR (max.) 1.35
        • VSWR (avg.) 1.15
        • Impedance 50 Ohm
        • Waveguide Size WR90
        • Power (CW / Peak) 10 W / 20 W
        • Antenna Factor 41 – 44 dB/m
        • Polarization Linear

        Physical specifications

        • Width 36.4 mm (1.433 in)
        • Height 25.9 mm (1.020 in)
        • Depth 58.8 mm (2.315 in)
        • Weight 0.125 kg (0.276 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Parameters and Performance

        Typical parameters

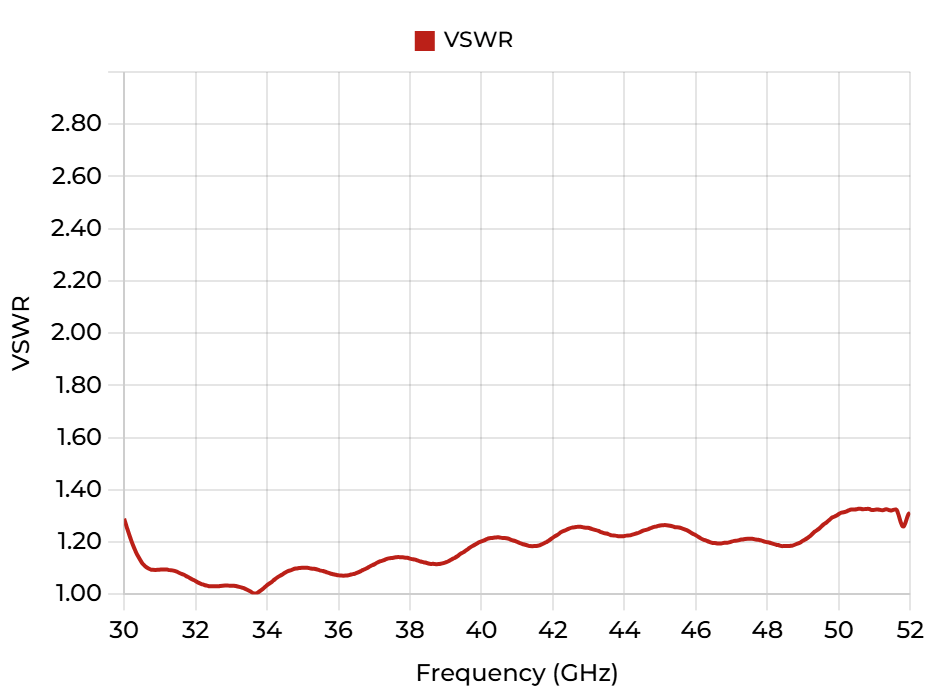

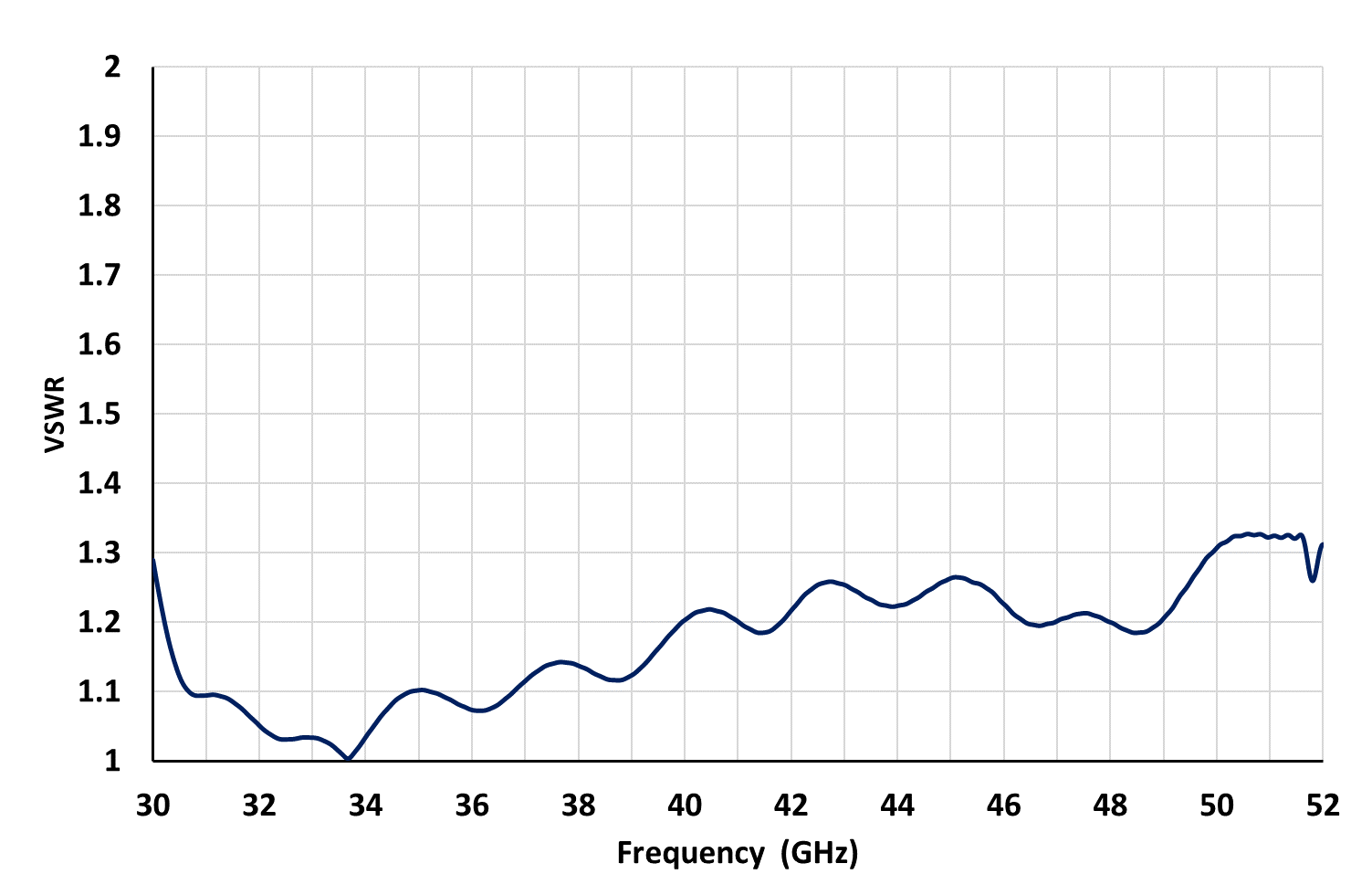

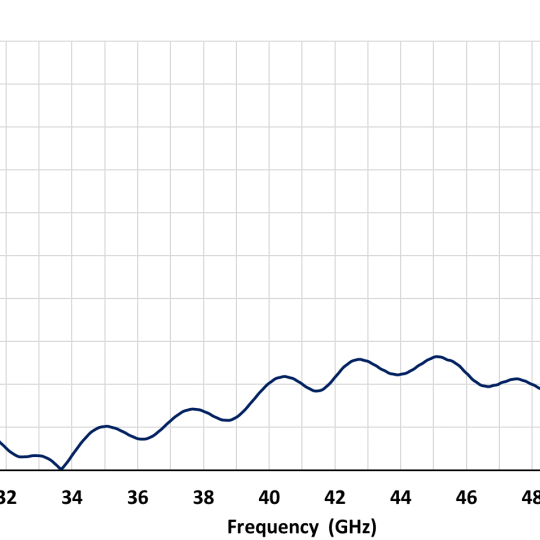

        VSWR

        H-A50 - PSV

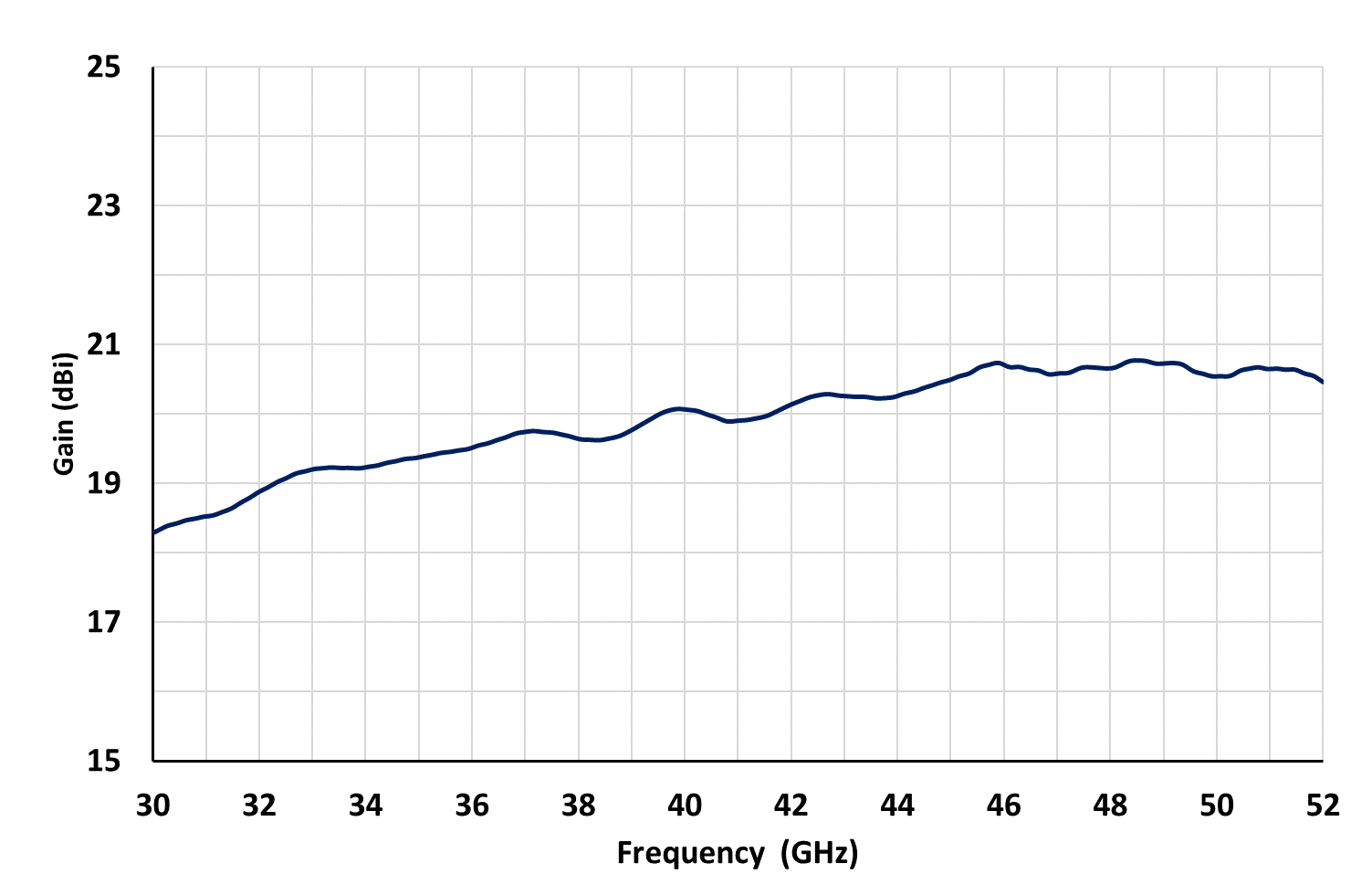

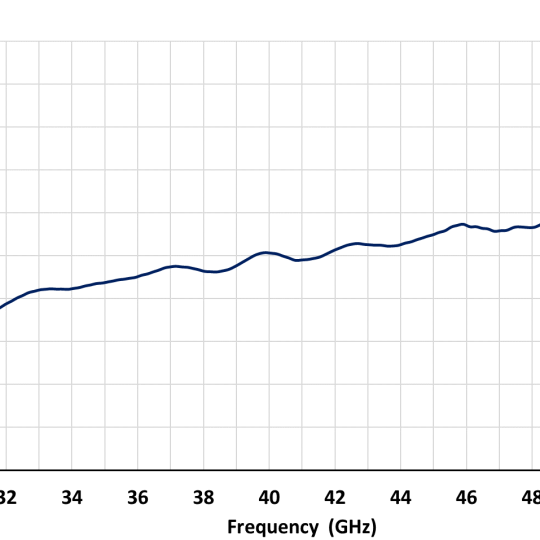

        Gain

        H-A50 - Gain

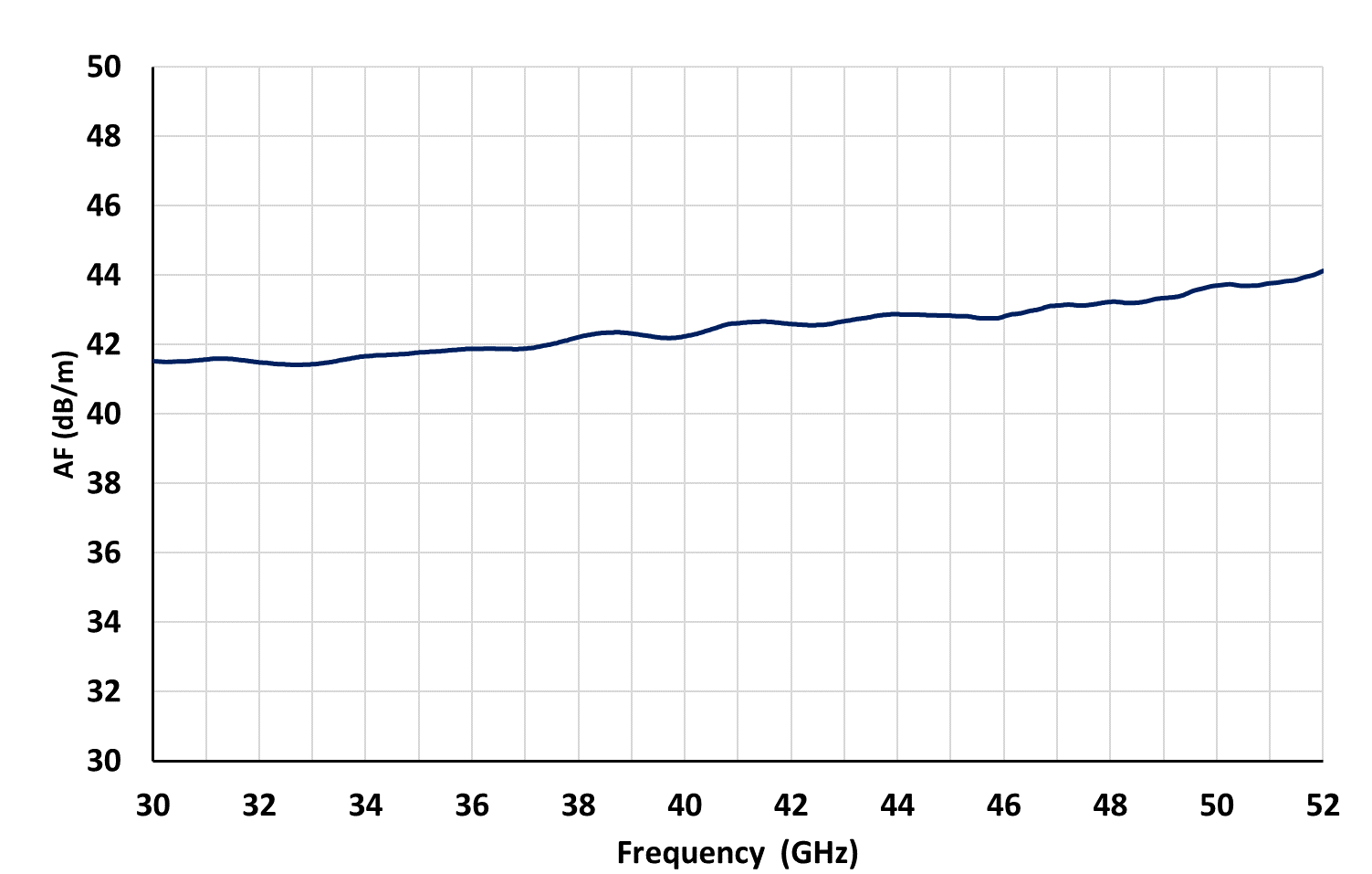

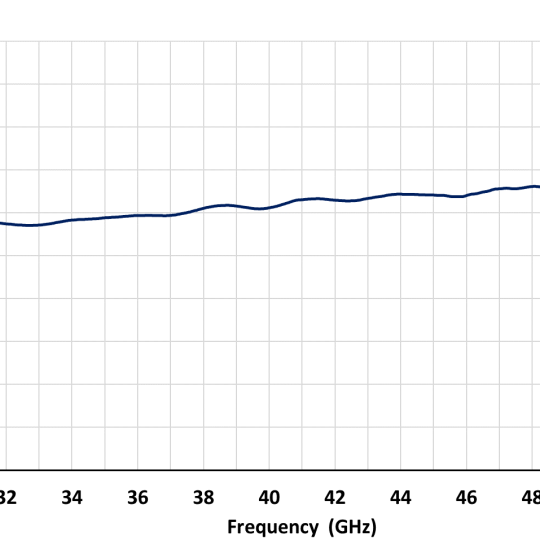

        AF

        H-A50 - AF

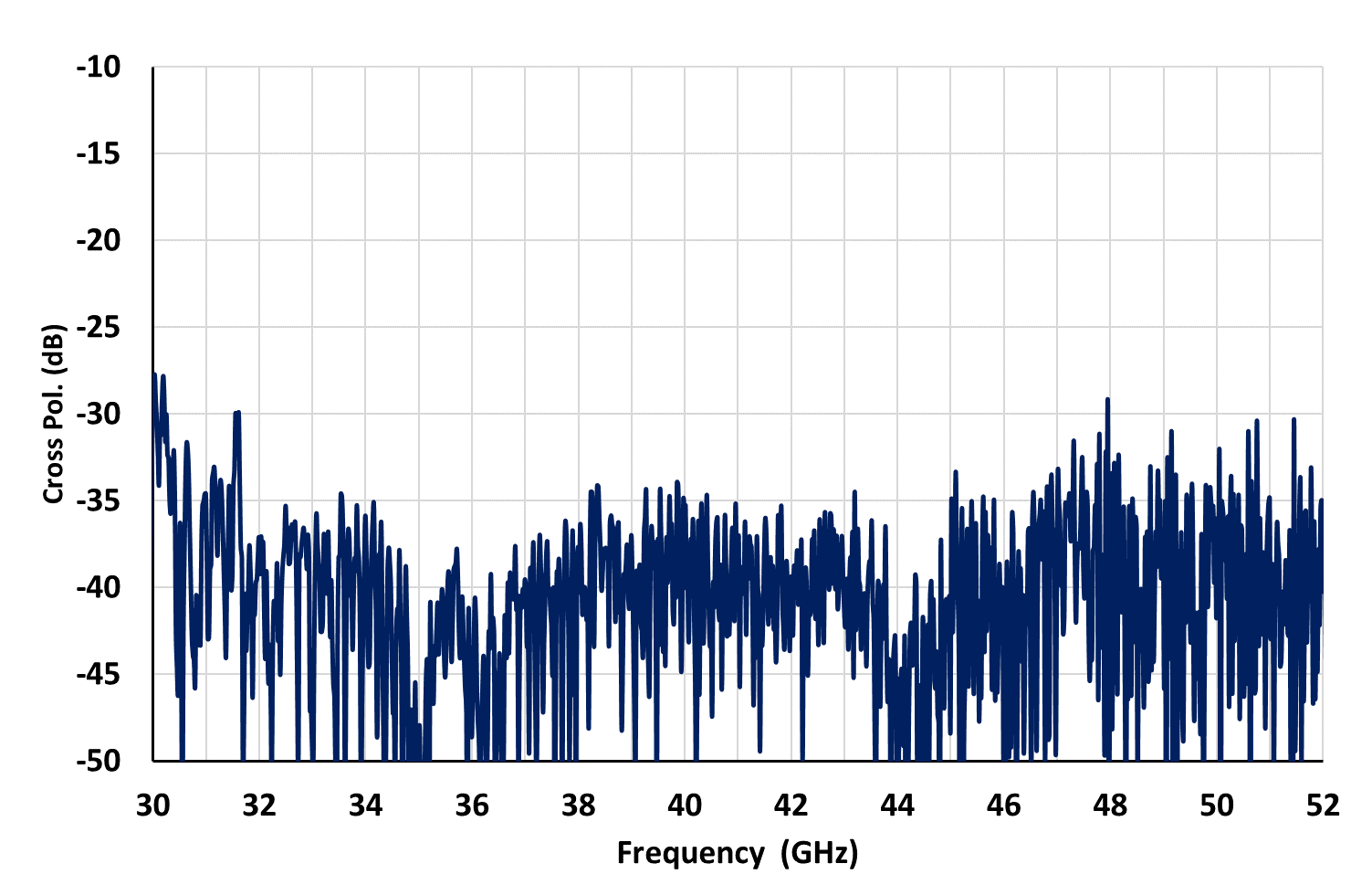

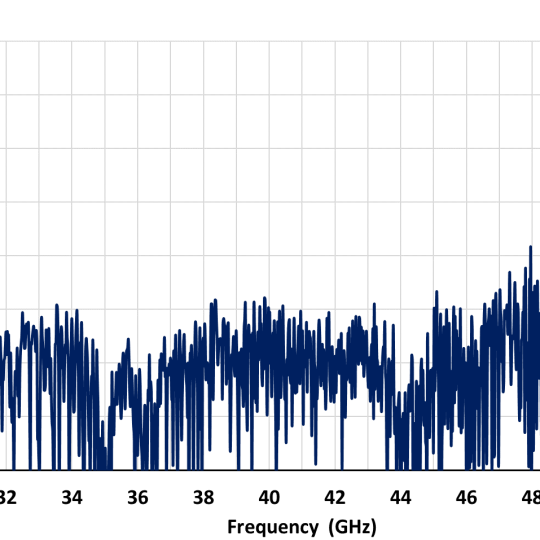

        Cross Polarization

        H-A50 - Cross Polarization

        Packaging and Accessories

        What's in a box

        • H-A50 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Custom services

        • Custom mounting solutions
        • Custom calibration data
