        H-A140-W20

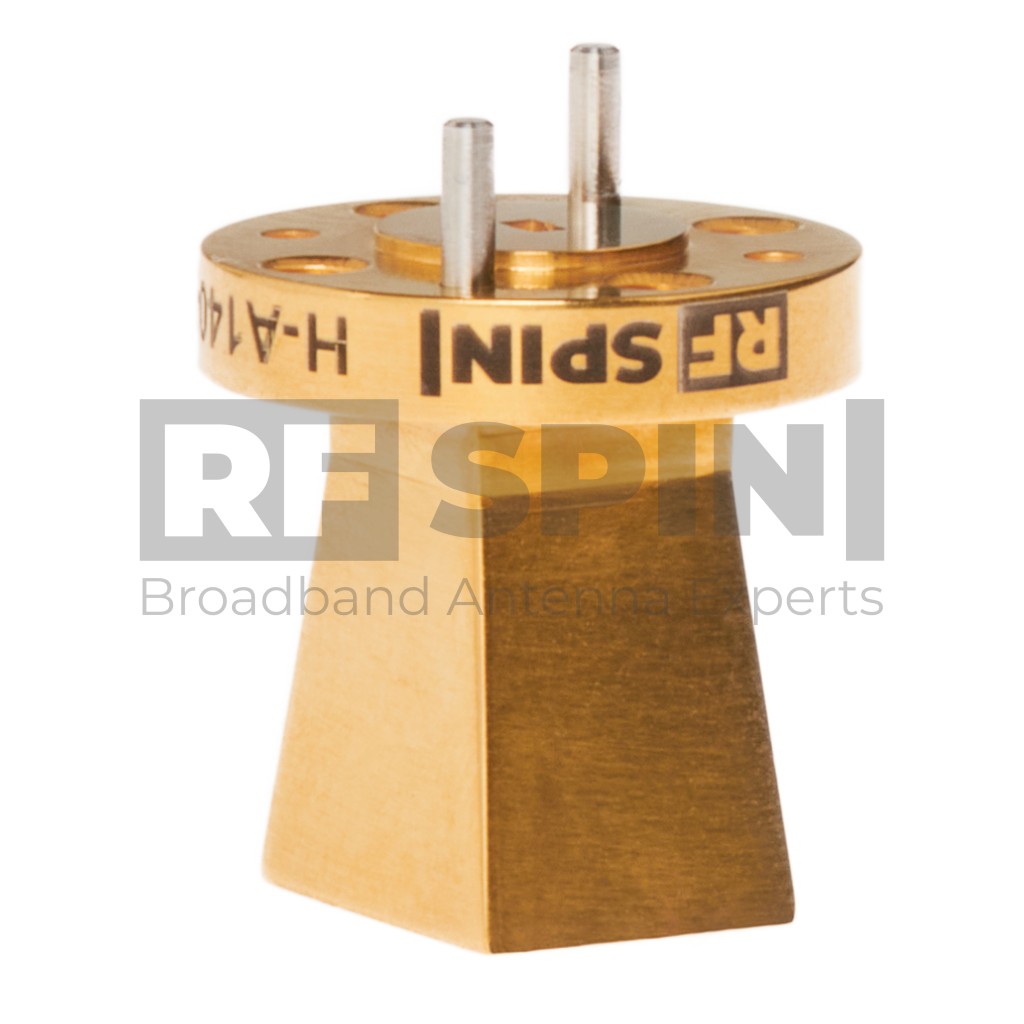

        Pyramidal Horn Antenna

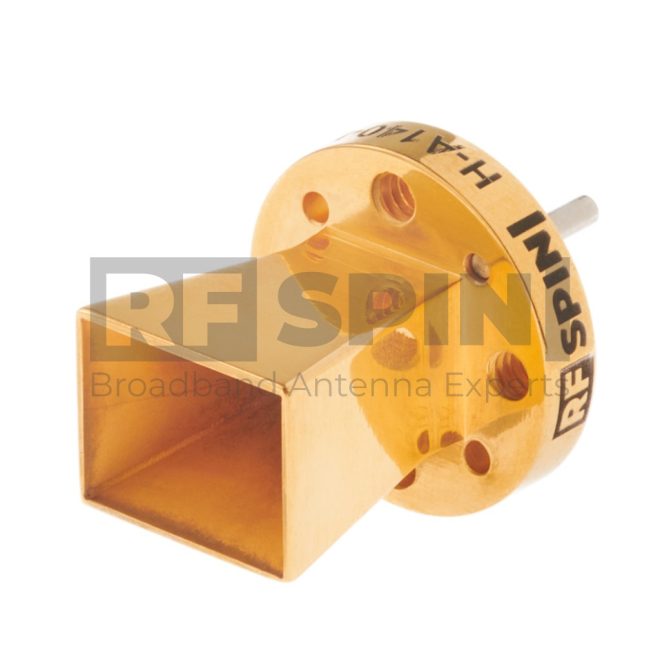

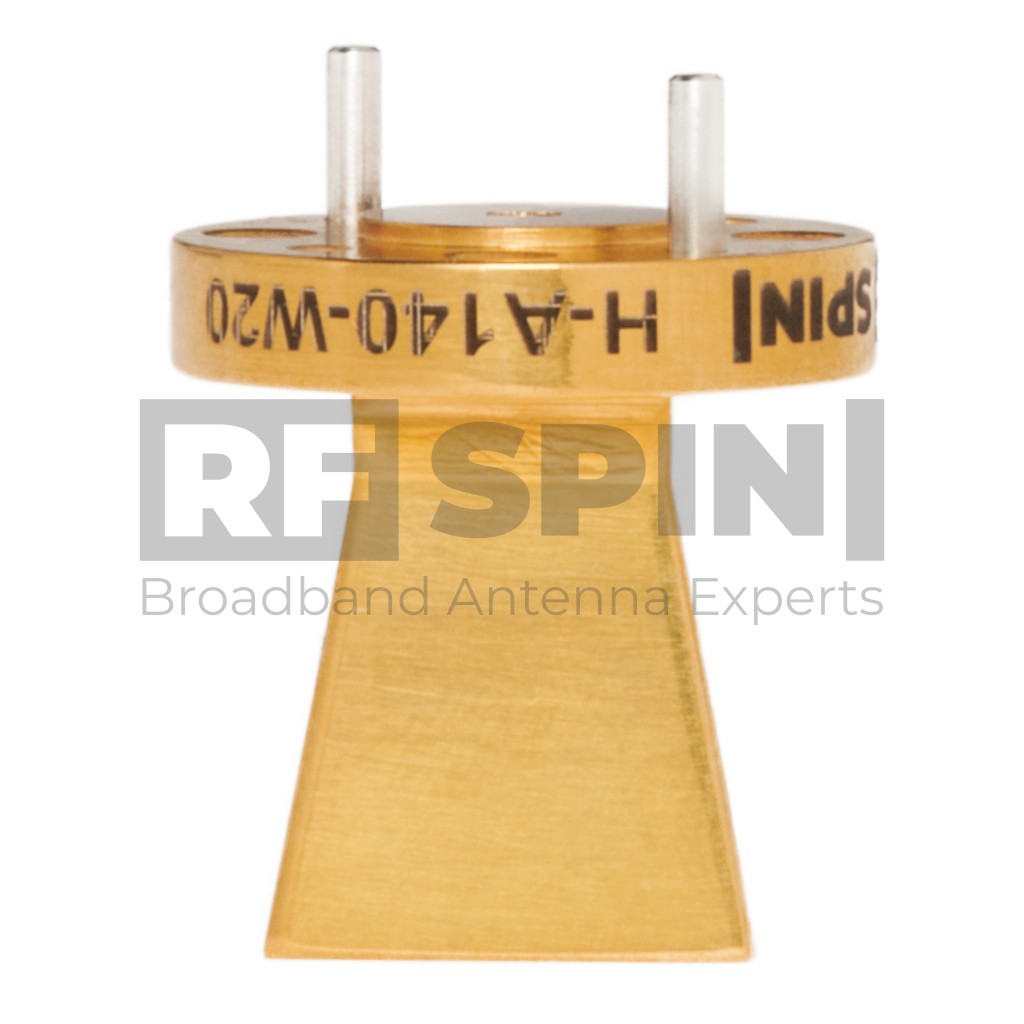

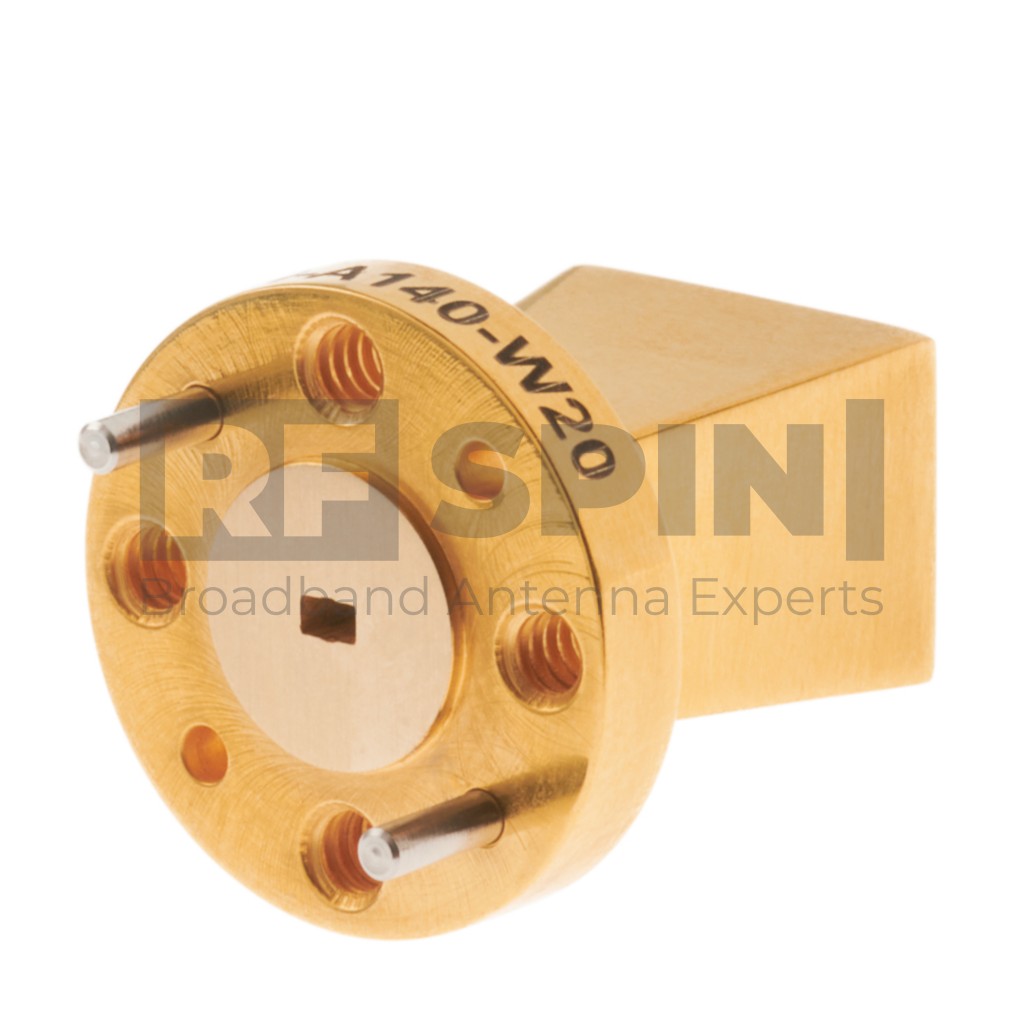

        Pyramidal horn antenna with the surface finish from Alodine 2040. H-A140-W20 pyramidal horn antenna is made with precision and care with the latest technology to deliver accurate and reliable antenna measurements.  The operating frequency is from 90 GHz up to 140 GHz with a flat Gain of 20 dBi. The H-A140-W20 can be supplemented with a corresponding Waveguide to Coax Adapter.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss

        Design and Surface Treatment

        • Corrosion-resistant coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable

        Product Packaging Includes

        • Antenna

        Product Parameters

        Product identification

        • Product Name H-A140-W20
        • Product Category Pyramidal Horn Antenna

        Electrical specifications

        • Frequency Range 90 GHz – 140 GHz
        • VSWR (max.) 1.14
        • VSWR (avg.) 1.1
        • Waveguide Size WR10
        • Waveguide Flange UG-387/U flange

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Parameters and Performance

        Typical parameters

        VSWR

        H-A140-W20 - VSWR

        Gain

        H-A140-W20 - Gain

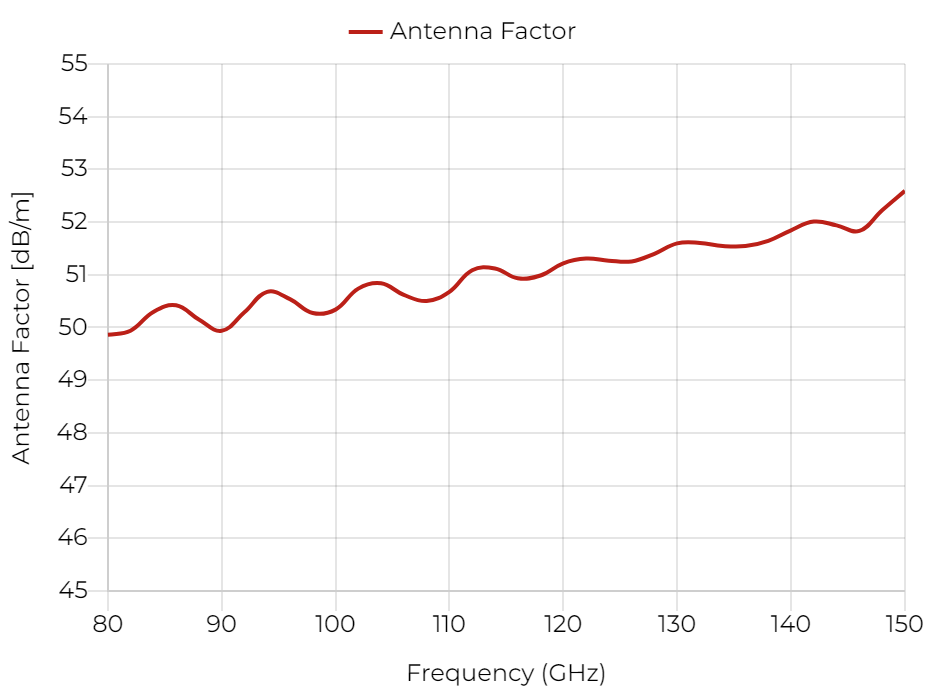

        Antenna Factor

        H-A140-W20 - Antenna Factor

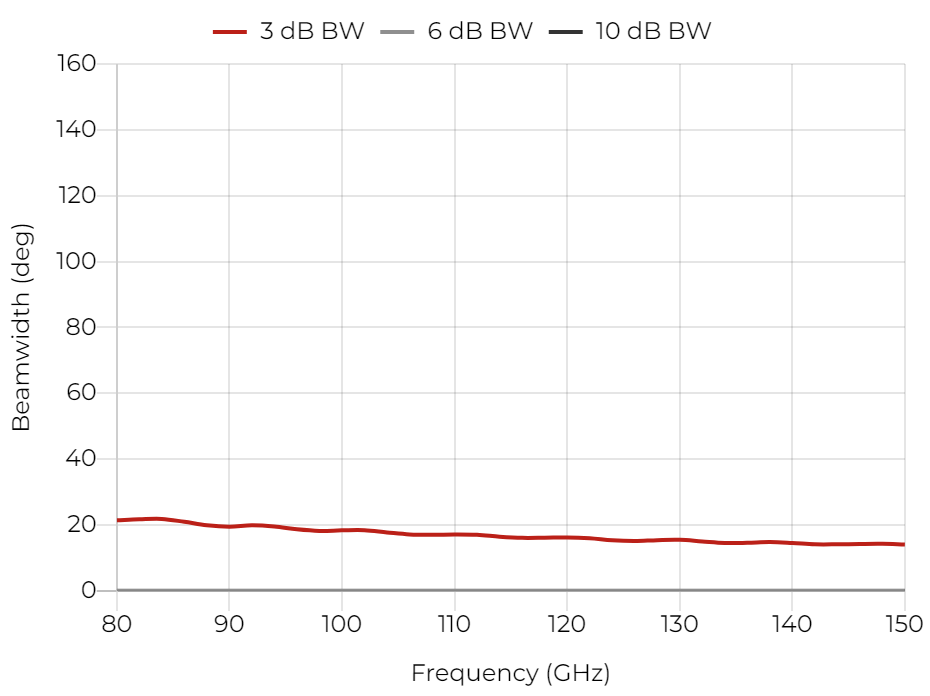

        Beamwidth

        Packaging and Accessories

        What's in a box

        • H-A140-W20 Antenna

        Accessories

        • Standard mounting flange
