        H-A140-W25

        Pyramidal Horn Antenna

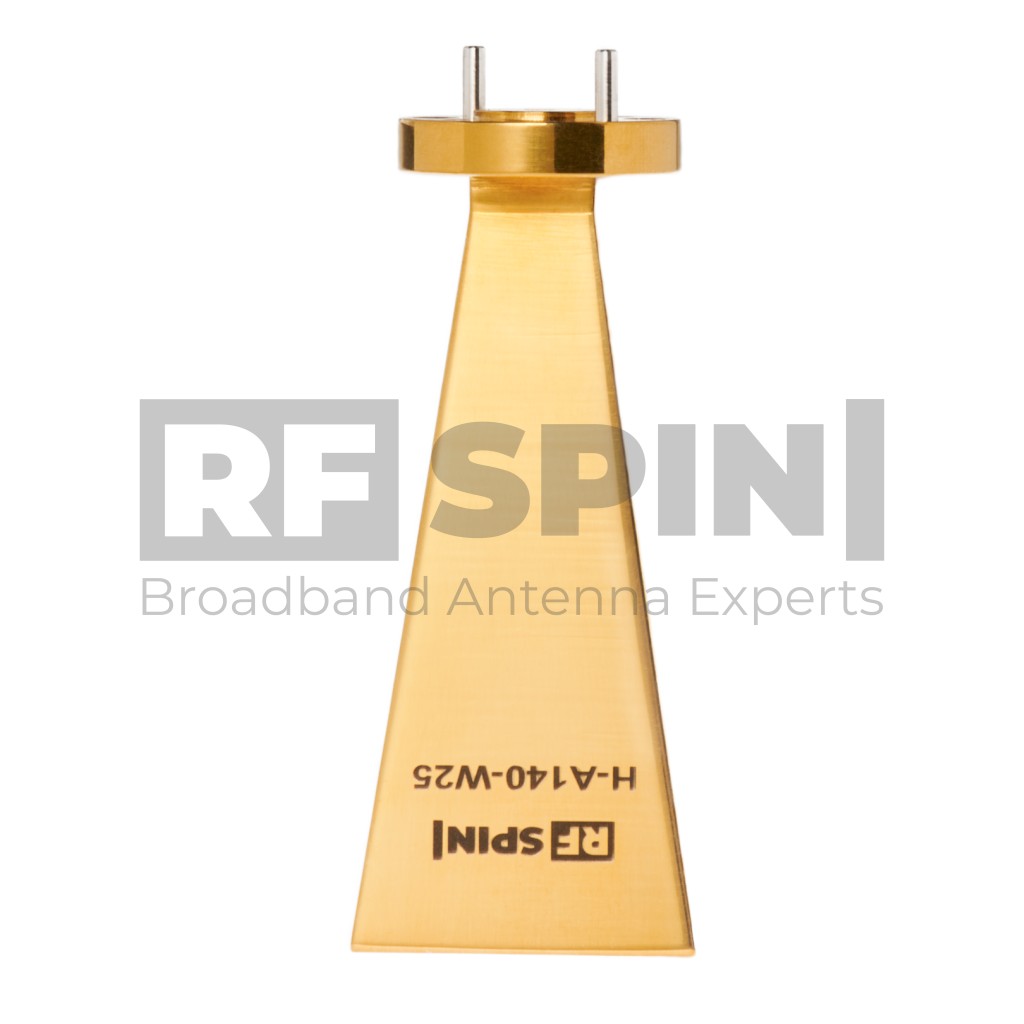

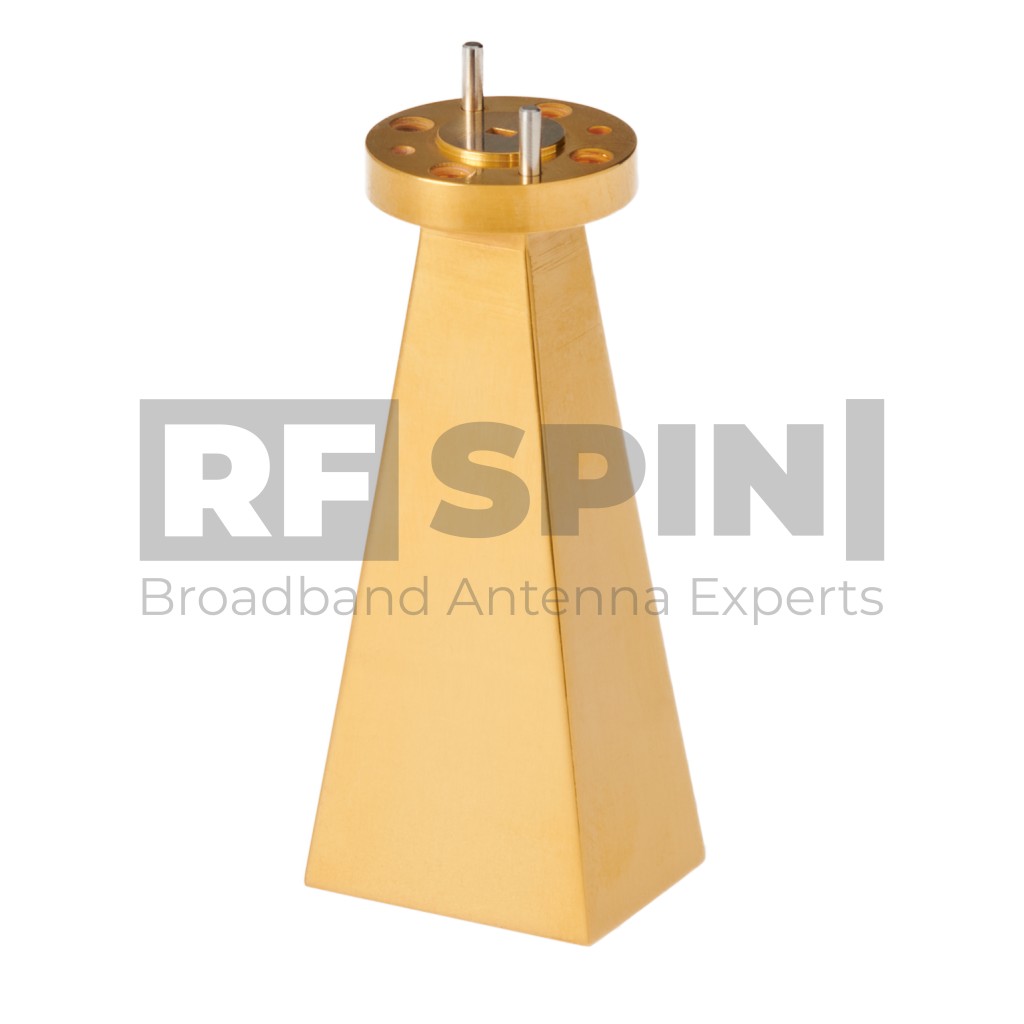

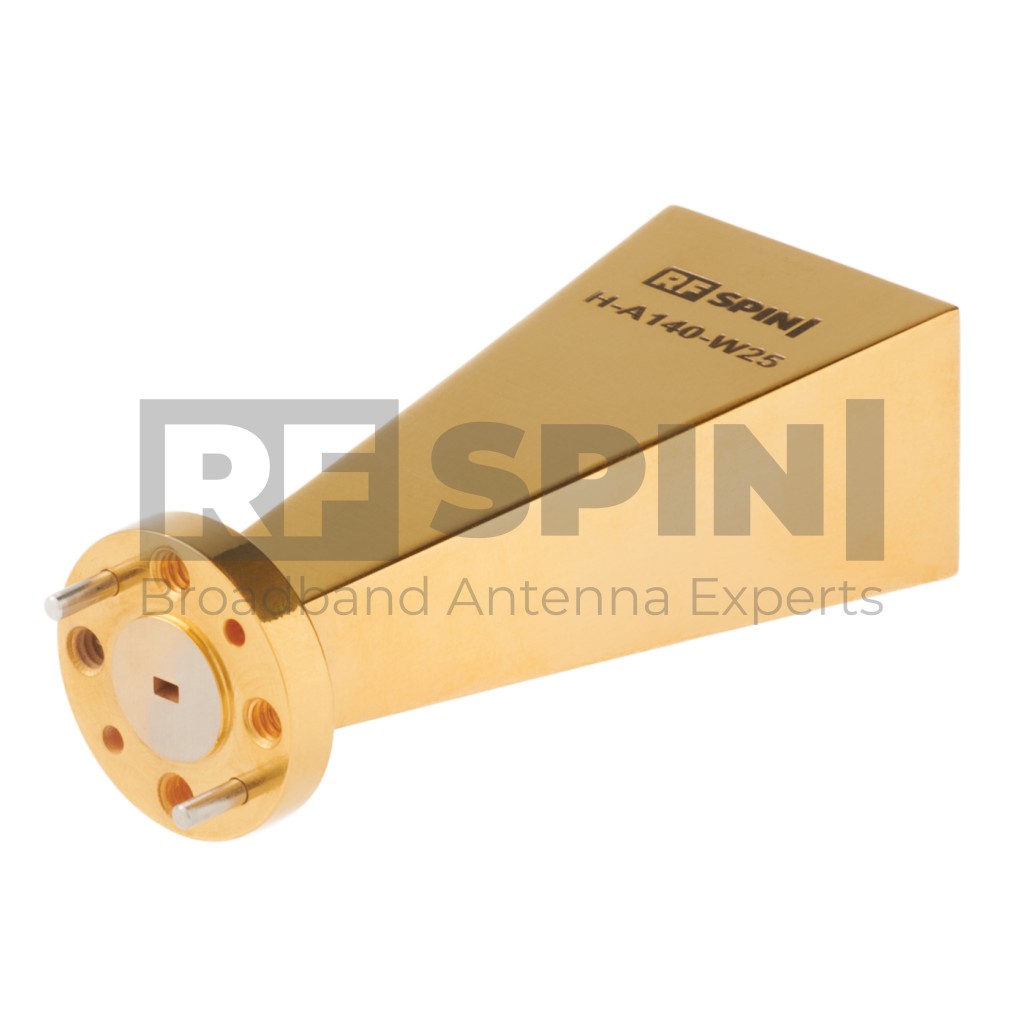

        Pyramidal horn antenna with the surface finish from Alodine 2040. H-A140-W25 pyramidal horn antenna is made with precision and care with the latest technology to deliver accurate and reliable antenna measurements.  The operating frequency is from 90 GHz up to 140 GHz with a flat Gain of 25 dBi. The H-A140-W25 can be supplemented with a corresponding Waveguide to Coax Adapter.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss

        Design and Surface Treatment

        • Corrosion-resistant coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable

        Product Packaging Includes

        • Antenna

        Product Parameters

        Product identification

        • Product Name H-A140-W25
        • Product Category Pyramidal Horn Antenna

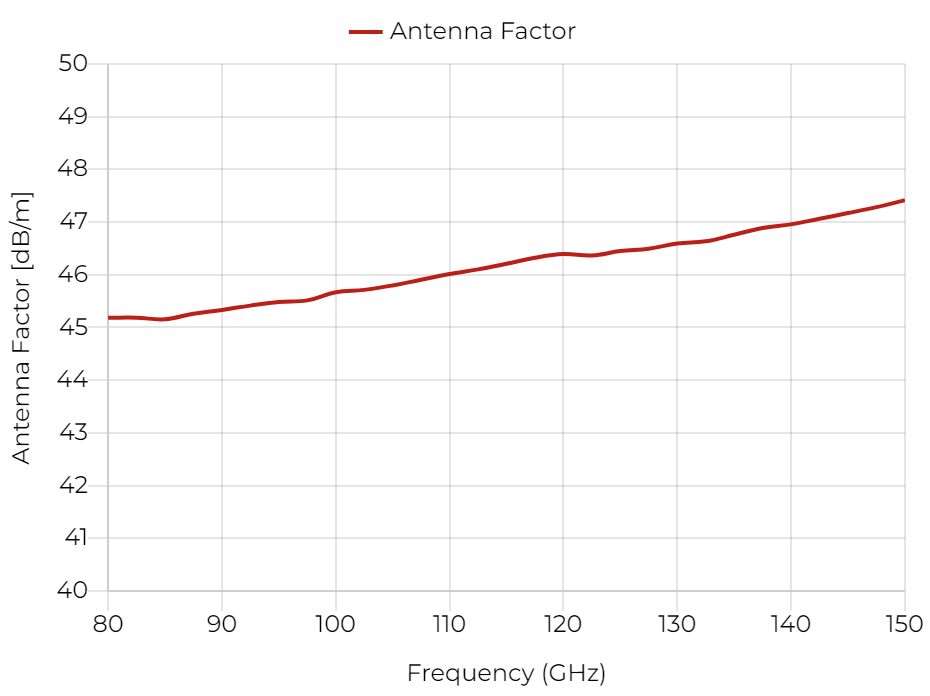

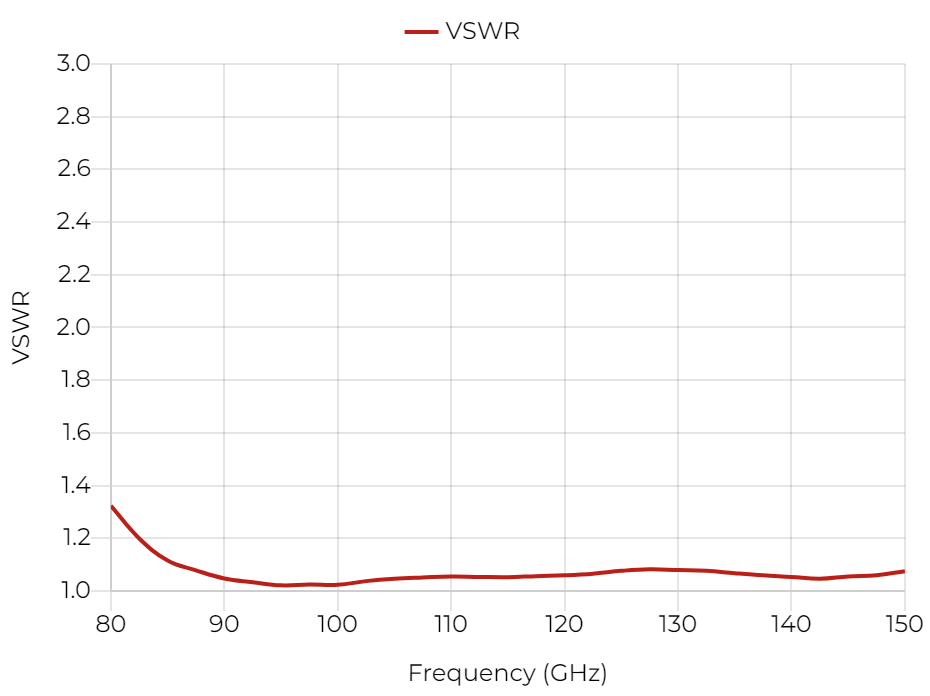

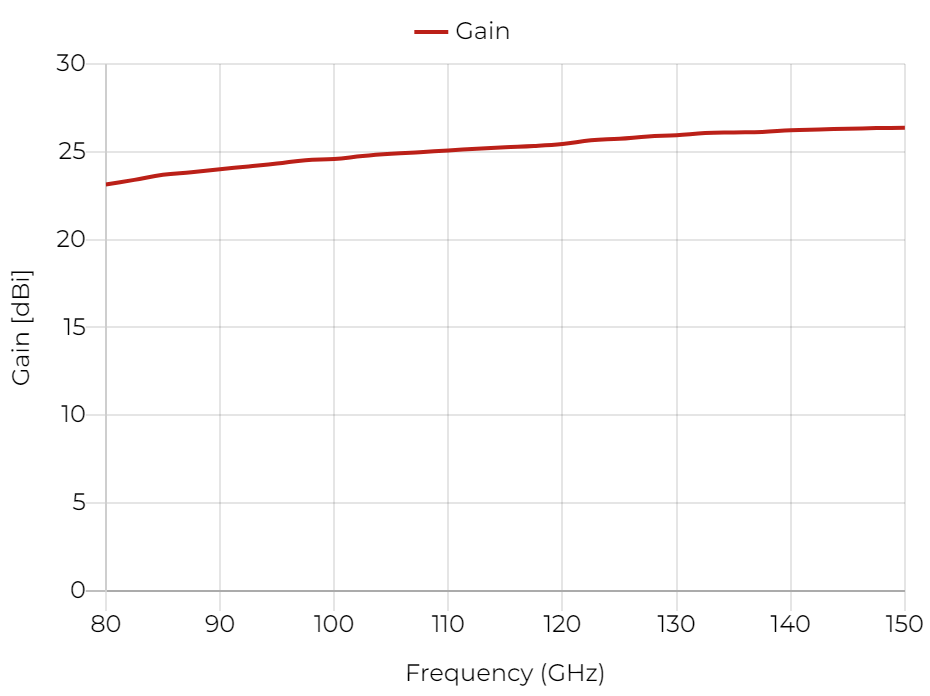

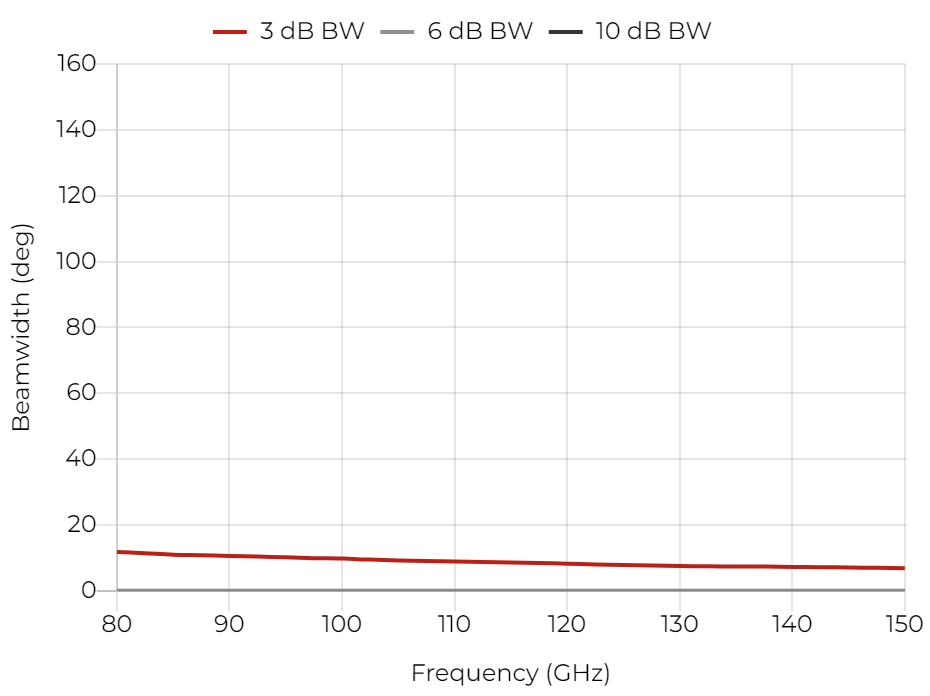

        Electrical specifications

        • Frequency Range 90 GHz – 140 GHz
        • VSWR (max.) 1.14
        • VSWR (avg.) 1.1
        • Waveguide Size WR8
        • Waveguide Flange UG-387/U flange

        Physical specifications

        • Width 47.7 mm (1.878 in)
        • Height 46.6 mm (1.835 in)
        • Depth 37.7 mm (1.484 in)
        • Weight 0.038 kg (0.084 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Packaging and Accessories

        What's in a box

        • H-A140-W25 Antenna

        Accessories

        • Standard mounting flange
