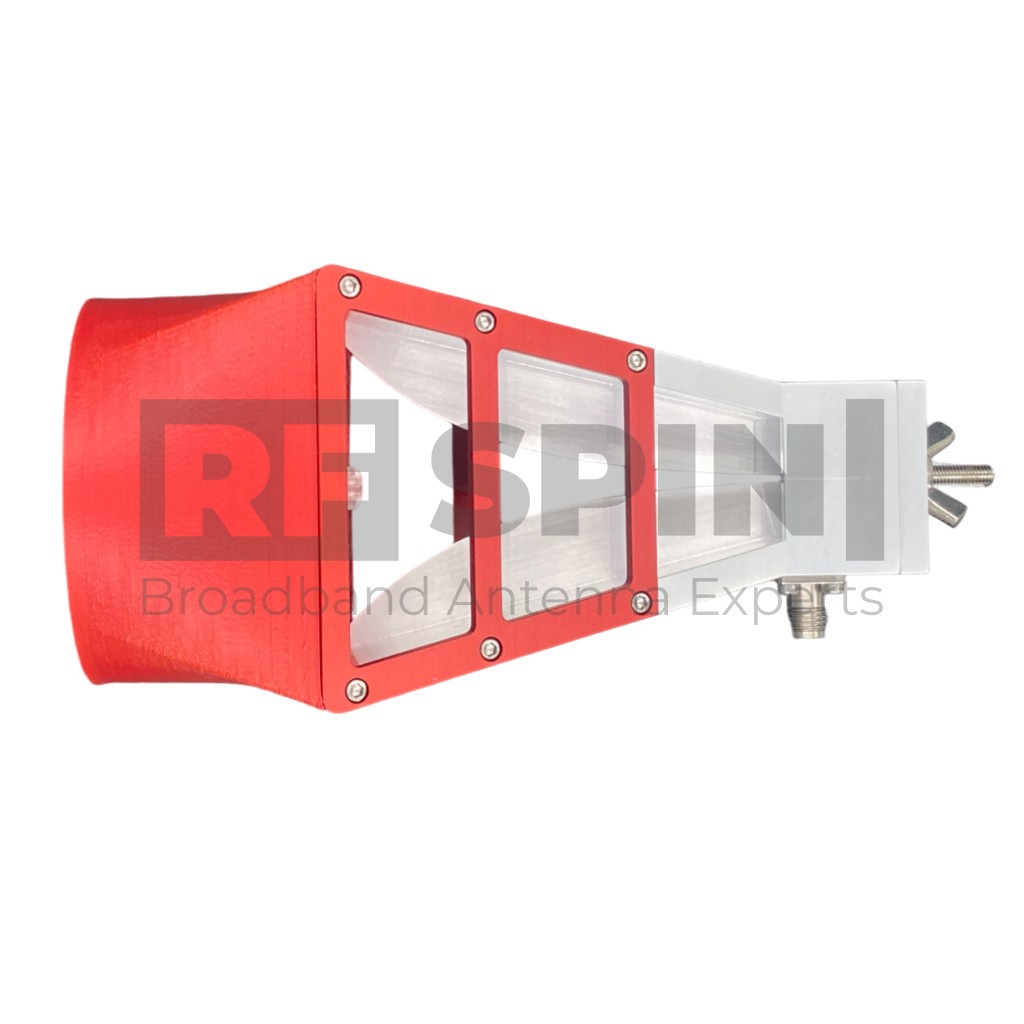

        DRH30C

        Double Ridged Horn Antenna

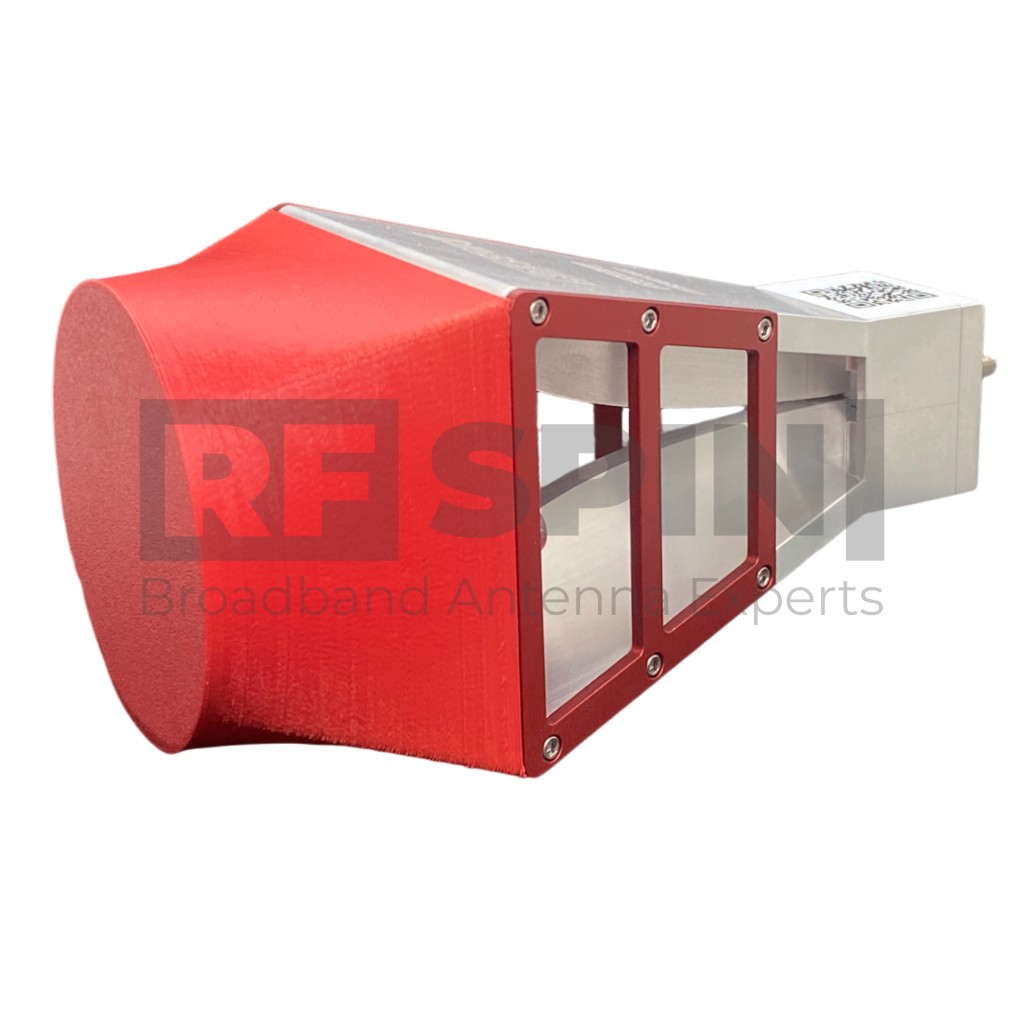

        Single-polarized broadband antenna DRH30C with 3D printed patented lens technology. Increase the Gain and enhance the overall performance by using a smart lens while keeping low weight and small size.

        Cloned antenna series are available through AU Technology, which guarantees constant parameters.

        Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        5G
        QR code
        Custom design

        Features and Specifications

        Technical Performance

        • High gain
        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount

        Manufacturing Technology

        • Extremely durable
        • High quality K type coaxial connector

        Product Packaging Includes

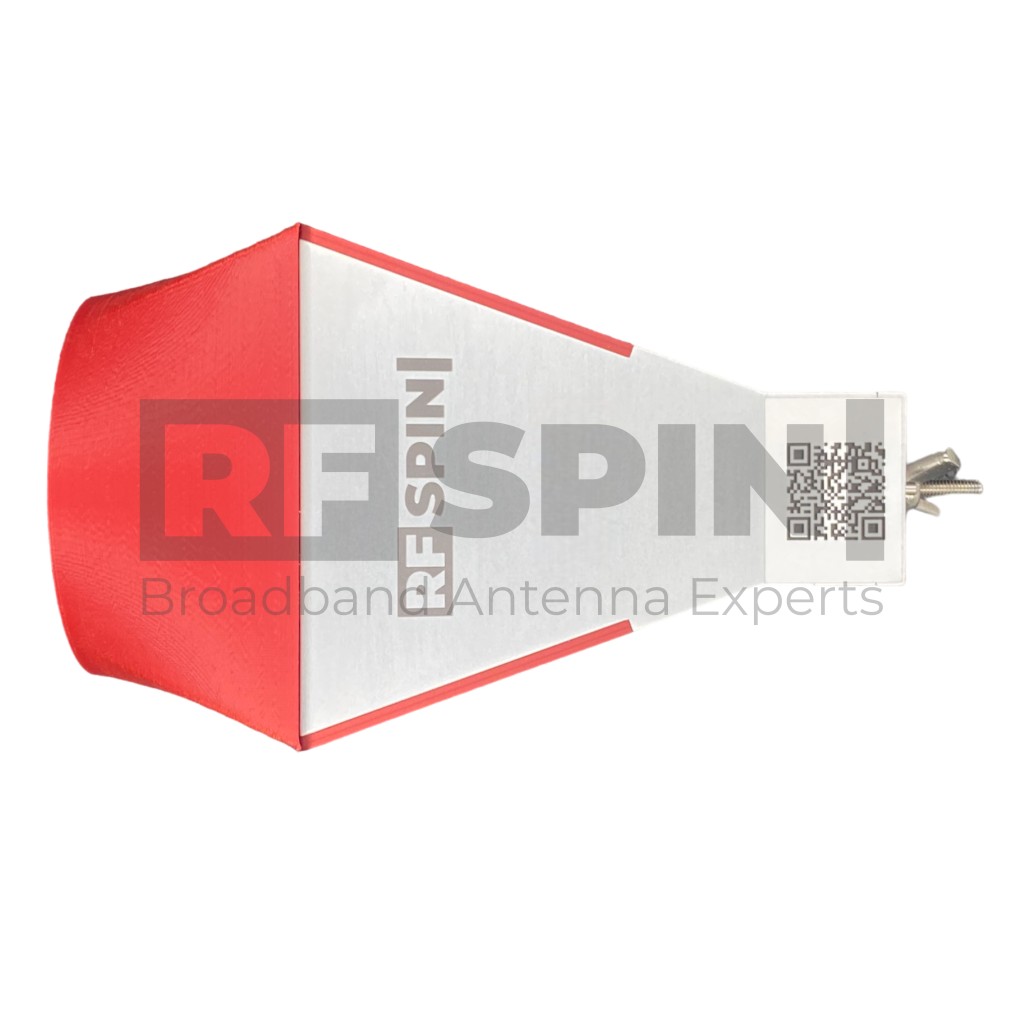

        • Antenna with lens
        • Adapter with ¼ inch inner thread, supplied with antenna

        Product Parameters

        Product identification

        • Product Name DRH30C
        • Product Category Double Ridged Horn Antenna

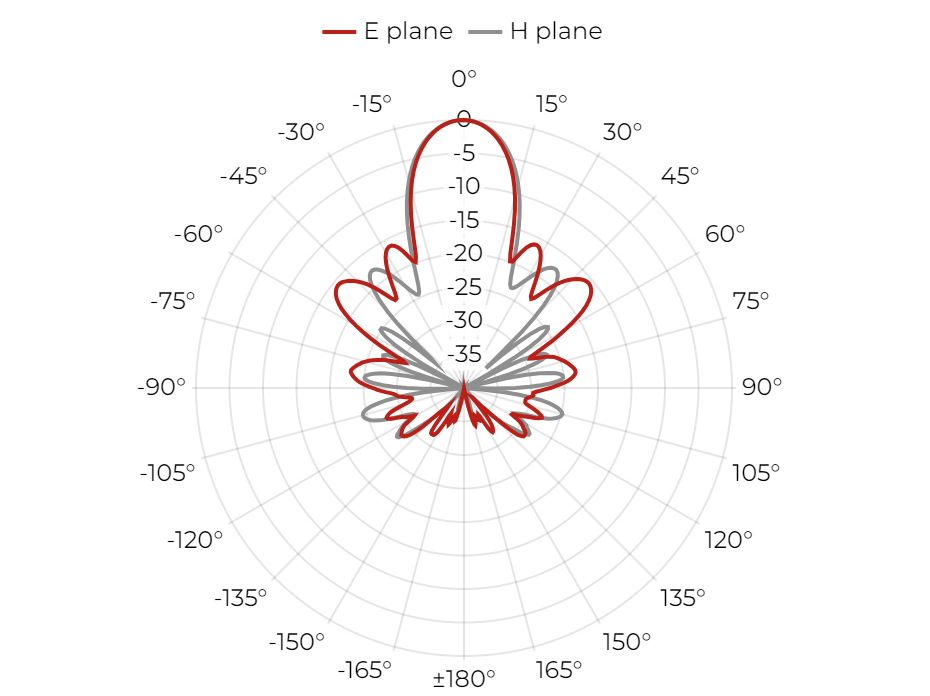

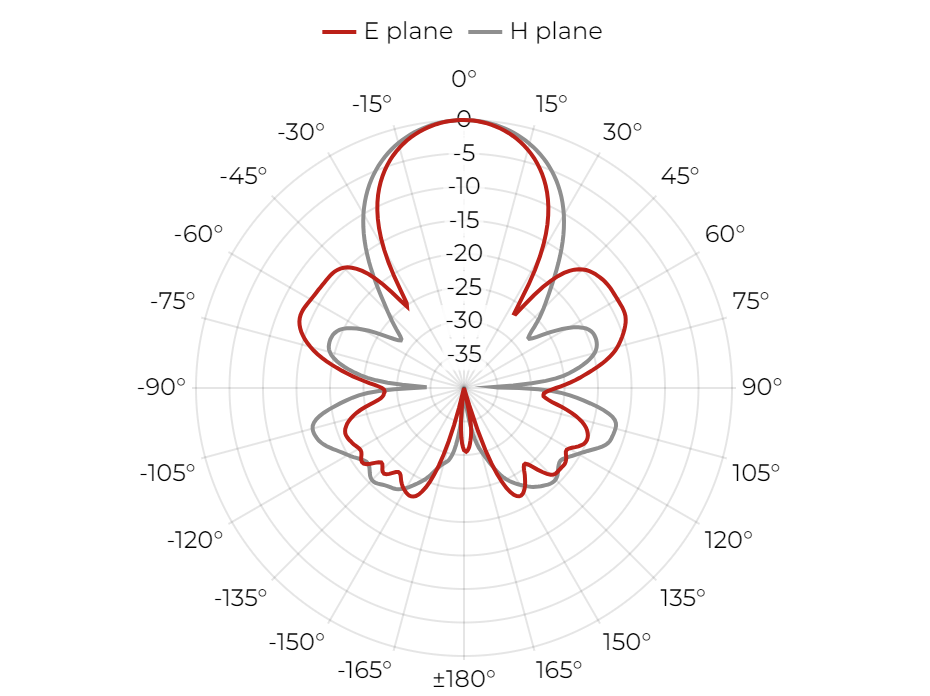

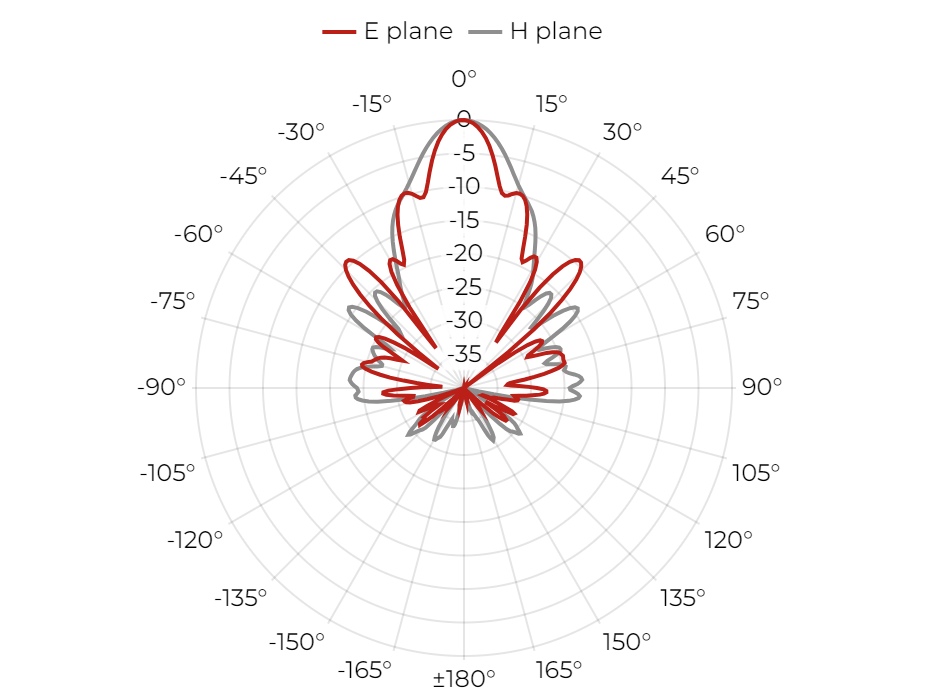

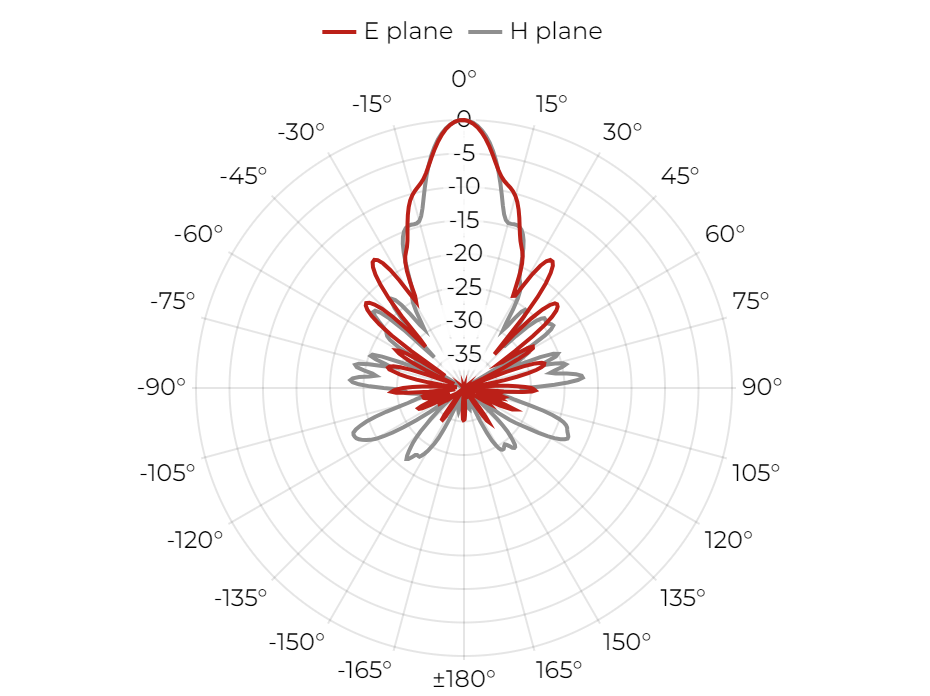

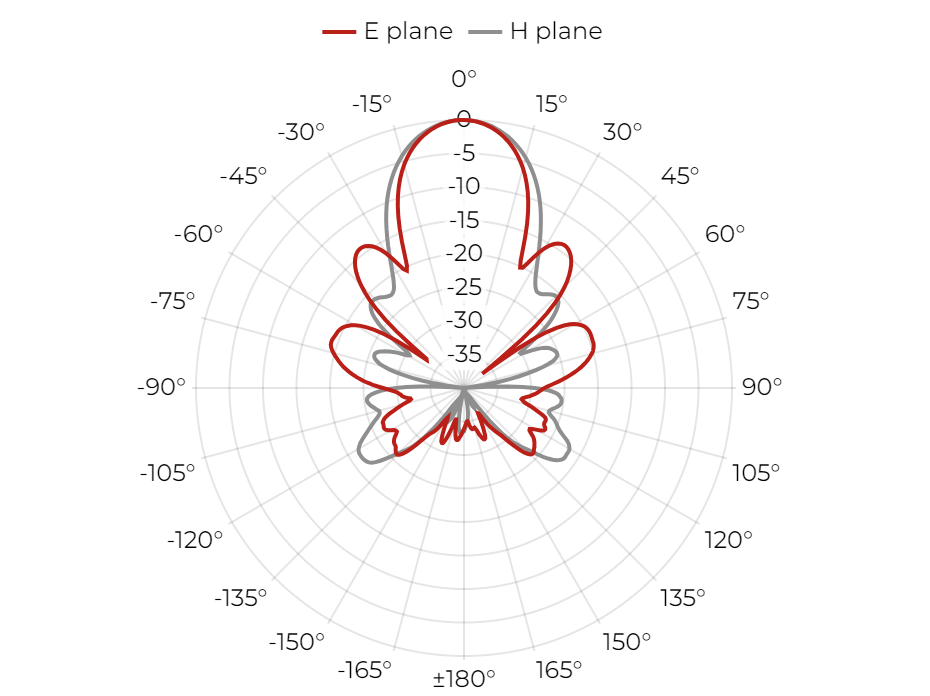

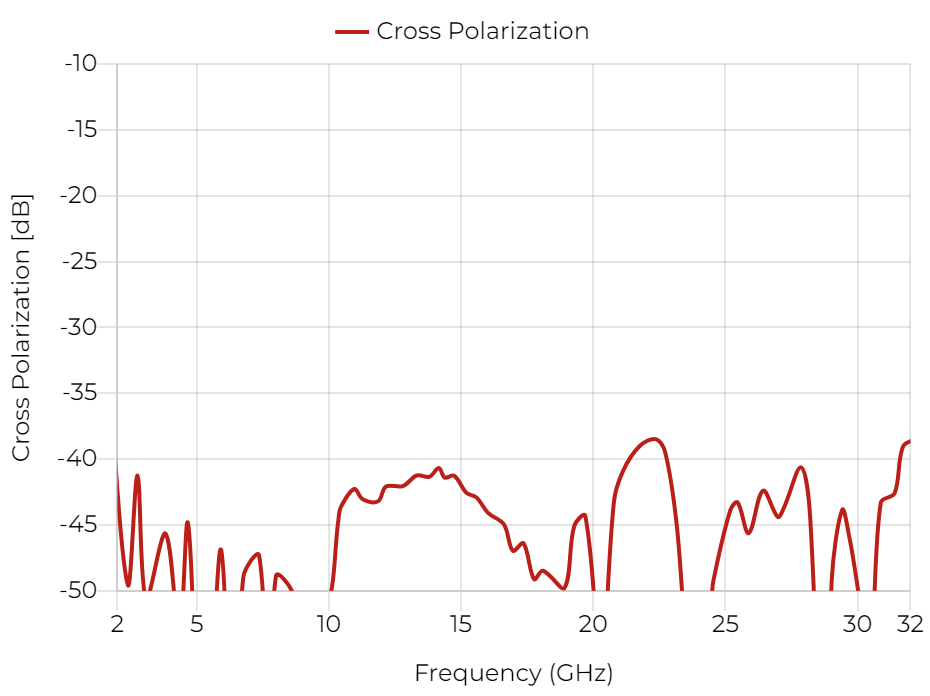

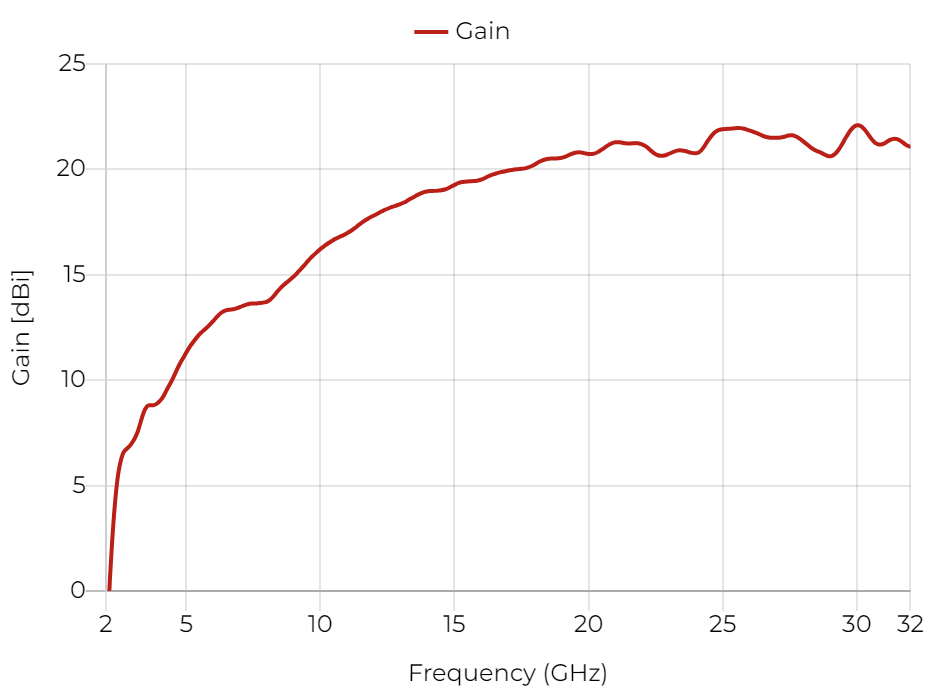

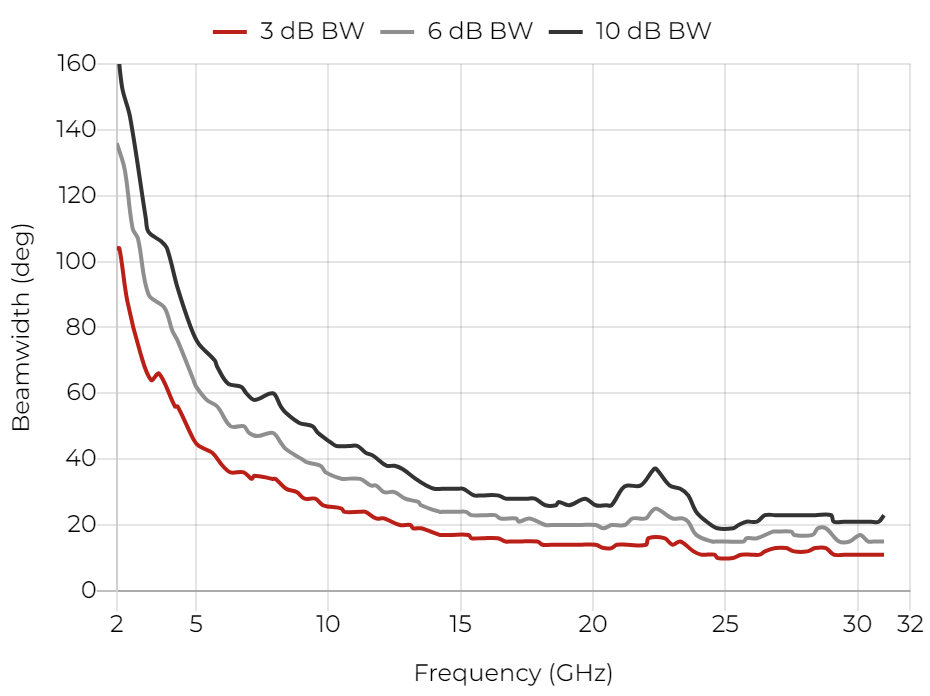

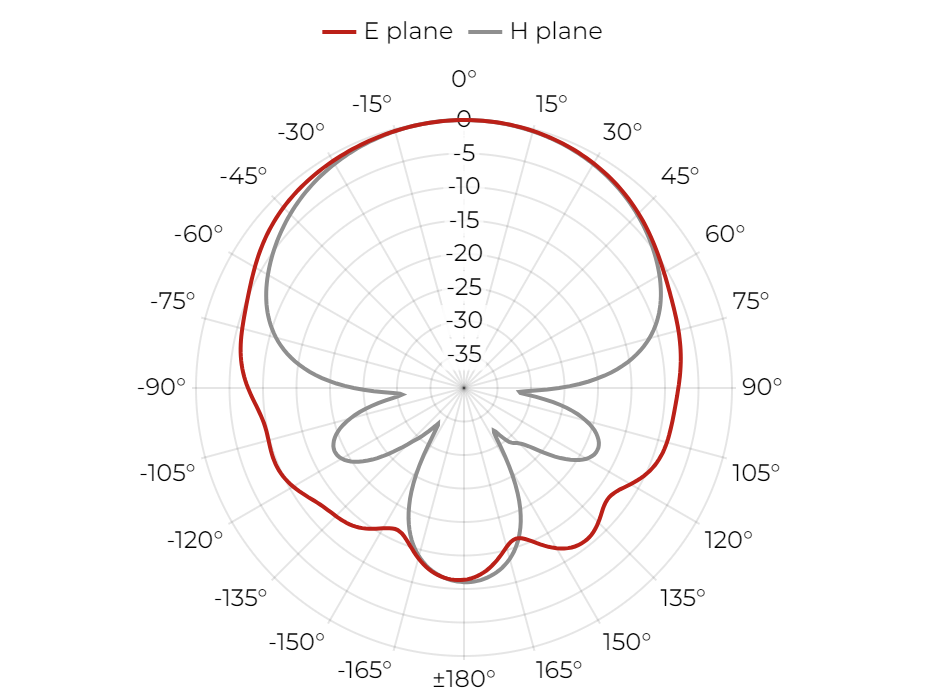

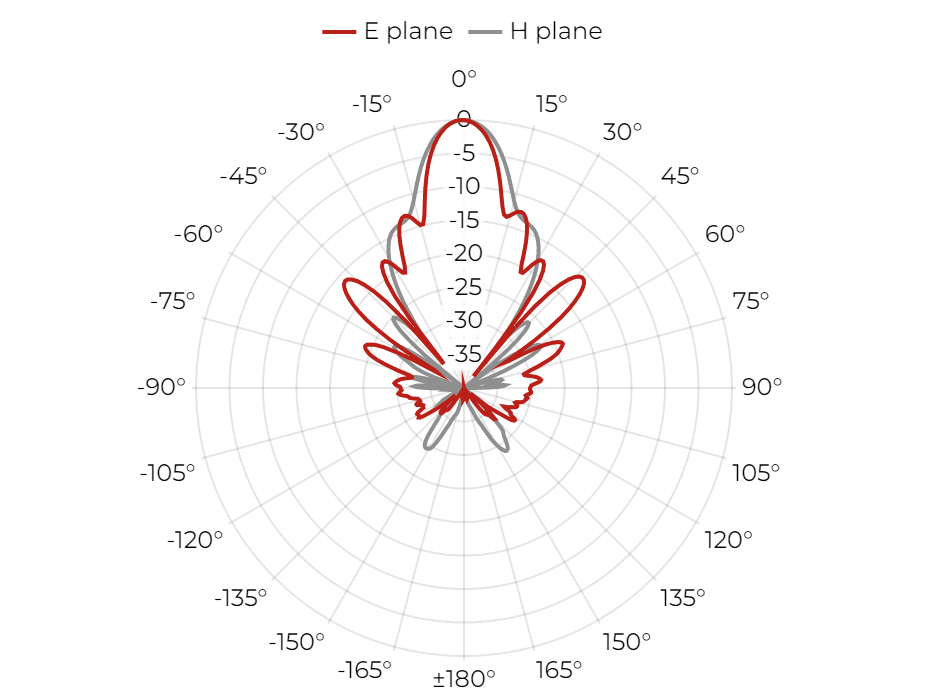

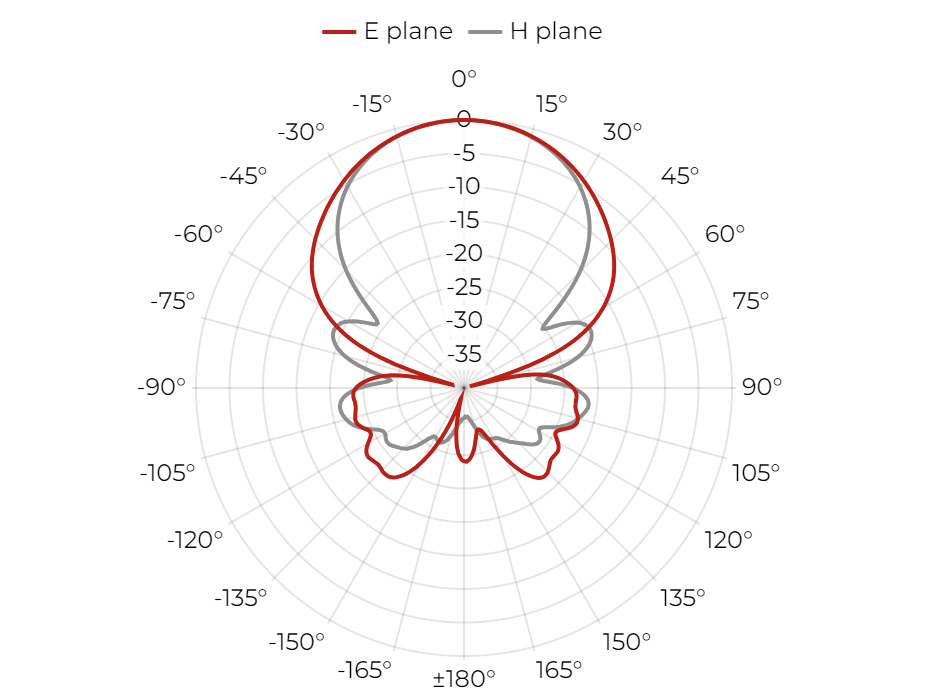

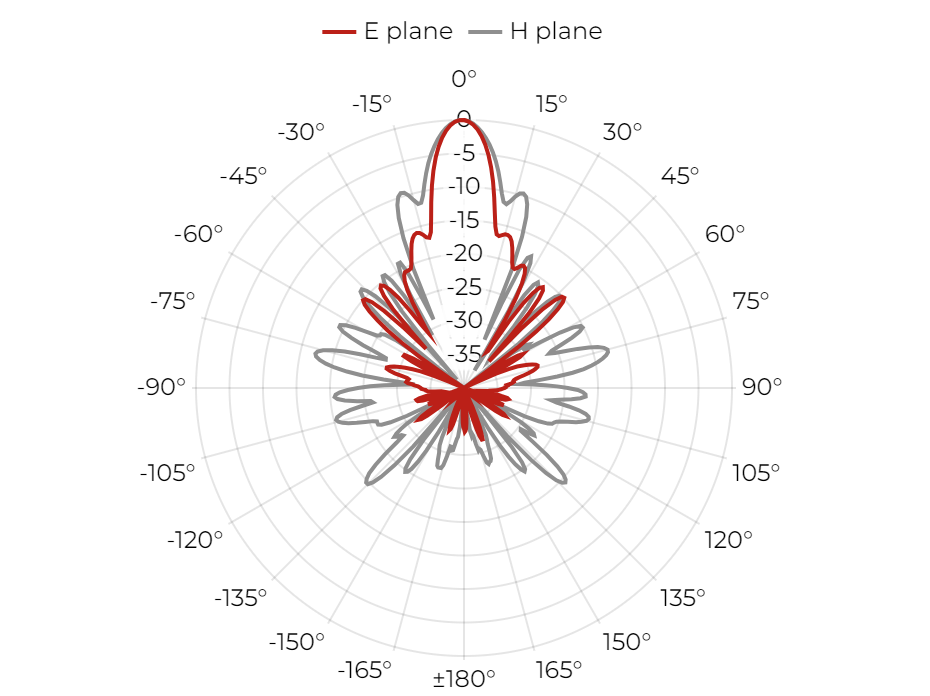

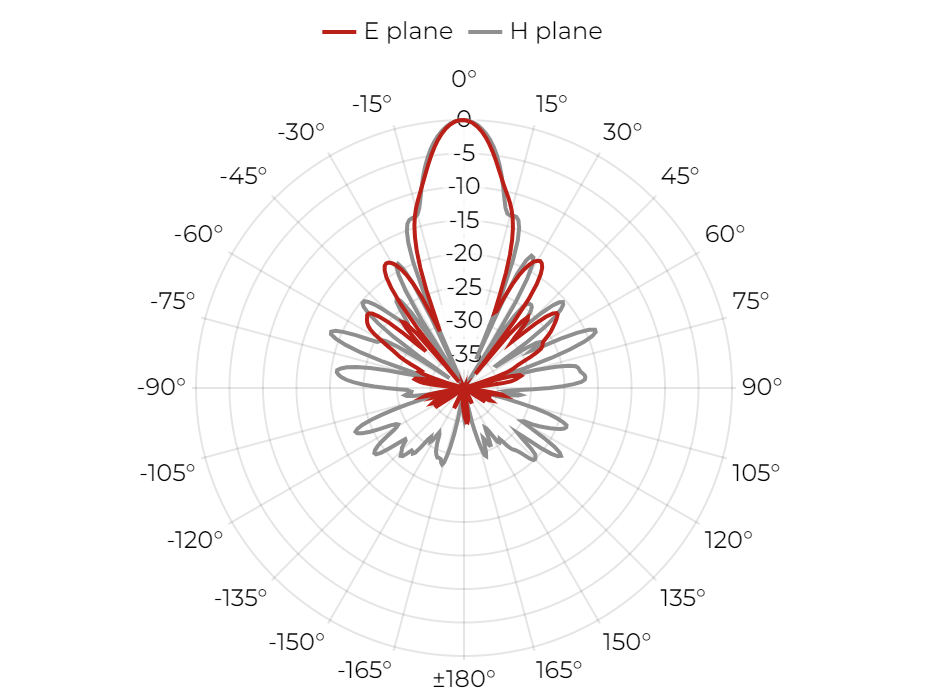

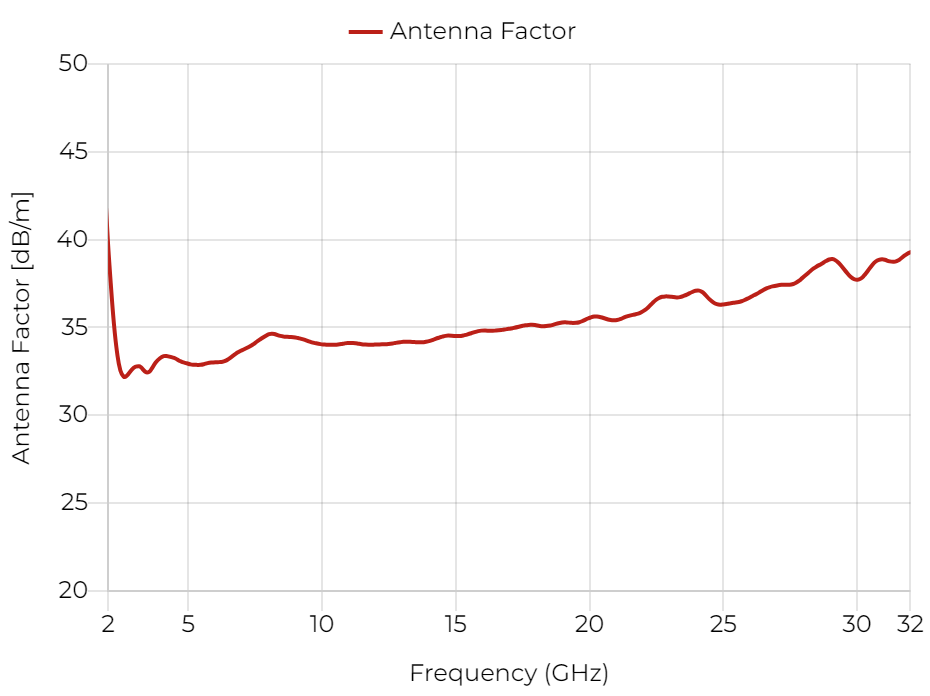

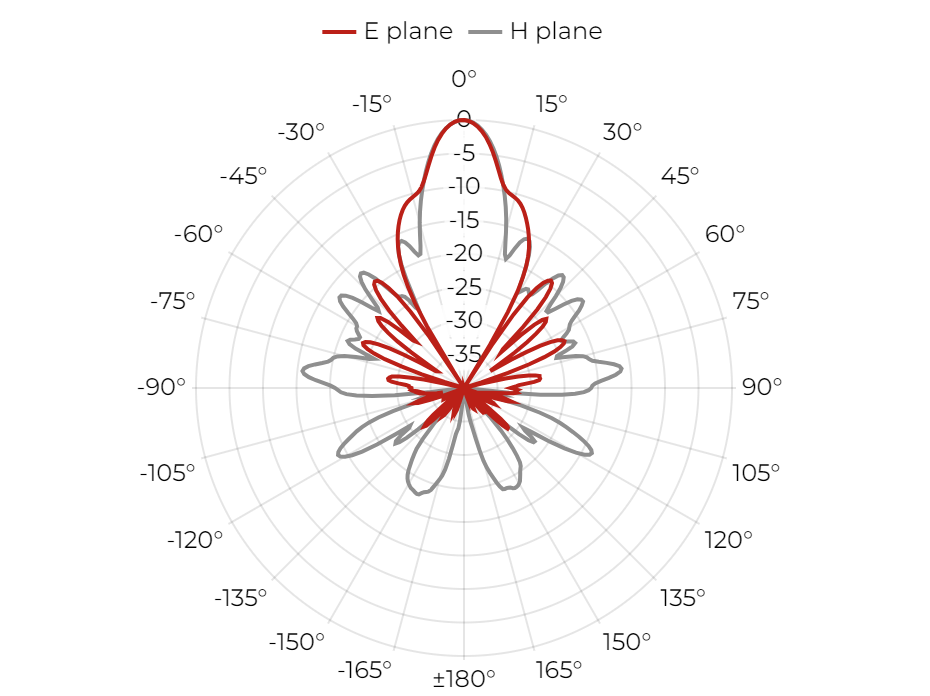

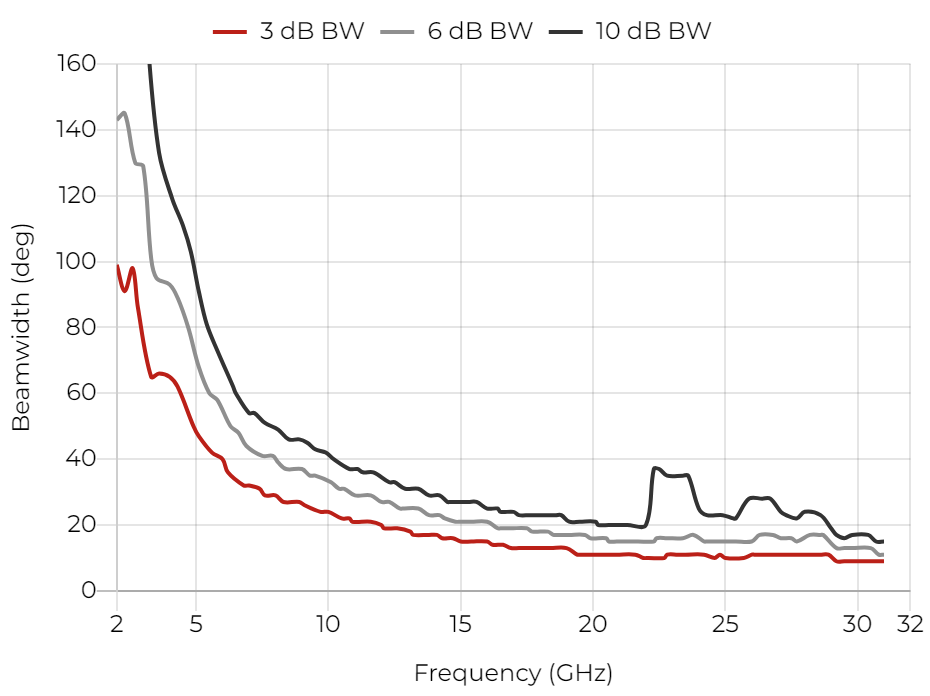

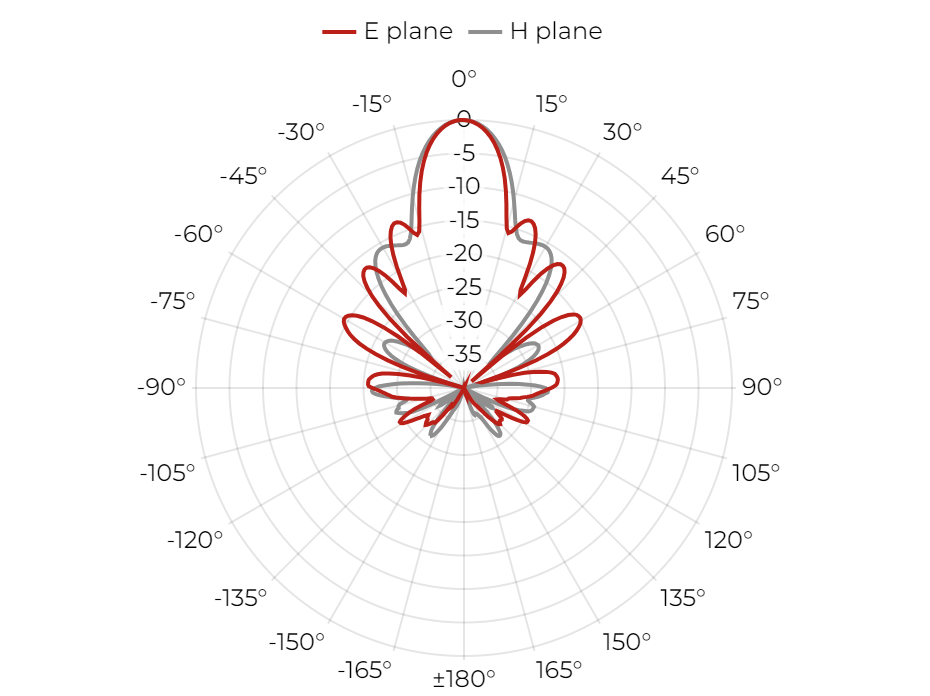

        Electrical specifications

        • Frequency Range 2.5 GHz – 30 GHz

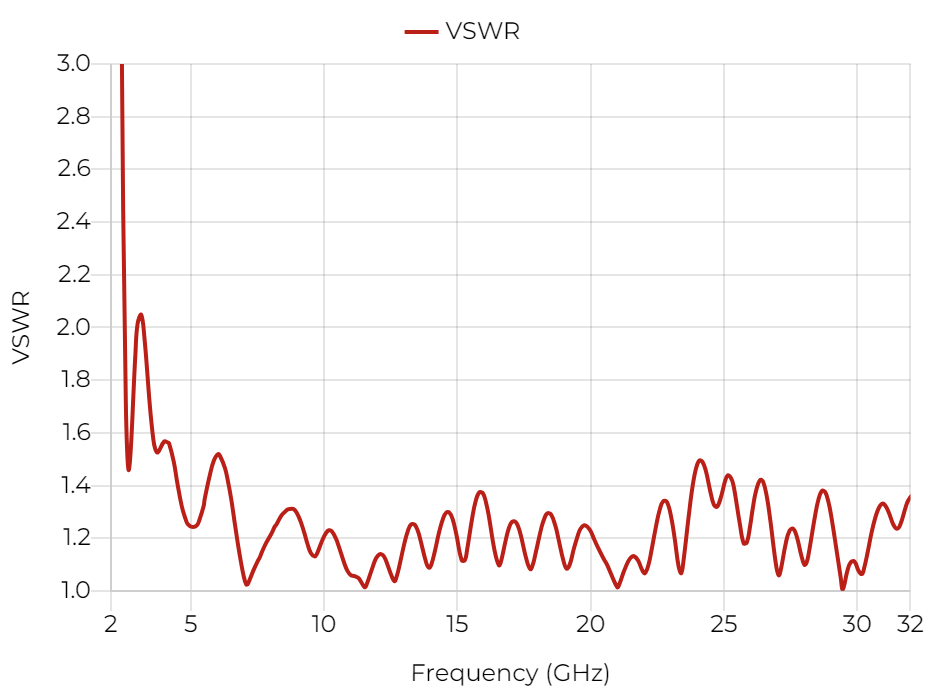

        • VSWR (max.) 2.2
        • VSWR (avg.) 1.25
        • Impedance 50 Ohm
        • Connector K (female)
        • Power (CW / Peak) 25 W / 50 W
        • Antenna Factor 32 – 40 dB/m
        • Polarization Linear

        Physical specifications

        • Width 70.7 mm (2.783 in)
        • Height 117 mm (4.606 in)
        • Depth 57.2 mm (2.252 in)
        • Weight 0.187 kg (0.412 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Packaging and Accessories

        What's in a box

        • DRH30C Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
