        DRH10C

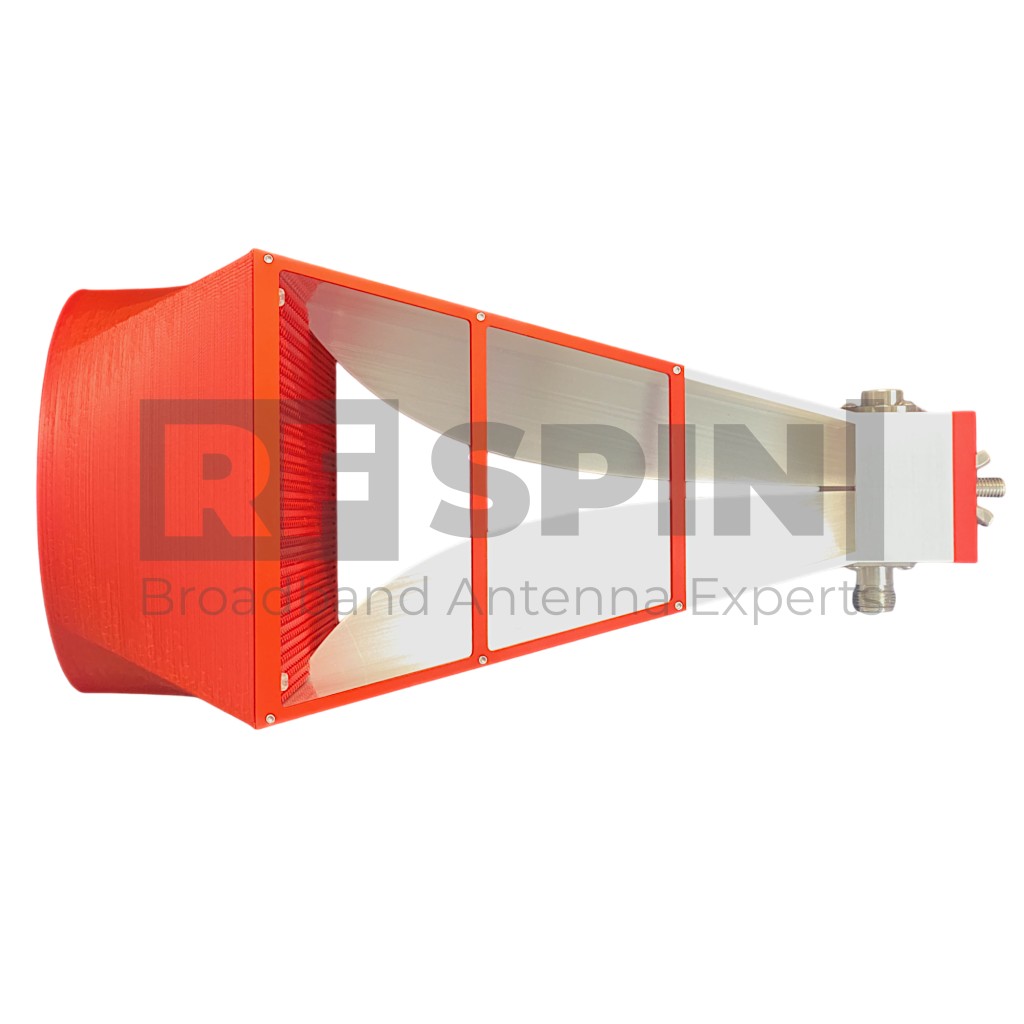

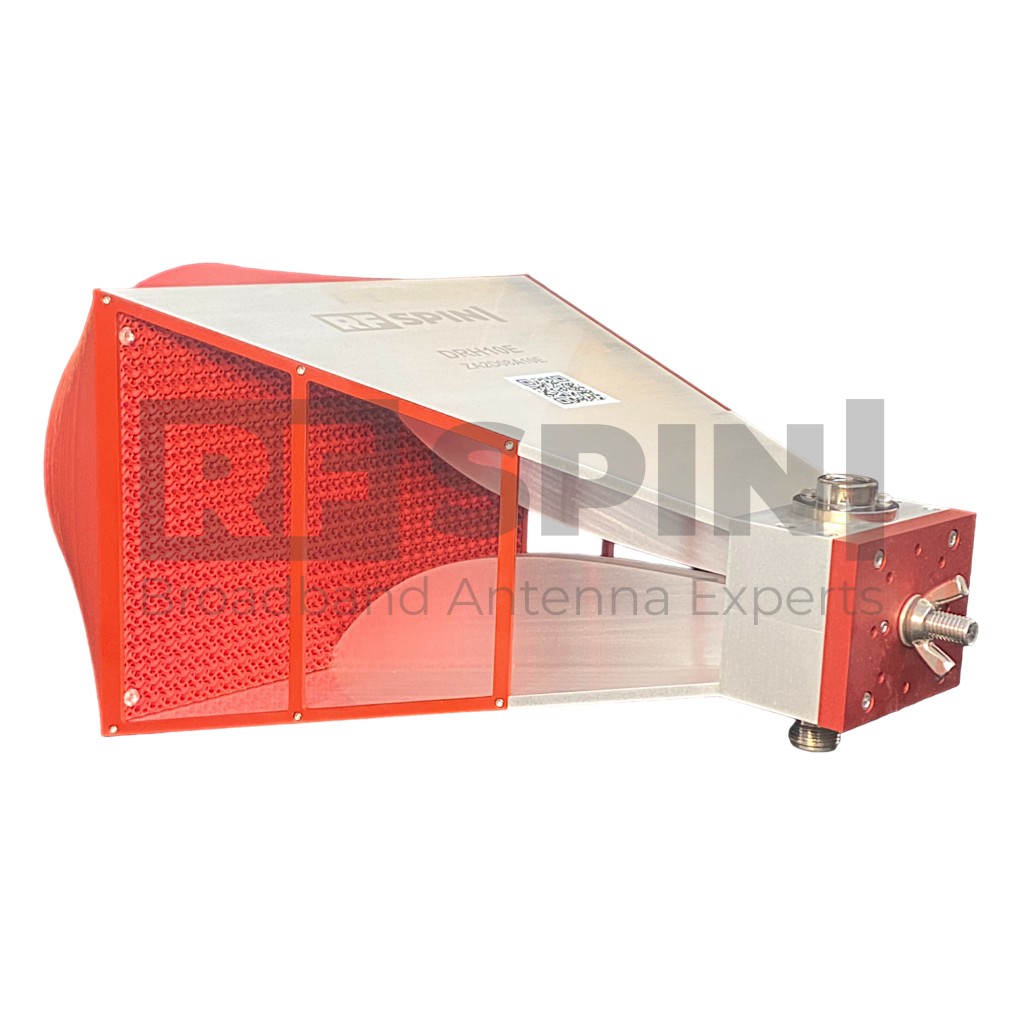

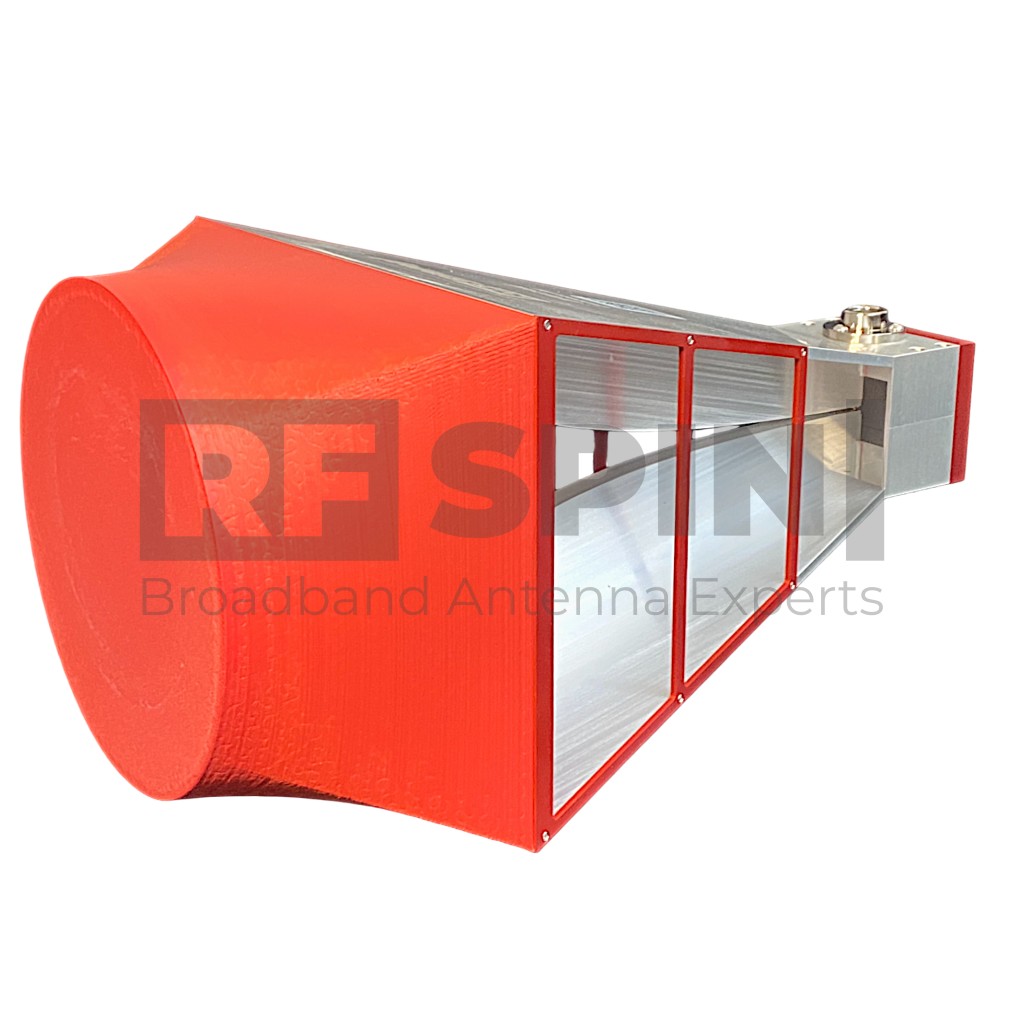

        Double Ridged Horn Antenna

        The well-known model DRH10 is now enhanced with an antenna lens that is made by special 3D print technology. This results in rapid gain increase while keeping small dimensions.

        Cloned antenna series are available through AU Technology, which guarantees constant parameters.

        Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        QR code
        Custom design

        Features and Specifications

        Technical Performance

        • High gain
        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band
        • Suitable for EMC/EMI applications

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount
        • Very precise spirit level

        Manufacturing Technology

        • Extremely durable
        • High quality N type coaxial connector

        Product Packaging Includes

        • Antenna with lens
        • Adapter with ¼ inch inner thread, supplied with antenna

        Product Parameters

        Product identification

        • Product Name DRH10C
        • Product Category Double Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 740 MHz – 10.5 GHz
        • VSWR (max.) 2.2
        • VSWR (avg.) 1.25
        • Impedance 50 Ohm
        • Connector N (female)
        • Power (CW / Peak) 150 W / 250 W
        • Antenna Factor 23 – 35 dB/m
        • Polarization Linear

        Physical specifications

        • Width 204 mm (8.031 in)
        • Height 315 mm (12.402 in)
        • Depth 148 mm (5.827 in)
        • Weight 1.761 kg (3.882 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        DRH10C - VSWR

        Gain

        DRH10C - Gain

        Antenna Factor

        DRH10C - Antenna Factor

        Cross Polarization

        DRH10C - Cross Polarization

        Beamwidth

        Radiation Patterns

        0.75 GHz

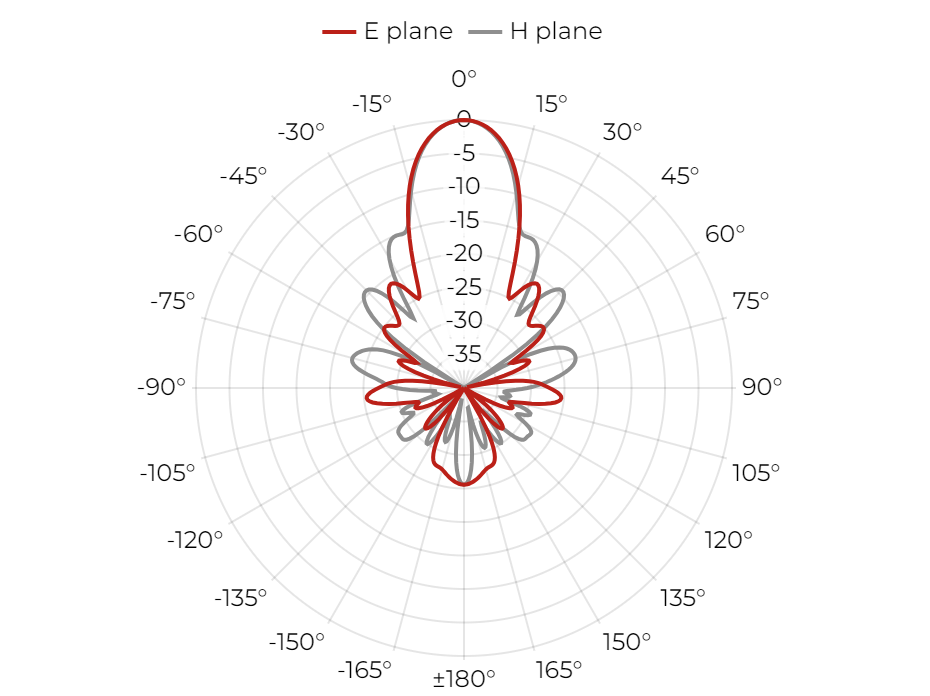

        DRH10C - 0.75 GHz

        1 GHz

        DRH10C - 1 GHz

        2 GHz

        DRH10C - 2 GHz

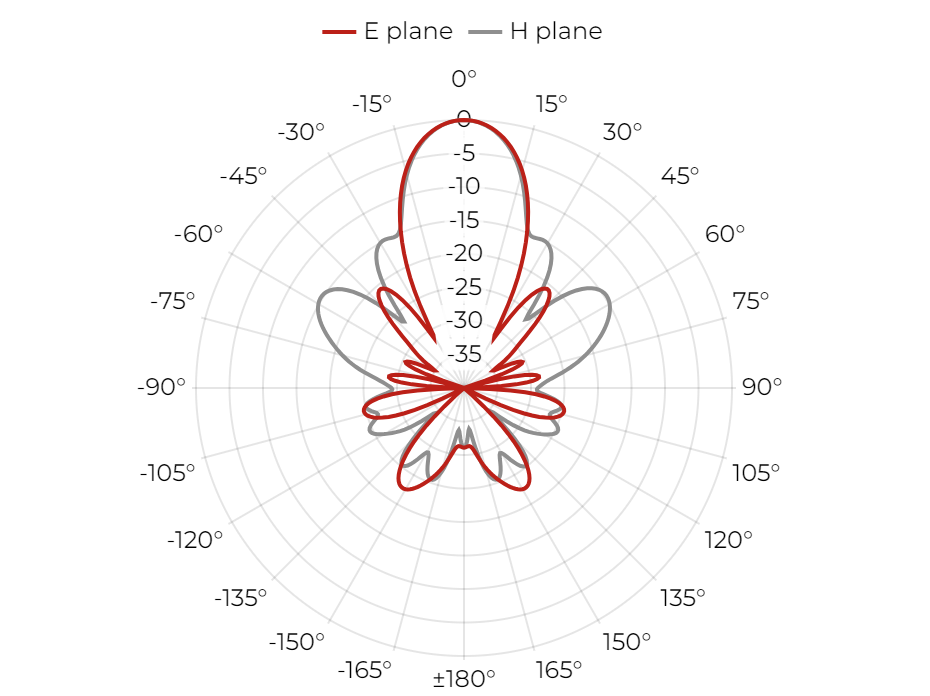

        3 GHz

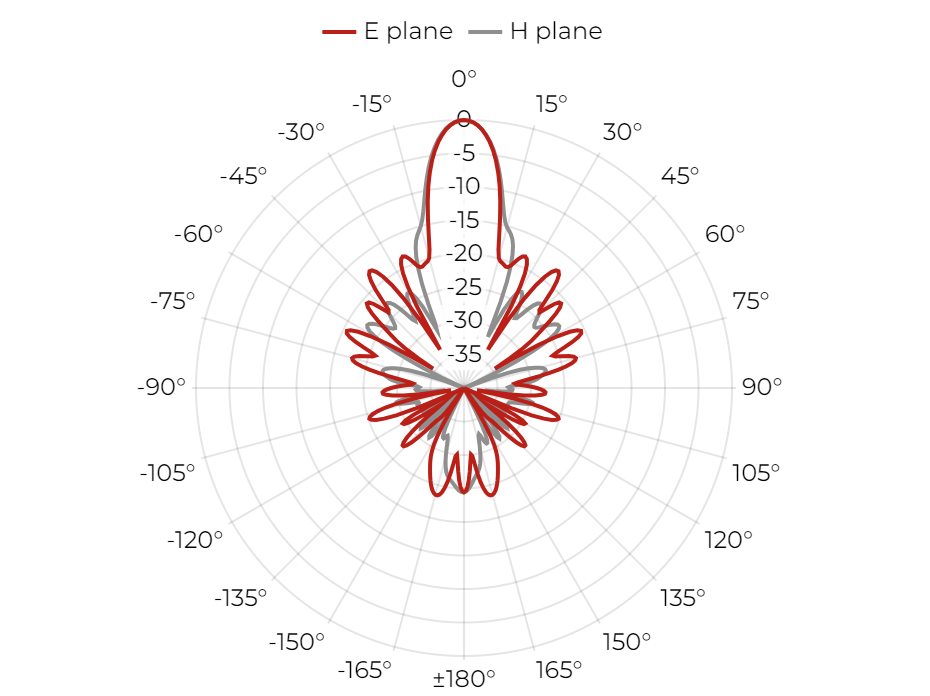

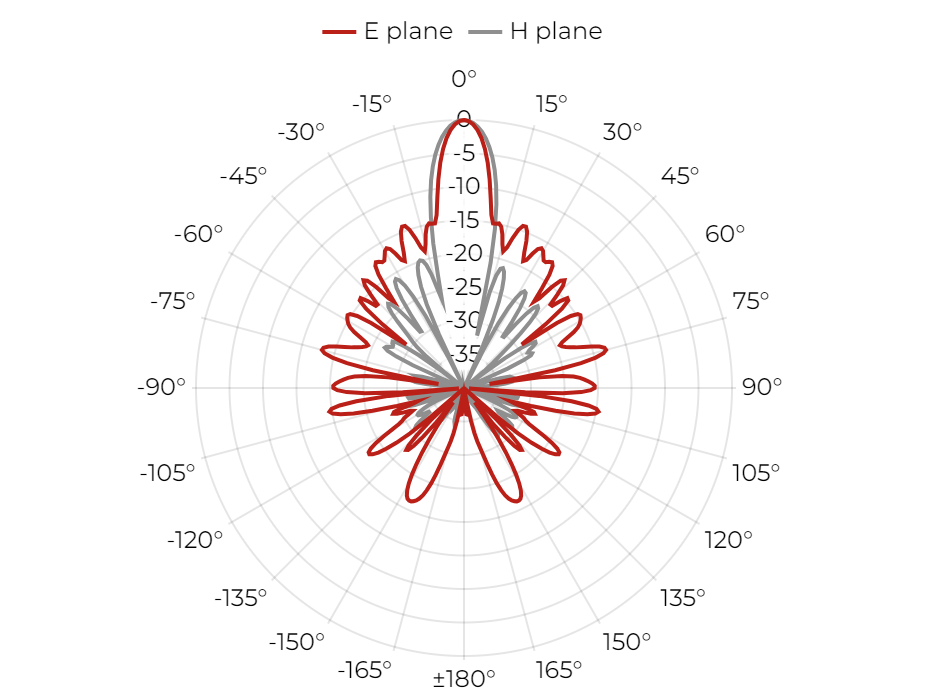

        DRH10C - 3 GHz

        Packaging and Accessories

        What's in a box

        • DRH10C Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)
        • Universal antenna mount

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data

        Other Similar Products

        QRH11C
        New model 2024
        Circular polarization
        QR code
        Custom design
        QRH11C
        Quad Ridged Horn Antenna
        Frequency Range

        730 MHz – 11 GHz

        VSWR (avg.)

        1.4

        Impedance

        50 Ohm

        Connector

        SMA (female)

        Power (CW / Peak)

        100 W / 170 W

        Polarization

        Dual Linear, Circular (with hybrid)

        DRH20E
        Custom design
        QR code
        5G
        DRH20E
        Double Ridged Horn Antenna
        Frequency Range

        1.6 GHz – 20 GHz

        VSWR (avg.)

        1.2

        Impedance

        50 Ohm

        Connector

        SMA (female)

        Power (CW / Peak)

        50 W / 100 W

        Polarization

        Linear

        DRH10
        Custom design
        QR code
        Radome version
        DRH10
        Double Ridged Horn Antenna
        Frequency Range

        740 MHz – 10.5 GHz

        VSWR (avg.)

        1.25

        Impedance

        50 Ohm

        Connector

        N (female)

        Power (CW / Peak)

        150 W / 250 W

        Polarization

        Linear
