        New model 2023

        DRH10R

        Double Ridged Horn Outdoor Antenna

        Specially developed for EMC/EMI testing.  This broadband horn antenna operates from 0.74 GHz up to 10.5 GHz. Thanks to radome, this antenna is suitable for outdoor applications. It is hermetically sealed and equipped with the standard L-shape holder and a Gore air vent.

        Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.

        Cloned antenna series are available through AU Technology, which guarantees constant parameters.

        See the equivalent naked antenna DRH10

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        5G
        Custom design
        QR code

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Suitable for EMC/EMI applications

        Design and Surface Treatment

        • Protective water-resistant case
        • Includes standard mount

        Manufacturing Technology

        • High quality SMA type coaxial connector

        Product Packaging Includes

        • Antenna
        • Universal antenna mount

        Product Parameters

        Product identification

        • Product Name DRH10R
        • Product Category Double Ridged Horn Outdoor Antenna

        Electrical specifications

        • Frequency Range 740 MHz – 10.5 GHz
        • VSWR (max.) 2.4
        • VSWR (avg.) 1.4
        • Impedance 50 Ohm
        • Connector SMA (female)
        • Power (CW / Peak) 150 W / 250 W
        • Antenna Factor 22 – 36 dB/m
        • Polarization Linear

        Physical specifications

        • Width 360 mm (14.173 in)
        • Height 293 mm (11.535 in)
        • Depth 360 mm (14.173 in)

        Operating conditions

        • Rated Temperature Range -10°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Universal antenna mount

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

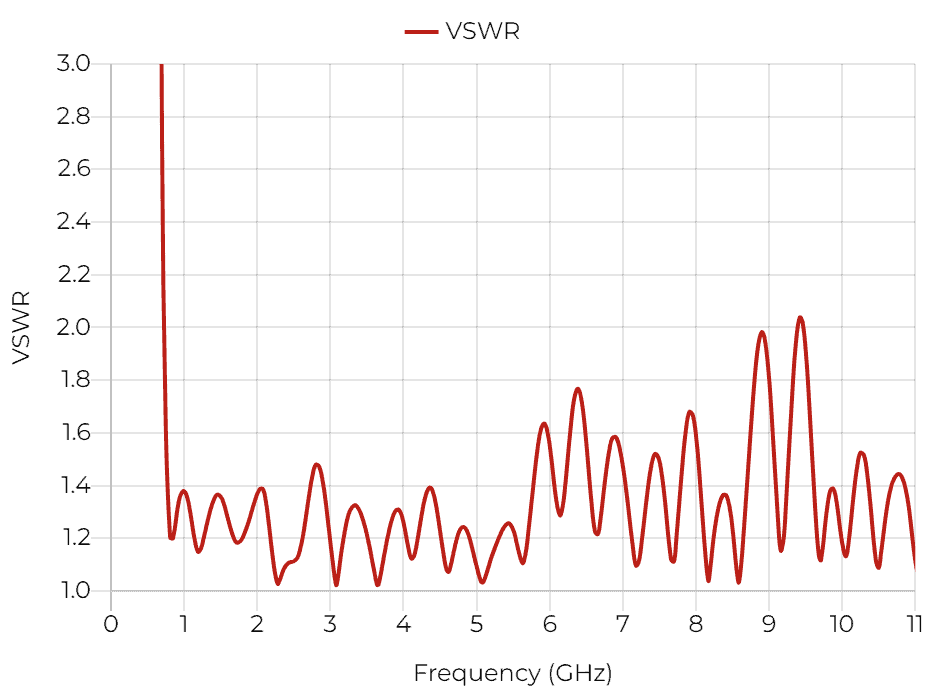

        VSWR

        DRH10R - VSWR

        Gain

        DRH10R - Gain

        Antenna Factor

        DRH10R - Antenna Factor

        Cross Polarization

        DRH10R - Cross Polarization

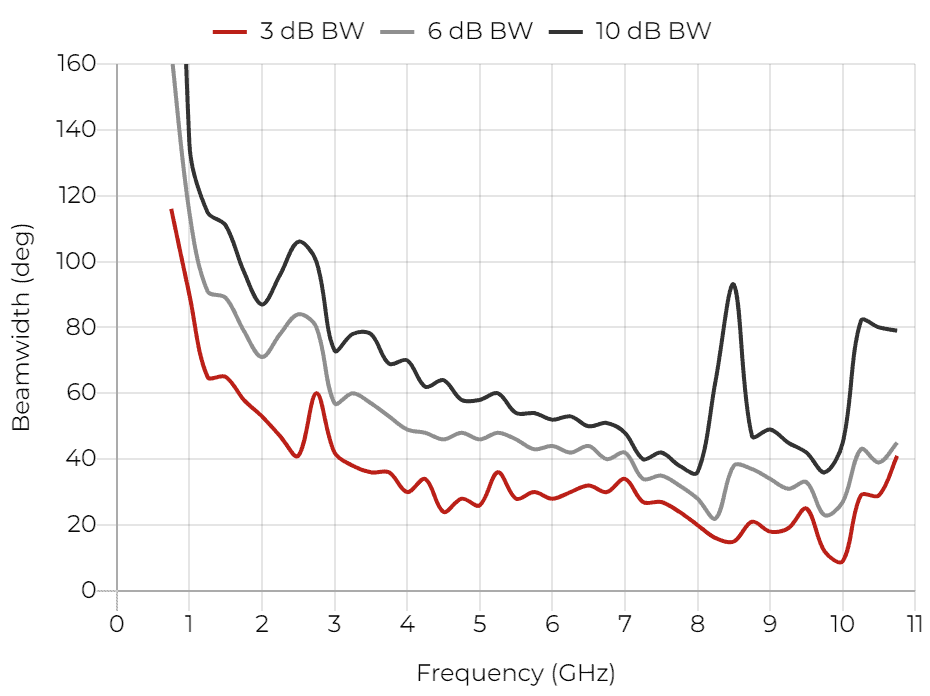

        Beamwidth

        Radiation Patterns

        0.75 GHz

        DRH10R - 0.75 GHz

        1 GHz

        DRH10R - 1 GHz

        2 GHz

        DRH10R - 2 GHz

        3 GHz

        DRH10R - 3 GHz

        Packaging and Accessories

        What's in a box

        • DRH10R Device
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)
        • Universal antenna mount

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
        • Radome waterproof enclosure
