        RF SPIN

        Broadband Antenna Solutions

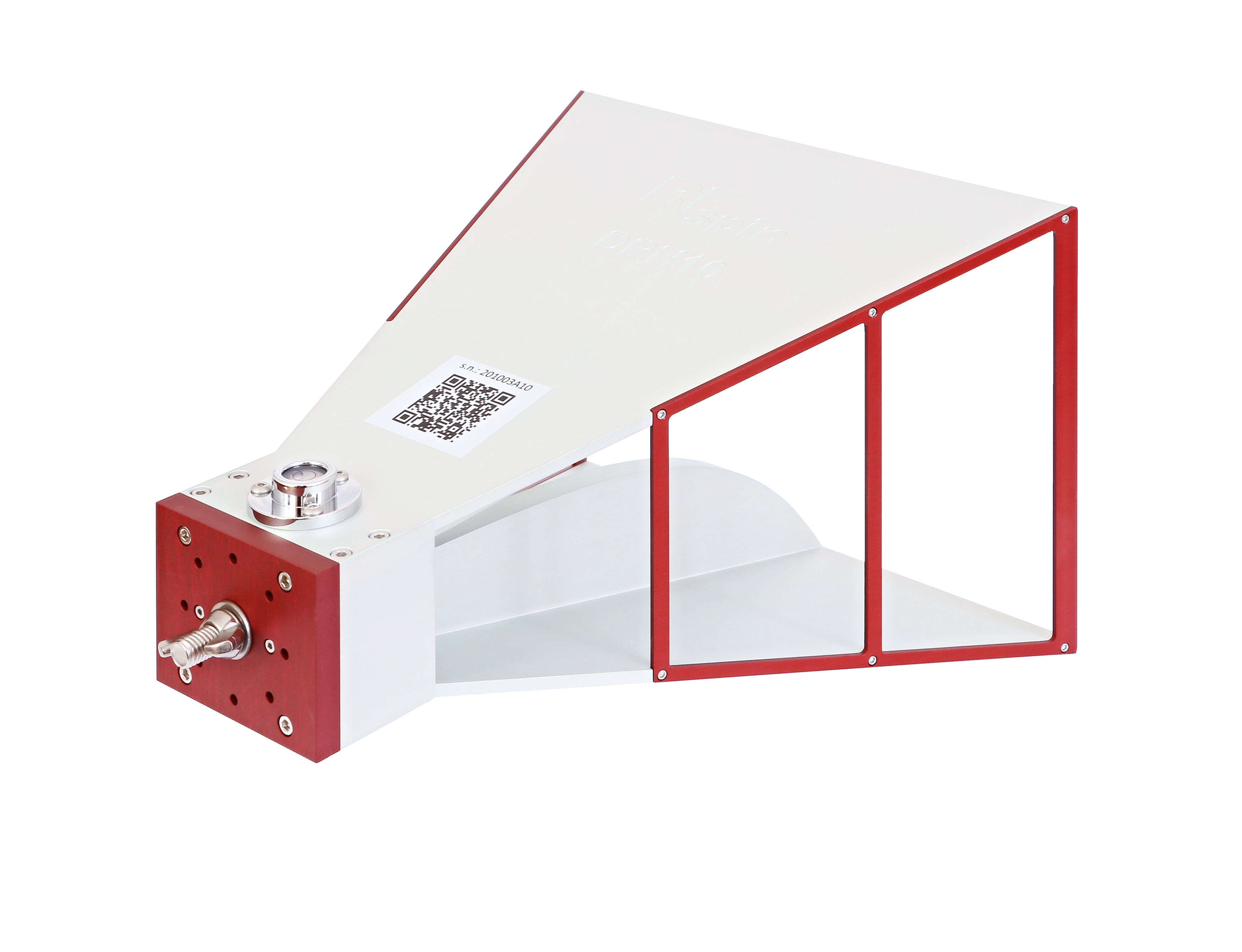

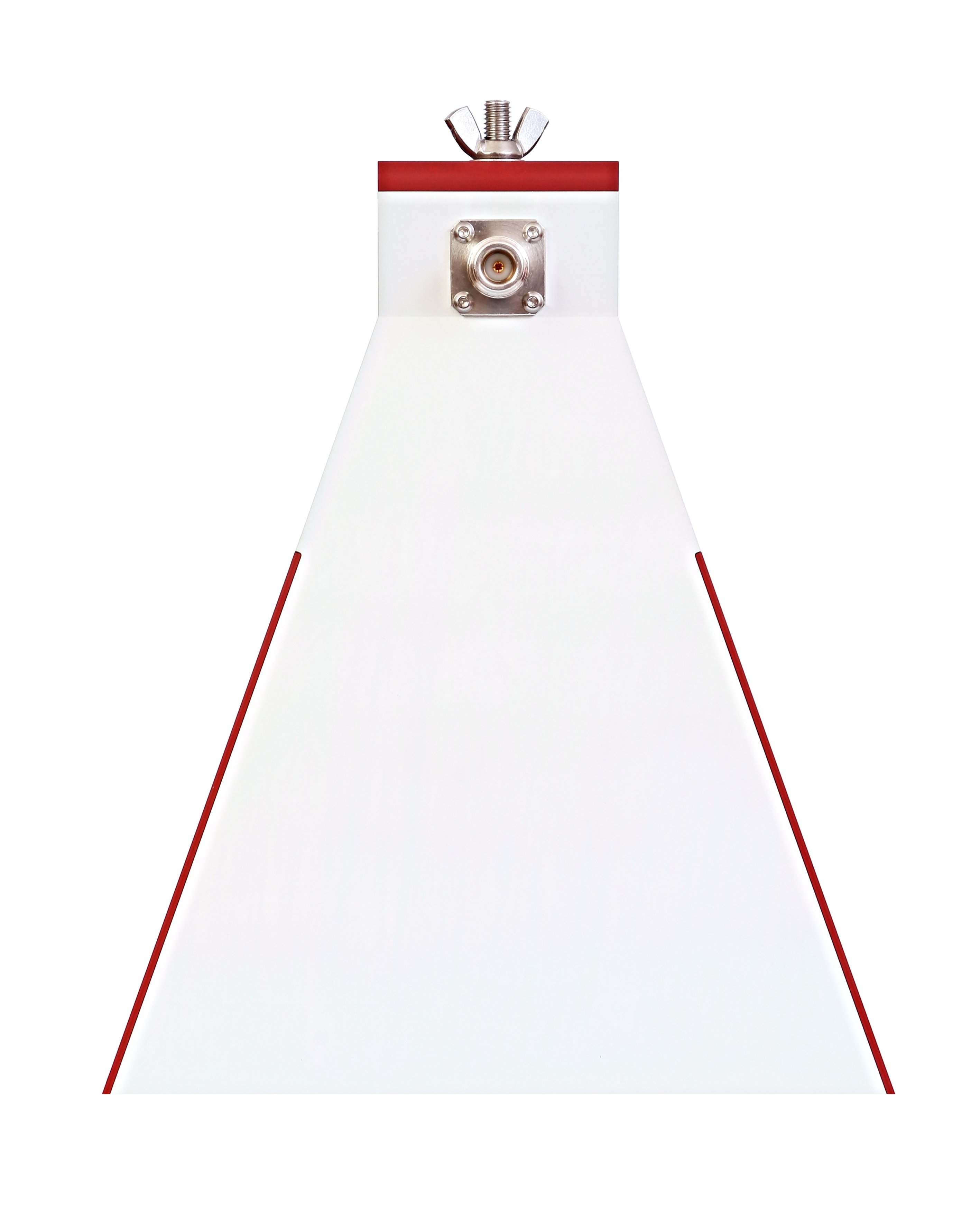

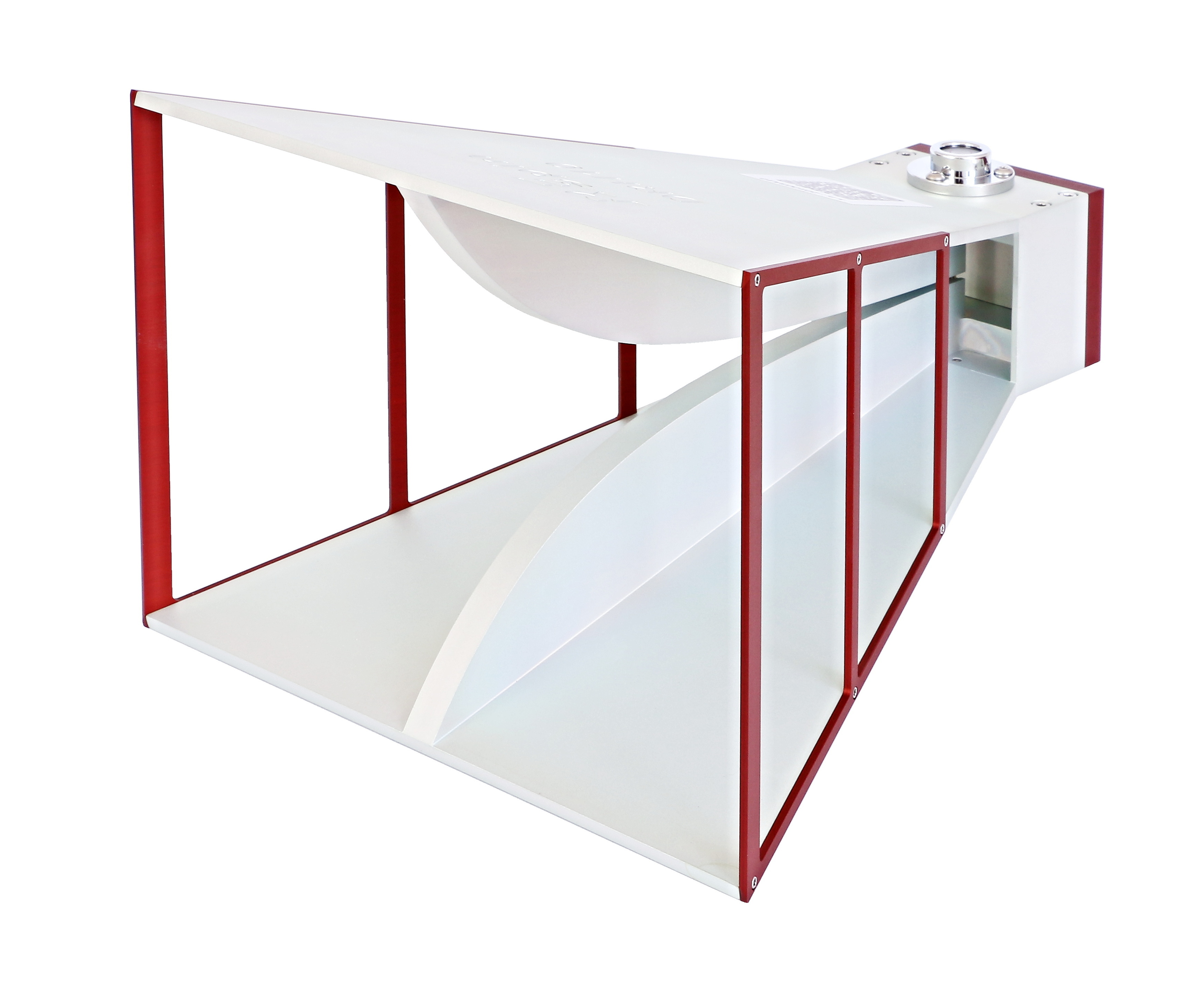

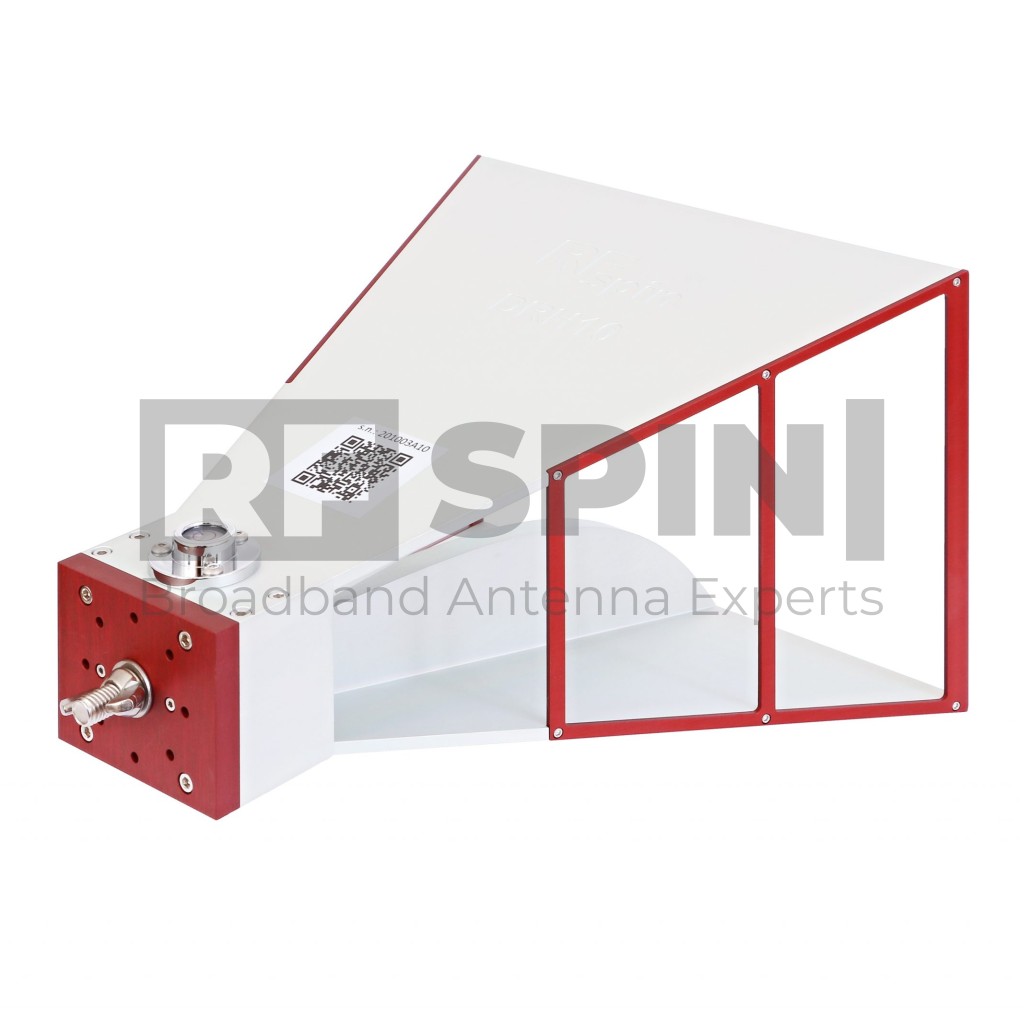

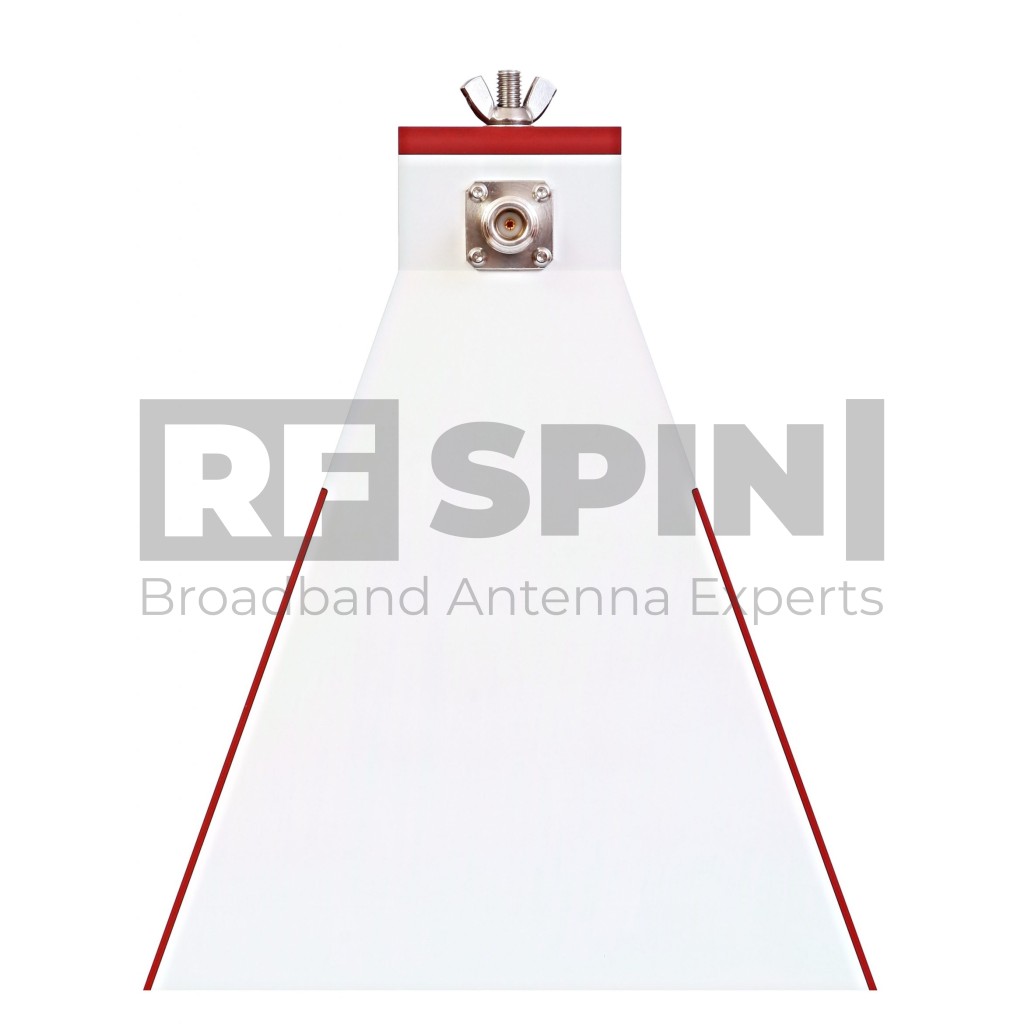

        DRH10

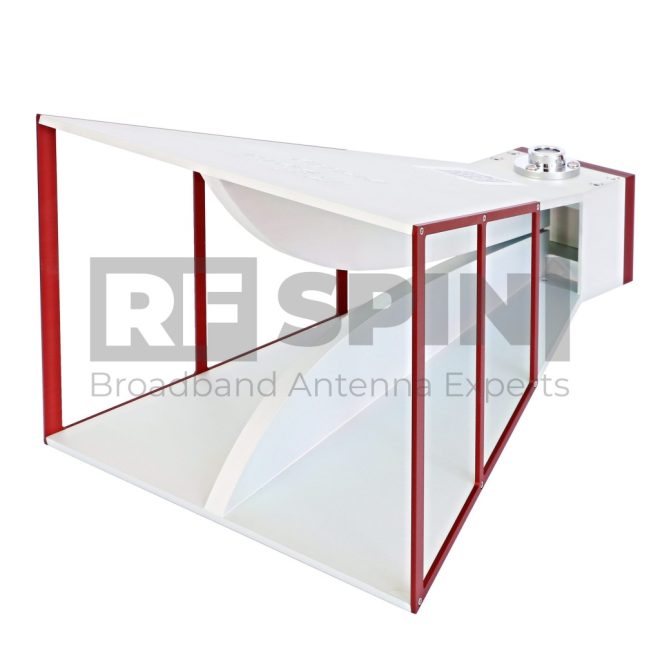

        Double Ridged Horn Antenna

        The addition of a spirit level is a matter of course, thanks to which your measurement in both planes will be very accurate and fun.

        Cloned antenna series are available through AU Technology, which guarantees constant parameters.

        Manufactured with RF SPIN’s SPM Technology to achieve the best mechanical and radio parameters.

        See the equivalent outdoor antenna DRH10R

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Custom design
        QR code
        Radome version

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount
        • Very precise spirit level

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality N type coaxial connector

        Product Packaging Includes

        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized double ridged broadband horn antenna

        Product Parameters

        Product identification

        • Product Name DRH10
        • Product Category Double Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 740 MHz – 10.5 GHz
        • VSWR (max.) 1.8
        • VSWR (avg.) 1.25
        • Impedance 50 Ohm
        • Connector N (female)
        • Power (CW / Peak) 150 W / 250 W
        • Antenna Factor 23 – 35 dB/m
        • Polarization Linear

        Physical specifications

        • Width 204 mm (8.031 in)
        • Height 242 mm (9.528 in)
        • Depth 148 mm (5.827 in)
        • Weight 1.24 kg (2.734 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        DRH10 - VSWR

        Gain

        DRH10 - Gain

        Antenna Factor

        DRH10 - Antenna Factor

        Cross Polarization

        DRH10 - Cross Polarization

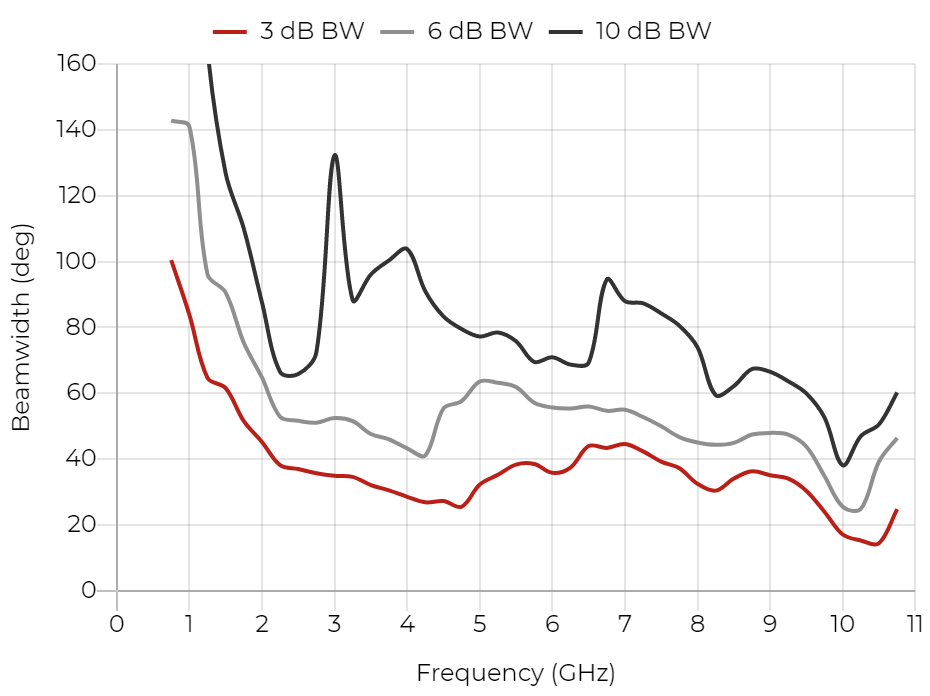

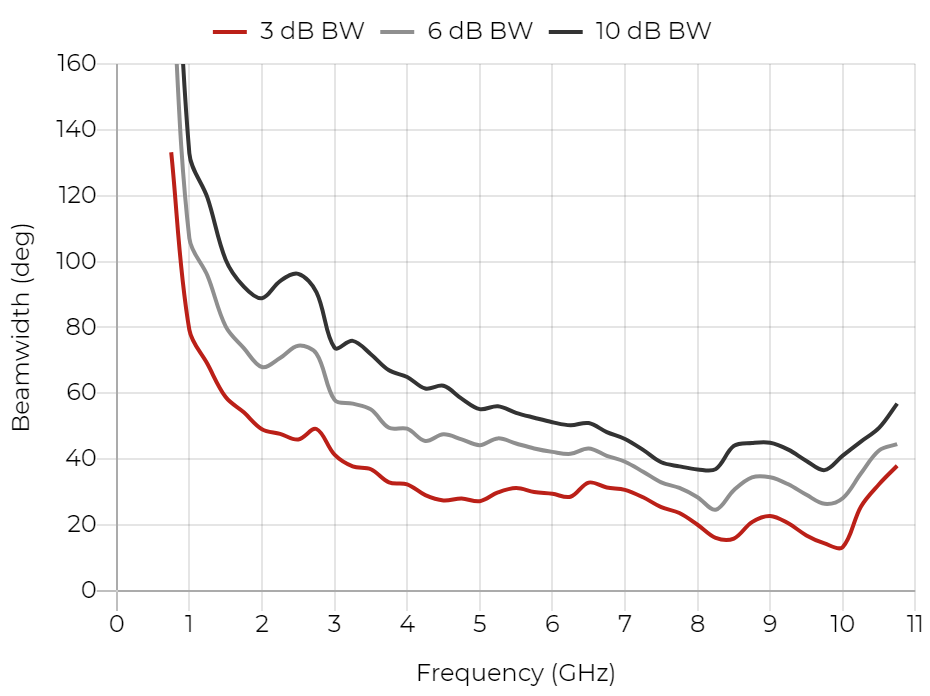

        Beamwidth

        Port A, E plane

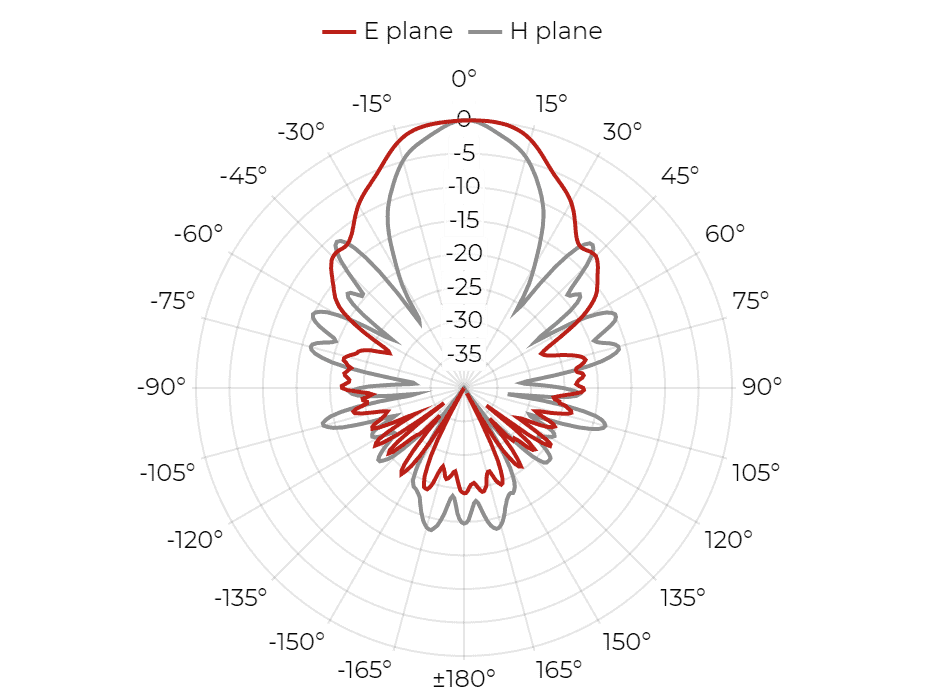

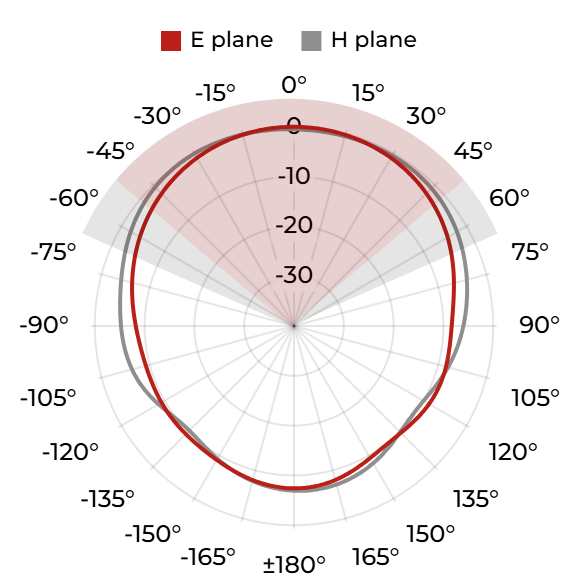

        DRH10 - Port A, E plane

        Port A, H plane

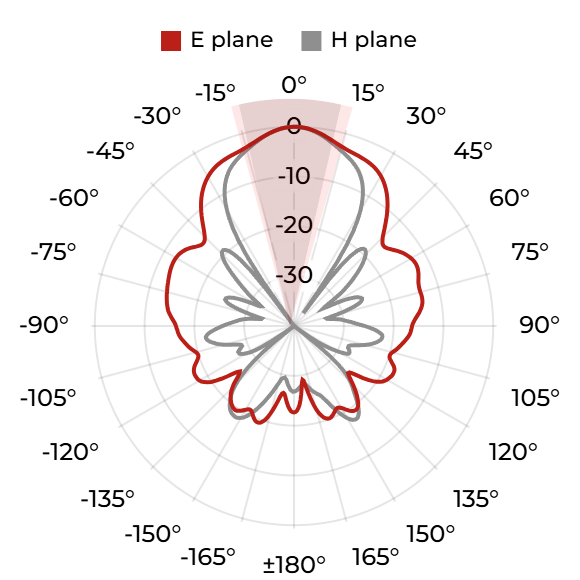

        DRH10 - Port A, H plane

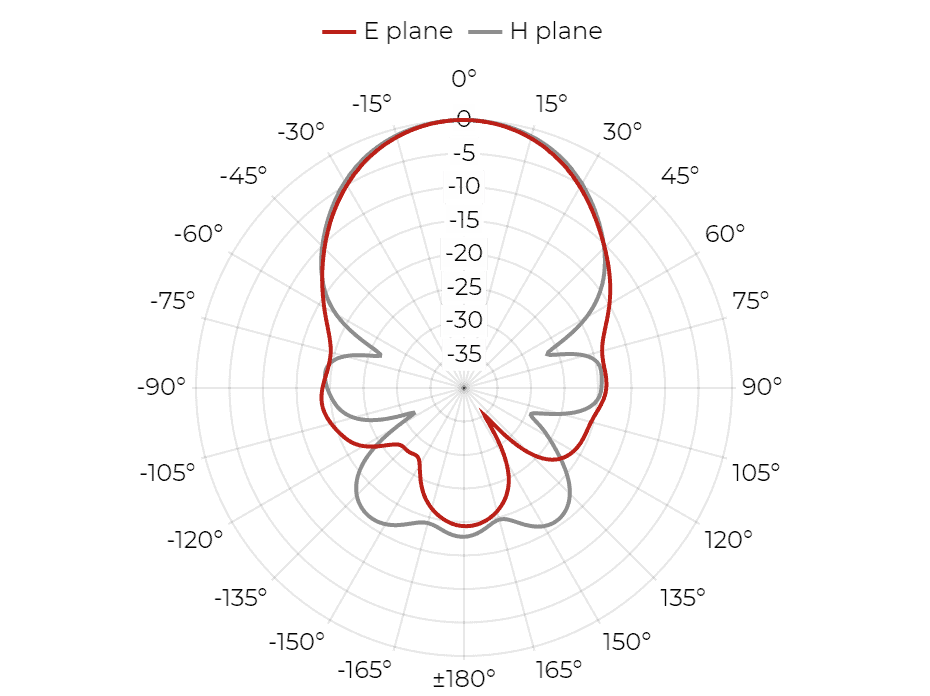

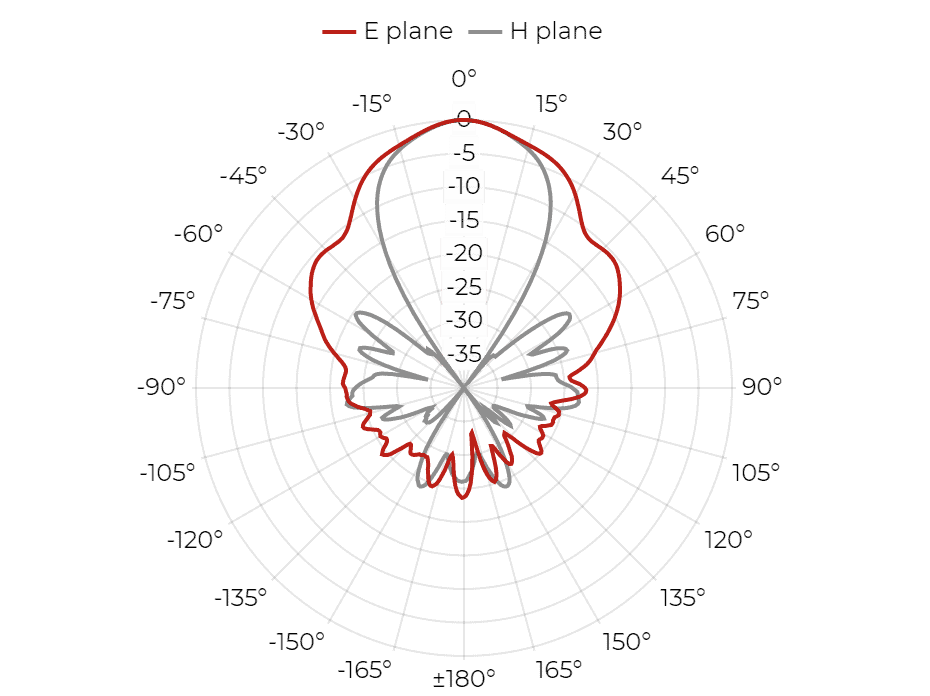

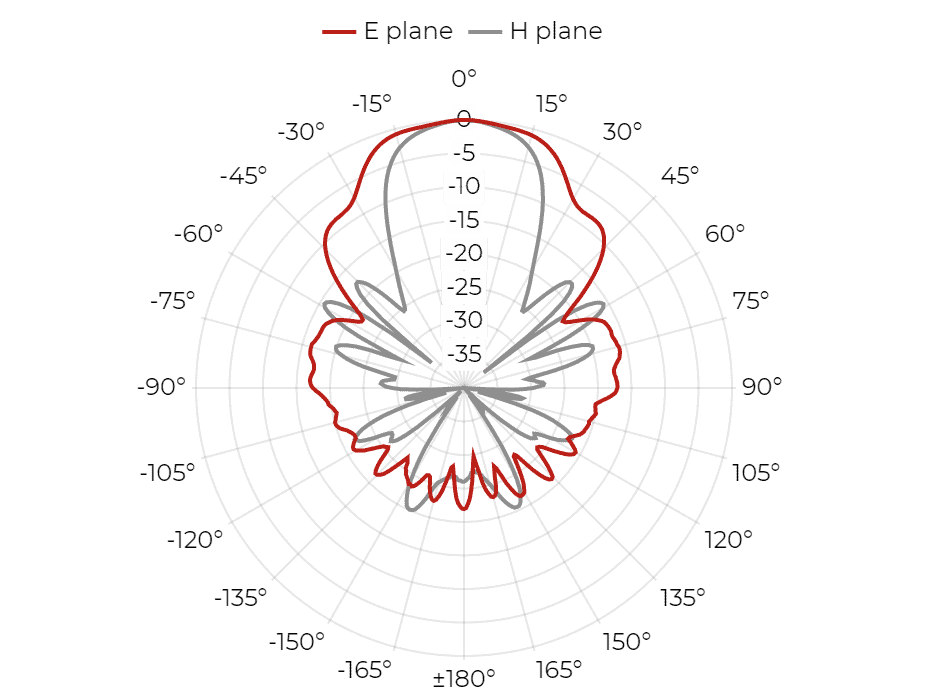

        Radiation Patterns

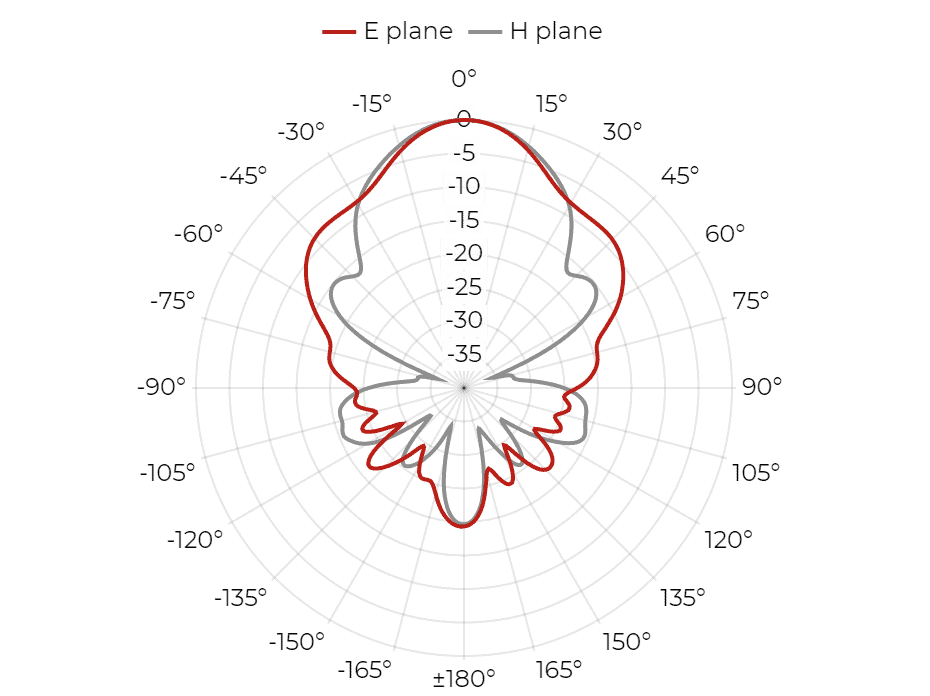

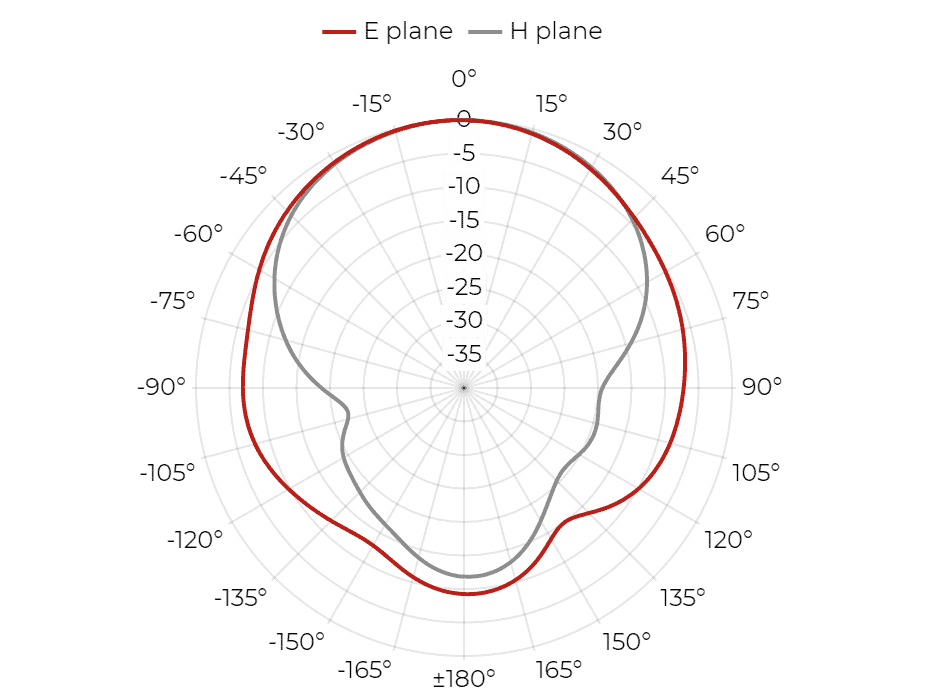

        0.75 GHz

        DRH10 - 0.75 GHz

        1 GHz

        DRH10 - 1 GHz

        2 GHz

        DRH10 - 2 GHz

        3 GHz

        DRH10 - 3 GHz

        Packaging and Accessories

        What's in a box

        • DRH10 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
