        RF SPIN

        Broadband Antenna Solutions

        CHS-MBKR-01-P

        Cable

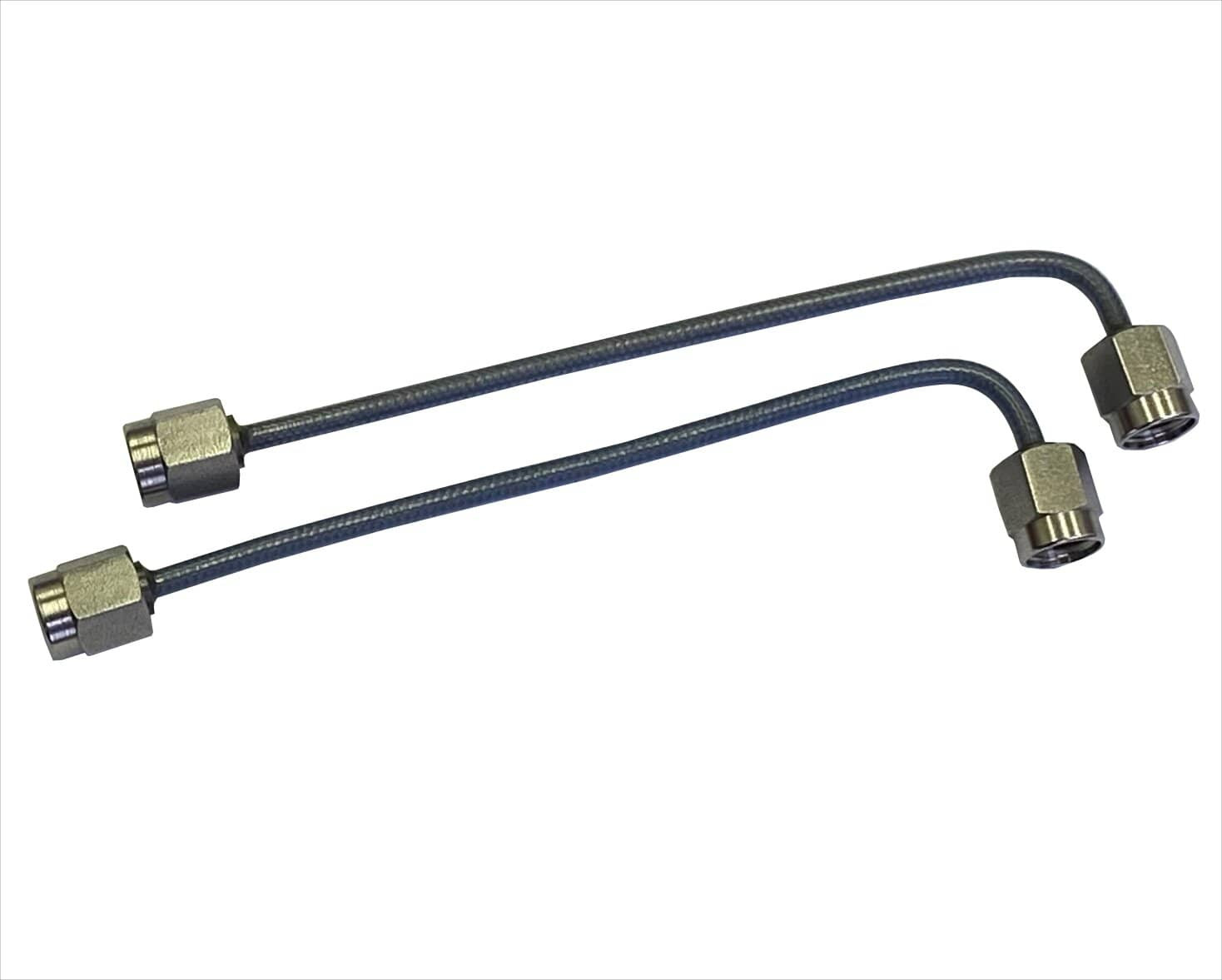

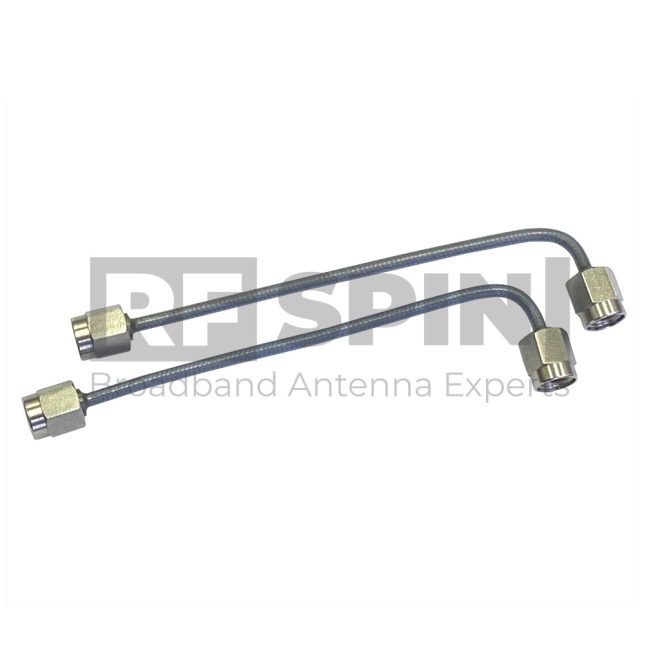

        A pair of coaxial cables for connection between 90° Hybrid Coupler and QRHxx antenna. The cables are carefully measured and paired together to ensure low phase imbalance.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Individual calibration

        Design and Surface Treatment

        Manufacturing Technology

        • High quality K type coaxial connector

        Product Packaging Includes

        • Pair of cables

        Product Parameters

        Product identification

        • Product Name CHS-MBKR-01-P
        • Product Category Cable

        Electrical specifications

        • VSWR (max.) 1.35
        • VSWR (avg.) 1.2
        • Impedance 50 Ohm
        • Insertion Loss (max.) 0.65 dB
        • Connector K
        • Connector K
        • Power (CW / Peak) 25 W / 50 W
        • Phase Imbalance 5 deg.

        Physical specifications

        • Length 100 mm (3.937 in)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Packaging and Accessories

        What's in a box

        • CHS-MBKR-01-P Device

        Accessories

        • Standard mounting flange
