        RF SPIN

        Broadband Antenna Solutions

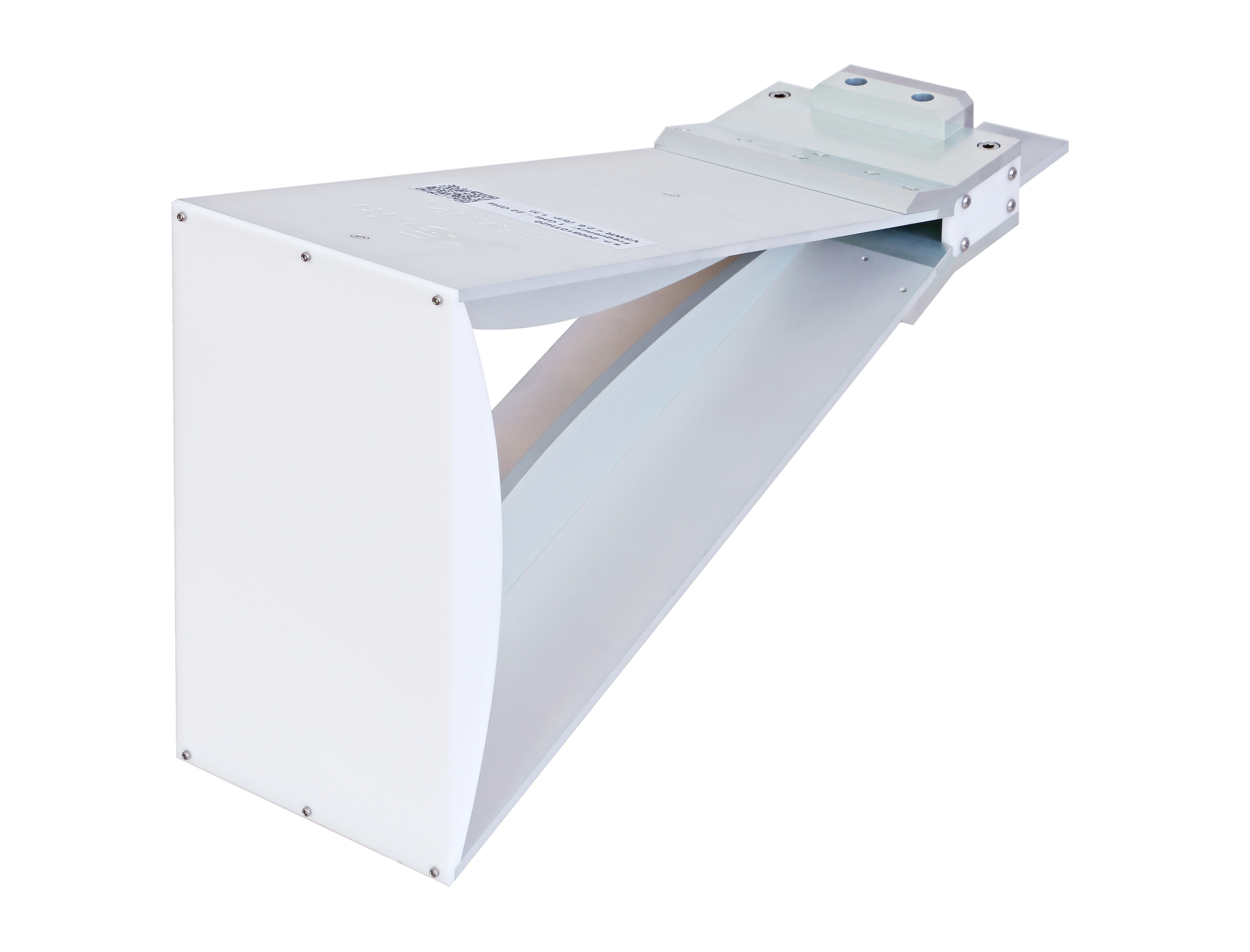

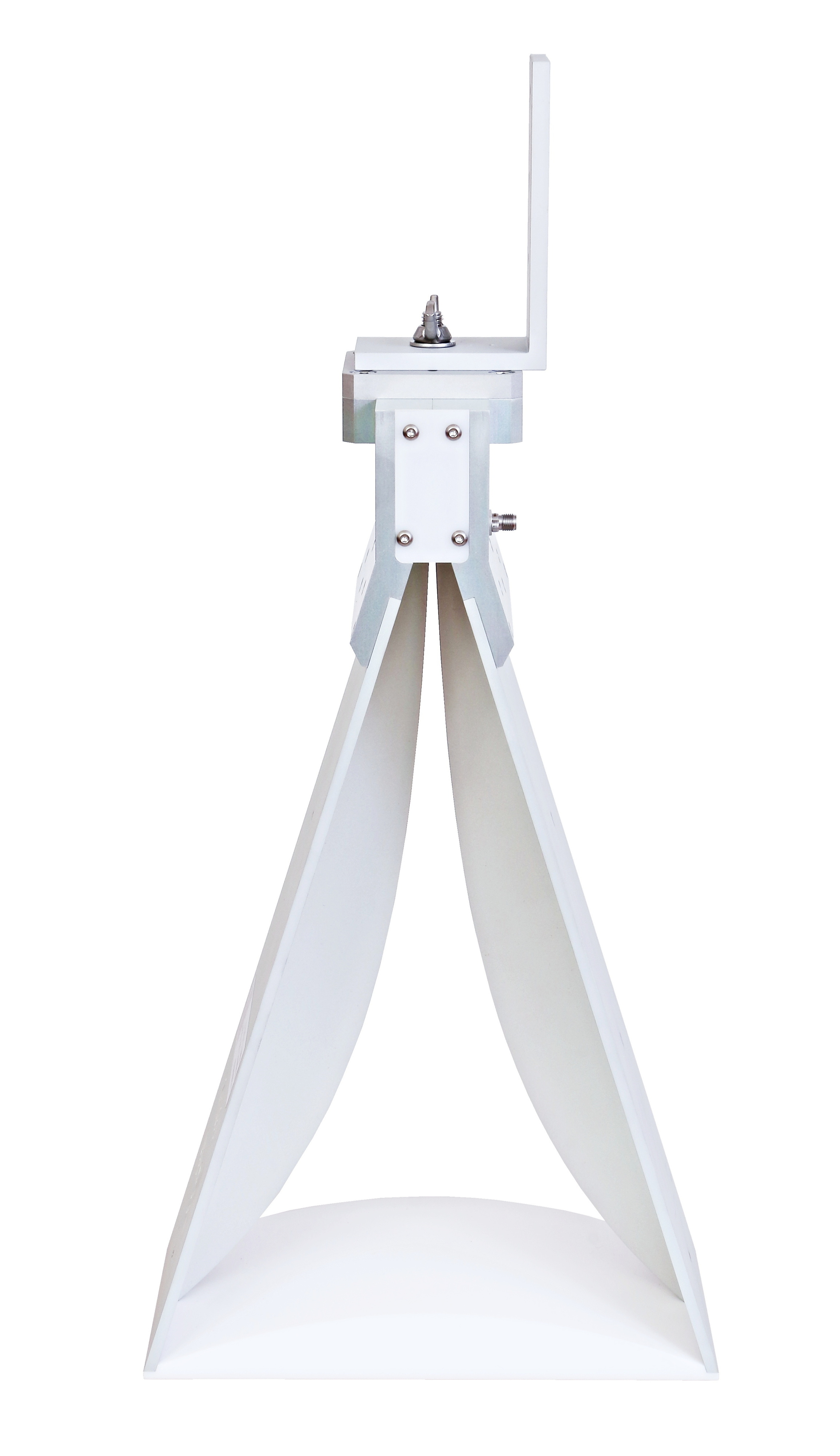

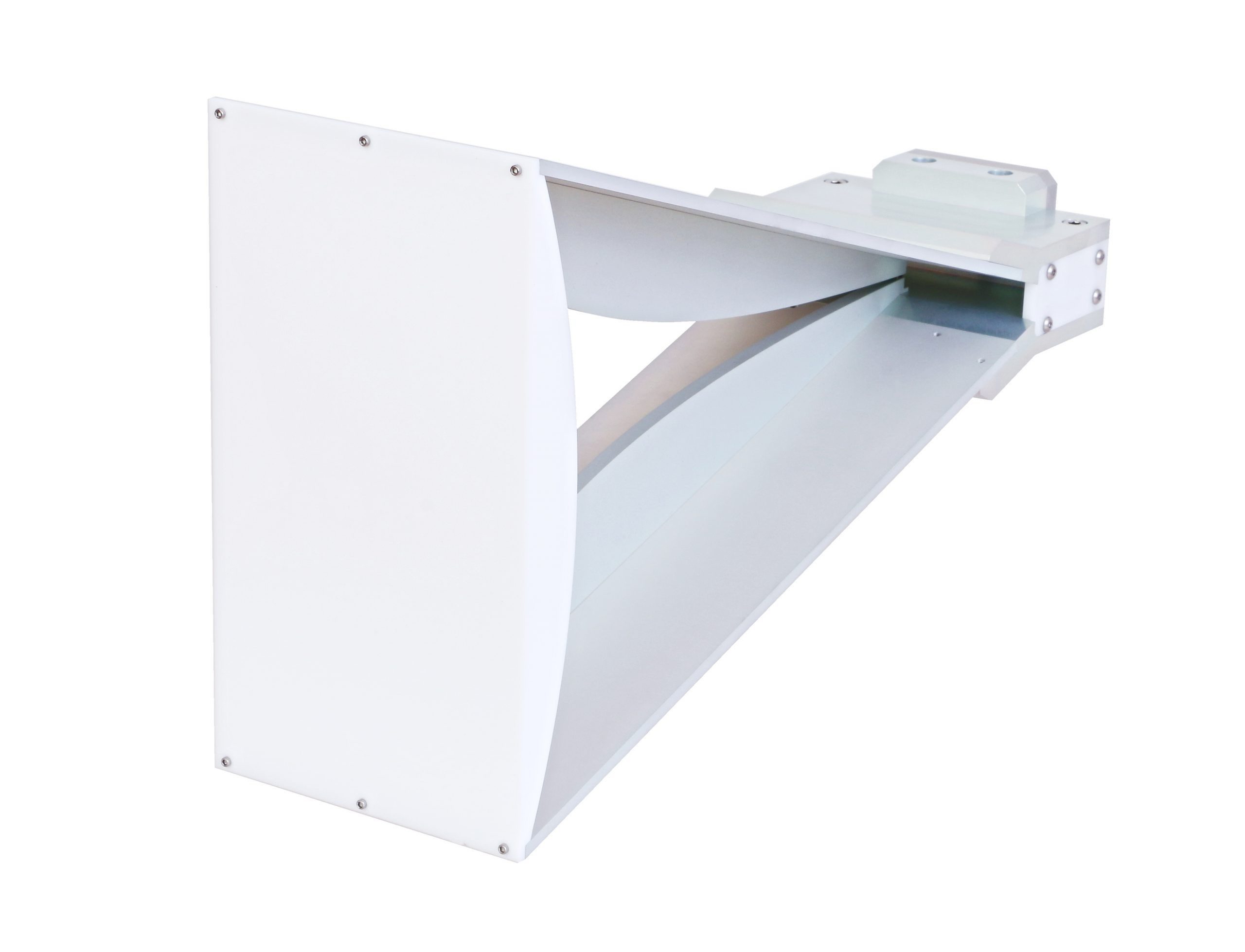

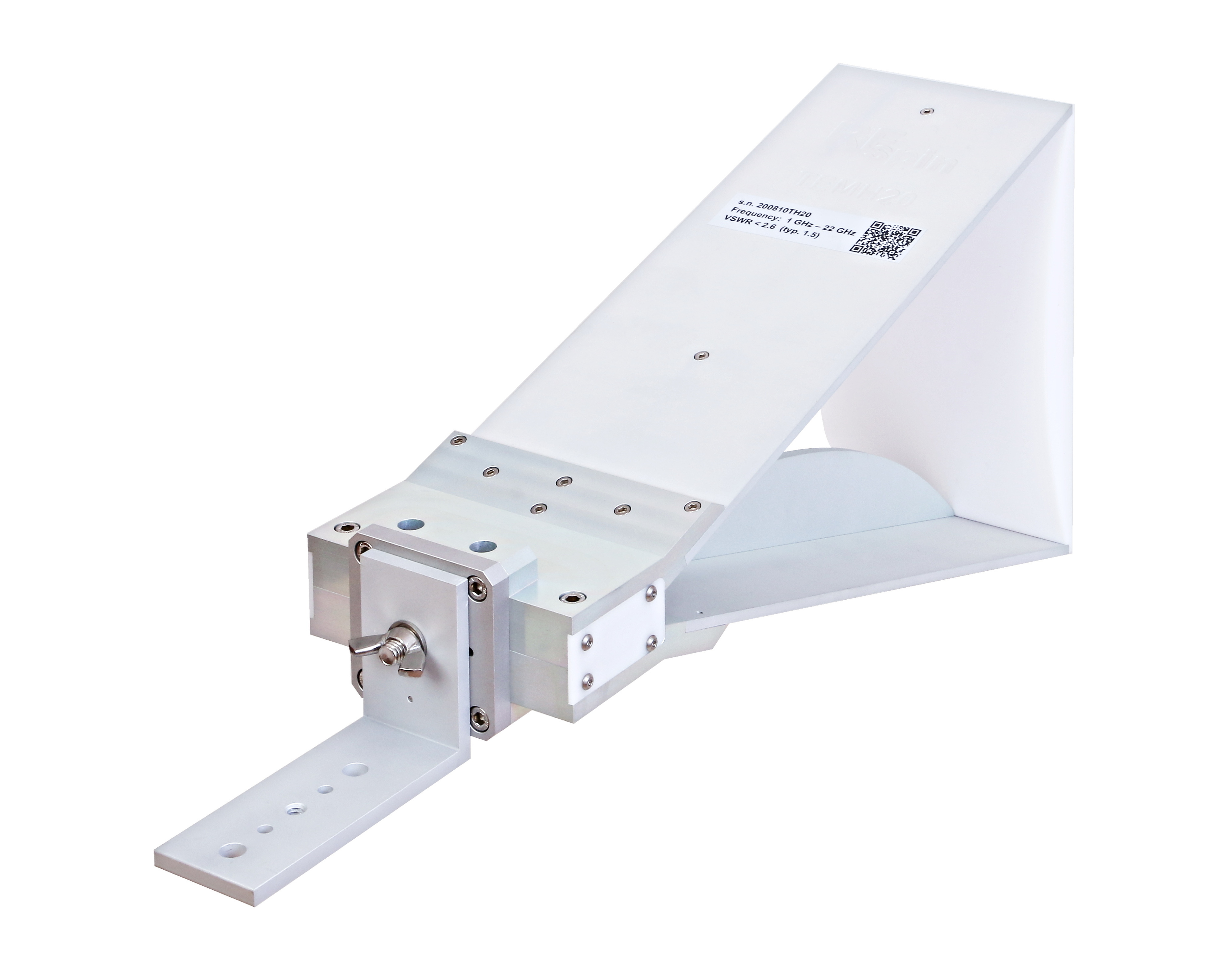

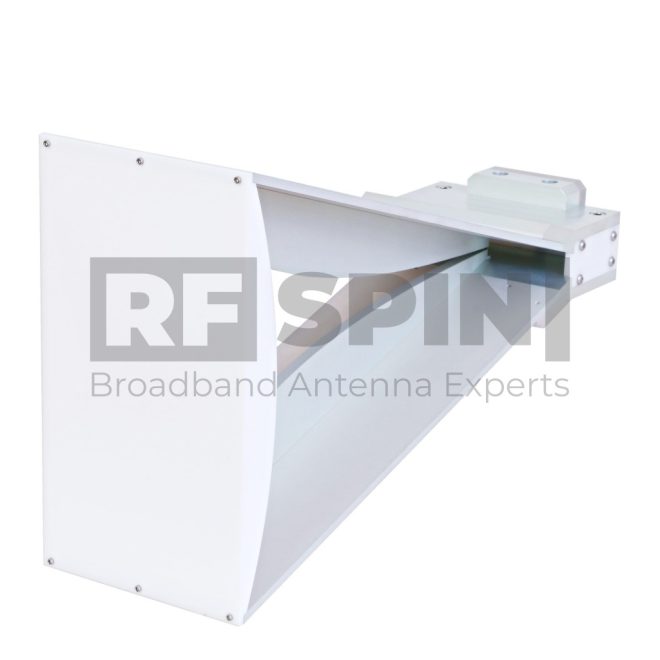

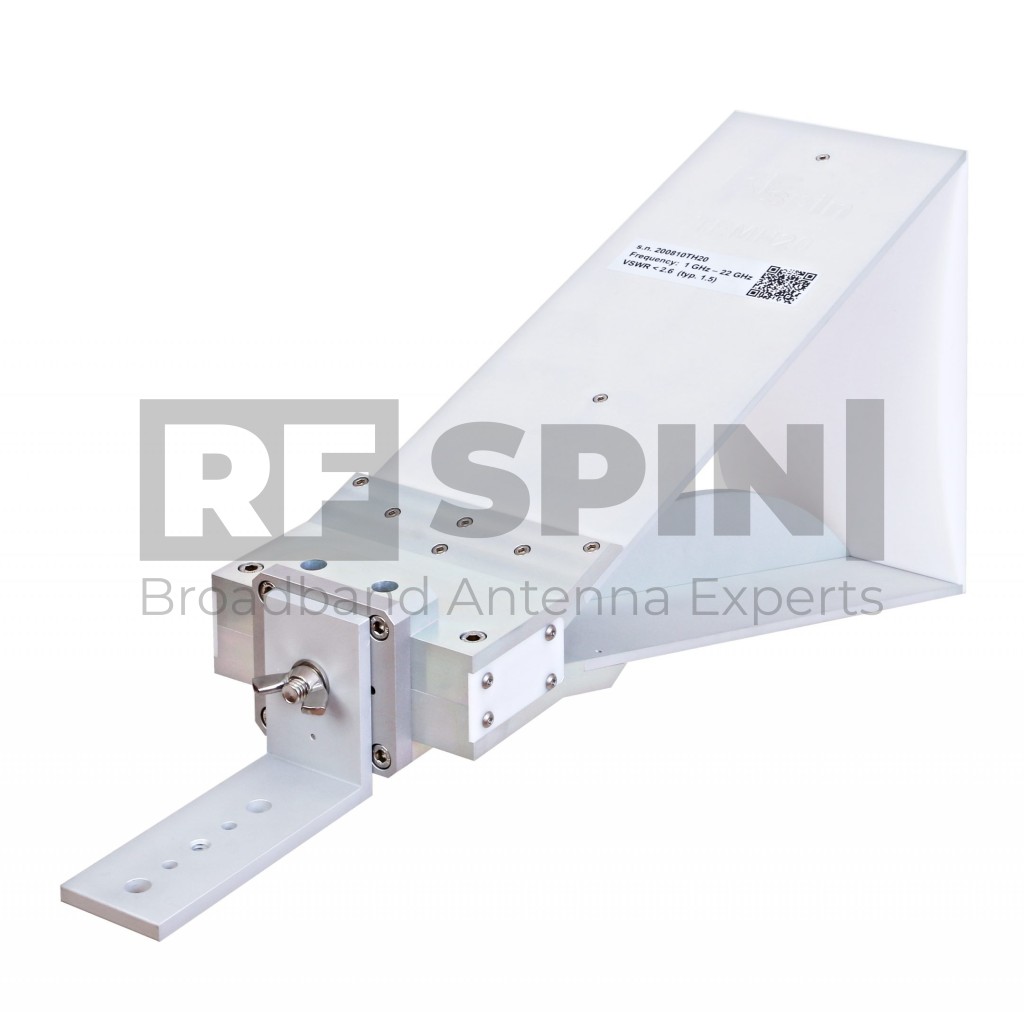

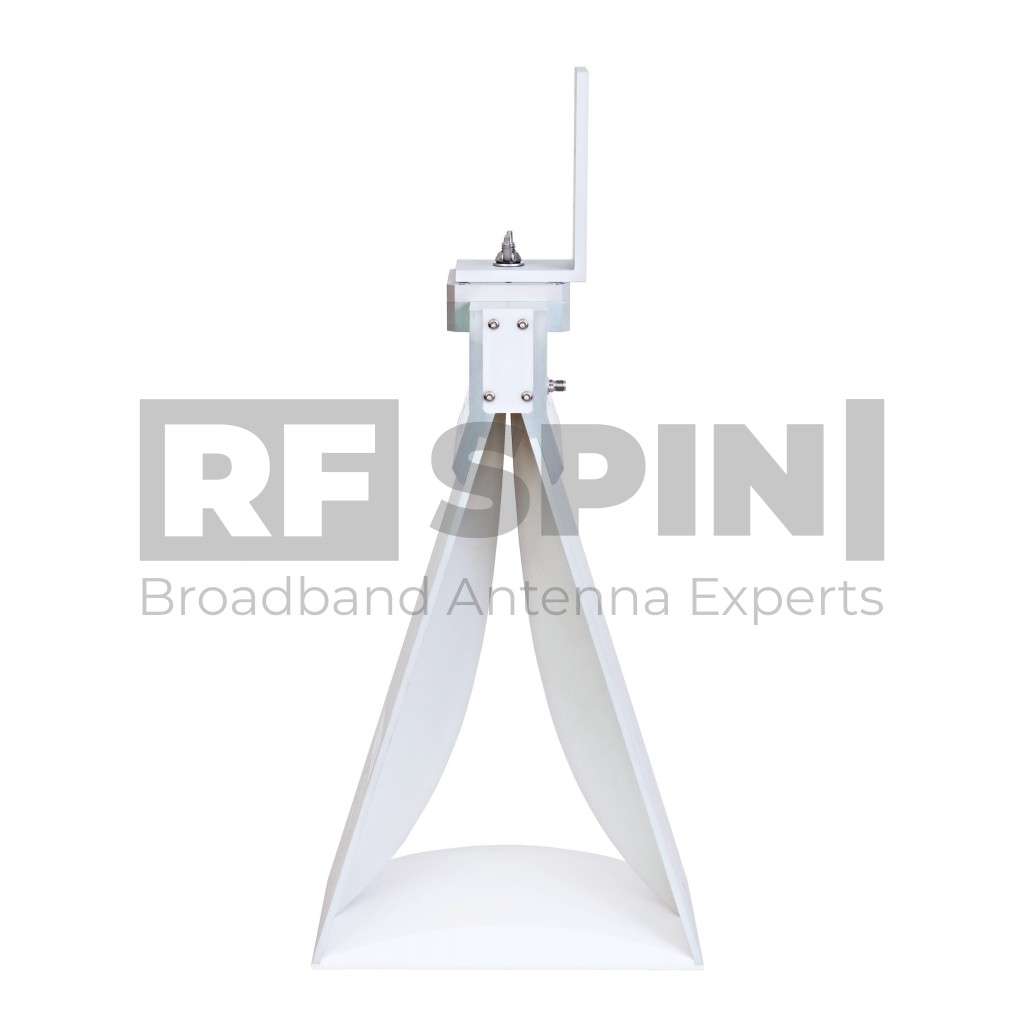

        TEMH20

        TEM Horn Antenna

        TEMH20 generates homogenous fields with high gain thanks to the dielectric lens. This allows close proximity radiation immunity evaluation testing.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Compare

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount

        Manufacturing Technology

        • Extremely durable
        • High quality 3.5mm type coaxial connector

        Product Packaging Includes

        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized TEM horn broadband antenna

        Product Parameters

        Product identification

        • Product Name TEMH20
        • Product Category TEM Horn Antenna

        Electrical specifications

        • Frequency Range 1 GHz – 22 GHz
        • VSWR (max.) 1.2
        • VSWR (avg.) 2.6
        • Impedance 50 Ohm
        • Connector 3.5mm (female)
        • Power (CW / Peak) 25 W / 50 W
        • Antenna Factor 23.5 – 41 dB/m
        • Polarization Linear

        Physical specifications

        • Width 112 mm (4.409 in)
        • Height 198 mm (7.795 in)
        • Depth 345 mm (13.583 in)
        • Weight 2.5 kg (5.512 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        TEMH20 - VSWR

        Gain

        TEMH20 - Gain

        Antenna Factor

        TEMH20 - Antenna Factor

        Packaging and Accessories

        What's in a box

        • TEMH20 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
