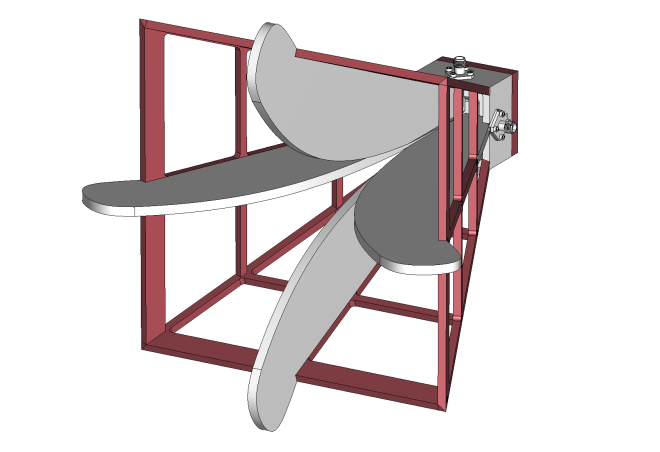

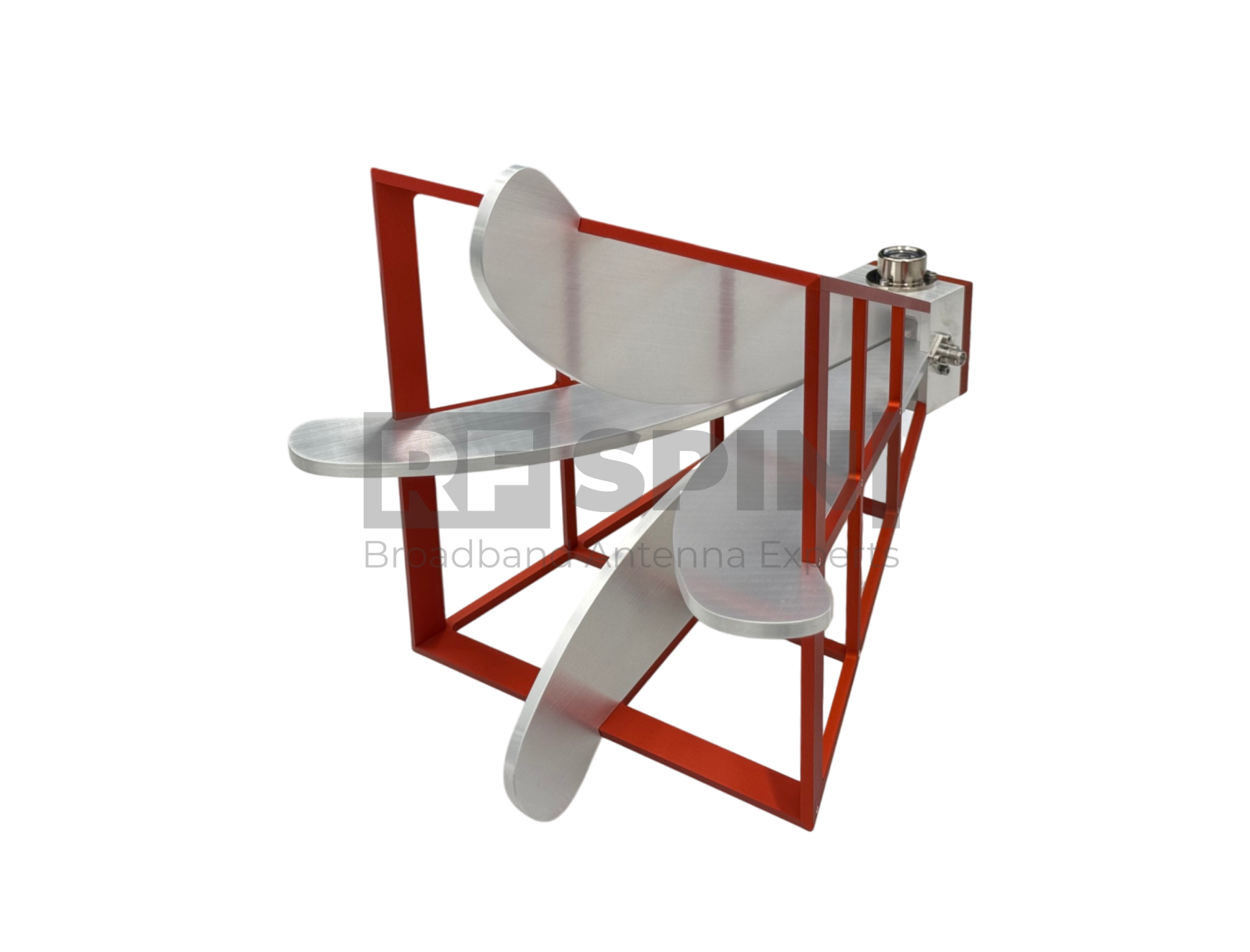

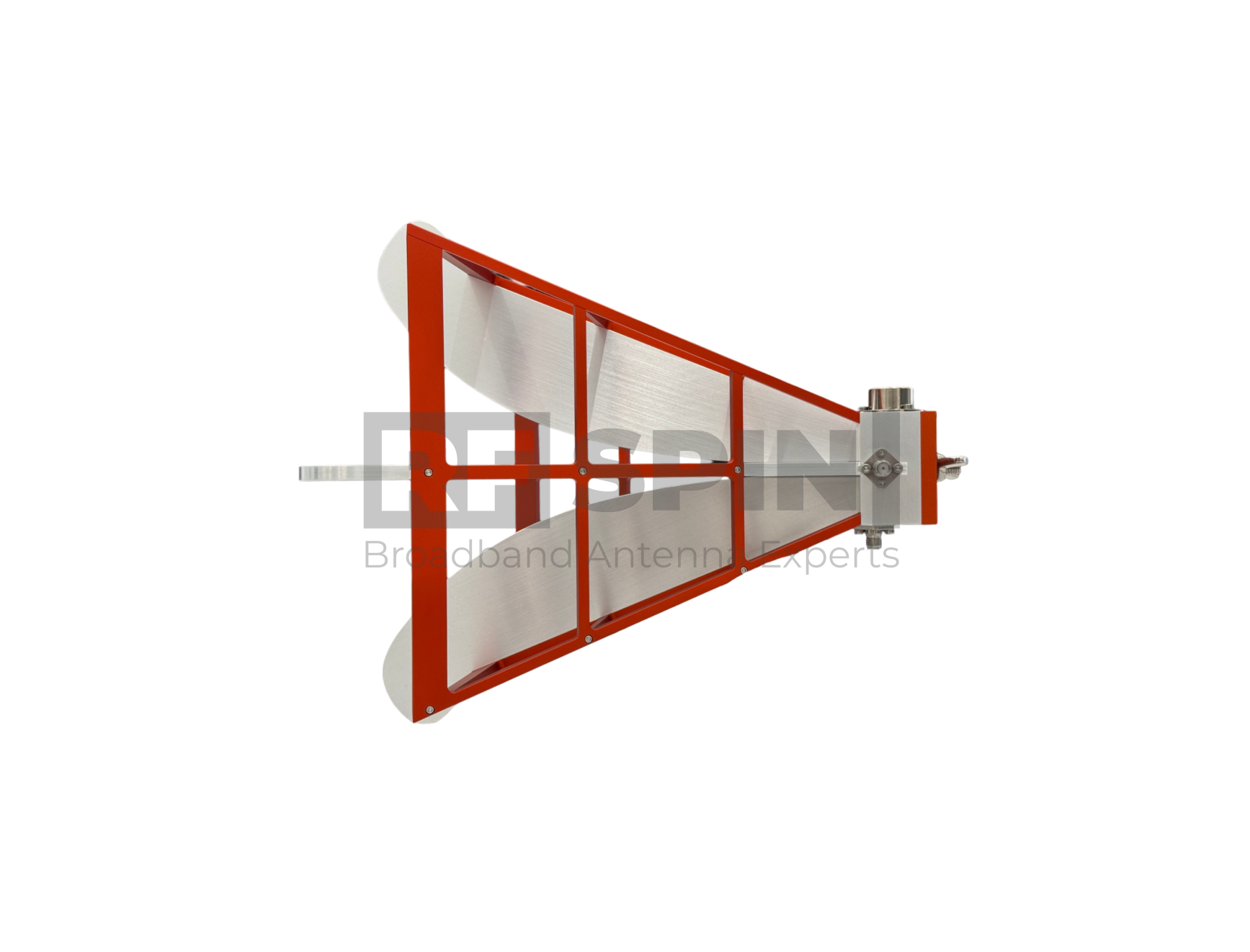

QRH18E Quad Ridged Horn Antenna | 1 GHz – 18 GHz
with online calibration protocol and dataset
PRELIMINARY DATASHEET – Dual-polarized broadband horn antenna QRH18E operates from 1 GHz to 18 GHz with a high gain at low frequencies.
Product Highlights
Key Features
- Premium broadband antenna
- Precision-tuned for optimal performance
- Designed for versatile applications
- Stable high gain
Performance & Versatility
- Circular polarization (optional)
- QR code to access Antenna Portal
- Wide bandwidth and low return loss
- High isolation values
- Multiple mounting options
- Enhanced signal strength
Manufacturing & Technologies
- AU Technology
- SPM Technology
- In-house production
- High-grade aluminum alloy
Product Parameters
Product identification
- Product Name QRH18E
- Product Category Quad Ridged Horn Antenna
Electrical specifications
- Frequency Range 1 GHz – 18 GHz
- VSWR (max.) 2.5
- VSWR (avg.) 1.45
- Impedance 50 Ohm
- Connector SMA (female)
- Power (CW / Peak) 100 W / 170 W
- Antenna Factor 24 – 40 dB/m
- Port Isolation -30 dB
- Polarization Dual Linear, Circular (with hybrid)
Physical specifications
- Width 213 mm (8.386 in)
- Height 229 mm (9.016 in)
- Depth 213 mm (8.386 in)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Beamwidth
Port A, E plane
Port A, H plane
Port B, E plane
Port B, H plane

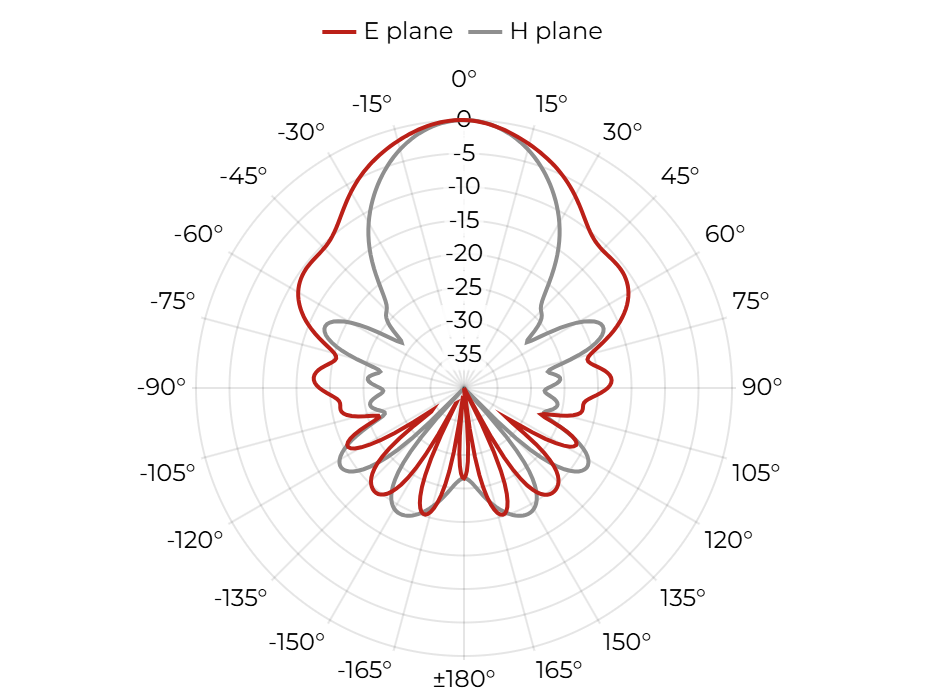

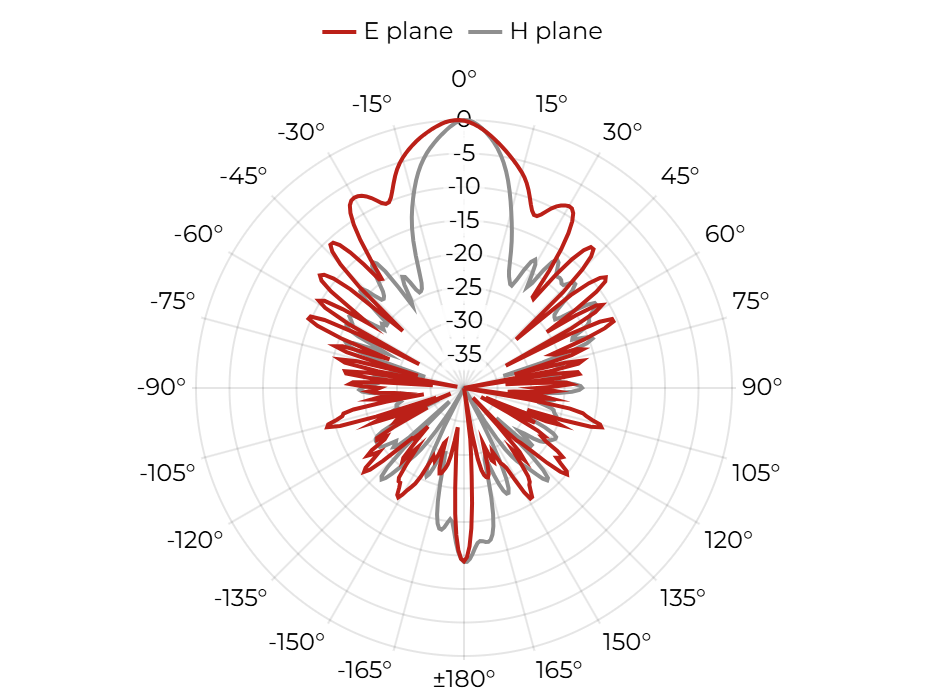

Radiation Patterns - Port A

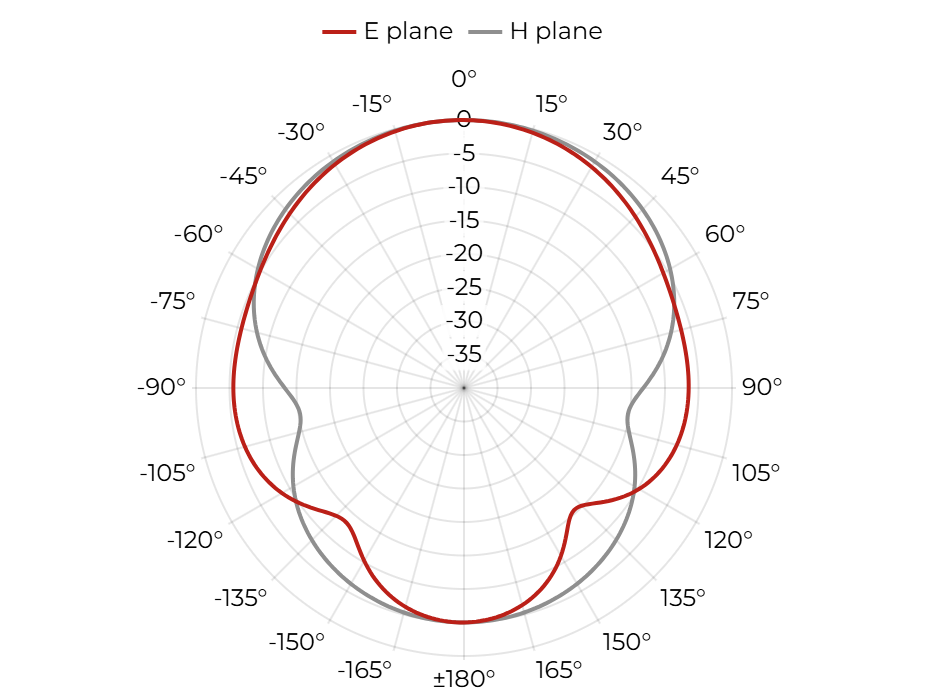

Port A, 1 GHz

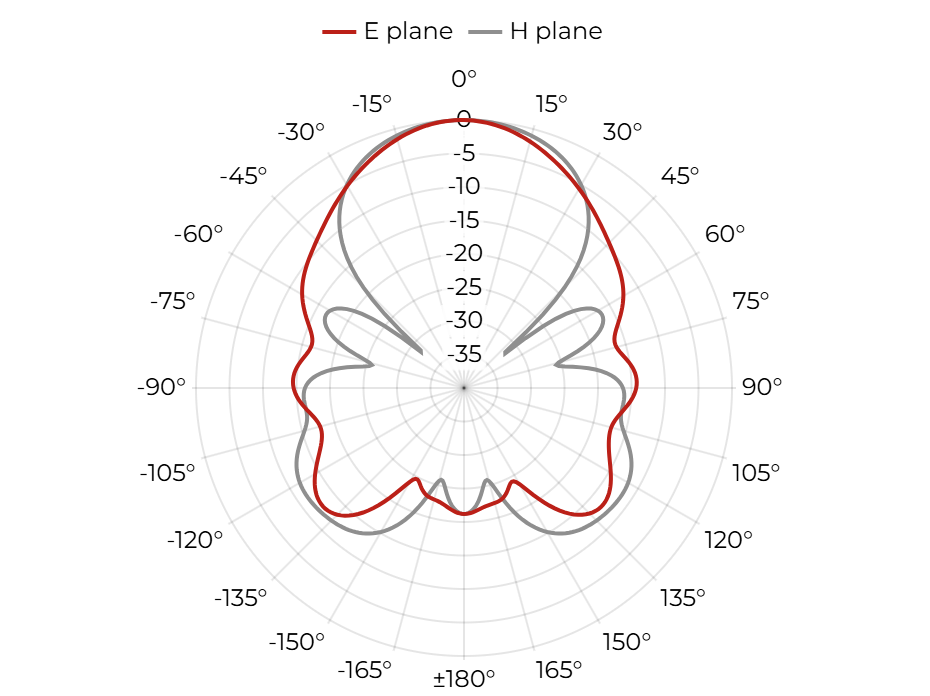

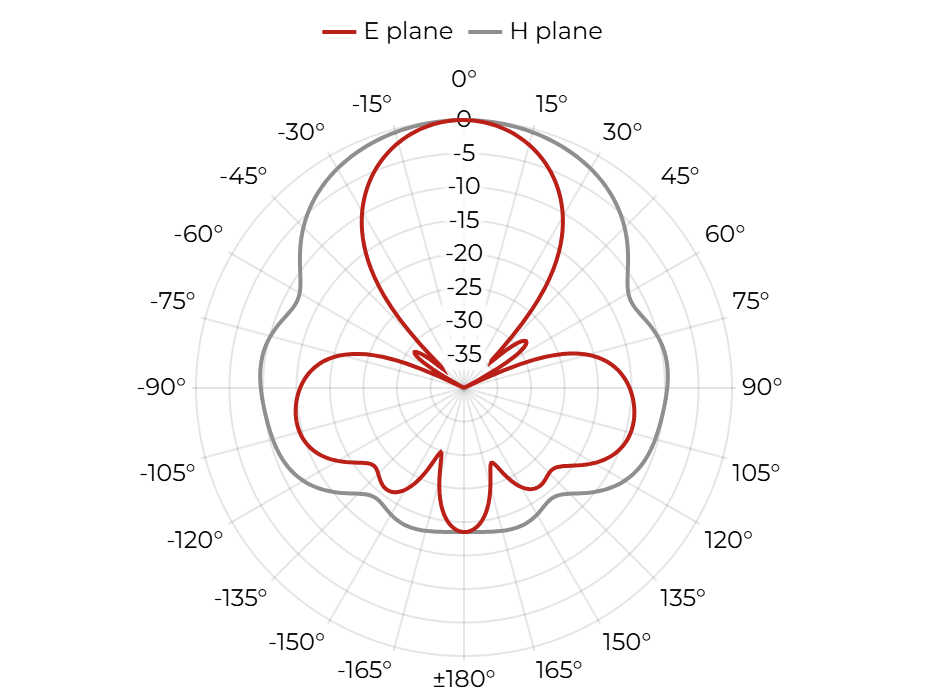

Port A, 2 GHz
Port A, 3 GHz
Port A, 4 GHz

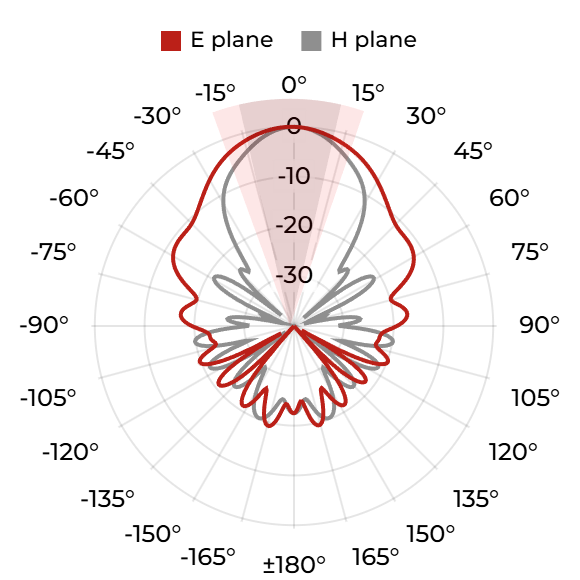

Port A, 5 GHz
Port A, 6 GHz

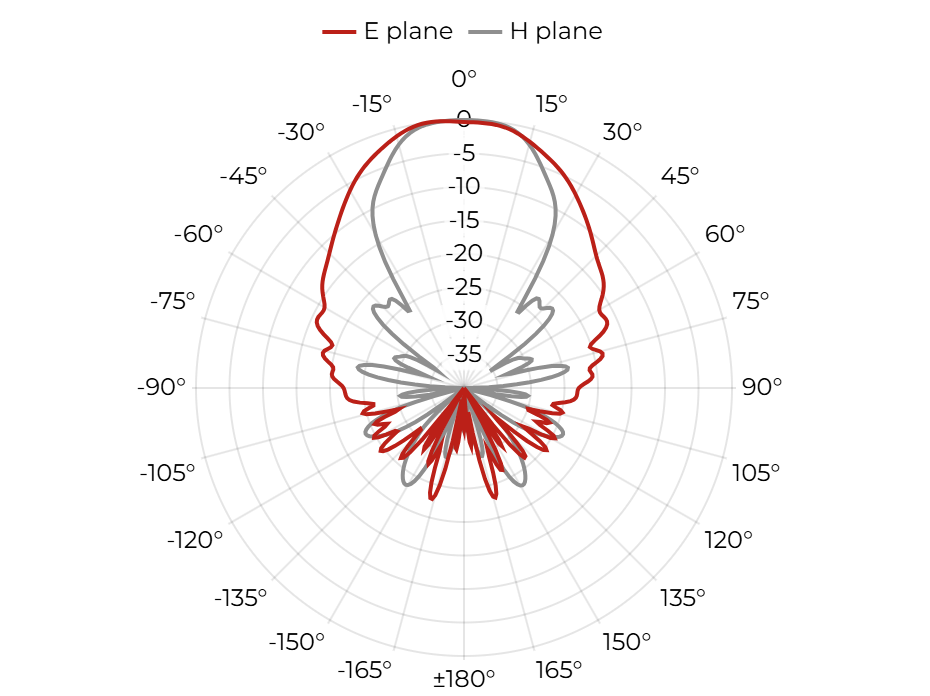

Port A, 8 GHz

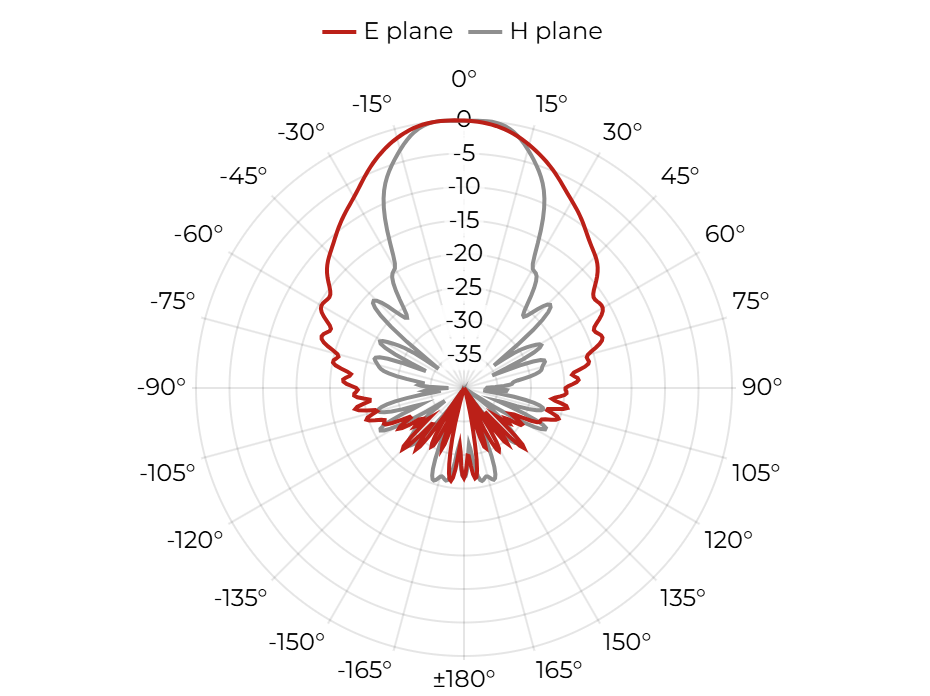

Port A, 10 GHz

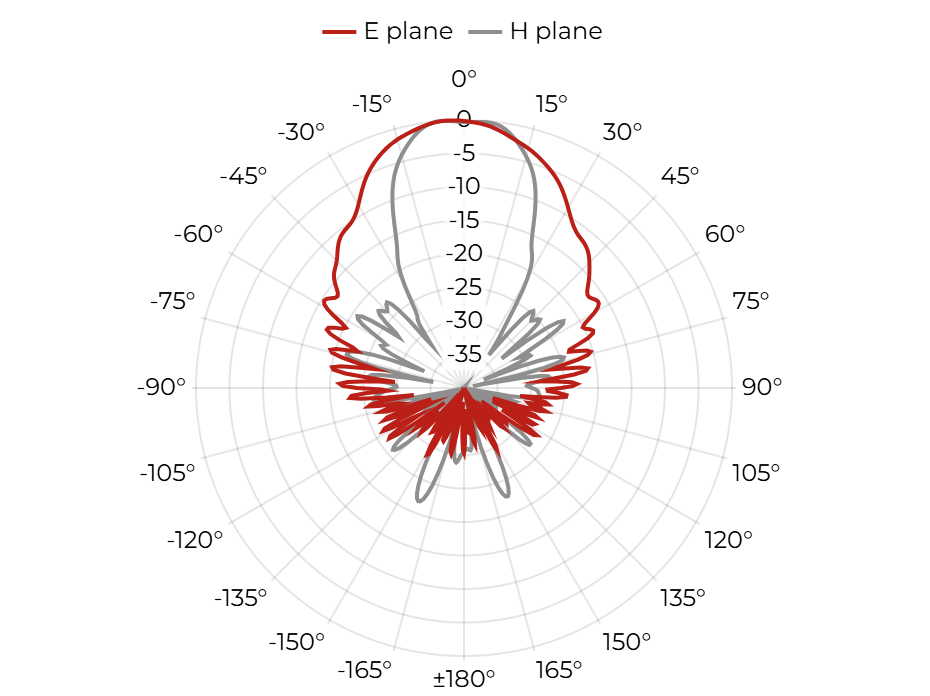

Port A, 12 GHz

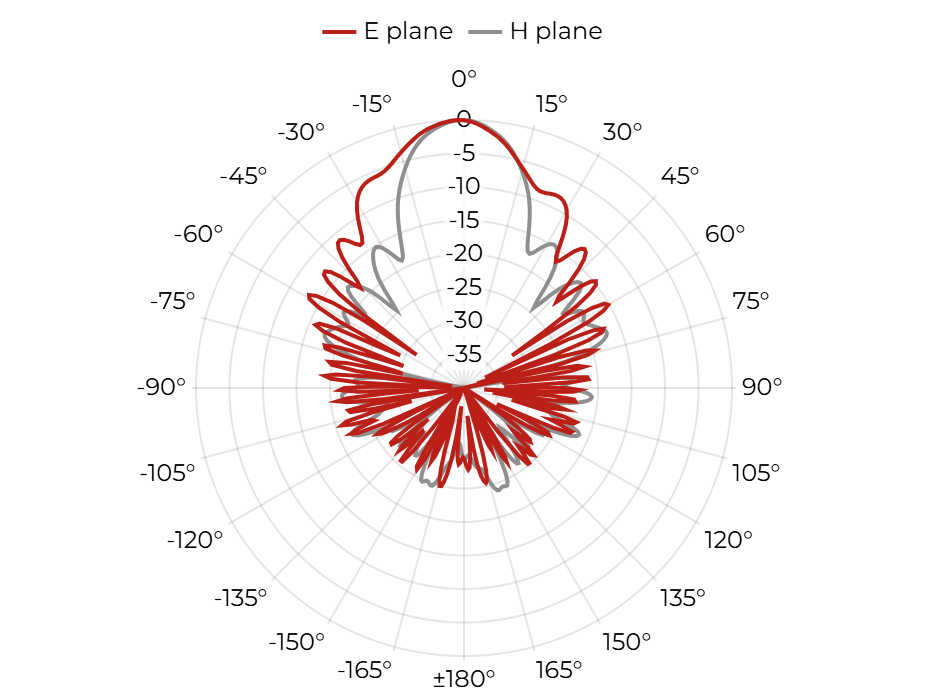

Port A, 14 GHz
Port A, 16 GHz
Port A, 18 GHz

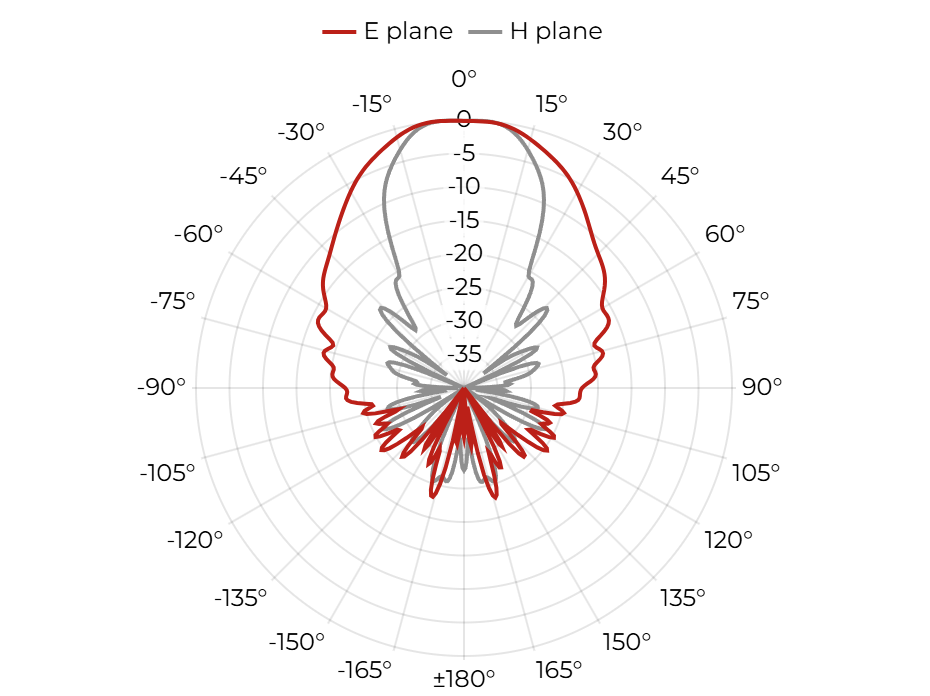

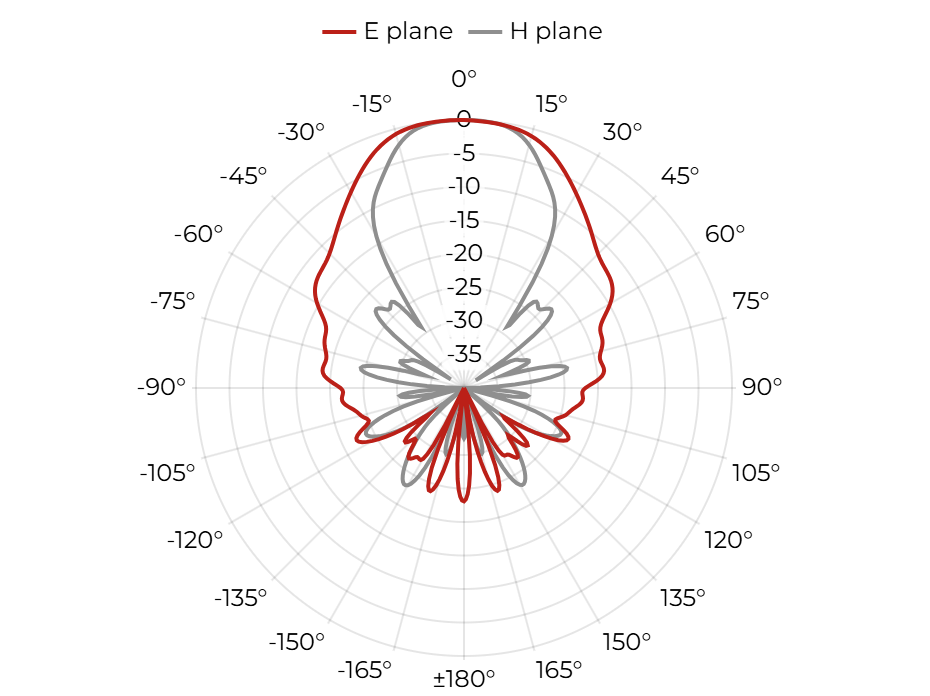

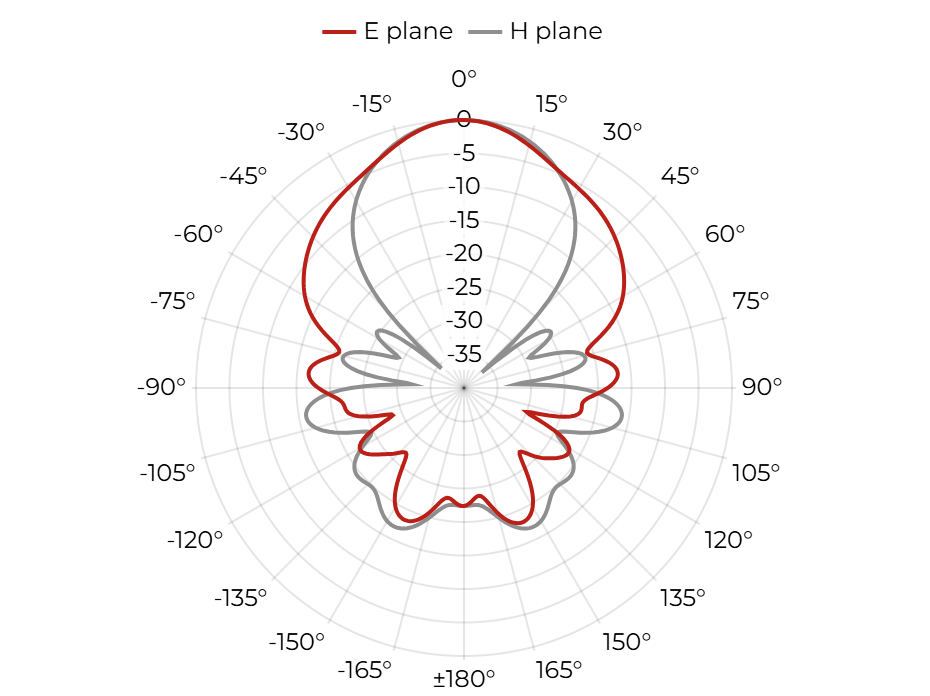

Radiation Patterns - Port B

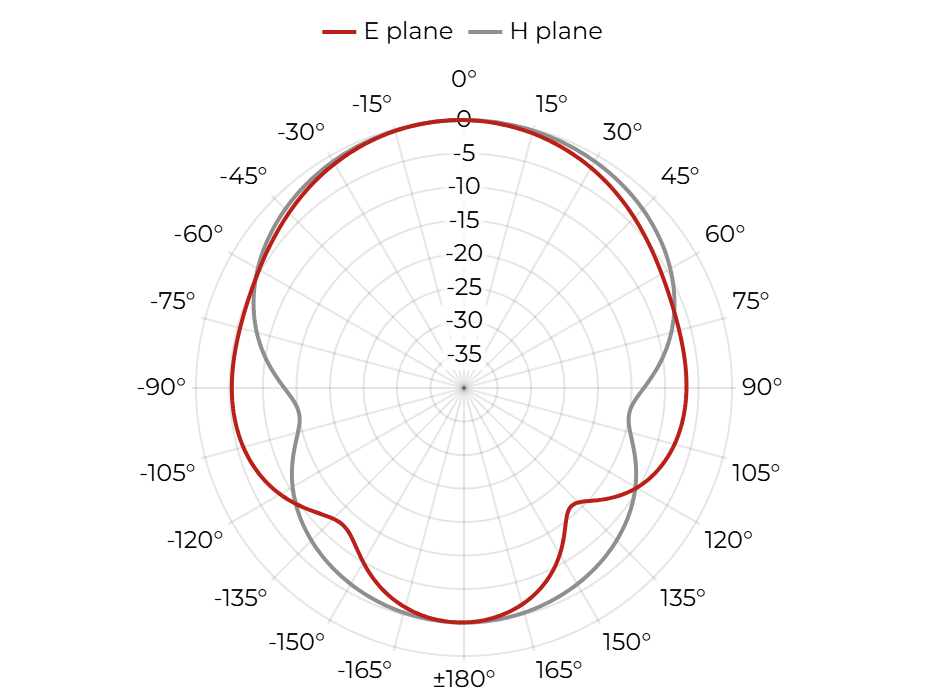

Port B, 1 GHz

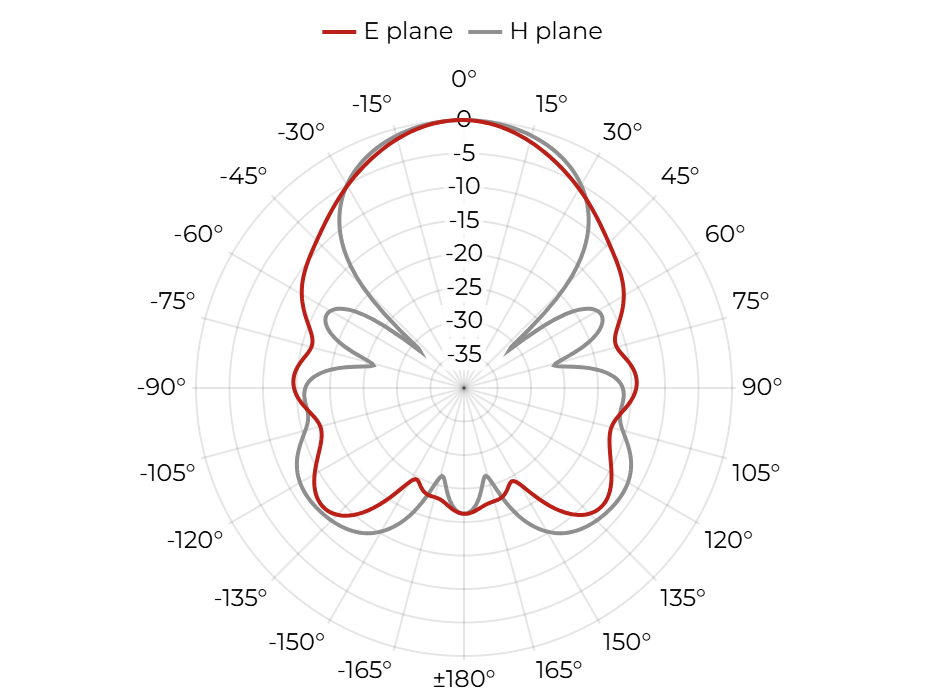

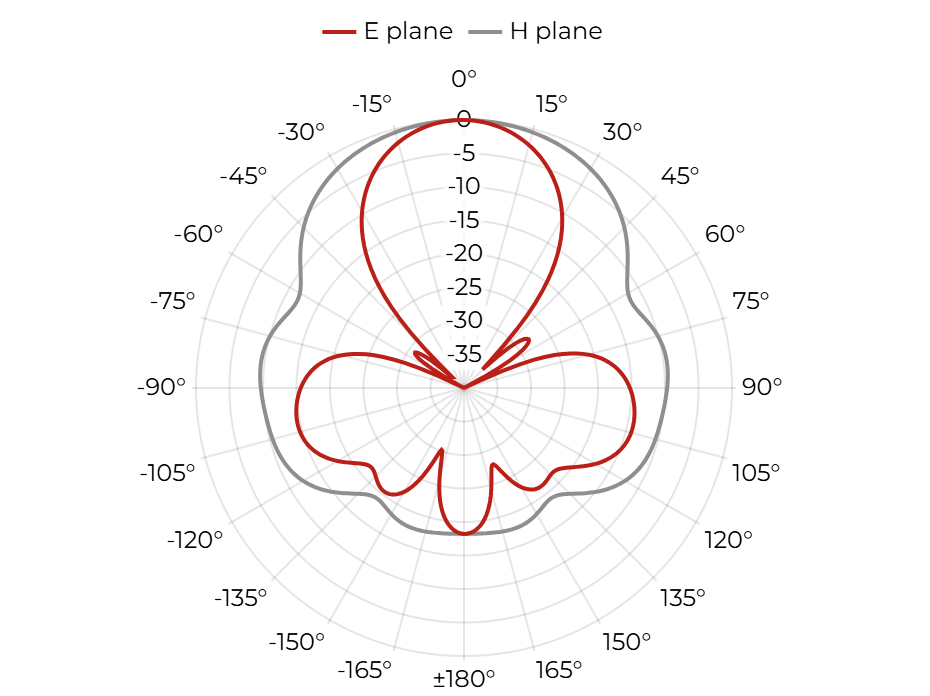

Port B, 2 GHz
Port B, 3 GHz
Port B, 4 GHz

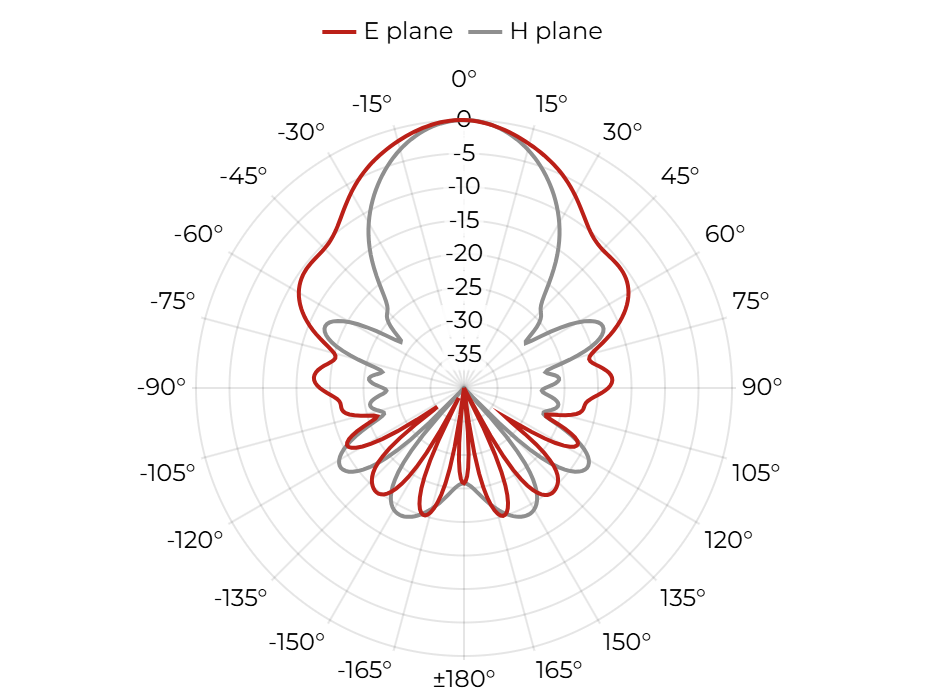

Port B, 5 GHz
Port B, 6 GHz

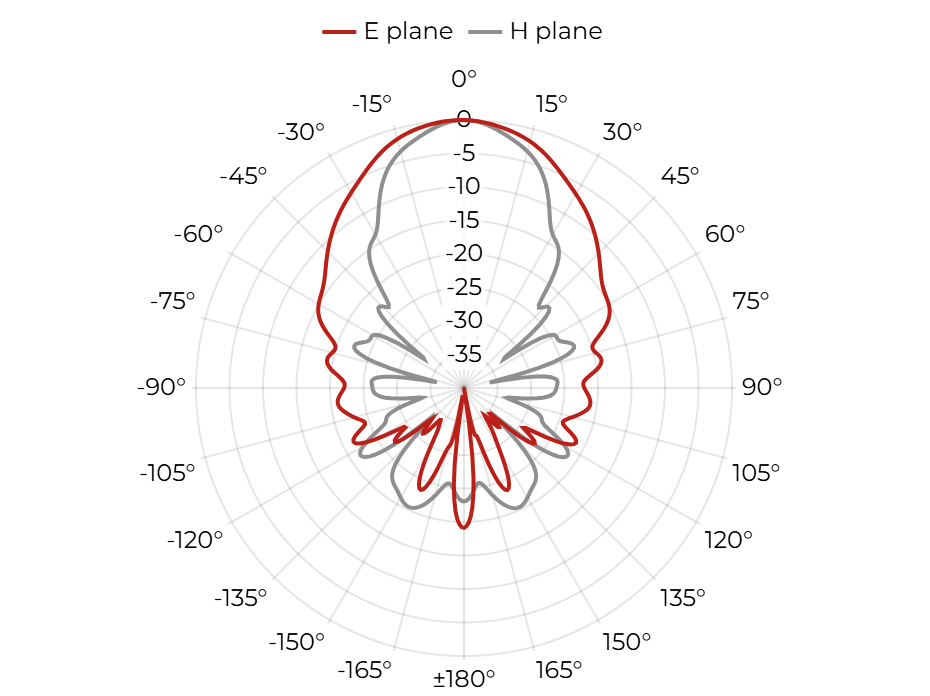

Port B, 8 GHz
Port B, 10 GHz

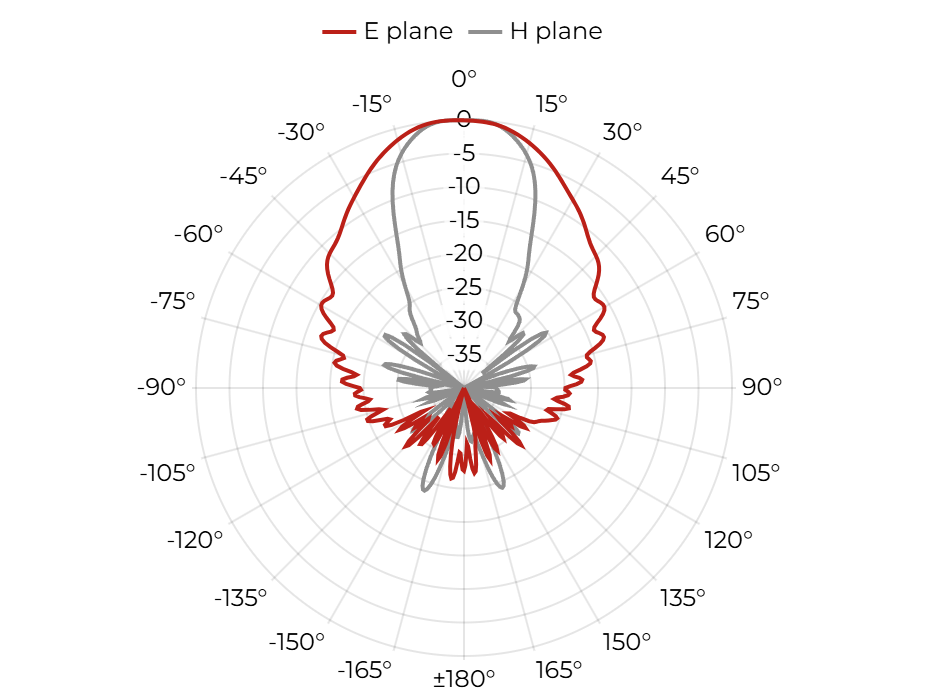

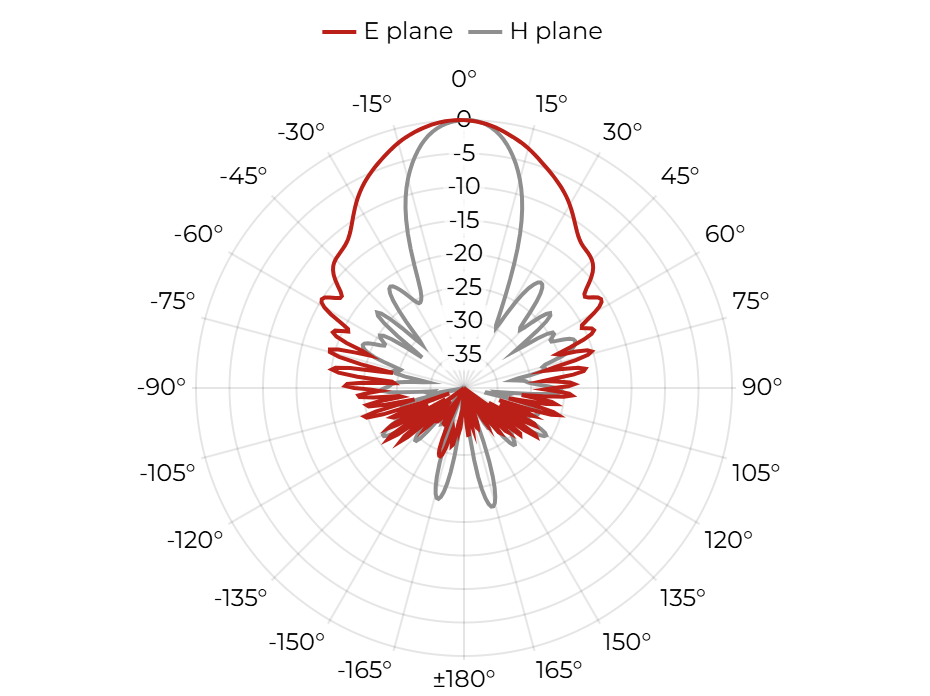

Port B, 12 GHz
Port B, 14 GHz
Port B, 16 GHz
Port B, 18 GHz
Packaging and Accessories
Accessories
- Standard mounting flange
Optional Accessories
Manufacturer Information
RFspin s.r.o.
Na Beránce 57/2
160 00 Prague 6
Czech Republic
info@rfspin.com
+420 245 008 847
