        LPP-0230

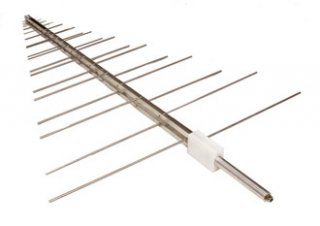

        Log-Periodic Antenna

        The LPP-0230 is a log-periodic antenna specially developed for EMC/EMI testing. The frequency band is from 200 MHz to 3 GHz.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Suitable for EMC/EMI applications

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High qulity N type coaxial connector

        Product Packaging Includes

        • Linear polarized log-periodic antenna for receiving and transmitting applications

        Product Parameters

        Product identification

        • Product Name LPP-0230
        • Product Category Log-Periodic Antenna

        Electrical specifications

        • Frequency Range 200 MHz – 3 GHz
        • VSWR (max.) 2
        • VSWR (avg.) 1.3
        • Impedance 50 Ohm
        • Insertion Loss (max.) -0.01 dB
        • Connector N
        • Power (CW / Peak) 300 W / 500 W
        • Antenna Factor 12 – 32 dB/m
        • Polarization Linear

        Physical specifications

        • Width 805 mm (31.693 in)
        • Height 60 mm (2.362 in)
        • Depth 1260 mm (49.606 in)
        • Weight 1.5 kg (3.307 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Universal antenna mount

        Parameters and Performance

        Typical parameters

        VSWR

        LPP-0230 - VSWR

        Gain

        LPP-0230 - Gain

        Antenna Factor

        LPP-0230 - Antenna Factor

        Packaging and Accessories

        What's in a box

        • LPP-0230 Antenna
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)
        • Universal antenna mount

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
