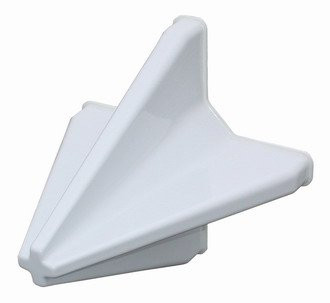

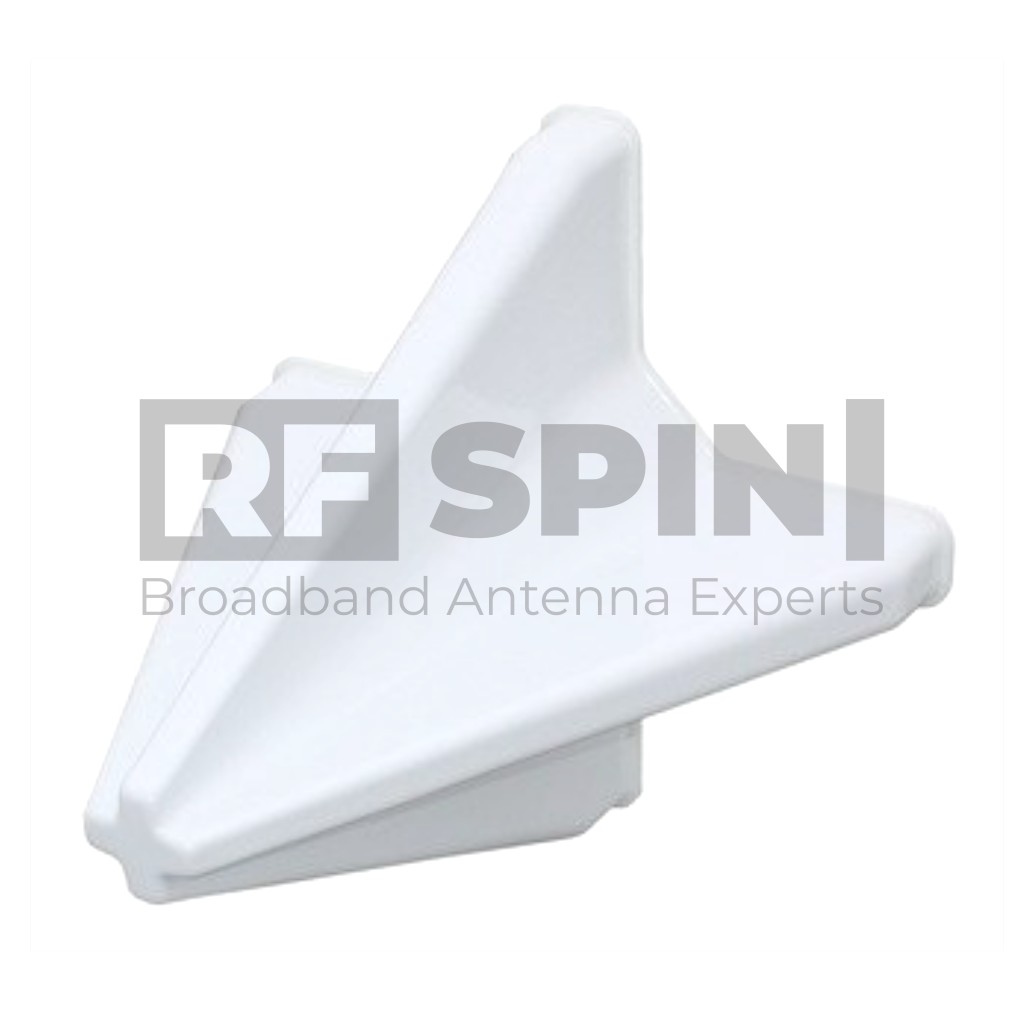

        DLPP-6

        Log-Periodic Antenna

        The DLPP-6 is a dual-polarized, water-resistant broadband log-periodic antenna operating from 500 MHz to 6 GHz. The antenna has low VSWR and an average gain 6 dBi.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Suitable for EMC/EMI applications

        Design and Surface Treatment

        • Protective water-resistant case

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • High quality SMA type coaxial connector

        Product Packaging Includes

        • Linear polarized log-periodic antenna for receiving and transmitting applications

        Product Parameters

        Product identification

        • Product Name DLPP-6
        • Product Category Log-Periodic Antenna

        Electrical specifications

        • Frequency Range 500 MHz – 6 GHz
        • VSWR (max.) 2.5
        • VSWR (avg.) 1.7
        • Impedance 50 Ohm
        • Connector SMA (female)
        • Power (CW / Peak) 10 W / 20 W
        • Antenna Factor 19 – 40 dB/m
        • Polarization Dual Linear, Circular (with hybrid)

        Physical specifications

        • Width 460 mm (18.110 in)
        • Height 455 mm (17.913 in)
        • Depth 460 mm (18.110 in)
        • Weight 1.8 kg (3.968 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Parameters and Performance

        Typical parameters

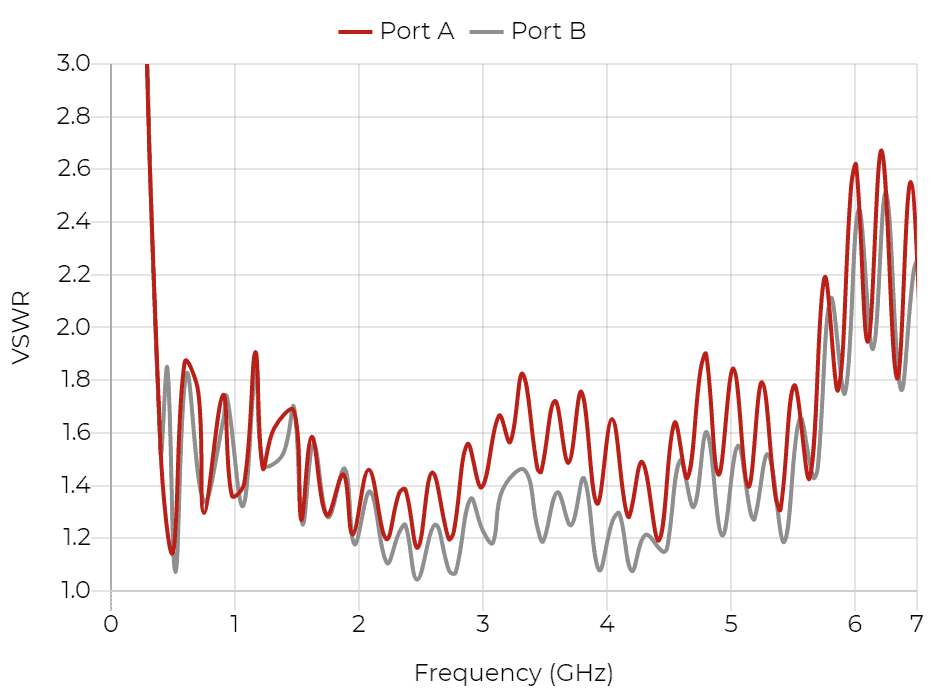

        VSWR

        DLPP-6 - VSWR

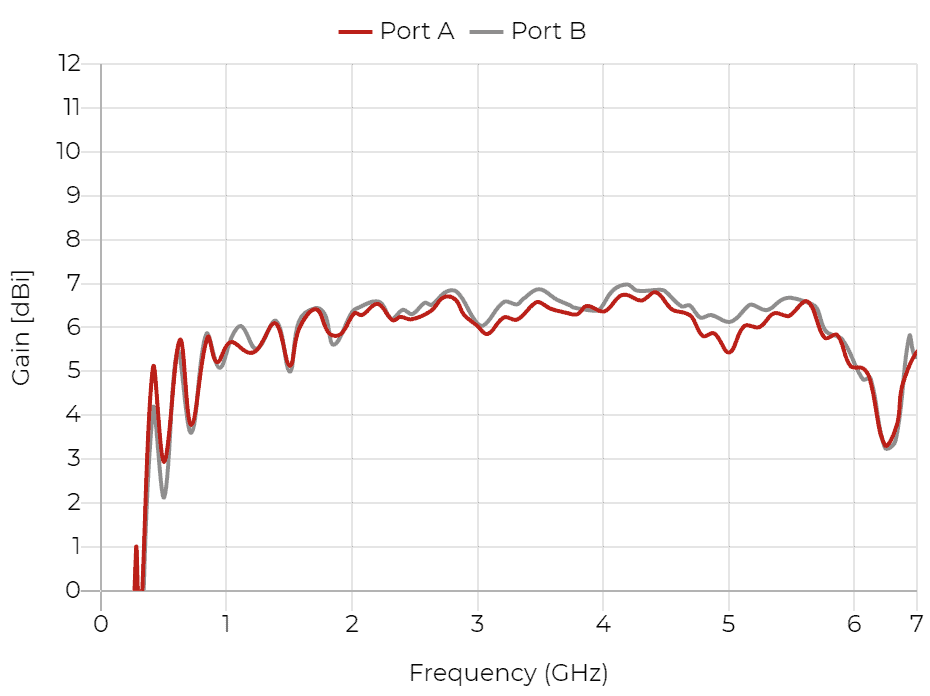

        Gain

        DLPP-6 - Gain

        Antenna Factor

        DLPP-6 - Antenna Factor

        Port Isolation

        DLPP-6 - Port Isolation

        Packaging and Accessories

        What's in a box

        • DLPP-6 Antenna
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Custom services

        • Custom mounting solutions
        • Custom calibration data
