        RF SPIN

        Broadband Antenna Solutions

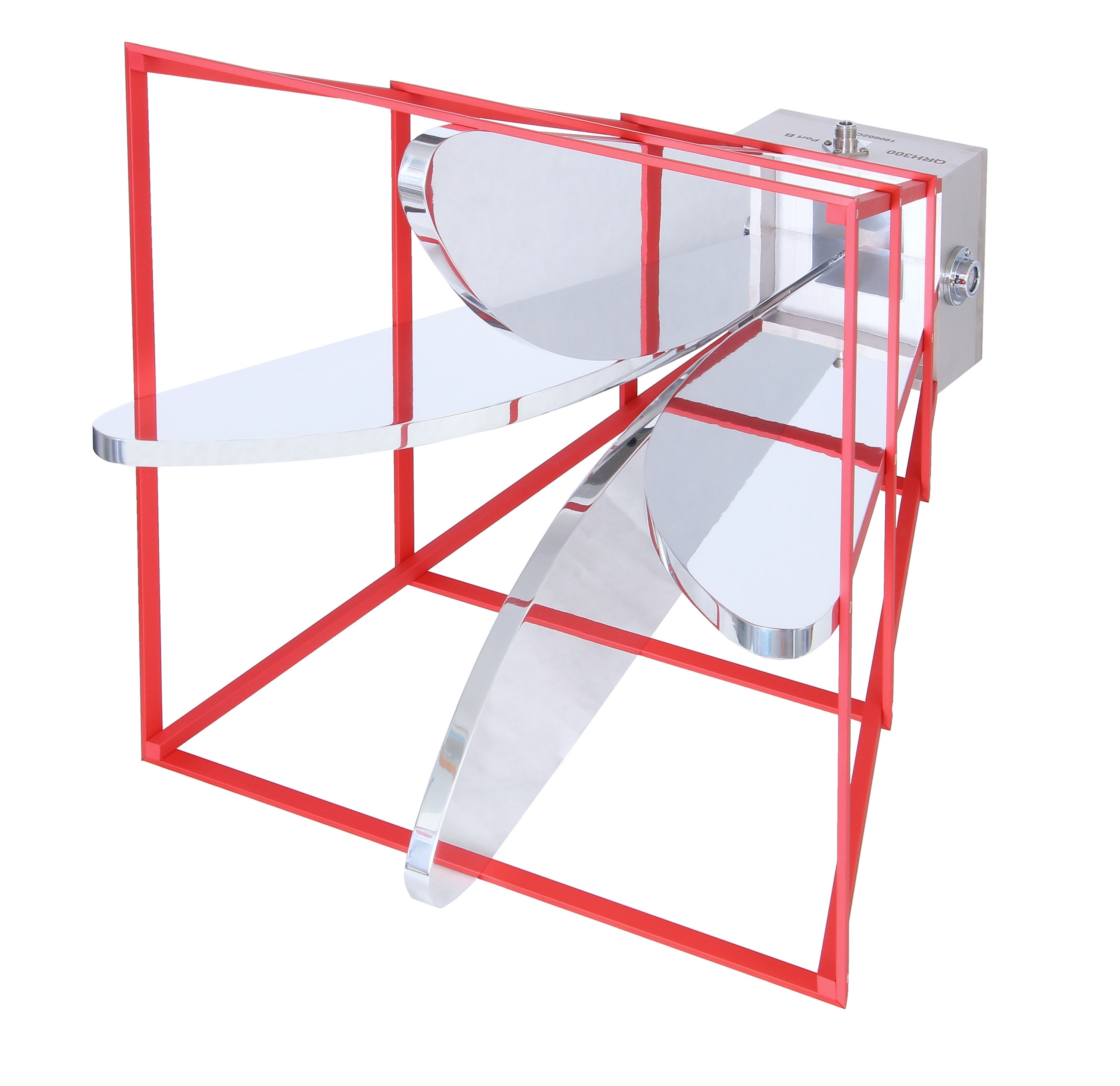

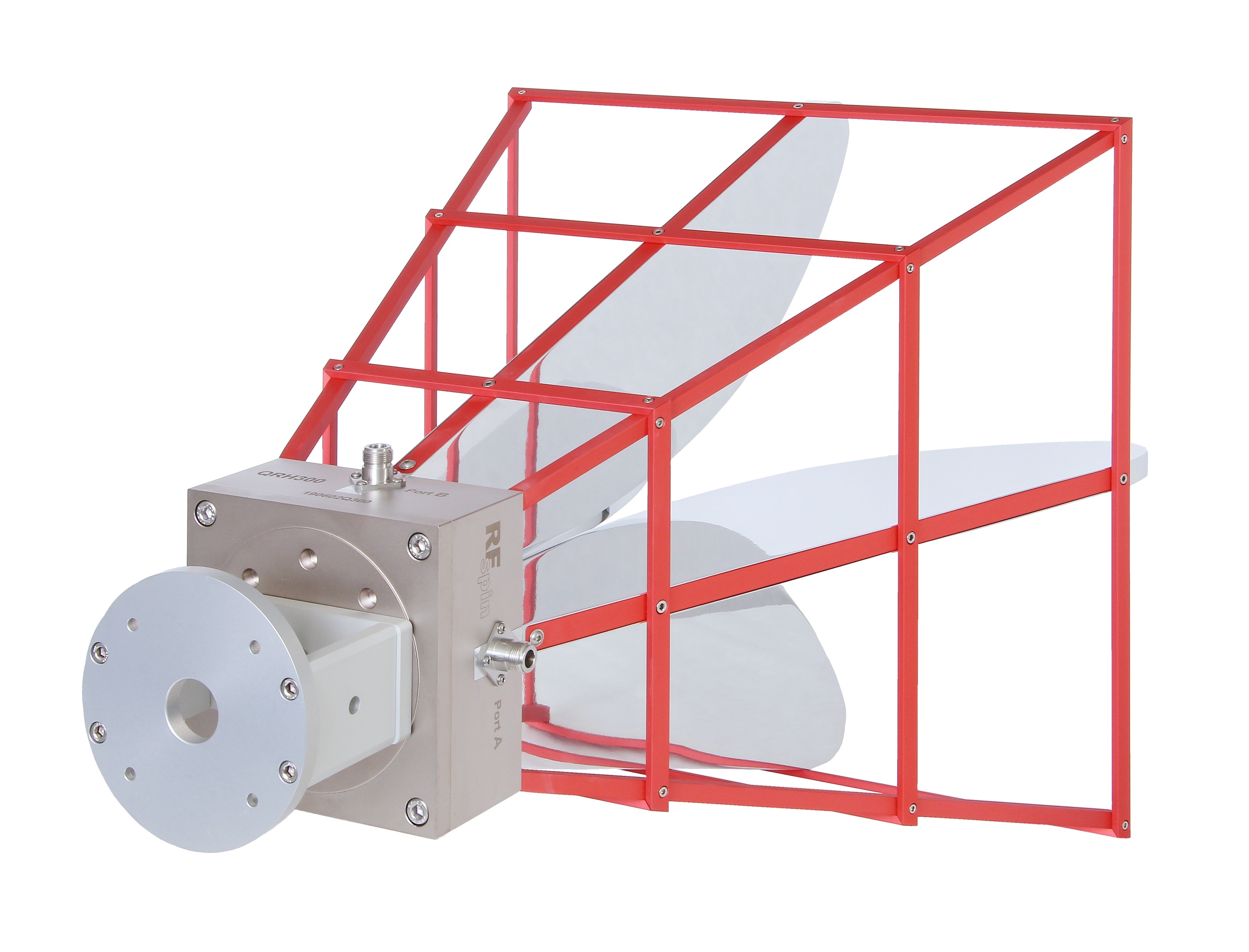

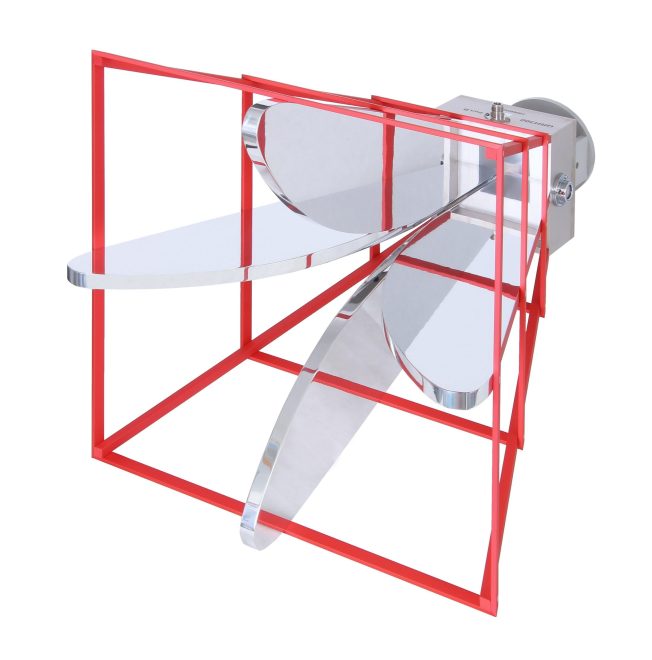

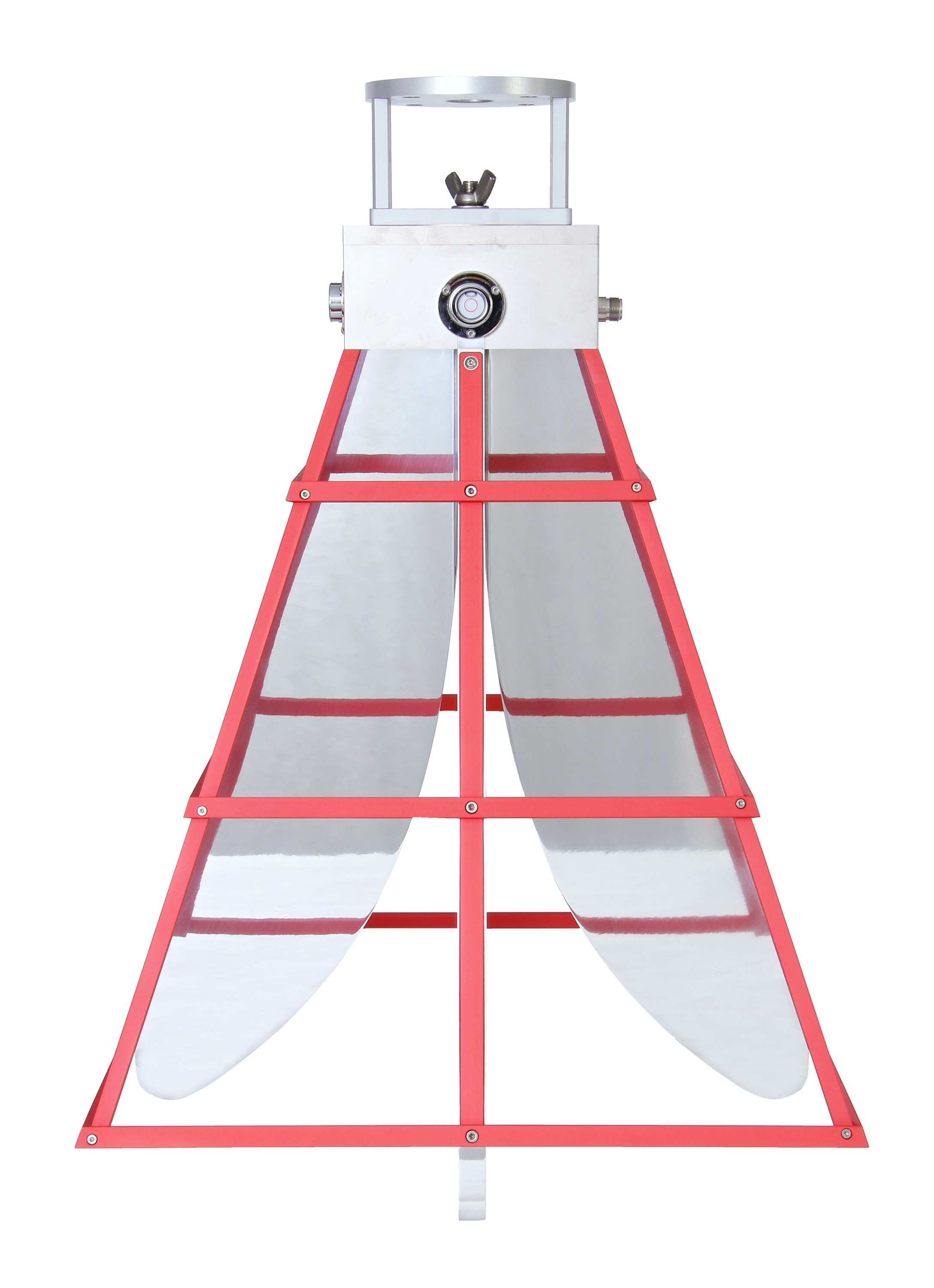

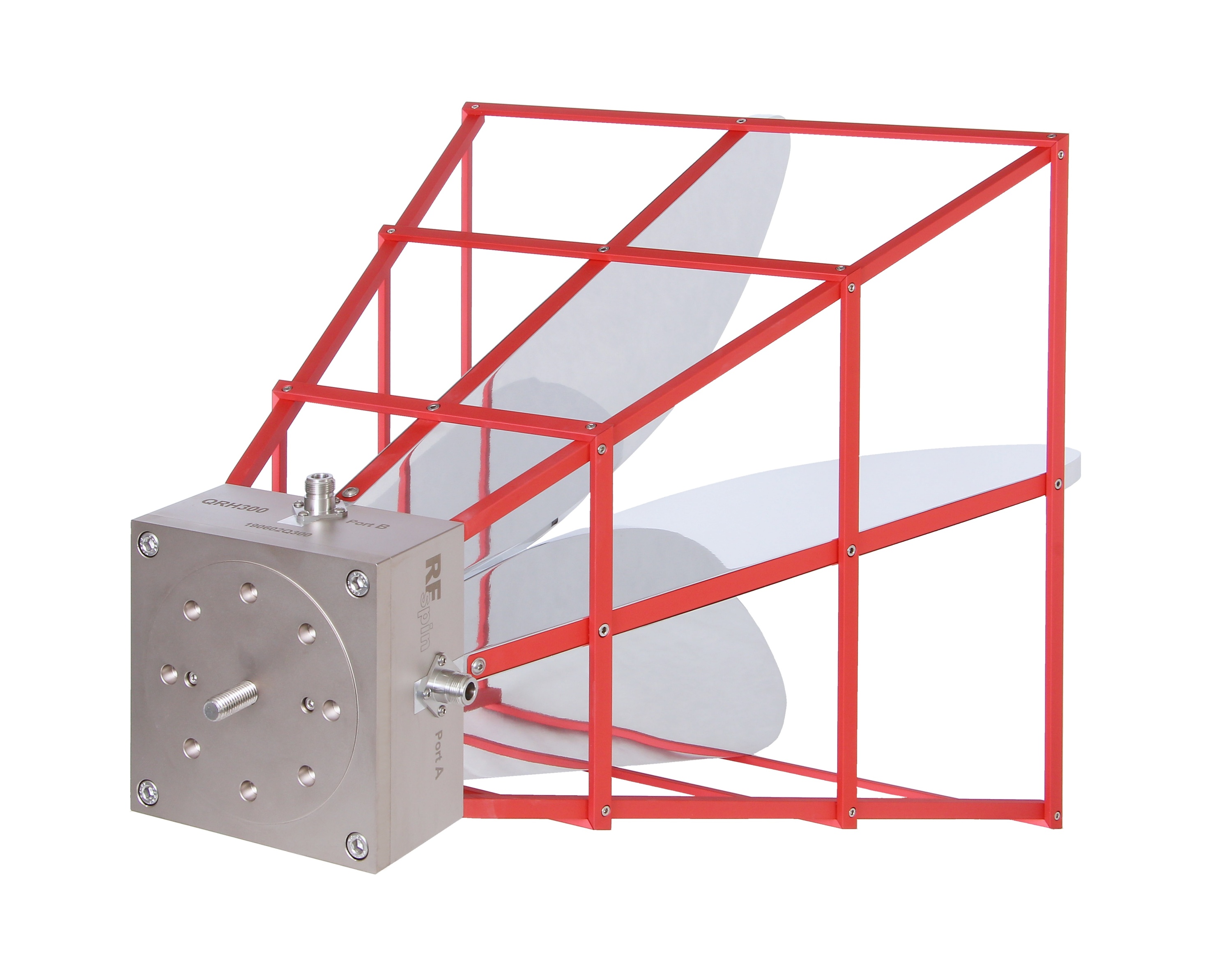

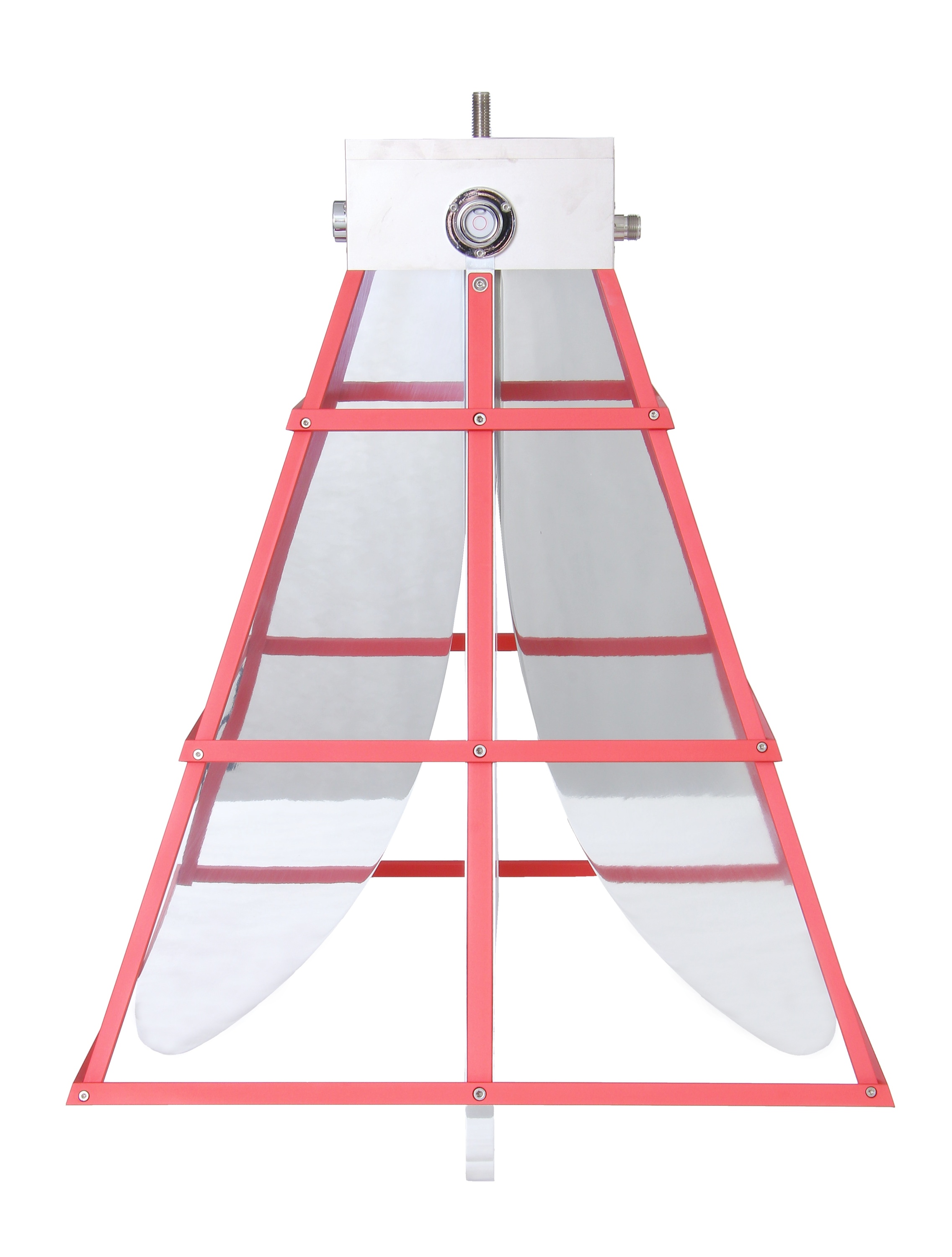

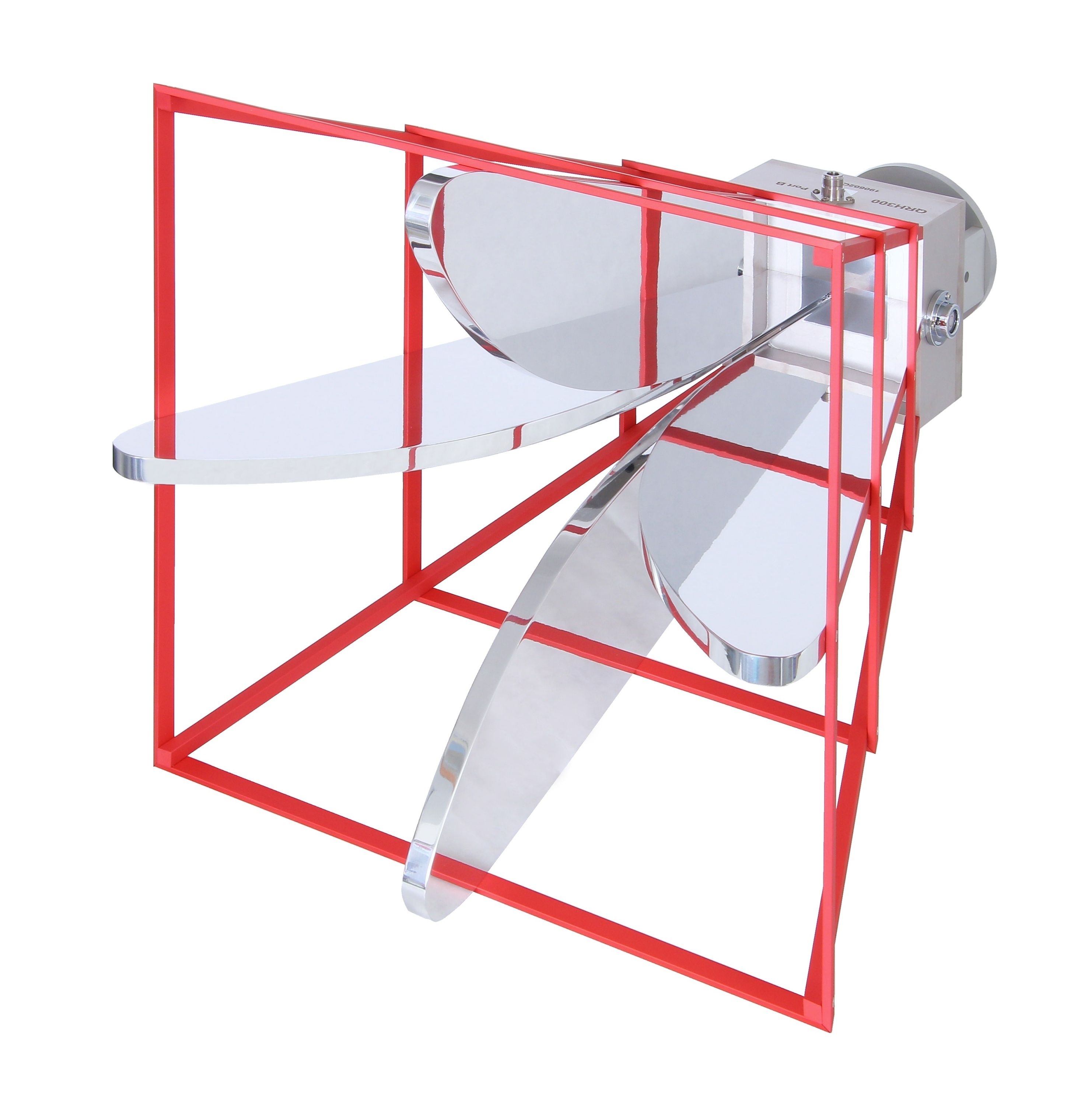

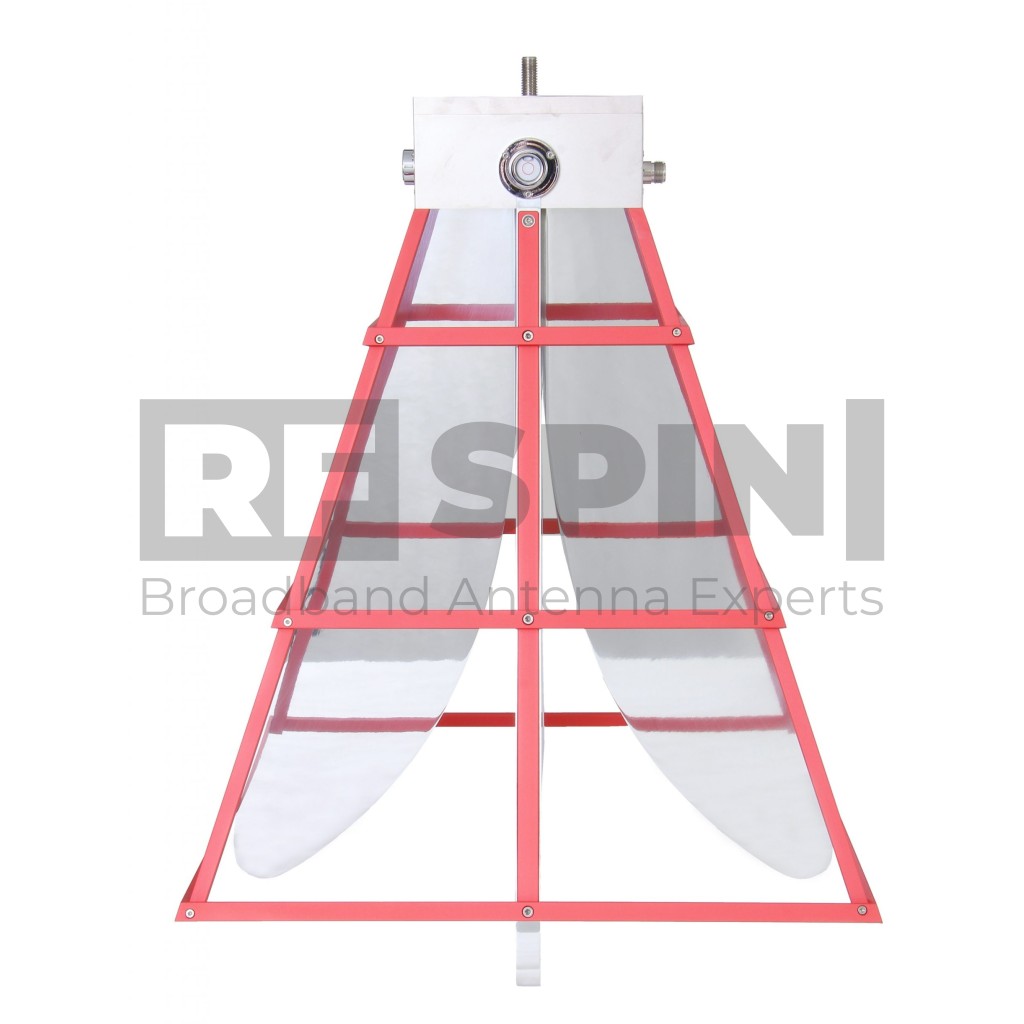

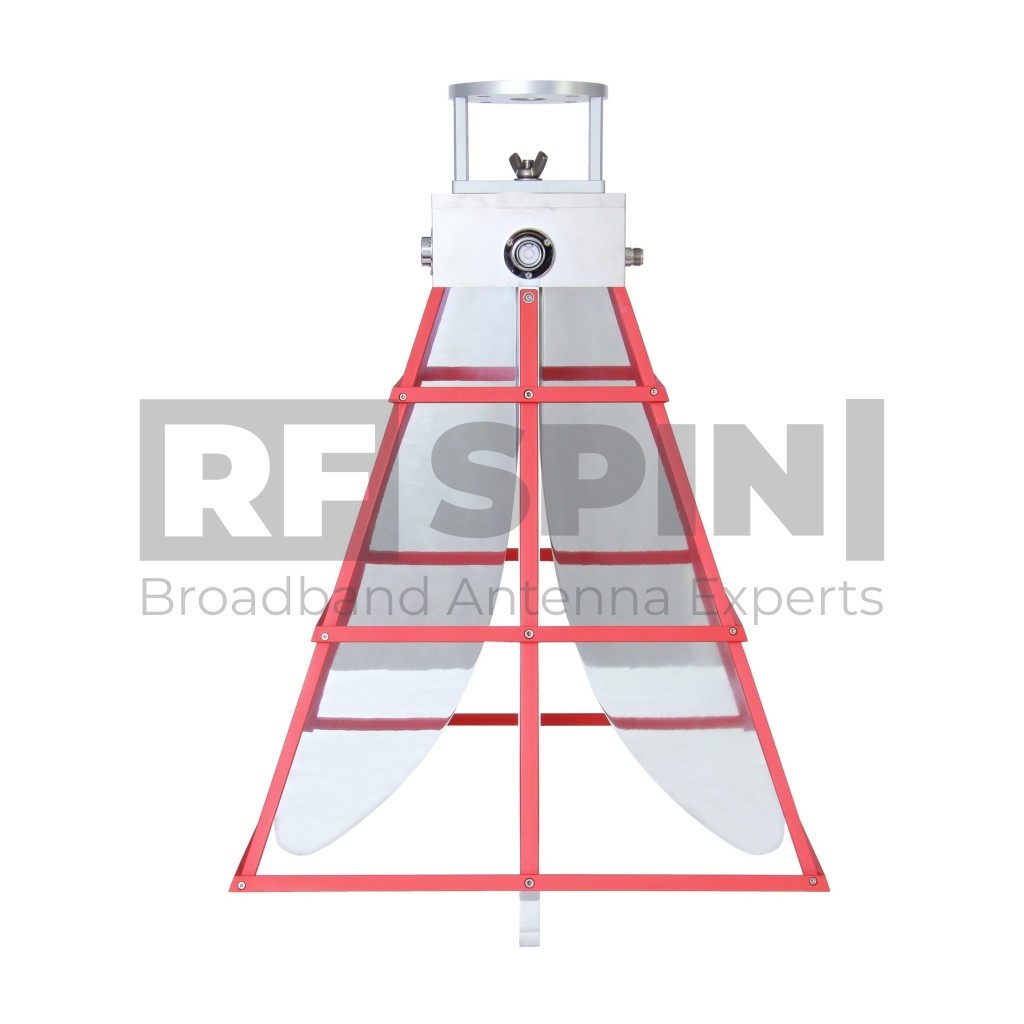

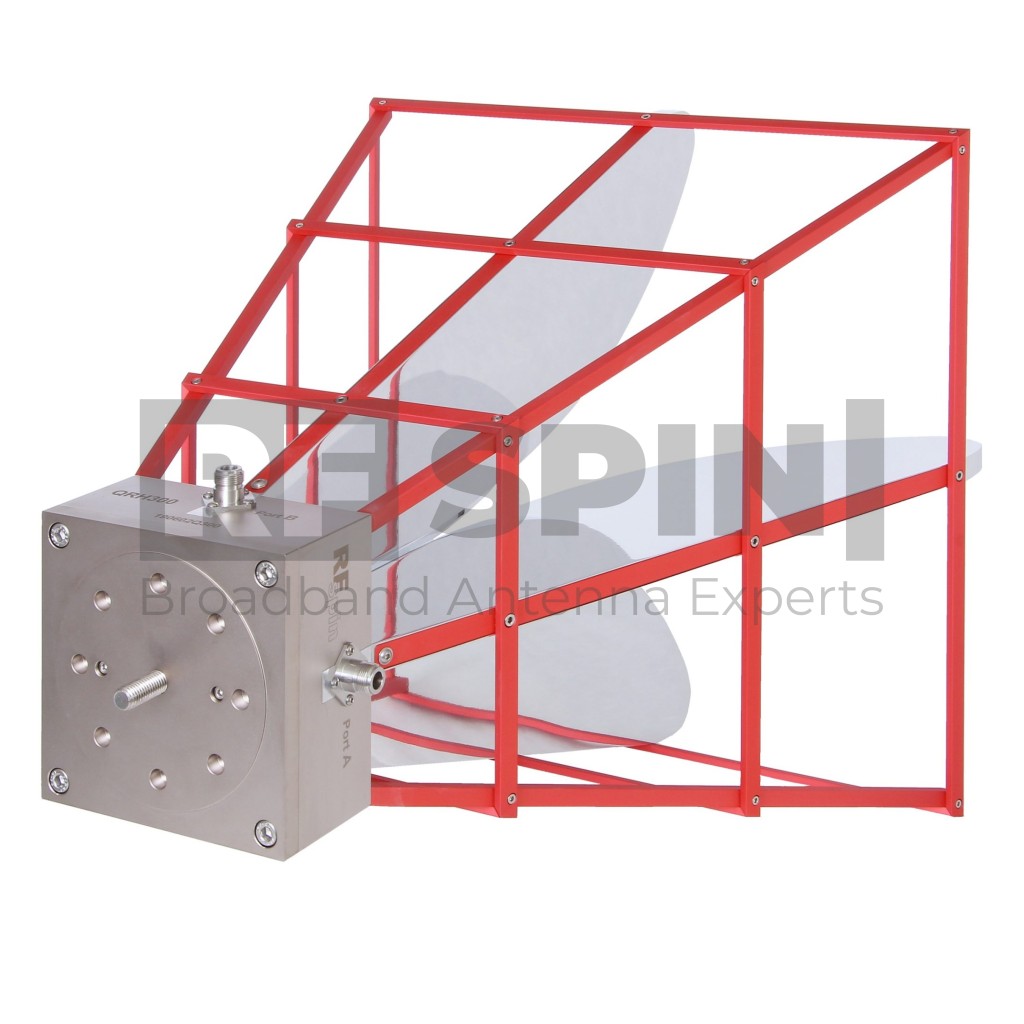

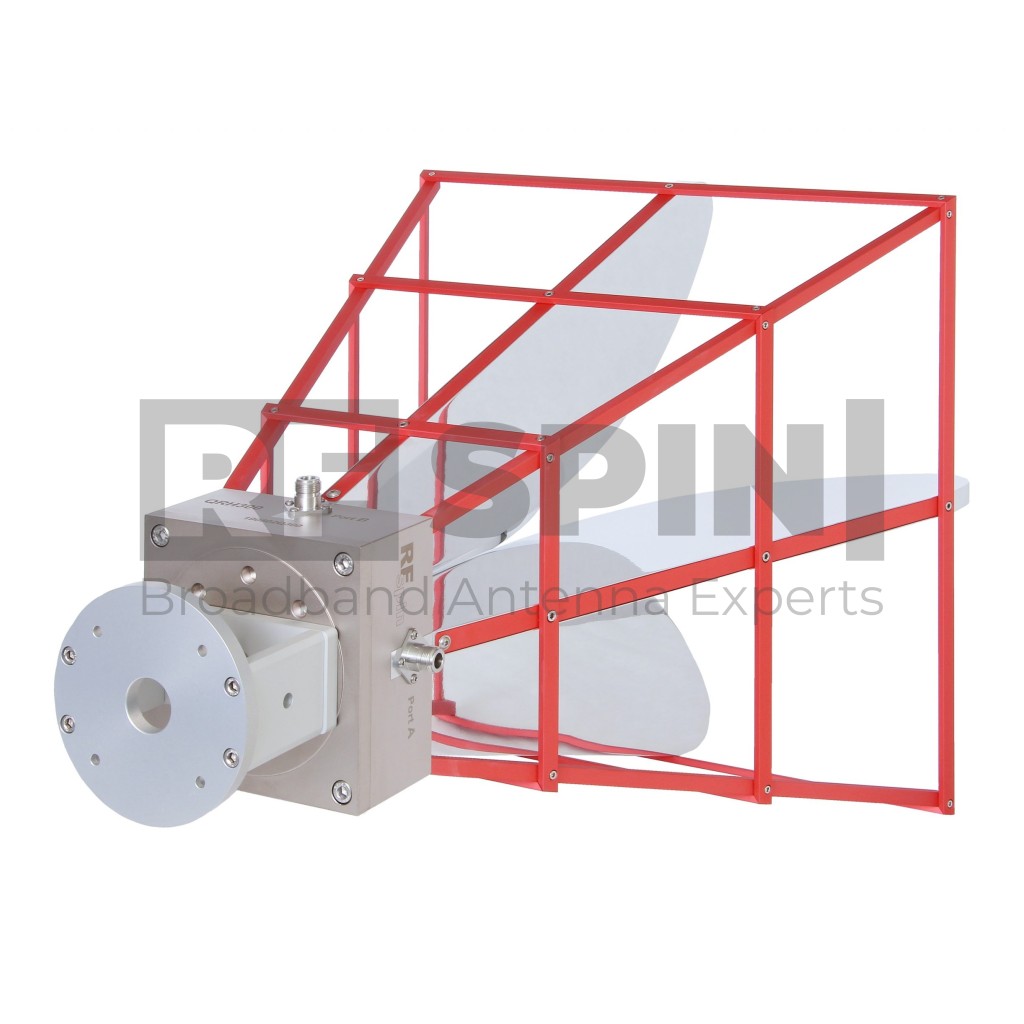

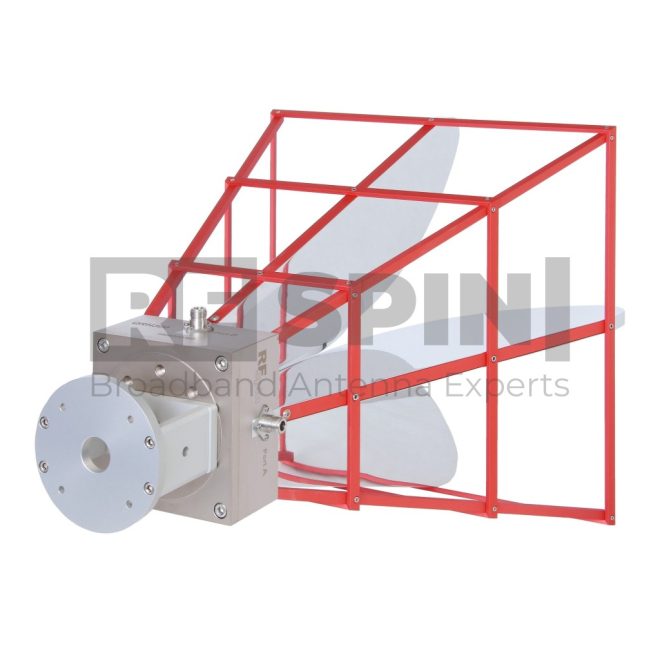

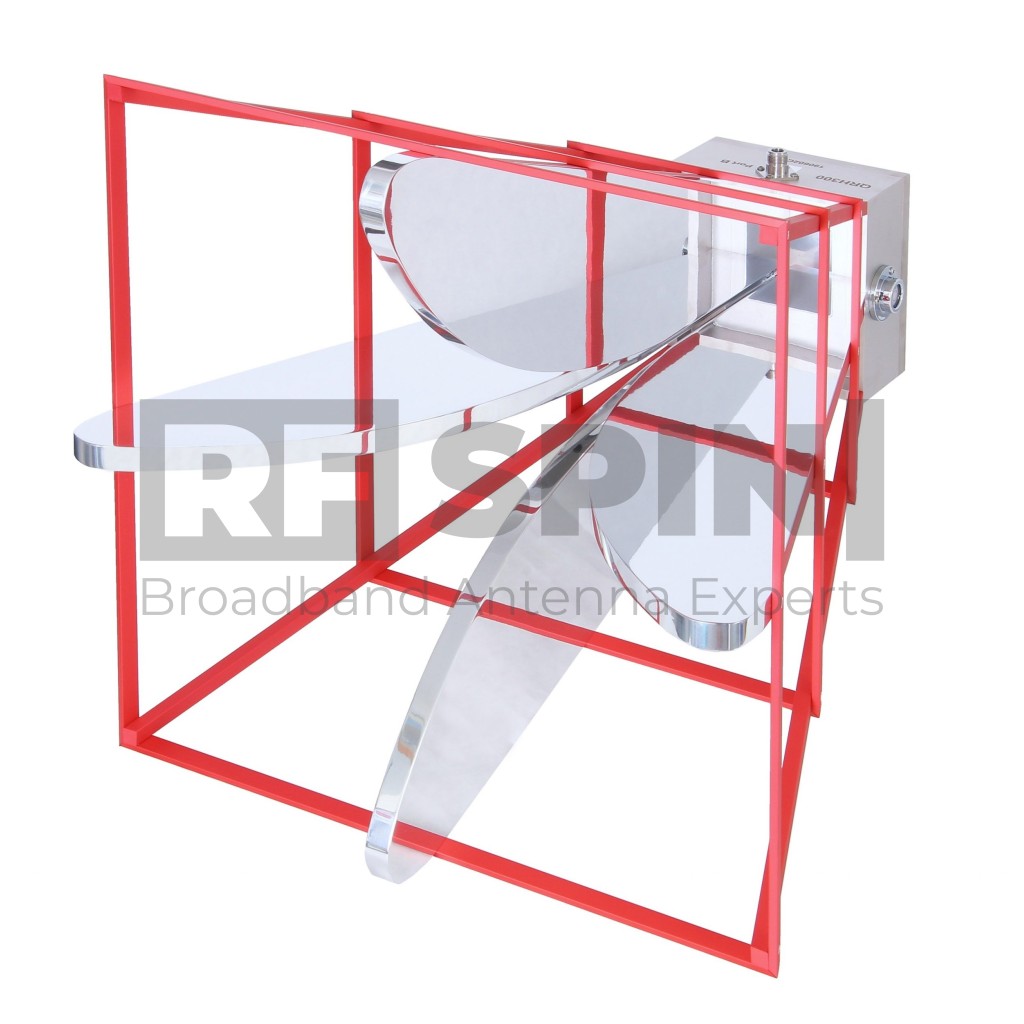

        QRH300

        Quad Ridged Horn Antenna

        QRH300 is dual-polarized broadband antenna with a frequency from 300 MHz. This antenna is perfect for big chambers and EMC measurements. The addition of two spirit levels is a matter of course, thanks to which your measurement in both planes will be very accurate and fun.

        Cloned antenna series are available through AU Technology, which guarantees constant parameters.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Circular polarization
        QR code
        Custom design

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount
        • Very precise spirit level for both polarizations

        Manufacturing Technology

        • High quality N type coaxial connector

        Product Packaging Includes

        • Linear polarized double ridged broadband horn antenna

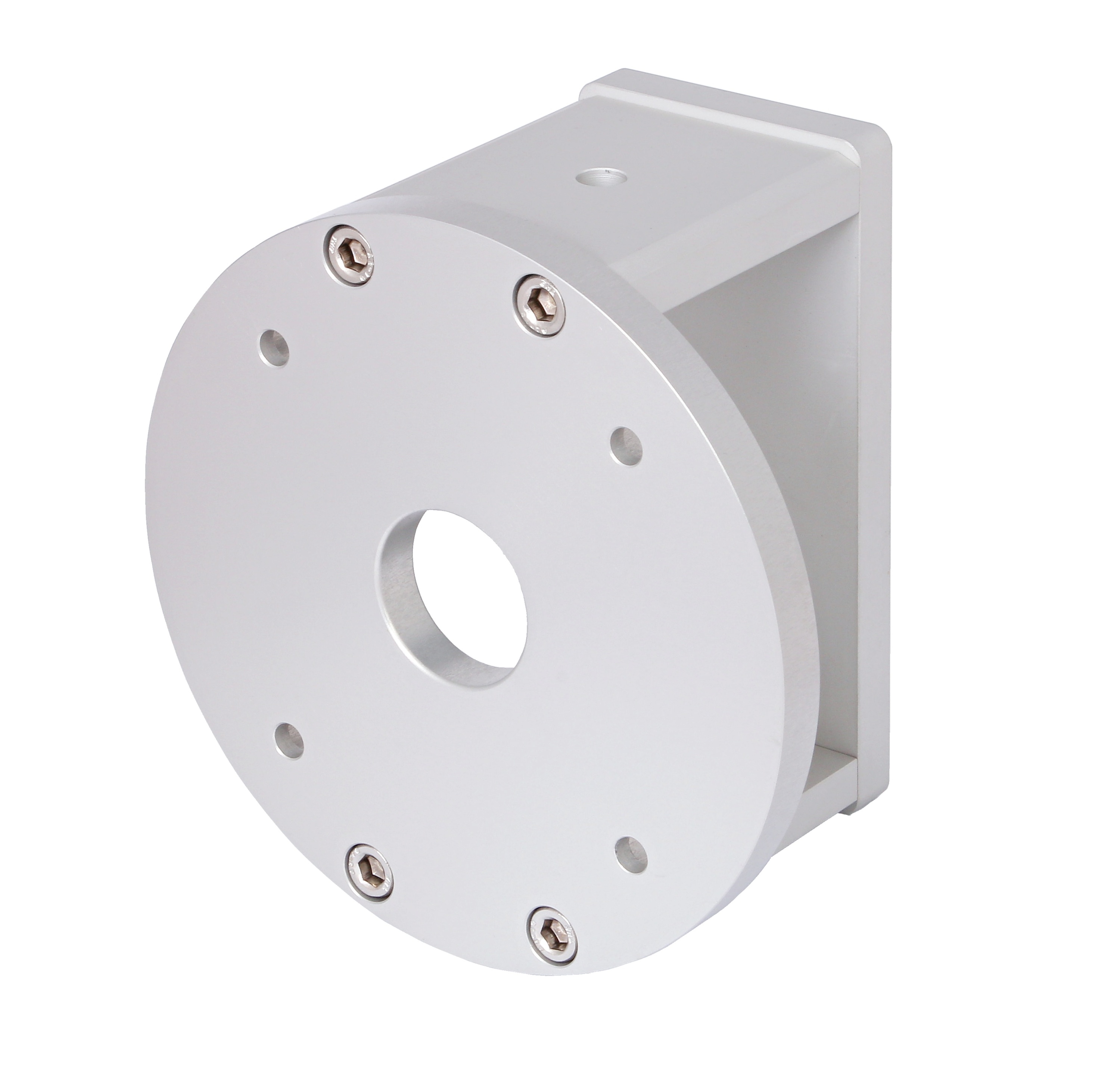

        • Universal antenna mount

        Product Parameters

        Product identification

        • Product Name QRH300
        • Product Category Quad Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 300 MHz – 4.5 GHz
        • VSWR (max.) 2.2
        • VSWR (avg.) 1.4
        • Impedance 50 Ohm
        • Connector N (female)
        • Power (CW / Peak) 700 W / 1100 W
        • Antenna Factor 15 – 30 dB/m
        • Port Isolation -32 dB
        • Polarization Dual Linear, Circular (with hybrid)

        Physical specifications

        • Width 450 mm (17.717 in)
        • Height 570 mm (22.441 in)
        • Depth 450 mm (17.717 in)
        • Weight 9 kg (19.842 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

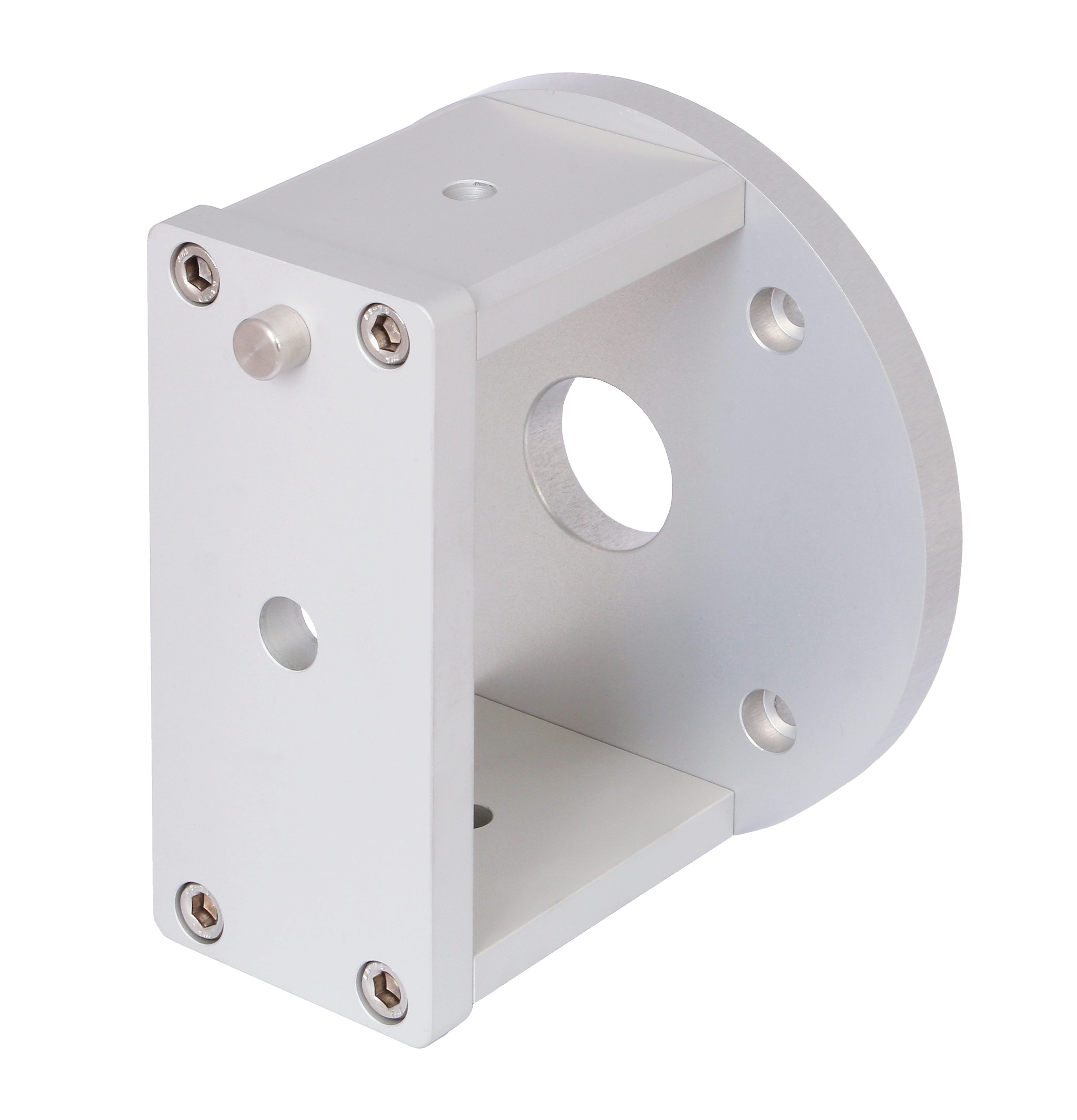

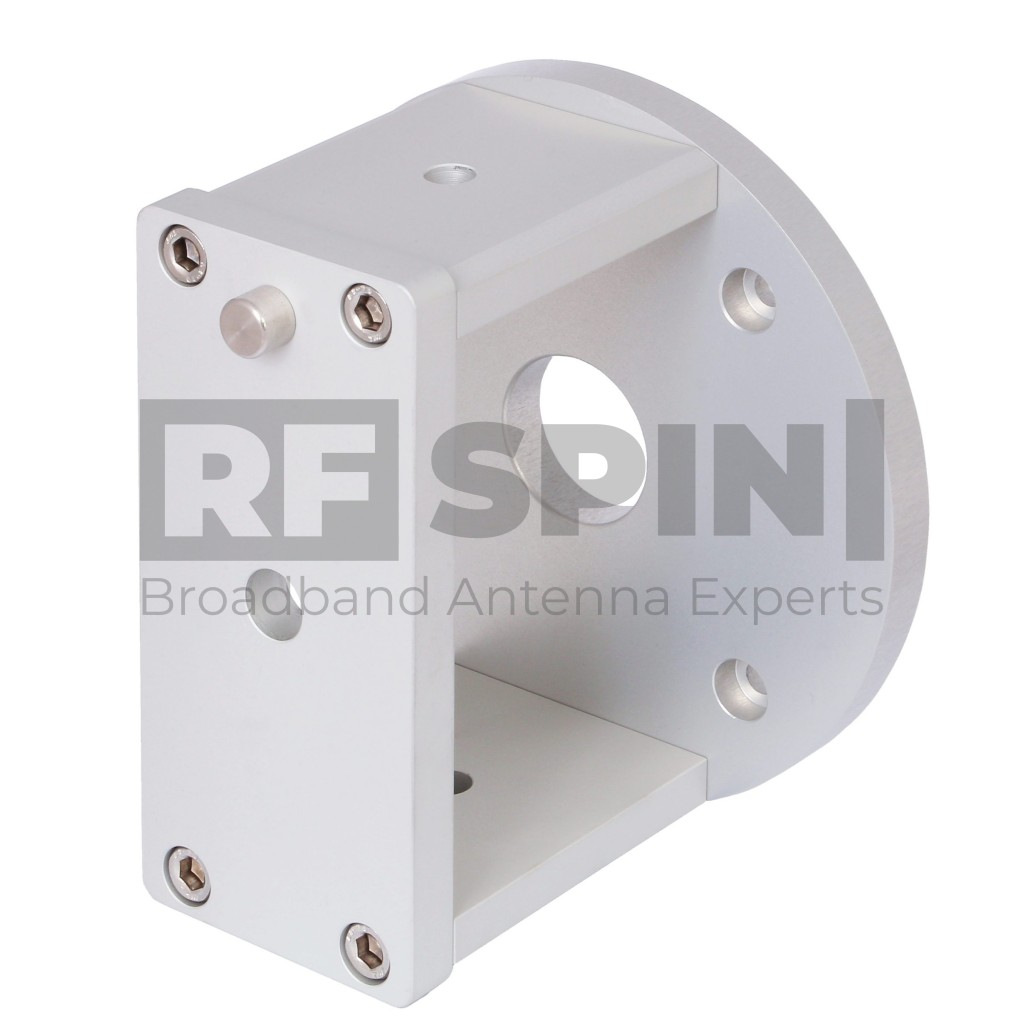

        • Mounting Universal antenna mount

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        QRH300 - VSWR

        Gain

        QRH300 - Gain

        Antenna Factor

        QRH300 - Antenna Factor

        Port Isolation

        QRH300 - Port Isolation

        Cross Polarization

        QRH300 - Cross Polarization

        Beamwidth

        Port A, E plane

        QRH300 - Port A, E plane

        Port A, H plane

        QRH300 - Port A, H plane

        Port B, E plane

        QRH300 - Port B, E plane

        Port B, H plane

        QRH300 - Port B, H plane

        Radiation Patterns

        Port A, 0.3 GHz

        QRH300 - Port A, 0.3 GHz

        Port B, 0.3 GHz

        QRH300 - Port B, 0.3 GHz

        Port A, 0.4 GHz

        QRH300 - Port A, 0.4 GHz

        Port B, 0.4 GHz

        QRH300 - Port B, 0.4 GHz

        Packaging and Accessories

        What's in a box

        • QRH300 Antenna
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

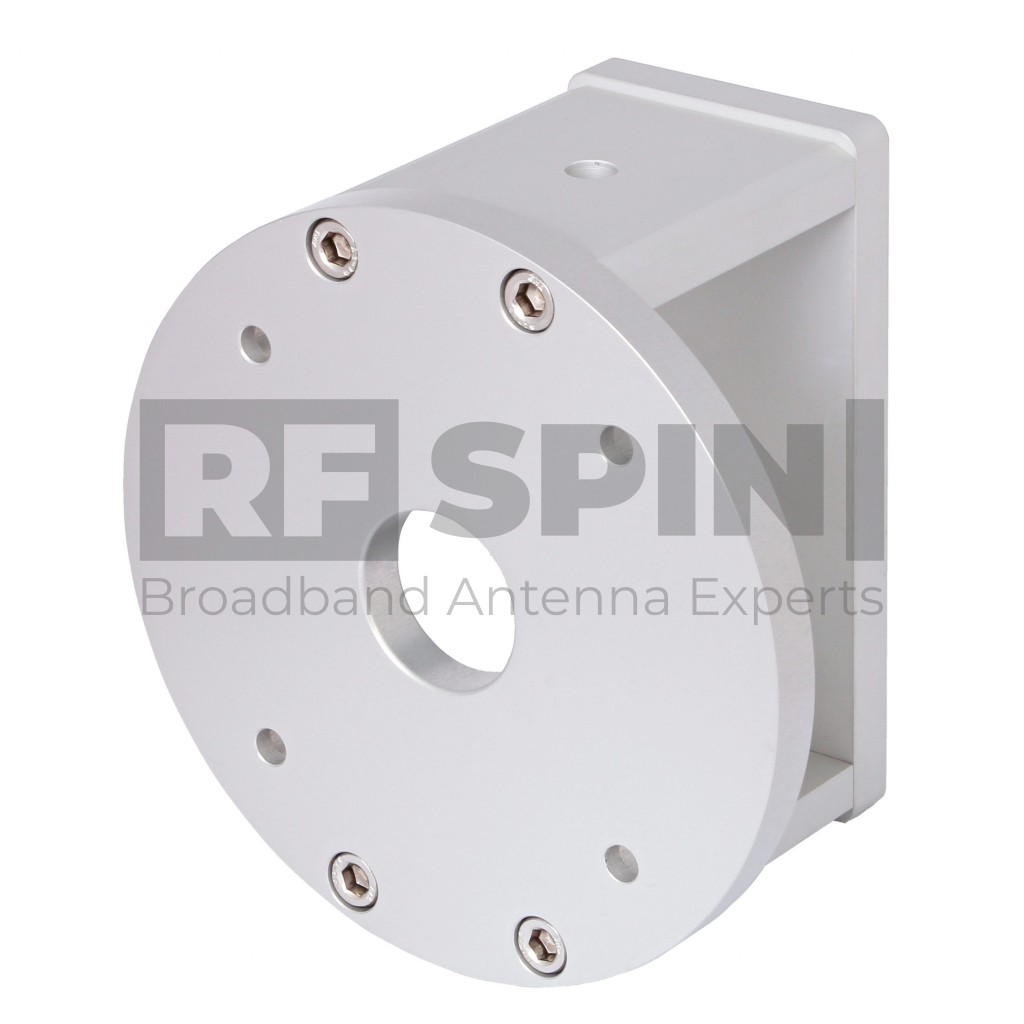

        • Universal antenna mount

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Custom services

        • Custom mounting solutions
        • Custom calibration data
