        RF SPIN

        Broadband Antenna Solutions

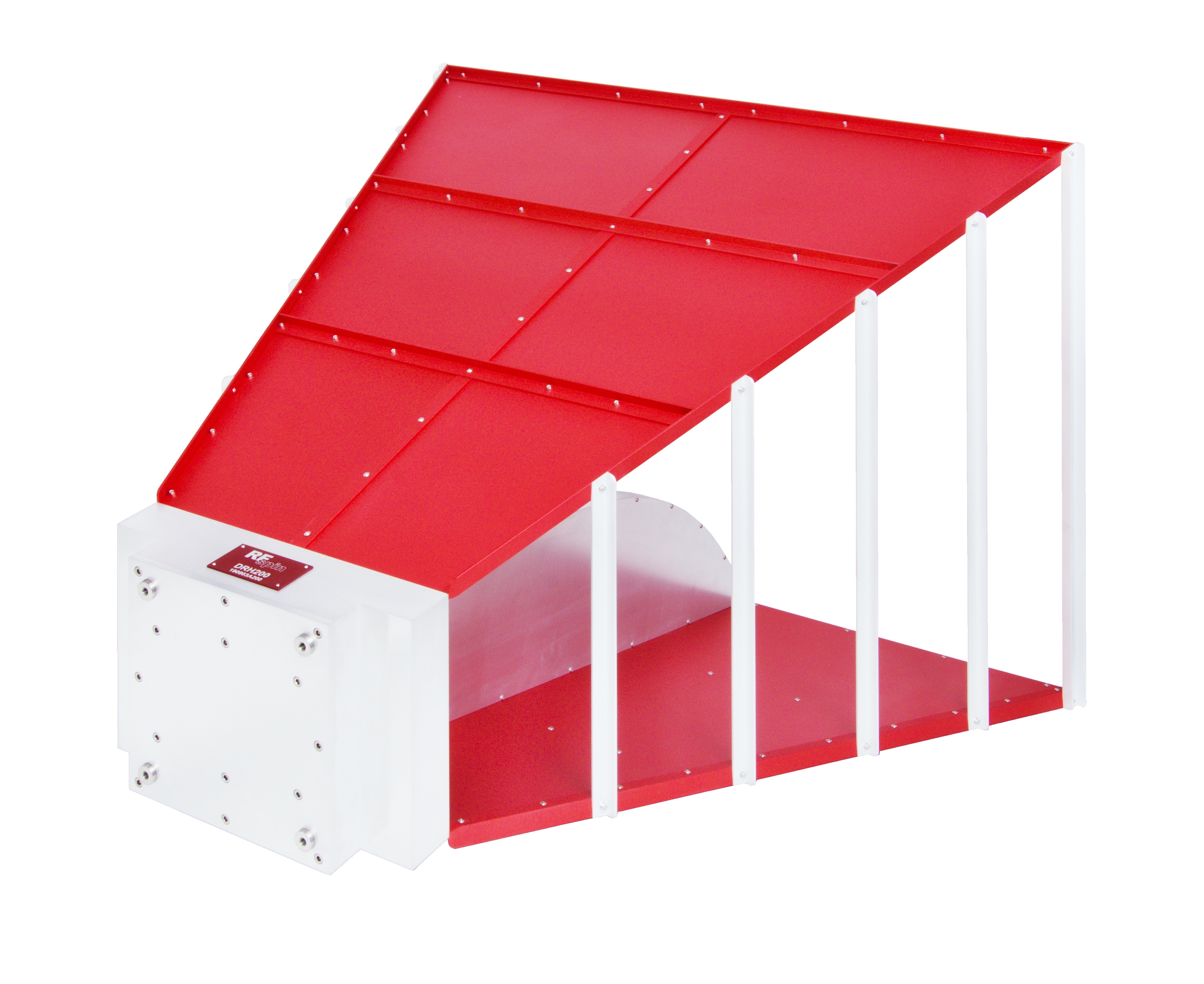

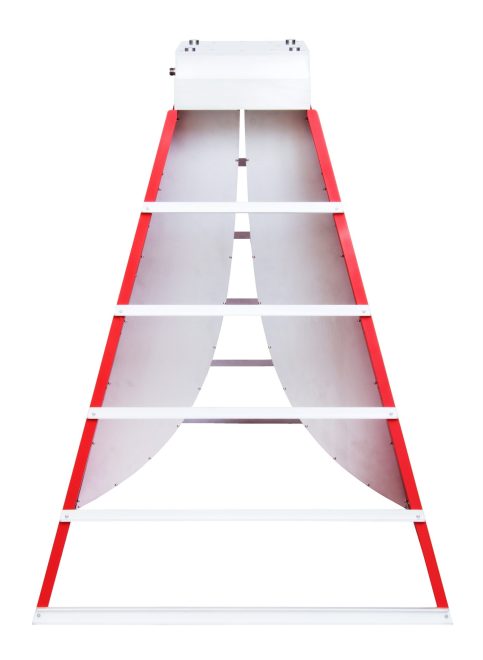

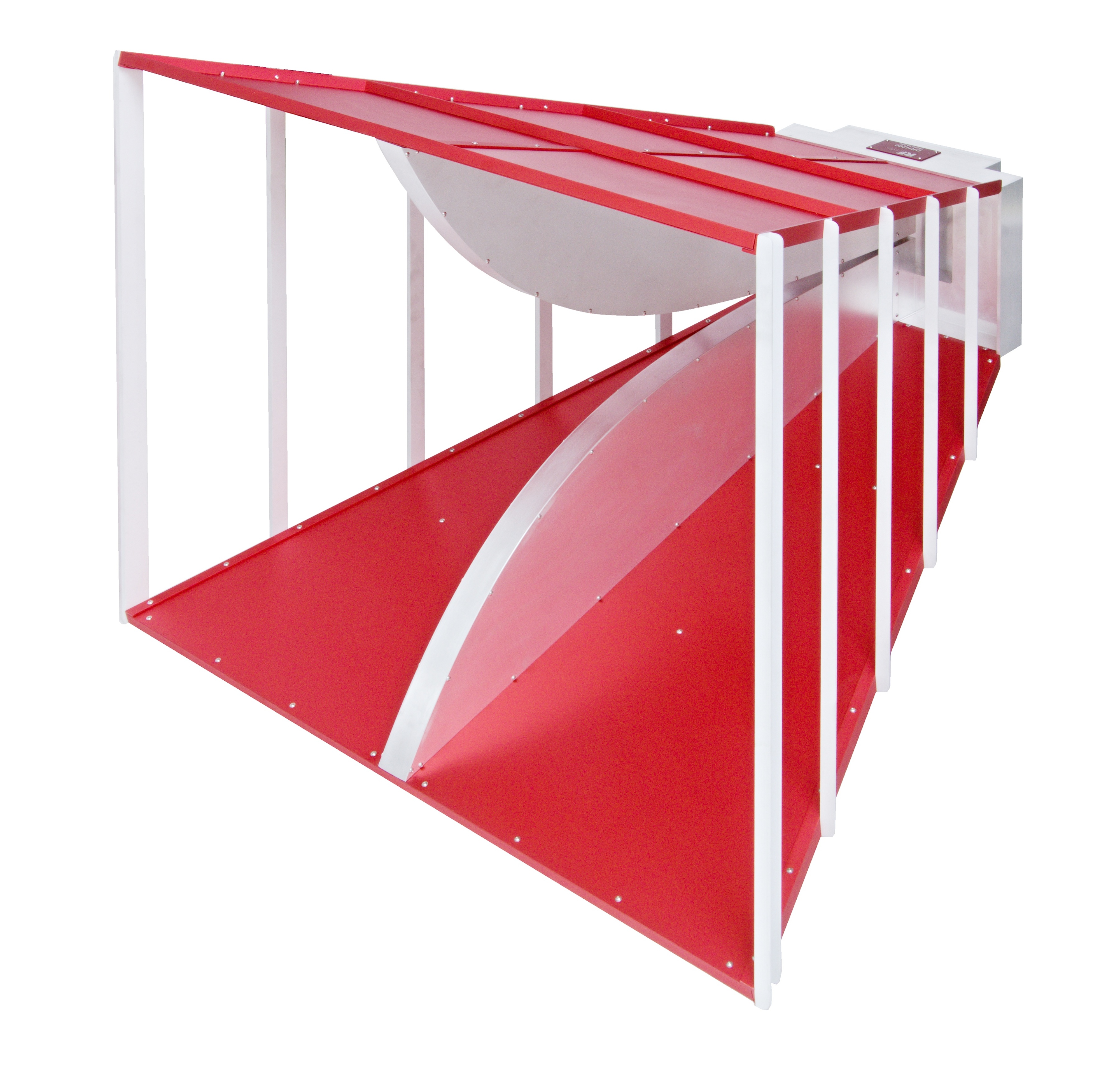

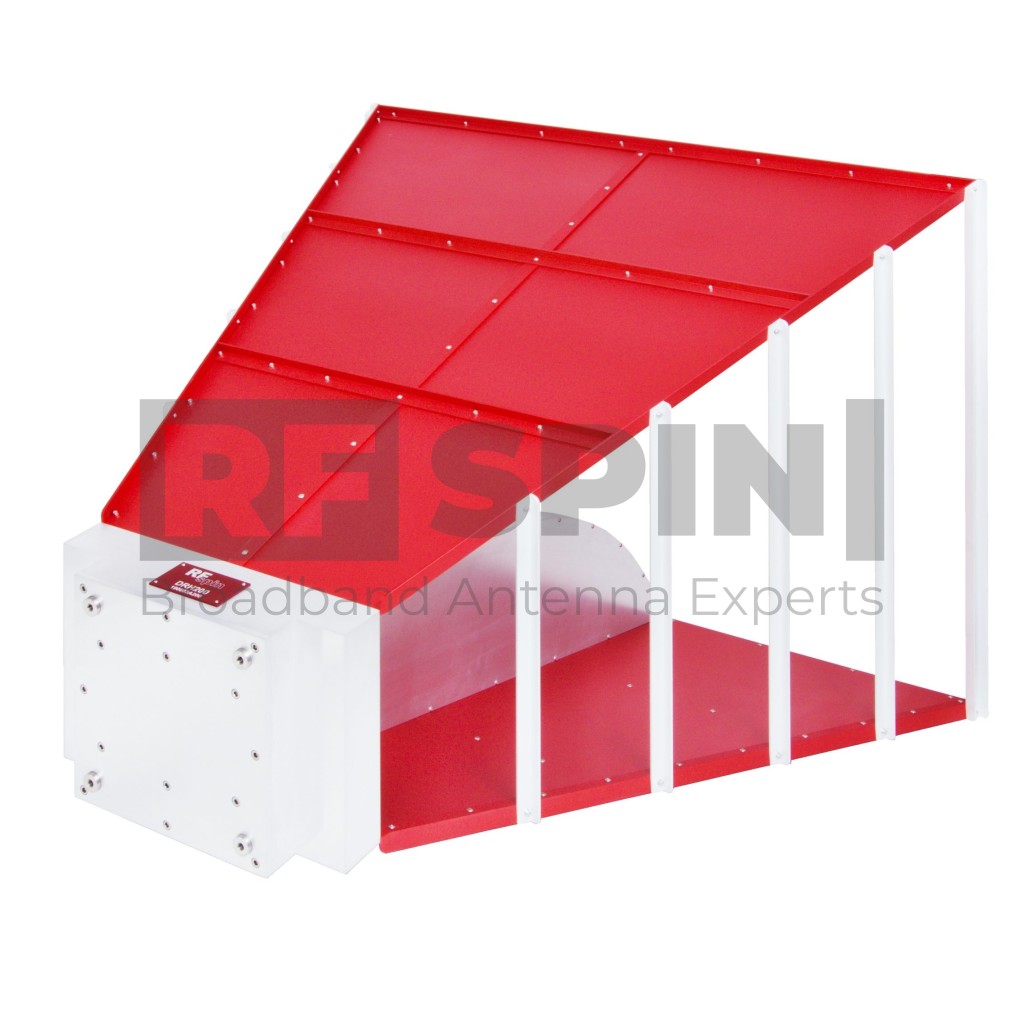

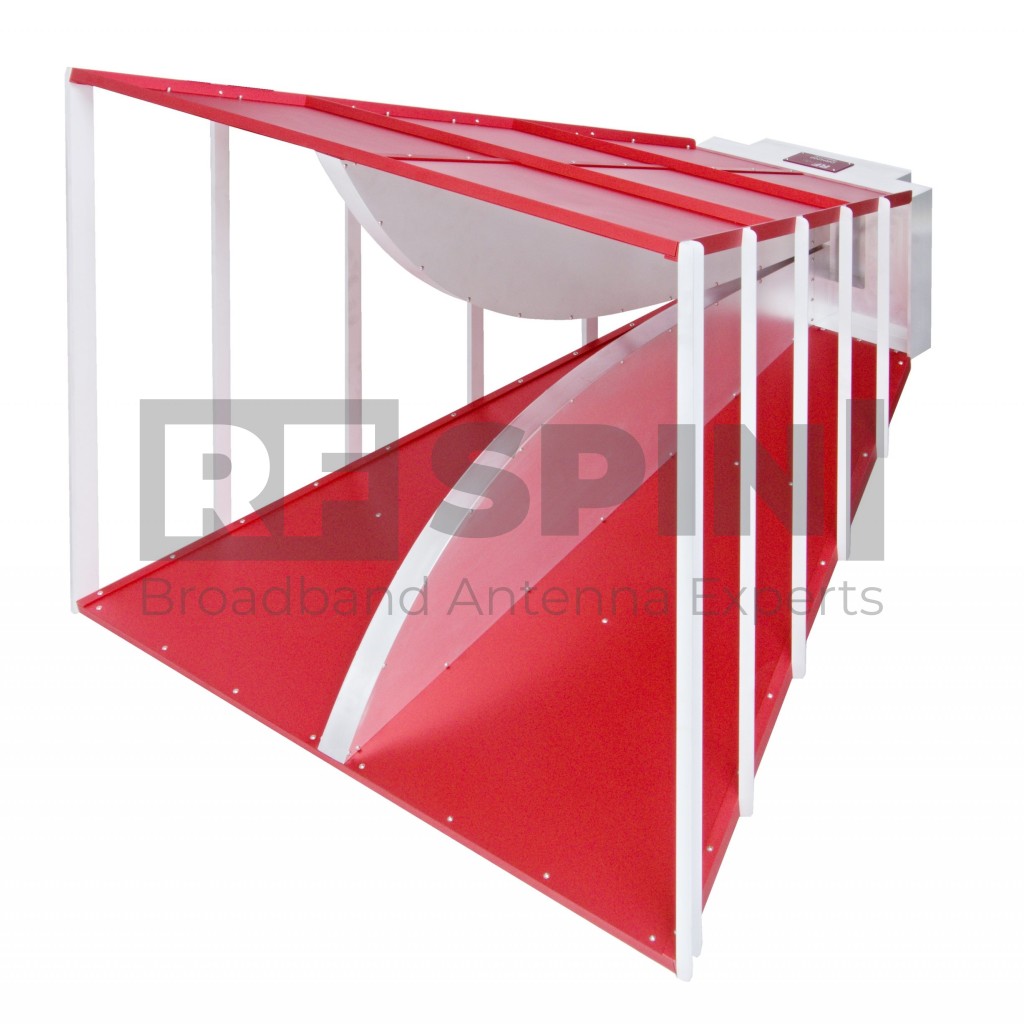

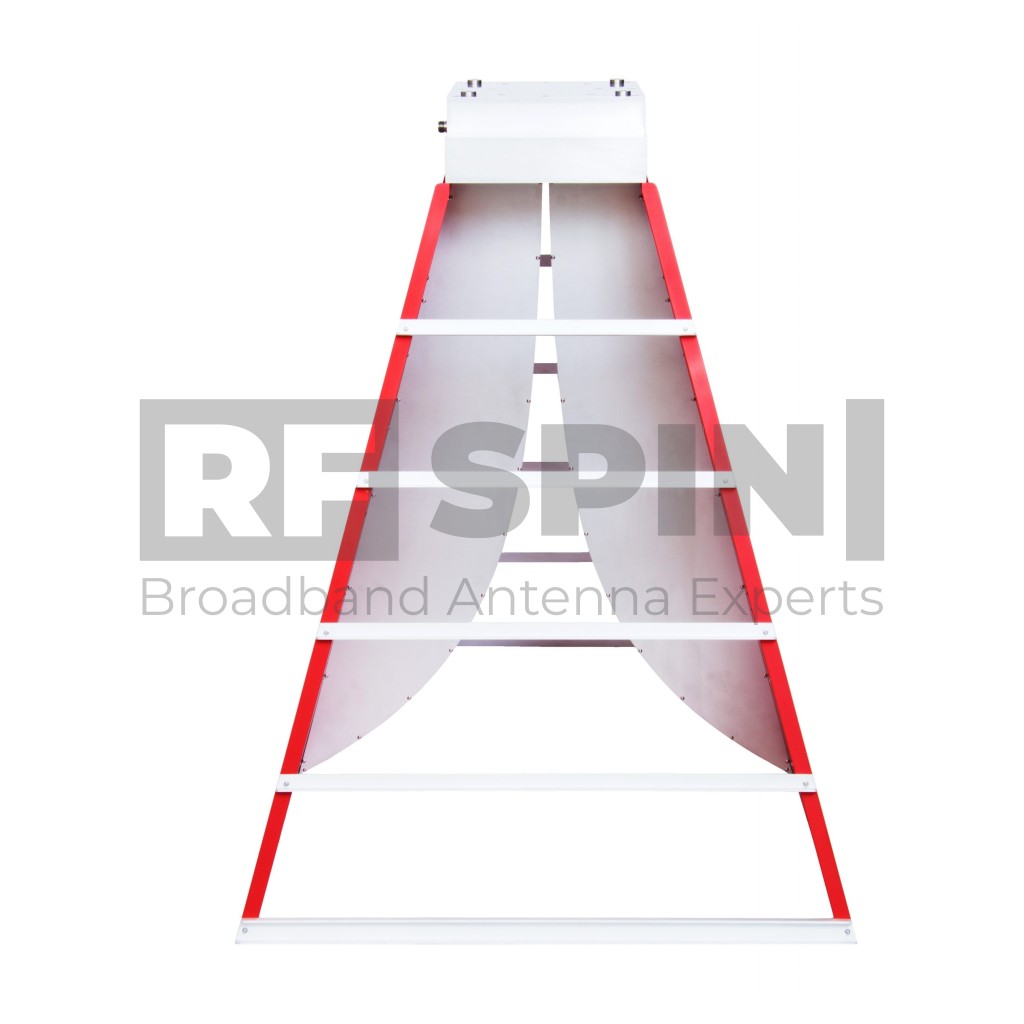

        DRH200

        Double Ridged Horn Antenna

        DRH200 is our largest caliber. This antenna is almost one meter wide and weighs almost 16kg! With a frequency from 180 MHz, this antenna is perfect for big chambers and EMC measurements.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        QR code
        Custom design

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Suitable for EMC/EMI applications

        Design and Surface Treatment

        • Corrosion-resistant coating

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality N type coaxial connector

        Product Packaging Includes

        • Linear polarized double ridged broadband horn antenna
        • Universal antenna mount

        Product Parameters

        Product identification

        • Product Name DRH200
        • Product Category Double Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 180 MHz – 2.2 GHz
        • VSWR (max.) 1.6
        • VSWR (avg.) 1.2
        • Impedance 50 Ohm
        • Connector N (female)
        • Power (CW / Peak) 1500 W / 1900 W
        • Antenna Factor 9 – 26 dB/m
        • Polarization Linear

        Physical specifications

        • Width 997 mm (39.252 in)
        • Height 998 mm (39.291 in)
        • Depth 773 mm (30.433 in)
        • Weight 15.8 kg (34.833 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

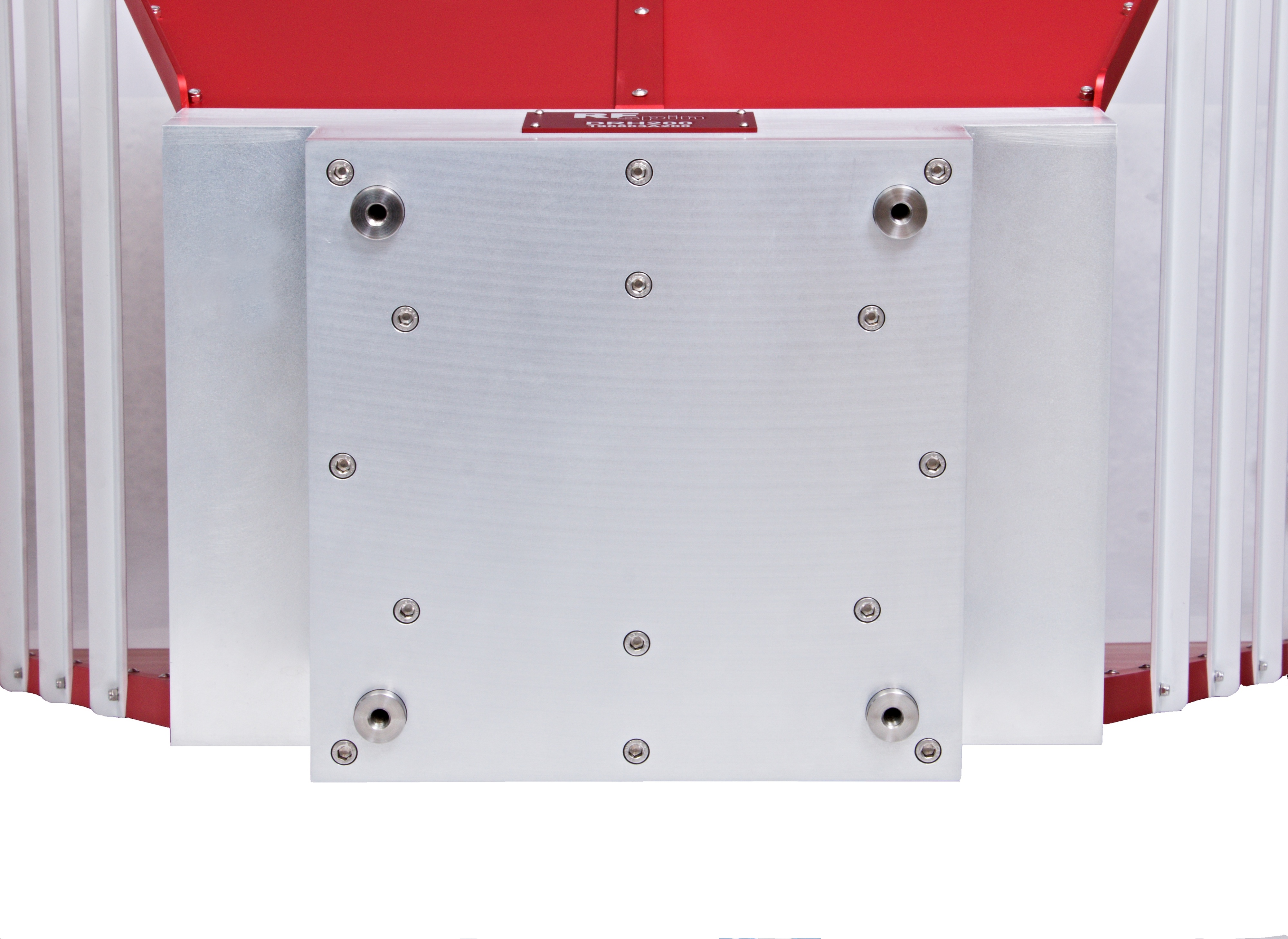

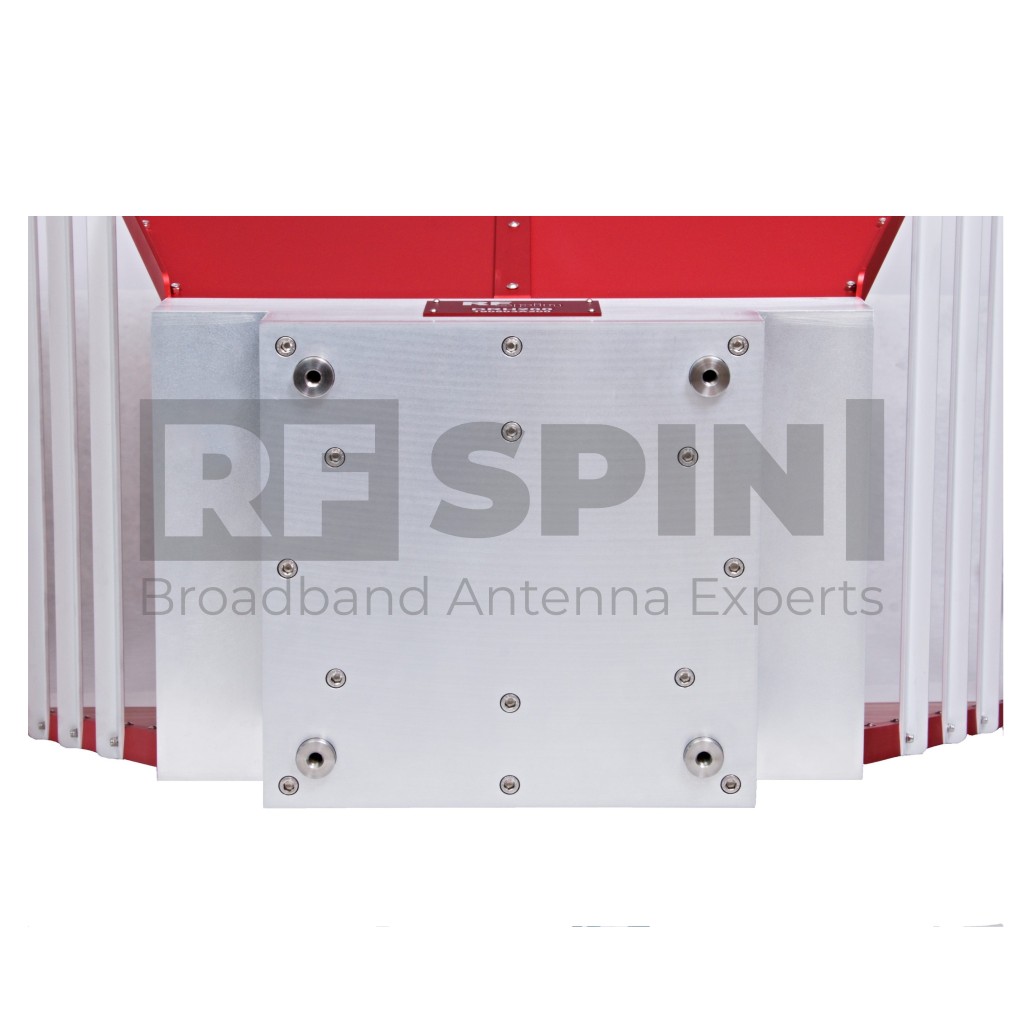

        Mounting flange

        • Mounting Universal antenna mount

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        DRH200 - VSWR

        Gain

        DRH200 - Gain

        Antenna Factor

        DRH200 - Antenna Factor

        Cross Polarization

        DRH200 - Cross Polarization

        Beamwidth

        Radiation Patterns

        0.2 GHz

        DRH200 - 0.2 GHz

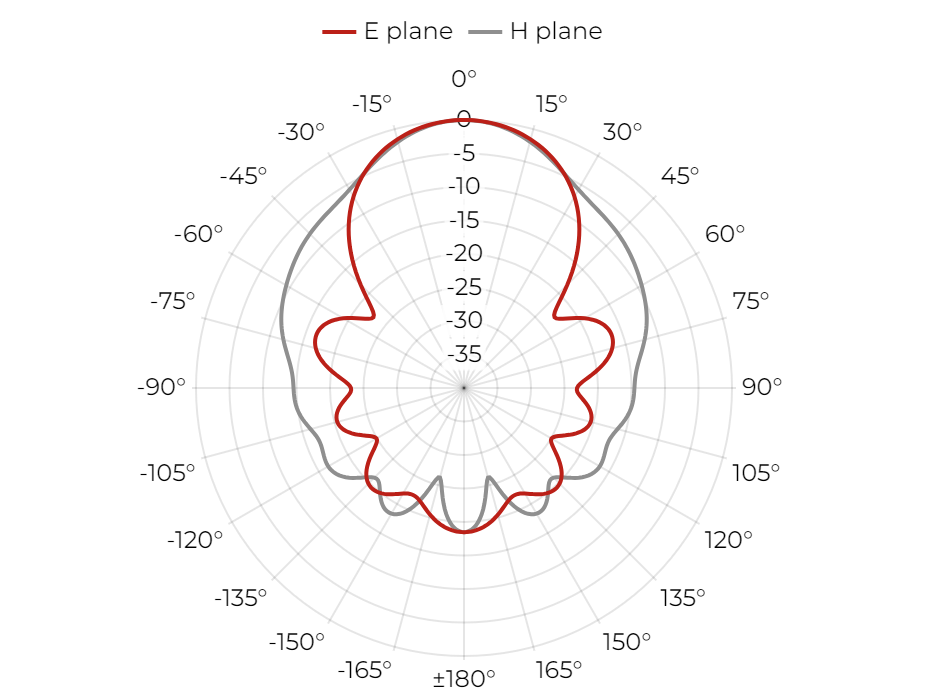

        0.3 GHz

        DRH200 - 0.3 GHz

        0.4 GHz

        DRH200 - 0.4 GHz

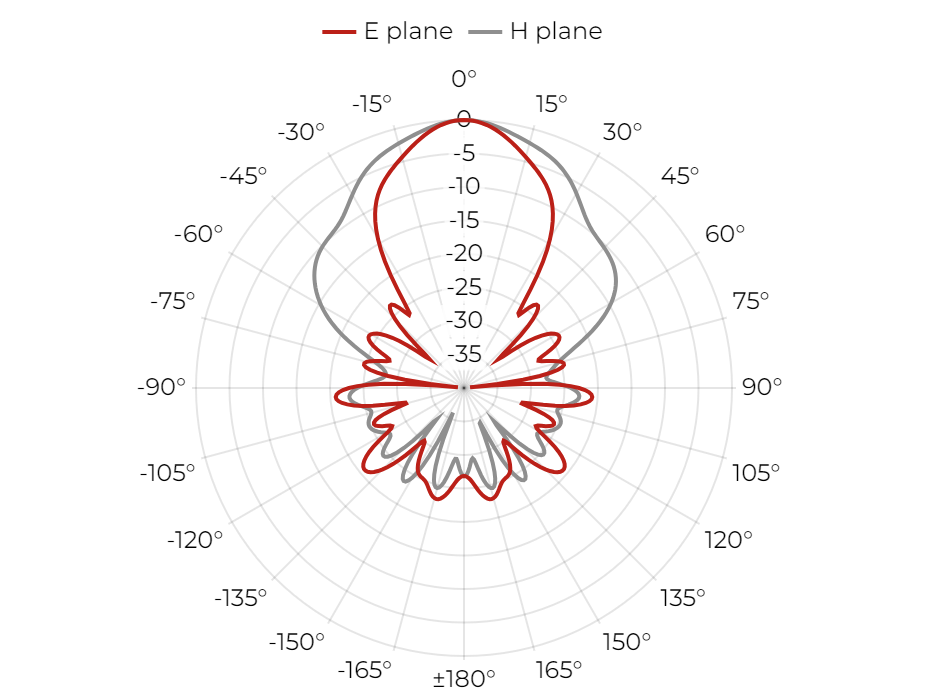

        0.6 GHz

        DRH200 - 0.6 GHz

        Packaging and Accessories

        What's in a box

        • DRH200 Antenna
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)
        • Universal antenna mount

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data
