        RF SPIN

        Broadband Antenna Solutions

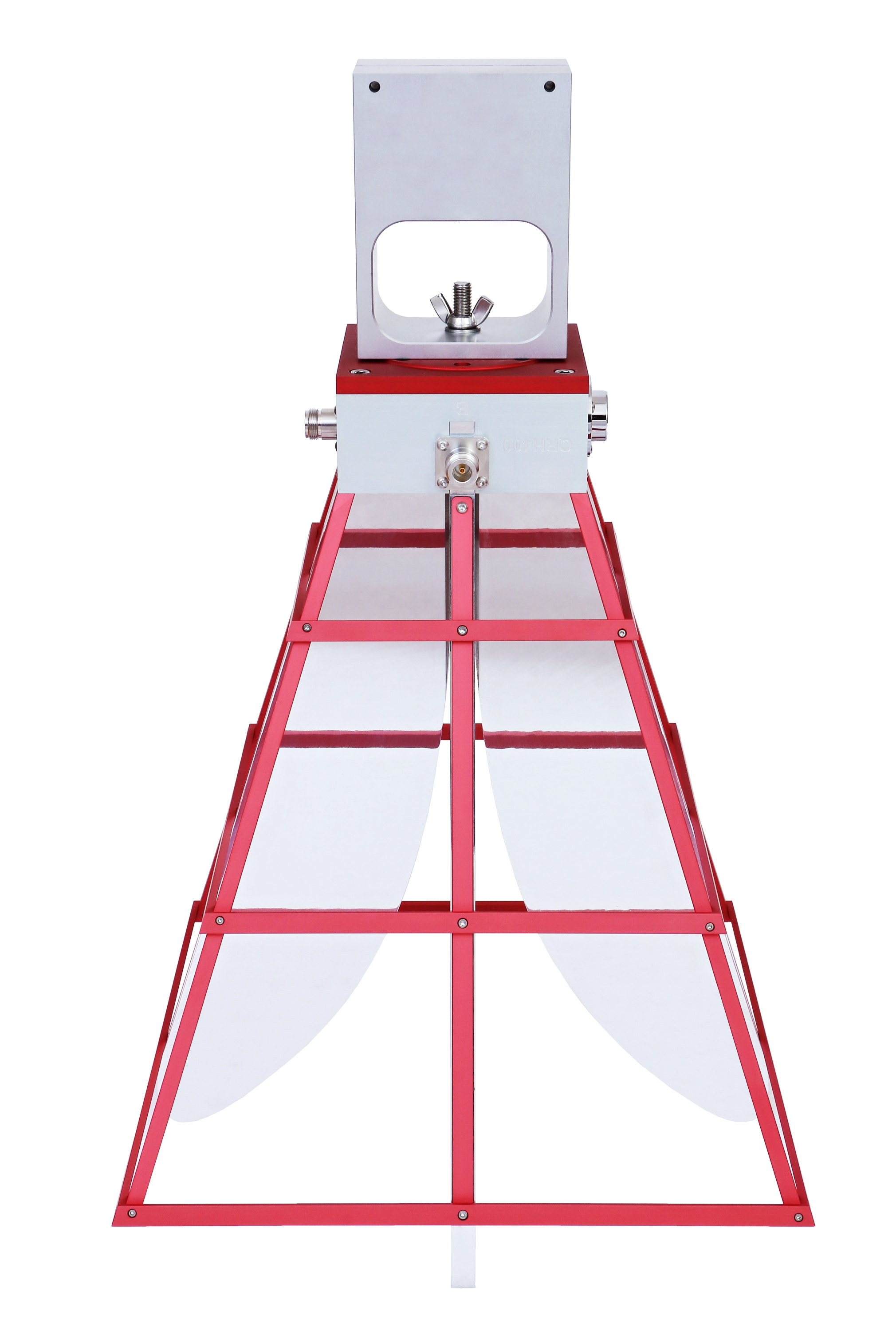

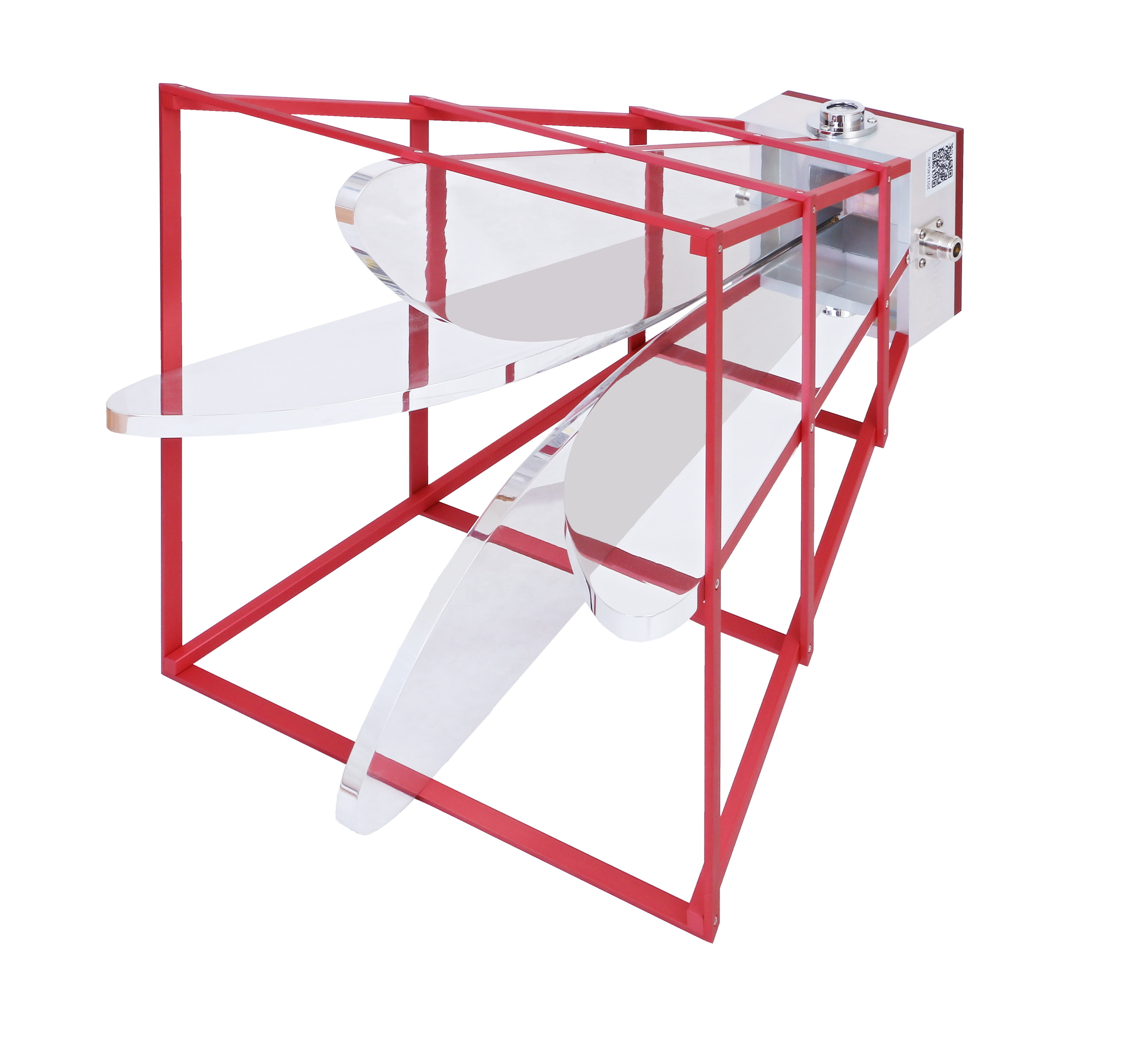

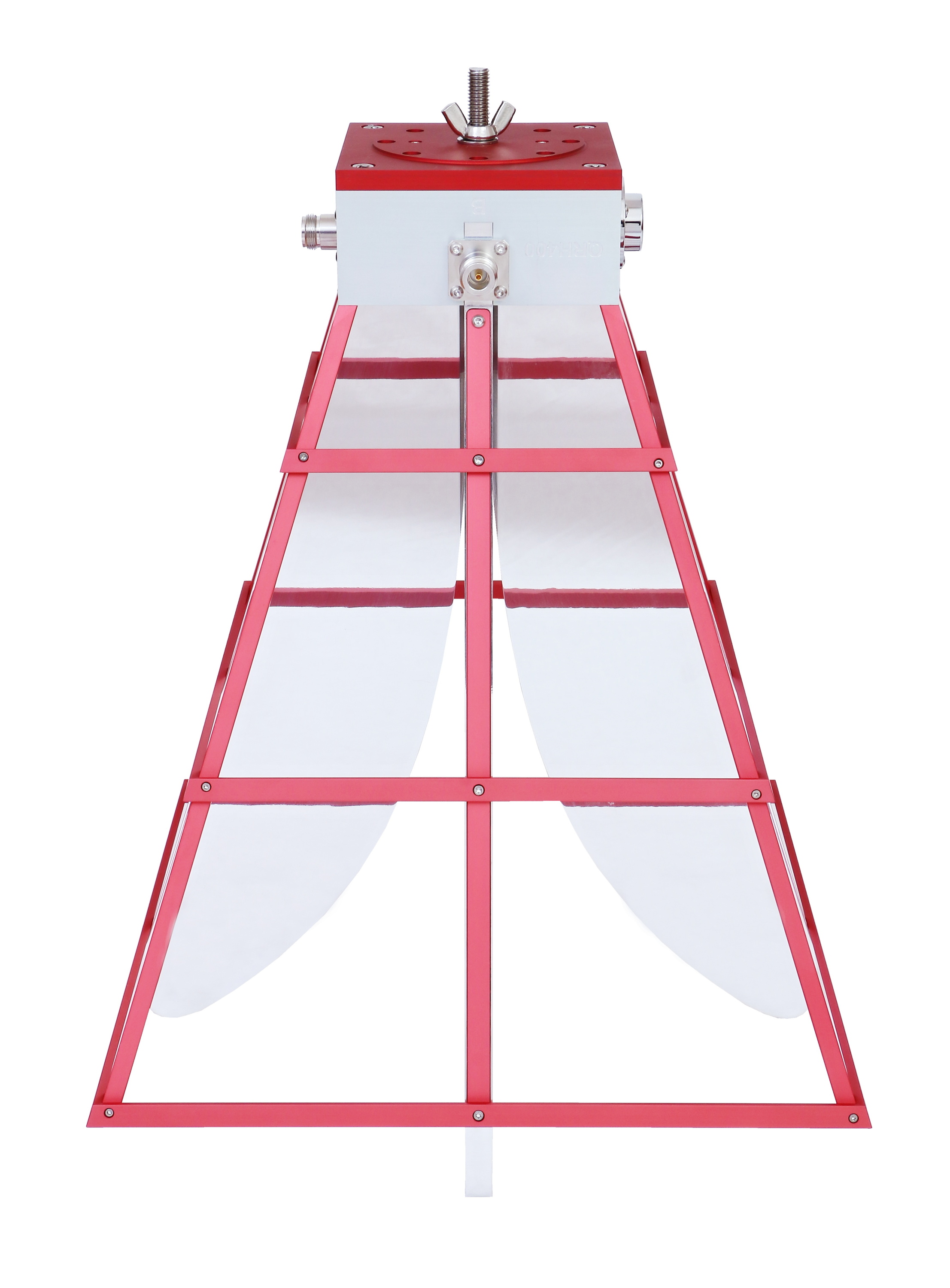

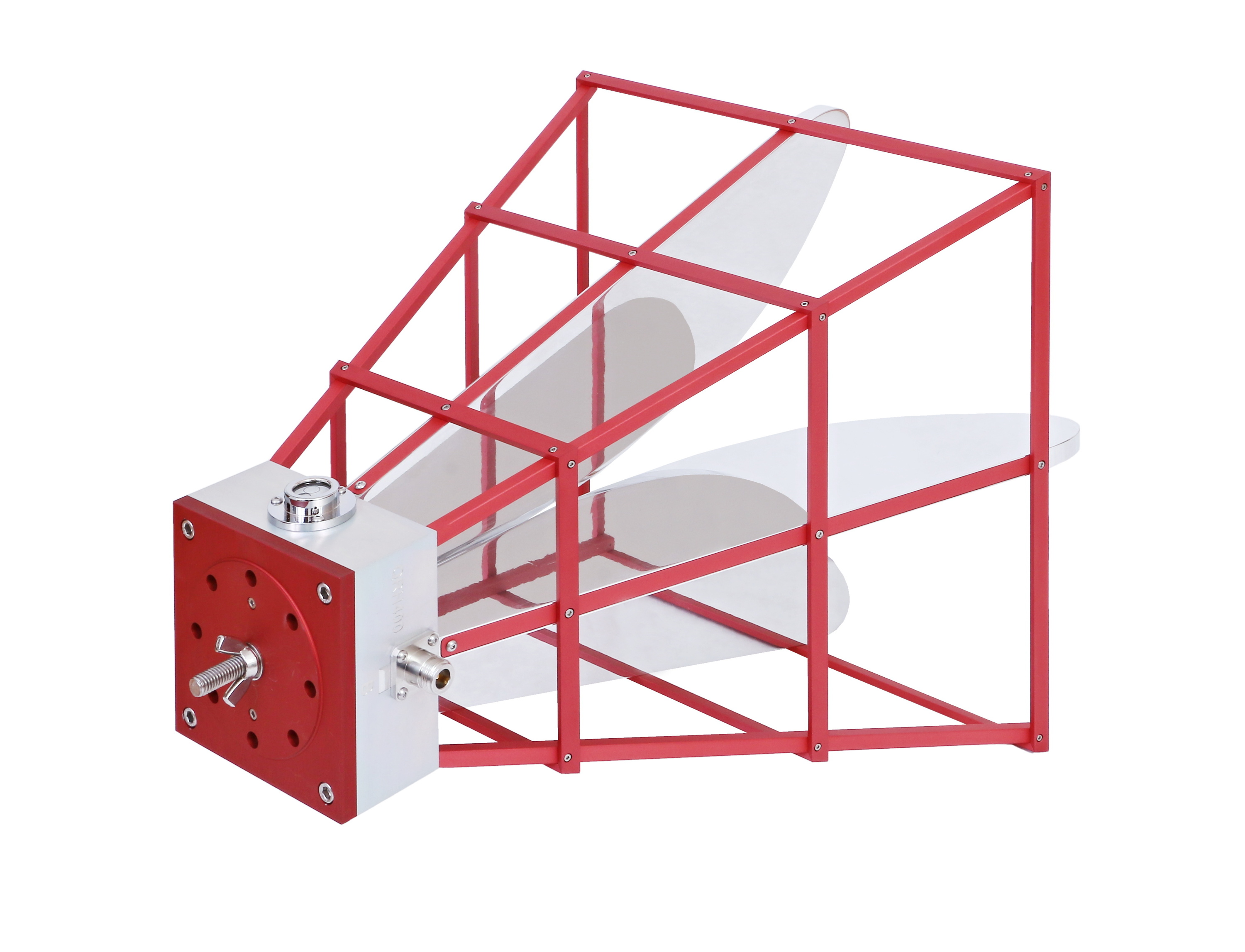

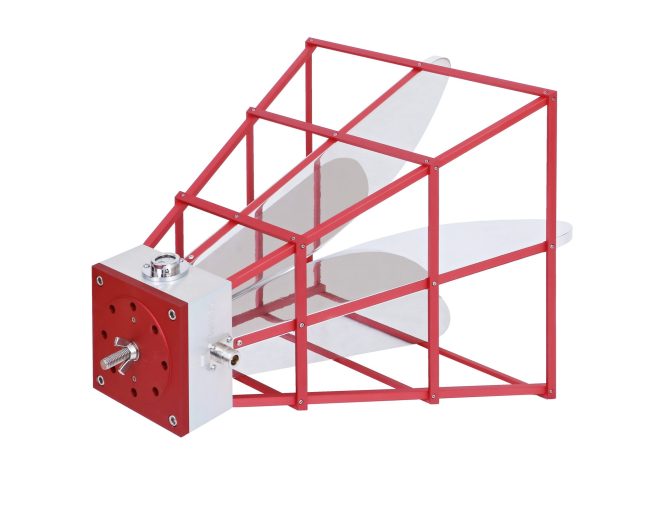

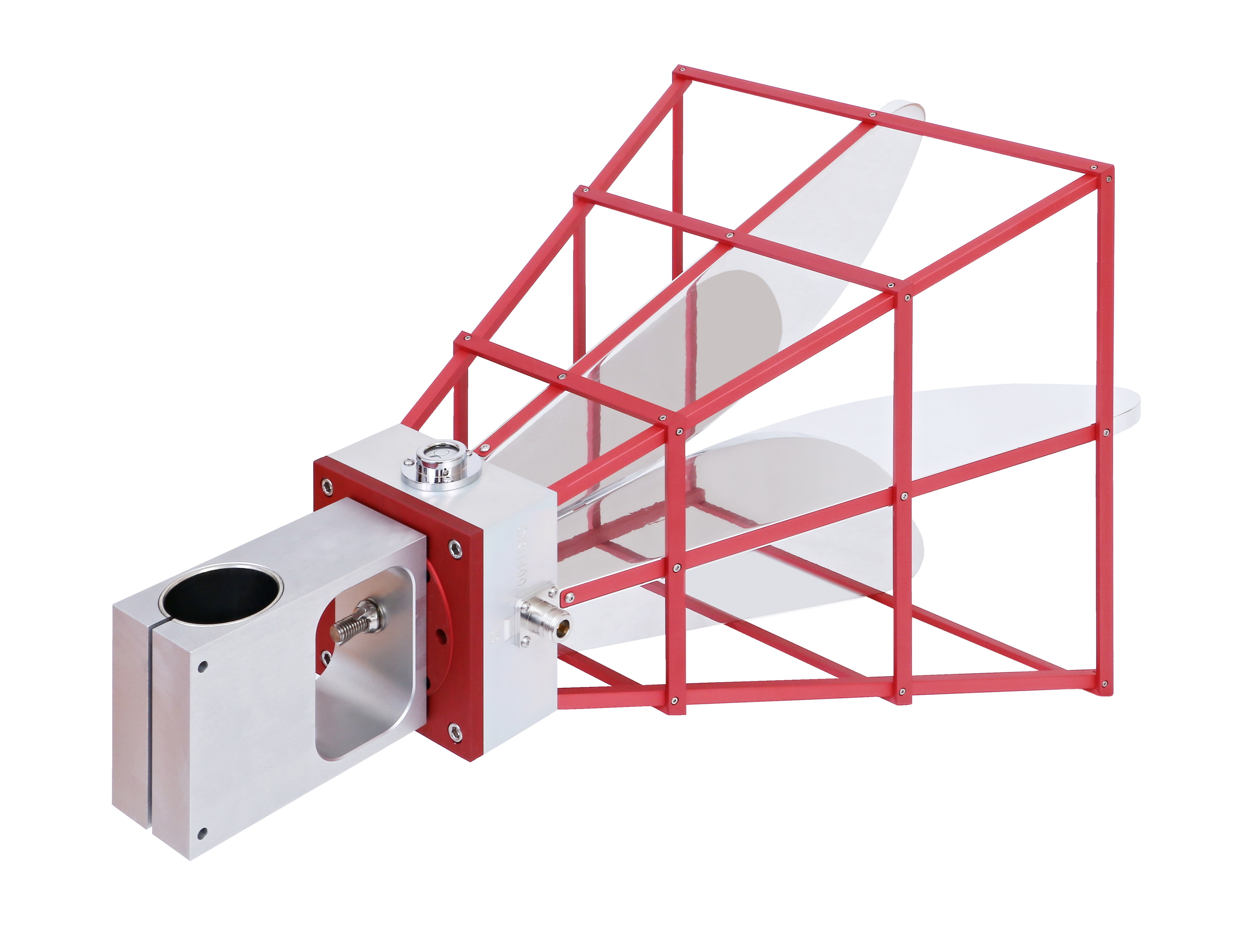

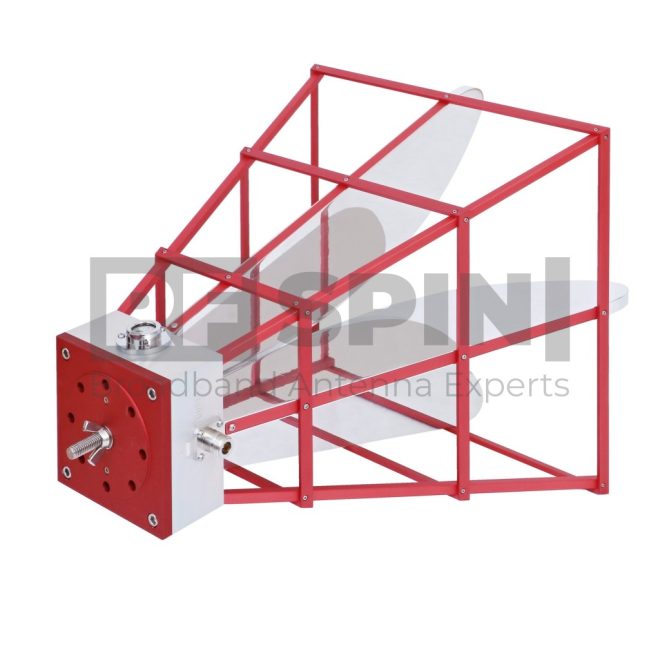

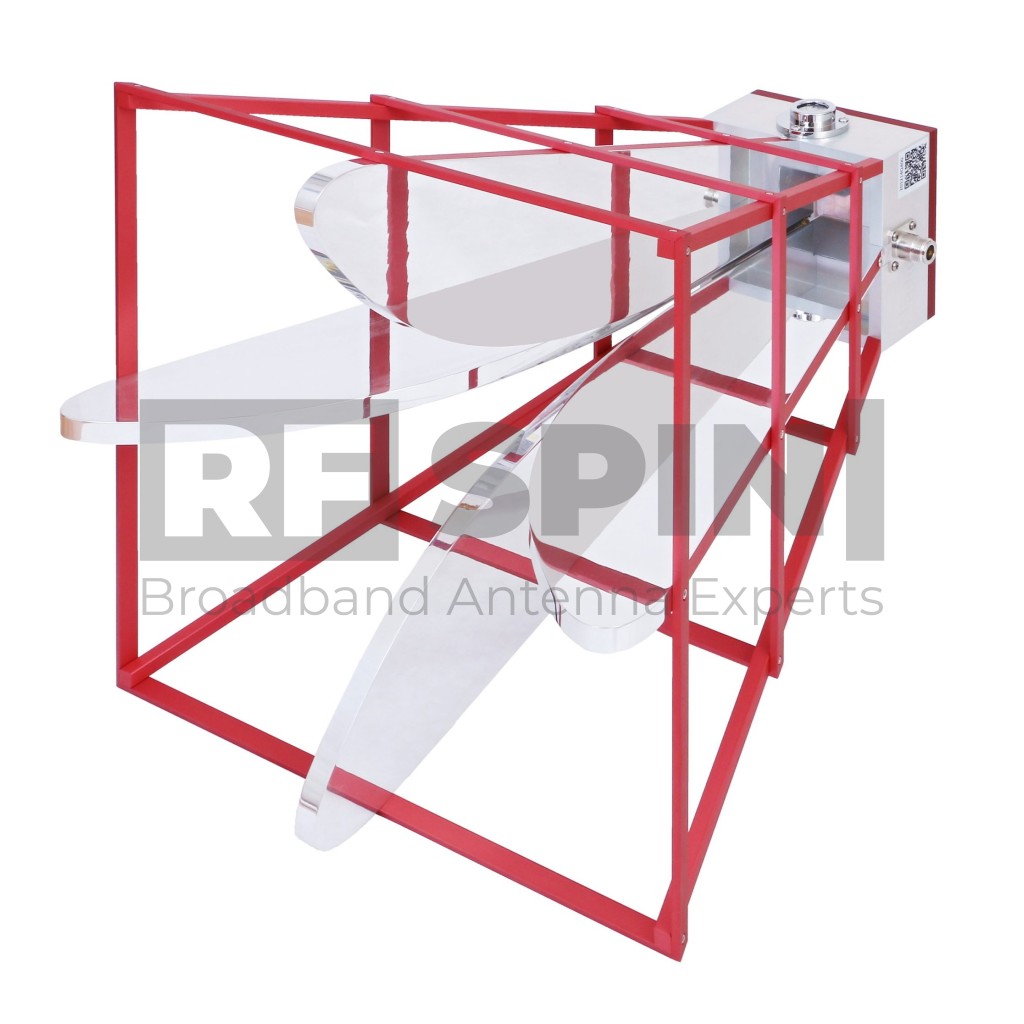

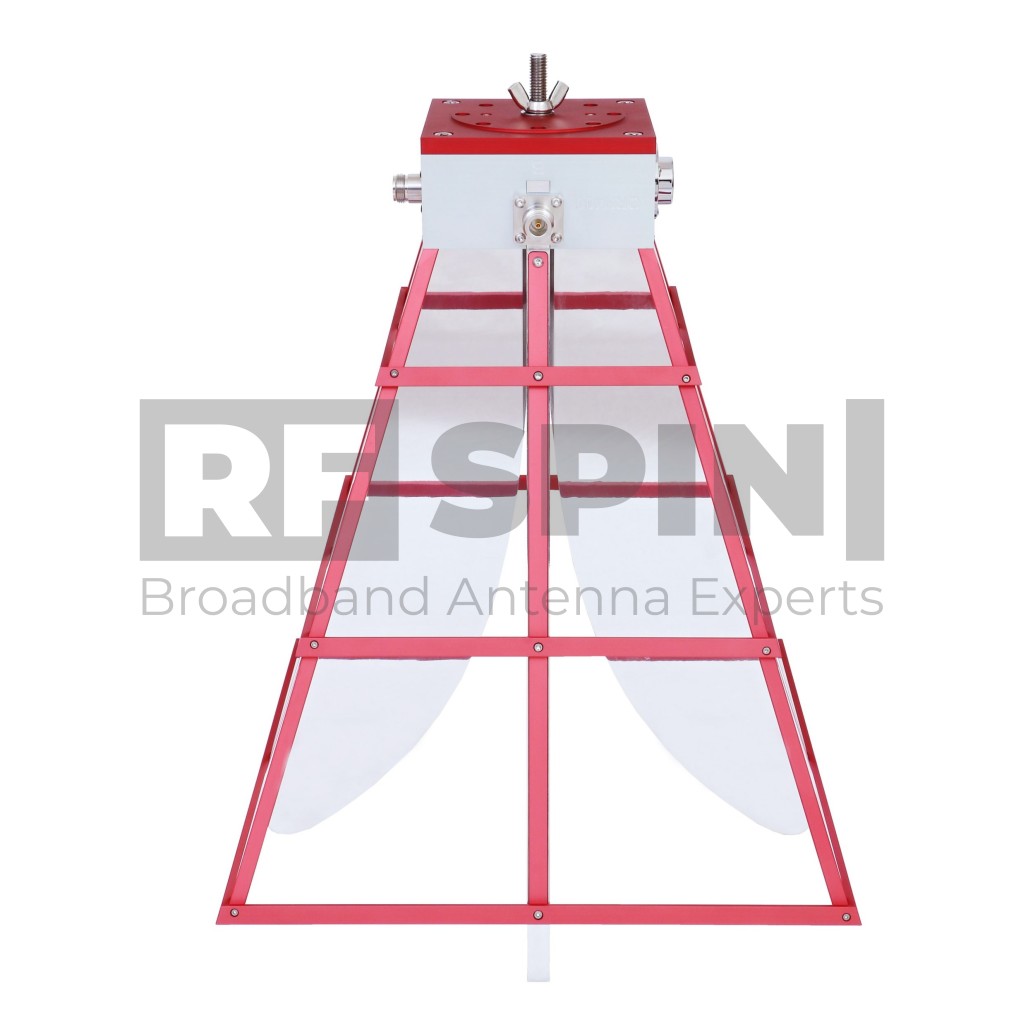

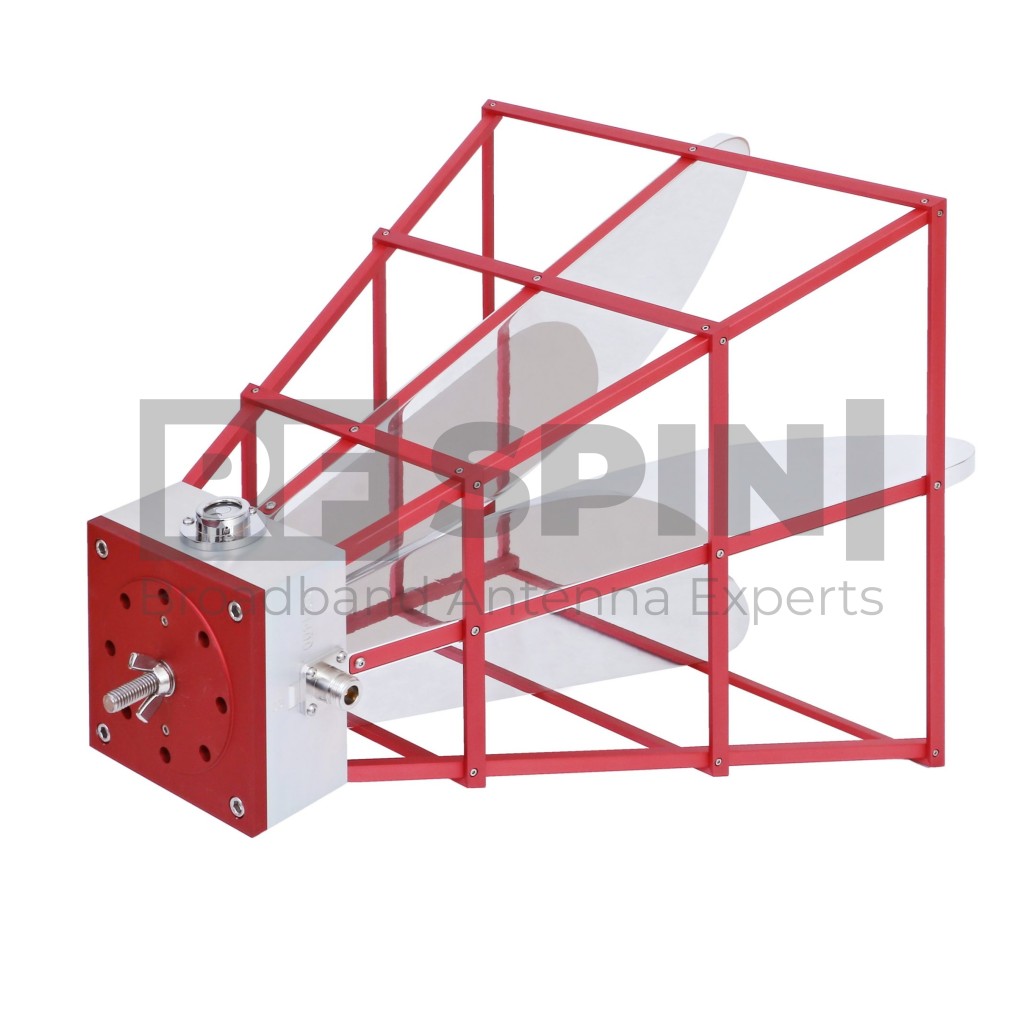

        QRH400

        Quad Ridged Horn Antenna

        QRH400 is a brother of DRH370. This dual-polarized broadband antenna with frequency from 400 MHz up to 6 GHz, this antenna is perfect for big chambers and EMC measurements. The addition of two spirit levels is a matter of course, thanks to which your measurement in both planes will be very accurate and fun.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount
        • Very precise spirit level for both polarizations

        Manufacturing Technology

        • Extremely durable
        • High qulity N type coaxial connector

        Product Packaging Includes

        • Linear polarized double ridged broadband horn antenna
        • Universal antenna mount

        Product Parameters

        Product identification

        • Product Name QRH400
        • Product Category Quad Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 400 MHz – 6 GHz
        • VSWR (max.) 2.3
        • VSWR (avg.) 1.5
        • Impedance 50 Ohm
        • Connector N
        • Power (CW / Peak) 200 W / 350 W
        • Antenna Factor 17 – 33 dB/m
        • Port Isolation -32 dB
        • Polarization Dual Linear, Circular (with hybrid)

        Physical specifications

        • Width 335 mm (13.189 in)
        • Height 433 mm (17.047 in)
        • Depth 335 mm (13.189 in)
        • Weight 4 kg (8.818 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Universal antenna mount

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        QRH400 - VSWR

        Gain

        QRH400 - Gain

        Antenna Factor

        QRH400 - Antenna Factor

        Port Isolation

        QRH400 - Port Isolation

        Cross Polarization

        QRH400 - Cross Polarization

        Beamwidth

        Port A, E plane

        QRH400 - Port A, E plane

        Port A, H plane

        QRH400 - Port A, H plane

        Port B, E plane

        QRH400 - Port B, E plane

        Port B, H plane

        QRH400 - Port B, H plane

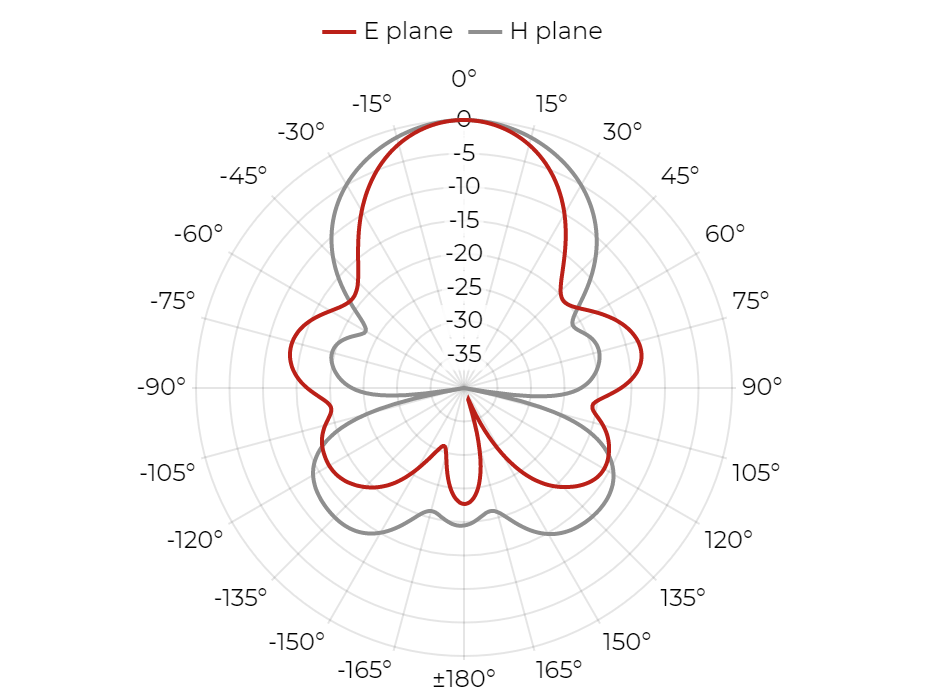

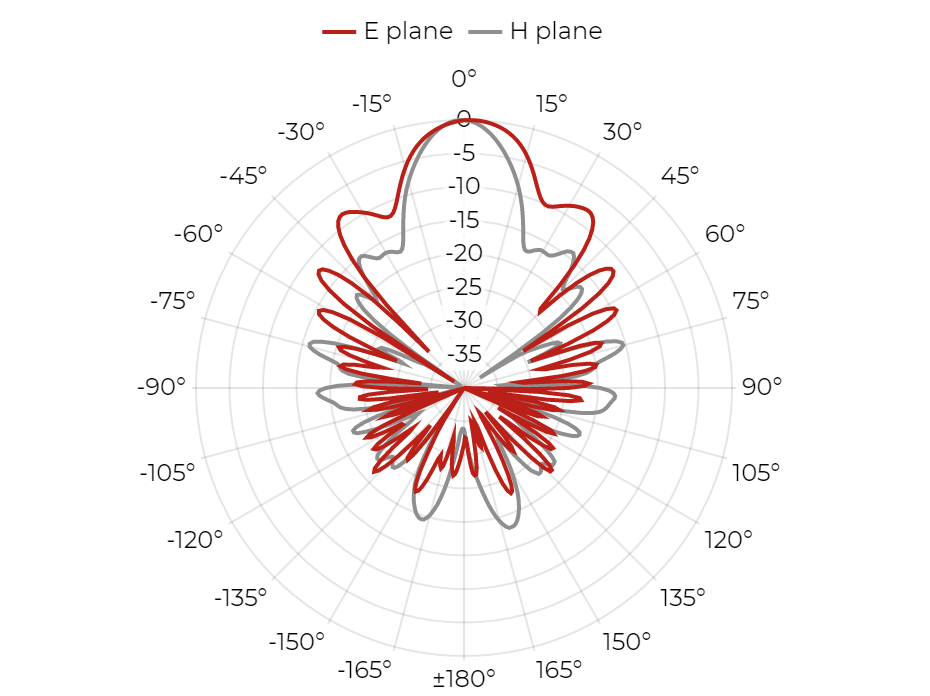

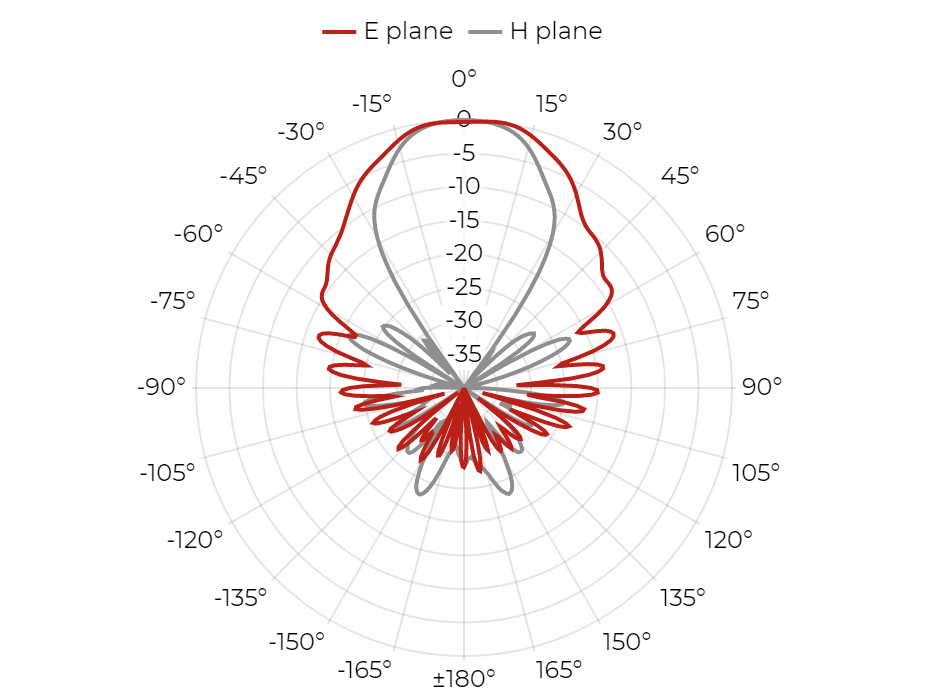

        Radiation Patterns

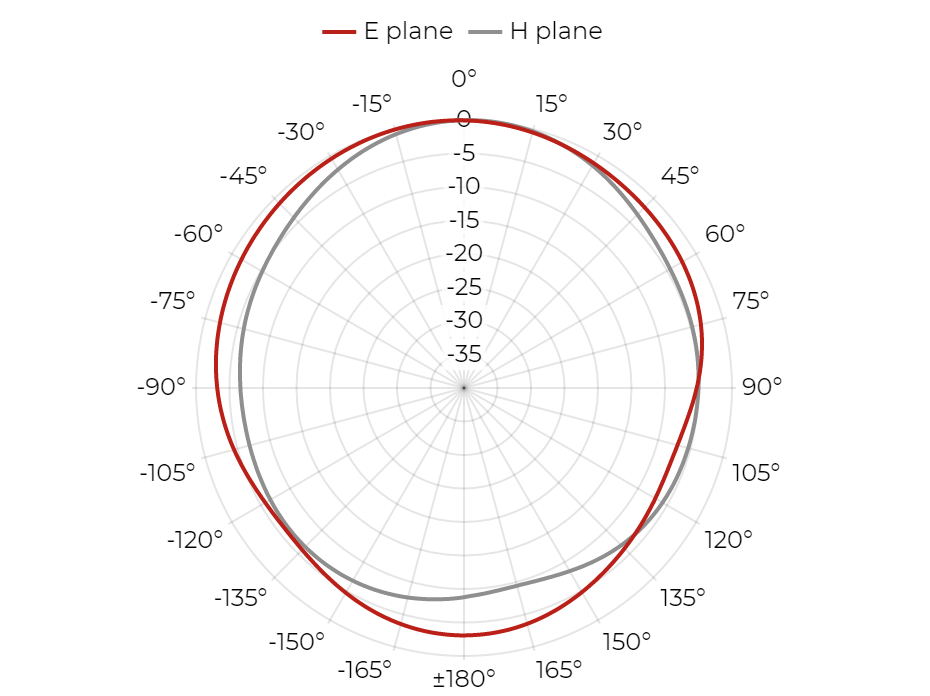

        Port A, 0.4 GHz

        QRH400 - Port A, 0.4 GHz

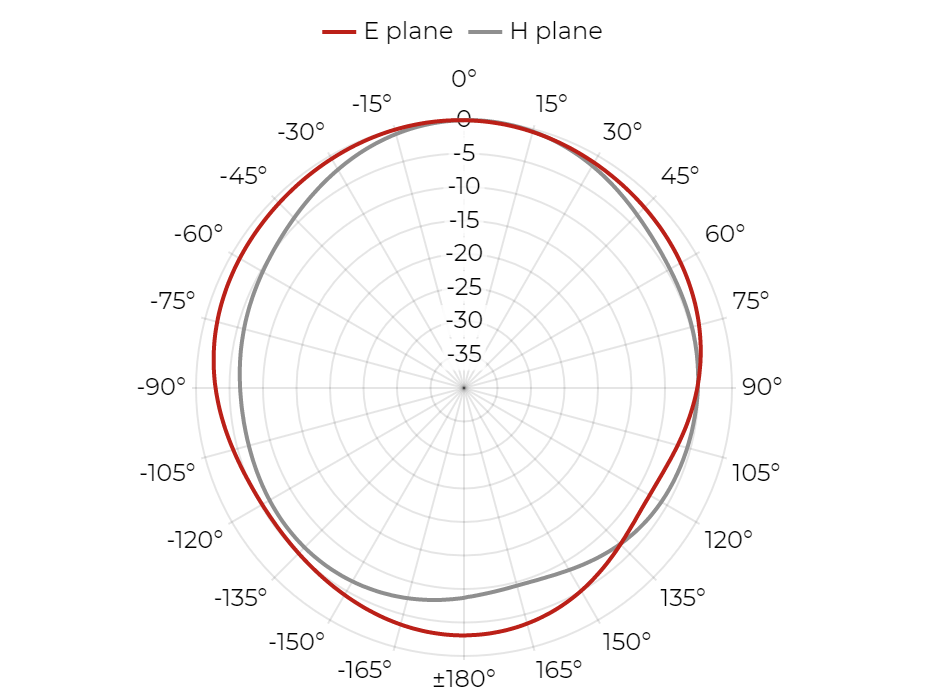

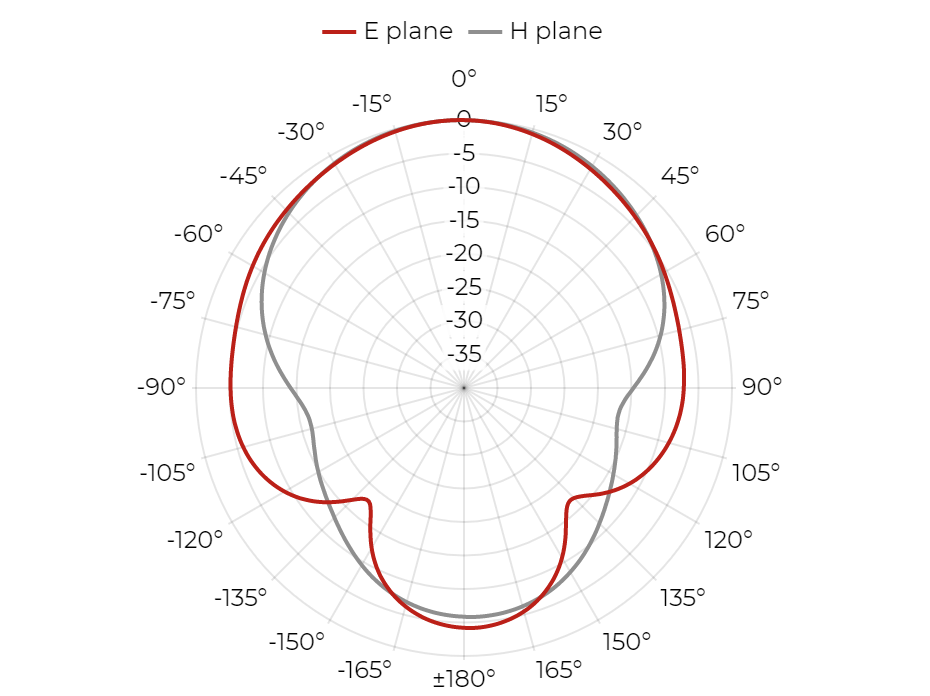

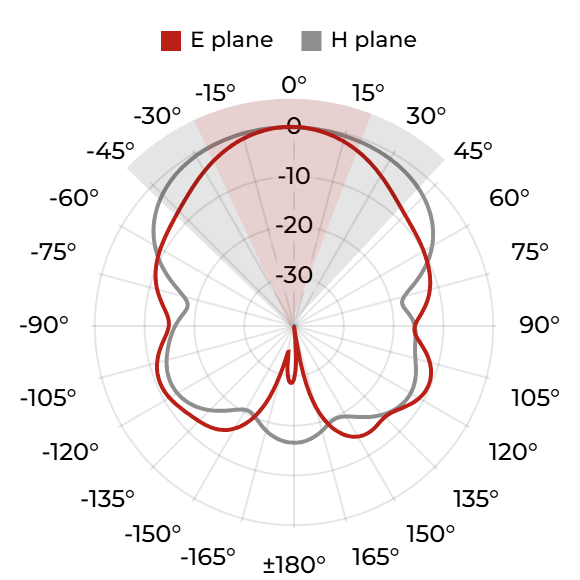

        Port B, 0.4 GHz

        QRH400 - Port B, 0.4 GHz

        Port A, 0.6 GHz

        QRH400 - Port A, 0.6 GHz

        Port B, 0.6 GHz

        QRH400 - Port B, 0.6 GHz

        Packaging and Accessories

        What's in a box

        • QRH400 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Custom services

        • Custom mounting solutions
        • Custom calibration data
