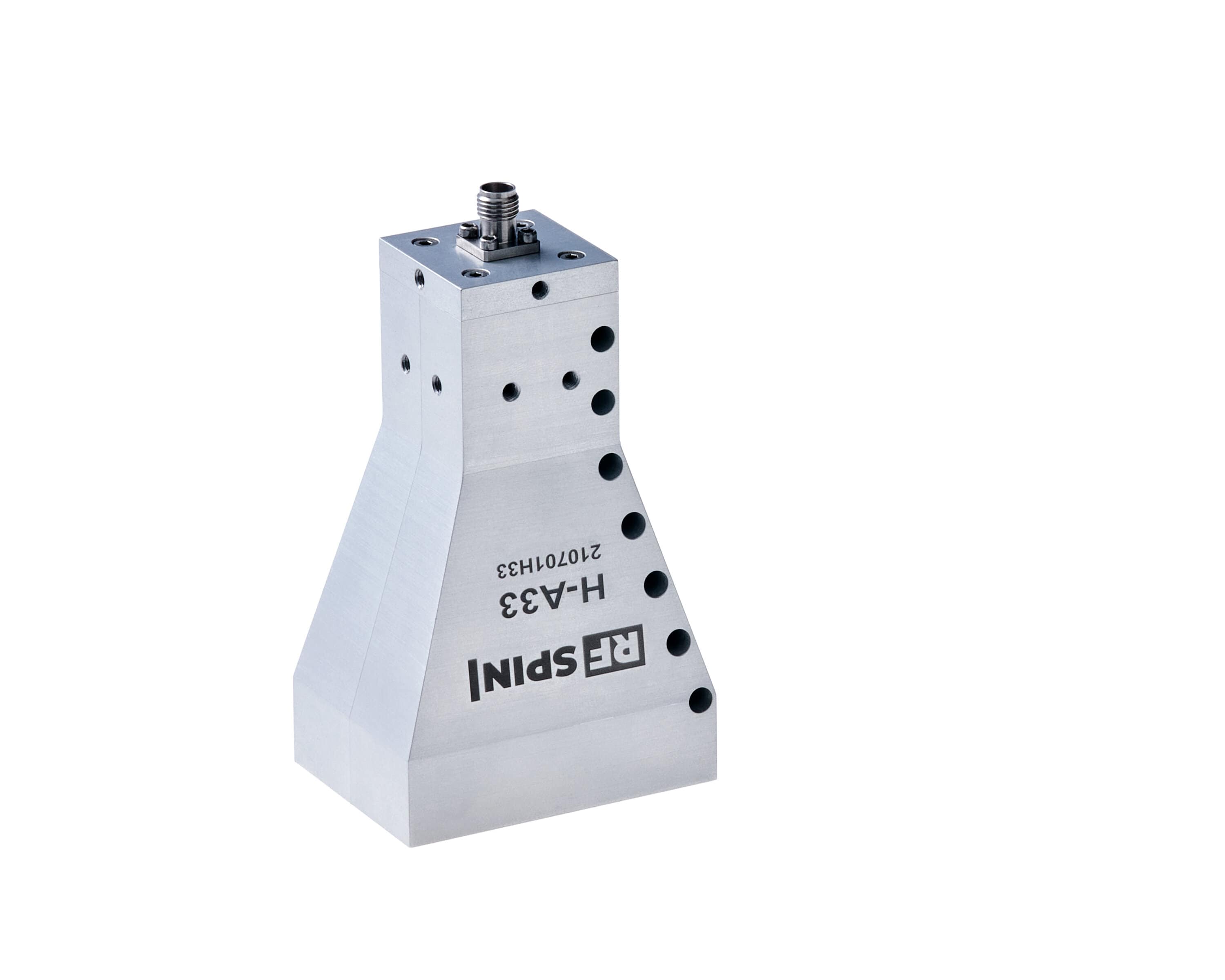

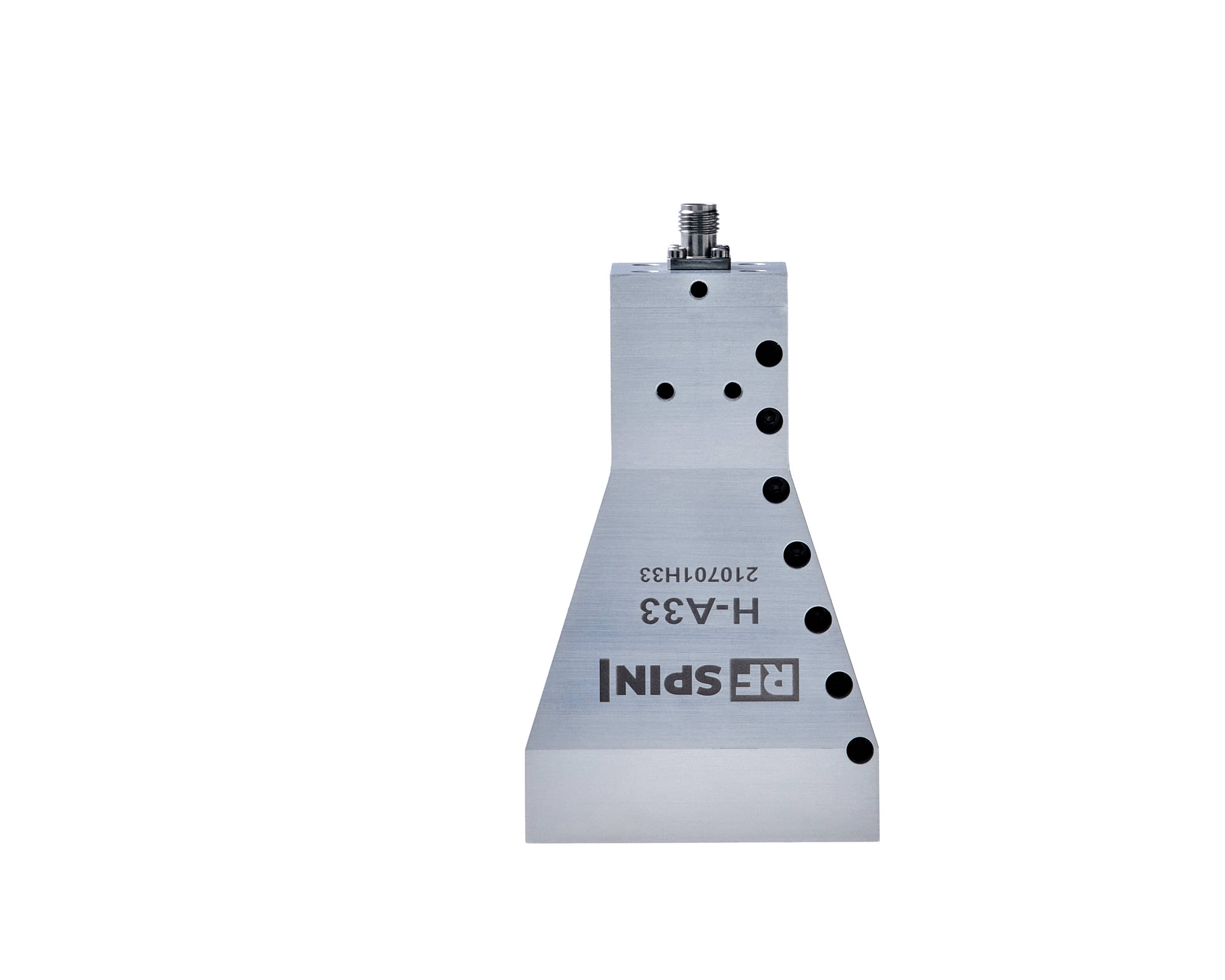

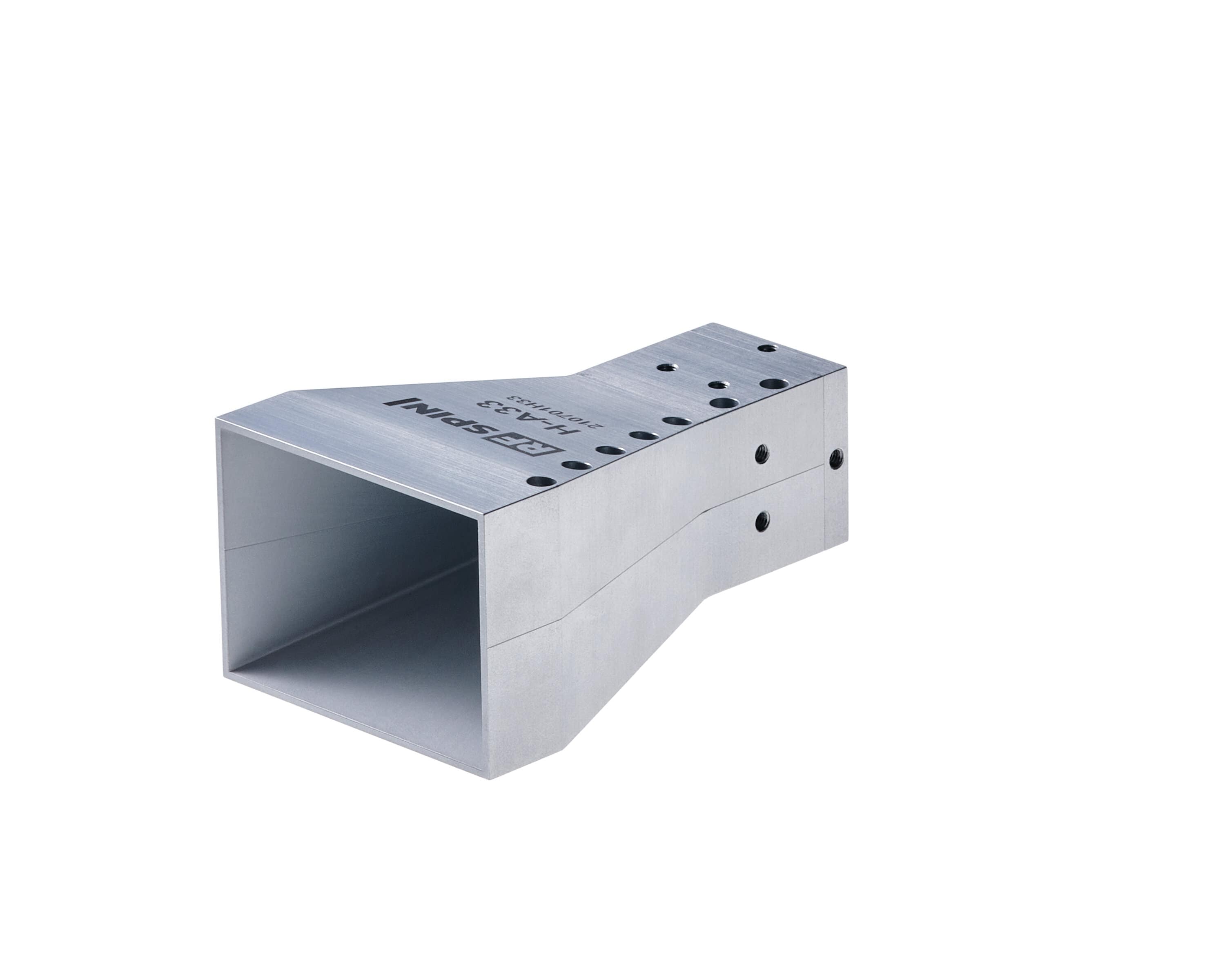

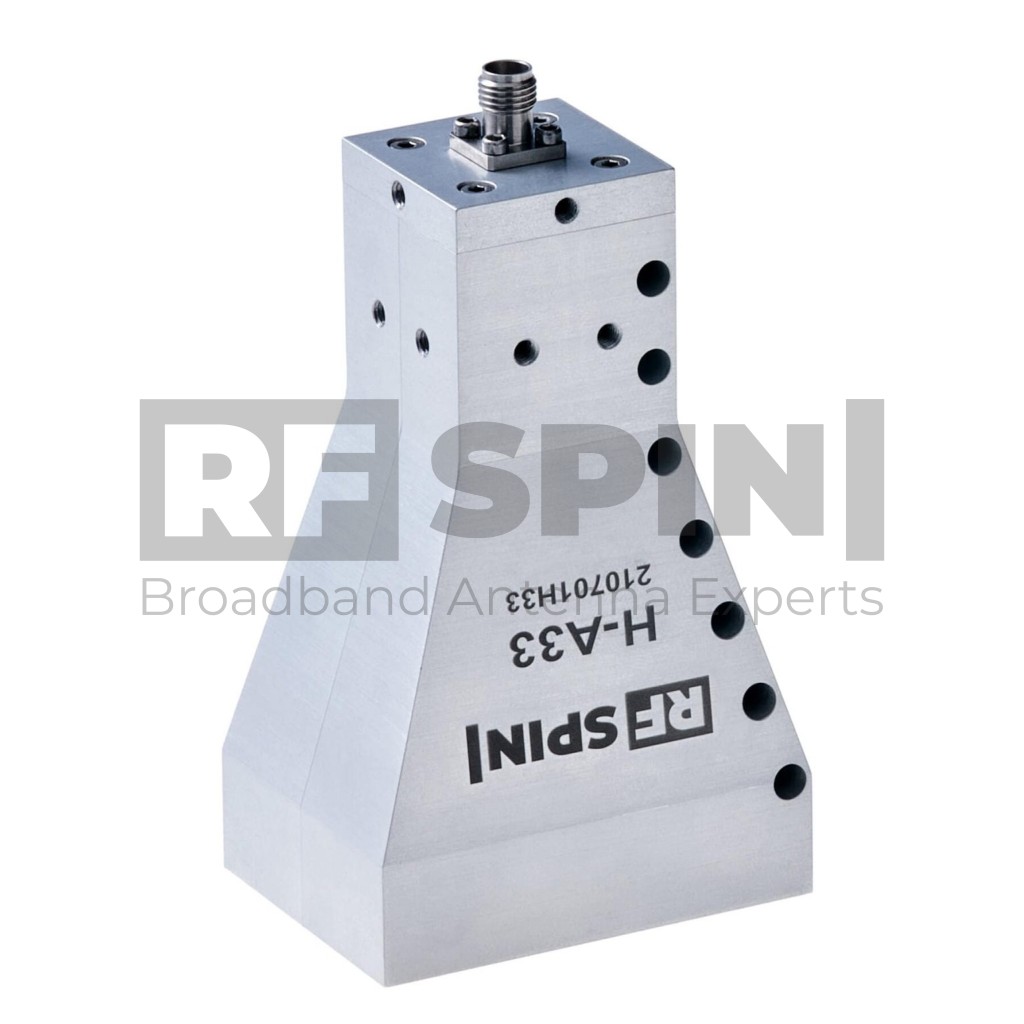

        H-A33

        Pyramidal Horn Antenna

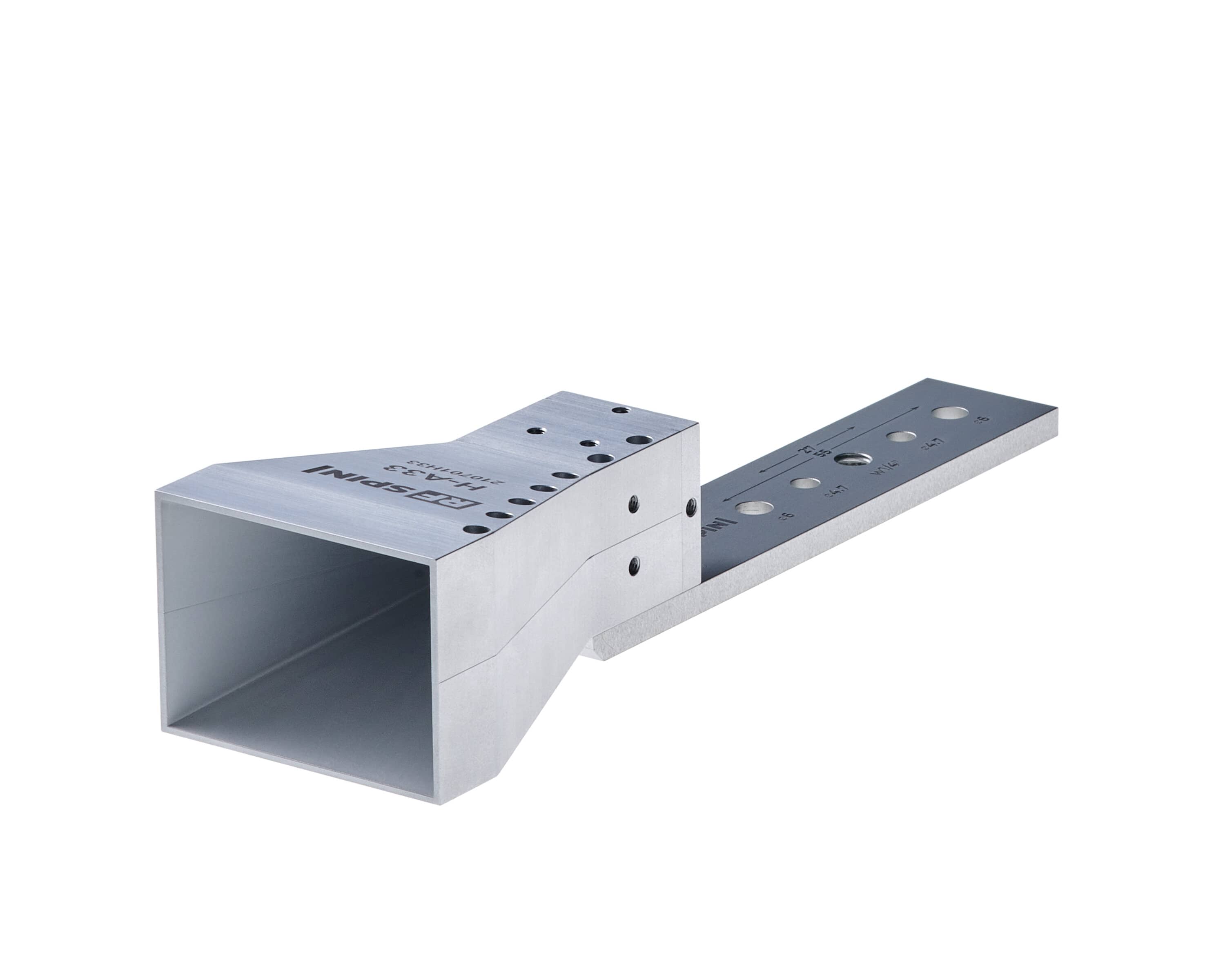

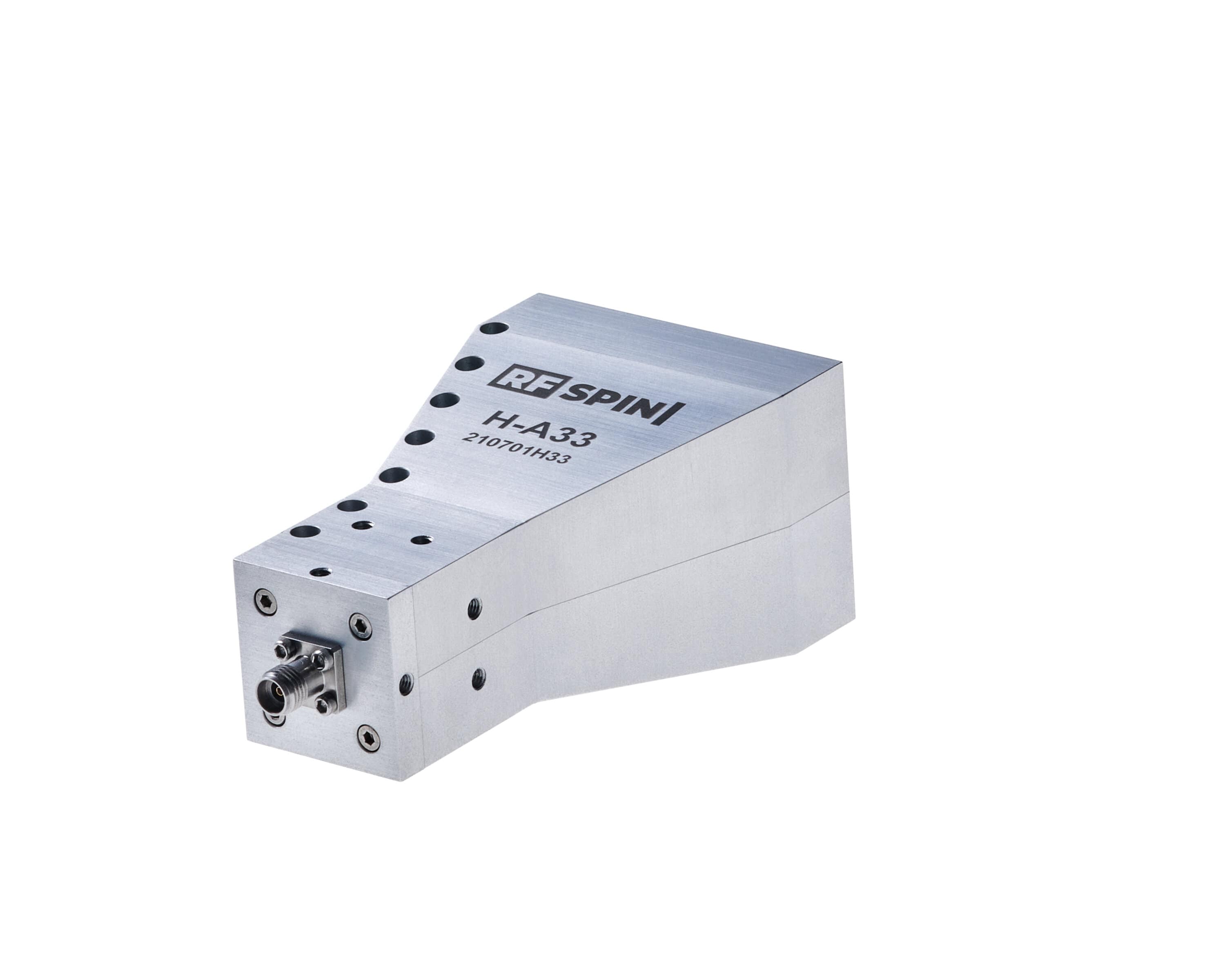

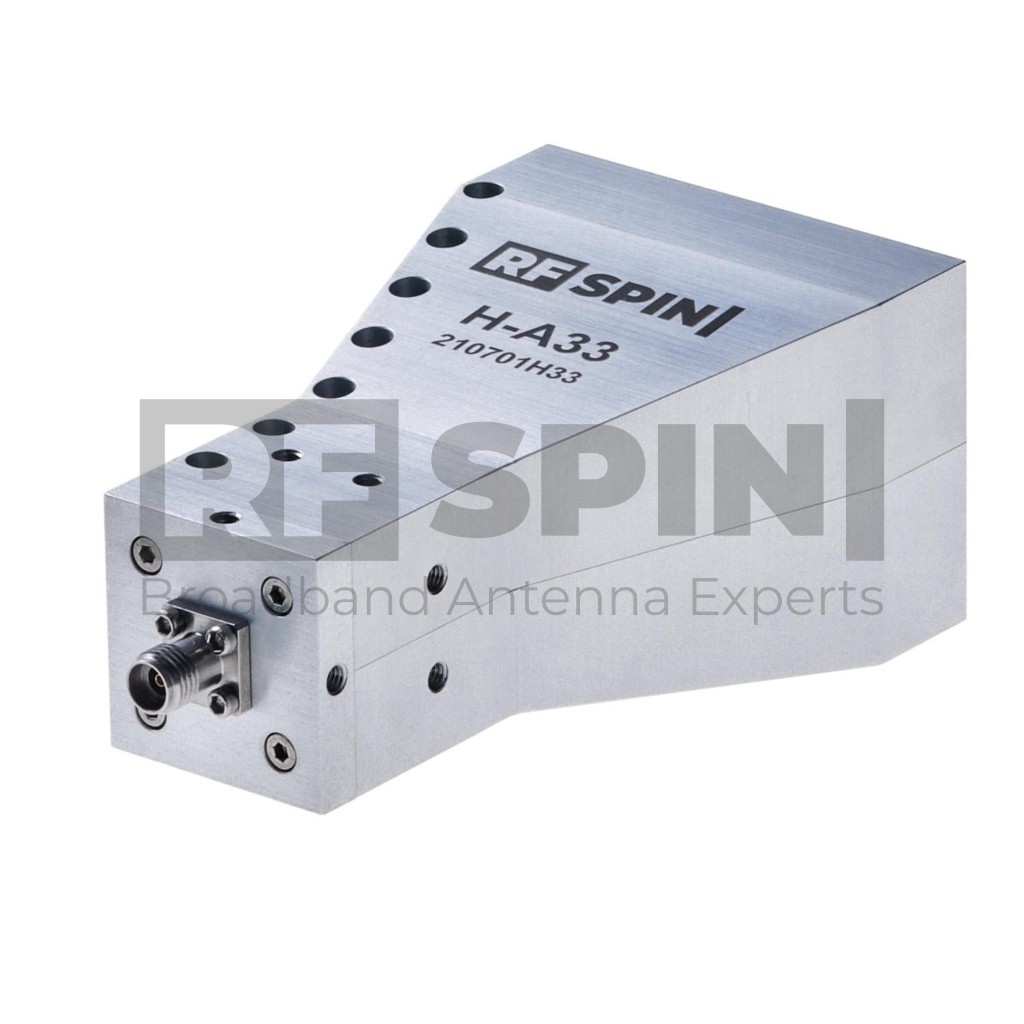

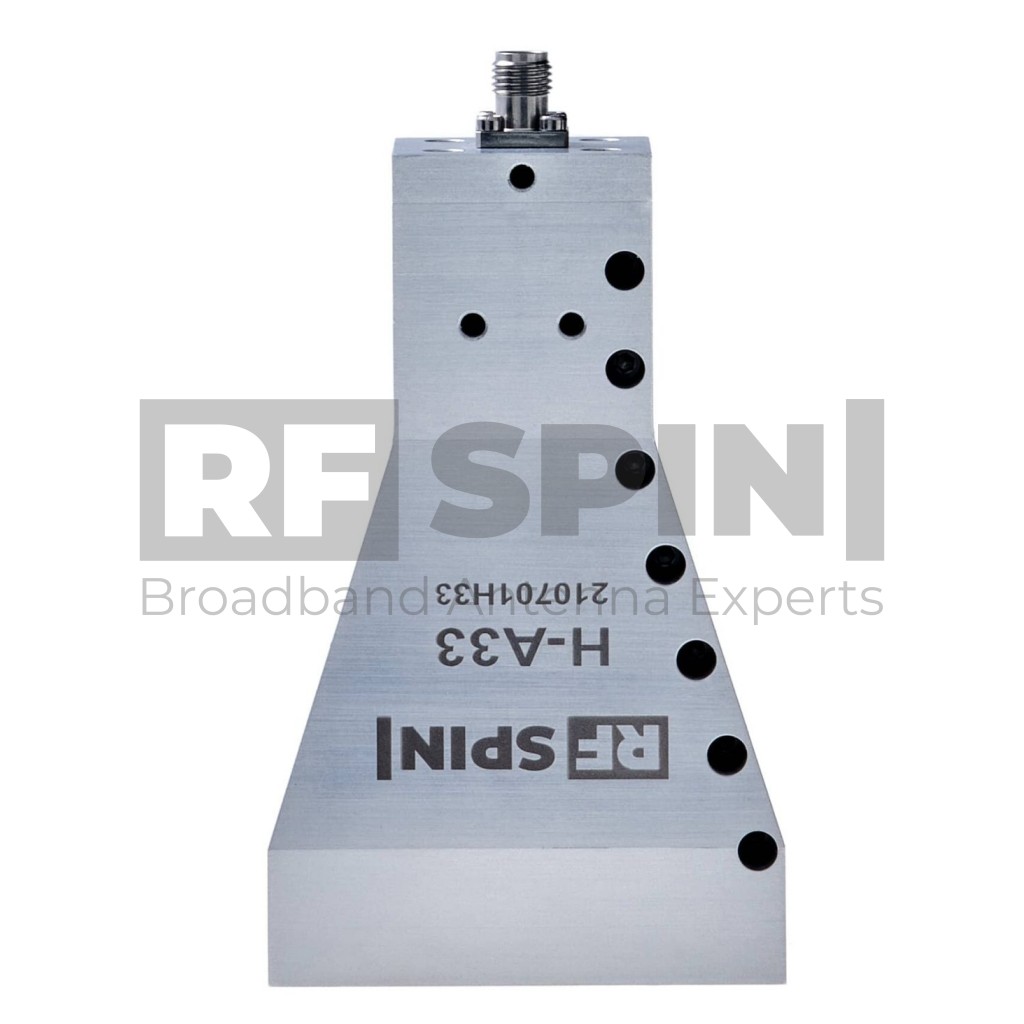

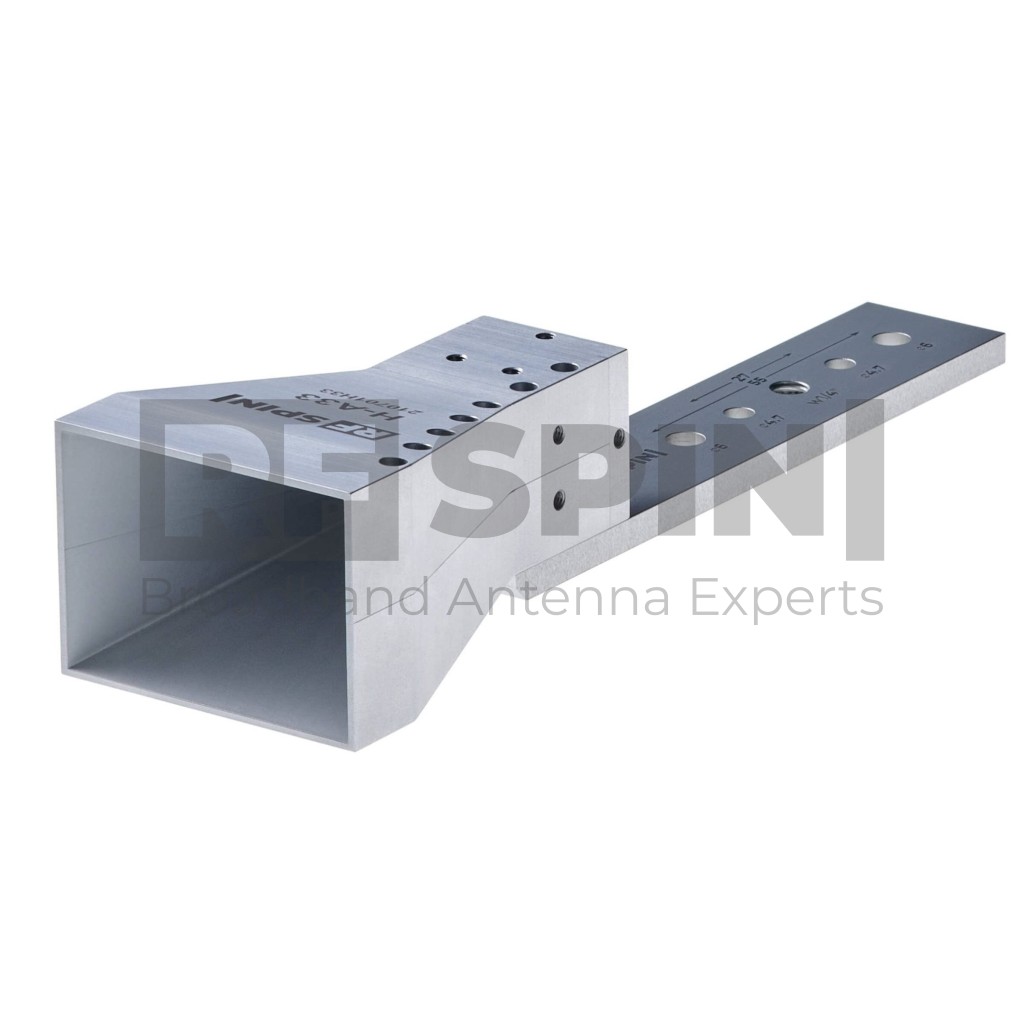

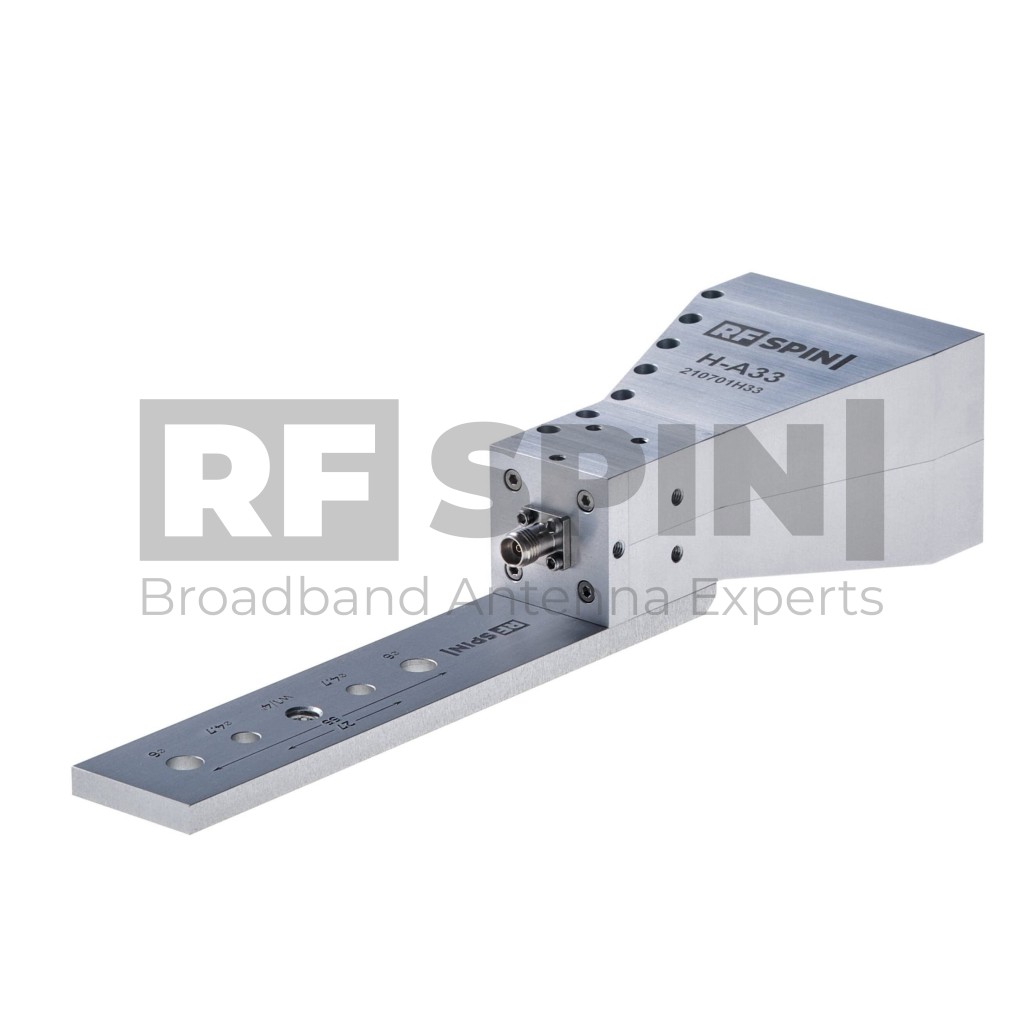

        H-A33 is a pyramidal horn antenna specially developed for 5G testing. Covering frequency from 22 GHz to 33 GHz. Design and manufacturing of the antenna were done with detail on quality and low price. With a smart holder, you can fix the antenna in E or H plane, and the connector always pointing backward.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Covers 5G frequency band

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Includes standard mount

        Manufacturing Technology

        • Manufactured using a high grade aluminum alloy
        • Extremely durable
        • High quality K type coaxial connector

        Product Packaging Includes

        • Linear polarized pyramidal horn antenna
        • Universal antenna mount

        Product Parameters

        Product identification

        • Product Name H-A33
        • Product Category Pyramidal Horn Antenna

        Electrical specifications

        • Frequency Range 22 GHz – 33 GHz
        • VSWR (max.) 1.3
        • VSWR (avg.) 1.15
        • Impedance 50 Ohm
        • Connector K (female)
        • Power (CW / Peak) 15 W / 30 W
        • Antenna Factor 38 – 40 dB/m
        • Polarization Linear

        Physical specifications

        • Width 52.4 mm (2.063 in)
        • Height 38.4 mm (1.512 in)
        • Depth 84 mm (3.307 in)
        • Weight 0.145 kg (0.320 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

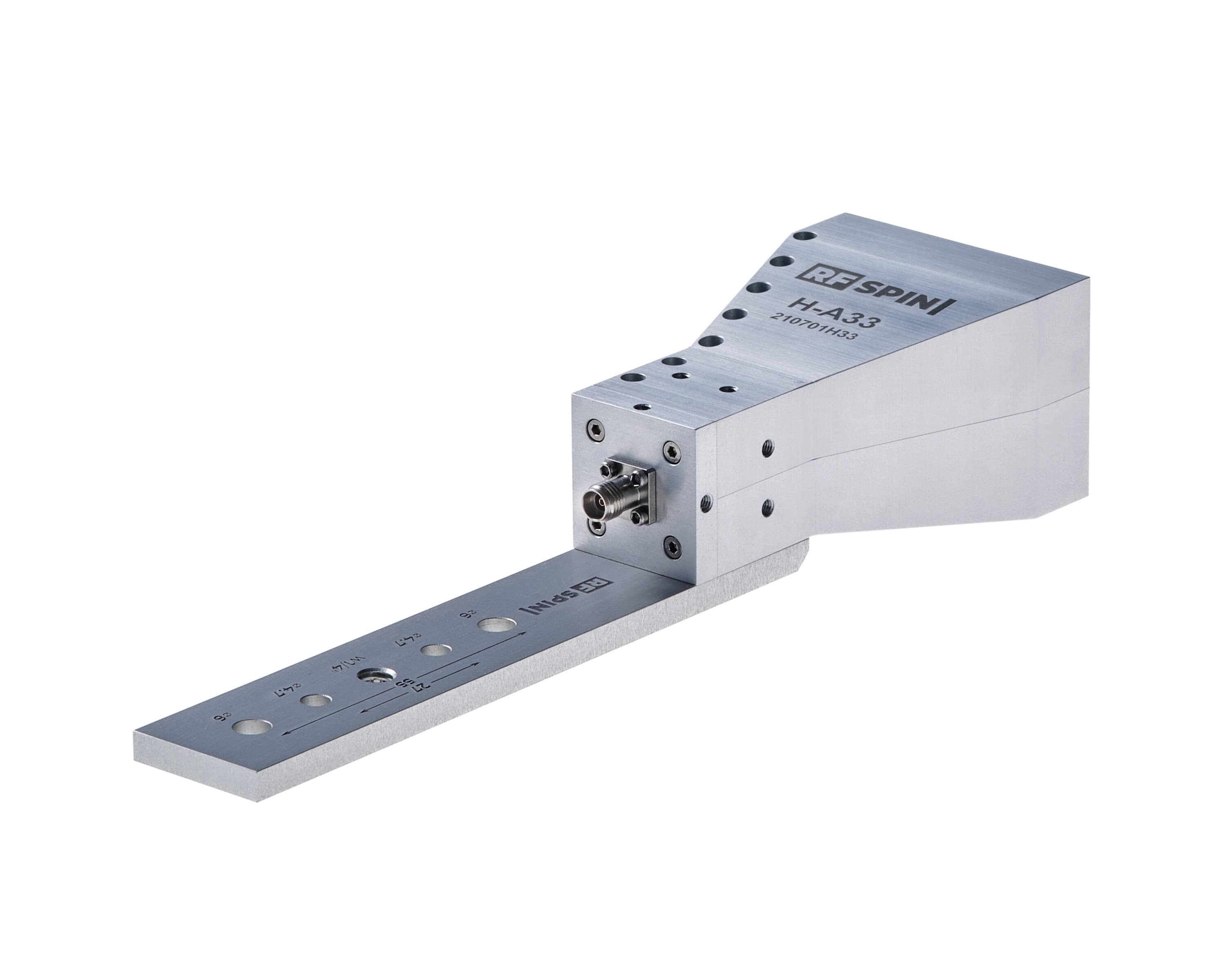

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        H-A33 - VSWR

        Gain

        H-A33 - Gain

        Antenna Factor

        H-A33 - Antenna Factor

        Cross Polarization

        H-A33 - Cross Polarization

        Beamwidth

        Port A, E plane

        H-A33 - Port A, E plane

        Port A, H plane

        H-A33 - Port A, H plane

        Radiation Patterns

        22 GHz

        H-A33 - 22 GHz

        23 GHz

        H-A33 - 23 GHz

        24 GHz

        H-A33 - 24 GHz

        25 GHz

        H-A33 - 25 GHz

        Packaging and Accessories

        What's in a box

        • H-A33 Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Custom services

        • Custom mounting solutions
        • Custom calibration data
