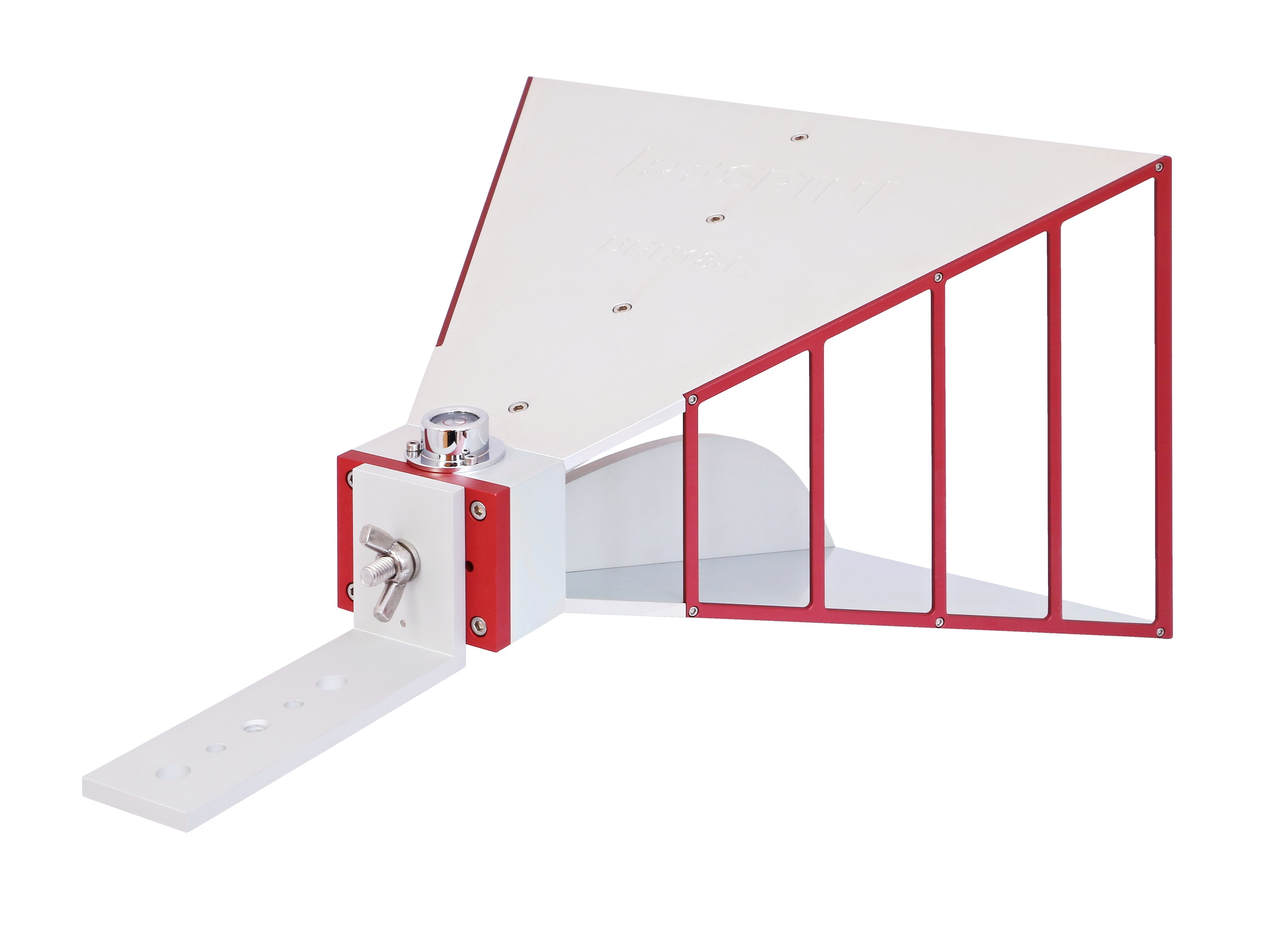

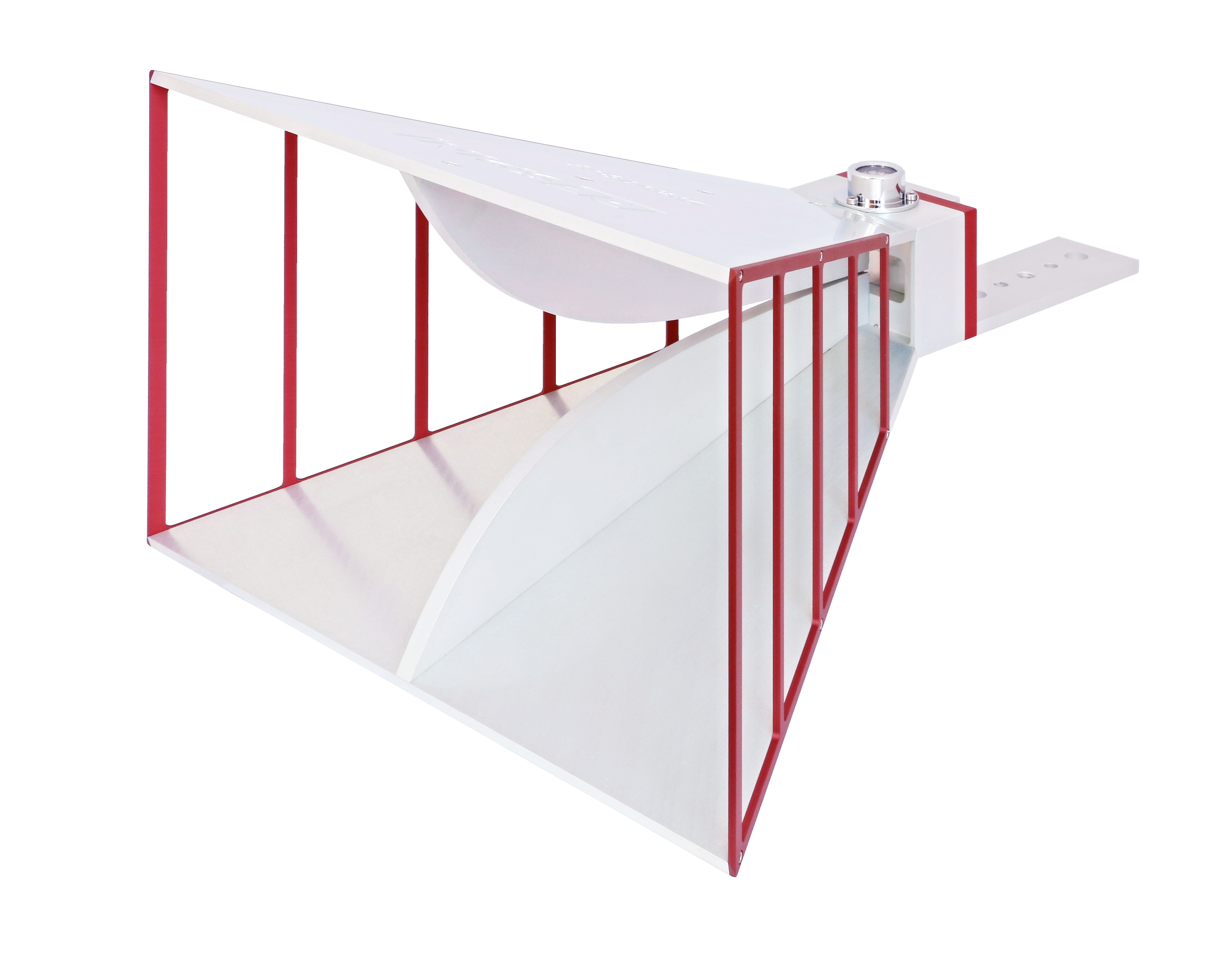

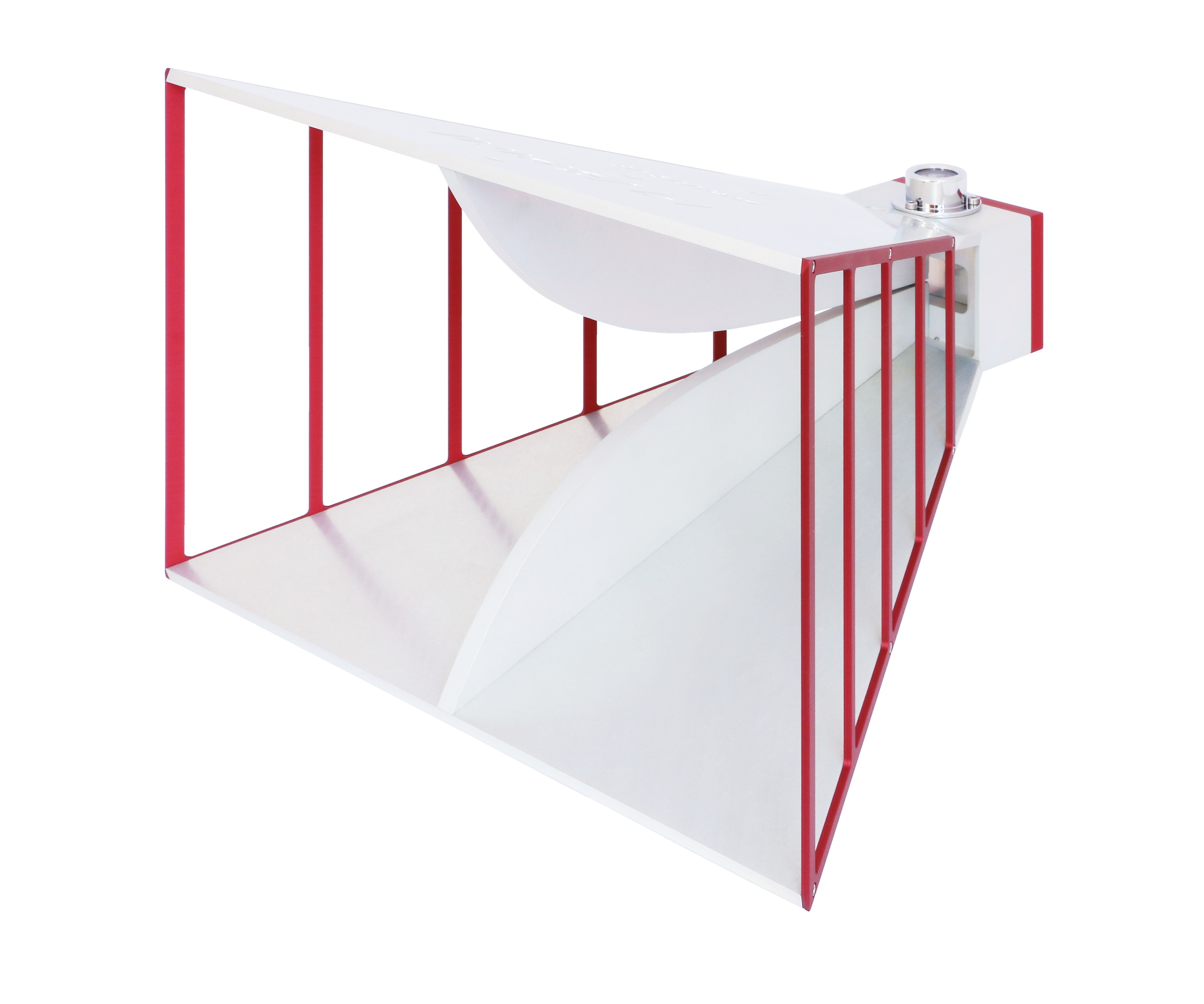

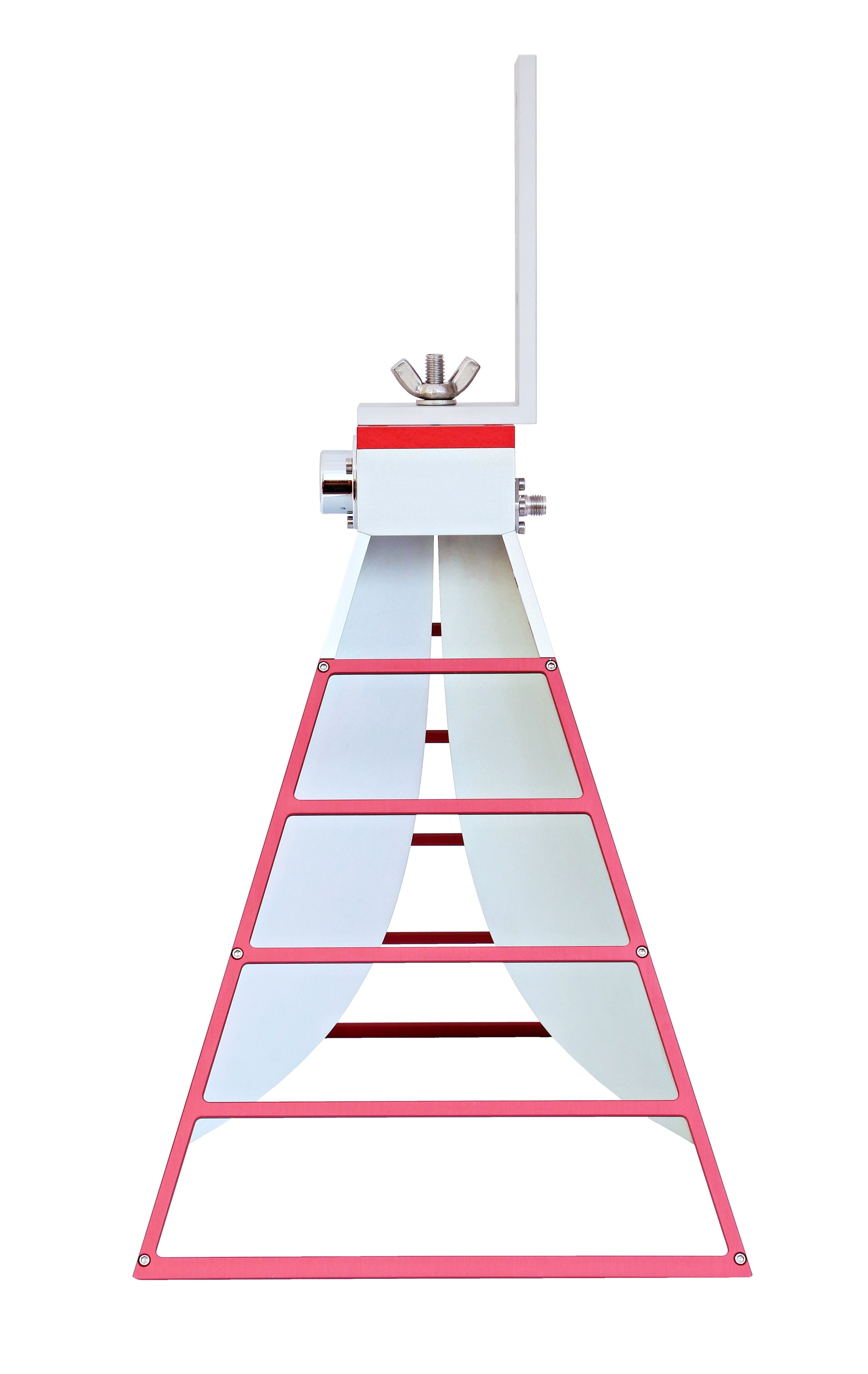

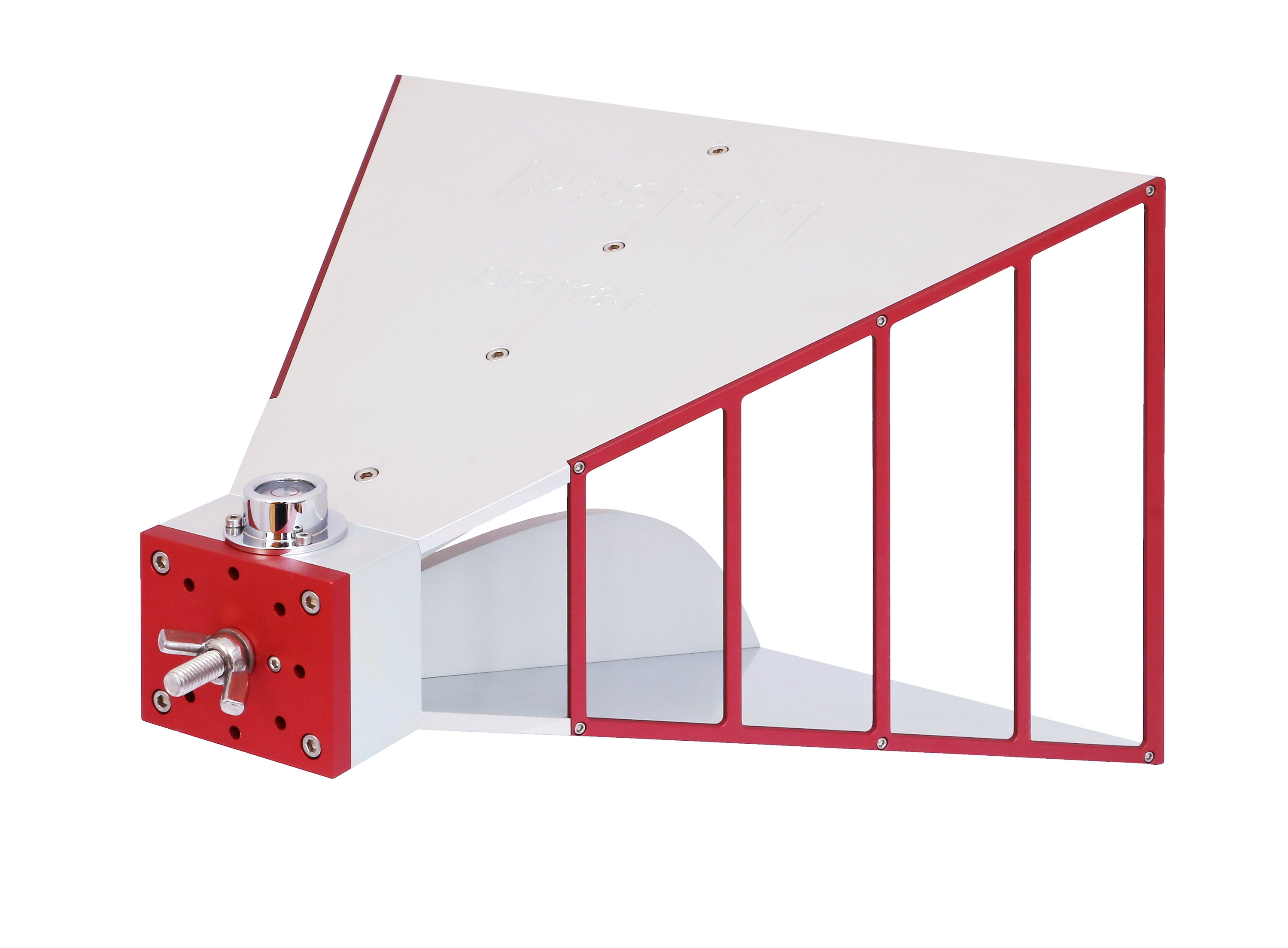

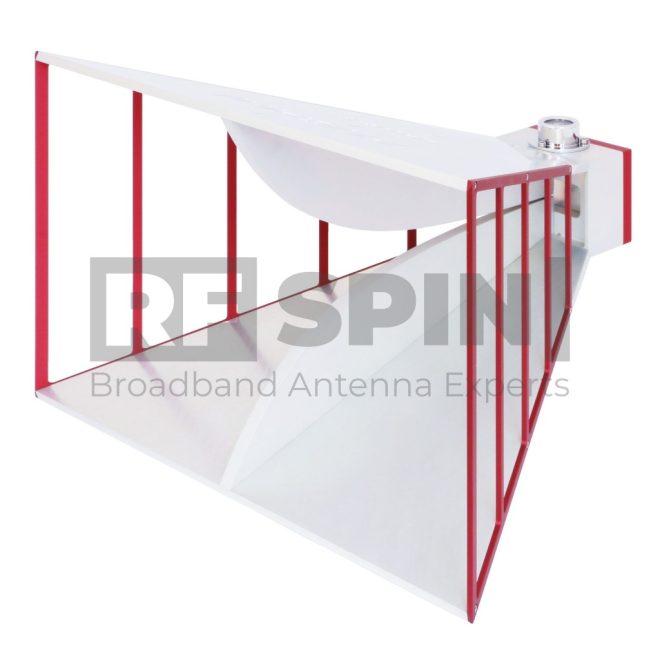

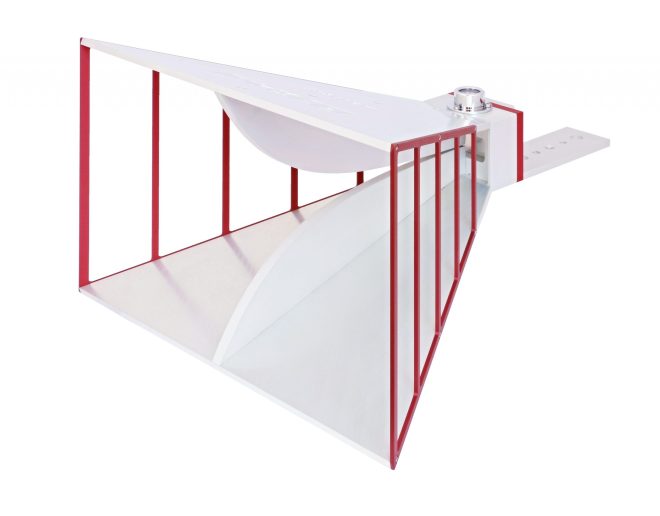

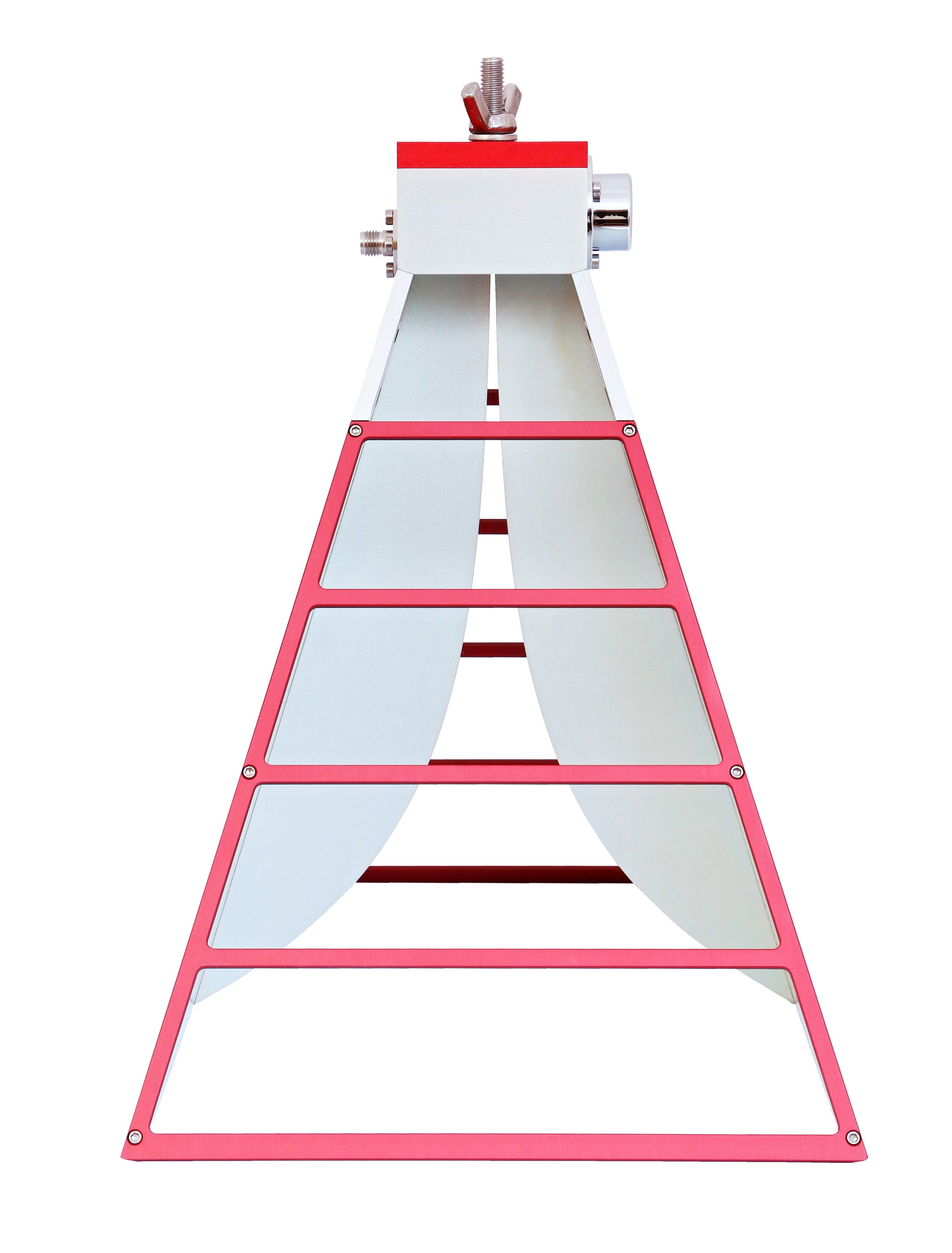

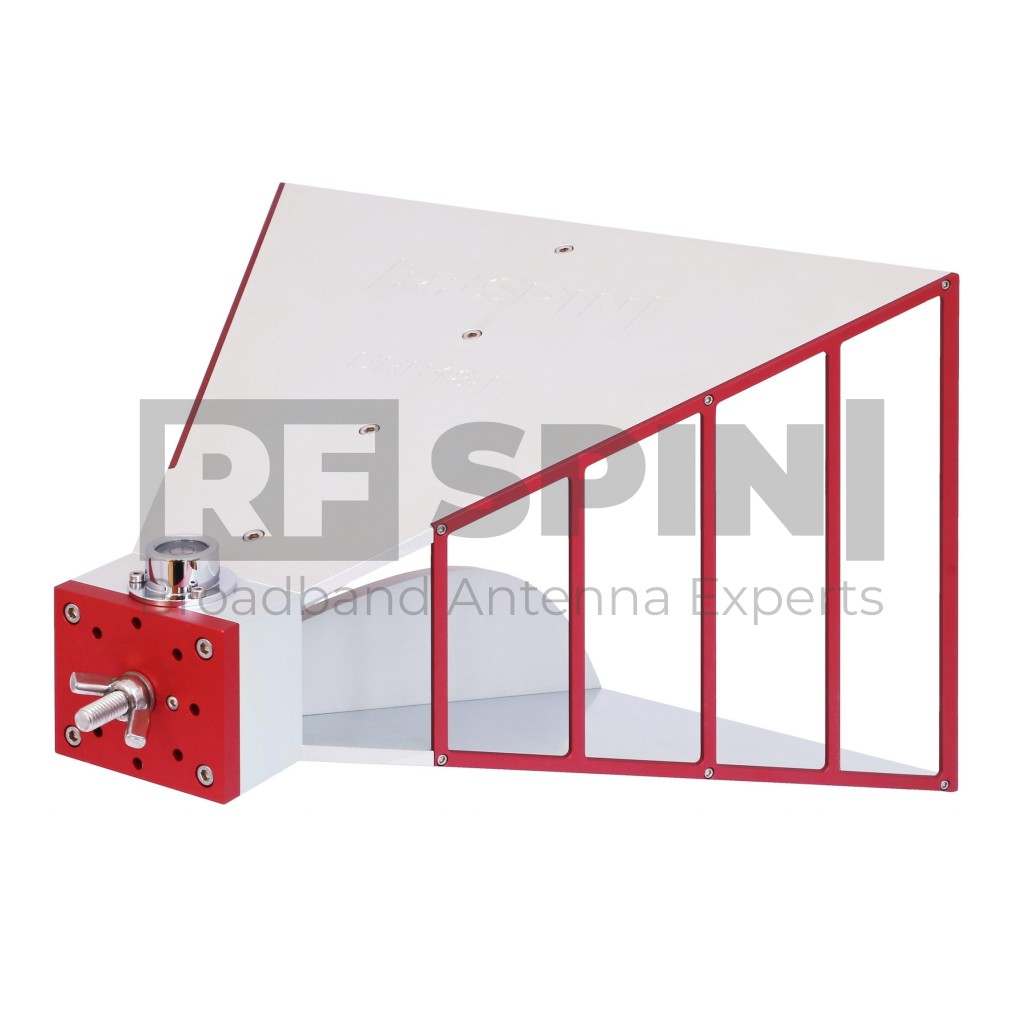

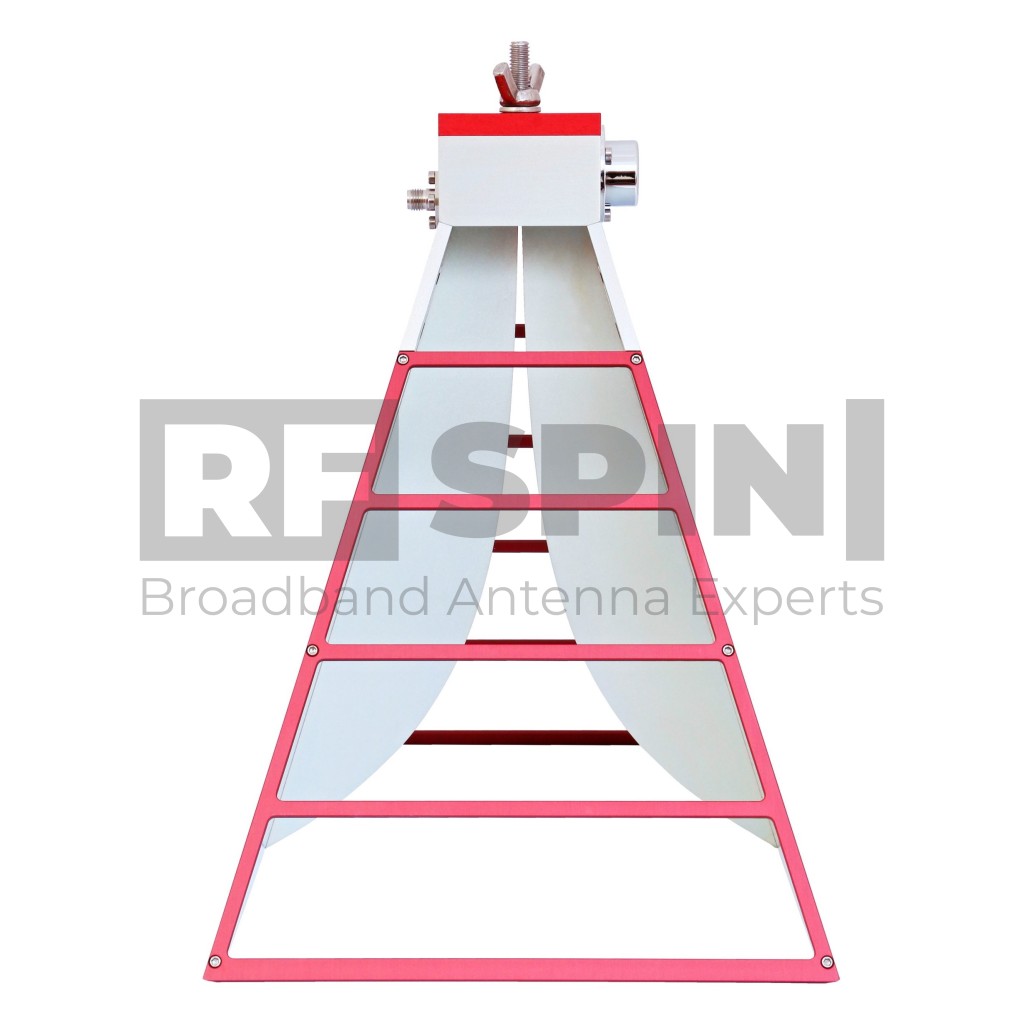

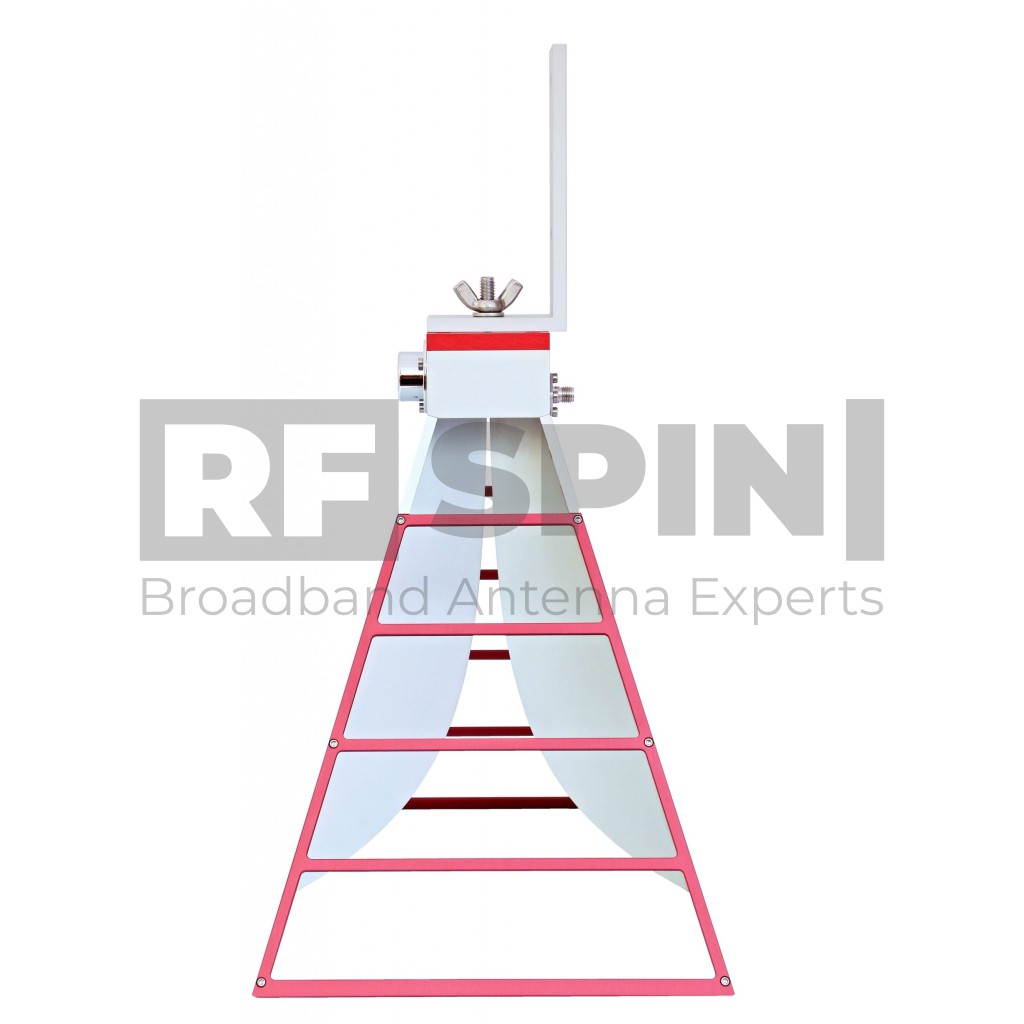

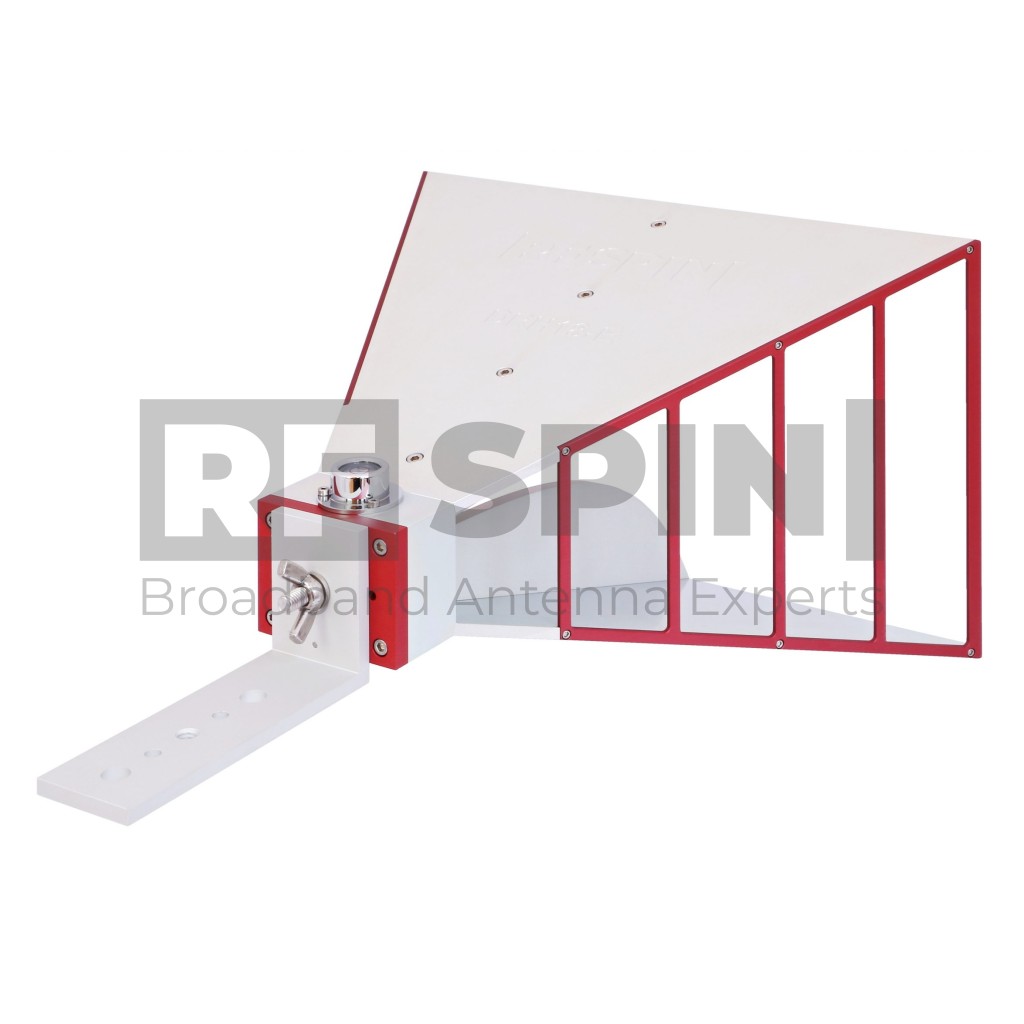

        DRH18-E

        Double Ridged Horn Antenna

        Specially developed for EMC/EMI testing.  The addition of a spirit level is a matter of course, thanks to which your measurement in both planes will be very accurate and fun. Two options of antenna connector N or SMA.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss
        • Individual calibration
        • Suitable for EMC/EMI applications

        Design and Surface Treatment

        • Corrosion-resistant coating
        • Very precise spirit level

        Manufacturing Technology

        • Extremely durable
        • High quality SMA type coaxial connector
        • High qulity N type coaxial connector

        Product Packaging Includes

        • Adapter with ¼ inch inner thread, supplied with antenna
        • Linear polarized double ridged broadband horn antenna

        Product Parameters

        Product identification

        • Product Name DRH18-E
        • Product Category Double Ridged Horn Antenna

        Electrical specifications

        • Frequency Range 1 GHz – 18 GHz
        • VSWR (max.) 2.2
        • VSWR (avg.) 1.2
        • Impedance 50 Ohm
        • Connector N, SMA
        • Power (CW / Peak) 100 W / 170 W
        • Antenna Factor 23 – 44 dB/m
        • Polarization Linear

        Physical specifications

        • Width 243 mm (9.567 in)
        • Height 155 mm (6.102 in)
        • Depth 200 mm (7.874 in)
        • Weight 0.87 kg (1.918 lb)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Mounting flange

        • Mounting Adapter with ¼ inch inner thread, supplied with antenna

        Mechanical Drawings

        Parameters and Performance

        Typical parameters

        VSWR

        DRH18-E - VSWR

        Gain

        DRH18-E - Gain

        Antenna Factor

        DRH18-E - Antenna Factor

        Cross Polarization

        DRH18-E - Cross Polarization

        Beamwidth

        Port A, E plane

        DRH18-E - Port A, E plane

        Port A, H plane

        DRH18-E - Port A, H plane

        Radiation Patterns

        1 GHz

        DRH18-E - 1 GHz

        2 GHz

        DRH18-E - 2 GHz

        4 GHz

        DRH18-E - 4 GHz

        6 GHz

        DRH18-E - 6 GHz

        Packaging and Accessories

        What's in a box

        • DRH18-E Antenna
        • Antenna specific mount adapter with ¼ inch inner thread
        • Factory calibration certificate
        • Full calibration report of each antenna
        • QR code accessing online portal
        • Calibration test dataset (available online)

        Accessories

        • Standard mounting flange
        • Factory calibration report

        Optional Accessories

        Custom services

        • Custom mounting solutions
        • Custom calibration data

        Other Similar Products

        DRH18-EX
        DRH18-EX
        Double Ridged Horn Antenna
        Frequency Range

        800 MHz – 18 GHz

        VSWR (avg.)

        1.3

        Impedance

        50 Ohm

        Connector

        N, SMA

        Power (CW / Peak)

        100 W / 170 W

        Polarization

        Linear

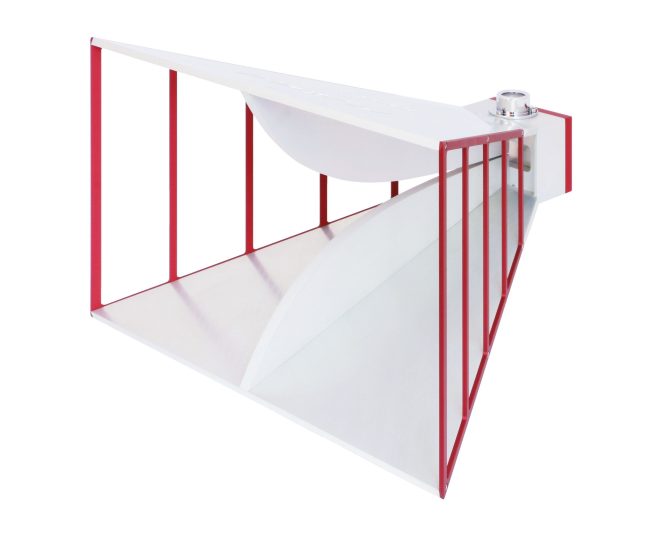

        QRH18
