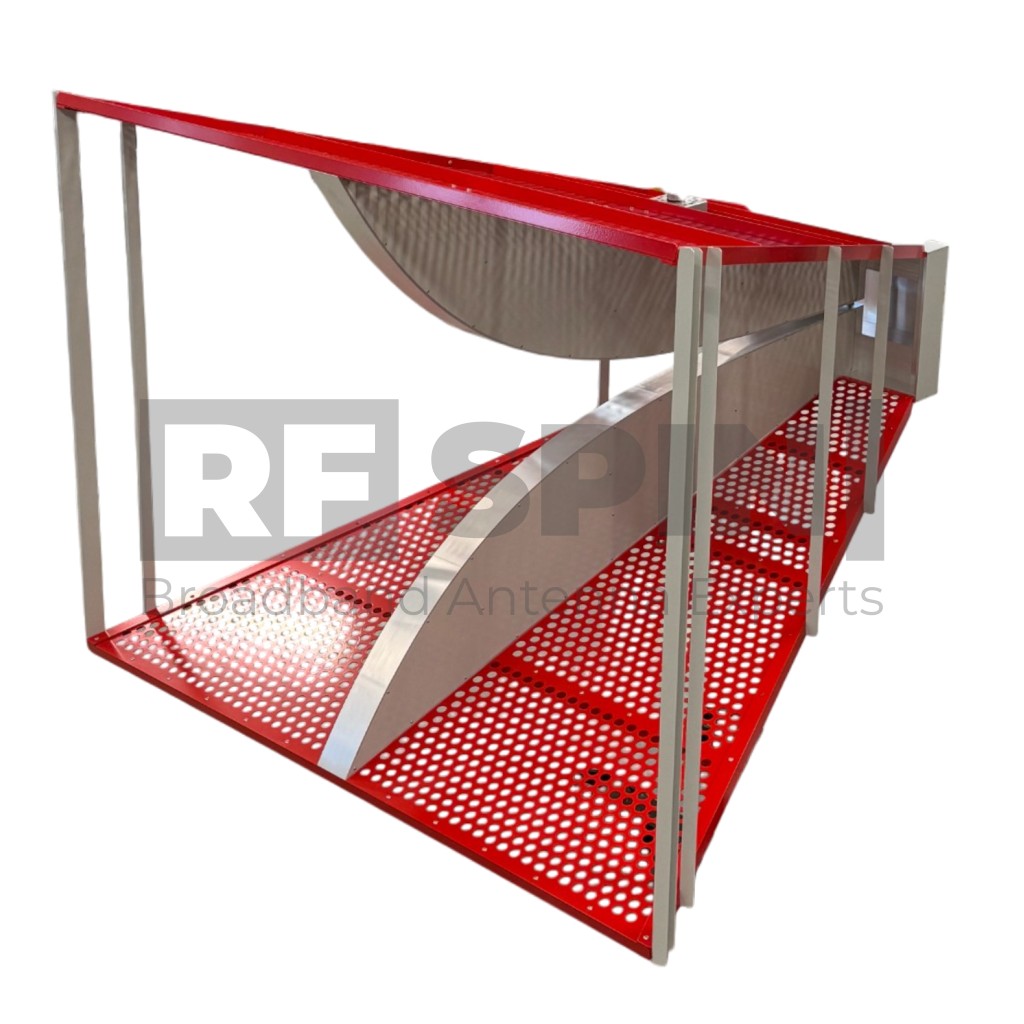

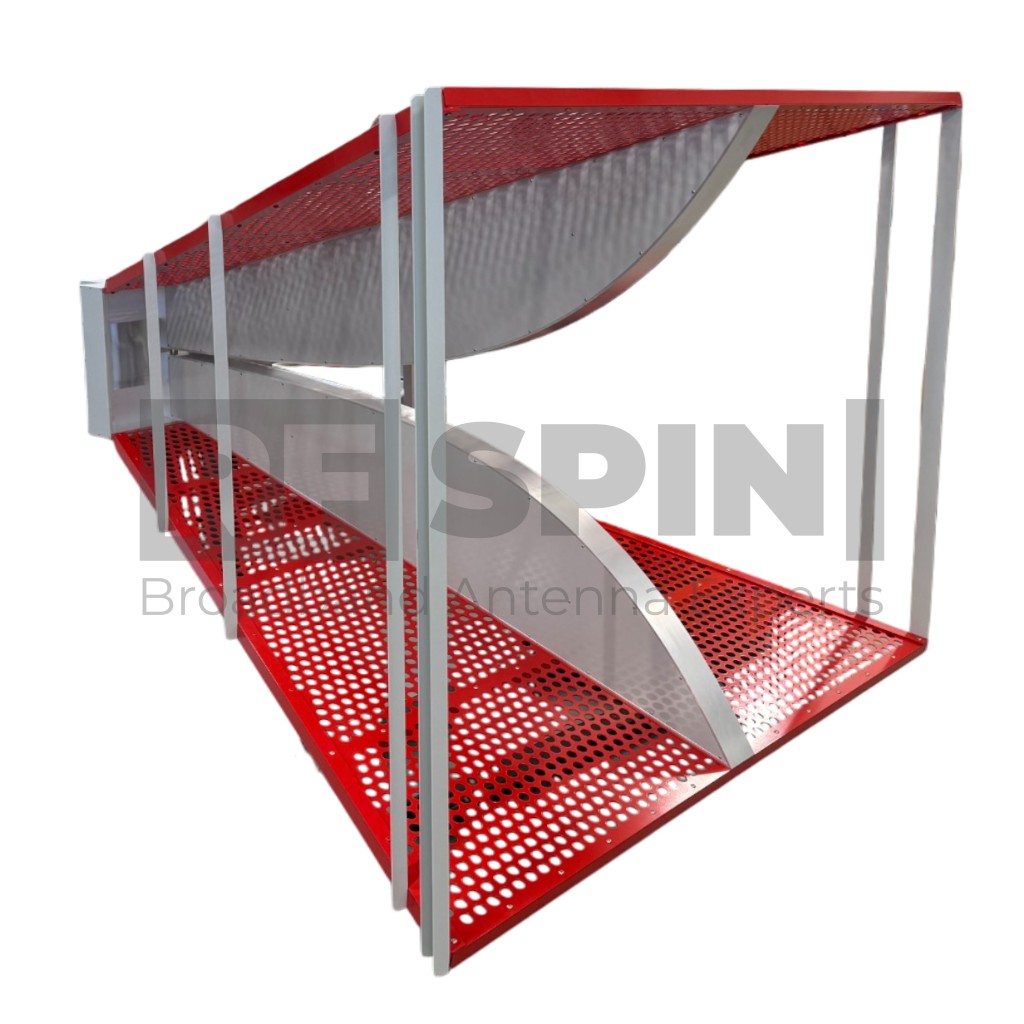

DRH100 Double Ridged Horn Antenna | 100 MHz – 1.4 GHz
with online calibration protocol and dataset

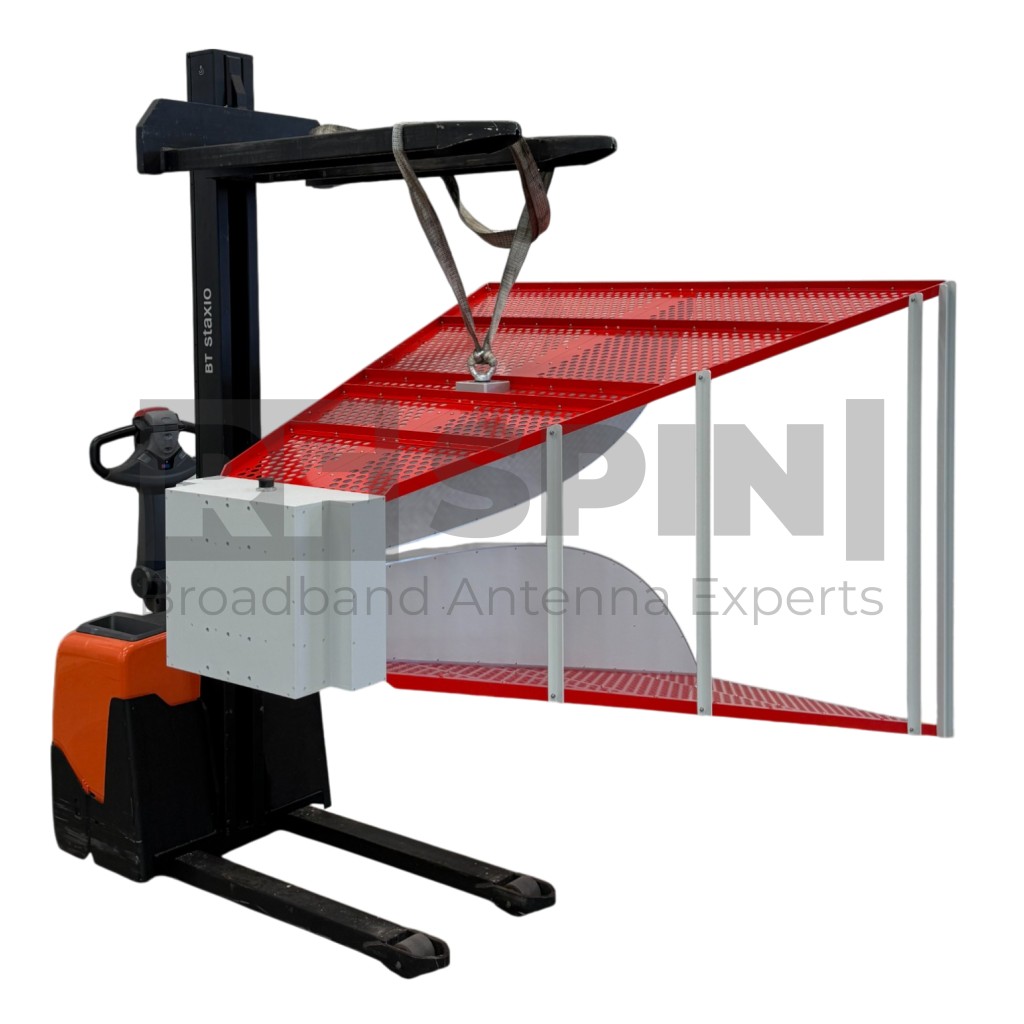

DRH100 operates from 100 MHz up to 1.4 GHz. Thanks to a smart design, the antenna weight is only 70kg while keeping robust and stiff.
Features and Specifications
Technical Performance
- Wide bandwidth
- Low return loss
- Suitable for EMC/EMI applications
Design and Surface Treatment
- Corrosion-resistant coating
Manufacturing Technology
- High quality 7/16 coaxial connector
Product Packaging Includes
- Antenna
Product Parameters
Product identification
- Product Name DRH100
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 100 MHz – 1.4 GHz
- VSWR (max.) 1.5
- VSWR (avg.) 1.1
- Impedance 50 Ohm
- Connector 7/16 (female)
- Power (CW / Peak) 2000 W / 3000 W
- Antenna Factor 5 – 27 dB/m
- Polarization Linear
Physical specifications
- Width 1625 mm (63.976 in)
- Height 1221 mm (48.071 in)
- Depth 1785 mm (70.276 in)
- Weight 68 kg (149.914 lb)
Operating conditions
- Rated Temperature Range 0°C – +50°C
- Storage Temperature Range -20°C – +70°C
Mechanical Drawings
Antenna
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Beamwidth
Radiation Patterns
0.1 GHz
0.2 GHz
0.3 GHz
0.4 GHz
0.5 GHz
0.6 GHz

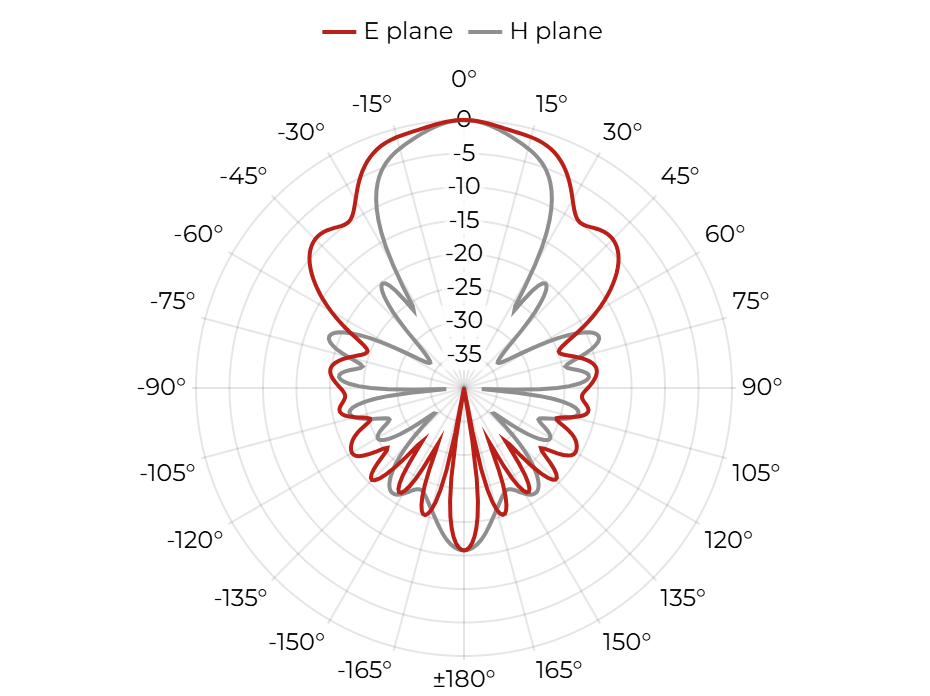

0.7 GHz
0.8 GHz
0.9 GHz

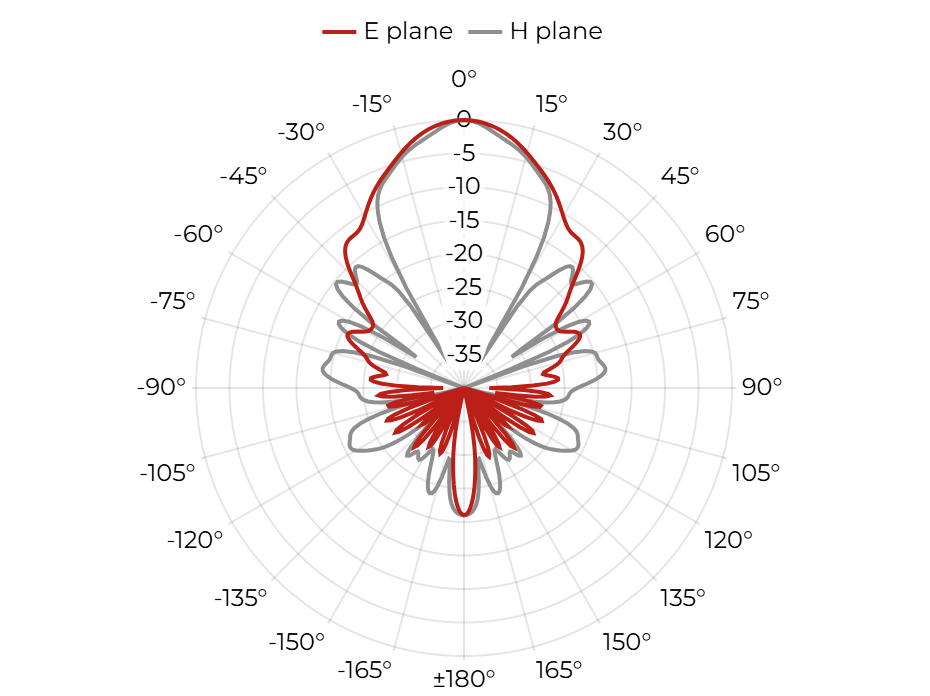

1 GHz
1.2 GHz
1.4 GHz
Packaging and Accessories
What's in a box
- DRH100 Antenna
Accessories
- Standard mounting flange
Custom services
- Custom mounting solutions
Manufacturer Information
RFspin s.r.o.
Na Beránce 57/2
160 00 Prague 6
Czech Republic
info@rfspin.com
+420 245 008 847
