RF SPIN Expertise

Engineering That Earns Every Decimal

We design, build, and calibrate every antenna in-house. What separates a measurement-grade unit from an off-the-shelf horn lives in details no datasheet captures.

RF SPIN Engineering Layers

Where we move past category standard

Broadband isn’t a marketing claim — it’s a chain of engineering choices, each held in our own facility. Sub-GHz horns to 140 GHz lens antennas — each shaped by four engineering layers: patented geometry, gram-budget mass, micrometer-precise plating, and weather-rated sealing.

Patented Technology

Patented 3D-printed lenses — more gain, same envelope

On selected antennas we lift directivity through proprietary lens structures we designed, patented, and refined ourselves.

Reaching the same gain conventionally would mean a larger, heavier antenna. Our lenses add a few grams, preserve the broadband behavior of the host horn, and extend the performance envelope without redrawing its geometry.

Key parameters

+ X dB

Gain boost

XX - XX GHz

Frequency range

+ XX g

Added weight

See single polarized lens antennas See dual polarized lens antennas
Airborne & Space Engineering

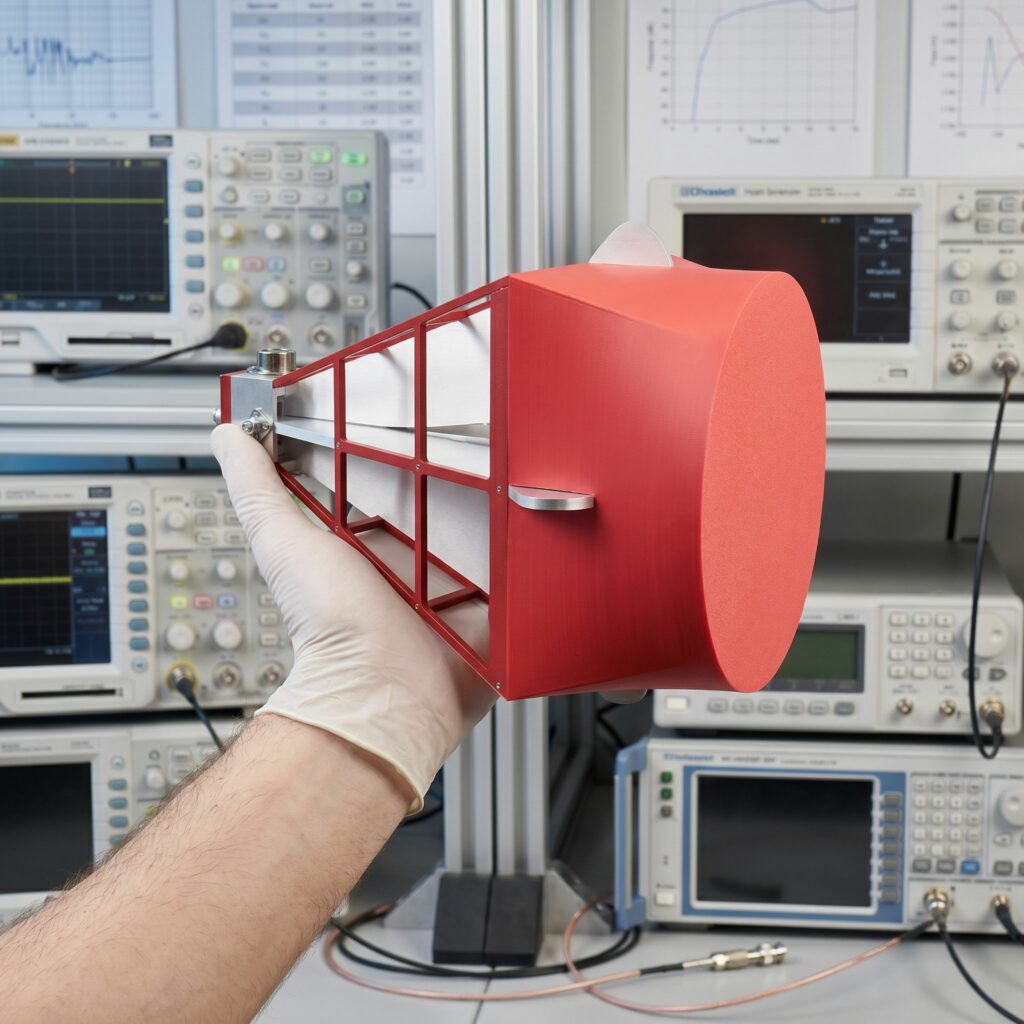

Antennas built for the gram budget

On a UAV, drone, or space-bound payload every gram is contested — and the antenna still has to perform like the bench unit it was qualified against.

We rework the structural mechanics, not just the bill of materials — producing hardware that holds bench-grade RF where mass is the binding constraint. Reference build: a lightweight measurement antenna for the anechoic chamber at Airbus Defence and Space.

Weight savings vs. standard build · Awaiting data

– X %

Mass reduction

X models

Lightweight builds

≤ 0.X dB

RF delta

Learn more about Aerospace products
Materials & Surfaces

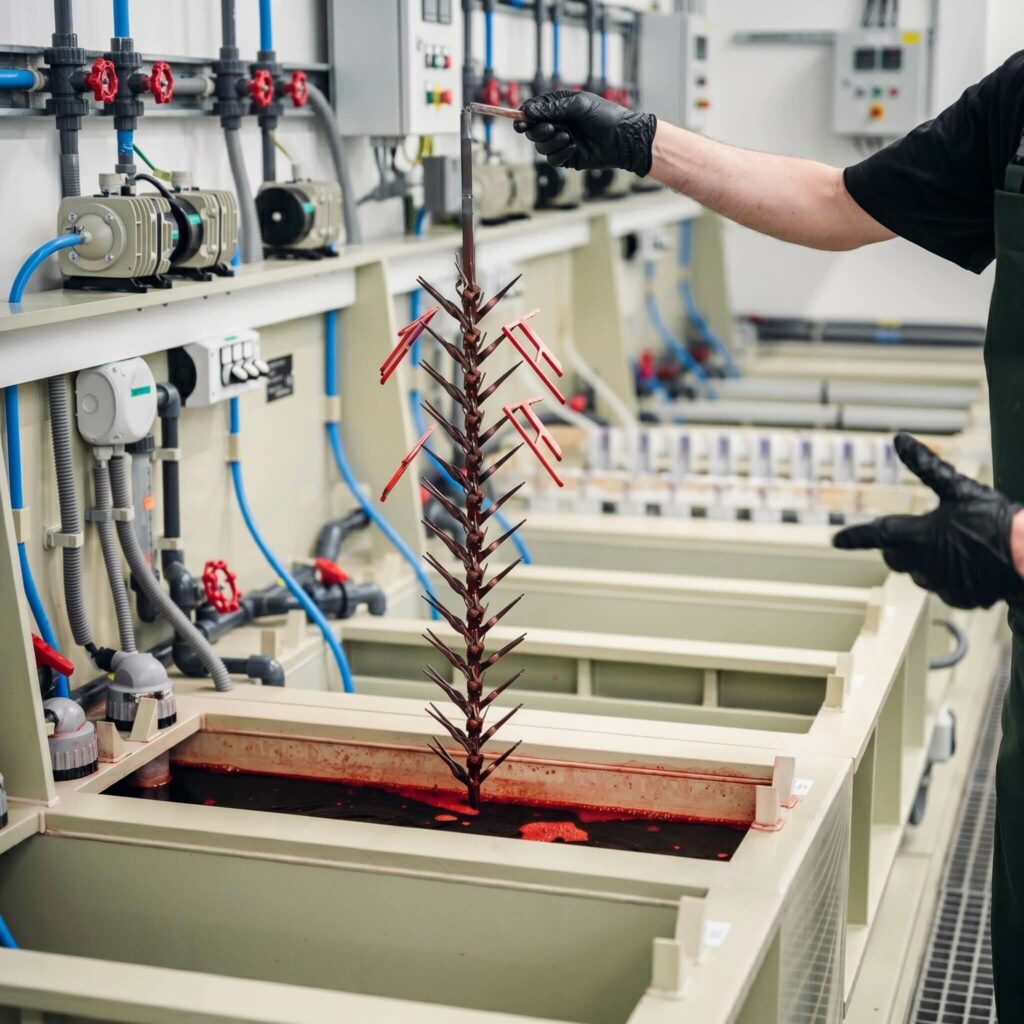

Surface treatment as RF engineering

A few micrometers of coating change how an antenna behaves on the bench — especially above 30 GHz, where skin depth slips into the hundreds of nanometers.

Industrial plating is engineered for protection, not propagation. We choose and tune every chemical and galvanic step ourselves, judging each by what it does to the signal. With the full chain in-house, the physical surface matches the surface in our simulations.

Measured improvements · Awaiting data

– 0.X dB

Insertion loss

> X GHz

Frequency band

X surfaces

Validated

Environmental Engineering

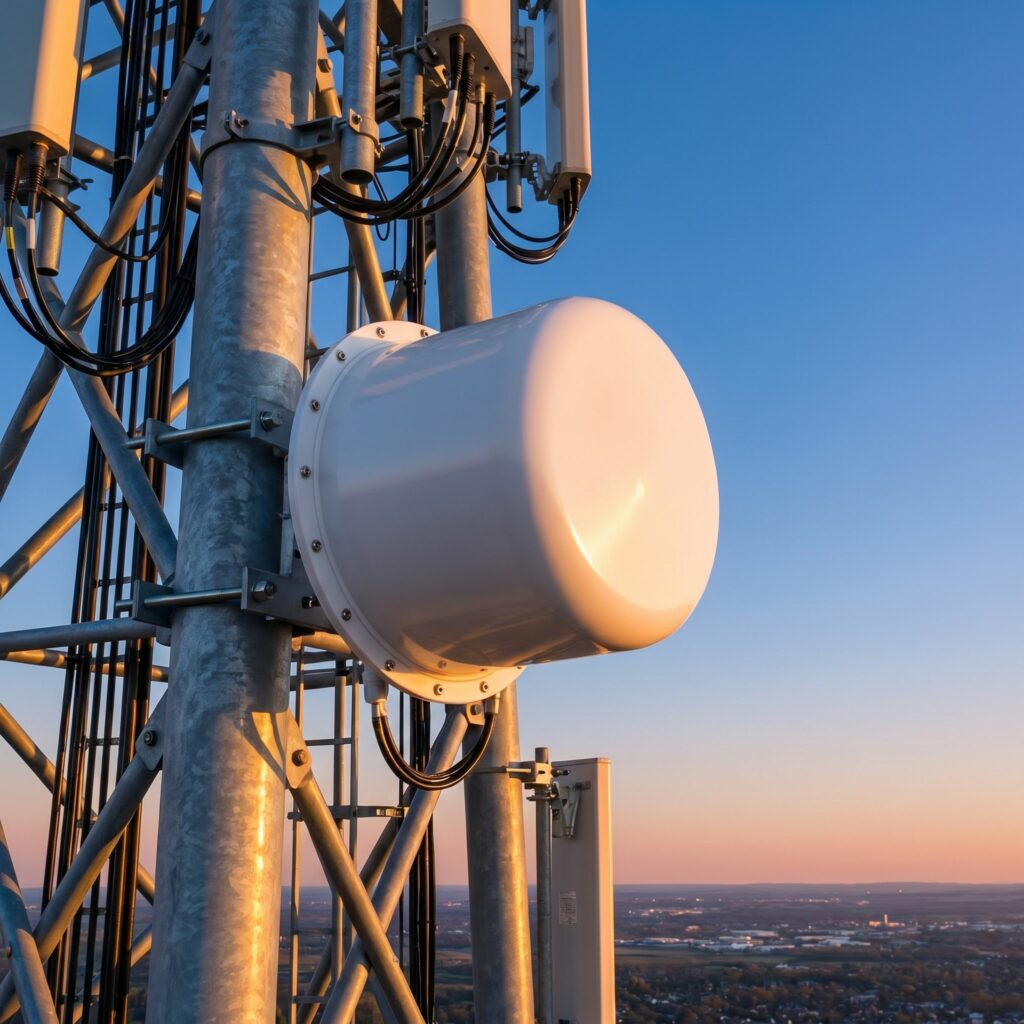

Radomes that don't soften the signal

Sealing an antenna against the weather without dulling its RF takes more than a molded shell.

A year of work on material composition and antenna-to-radome geometry held the RF behavior flat across the full operating band. The result keeps measurement precision through rain, ice, salt air, and dust — extending field life without the trade-offs outdoor deployment usually demands. Available with radome build: QRH11R, QRH18R, DRH10R.

Environmental performance · Awaiting data

IP XX

Ingress rating

– X to + X °C

Temperature

X years

UV lifetime

Specialized Capability · Antenna Uniformity

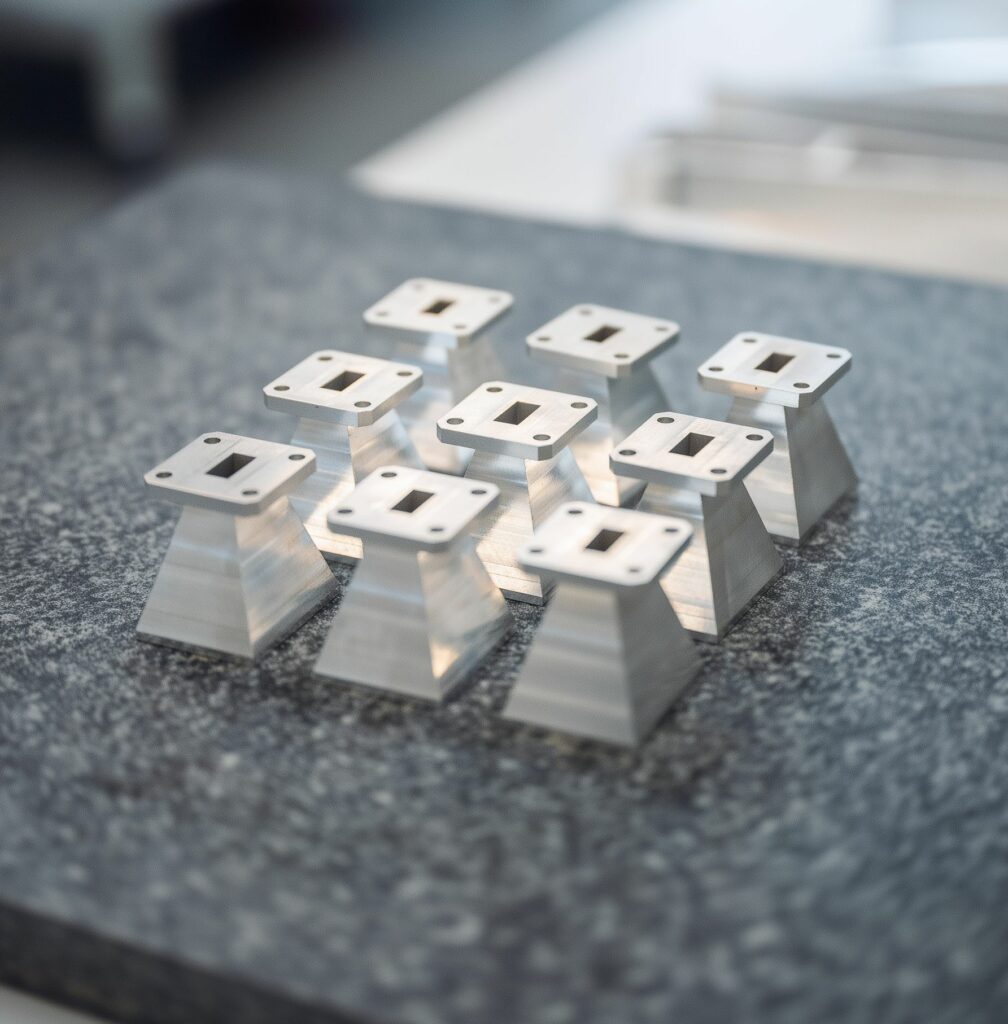

Matched antennas, batch after batch

Some setups don't need one excellent antenna — they need several identical ones. We built a dedicated capability around exactly that.

Bistatic radar, MIMO probe arrays, phase-coherent OTA, interferometry — work where 0.5 dB of gain delta or a single degree of phase mismatch invalidates the result. Tight mechanical tolerances and consistent material lots keep every unit in a batch inside a guaranteed amplitude and phase window. Drop them straight into a phased array — no unit-by-unit calibration required.

Matched-pair tolerance · Guaranteed across the batch

≤ X.X dB

Gain delta (ΔG)

≤ X°

Phase delta (ΔΦ)

> 0.XX

Pattern correlation

Standards & Traceability

Where it counts — calibration laboratories, defense procurement, regulated industries.

IEEE 149-2021
CISPR 16-1-4
NIST / PTB
MIL-STD
ISO 9001

Continue exploring · Capabilities

Four other chapters of the same process

From first sketch to the antenna on your bench — every step kept in-house.

"We work it out."

R&D

Where new antenna concepts begin — custom design, EM optimization, geometry refined with machine-learning assistance.

Explore R&D
"We build it ourselves."

In-house production

Designed, machined, plated, assembled and measured under one roof in Nová Paka — no outsourcing, full traceability.

See our production
"We verify it."

Measurements

Anechoic chambers to 125 GHz. Every antenna individually calibrated and measured before it ships.

See how we measure
"We deliver the proof."

Antenna Portal

Per-unit measured data on every antenna we ship — opened via the QR code on the unit itself.

S-parameters · Calibration data · Specs in XLS
Find out more

Take the next step

Three ways forward

From a five-minute call with our engineers to a deep dive through the Portfolio Guide — pick the one that fits where you are.

Talk to our engineers Explore Portfolio Try Antenna Portal
