Every fact your antenna carries
Model, serial number, build date
Pass/Fail verdict against datasheet specification
Datasheet and operating conditions
Full PDF calibration report (2D / 3D charts)
Calibration certificate — standard or accredited
Every RF SPIN antenna carries a QR code and unique token that opens its dedicated entry in the Antenna Portal — a single source for certificates, measurement data, and integration-ready files, available 24/7.
A complete digital record of your antenna — combining typical reference data with individual measurements from our anechoic chamber, ready to use the moment you open it.
Model, serial number, build date
Pass/Fail verdict against datasheet specification

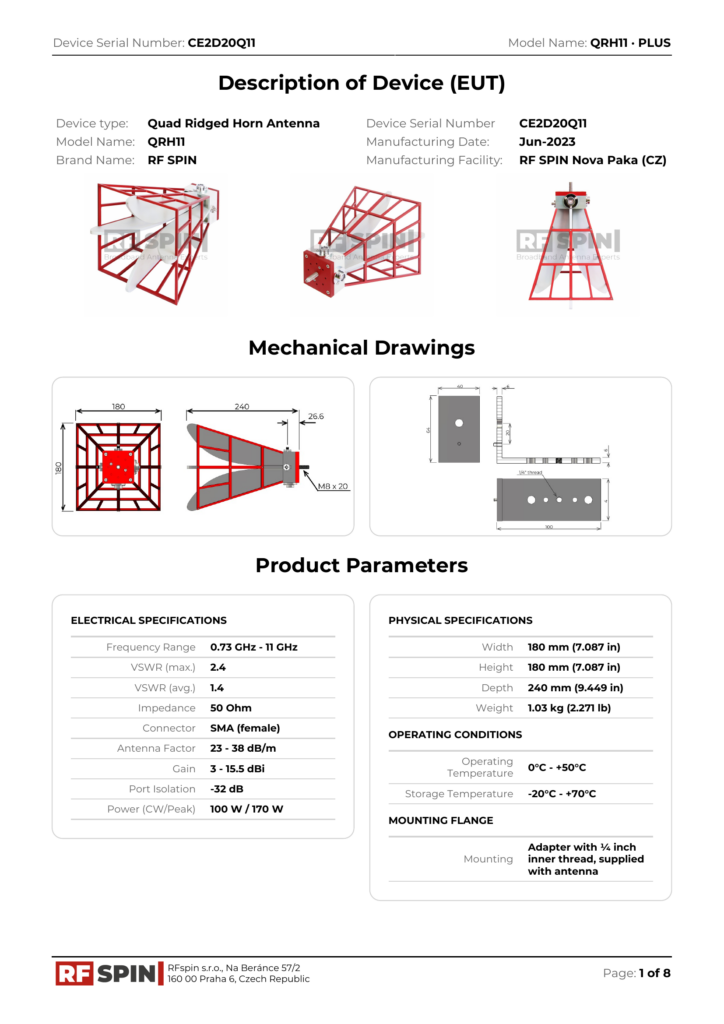

Datasheet and operating conditions

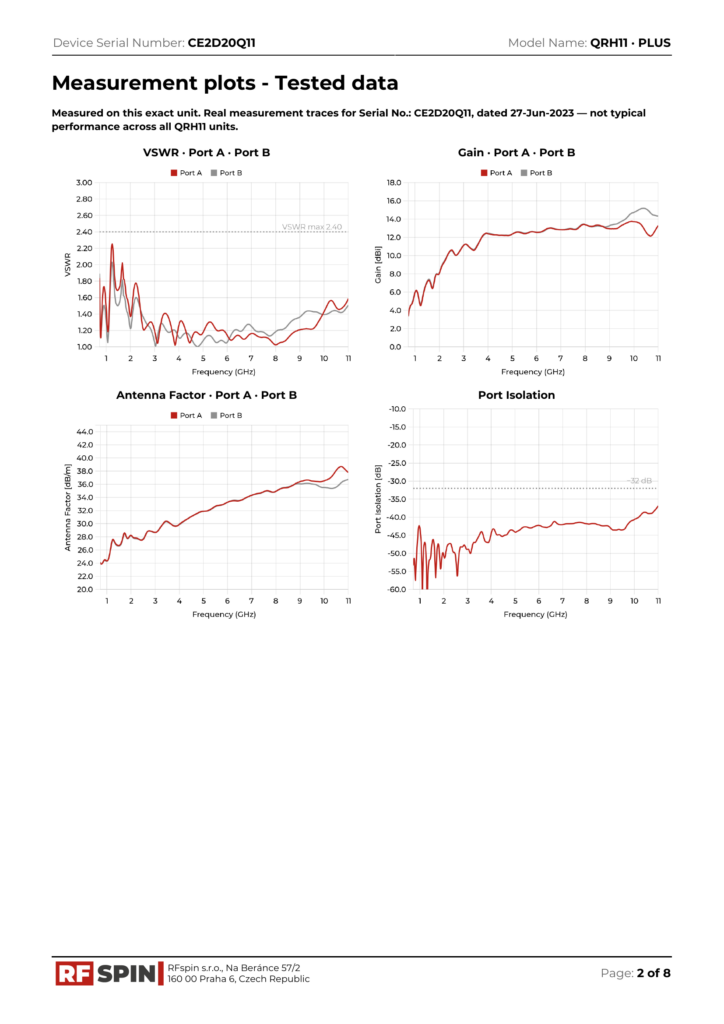

Full PDF calibration report (2D / 3D charts)

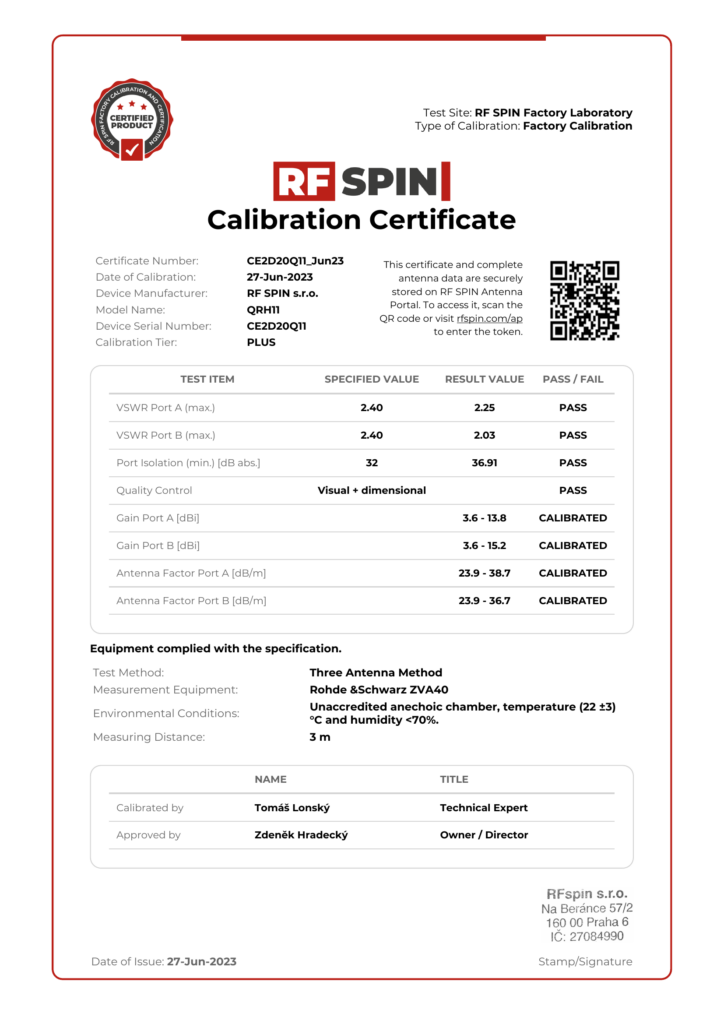

Calibration certificate — standard or accredited

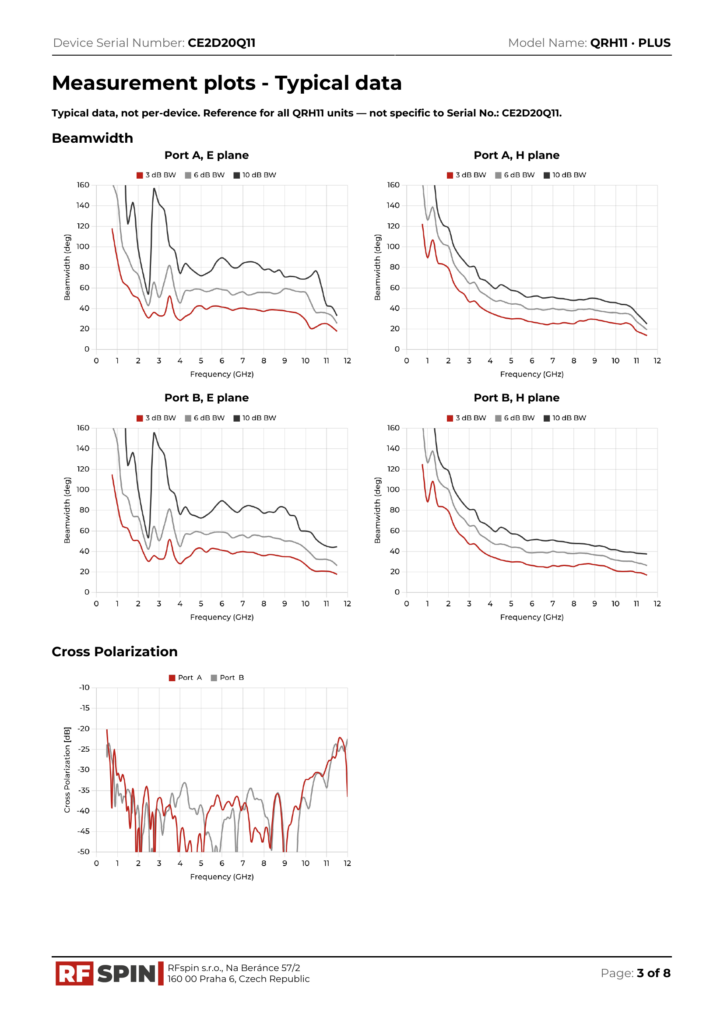

Typical performance curves as a reference baseline

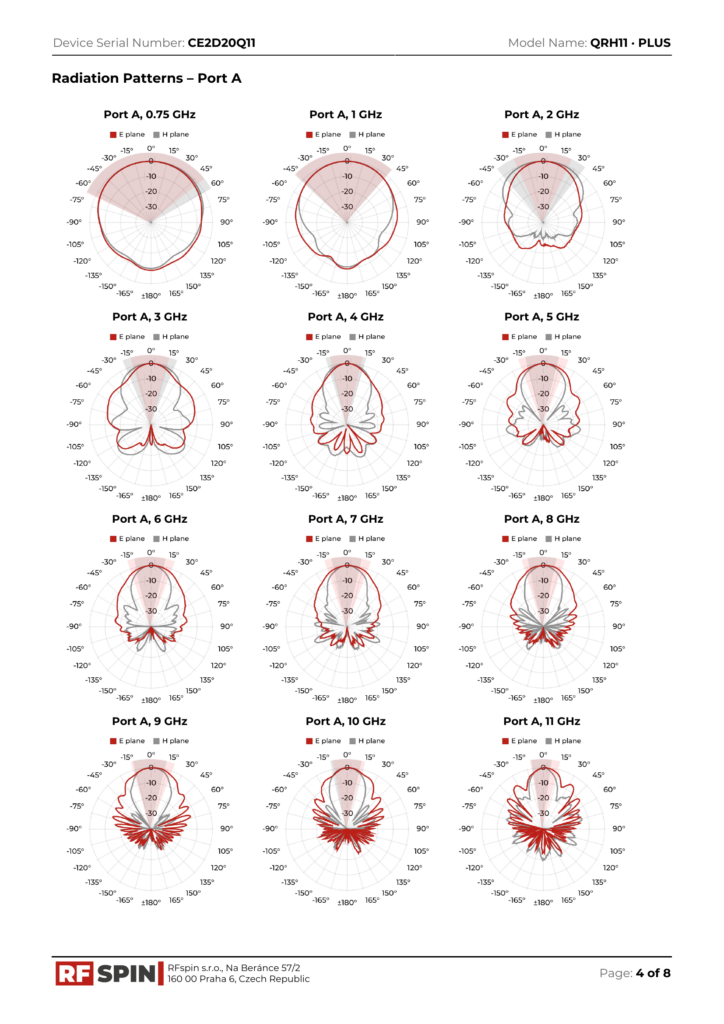

Individually measured gain — 3D radiation patterns provided as typical data
Side-by-side comparison: measured vs. typical
Interactive frequency inspector with synchronized cursor
VSWR, antenna factor, port isolation across the band

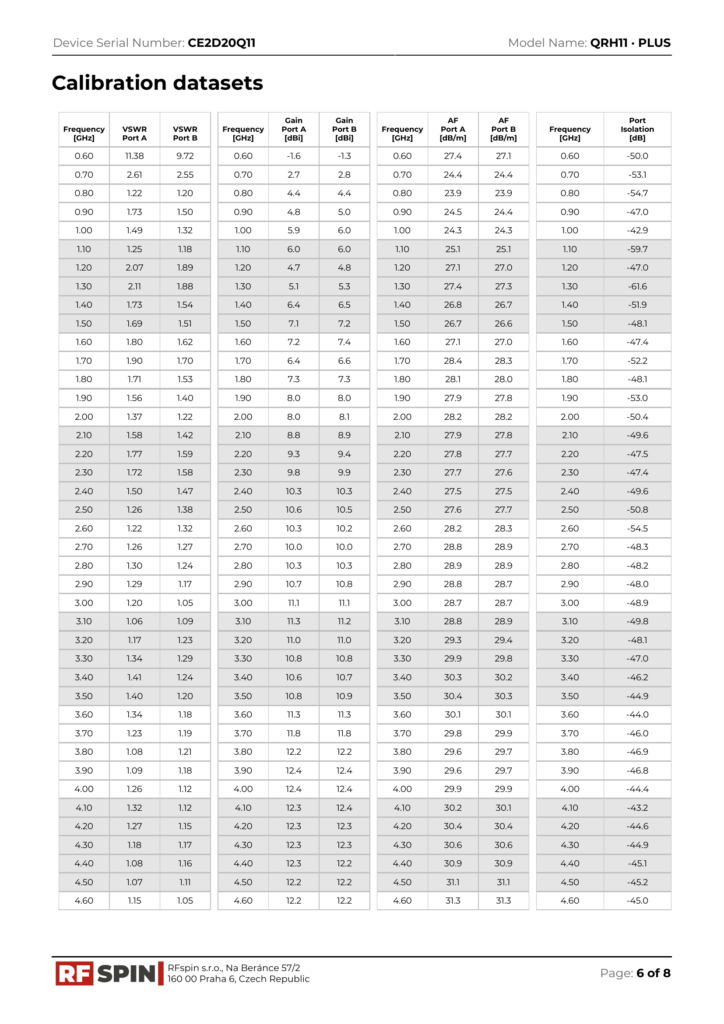

Machine-readable datasets in Excel, CSV, JSON, XML, Touchstone .s1p
REST API for direct integration with automation pipelines
Custom export bundles — by section, format, frequency range
One-click email delivery of any dataset
24h email support
The full RF SPIN Antenna Portal experience above is included with the Plus and Plus Accredited tiers. Antennas with the Essential tier give Antenna Portal access to typical data and the standard PDF report.
Compare tiersThis isn’t a mockup. Open a live Portal entry for a real RF SPIN antenna — pan the interactive frequency inspector, rotate the 3D model, download a dataset, hit the REST API. Everything behaves exactly the way it will for your unit.
Pan the frequency inspector across the band. Rotate the 3D model. Download a dataset. Hit the REST endpoint. The live demo is a real serial number with real measurement data behind it — what you click is what your customers click.
Open Live Antenna Portal
Plus-tier data isn’t just downloadable — it’s queryable. Pull any measurement set directly via REST API in JSON, XLSX, CSV, XML, or Touchstone .s1p, from any HTTP client, simulation tool, or in-house pipeline. No manual exports. No transcription. No version drift.
Pull full reports or single sections on demand
Custom export bundles by section, format, parameter, or frequency range
Pre-formatted for common RF simulation environments
Identical schema across every antenna — script once, reuse forever
REST API · live
# Full report as JSON $ curl https://rfspin.com/wp-json/rfspin/v1/report/CE2D20Q117mnw # Custom bundle, frequency-filtered $ curl -X POST .../report/CE2D20Q117mnw/bundle \ -d 'metrics[]=vswr' \ -d 'format=xlsx' 200 OK Content-Type: application/json { "serial": "CE2D20Q11", "vswr": [...], "gain": [...] }
The Antenna Portal sits behind a QR code printed on every antenna and a 4-character token that ships with it. Both work the moment the antenna leaves our facility.
Point the camera at the QR code printed on the antenna and the Antenna Portal opens straight to that unit’s record. No app needed — any browser works.

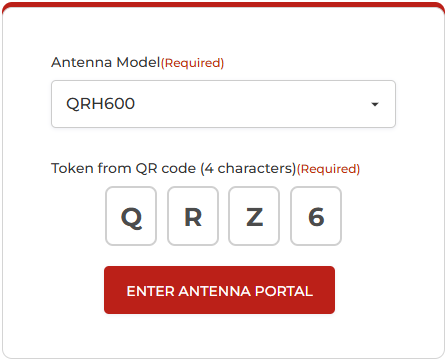

The same 4-character token is printed next to the QR code on the antenna. Type it at rfspin.com/ap from any desktop browser — the same record opens.
No login · No download · No version control headaches
Every RF SPIN antenna keeps its Antenna Portal entry for life — and the data inside grows with your project.
If you bought an RF SPIN antenna five years ago and need its certificate today, scan the QR or enter the token — it’s there. No accounts to recover. No PDF buried in someone’s inbox.
Because every RF SPIN antenna is fully characterized during production, you can upgrade from Essential to Plus tier instantly — we simply unlock the individual datasets that already exist for your serial number.
All Antenna Portal data is generated in our anechoic chamber — instrumented by Anritsu, Rohde & Schwarz, and Keysight.
Accurate up to
120 GHz
in our in-house chamber
up to 3 m
measuring distance
From first sketch to the antenna on your bench — every step kept in-house.
Where new antenna concepts begin — custom design, EM optimization, geometry refined with machine-learning assistance.
Explore R&DPatented lens geometry, gram-budget builds, and weather-rated sealing — beyond category standard.
See our expertiseDesigned, machined, plated, assembled and measured under one roof in Nová Paka — no outsourcing, full traceability.
See our productionAnechoic chambers to 120 GHz. Every antenna individually calibrated and measured before it ships.
See how we measureWhether you’re integrating a single Plus-tier horn into a flight-test setup or scaling Plus Accredited across a fleet, our team will walk you through what’s covered and what to expect.
