        USX

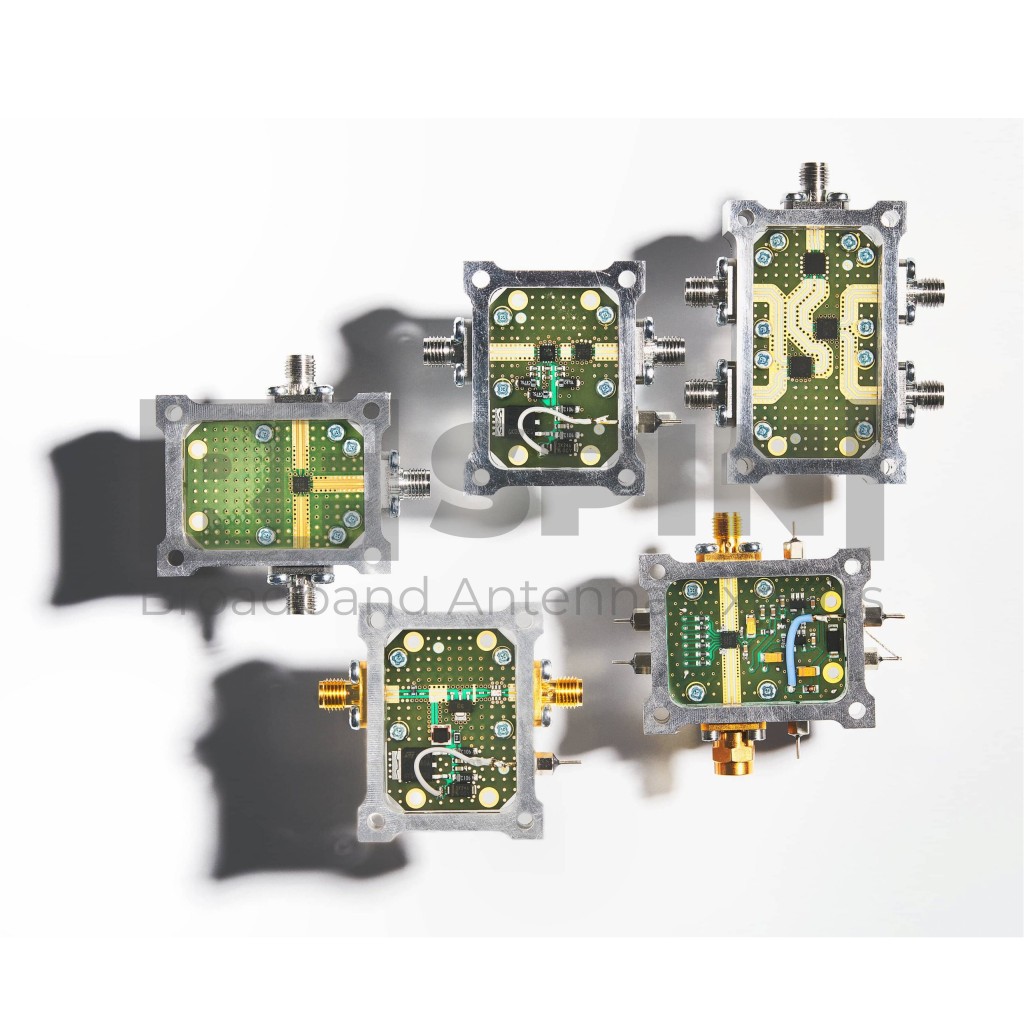

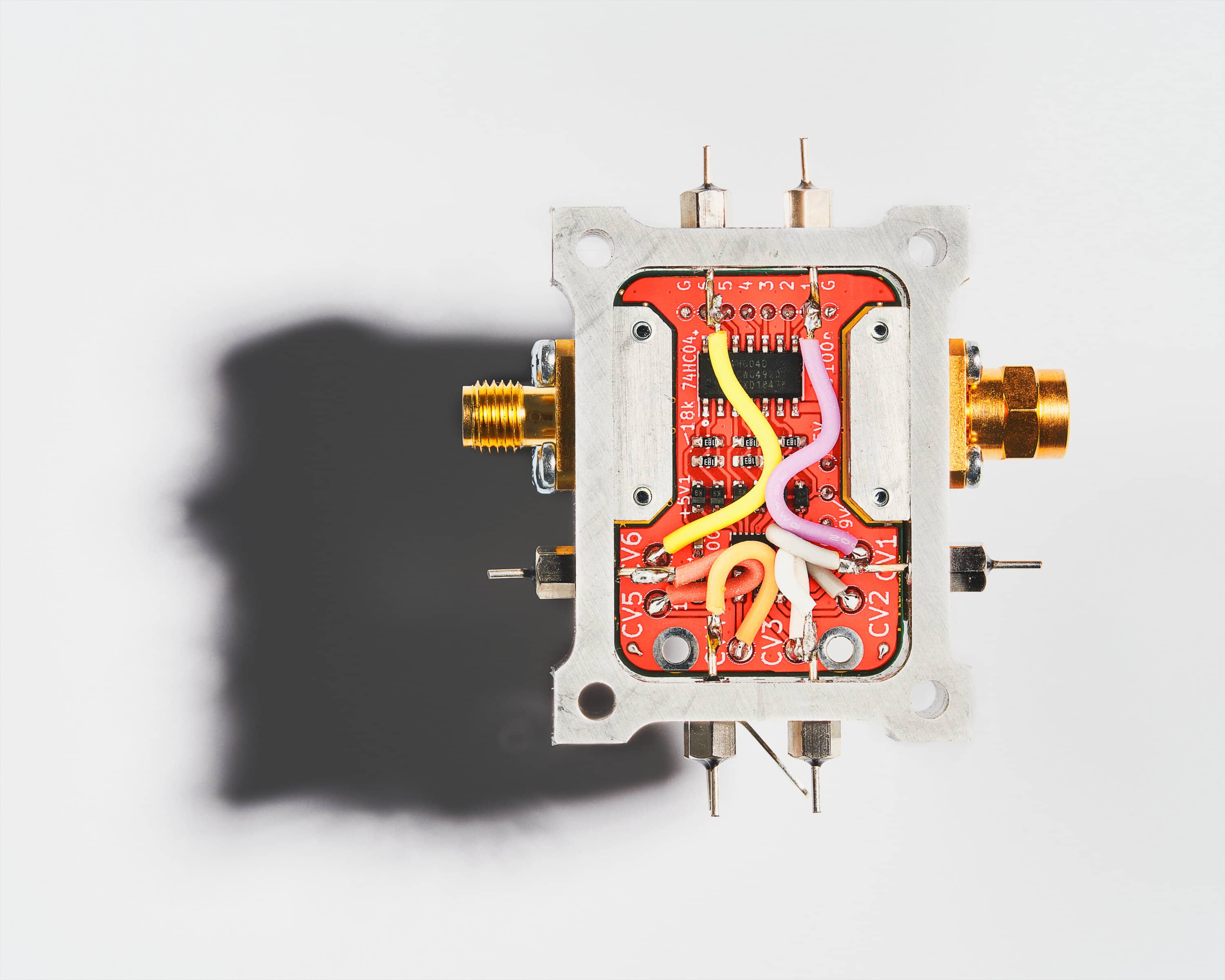

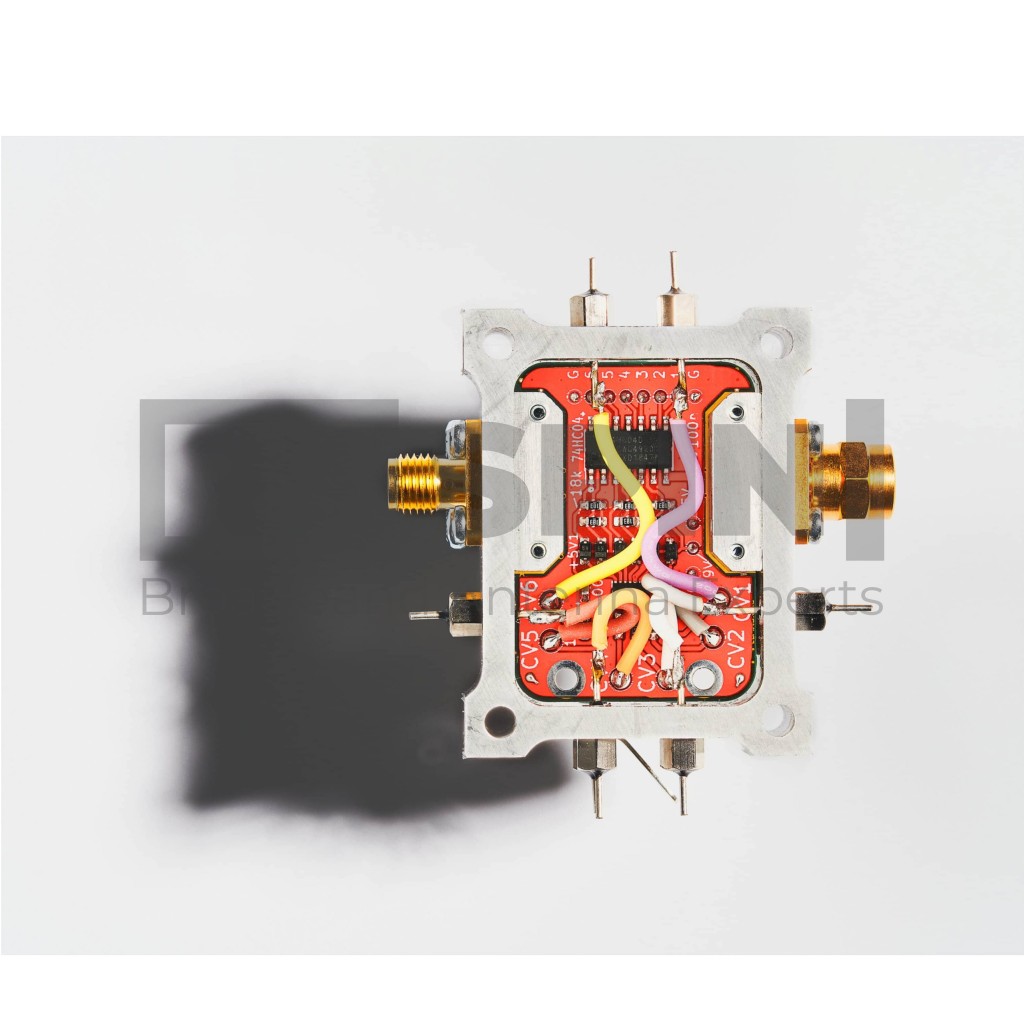

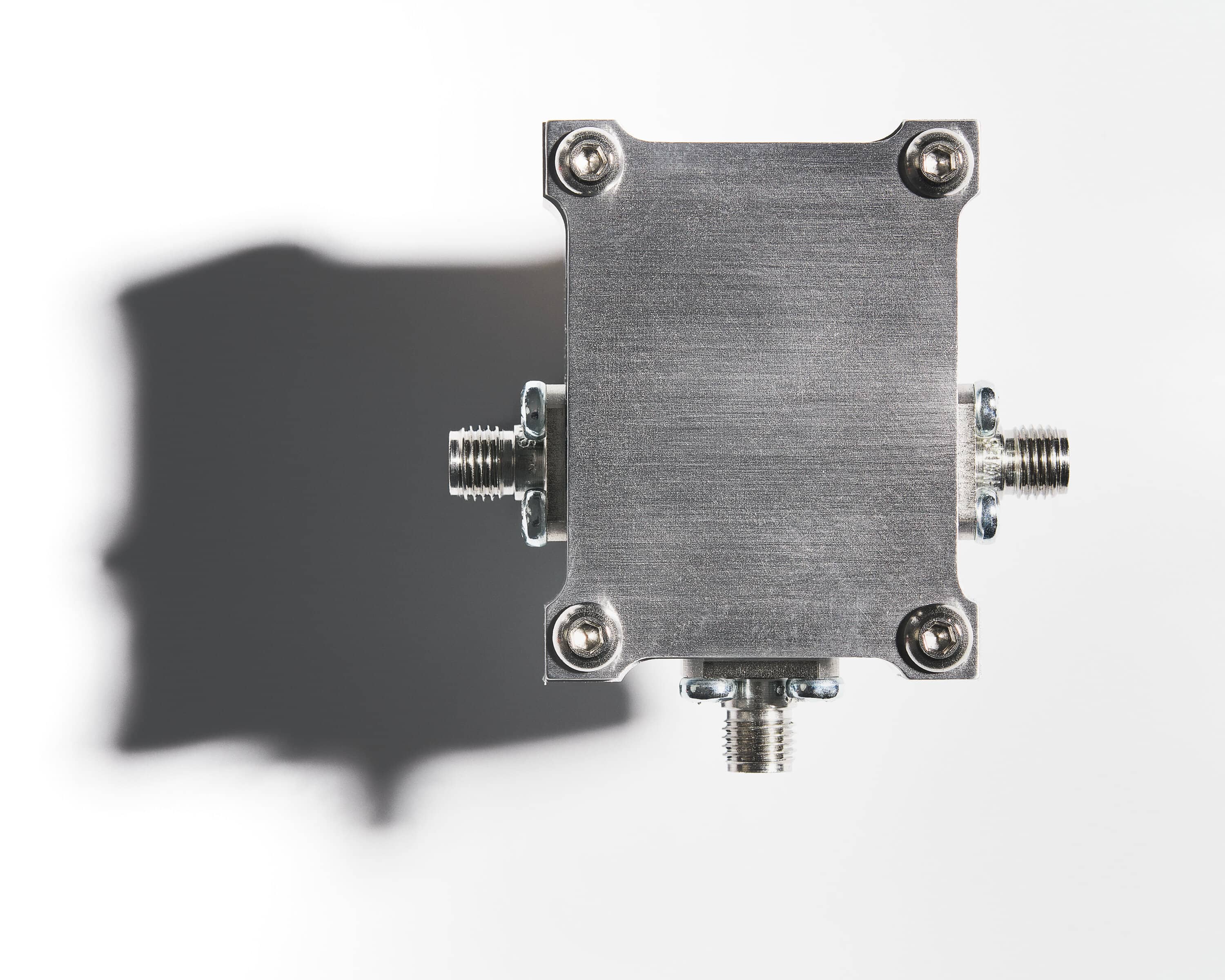

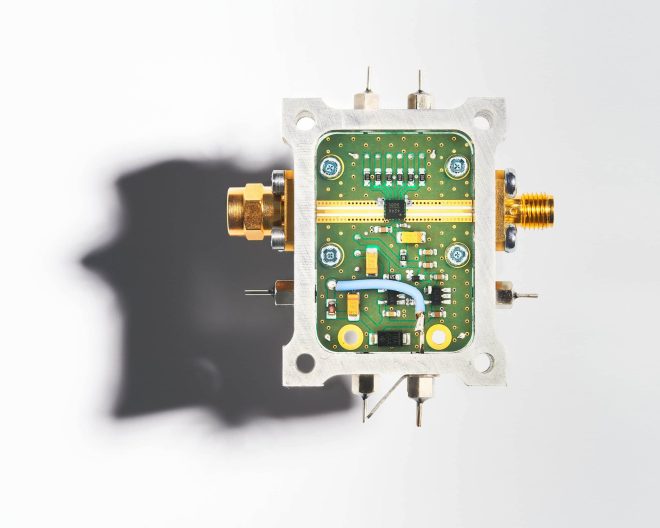

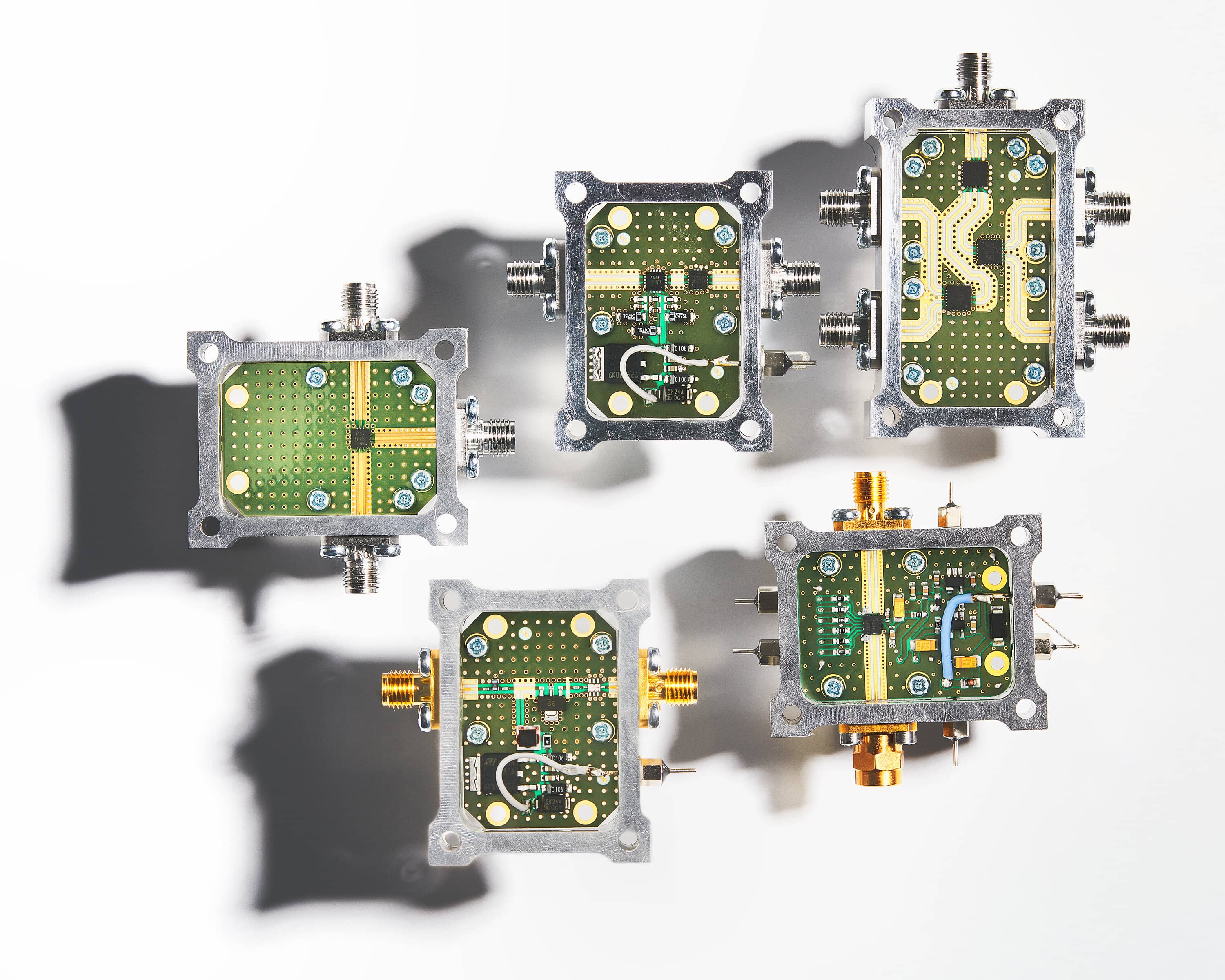

        USX is Universal Substrate Box with pre-drilled holes for SMA or 2.92 connectors for circuits with microstrip or coplanar wiring. Equipped with all accessories, it allows fast clamping
        of any active and passive RF circuits of various thicknesses
        from 0.2 to 1.2 mm. The cap provides shielding and allows
        the bonding of additional attenuation materials to suppress
        waveguide vision. Assembly is very easy and quick and
        allows reuse with other substrates.
        Thanks to the precision ground blocks, perfect
        ground plane transition is ensured and the connector’s
        center conductor does not need to be soldered.

        The box is offered in two sizes:
        • USX-4 allows up to four connectors with PCB size
        25 x 35 mm
        • USX-6 allows up to six connectors with PCB size 25
        x 45 mm.

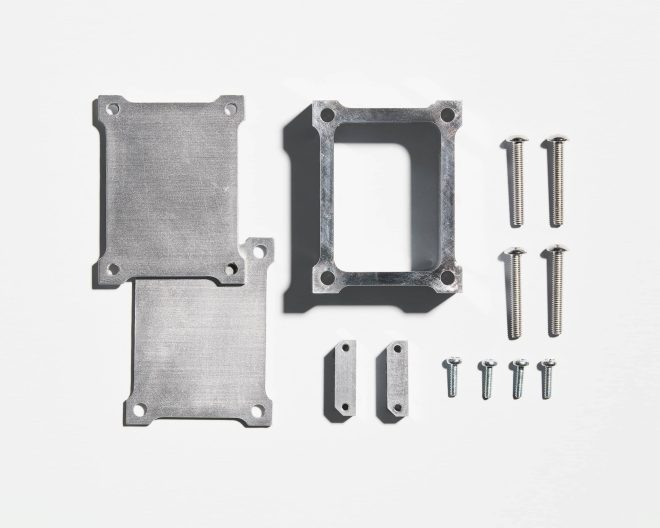

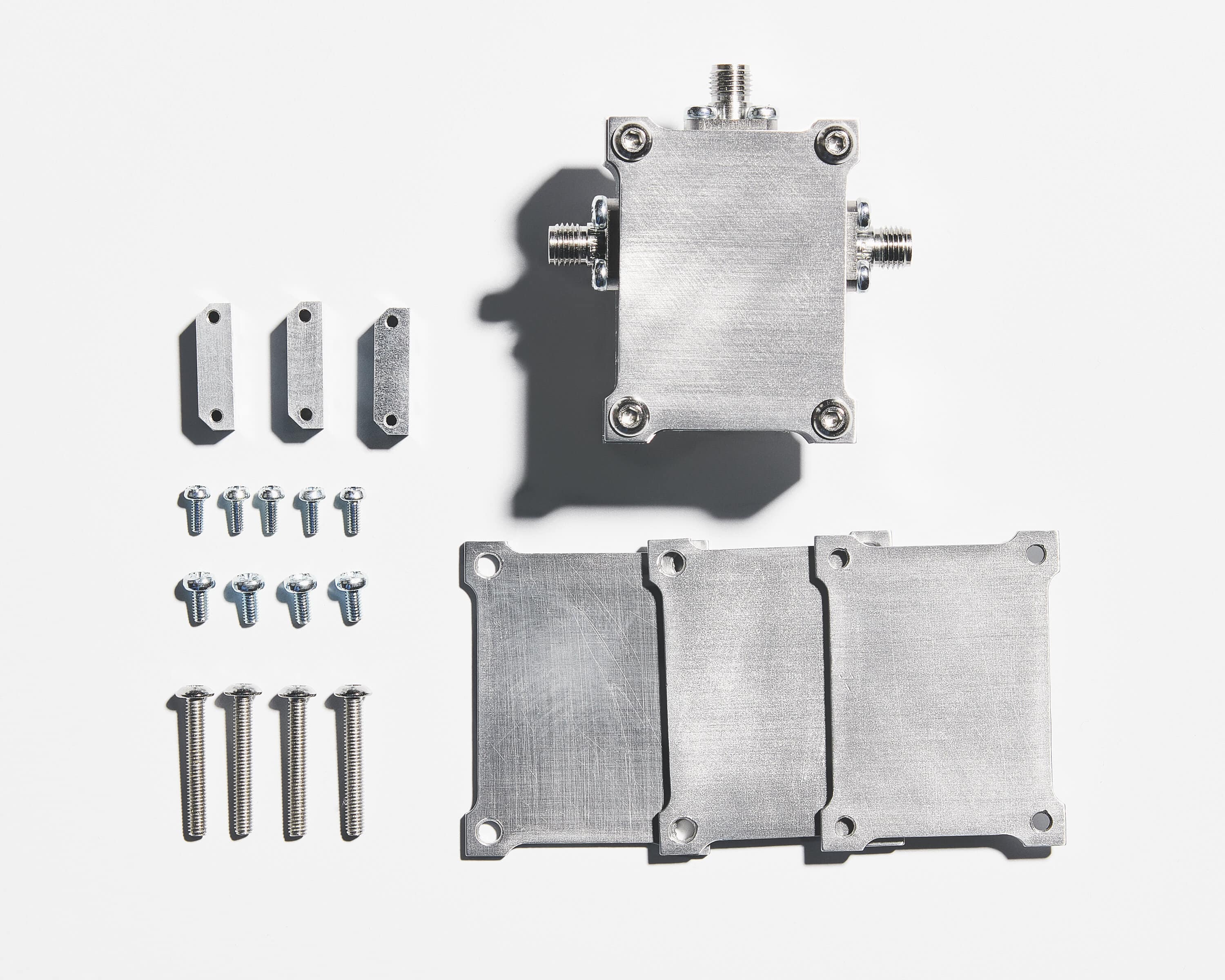

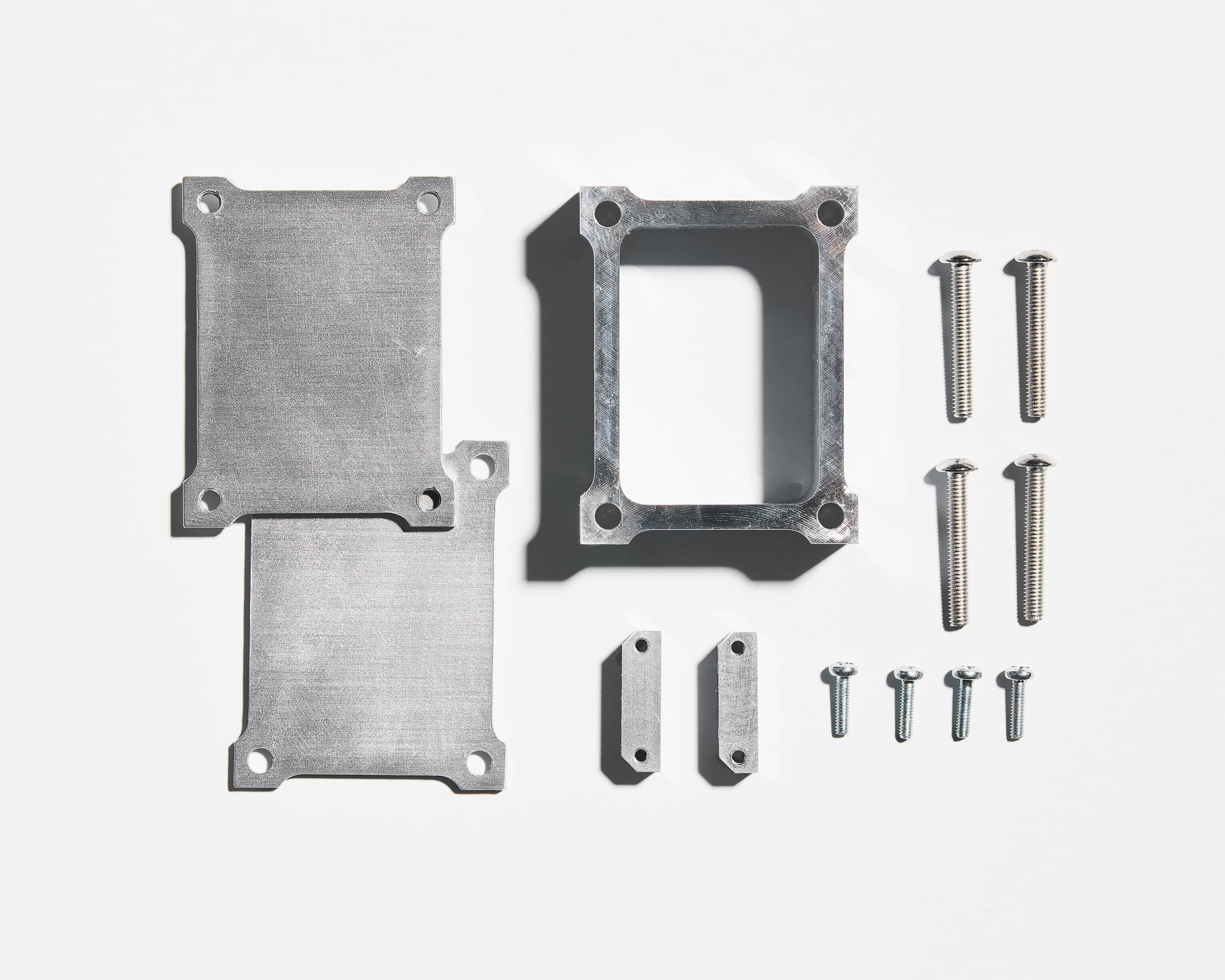

        The package includes all parts for assembly

        1. metal box with pre-drilled holes  with top and bottom cover
        2. ground blocks (4 or 6 pcs based on chosen size)
        3. screws (PCB mount screws and cover screws
        4. connectors (SMA or 2.92)

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Product Parameters

        Product identification

        • Product Name USX
        • Product Category

        Physical specifications

        • Width 35 mm (1.378 in)
        • Height 10 mm (0.394 in)
        • Depth 45 mm (1.772 in)
        • Weight 0.005 kg (0.011 lb)

        Packaging and Accessories

        Accessories

        • Standard mounting flange
