QRH18ER Quad Ridged Horn Antenna | 1 GHz – 18 GHz
Frequency Range
1 GHz – 18 GHz
VSWR (avg.)
1.5
Gain
4 – 16 dBi
Impedance
50 Ohm
Connector
SMA (female)
Power (CW / Peak)
100 W / 170 W
Polarization
Dual Linear, Circular (with hybrid)
Select files to be sent by e-mail
Product Highlights
Key Features
- Suitable for 5G/6G
- Premium broadband antenna
- Precision-tuned for optimal performance
- Designed for versatile applications
- Stable high gain
Performance & Versatility
- Circular polarization (optional)
- QR code to access Antenna Portal
- Wide bandwidth and low return loss
- High isolation values
- Multiple mounting options
- Enhanced signal strength
Manufacturing & Technologies
- AU Technology
- In-house production
- High-grade aluminum alloy
Product Parameters
Product identification
- Product Name QRH18ER
- Product Category Quad Ridged Horn Antenna
Electrical specifications
- Frequency Range 1 GHz – 18 GHz
- VSWR (max.) 2.5
- VSWR (avg.) 1.5
- Impedance 50 Ohm
- Connector SMA (female)
- Power (CW / Peak) 100 W / 170 W
- Antenna Factor 25 – 42 dB/m
- Port Isolation -30 dB
- Polarization Dual Linear, Circular (with hybrid)
Operating conditions
- Rated Temperature Range -10°C – +50°C
- Storage Temperature Range -20°C – +70°C
Physical specifications
- Width 360 mm (14.173 in)
- Height 270 mm (10.630 in)
- Depth 360 mm (14.173 in)
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR

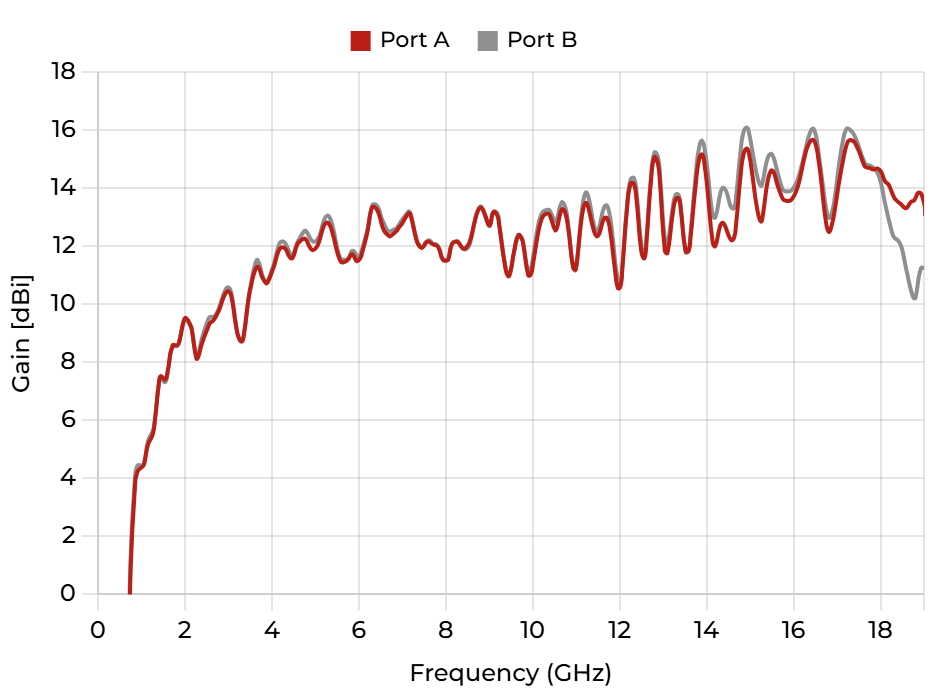

Gain

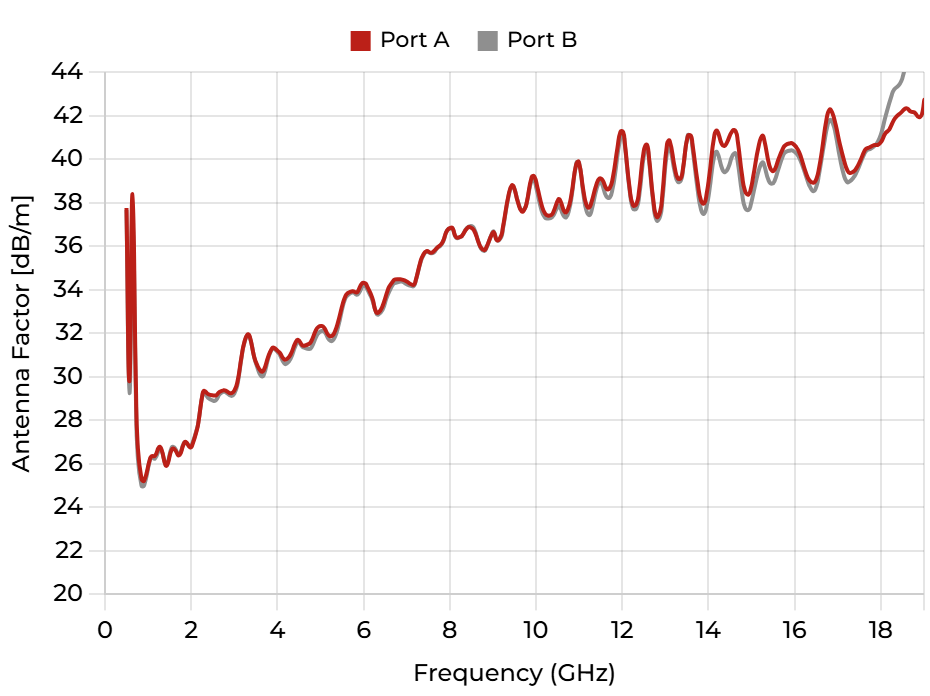

Antenna Factor

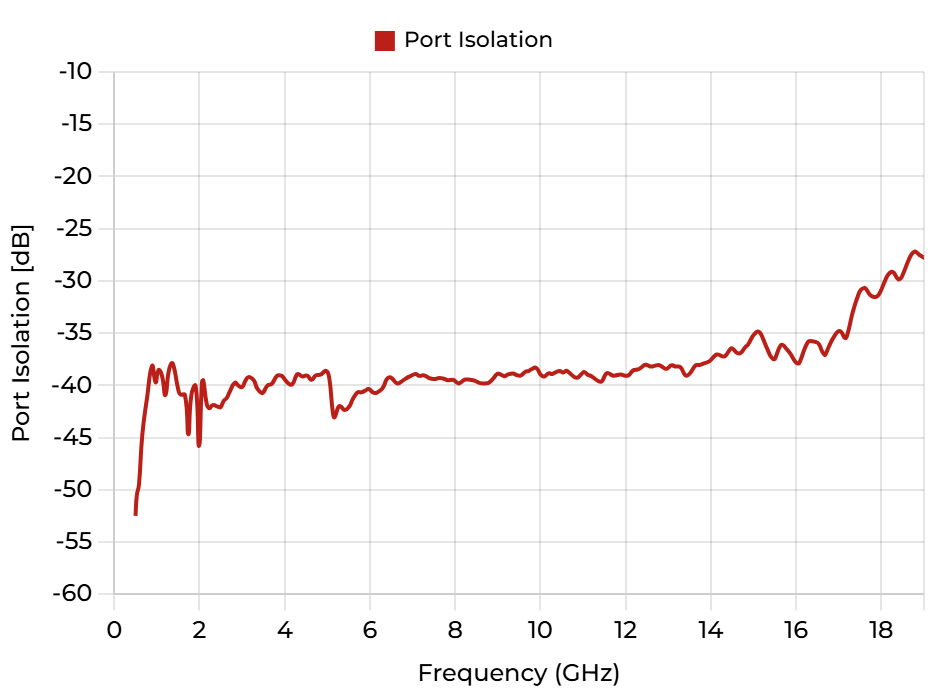

Port Isolation
Packaging and Accessories
