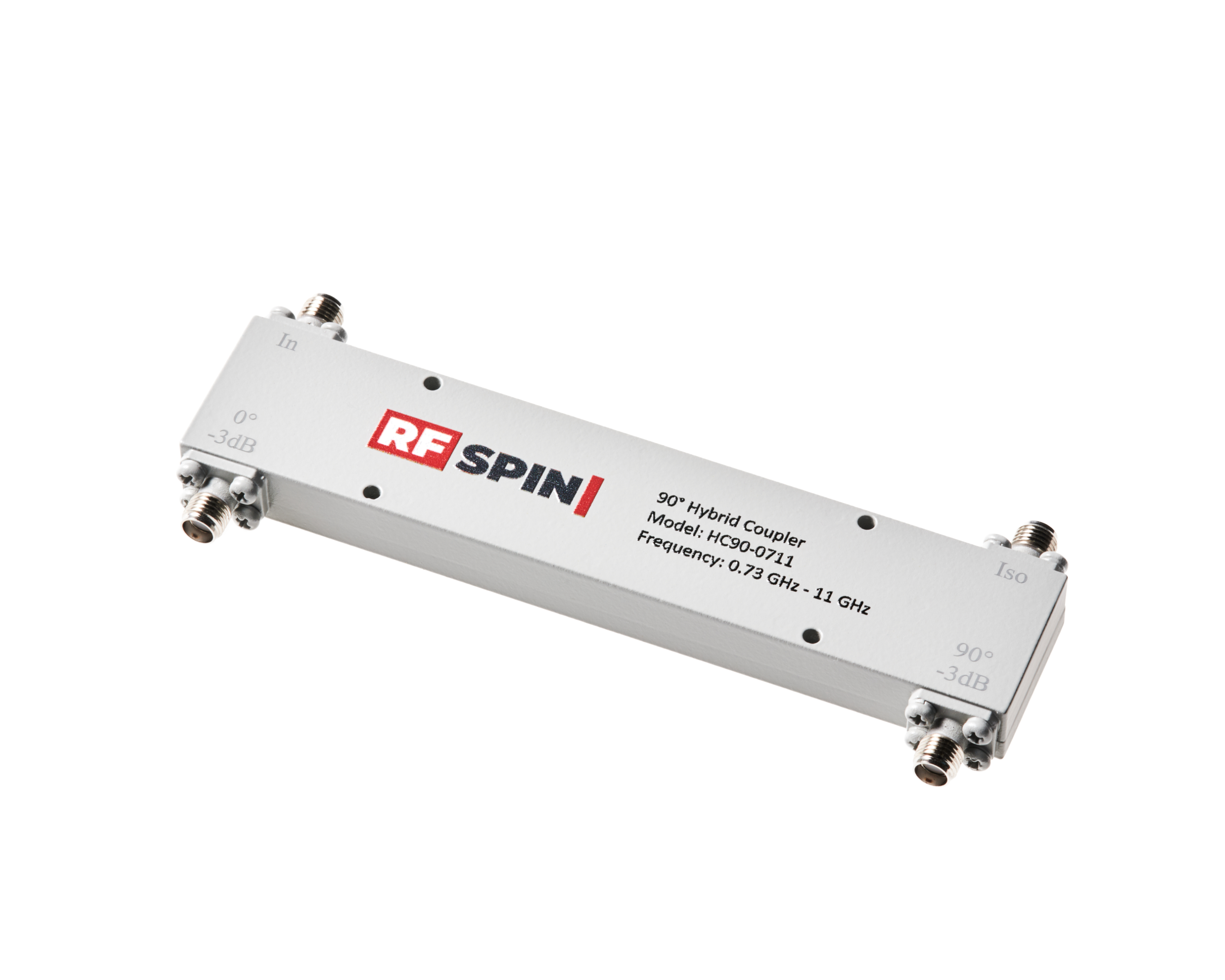

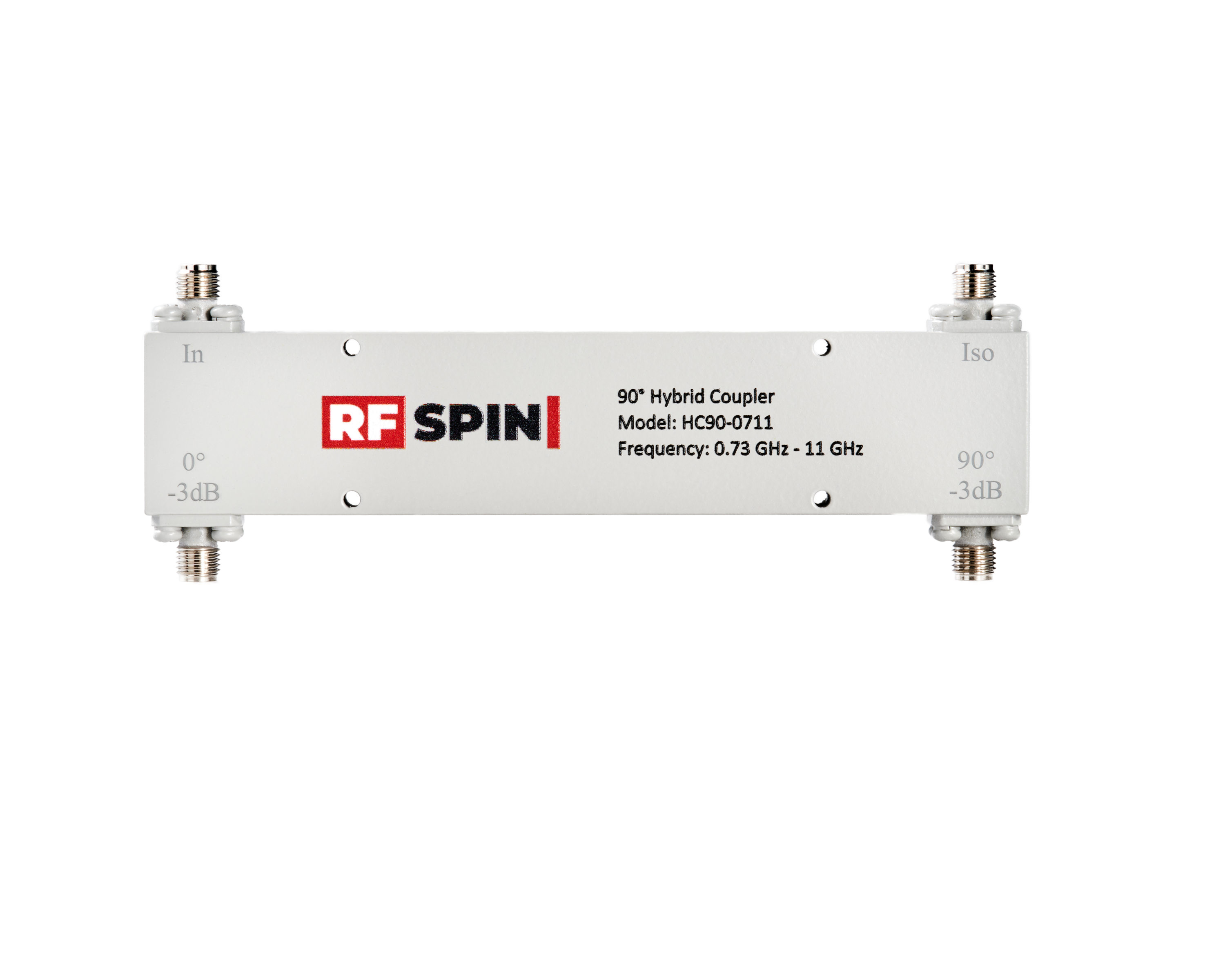

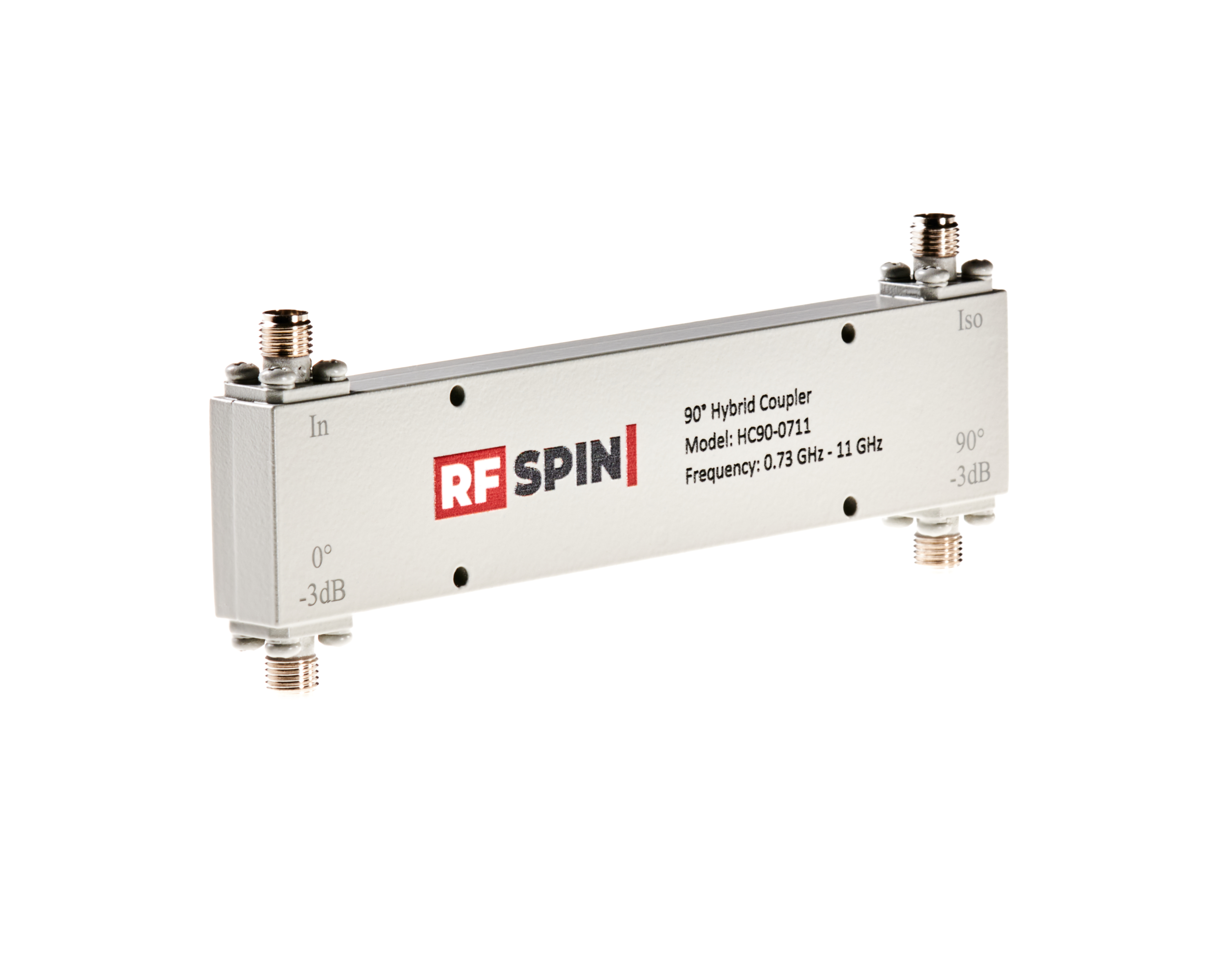

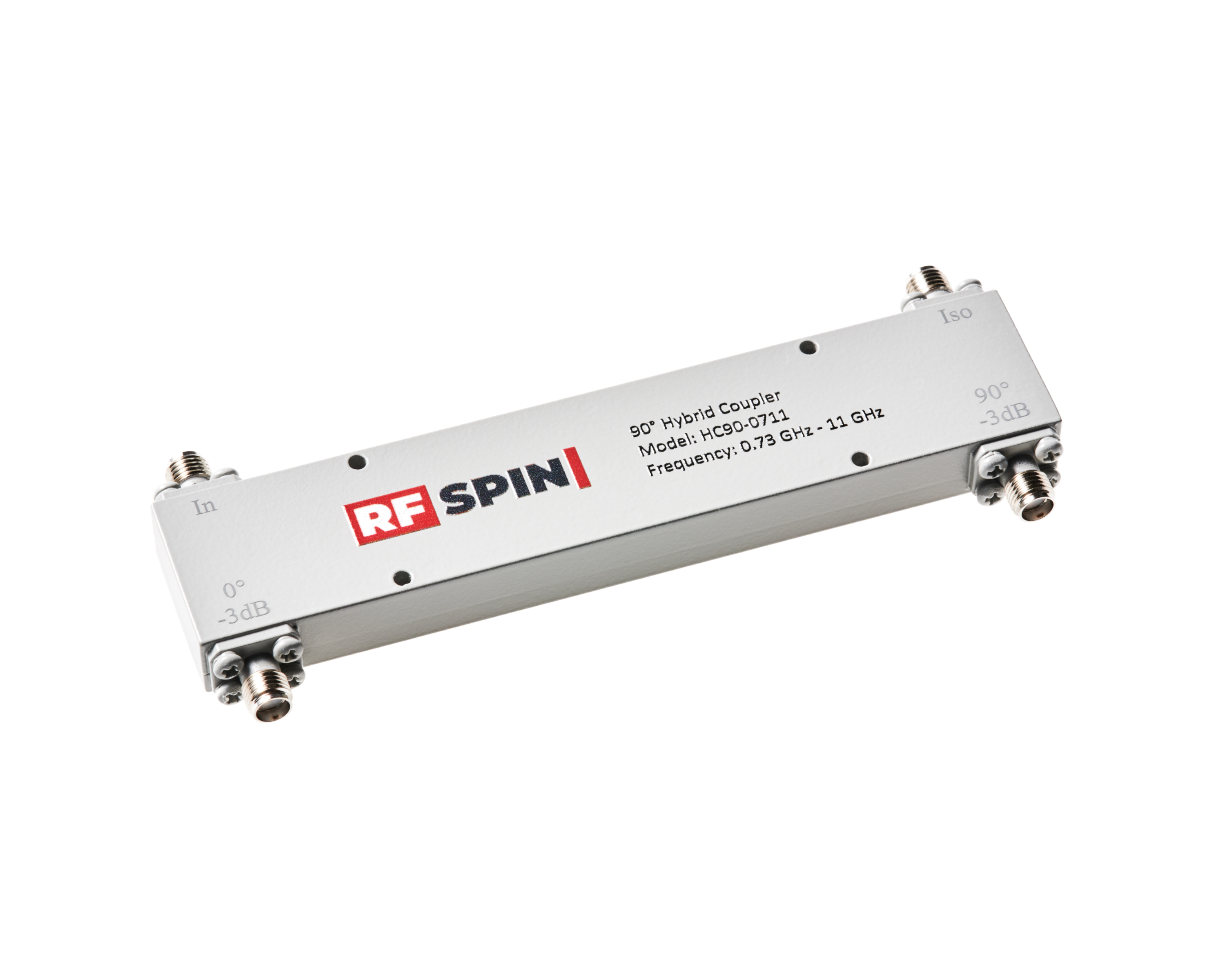

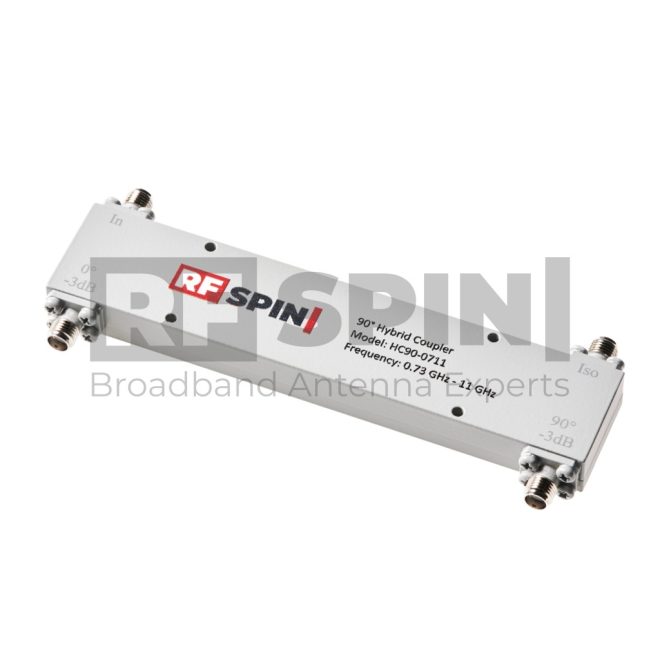

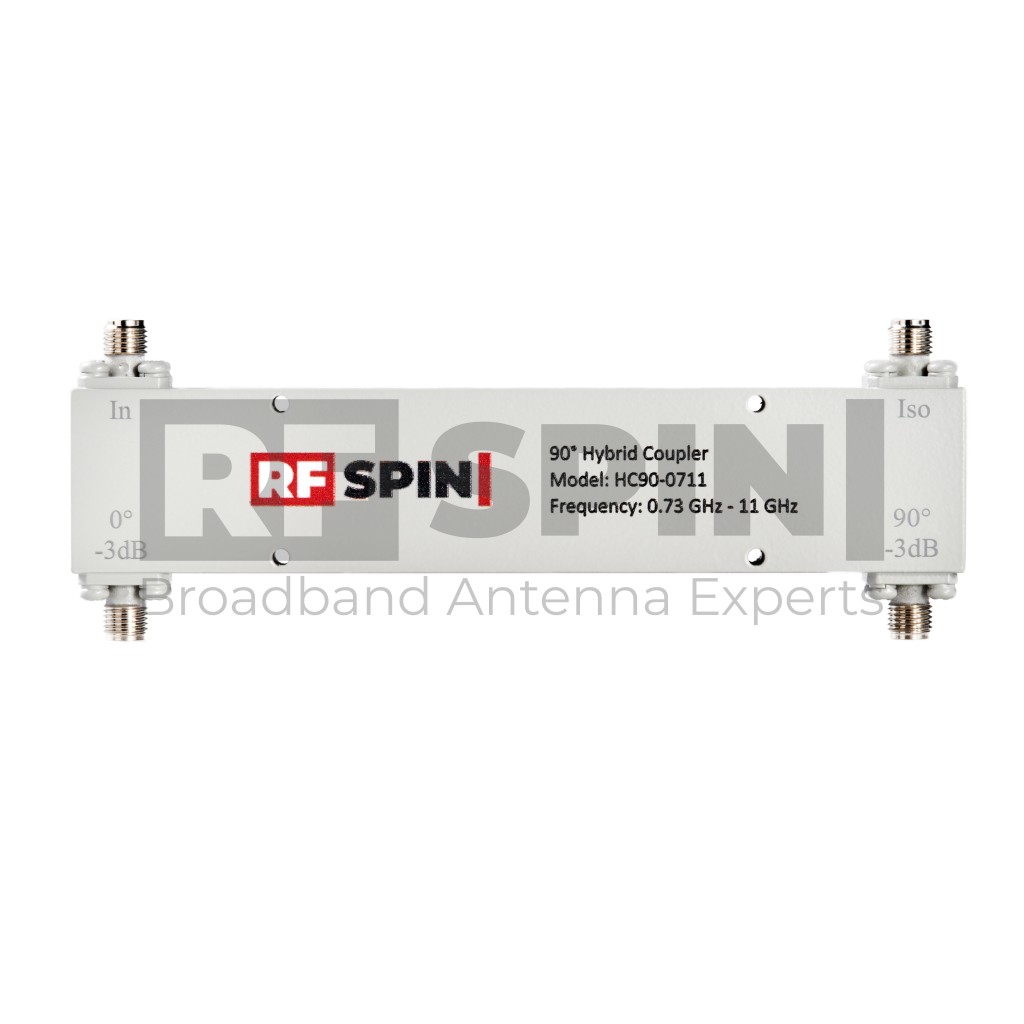

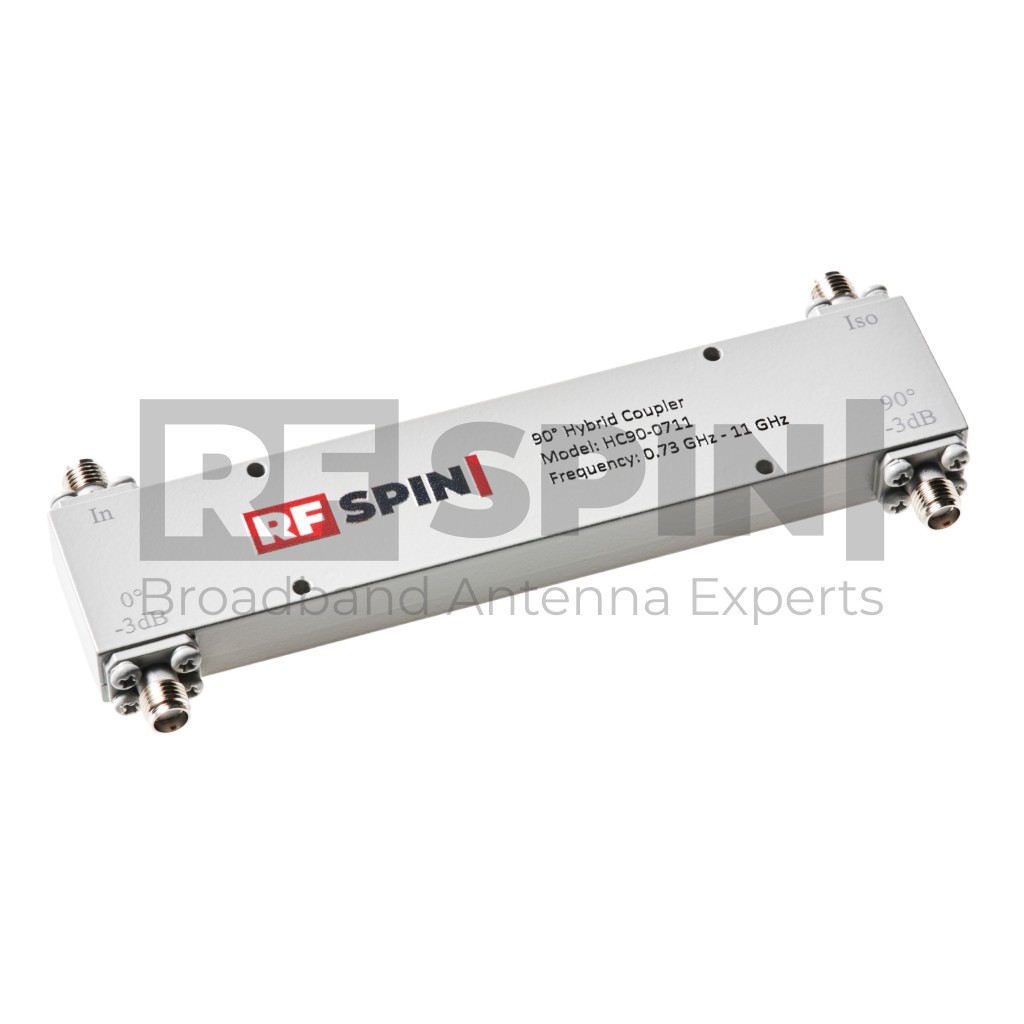

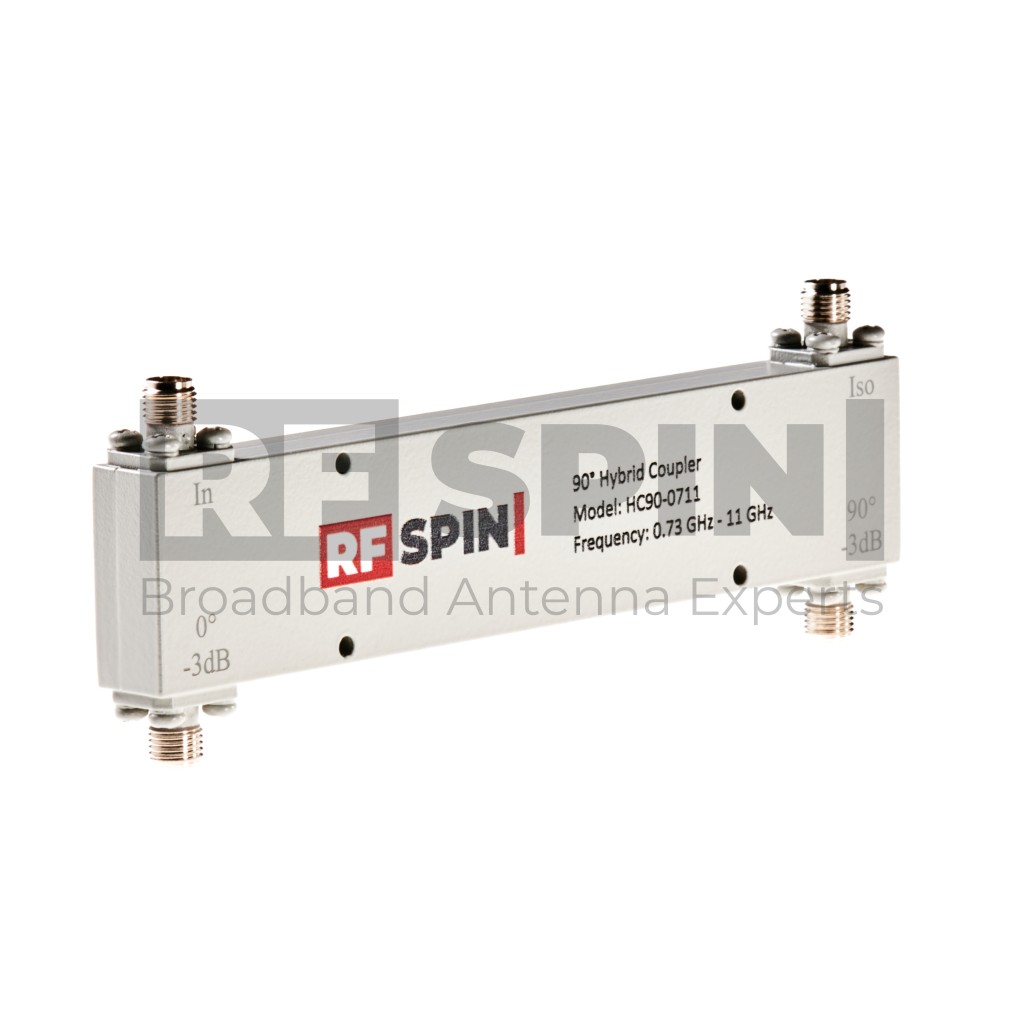

        HC90-0711

        Power Divider

        The hybrid coupler is a four-port device that equally splits input signals with a 90-degree phase shift between output ports. RF SPIN hybrid couplers are specially developed to suit our antenna portfolio. HC90-0711 has wide bandwidth from 0.73 GHz up to 11 GHz, low VSWR, low insertion loss, and tight amplitude and phase balance. This power divider is optimal with dual-polarized antenna QRH11.

        Availability: Most products are on stock. Please contact us for more information or large quantity orders.

        Request a Quote

        Features and Specifications

        Technical Performance

        • Wide bandwidth
        • Low return loss

        Design and Surface Treatment

        • Corrosion-resistant coating

        Manufacturing Technology

        • High quality SMA type coaxial connector

        Product Packaging Includes

        • 90° hybrid coupler

        Product Parameters

        Product identification

        • Product Name HC90-0711
        • Product Category Power Divider

        Electrical specifications

        • Frequency Range 730 MHz – 11 GHz
        • VSWR (max.) 1.4
        • VSWR (avg.) 1.15
        • Impedance 50 Ohm
        • Insertion Loss (max.) 1.5 dB
        • Connector SMA
        • Power (CW / Peak) 50 W / 100 W
        • Phase Imbalance 10 deg.
        • Amplitute Balance (max.) 0.8 dB
        • Phase Balance (max.) ±10 deg.
        • Isolation 20 dB.
        • Polarization Linear

        Physical specifications

        • Width 104 mm (4.094 in)
        • Height 11 mm (0.433 in)
        • Depth 25 mm (0.984 in)

        Operating conditions

        • Rated Temperature Range 0°C – +50°C
        • Storage Temperature Range -20°C – +70°C

        Parameters and Performance

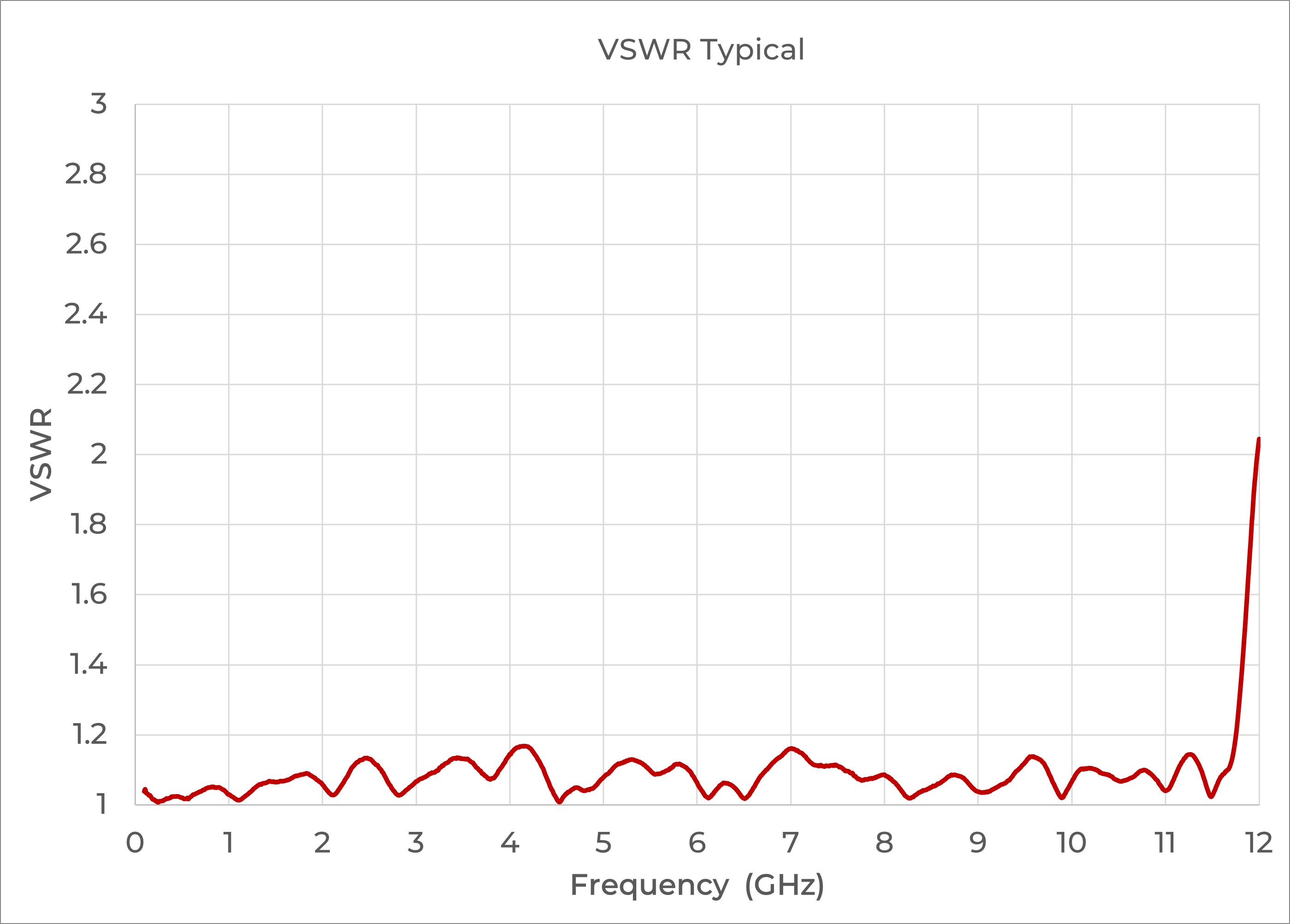

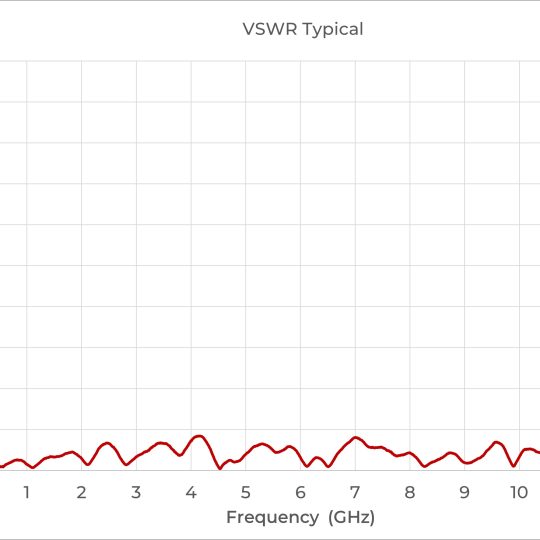

        Typical parameters

        Packaging and Accessories

        What's in a box

        • HC90-0711 Device

        Accessories

        • Standard mounting flange

        Optional Accessories

        Custom services

        • Custom mounting solutions
