DRHX34 Double Ridged Horn Antenna | 500 MHz – 34 GHz
The DRHX34 is a high-performance, ultra-wideband horn antenna operating continuously from 500 MHz up to 34 GHz (usable to 40 GHz). Designed to replace multiple narrower-band setups, it delivers stable performance across the entire frequency range, drastically reducing the number of components you need to source, calibrate, and maintain.
3D Simplified Model
Product Highlights
Key Features
- Antenna with lens
- Circular polarization (native)
- Suitable for EMC/EMI
- Premium broadband antenna
- Precision-tuned for optimal performance
- Designed for versatile applications
- Stable high gain
Performance & Versatility
- QR code to access Antenna Portal
- Wide bandwidth and low return loss
- Multiple mounting options
- Enhanced signal strength
Manufacturing & Technologies
- AU Technology
- SPM Technology
- In-house production
- High-grade aluminum alloy
Product Parameters
Product identification
- Product Name DRHX34
- Product Category Double Ridged Horn Antenna
Electrical specifications
- Frequency Range 500 MHz – 34 GHz
- VSWR (max.) 2.9
- VSWR (avg.) 1.34
- Impedance 50 Ohm
- Connector K (female)
- Power (CW / Peak) 25 W / 50 W
- Antenna Factor 21 – 45 dB/m
- Polarization Linear
Physical specifications
- Width 230 mm (9.055 in)
- Height 225 mm (8.858 in)
- Depth 430 mm (16.929 in)
- Weight 2.255 kg (4.971 lb)
Mechanical Drawings
Antenna
Mounting flange
Parameters and Performance
Typical parameters
VSWR
Gain
Antenna Factor
Cross Polarization
Beamwidth

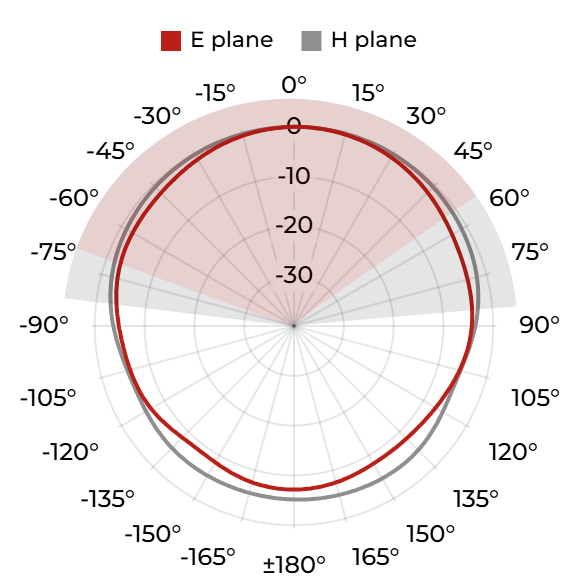

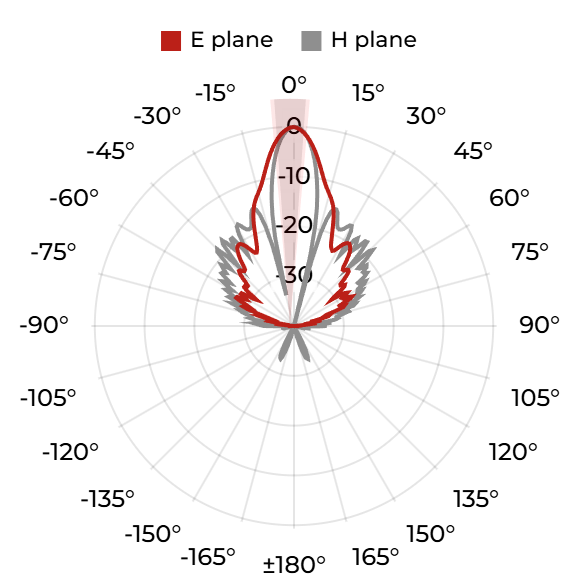

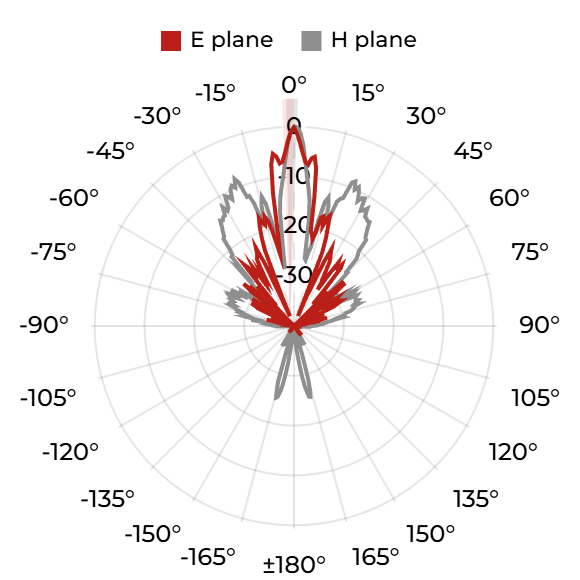

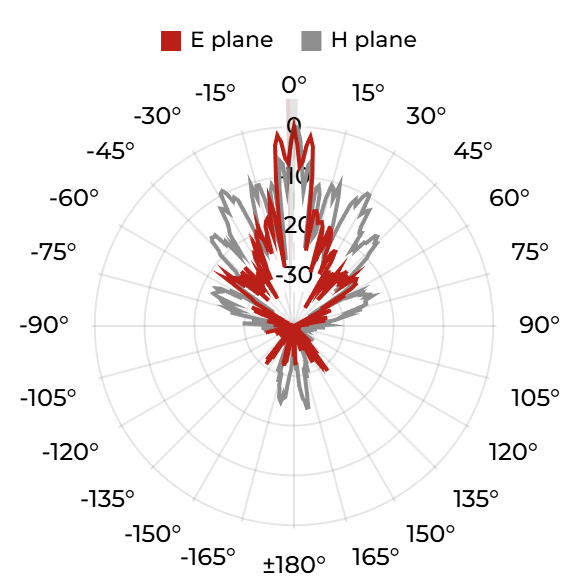

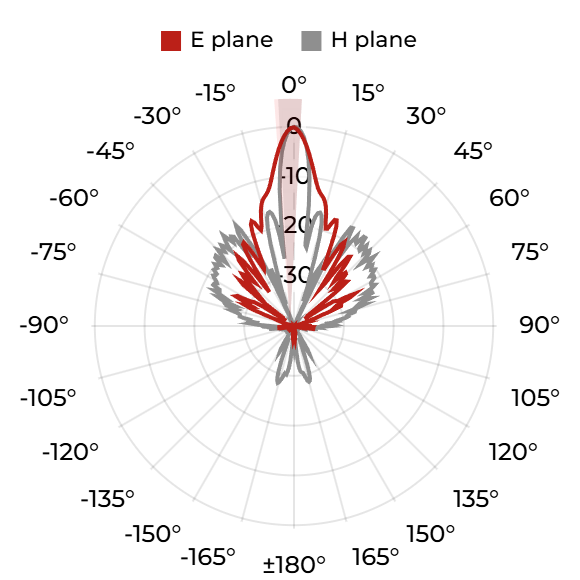

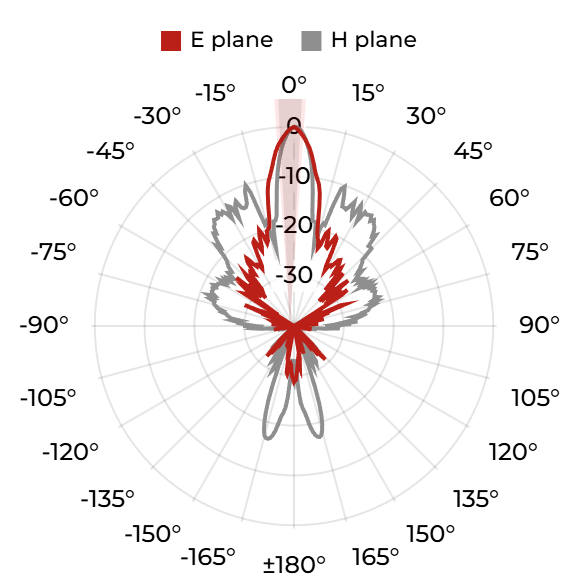

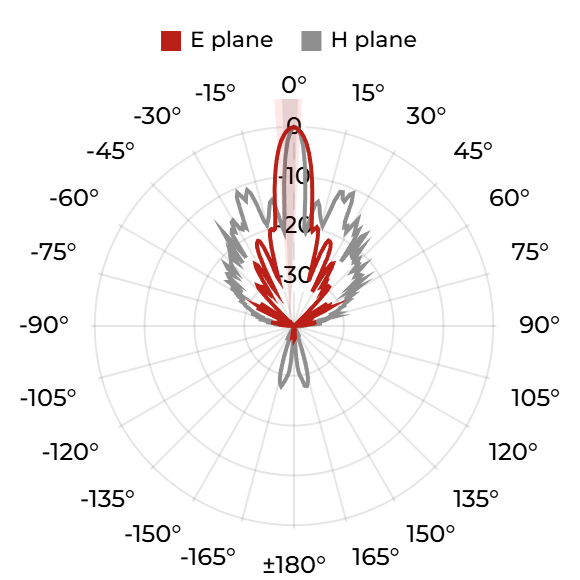

Radiation Patterns
0.5 GHz

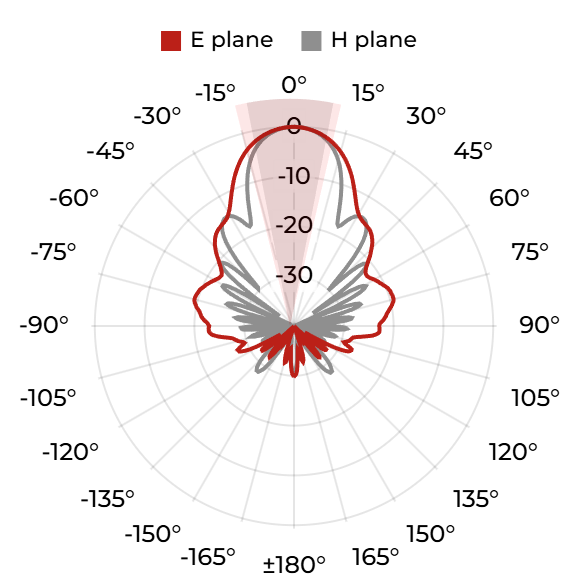

2 GHz

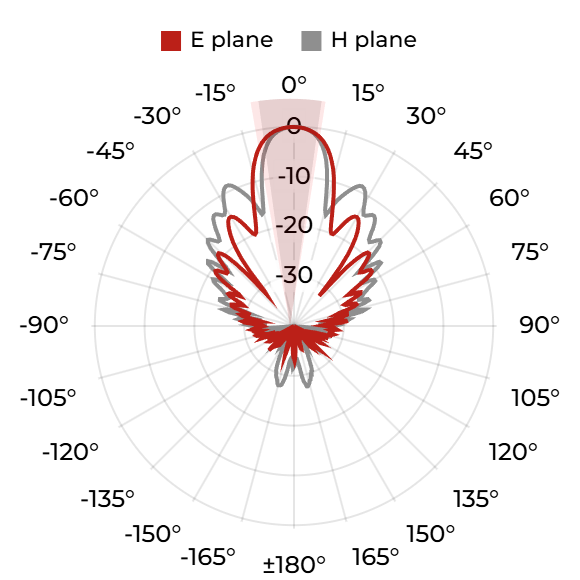

5 GHz

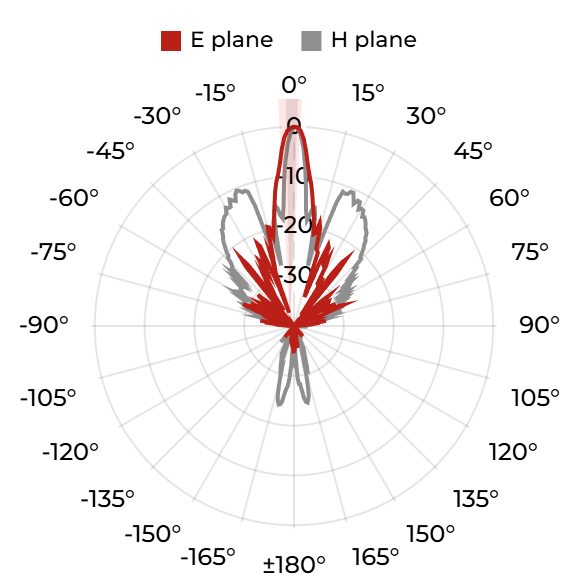

8 GHz
12 GHz
16 GHz

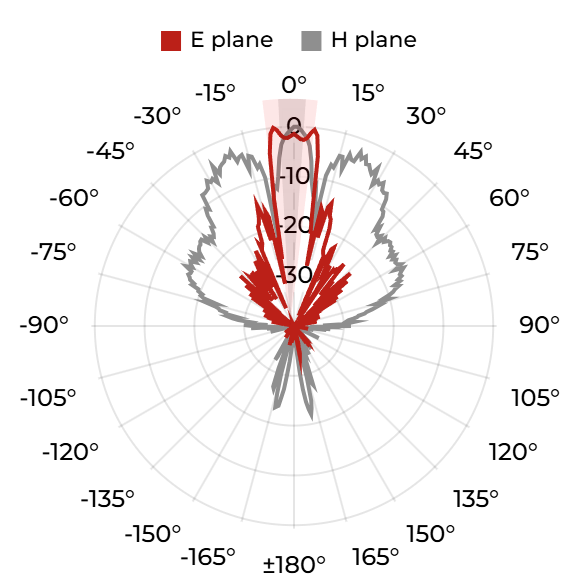

20 GHz
24 GHz
28 GHz
32 GHz
34 GHz
40 GHz
Packaging and Accessories
Accessories
- Standard mounting flange
Manufacturer Information
RFspin s.r.o.
Na Beránce 57/2
160 00 Prague 6
Czech Republic
info@rfspin.com
+420 245 008 847
